Trotec TCH 1510 E User manual

TRT-BA-TCH1510E-TCH2510E-TC2020-45-002-EN
TCH 1510 E / TCH 2510 E
EN
OPERATING MANUAL
CONVECTOR
EN This product is only suitable for well
insulated spaces or occasional use.

2 EN
convector TCH 1510 E / TCH 2510 E
Table of contents
Notes regarding the operating manual.................................2
Safety .....................................................................................2
Information about the device................................................5
Transport and storage...........................................................6
Assembly and installation.....................................................6
Operation ...............................................................................9
Errors and faults..................................................................12
Maintenance ........................................................................12
Technical annex...................................................................13
Disposal ...............................................................................15
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of hot surface
This symbol indicates dangers to the life and health of
persons due to hot surface.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
TCH 1510 E
https://hub.trotec.com/?id=44797
TCH 2510 E
https://hub.trotec.com/?id=44798
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
Warning
Children of less than 3years should be kept away from
the device unless continuously supervised.
Children aged from 3years and less than 8years shall
only switch on/off the appliance provided that it has
been placed or installed in its intended normal
operating position and they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
Children aged from 3years and less than 8years shall
not plug in, regulate and clean the appliance or
perform user maintenance.

EN 3
convector TCH 1510 E / TCH 2510 E
Warning
Do not use the device in small rooms if persons are
present who cannot leave the room independently and
who are not under constant supervision.
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Do not use the device in aggressive atmosphere.
• Only put up the device in an upright, stable position on firm
ground.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device to directly squirting water.
• Never insert any objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not sit on the device.
• This appliance is not a toy. Keep away from children and
animals. Do not leave the device unattended during
operation.
• Check accessories and connection parts for possible
damage prior to every use of the device. Do not use any
defective devices or device parts.
• Ensure that all electric cables outside of the device are
protected from damage (e.g. caused by animals). Never
use the device if electric cables or the power connection
are damaged!
• The mains connection must correspond to the
specifications in the Technical annex.
• Insert the mains plug into a properly fused mains socket.
• Observe the device's power input, cable length and
intended use when selecting extensions to the power
cable. Completely unroll extension cables. Avoid electrical
overload.
• Before carrying out maintenance, care or repair work on
the device, remove the mains plug from the mains socket.
Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from
the mains socket when the device is not in use.
• Do not under any circumstances use the device if you
detect damages on the mains plug or power cable.
If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Defective power cables pose a serious health risk!
• During the installation of the device observe the minimum
distances from walls and other objects as well as the
storage and operating conditions specified in the Technical
data chapter.
• Do not use the device in immediate proximity to curtains,
beds or sofas.
• Make sure that the air inlet and outlet are not obstructed.
• Make sure that the suction side is kept free of dirt and
loose objects.
• Do not place the device on combustible ground.
• Only use original spare parts, for otherwise safe and
functional operation cannot be ensured.
• Allow the device to cool down before transport and/or
maintenance work.
• Do not use this device near bathtubs, shower trays,
swimming pools or other water containers. Risk of electric
shock!
• Do not use the device any more once it has been dropped.

4 EN
convector TCH 1510 E / TCH 2510 E
Intended use
The device is only suitable for well insulated spaces or
occasional use.
Only use the device for heating closed rooms whilst adhering to
the technical data.
Intended use comprises heating the air in:
• living spaces
• storerooms
• salesrooms
• construction areas
• containers
• basements
Foreseeable misuse
• Do not place the device on wet or flooded ground.
• Do not place any objects, e.g. clothing, on the device.
• Do not use this device in the vicinity of fuel, solvents,
varnishes or other easily inflammable vapours or in rooms
where these substances are stored.
• Do not use the device out of doors.
• Do not use the device for heating vehicles.
• The device must not be used near swimming pools.
• Do not use this device in the immediate vicinity of sinks,
bathtubs or other water containers.
Never immerse the device in water.
• Any use other than the intended use is regarded as a
reasonably foreseeable misuse.
• Do not make any unauthorised modifications, alterations or
structural changes to the device.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with
electric devices in damp areas.
• have read and understood the operating manual, especially
the Safety chapter.
Maintenance tasks which require the housing to be opened
must only be carried out by specialist electrical companies or by
Trotec.
Symbols on the device
Symbols Meaning
This symbol located on the device indicates that it
is prohibited to place objects (such as towels,
clothes etc.) above or directly in front of the
device.
In order to avoid overheating and fire hazards, the
heater must not be covered.
Residual risks
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Do not touch the mains plug with wet or damp hands.
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of hot surface
Some parts of this product can become very hot and
cause burns. Particular attention has to be given where
children and vulnerable people are present!
Warning
A falling device can cause injuries! Always transport
and assemble the device with the help of other
persons. Never stand below the device when it is
suspended. Ensure adequate stability of the device's
wall fixing.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
Improper installation entails a risk of fire.
Do not place the device on combustible ground.
Do not place the device on high-pile carpets.
Warning
In order to avoid overheating and fire hazards, the
device must not be covered!
Behaviour in the event of an emergency
1. Switch the device off.
2. In an emergency, disconnect the device from the mains
feed-in: Hold onto the mains plug while pulling the power
cable out of the mains socket.
3. Do not reconnect a defective device to the mains.

EN 5
convector TCH 1510 E / TCH 2510 E
Overheating protection
The device is provided with a safety thermostat which is
activated by overheating of the device (when exceeding the
operating temperature).
Once the safety thermostat has switched itself on, the device
will be turned off.
When the device has cooled down sufficiently, the heating will
be switched back on.
Investigate the cause of overheating.
If the safety thermostat does not switch in the event of
overheating, the overheating protection will be tripped. In that
case the device switches off completely. If so, please contact
the customer service to have the overheating protection
replaced.
Information about the device

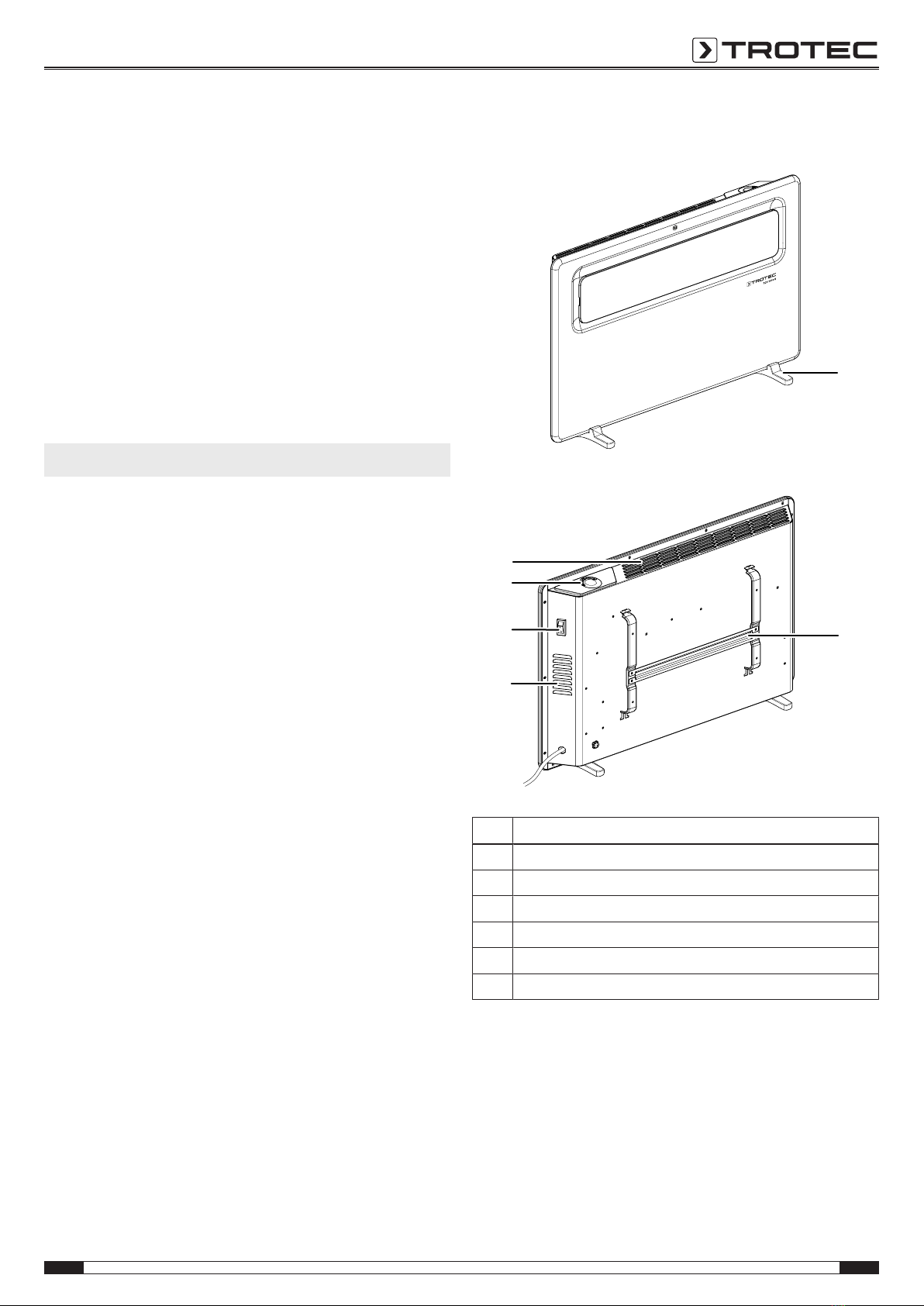

Device description
The convector TCH1510E / 2510E is used to generate warm
air for interior spaces.
The device generates heat by means of an electric heating
element. The air surrounding the heating element is heated. The
heated air rises through the air outlet and thus creates a natural
suction that makes the cold room air flow into the device.
The device is equipped with an integrated temperature sensor
which controls the heating depending on the current and the
desired room temperature.
The appliance is also equipped with a child lock which prevents
access to the control panel by means of a lock.
Via the control panel you can set a target temperature value
between 0°C and 50°C.
The device can be positioned firmly in the room by means of the
feet. In addition, the device can alternatively be mounted on the
wall.
The functioning of the two devices is identical, the devices differ
in heating capacity and dimensions.
Device depiction
1
3
4
5
6
2
No. Designation
1Foot
2Wall holder
3Air inlet
4On/off switch (operating control lamp)
5Control panel
6Air outlet

6 EN
convector TCH 1510 E / TCH 2510 E
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
Before transporting the device, observe the following:
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Do not use the power cable to drag the device.
• Allow the device to cool down sufficiently.
After transporting the device, proceed as follows:
• Place the device on its feet.
Storage
Before storing the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down sufficiently.
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and
direct sunlight
• with a cover to protect it from invasive dust, if necessary
• Place no further devices or objects on top of the device to
prevent it from being damaged.
Assembly and installation
Scope of delivery
• 1x Convector
• 2x Foot
• 4 x Screw (for foot)
• 1x Wall holder
• 2x Screw (for wall holder) and 4x screw and wall plugs
(for wall)
• 1x Manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.
Assembly
Feet assembly
1. Place the device on its front side.
2. Fasten both feet(1) with four screws each.
1
3. Check the feet(1 for tight fit.
4. Set the device up in an upright and stable position.

EN 7
convector TCH 1510 E / TCH 2510 E

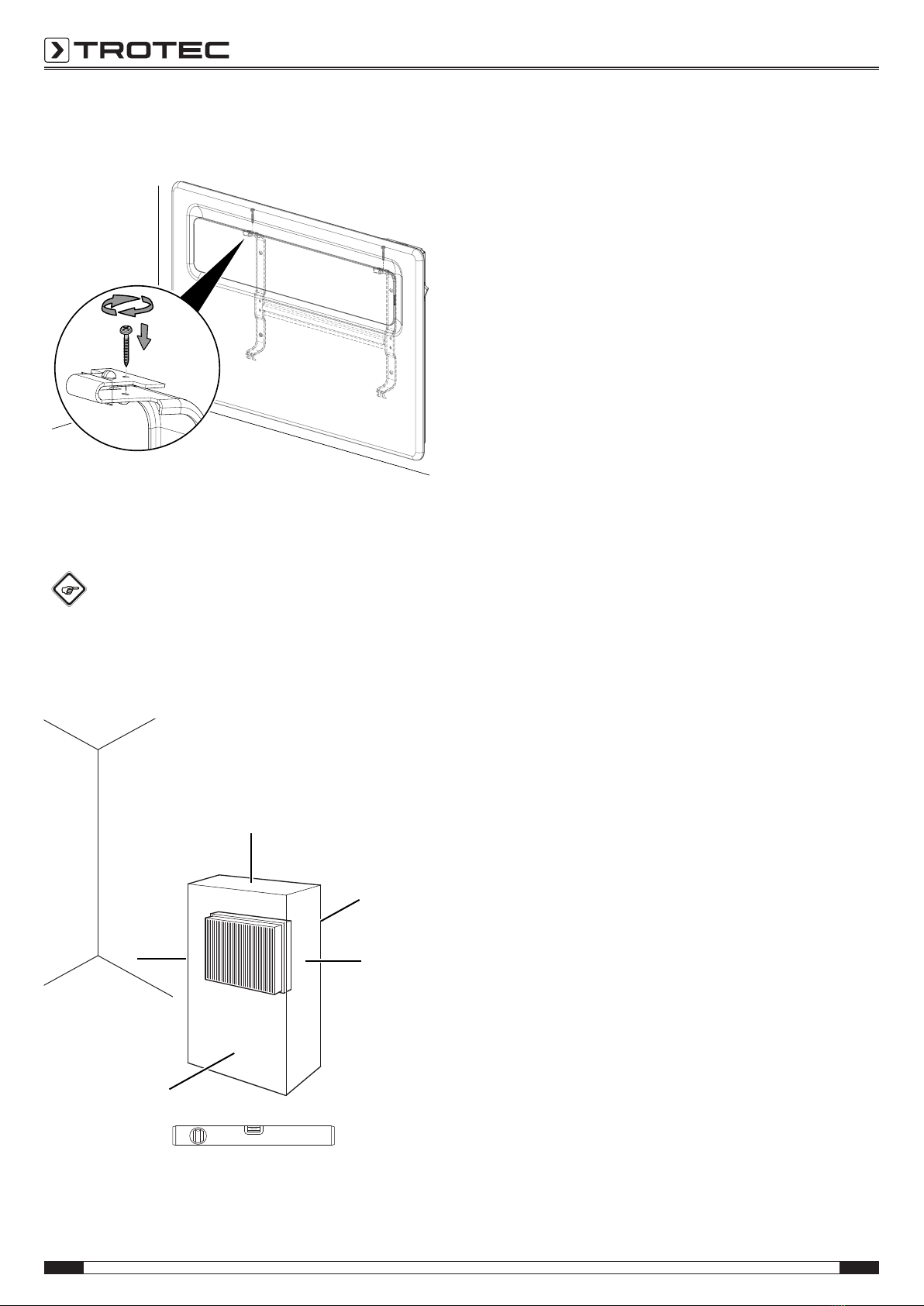

Wall mounting
Always utilize the help of another person to assemble the
device. Do not try to assemble the device without the help of
another person. The attachment of the device is shown as an
example.
1. Mark the positions for the bore holes on the wall. Observe
the minimum distances specified in the technical data.
2. Drill the holes into the wall at the marked positions.
3. Insert appropriate wall plugs into the bore holes depending
on the type of wall. Position the holder on the wall as
indicated and attach the holder in place with the4screws.
4. Hook the lower part of the device into the lower part of the
holder.
5. Hook the device's upper part into the holder.

8 EN
convector TCH 1510 E / TCH 2510 E
6. Using the two screws, attach the upper part of the holder
in place as indicated.
7. Make sure that the device is attached securely.
Start-up
Info
Odours might arise upon initial start-up or after a
longer period of non-use.
When positioning the device, observe the minimum distance
from walls or other objects as described in the chapter
Technical annex.
A
B
C
C
D
• Before restarting the device, check the condition of the
power cable. If there are doubts as to the sound condition,
contact the customer service.
• Set the device up in an upright and stable position.
• Do not create tripping hazards when laying the power
cable or other electric cables, especially when positioning
the device in the middle of the room. Use cable bridges.
• Make sure that extension cables are completely unrolled.
• Make sure that no curtains or other objects interfere with
the air flow.
• Do not position the device directly below a wall socket.
• Make sure that the device cannot come into contact with
moisture or water.
Connecting the power cable
• Insert the mains plug into a properly fused mains socket.
• Make sure that the power cable is guided along the back
of the device. Never guide the power cable along the front
of the device!

EN 9
convector TCH 1510 E / TCH 2510 E
Operation
• Avoid open doors and windows.
78
10
9
11
12
13
14
7
15
7
Control panel and display
No. Designation Meaning
7Display of the
operating modes
and functions:
Auto
Week mode is activated: for P1-P4,
temperature and time are preset but
can be adjusted.
Automatic mode is activated
Device is heating
Set week mode
Frost monitor mode is activated
Standby mode
Time and day setting is activated
Open window detection is activated
Displays the current week mode P1,
P2, P3 or P4:
Hours, minutes and temperature can
be preset.
Operating hours display
Screen is locked
8Temperature
indication
Indicates the current room
temperature.
9On/off button Switching the device on or off
10 Time display Displays the current time, the set time
of the timer or the operating hours
11 OK button Confirm selection
12 Increase value
button
Setting the desired room
temperature(0°C to 50°C) or the
timer run-time(1min to 24h)
13 Decrease value
button
14 Mode button Select operating mode or setting
15 Weekday display Displays the current weekday
Info
The control panel comes with a background
illumination. The background illumination switches on
as soon as the device is switched on. After approx.5s
without any input, the background illumination
switches back off.

10 EN
convector TCH 1510 E / TCH 2510 E
Switching the device on
Once you have completely installed the device as described in
the chapter Assembly and start-up, you can switch it on.
1. Set the On/off switch(4) to positionI.
ðAn acoustic signal is emitted.
2. Press the On/off button(9).
ðThe indication 00:00(10) appears on the display.
ðThe current temperature(8), any day of the week(15)
and the symbol(7) are displayed on the control
panel.
Setting the time and day
1. Press the Modebutton(14) until the symbol(7) appears
on the control panel.
2. Press the OKbutton(11). Then press the Increase value
button(12) or the Decrease valuebutton(13) to set the
current time and day of the week.
ðThe set time(10) and the weekday are displayed on the
control panel.
3. Press the OKbutton(11) to save the setting.
Setting the operating mode
•Automatic mode
•Week mode
•Frost monitor mode
The deviceTCH1510E operates with a heating capacity
of1500W and the deviceTCH2510E operates with a heating
capacity of2500W until the desired room temperature is
reached.
If the determined room temperature exceeds the desired room
temperature, the heating switches off.
Info
The desired room temperature should be higher than
the current room temperature.
Automatic mode
In automatic mode, the device heats according to a preset
temperature.
1. Press the Mode button(14) until the Auto indication(7)
appears on the control panel.
2. Press the Increase valuebutton (12) or the Decrease value
button(13) to adjust the temperature setting.
ðThe set temperature(8) is shown flashing on the control
panel.
3. Press the OKbutton(11) to start the automatic mode.
ðThe room temperature display(8) now initially indicates
the current room temperature.
ðThe device heats and the symbol(7) is displayed on
the control panel.
Week mode
Note
To activate the week mode, you have to preset all
weekdays (Monday– Sunday).
Note
The device must not be operated unattended in a room
in week mode.
In week mode, the device heats at a preset time and according
to a preset temperature.
Alternatively, you can set values for temperature and heating
duration for four different times.
1. Press the Modebutton(14) until the symbol(7) appears
on the control panel.
2. Press the OKbutton(11) to confirm the selection.
3. If you want to keep the preset times and
temperatures(P1-P4), press the OKbutton (11) until you
have viewed all preset programmes.
4. If you want to change the preset times(P1-P4), press the
Increase valuebutton(12) or the Decrease valuebutton
(13) in the respective programmes.
5. Press the OKbutton(11) to confirm the selection.
6. If you want to change the preset temperatures(P1-P4),
press the Increase valuebutton(12) or the Decrease
valuebutton (13) in the respective programmes after you
confirmed the time.
7. Press the OKbutton(11) to confirm the selection.
ðThe device heats according to the selected week mode.
ðThe symbol(7) indicates that the week mode is set
and activated.
ðThe symbol(7) is displayed on the control panel
according to the selected week modeP1,P2,P3 orP4.
ðThe device heats and the symbol(7) is displayed on
the control panel.

EN 11
convector TCH 1510 E / TCH 2510 E

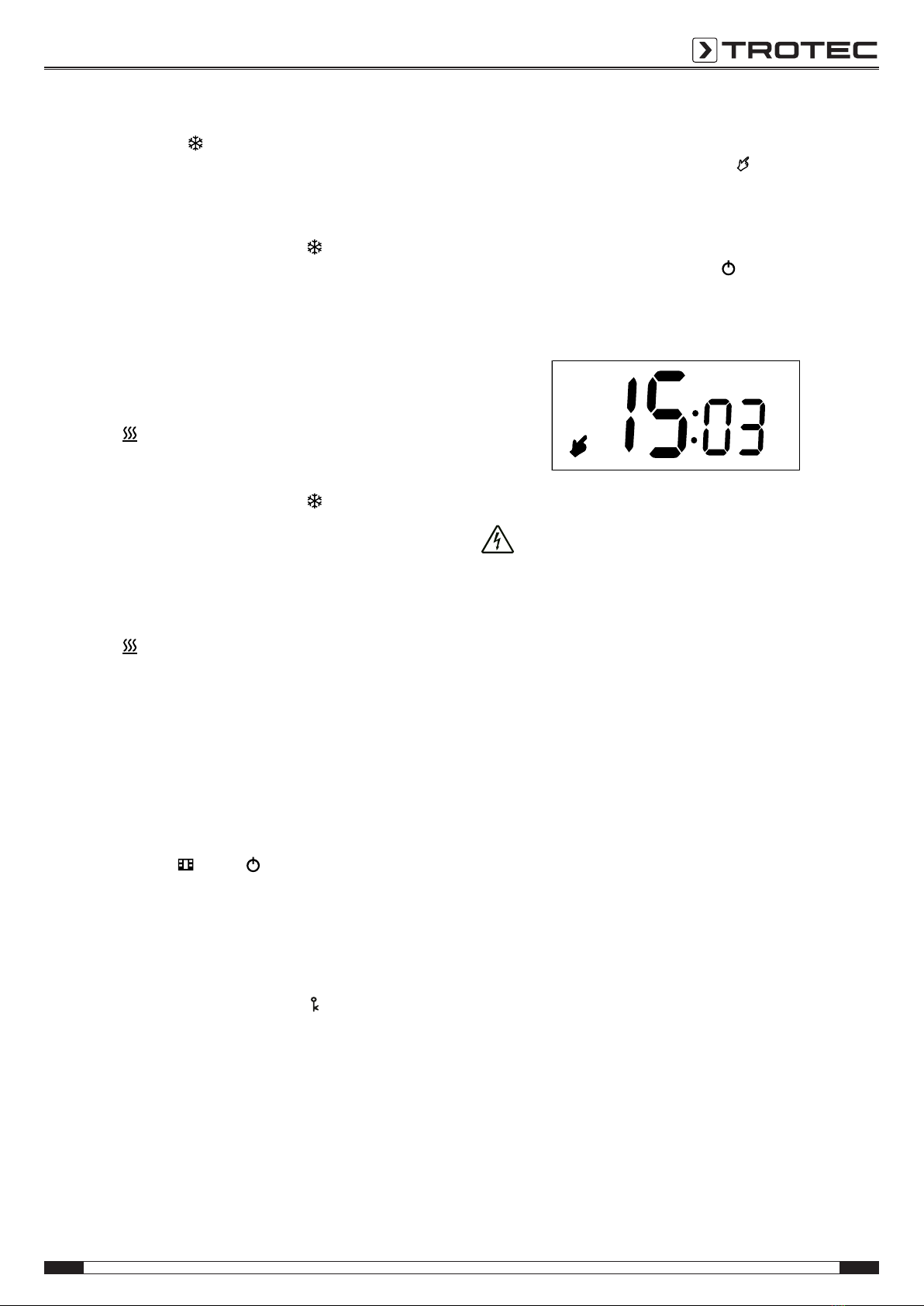

Frost monitor mode
In frost monitor mode( ) the devices heats automatically if the
room temperature is below5°C. This temperature cannot be
changed.
üThe device is switched on and the On/offbutton (9) has
been actuated.
1. Press the Modebutton(14) until the symbol(7) appears
on the control panel.
2. Press the OK button(11) to set the frost monitor mode.
3. Press the Increase valuebutton(12) to set the frost
monitor mode to ON.
4. Press the OKbutton(11) to confirm the selection.
ðThe device heats as soon as the room temperature is
below5°C. It stops heating as soon as the room
temperature exceeds5°C.
ðThe symbol(7) appears on the control panel.
Please proceed as follows to switch off the frost monitor mode:
üThe frost monitor mode is switched on.
1. Press the Modebutton(14) until the symbol(7) appears
on the control panel.
2. Press the OKbutton(11).
3. Press the Increase valuebutton(12) to set the frost
monitor mode to OFF.
4. Press the OKbutton(11) to confirm the selection and to
exit the frost monitor mode.
ðThe symbol(7) no longer appears on the control
panel.
Open window detection
The open window detection is deactivated by default. Please
proceed as follows to activate the function:
1. Press the OKbutton(11).
2. Press the Increase valuebutton(12).
3. Press the On/offbutton(9) to confirm the function.
ðIf the temperature quickly decreases by5°C, the
current operating mode is quit instantaneously.
ðThesymbols (7) and (7) are displayed on the
control panel.
Switching the locking function on and off
The locking function prevents the buttons on the control panel
from being used.
Please proceed as follows to lock the control panel:
1. Press the Modebutton(14) until the symbol(7) appears
on the control panel.
2. Press the OKbutton(11) to lock the control panel
ðAfter 3seconds, an acoustic signal is emitted.
ðThe locking function is activated.
ðThe buttons on the control panel cannot be used.
3. Press the Modebutton(14) again to switch the swing
function off.
ðThe device switches back to the previous operating
mode.
Operating hours display
Proceed as follows to display the expired operating hours:
1. Press the Modebutton(14) until the symbol(7) appears
on the control panel.
2. Press theOKbutton(11) to display the expired operating
hours.
ðOnly full operating hours(10) are displayed.
3. Press the Modebutton(14) or the button(7) to exit the
preview.
ðThe operating hours are indicated in full hours. The
example shows 1,503operating hours.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
1. Switch off the device by pressing the On/offbutton(9).
ðThe device is now in standby mode.
2. Set the On/off switch(4) to position O to switch the device
off.
3. Hold onto the mains plug while pulling the power cable out
of the mains socket.
4. Allow the device to cool down sufficiently.
5. Clean the device according to the Maintenance chapter.
6. Store the device according to the Storage chapter.

12 EN
convector TCH 1510 E / TCH 2510 E
Errors and faults
Warning of electrical voltage
Tasks which require the device to be opened must
only be carried out by authorised specialist
companies or by Trotec.
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
The device does not start:
• Check the power connection.
• Check the power cable and mains plug for damages.
• Check the on-site fusing.
• The room thermostat might be defective. Have a defective
room thermostat replaced by a specialist electrical
company.
• Wait for 10minutes before restarting the device. If the
device is not starting, have the electrics checked by a
specialist company or by Trotec.
The device is switched on, but the heating is not operating:
• The heating resistor might have blown. Have a defective
heating resistor replaced by a specialist electrical
company.
• The room thermostat might be defective. Have a defective
room thermostat replaced by a specialist electrical
company.
• The room thermostat might be defective. Have a defective
room thermostat replaced by a specialist electrical
company.
The air current is reduced:
• Check the air inlet and outlet. Make sure that air inlet and
outlet are not obstructed. Remove any dirt. Observe the
minimum distance from walls or other objects according to
the technical data.
Note
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
The device still does not operate correctly after these
checks:
Please contact the customer service. If necessary, bring the
device to an authorised specialist electrical company or to
Trotec for repair.
Maintenance
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down completely.
Warning of electrical voltage
Tasks which require the device to be opened must
only be carried out by authorised specialist
companies or by Trotec.
Cleaning the housing
Warning of electrical voltage
Never immerse the device in water!
Clean the housing with a soft, damp and lint-free cloth. Ensure
that no moisture enters the housing. Protect electrical
components from moisture. Do not use any aggressive cleaning
agents such as cleaning sprays, solvents, alcohol-based or
abrasive cleaners to dampen the cloth.
Wipe the housing dry after cleaning.

EN 13
convector TCH 1510 E / TCH 2510 E
Technical annex
Technical data
Parameter Value
Model TCH1510E TCH2510E
Heating capacity 1500W 2500W
Setting range 0°C to 50°C 0°C to 50°C
Mains connection 220–240V /
50–60Hz
220–240V /
50–60Hz
Power consumption 1500 W 2500 W
Nominal current
consumption
6.5A 10A
Cable length 1.8 m 1.8 m
Plug type CEE 7/7 CEE 7/7
Protection class IP24 IP24
Dimensions
(depthx widthx height)
260 x 690 x
535mm
280 x 1250 x
525mm
Minimum distances from
walls or other objects (only
in stationary operation)
A: top:
B: rear:
C: side:
D: front:
100 cm
100 cm
100 cm
100 cm
100 cm
100 cm
100 cm
100 cm
Weight 3.5 kg 4 kg

14 EN
convector TCH 1510 E / TCH 2510 E
Information requirements for electrical local space heaters
Parameter Value/item
Model TCH1510E TCH2510E
Heat output
Nominal heat output Pnom 1.5 kW 2.5 kW
Minimum heat output (indicative) Pmin NA NA
Maximum continuous heat output Pmax,c 1.5 kW 2.5 kW
Auxiliary electricity consumption
At nominal heat output elmax 0.000kW 0.000kW
At minimum heat output elmin 0.000kW 0.000kW
In standby mode elsb 0.000kW 0.000kW
Type of heat input
Manual heat charge control, with integrated thermostat NA NA
Manual heat charge control with room and/or outdoor temperature
feedback
NA NA
Electronic heat charge control with room and/or outdoor temperature
feedback
NA NA
Fan assisted heat output NA NA
Type of heat output/room temperature control
Single stage heat output, no room temperature control NO NO
Two or more manual stages, no room temperature control NO NO
With mechanic thermostat room temperature control NO NO
With electronic room temperature control NO NO
With electronic room temperature control plus day timer NO NO
With electronic room temperature control plus week timer YES YES
Other control options
Room temperature control, with presence detection NO NO
Room temperature control, with open window detection YES YES
With distance control option NO NO
With adaptive start control NO NO
With working time limitation NO NO
With black bulb sensor NO NO
Contact details Trotec GmbH
Grebbener Straße 7
D-52525 Heinsberg
NA: not applicable

EN 15
convector TCH 1510 E / TCH 2510 E
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. You can also find out about other return options
that apply for many EU countries on the
website https://hub.trotec.com/?id=45090.
Otherwise, please contact an official recycling centre for
electronic and electrical equipment authorised for your country.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.

Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
