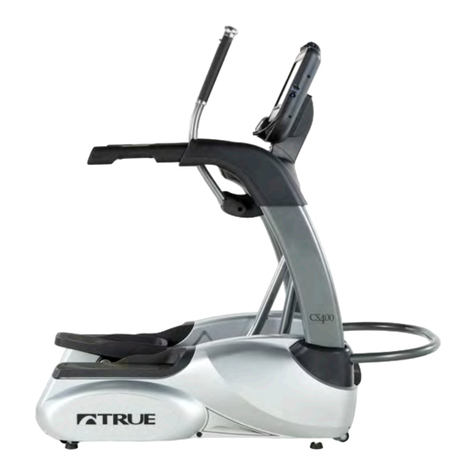

True CS400 User manual

* Assembly Guide & Warranty Card Included
Revision 092614
CS400 ELLIPTICAL
OWNER’S MANUAL

CS400 ELLIPTICAL OWNERS MANUAL
IMPORTANT:
All Products shown are prototype. Actual product delivered may vary.
Product specifications, features & software are subject to change without notice.
For the most up to date owner’s manual please visit www.truefitness.com.
For documents in additional languages please visit www.truefitness.com/document-library/29/international-manuals
IMPORTANTE:
Todos los productos mostrados son prototipos. La realidad el producto suministrado puede diferir.
Especificaciones de productos, características y software están sujetas a cambios sin previo aviso.
Para la más actualizada de este manual del propietario, por favor visite www.truefitness.com
Para los documentos en otros idiomas, por favor visite www.truefitness.com/document-library/29/international-manuals
IMPORTANT:
Tous les produits présentés sont prototype. Le produit réel livré peut varier.
Spécifications du produit, caractéristiques et logiciels sont sujettes à modification sans préavis.
Pour la plus à jour le manuel du propriétaire s'il vous plaît visitez www.truefitness.com.
Pour documents dans des langues supplémentaires, veuillez www.truefitness.com/document-library/29/international-manuals de visite
重要提示：
显示所有产品的原型。实际交付的产品可能有所不同
产品规格，功能和软件如有更改，恕不另行通知
迄今为止对于大多数的使用说明书，请访问www.truefitness.com
对于其他语言的文档，请访问www.truefitness.com/document-library/29/international-manuals
:مﺎھ ﻊﯾﻣﺟتﺎﺟﺗﻧﻣﻟاﻲھ ﺔﺿورﻌﻣﻟاجذوﻣﻧﻟا.فﻠﺗﺧﺗ دﻗﻲﻠﻌﻔﻟا ﺞﺗﻧﻣﻟا.ﺎﮭﻣﯾﻠﺳﺗ
و ،ﺞﺗﻧﻣﻟا تﺎﻔﺻاوﻣ ﺞﻣارﺑﻟاو تازﯾﻣﻟارﯾﯾﻐﺗﻠﻟ ﺔﻠﺑﺎﻗرﺎﻌﺷإ نود.
ﻟ لﺻﯾ ﺎﻣ مظﻌﻣنﻵا ﻰﺗﺣكﻟﺎﻣﻟا لﯾﻟدةرﺎﯾز ﻰﺟرﯾ www.truefitness.com.
تادﻧﺗﺳﻣﻠﻟتﺎﻐﻟ ﻲﻓﻰﺟرﯾ ،ﺔﯾﻓﺎﺿإةرﺎﯾز www.truefitness.com/document-library/29/international-manuals
WICHTIG:
Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren.
Produkt-Spezifikationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern.
In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen Sie bitte www.truefitness.com.
Für Dokumente in weiteren Sprachen finden Sie unter www.truefitness.com/document-library/29/international-manuals
BELANGRIJK:
Alle getoonde producten zijn prototype. Daadwerkelijke product geleverd kan verschillen.
Product specificaties, eigenschappen & software zijn onderhevig aan verandering zonder kennisgeving.
Voor de meest actuele handleiding van de eigenaar kunt u terecht www.truefitness.com.
Voor documenten in andere talen kunt u terecht op www.truefitness.com/document-library/29/international-manuals
ВАЖНО:
Все товары указаны прототипа. Фактический продукт, поставляемый могут отличаться.
Технические характеристики, особенности ипрограммного обеспечения могут быть изменены без предварительного
уведомления.
Для получения самой последней на сегодняшний день руководство по эксплуатации пожалуйста, посетите
www.truefitness.com
.Для документов на другие языки, пожалуйста, посетите www.truefitness.com/document-library/29/international-manuals
Truefitness.com / 800.426.6570 / 636.272.7100

CS400 ELLIPTICAL OWNERS MANUAL
Frank Trulaske, founder and CEO of TRUE, has had the same simple philosophy of delivering superior products, service
and support for over 30 years. Today, TRUE is the global leader in premium cardio equipment for the commercial and
residential markets. Our goal is to be the leader in technology, innovation, performance, safety and style. TRUE has
received many awards for its commercial and retail product over the years and remains the benchmark for the industry.
Fitness facilities and consumers invest in TRUE products for their durable commercial platforms used in all its cardio
products, both commercial and residential alike.
The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of
truly extraordinary treadmills, indoor cycles and elliptical cross-trainers. As a result, people all over the world are
benefiting from the TRUE experience. Innovation across the full product line has made TRUE successful and is a
trademark of the TRUE heritage. TRUE’s patented Heart Rate Control® technology is just one of the remarkable ways we
deliver simple and superior performance every user can enjoy, and most importantly, use to achieve personal health and
fitness goals.
TRUE strives to perfect biomechanically correct and orthopedically comfortable, functional products. Whether it be the
mesh seat in the recumbent bike, the Soft Step® in the elliptical cross-trainers or the Soft System® in our treadmills, we
deliver the best.
At the heart of our success is the relentless and systematic life testing of both our products and their components. We
have dedicated employees who understand our philosophy is to deliver the best products in the world.
Our goal is not to sell the most cardio products in the world, but to deliver the world’s best premium equipment for our
customers’ health and fitness solutions.
To own a TRUE machine is to be part of an exclusive fitness community that delivers results – your results.
Thank you for becoming a part of the TRUE experience.
TRANSCEND ALL OTHERS!
Truefitness.com / 800.426.6570 / 636.272.7100

CS400 ELLIPTICAL OWNERS MANUAL
TABLE OF CONTENTS:
Chapter 1: Safety Instructions
Safety Instructions 1
Space Requirements 3
Grounding Instructions 4
Power Requirements 5
Warning Decals 6
Compliances 6
Chapter 2: Assembly Instructions
Pre Assembly Checklist 7
Elliptical Assembly Steps 8
Wiring Diagrams 22
Chapter 3: Product Overview
Elliptical Overview 24
Chapter 4: Programming & Operation
Heart Rate Monitoring 26
Heart Rate Control 24
Program Descriptions 26
Virtual Active® Videos 30
Chapter 4A: Transcend Operation
Transcend Overview 34
Touchscreen Introduction 36
Touchscreen Navigation 36
Web Browser 43
iPod® Integration 44
Bluetooth Audio 45
TV Controls 47
Virtual Active® 48
Netpulse® 48
Advanced Console Functions 49
Chapter 4B: Escalate
15
Operation
Escalate15 Overview 66
Console Navigation 68
TV Controls 73
iPod® Integration 74
Bluetooth Audio 75
Advanced Console Functions 77
Chapter 4B: Escalate9Operation
Escalate 9Overview 93
Console Navigation 95
Advanced Console Functions 102
Chapter 4B: Emerge Operation
Emerge Overview 111
Console Navigation 113
Advanced Console Functions 116
Chapter 5: Care & Maintenance
Care & Maintenance 121
Cleaning the Equipment 121
Other Scheduled Preventive Maintenance 122
Long Term Storage 122
Chapter 6: Customer Service
Contacting Service 123
Contacting Sales 123
Reporting Freight Claims or Parts Damage 124
Chapter 7: Additional Information
Troubleshooting Guide 125
Specification Sheet 128
Warranty Registration 130
Truefitness.com / 800.426.6570 / 636.272.7100

CHAPTER 1: SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE SAFETY INSTRUCTIONS
This elliptical is intended for a commercial or institutional setting. This owner’s manual should be accessible to all personal
trainers, staff members, and members.
WARNING: All EXERCISERS MUST READ ALL INSTRUCTIONS BEFORE USING THE ELLIPTICAL.
WARNING: Heart rate monitoring systems may be inaccurate for some individuals. Over-exercising may result in
serious injury or death. If you feel faint, stop exercising immediately.
WARNING: Equipment should be immediately taken out of use if it fails to work properly or when a warning is
presented electronically.
TRUE STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program,
particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high
cholesterol, is obese or has not exercised regularly in the past year. Additionally, TRUE recommends consulting a fitness
professional on the correct use of this product. If at any time while exercising the user experiences faintness, dizziness, pain or
shortness of breath, he or she must stop immediately.
WARNING: To reduce the risk of electrical shock, always unplug this TRUE product before cleaning or attempting any
maintenance activity. Do not handle the plug with wet hands.
WARNING: To reduce the risk of burns, fire, electric shock or injury, it is imperative to connect each product to a
properly grounded 110V electrical outlet. A risk of electrical shock may result from improper connection of the
equipment’s grounding conductor. Check with a qualified electrician if you are unsure about proper grounding
techniques. Do not modify the plug provided with this product. If it will not fit an electrical outlet, have a proper outlet
installed by a qualified electrician. Your TRUE Fitness product must be properly grounded to reduce risk of shock if the
elliptical malfunctions. Your elliptical may be equipped with an electrical cord, which includes an equipment grounding
conductor and a grounding plug. The plug must be inserted into an outlet that has been properly installed and grounded
in accordance with all local codes and ordinances. A temporary adapter cannot be used to connect this plug to a two-pole
receptacle in North America. If a properly grounded 15 amp outlet is not available, a qualified electrician must install
one.
WARNING: Do not move the equipment by lifting the console. Do not use the console as a handlebar during a workout.
WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other
reproductive harm.
WARNING: Keep equipment stable on flat ground.
WARNING: Replace warning labels that may be worn, damaged or missing
WARNING: Replace any non-working or damaged components; remove the unit from service until repair is performed.
WARNING: To reduce the risk of burns, fire and electric shock or injury to persons, follow these instructions:
•This appliance should never be left unattended when plugged in.
•Do not use any type of extension cord with this product.
•Unplug it from the outlet when not in use and before any servicing.
•Do not operate the equipment while being covered with a blanket, plastic, or anything that insulates or stops
airflow.
Truefitness.com / 800.426.6570 / 636.272.7100 1

CHAPTER 1: SAFETY INSTRUCTIONS
WARNING: Risk of personal injury-crushing hazard when elliptical is in operation - Keep feet, hands, and fingers
away from moving parts.
CAUTION:
•Health related injuries may result from incorrect or excessive use of exercise equipment.
•Do not use typing or web surfing features at excessive speeds. Always stabilize yourself by holding a stationary handle
when using typing or web surfing features. (Varies by console option)
•Do not use the contact heart rate grips as a handlebar during a workout.
•Any changes or modifications to this equipment could void the product warranty.
•To avoid injury stand on the side rails before starting the elliptical.
•To disconnect, turn power OFF at the ON/OFF switch if applicable, then remove plug from electrical outlet.
•Never operate a TRUE product if it has a damaged power cord or electrical plug, or if it has been dropped, damaged, or
even partially immersed in water. Contact TRUE Customer Service.
•Your commercial elliptical is self-generated and does not require the use of an electrical outlet with the LED
console. Optional TFT or touch screen consoles require 110V AC input and 9V DC 1.5Amp output for console
operation only.
•The batteries within self-generated equipment contain materials that are considered hazardous to the environment.
Federal law requires proper disposal of these batteries.
•Use a TRUE AC power cord or AC/DC adapter only
•Note the plug configuration for the power adapter may vary by country.
•Position this product so the power cord plug is accessible to the user.
•Keep the power cord away from heated surfaces. Do not pull the equipment by the power cord or use the cord as a
handle. Do not run the power cord along the side or under the treadmill.
•If the electrical supply cord is damaged it must be replaced by the manufacturer, an authorized service agent, or a
similarly qualified person to avoid a hazard.
•Do not use this product in areas where aerosol spray products are being used or where oxygen is being administered.
Such substances create the danger of combustion and explosion.
•Always follow the console instructions for proper operation. Close supervision is necessary when used near children
under the age of 15, or disabled persons.
•Do not use this product outdoors, near water, while wet, or in areas of high humidity including extreme temperature
changes
•Never operate a TRUE product with the air openings blocked. Keep air openings free of lint, hair or any obstructing
material.
•Never insert objects into any openings in this product. If an object should drop inside, turn off the power, unplug the
power cord from the outlet and carefully retrieve it. If the item cannot be reached, contact TRUE Customer Service.
•Never place liquids of any type directly on the unit except in the accessory tray or bottle holders. Containers with lids are
recommended.
•Wear shoes with rubber or high traction soles. Do not use shoes with heels, leather soles, cleats or spikes. Make sure no
stones are embedded in the soles. Do not use this product in bare feet. Keep all loose clothing, shoelaces and towels away
from moving parts.
•Do not reach into or underneath the unit, or tip it on its side during operation.
•Use correct ergonomic positioning while operating the elliptical.
•Do not allow animals on or near the equipment while in operation.
Truefitness.com / 800.426.6570 / 636.272.7100 2

CHAPTER 1: SAFETY INSTRUCTIONS
•Use the side rails or upper exercise arms whenever additional stability is required. In case of emergency, the side
rails should be grabbed and the user should place his/her feet on the side platforms. The side rails should be used
to grasp the heart rate sensors or to rest the hand on while operating the activity zone keys.
•Do not exceed maximum user weight of 400 lbs. (181kg).
•Avoid exiting elliptical while the foot skate is still in motion.
•Do not use if you have a cold or fever.
•When using this exercise machine, basic precautions should always be followed.
•Use this t elliptical only for its intended use as described in this manual.
•Do not use attachments not recommended by the manufacturer.
•Allow only trained personnel to service this equipment.
•Avoid the possibility of bystanders being struck or caught between moving parts by making sure that they are out of
reach of the elliptical while it is in motion.
•Allow only one person at a time on the elliptical while it’s operating.
•It is the sole responsibility of the owner/operator to ensure regular and scheduled maintenance is performed.
•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children without supervision.
•Avoid placing hands on the upper side rail covers while elliptical is in operation. (See Fig 2)
SPACE REQUIREMENTS:
TRUE’s recommendation is to leave a 39” safety zone at rear of elliptical. The sides of the unit should be at least 20” away from the
wall or obstructions. (See Fig 1)
Truefitness.com / 800.426.6570 / 636.272.7100 3

CHAPTER 1: SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS:
This product must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances.
DANGER:
•Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
•Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
•Do not remove the motor cover or you may risk injury due to electric shock.
•The 120-V model is for use on a nominal 120-V circuit and has a grounding plug that looks like the plug
illustrated in figure A. Make sure the product is connected to an outlet having the same configuration as the plug.
No adaptor should be used with this product.
•The 230-V model is for use on a circuit having a nominal rating more than 120-V and is factory-equipped with a
specific electric cord and has a grounding plug that looks like the plug illustrated in figure B. Make sure that the
product is connected to an outlet having the same configuration as the plug in Figure B. No adapter should be
used with this product. If the product must be reconnected for use on a different type of electric circuit, the
reconnection should be made by qualified service personnel
Truefitness.com / 800.426.6570 / 636.272.7100 4

CHAPTER 1: SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 5

CHAPTER 1: SAFETY INSTRUCTIONS
WARNING DECALS:
WARNING: Replace warning labels that may be worn, damaged or missing.
*To replace any worn or missing warning decals contact TRUE FITNESS by one of the following: www.truefitness.com or contact
customer service at 800-883-8783.
COMPLIANCES:
This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit
www.truefitness.com.
Truefitness.com / 800.426.6570 / 636.272.7100 6

CHAPTER 2: ASSEMBLY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
*Should you need technical assistance in assembly of your TRUE Fitness product, contact TRUE Fitness Technical Support
at 1-800-883-8783.
PRE-ASSEMBLY CHECK LIST:
Tools Required:
10mm hex key (Included)
6mm hex key (Included)
#2 Phillips Screwdriver
•Read and understand all instructions and warnings prior to use.
•Obtain a medical exam before beginning any exercise program. If at any time during exercise you
feel faint, dizzy, or experience pain, stop and consult your physician.
•Obtain proper instruction prior to use.
•Inspect the elliptical for incorrect, worn, or loose components and do not use until corrected,
replaced, or tightened prior to use.
•Do not wear loose or dangling clothing while using elliptical.
•Care should be used when mounting or dismounting elliptical.
•Disconnect all power (if applicable) before servicing elliptical.
•Do not exceed maximum user weight of 400 lbs.
•Keep children and animals away.
•Do not operate an electrically powered elliptical in damp or wet locations.
•All exercise equipment is potentially hazardous. If attention is not paid to the conditions of
equipment usage, death, or serious injury could occur.
•
Keep the top side of the moving surface clean and dry.
Hardware:
Hardware is packaged in numbered
plastic bags that correspond to the
step with which they are used. Not
all steps require hardware.
Truefitness.com / 800.426.6570 / 636.272.7100 7

CHAPTER 2: ASSEMBLY INSTRUCTIONS
ELLIPTICAL ASSEMBLY STEPS:
CAUTION:
•It is recommended that two people unpack and assemble elliptical.
•Remove bands from packaging and pull top from pallet.
•Remove all parts from packaging. Leave machine on pallet.
•For each step use hardware in the corresponding bag.
Sub-Assembly Identification:
Use the image below as a reference for where the provided sub-assemblies will be located in the complete elliptical
assembly:
Exercise Arms
Step 4
Side Arms
Step 3
Console
Step 6
Draw Bars
Step 2
Neck Shroud
Step 6
Pedestal
Step 1
Front Guard &
Boot Covers
Step 7
Leveling Feet
Step 8
Pedal Tubes
Step 5
Truefitness.com / 800.426.6570 / 636.272.7100 8

CHAPTER 2: ASSEMBLY INSTRUCTIONS
ELLIPTICAL ASSEMBLY STEPS (continued):
Pre-Assembly STEP 1: Install Transport Handle Bars:
a) Important: With machine still on pallet, attach handle bars to the front and rear of machine. Handle Bars will
provide assistance in moving machine. Figures 1 & 2
b) Carefully remove Elliptical from pallet.
c) Important: After final machine placement has been completed, remove transport handle bars from machine and
store handle bars with owner’s manual.
Figure 2
Pre-Assembly STEP 2: Measure Doorways:
a) Measure all doorways, hallways and stairwells to make sure that the fully assembled elliptical (33 inches wide) can
fit through them.
b) If the fully assembled unit will not clear the doors and walls, move all parts to the final location and assemble
machine in that location. When moving the machine, keep the left side Styrofoam attached to the Base to help
avoid damaging the plastic covers. Set the base on the Styrofoam or the feet only. Figure 4
Please Note When Moving The Elliptical:
Figure 3
Figure 4
Attach Handles
to Base and use
both Front and
Rear Handles to
move Elliptical
off the pallet
Do not insert fork from
fork truck in this
location. There are
exposed parts that can
be damaged.
Elliptical base can be set
on its LEFT side, but
ONLY with the attached
Styrofoam underneath it.
Remove handles from front of
Base after machine is moved
into final placement
Figure 1
Truefitness.com / 800.426.6570 / 636.272.7100 9

CHAPTER 2: ASSEMBLY INSTRUCTIONS
ELLIPTICAL ASSEMBLY STEPS (continued):
STEP 1: Assemble Pedestal to Base:
a)
Remove Front Handles before
assembling Pedestal.
b) Use 2 people to slide the Pedestal
straight down onto the Base and be
careful to not pinch the wires on the
right side of the base.
c)
Use 2 M12x12mm bolts and 8
M8x12mm bolts to attach Pedestal to
Base and then connect the cables
coming from the right pedestal to
the corresponding wires in the base.
Hardware Required (Bag 1):
8 M8x12mm Bolts
2 M12X12mm Bolts
M8x12mm
Bolts
M12x12mm
Bolt
Insert these bolts
first to help align
other bolts
Truefitness.com / 800.426.6570 / 636.272.7100 10

CHAPTER 2: ASSEMBLY INSTRUCTIONS
ELLIPTICAL ASSEMBLY STEPS (continued):
STEP 2: Attach Drawbars:
a)
Slide the top of the draw bars onto
the exposed shaft and use the bolts,
lock washers and flat washers from
bag 2 to secure the push rod.
Hardware Required (Bag 2):
2 M10 Bolts
2 Flat Washers
2 Lock Washer
b) Attach the bottom of each draw
bar to rear crank with M8 x 12mm
bolts.
Hardware Required (Bag 2):
8 M8x12mm Bolts
c) Use the remaining hardware in
bag 2 to attach the drawbar covers.
Hardware Required (Bag 2):
6 M3x12 Screws
8 M5x12mm Screws
2 M5x10 Screws
3 M3x12 Screws
Truefitness.com / 800.426.6570 / 636.272.7100 11

CHAPTER 2: ASSEMBLY INSTRUCTIONS
ELLIPTICAL ASSEMBLY STEPS (continued):
STEP 3: Attach Side Arms:
a
) Connect Side Arm Heart Rate
Cable
b) CAREFULLY Slide Side Arm into
Pedestal and tuck the Heart Rate
Cable into the tube. Make sure to not
pinch the Heart Rate Cable wires.
c
) Use 4 M8x12mm bolts to tighten
the Side Arms into the underside of
the Pedestal.
Hardware Required (Bag 3):
4 M8x12bolts
STEP 4: Upper Exercise Arms:
a) Install each upper arm with 4
M8x20mm bolts and 4 lock washers
using an 8 mm hex key.
Note: Upper Arms are labeled “L for
Left and “R” for Right.
Hardware Required (Bag 4):
8 M8x20mm Bolts
8 Lock Washer
Connect Wires
between the Pedestal
and the Side Arms
4 Bolts per Arm
Truefitness.com / 800.426.6570 / 636.272.7100 12

CHAPTER 2: ASSEMBLY INSTRUCTIONS
ELLIPTICAL ASSEMBLY STEPS (continued):
STEP 4: Upper Exercise Arms (continued):
b)
Attach the Exercise Arm Covers
using 4 M5x8mm screws for each
side.
Hardware Required (Bag 4):
8 M5x8mm Screws
STEP 5: Attach Pedal Tubes:
a
)Use 2 M10x80mm bolts and 2
M10 Nuts to attach Pedal Tubes.
Make sure that pedal tubes are
centered between the rollers of the
Crankshaft before tightening the
bolts.
Hardware Required (Bag 5):
2 M10x80mm Bolts
2 M10 Nuts
b) Attach the Front Pedal Tube
Covers using 8 M5x12mm screws.
Hardware Required (Bag 5):
8 M5x12mm Screws
Truefitness.com / 800.426.6570 / 636.272.7100 13

CHAPTER 2: ASSEMBLY INSTRUCTIONS
ELLIPTICAL ASSEMBLY STEPS (continued):
STEP 6: Console Assembly – Console Mast:
a
)Slide Console cables through
Console Mast and attach Mast using
2 M8x12mm bolts and 2 M8x20mm
bolts.
CAUTION: Do not pinch wires!
Hardware Required (Bag 6):
2 M8x12mm Bolts
2 M8x20mm Bolts
STEP 6: Console Assembly – Front Neck Panel:
b) Attach Front Neck Panel to the
Front Mast using 2 Phillips head
bolts.
Hardware Required (Bag 6):
2 M5x12mm Bolts
STEP 6: Console Assembly – Console Mounting:
c) Attach Console to the Console
Mast with 4 M5x10mm bolts.
d) Attach the console ground wire to
the Console Mast
Hardware Required:
*Included with Console
Route Cables Here
2 M8x12mm bolts
2 M8x20mm bolts
Ground
Screw
Truefitness.com / 800.426.6570 / 636.272.7100 14

CHAPTER 2: ASSEMBLY INSTRUCTIONS
ELLIPTICAL ASSEMBLY STEPS (continued):
STEP 6 Console Assembly (continued) Cable Connections OPTION A:
*Follow OPTION A if installing a touchscreen console or 15”TFT. For other consoles, proceed to OPTION B.
16” Touchscreen
Console
15” TFT
Console
10” Touchscreen
Console
NOTE:
Ethernet & Coaxial cable connections are not available on the Orange LED or 9” TFT Consoles
The Ethernet Port on the 15” TFT Console is non-functioning
All Ground Wires Must be connected
Power Cable
2 Pin
Network
Cable
Coaxial Cable
Data Cable
(50 Pin)
Ground
Remove Warning Label
to access data port
Do Not Use
Truefitness.com / 800.426.6570 / 636.272.7100 15

CHAPTER 2: ASSEMBLY INSTRUCTIONS
ELLIPTICAL ASSEMBLY STEPS (continued):
STEP 6 Console Assembly (continued) Cable Connections OPTION A:
*Follow OPTION A if installing a touchscreen console or 15”TFT. For other consoles, proceed to OPTION B.
16” Touchscreen
Console
15” TFT
Console
10” Touchscreen
Console
NOTE: Ethernet & Coaxial cable connections are not available on the Orange LED or 9” TFT Consoles
The Ethernet Port on the 15” TFT Console is non-functioning
All Ground Wires Must be connected
This connector is only used
with an “Optional TV Mount”
Ensure the Ground Cable is
attached by the Ground Screw
*Location Varies By Model
Tuck excess Cable length into
the Front Mast
Do Not Use
Truefitness.com / 800.426.6570 / 636.272.7100 16
