True TG1H-2HG User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TG1H-2HG
TG1H-2HG
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
LD
†H*Watts Voltage
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TG1H-2HG 2 31
878
29
737
345/8
880
781/4
1988
2000 115/208-240/60/1 14-20P 9
2.74
n/a
n/a
†Depth does not include 15/8
" (42 mm) for door handle and system mechanical components.
*Height does not include 61/8
" (156 mm) for legs, 5 " (127 mm) for optional castors and 1 " (26 mm) for system mechanical components.
Requires 115/208 -240/60 Hz, single phase, 3 pole, 4 wire circuit.
5/07
Provides cabinet holding
temperature of 80°F to 180°F
(26.6˚C to 82.2˚C).
Equipped with low-velocity fans
to assure even temperature
distribution throughout the
cabinet. Fans are controlled by
exterior on/off switch.
Two (2) stainless steel (for
corrosion resistance), finned tube
heating elements (1000 watts
each) for uniform generation of
electric heat. Cabinet comes with
a total of 2000 watts.
300 series stainless steel front.
Anodized quality aluminum
exterior sides, back and bottom.
Anodized aluminum interior
cabinet liner. 300 series stainless
steel floor with coved corners.
Energy efficient, triple pane,
thermal insulated glass doors.
Three (3) adjustable, heavy duty
chrome plated wire shelves.
Positive seal self-closing doors
with 120° stay open feature.
Lifetime guaranteed door hinges
and torsion type closure system.
Entire cabinet structure is
foamed-in-place using high
density, CFC free, polyurethane
insulation.
R
TG Specification Series:
Reach-In Glass Half Door Heated Cabinet
®
Shown with optional kit components.

STANDARD FEATURES
Model:
WARRANTY
One year warranty on all parts
and labor (U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

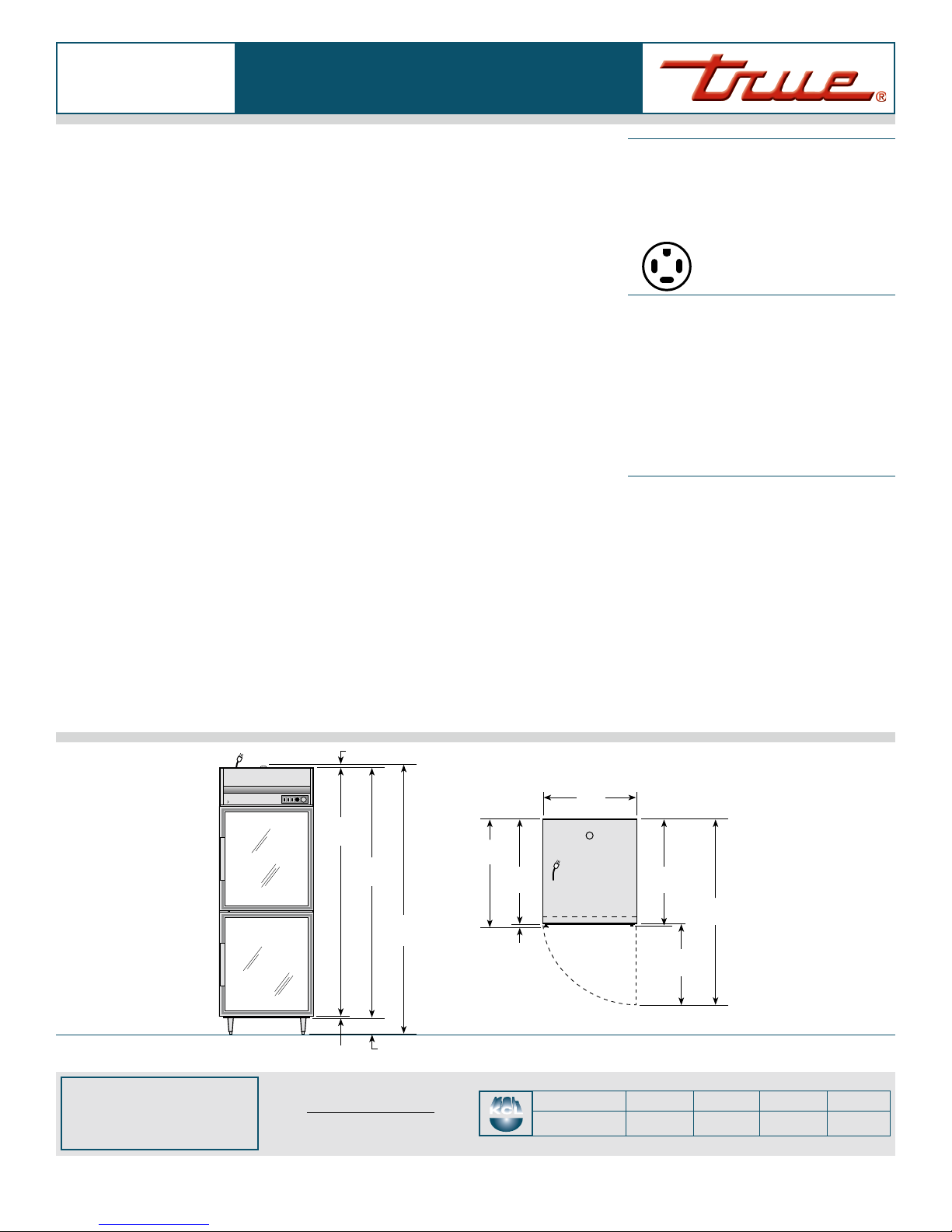

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
TG1H-2HG
TG1H-2HG
DESIGN
• True’s glass door reach-in heated cabinets are
designed with enduring quality that protects
your long term investment.
HEATER SYSTEM
• Cabinet designed to provide holding
temperatures of 80°F to 180°F (26.6°C to 82.2°C).
Heating system controlled by exterior on/off
switch and temperature control dial.
• Two (2) stainless steel (for corrosion resistance),
finned tube heating elements (1000 watts each)
for uniform generation of electric heat. Cabinet
comes with a total of 2000 watts.
• Equipped with low-velocity fans to assure
even temperature distribution throughout the
cabinet. Fans are controlled by exterior on/off
switch.
• Manually controlled vent located on top of the
cabinet for positive humidity control.
• 12" x 20" (305 mm x 508 mm) pan for water
included, if additional humidity required.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel rainshield.
Anodized quality aluminum sides, back and
bottom.
• Interior - NSF approved anodized aluminum side
walls and back liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 6" (153 mm) stainless steel
legs.
DOORS
• Doors are energy efficient, triple pane, thermal
insulated glass. Doors open within cabinet
dimension.
• Door locks standard.
• Each door fitted with 15" (381 mm) long
extruded aluminum handle.
• Positive seal self-closing doors with 120° stay
open feature. Lifetime guaranteed door hinges.
• Magnetic door gasket of one piece construction,
removable without tools for ease of cleaning.
SHELVING
• Three (3) chrome shelves 25" x 273/4"
(635 mm x 705 mm) with shelf clips and wall
mounted pilasters (factory installed). 11/16"
(27 mm) standoff ensures optimum airflow.
• Aluminum shelf support pilasters. Shelves are
adjustable on 1/2" (13 mm) increments.
• Three (3) different interior kits available (see Kit
Options). Pilasters and tray slides require field
installation.
LIGHTING
• Incandescent interior lighting – lights activated
by exterior on/off switch, safety shielded.
MODEL FEATURES
• Exterior, color coded, dial thermometer;
accurate direct reading of internal cabinet
temperature.
• Designed to hold warm baked or cooked food.
Cabinet is not designed to heat ambient or cold
product.
• NSF-4 compliant for open food product.
ELECTRICAL
• True requires that a sole use circuit be dedicated
for the unit.
• Unit completely pre-wired at factory and ready
for final connection to a 115/208-240/60 Hz.
single phase, 20 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒Seismic/flanged legs.
❒4" (102 mm) diameter stem castors.
❒Stainless steel rail skirt for use with legs (field
installed).
❒Additional shelves.
❒Stainless steel (electro polished) shelves.
❒Metal door handle (factory installed).
❒Electronic temperature control (factory
installed).
❒Curb mountable units.
KIT OPTIONS
Upcharge applies. Lead times may apply.
❒ Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (field installed), bottom support of one
(1) 18"L x 26"D (458 mm x 661 mm) pan or two
(2) 14"L x 18"D (356 mm x 458 mm) pans.
❒ Kit #2: One (1) set half-section #2 steel rod tray
slides and pilasters (field installed), rim support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan.
❒ Kit #3: Six (6) sets of universal type tray slides
and pilasters (field installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan,
two (2) 14"L x 18"D (356 mm x 458 mm) pans or
two (2) 12"L x 20"D (305 mm x
508 mm) pans.
❒ Additional kit option components available
individually.
115/208-240/1
NEMA-14-20R
TG Specification Series:
Reach-In Glass Half Door Heated Cabinet
ELEVATION PLAN VIEW
77"
(1956 mm)
851/4"
(2166 mm)
29"
(737 mm)
345/8"
(880 mm)
2611/16"
(678 mm)
615/16"
(1558 mm)
61/16"
(154 mm)
783/16"
(1986 mm)
365/32"
(919 mm)
117/32"
(39 mm)
13/16"
(31 mm)
1"
(26 mm)
3521/32"
(906 mm)
