True TR2H-2S User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TR2H-2S
TR2H-2S
†Depth does not include 11/8
" (29 mm) for system mechanical components.
* Height does not include 61/8 " (156 mm) for legs and 1 " (26 mm) for system mechanical components.
note: Requires hard wiring of 115/208-240/60 Hz, single phase, 3 pole, 4 wire circuit.
9/06
Provides cabinet holding
temperature of 80°F to 180°F
(26.6°C to 82.2°C).
Equipped with low-velocity fans
to assure even temperature
distribution throughout the
cabinet. Fans are controlled by
exterior on/off switch.
Two (2) stainless steel (for corrosion
resistance), finned tube heating
elements (1000 watts each) per
section for uniform generation of
electric heat. Cabinet comes with a
total of 4000 watts.
300 series stainless steel exterior
and interior. The very finest
stainless with higher tensile
strength for fewer dents and
scratches.
Equipped with one (1) interior kit
option per full section standard,
factory installed. Four (4) different
interior kits available.
Positive seal self-closing doors with
120º stay open feature. Lifetime
guaranteed door hinges and
recessed door handles.
Entire cabinet structure and solid
doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
R
TR Specification Series:
Reach-In Solid Door Heated Cabinet
®
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
Watts Voltage
Crated
Weight
(lbs.)
(kg)
LD
†H*
TR2H-2S 2 56
1586
513/8
1305
345/8
880
781/4
1988
4000 115/208-240/60/1 565
257

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor (U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TR2H-2S TFQY180E TFQY180S TFQY180P TFQY1803
TR2H-2S
DESIGN
• True’s solid door reach-in heated cabinets are
designed with enduring quality that protects
your long term investment.
HEATER SYSTEM
• Cabinet designed to provide holding
temperatures of 80°F to 180°F (26.6°C to
82.2°C). Heating system controlled by exterior
on/off switch and temperature control dial.
• Two (2) stainless steel (for corrosion resistance),
finned tube heating elements (1000 watts
each) per section for uniform generation of
electric heat. Cabinet comes with a total of
4000 watts.
• Equipped with low-velocity fans to assure
even temperature distribution throughout the
cabinet. Fans are controlled by exterior on/off
switch.
• Manually controlled vent located on top of the
cabinet for positive humidity control.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors, front,
sides, back and bottom.
• Interior - 300 series stainless steel liner and
floor.
• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 6" (153 mm) stainless
steel legs.
DOORS
• 300 series stainless steel exterior and liner.
Doors open within cabinet dimension.
• Door locks standard.
• Lifetime guaranteed recessed door handles.
Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to insure permanent
attachment.
• Positive seal self-closing doors with 120º stay
open feature. Lifetime guaranteed door
hinges and torsion type closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for ease
of cleaning.
SHELVING
• One (1) factory installed, interior kit option
per full section. Four (4) different interior kits
available (see Kit Options). Pilasters and tray
slides are factory installed at no charge.
LIGHTING
• Incandescent interior lighting - lights activated
by exterior on/off switch, safety shielded.
MODEL FEATURES
• Exterior dial thermometer; accurate direct
reading of internal cabinet temperature.
• True heated cabinets are designed to hold
warm baked or cooked food. Cabinets are not
designed to heat ambient or cold product.
• 12" x 20" (305 mm x 508 mm) pan for water
included, if additional humidity required.
• NSF-4 compliant for open food product.
ELECTRICAL
• True requires that a sole use circuit be
dedicated for the unit.
• Unit comes with 4 feed wires (including
ground) to be hardwired at installation site
to a 115/208-240/60 Hz. single phase - 20 amp
dedicated outlet.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒Seismic/flanged legs.
❒Stainless steel rail skirt for use with legs (field
installed).
❒Stainless steel (electro polished) shelves.
❒Metal door handles (factory installed).
❒Electronic temperature control (factory
installed).
❒Correctional facilities options.
❒Curb mountable units.
KIT OPTIONS
❒ Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (factory installed), bottom support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.
❒ Kit #2: One (1) set half-section #2 steel rod
tray slides and pilasters (factory installed),
rim support of one (1) 18"L x 26"D (458 mm x
661 mm) pan.
❒ Kit #3: Six (6) sets of universal type tray
slides and pilasters (factory installed),
bottom support of one (1) 18"L x 26"D
(458 mm x 661 mm) pan, two (2) 14"L x 18"D
(356 mm x 458 mm) pans or two (2) 12"L x
20"D (305 mm x 508 mm) pans.
❒ Kit #4: Three (3) chrome shelves 231/2"L x
273/4"D (597 mm x 705 mm) with shelf clips
and wall mounted pilasters (factory installed).
Shelves adjustable on 1/2" (13 mm) increments.
❒ Additional kit option components available
individually.

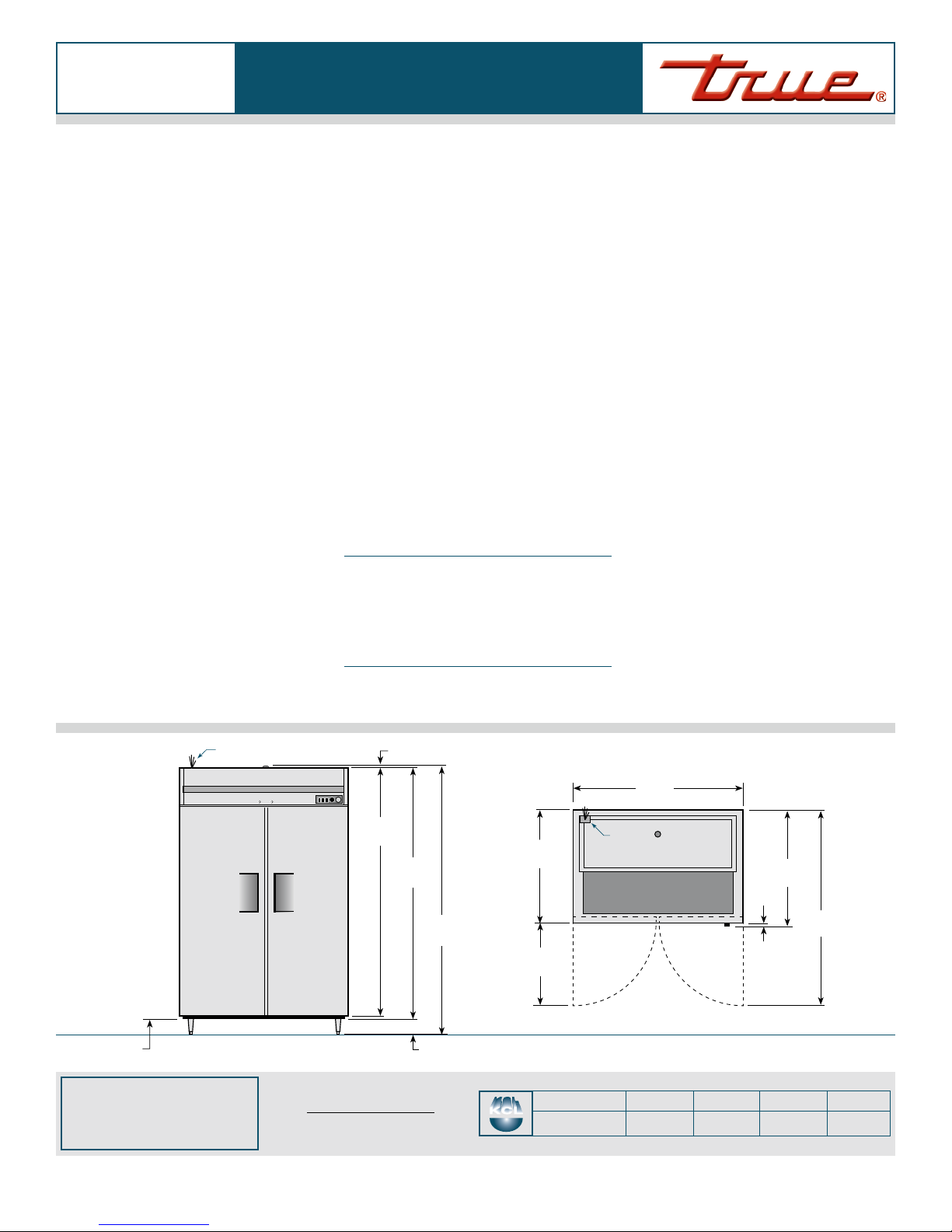

ELEVATION PLAN VIEW
77"
(1956 mm)
851/4"
(2166 mm)
61/16"
(154 mm)
TR Specification Series:
Reach-In Solid Door Heated Cabinet
783/16"
(1986 mm)
513/8"
(1305 mm)
345/8"
(880 mm)
2317/32"
(598 mm)
585/32"
(1478 mm)
3521/32"
(906 mm)
11/32"
(27 mm)
1"
(26 mm)
13/16"
(31 mm)
FEED
WIRE
LOCATION
FEED WIRE LOCATION
