True TA2HPT-2G-2S User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
TA2HPT-2G-2S
TA2HPT-2G-2S
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
LD
†H*Watts Voltage
Crated
Weight
(lbs.)
(kg)
TA2HPT-2G-2S 4 56
1586
513/8
1305
371/4
947
781/4
1988
4000 115/208-240/60/1 N/A
† Depth does not include 13/8"(35 mm) for door handles and system mechanical components.
*Height does not include 61/8
" (156 mm) for legs and 1 " (26 mm) for system mechanical components.
Requires hard wiring of 115/208-240/60 Hz, single phase, 3 pole, 4 wire circuit.
5/07
Provides cabinet holding
temperature of 80°F to 180°F (26.6°C
to 82.2°C).
Equipped with low-velocity fans to
assure even temperature distribution
throughout the cabinet. Fans are
controlled by exterior on/off switch.
Two (2) stainless steel (for corrosion
resistance), finned tube heating
elements (1000 watts each) per
section for uniform generation of
electric heat. Cabinet comes with a
total of 4000 watts.
300 series stainless steel exterior
front, sides, back, and bottom. The
very finest stainless with higher
tensile strength for fewer dents and
scratches.
Anodized aluminum interior cabinet
liner. 300 Series stainless steel rear
door liner and floor with coved
corners.
Energy efficient, triple pane, thermal
insulated glass front doors. 300
series stainless steel solid rear doors.
Six (6) adjustable, heavy duty chrome
plated shelves.
Positive seal self-closing doors with
120° stay open feature. Lifetime
guaranteed door hinges and torsion
type closure system.
Entire cabinet structure and solid
doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
R
TA Specification Series:
Pass-Thru Glass Front Door / Solid Rear Door Heated Cabinet
®

STANDARD FEATURES
Model:
WARRANTY
One year warranty on all parts
& labor (U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

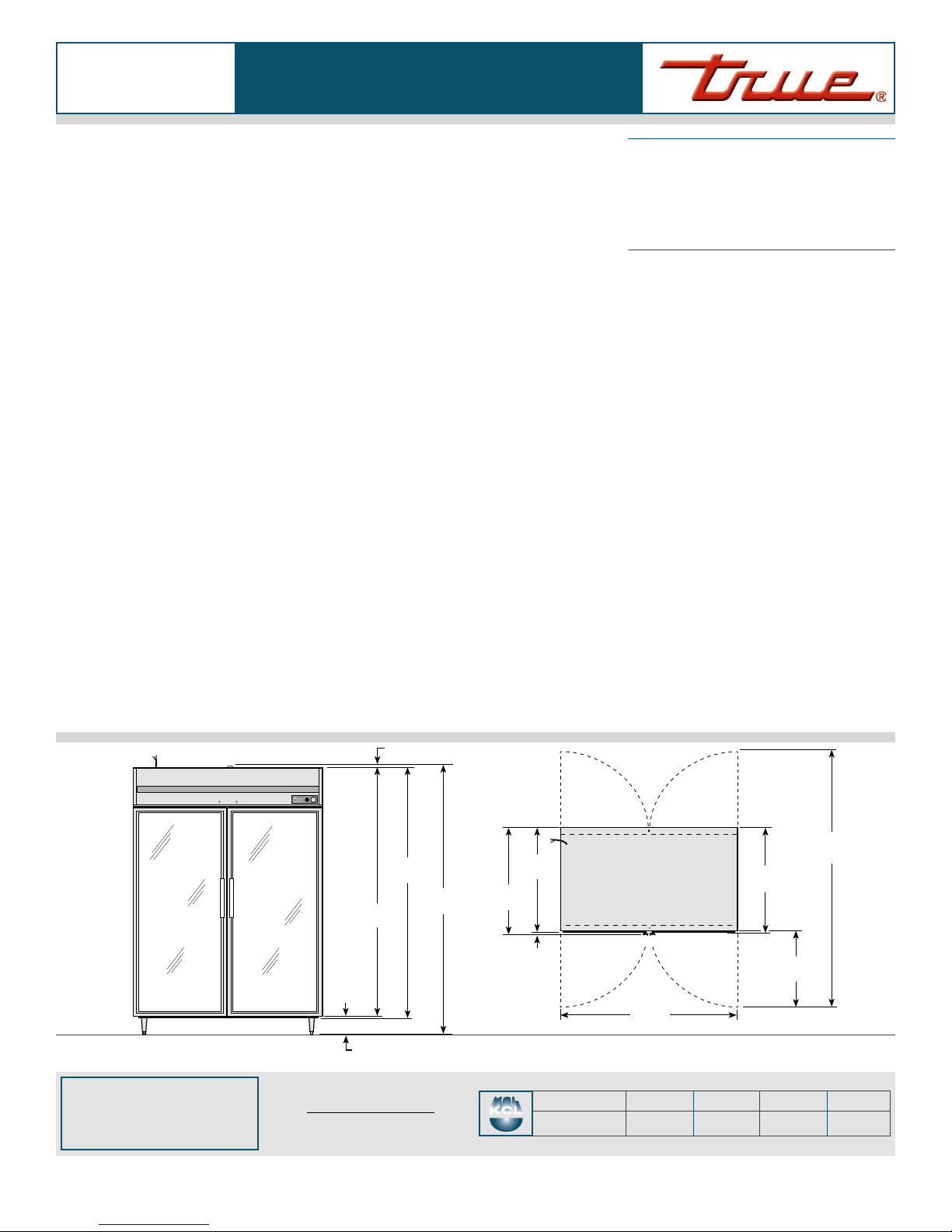

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
TA2HPT-2G-2S
TA2HPT-2G-2S
ELEVATION PLAN VIEW
783/16"
(1986 mm)
77"
(1956 mm)
513/8"
(1305 mm)
8411/32"
(2143 mm)
61/16"
(154 mm)
TA Specification Series:
Pass-Thru Glass Front Door /
Solid Rear Door Heated Cabinet
13/16"
(31 mm)
FRONT OF CABINET
851/4"
(2166 mm)
DESIGN
• True’s pass-thru heated cabinets are
designed with enduring quality that
protects your long term investment.
HEATER SYSTEM
• Cabinet is designed to provide holding
temperatures of 80°F to 180°F (26.6°C to
82.2°C). Heating system controlled by
exterior on/off switch and temperature
control dial.
• Two (2) stainless steel (for corrosion
resistance), finned tube heating elements
(1000 watts each) per section for uniform
generation of electric heat. Cabinet comes
with a total of 4000 watts.
• Equipped with low-velocity fans to assure
even temperature distribution throughout
the cabinet. Fans are controlled by exterior
on/off switch.
• Manually controlled vent located on top of
the cabinet for positive humidity control.
• 12" x 20" (305 mm x 508 mm) pan for water
included, if additional humidity required.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel rear
doors, front, sides, back and bottom.
• Interior - NSF approved anodized aluminum
side walls and back liner. 300 series
stainless steel floor with coved corners.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using high
density, CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 6" (153 mm) stainless
steel legs.
DOORS
• Front doors are energy efficient, triple
pane, thermal insulated glass doors.
• Rear doors are 300 series stainless steel
exterior and liners.
• Doors open within cabinet dimension.
• Door locks standard.
• Each front glass door fitted with 15"
(381 mm) long extruded aluminum handle.
• Each rear solid door fitted with 12"
(305 mm) long, lifetime guaranteed,
recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
• Positive seal self-closing doors with 120°
stay open feature. Lifetime guaranteed
door hinges.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Six (6) chrome shelves 231/2"L x 2813/16"D
(596 mm x 732 mm) with shelf clips and wall
mounted pilasters (factory installed). 11/16"
(27 mm) standoff ensures optimum airflow.
• Aluminum shelf support pilasters. Shelves
are adjustable on 1/2" (13 mm) increments.
• Three (3) different interior kits available
(see Kit Options) (upcharge applies).
Pilasters and tray slides require field
installation.
LIGHTING
• Incandescent interior lighting - lights
activated by exterior on/off switch, safety
shielded.
MODEL FEATURES
• Exterior, color coded, dial thermometer;
accurate direct reading of internal cabinet
temperature.
• Designed to hold warm baked or cooked
food. Cabinets are not designed to heat
ambient or cold product.
• NSF-4 compliant for open food product.
ELECTRICAL
• True requires a sole use circuit be dedicated
for the unit.
• Unit comes with 4 feed wires (including
ground) to be hardwired at installation site
to a 115/208-240/60 Hz. single phase, 20
amp dedicated outlet.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead time may apply.
❒ Seismic/flanged legs.
❒ Stainless steel rail skirt (field installed).
❒ Additional shelves.
❒ Stainless steel (electro polished) shelves.
❒ Metal door handles (factory installed).
❒ Electronic temperature control (factory
installed).
❒ Curb mountable units.
KIT OPTIONS
Upcharge applies. Lead time may apply.
❒ Kit #1: Nine (9) sets of #1 type tray slides
and pilasters (field installed), bottom
support of one (1) 18"L x 26"D (458 mm x
661 mm) pan or two (2) 14"L x 18"D (356
mm x 458 mm) pans.
❒ Kit #2: One (1) set half-section #2 steel rod
tray slides and pilasters (field installed), rim
support of one (1) 18"L x 26"D (458 mm x
661 mm) pan.
❒ Kit #3: Six (6) sets of universal type tray
slides and pilasters (field installed), bottom
support of one (1) 18"L x 26"D (458 mm x
661 mm) pan, two (2) 14"L x 18"D (356 mm
x 458 mm) pans or two (2) 12"L x 20"D
(305 mm x 508 mm) pans.
❒ Additional kit option components available
individually.
1"
(26 mm)
371/4"
(947 mm)
239/16"
(599 mm)
117/32"
(39 mm)
3825/32"
(986 mm)
389/32"
(973 mm)
