True TR1HRI-1S User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
TR1HRI-1S
TR1HRI-1S
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
LD
†H* Watts Voltage Amps
NEMA
Config.
Cord Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TR1HRI-1S 1 37
1048
35
890
341/2
877
833/4
2128
2000 115/208-240/1 8.3 14-20P 9
2.74
325
148
†Depth does not include 41/4
" (7 mm) for ramp.
* Height does not include 1 " (26 mm) for system mechanical components.
Requires 115/208 -240/60 Hz, single phase, 3 pole, 4 wire circuit.
12/05
Provides cabinet holding
temperature of 80°F to 180°F
(26.6°C to 82.2°C).
Cabinet equipped with low-
velocity fans to assure even
temperature distribution
throughout the cabinet. Fans
are controlled by exterior on/off
switch.
Two (2) stainless steel 1000 watt
finned tube heating elements per
section for uniform generation of
electric heat. Cabinet comes with
a total of 2000 watts.
300 series stainless steel exterior
and interior. The very finest
stainless with higher tensile
strength for fewer dents and
scratches.
Three (3) lifetime guaranteed,
cam-lift hinges. Full 180° open
capability with a stay open
feature at 120°.
Designed to accept roll-in racks
(inboard castors) with a maximum
dimensions of 27"L x 29"D x 66"H
(686 mm x 737 mm x 1677 mm).
One (1) heavy gauge stainless
steel ramp standard.
Entire cabinet structure and
solid door are foamed-in-place
using high density, CFC free,
polyurethane insulation.
R
TR Specification Series:
Roll-In Solid Door Heated Cabinet
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor (U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TR1HRI-1S TFQY82E TFQY51S TFQY51P TFQY823
TR1HRI-1S
DESIGN
• True’s solid door reach-in heated
cabinets are designed with enduring
quality that protects your long term
investment.
HEATER SYSTEM
• Cabinet is designed to provide holding
temperatures of 80°F to 180°F (26.6°C
to 82.2°C). Heating system controlled
by exterior on/off switch and
temperature control dial.
• Two (2) stainless steel (for corrosion
resistance), finned tube heating
elements (1000 watts each) for
uniform generation of electric heat.
Cabinet comes with a total of 2000
watts.
• Cabinet equipped with low-velocity
fans to assure even temperature
distribution throughout the cabinet.
Fans are controlled by exterior on/off
switch.
• Manually controlled vent located
on top of the cabinet for positive
humidity control.
• Exterior dial thermometer; accurate
direct reading of internal cabinet
temperature.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel
door, front, sides, back and bottom.
• Interior - 300 series stainless steel liner
and floor.
• Stainless steel breaker caps.
• Insulation - entire cabinet structure
and solid door are foamed-in-
place using high density, CFC free,
polyurethane insulation.
• One (1) heavy gauge stainless steel
ramp standard.
• Designed to accept roll-in racks
(inboard castors) with a maximum
dimensions of 27"L x 29"D x 66"H
(686 mm x 737 mm x 1677 mm).
DOOR
• 300 series stainless steel exterior and
liner. Door opens within cabinet
dimension. Door lock standard.
• Lifetime guaranteed recessed door
handle. Door fitted with 12"
(305 mm) long recessed handle that
is foamed-in-place with a sheet
metal interlock to insure permanent
attachment.
• Three (3) lifetime guaranteed, cam-lift
hinges. Full 180° open capability with
a stay open feature at 120°.
• Magnetic door gasket of one piece
construction, removable without tools
for ease of cleaning.
• Door is field reversible.
LIGHTING
• Incandescent interior lighting; safety
shielded.
MODEL FEATURES
• True heated cabinets are designed
to hold warm baked or cooked food.
Cabinets are not designed to heat
ambient or cold product.
• NSF-4 compliant for open food
product.
ELECTRICAL
• True requires that a sole use circuit be
dedicated for the unit.
• Unit completely pre-wired at factory
and ready for final connection to a
115/208-240/60 Hz. single phase - 20
amp dedicated outlet. Cord and plug
set included.
OPTIONAL FEATURES/ACCESSORIES
❒Metal door handle (factory installed).
❒Electronic temperature control
(factory installed).
❒Correctional facilities options.
❒Export units - consult factory.
❒Prison package options - consult
factory.

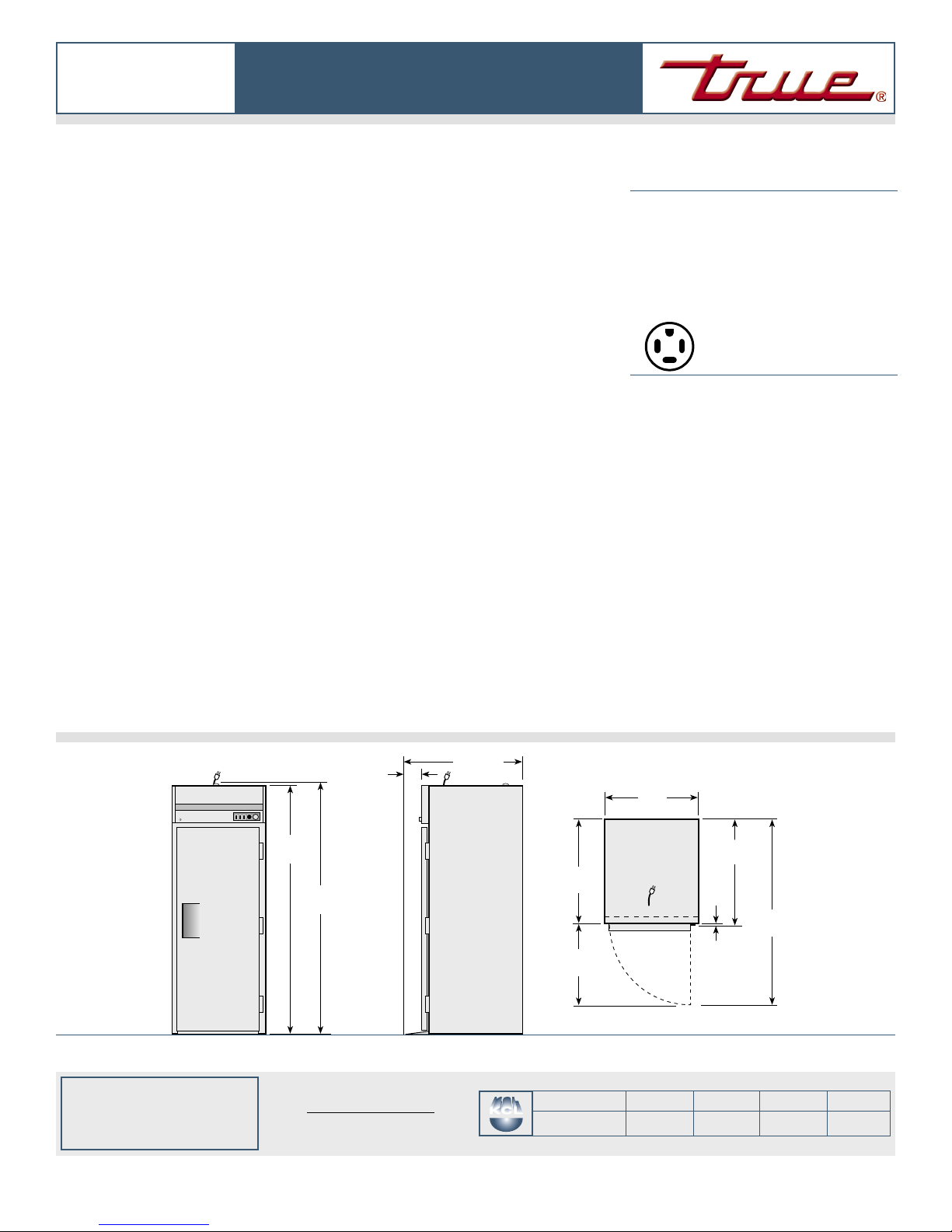

ELEVATION PLAN VIEW
115/208-240/1
NEMA-14-20R
833/4"
(2128 mm)
843/4"
(2153 mm)
35"
(889 mm)
347/16"
(875 mm)
30"
(762 mm)
647/16"
(1637 mm)
TR Specification Series:
Roll-In Solid Door Heated Cabinet
3515/32"
(901 mm)
11/32"
(27 mm)
RIGHT VIEW
3811/16"
(983 mm)
41/4"
(108 mm)
