True TR2HPT-2S-2S User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TR2HPT-2S-2S
TR2HPT-2S-2S
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
LD
†H*Watts Voltage
Crated Weight
(lbs.)
(kg)
TR2HPT-2S-2S 4 56
1586
513/8
1305
371/4
947
781/4
1988
4000 115/208-240/60/1 600
273
† Depth does not include 11/8"(29 mm) for system mechanical components.
*Height does not include 61/8
" (156 mm) for legs and 1 " (26 mm) for system mechanical components.
Requires hardwiring of 115/208-240/60 Hz, single phase, 3 pole, 4 wire circuit.
6/07
Provides cabinet holding
temperature of 80°F to 180°F
(26.6°C to 82.2°C).
Equipped with low-velocity
fans to assure even distribution
throughout the cabinet. Fans
controlled by exterior on/off
switch.
Two (2) stainless steel (for
corrosion resistance), finned tube
heating elements (1000 watts
each) per section for uniform
generation of electric heat.
Cabinet comes with a total of
4000 watts.
300 series stainless steel exterior
and interior. The very finest
stainless with higher tensile
strength for fewer dents and
scratches.
Equipped with one (1) interior kit
option per full section , factory
installed. Four (4) different
interior kits available.
Positive seal self-closing doors
with 120° stay open feature.
Lifetime guaranteed door hinges
and torsion type closure system.
Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.
R
TR Specification Series:
Pass-Thru Solid Door Heated Cabinet
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

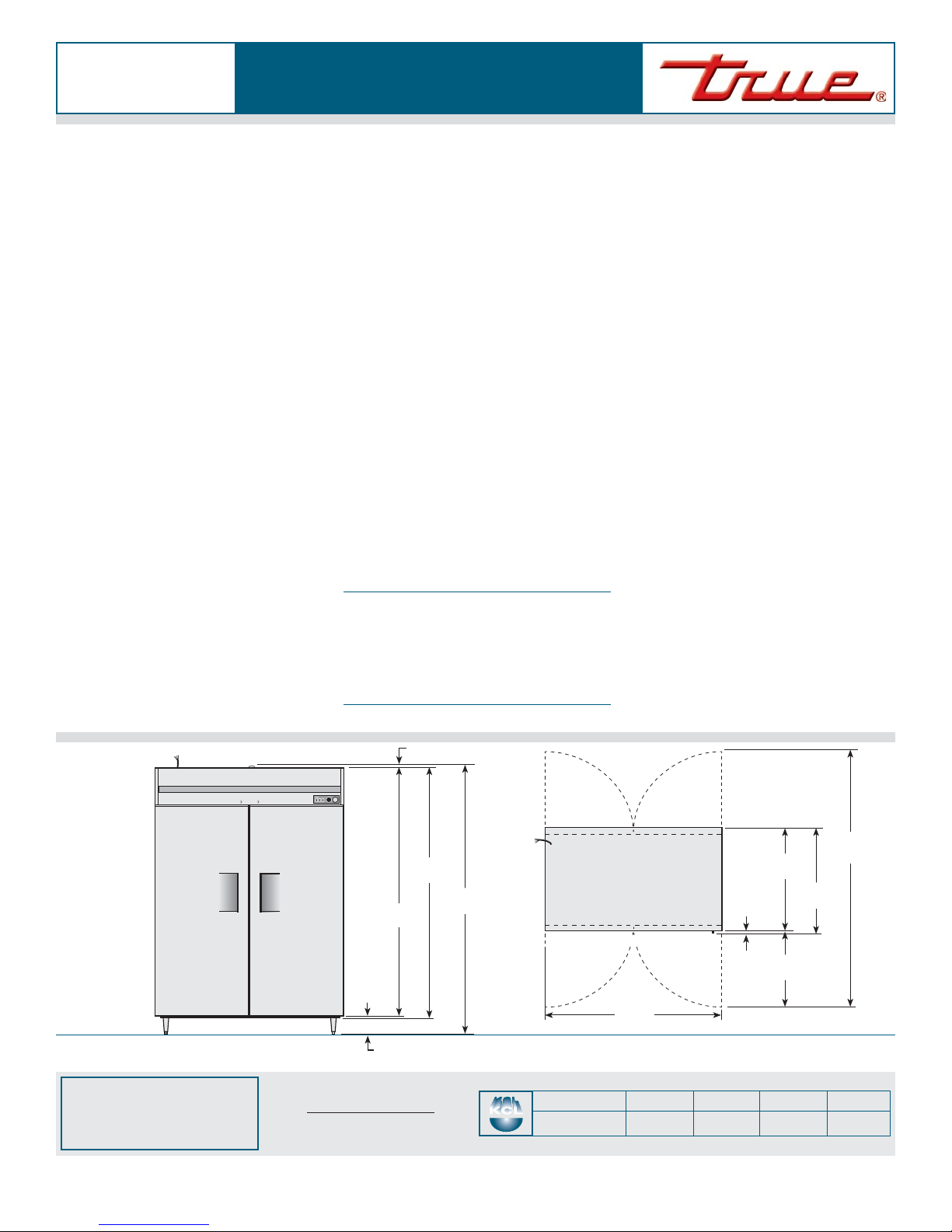

Model Elevation Right Plan 3D
PLAN VIEW
KCL
WARRANTY
One year warranty on all parts
and labor (U.S.A. only) TR2HPT-2S-2S TFQY180E TFQY196S TFQY196P TFQY1963
TR2HPT-2S-2S
ELEVATION PLAN VIEW
783/16"
(1986 mm)
77"
(1956 mm)
513/8"
(1305 mm)
389/32"
(973 mm)
2317/32"
(598 mm)
845/16"
(2142 mm)
61/16"
(154 mm)
TR Specification Series:
Pass-Thru Solid Door Heated Cabinet
13/16"
(31 mm)
FRONT OF CABINET
851/4"
(2166 mm)
DESIGN
• True’s solid door pass-thru heated cabinets
are designed with enduring quality that
protects your long term investment.
HEATER SYSTEM
• Cabinet is designed to provide holding
temperatures of 80°F to 180°F (26.6°C to
82.2°C). Heating system controlled by
exterior on/off switch and temperature
control dial.
• Two (2) stainless steel (for corrosion
resistance), finned tube heating elements
(1000 watts each) per section for uniform
generation of electric heat. Cabinet comes
with a total of 4000 watts.
• Equipped with low-velocity fans to assure
even temperature distribution throughout
the cabinet. Fans are controlled by exterior
on/off switch.
• Manually controlled vent located on top of
the cabinet for positive humidity control.
• 12"L x 20"D (305 mm x 508 mm) pan for
water included, if additional humidity
required.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors,
front, sides, back and bottom.
• Interior - 300 series stainless steel liner
and floor.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using high
density, CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 6" (153 mm) stainless
steel legs.
DOORS
• Front and rear doors are constructed with
300 series stainless steel exterior and liner.
Doors open within cabinet dimension. Door
locks standard.
• Lifetime guaranteed recessed door handles.
Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
• Positive seal self-closing doors with 120° stay
open feature. Lifetime guaranteed door
hinges and torsion type closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• One (1) factory installed, interior kit option
per full section. Four (4) different interior
kits available (see Kit Options). Pilasters and
tray slides are factory installed at no charge.
LIGHTING
• Incandescent interior lighting; lights
activated by exterior on/off switch, safety
shielded.
MODEL FEATURES
• Designed to hold warm baked or cooked
food. Cabinet is not designed to heat
ambient or cold product.
• NSF-4 compliant for open food product.
ELECTRICAL
• True requires a sole use circuit be dedicated
for the unit.
• Unit comes with 4 feed wires (including
ground) to be hardwired at installation site
to a 115/208-240/60 Hz. single phase, 20
amp dedicated outlet.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead time may apply.
❒ Seismic/flanged legs.
❒ Stainless steel rail skirt for use with legs
(field installed).
❒ Metal door handles (factory installed).
❒ Electronic temperature control (factory
installed).
❒ Correctional facilities options.
❒ Curb mountable units.
KIT OPTIONS
❒ Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (factory installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm)
pan or two (2) 14"L x 18"D (356 mm x
458 mm) pans.
❒ Kit #2: One (1) set half-section #2 steel rod
tray slides and pilasters (factory installed),
rim support of one (1) 18"L x 26"D
(458 mm x 661 mm) pan.
❒ Kit #3: Six (6) sets of universal type tray slides
and pilasters (factory installed), bottom
support of one (1) 18"L x 26"D (458 mm x
661 mm) pan, two (2) 14"L x 18"D (356 mm
x 458 mm) pans or two (2) 12"L x 20"D
(305 mm x 508 mm) pans.
❒ Kit #4: Three (3) chrome shelves 25"L x
2813/16"D (635 mm x 732 mm) with shelf
clips and wall mounted pilasters (factory
installed). Shelves adjustable on 6"
(153 mm) increments.
❒ Additional kit option components available
individually.
❒ Stainless steel (electro polished) shelves to
be used with Kit Option #4.
1"
(26 mm)
371/4"
(947 mm)
11/32"
(27 mm)
