Tsun TSOL-ACU3.0K User manual

- 1 -
TSOL-ACU3.0K

- 1 -
Content
CHAPTER 1 SAFETY PRECAUTIONS ................................ - 2 -
1.1 SAFETY TIPS.................................................. - 2-
1.2 SYMBOLS INSTRUCTIONS ........................................ - 4-
CHAPTER 2 PRODUCT INTRODUCTION ............................. - 5 -
2.1 SCOPE OF APPLICATION.......................................... - 5-
2.2 PRODUCT MODEL DESCRIPTION ................................... - 6-
2.3 DATASHEET .................................................. - 6-
TSOL-ACU3.0K ................................................. - 6-
CHAPTER 3 INSTALLATION INSTRUCTIONS ......................... - 8 -
3.1 SAFETY TIPS.................................................. - 8-
3.2 DETERMINE THE INSTALLATION METHOD AND LOCATION ................ - 9-
3.3 INSTALLATION STEPS .......................................... - 11 -
CHAPTER 4 ELECTRICAL CONNECTIONS .......................... - 16 -
4.1 ELECTRICAL INTERFACE DESCRIPTION ............................. - 16 -
4.2 SYSTEM WIRING SCHEMATIC .................................... - 17 -
4.3 MASTER DEVICE WIRING ....................................... - 17 -
4.4 SLAVE DEVICE WIRING ........................................ - 18 -
4.5 COMMUNICATION INTERFACE DESCRIPTION ......................... - 20 -
CHAPTER 5 DEBUGGING INSTRUCTIONS .......................... - 22 -
5.1 HUMAN-COMPUTER INTERFACE INTRODUCTION ...................... - 22 -
5.2 SYSTEM COMMISSIONING ....................................... - 23 -
5.3 REMOTE MONITORING ......................................... - 23 -
CHAPTER 6 FAULT CODES AND COMMON TROUBLESHOOTING...... - 24 -
CHAPTER 7 BATTERY MAINTENANCE ............................. - 27 -
7.1 TRANSPORTATION .............................................. - 27 -
7.2 STORAGE .................................................... - 27 -
CHAPTER 8 CONTACT US ......................................... - 28 -

- 2 -
Chapter 1 Safety Precautions
This user manual describes the instructions and procedures for the
installation of the TSOL-ACU3.0K AC Coupled Unit. Please read the
user manual before operating it.
Keep this user manual properly and operate strictly according to all
safety tips and operation instructions in this manual.
1.1 Safety Tips
Danger
• Electric shock and high voltage.
• Do not touch live components, as this may result in burns or
death.
• To prevent electric shock during installation and maintenance,
make sure that the AC and DC ports are disconnected.
• When the casing is wet, do not touch the casing of the inverter,
which may present a risk of electric shock.
• Before opening the case, the machine must be disconnected
from the grid and battery; disconnect the power supply for at
least five minutes for the capacitor to fully discharge before
opening the case.
Warning
• Installation, repair, recycling, and disposal of ACU must be
performed by qualified personnel in accordance with
national and local standards and regulations.
• Any behavior to change the functionality of the product

- 3 -
without permission will cause fatal injury to the operator,
third parties, and equipment. TSUNESS is not responsible
for these losses and warranty claims.
• To ensure property and personal safety, the battery modules
and inverter shall be well grounded.
Caution
• Do not modify or tamper with ACU and other components
of the system.
• Please pay attention to the risks caused by improper
modification.
Notice
• This device has a built-in lithium battery and a dedicated
extended battery. Do not extend other brands of batteries at
the battery port.
• ACU outputs AC power directly to the utility grid side and
the backup loads side. Do not reverse output of the two AC
terminals of the inverter.

- 4 -
1.2 Symbols instructions
Symbol
Description
Dangerous electrical voltage
The device is directly connected to public grid, thus all
work to the battery shall only be carried out by qualified
personnel.
No open flames
Do not place or install near flammable or explosive
materials.
Danger of hot surface
The components inside the device will release a lot of
heat during operation. Do not touch metal plate housing
of the inverter during operating.
Attention
Install the product out of reach of children
An error occurred
Read the usage manual to troubleshoot problems
This device SHALL NOT be disposed of in residential
waste
Please go to Chapter Seven “Battery maintenance” for
proper treatment.
CE Mark
The device is in compliance with Low Voltage Detective
and Electromagnetic Compatibility.
Recyclable

- 5 -
Chapter 2 Product Introduction
2.1 Scope of application
ACU series is used in energy storage retrofits and is a new type of AC
coupled energy storage system. The built-in lithium battery inside ACU
can be expanded in capacity according to user demands, and the modular
design of the slave device makes it easy to install wiring.
In daytime, solar power supports the loads first while the surplus power
will be stored by ACU, to improve self-consumption rate.
In peak power price hours, power from ACU supports the loads; while
in valley power price hours, ACU is charged by the grid. Finally, a
balance could be realized. In case of grid fault, ACU will make sure no
outage in the loads, achieving UPS function

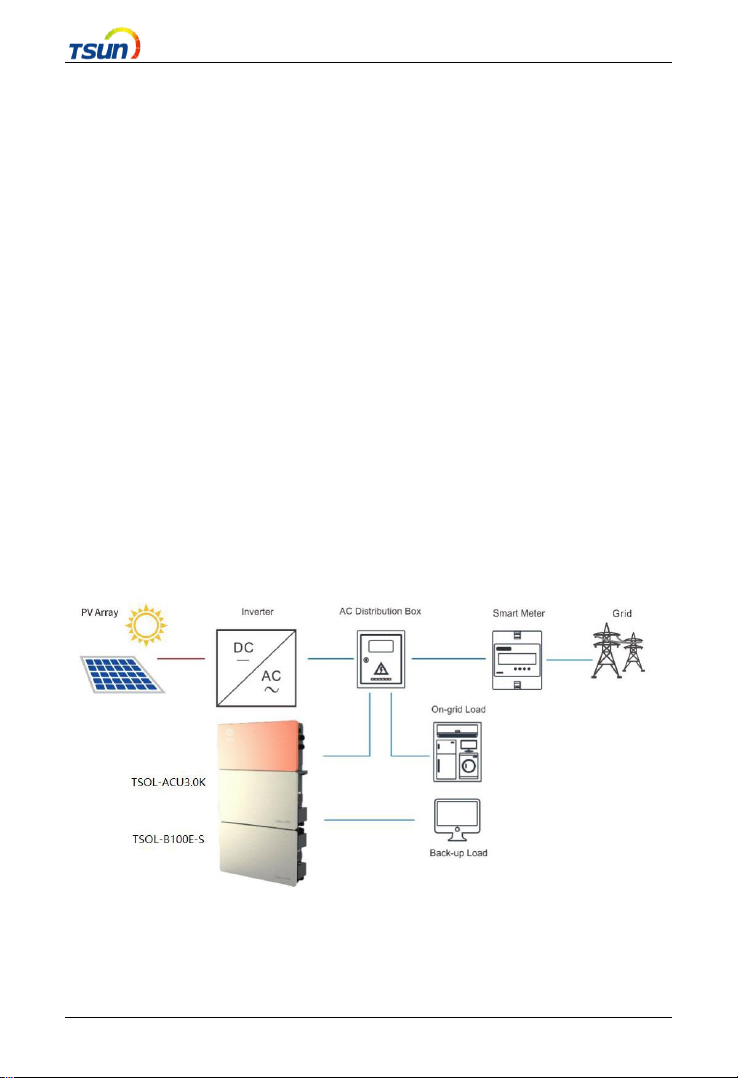

Fig. 2.1 System composition diagram

- 6 -
2.2 Product Model Description
TSOL - ACU 3.0K
①②③
①TSUN of the brand.
②ACU represents the product series.
③3.0K indicates the rated power of the product, such as 3.0K for
3KW.
2.3 Datasheet
TSOL-ACU3.0K
Type
TSOL-ACU3.0K
Battery Data
Battery Type
Lithium ion
Total Energy Capacity[Wh]
5120
Battery Capacity [Ah]
100
Rated Voltage [V]
51.2
Voltage range [V]
42~58.4
Depth Of Discharge[DOD]
≤90%
Cycle Life
≥4000
Max.Charge Current [A]
60
Max.Discharge Current [A]
60
Scalability
Yes（up to 20.4kWh）
Grid Data
Max. Continuable Output Power [VA]
3000
Max.Output Current [A]@230Vac
13.1
Max.Output Fault Current [A]
28
Inrush Current [A]
50

- 7 -
Max.Output Overcurrent Protection [A]
28
Rated Grid/Backup Voltage/Range [V]
220, 230, 240/180-280
Rated Grid/Backup Frequency/Range [Hz]
50, 60/±5
Power factor [cos φ]
0.8 leading~0.8lagging
Feed-in
L+N+PE
AC Output [Back-up Mode]
Max. Continuable Output Power [VA]
3000
Output Voltage [V]
220/230/240
Max.Output Current [A]@230Vac
13.1
Output Frequency [Hz]
50/60
Max.Output Power [VA]
3600 ,10sec
General Data
Communication Mode
Wi-Fi/4G/Ethernet (Optional)
Operating Temperature Range
0°C~50°C
Cooling Method
Natural Convection
Ambient Humidity
0-95% Non-condensing
Noise[dBA]
<29
Ingress Protection
IP65
Dimensions [H*W*D][mm]
738*650*186
Weight [kg]
60
Standard Warranty [Year]
5(Battery 4000 Cycle)
Applicable Standard
AS 4777.2, VDE 4105, G98, C10/C11, CEI 0-
21, IEC 62619, IEC 62040

- 8 -
Chapter 3 Installation Instructions
3.1 Safety Tips
Danger
• Potential fires and electric shocks that are life threatening.
• Do not place any flammable or explosive materials beside
ACU.
• Equipment connected to high-voltage power generation
equipment must be performed by qualified personnel in
compliance with national and local standards and regulations.
Notice
• The pollution level applicable to ACU is Class II.
• Inappropriate or inconsistent installation environment can
shorten the life of ACU.
• Do not install ACU directly by exposing it under strong
sunlight.
• Please do not install in damp places.
• The installation location must be well ventilated.
• TSOL-ACU3.0K (hereinafter also referred to as the master
device) can be used independently. If the battery capacity
needs to be expanded, please use TSOL-B100E-S (slave
device), and maximum 3 slave devices can be accessed.

- 9 -
3.2 Determine the installation method and location
3.2.1 ACU series product dimension
Fig. 3.1 ACU3.0K appearance and dimension diagram
3.2.2 ACU3.0K is cooled by natural wind convection. It is recommended
to install in indoors or sheltered areas to avoid direct sunlight, rain and
snow.
Fig. 3.2 Installation tips

- 10 -
3.2.3 Vertical ground mounting method is recommended and it’s allowed
to be installed by maximum tilting 15° backward. Do not install it
horizontally or reversely.
√ √
× × ×

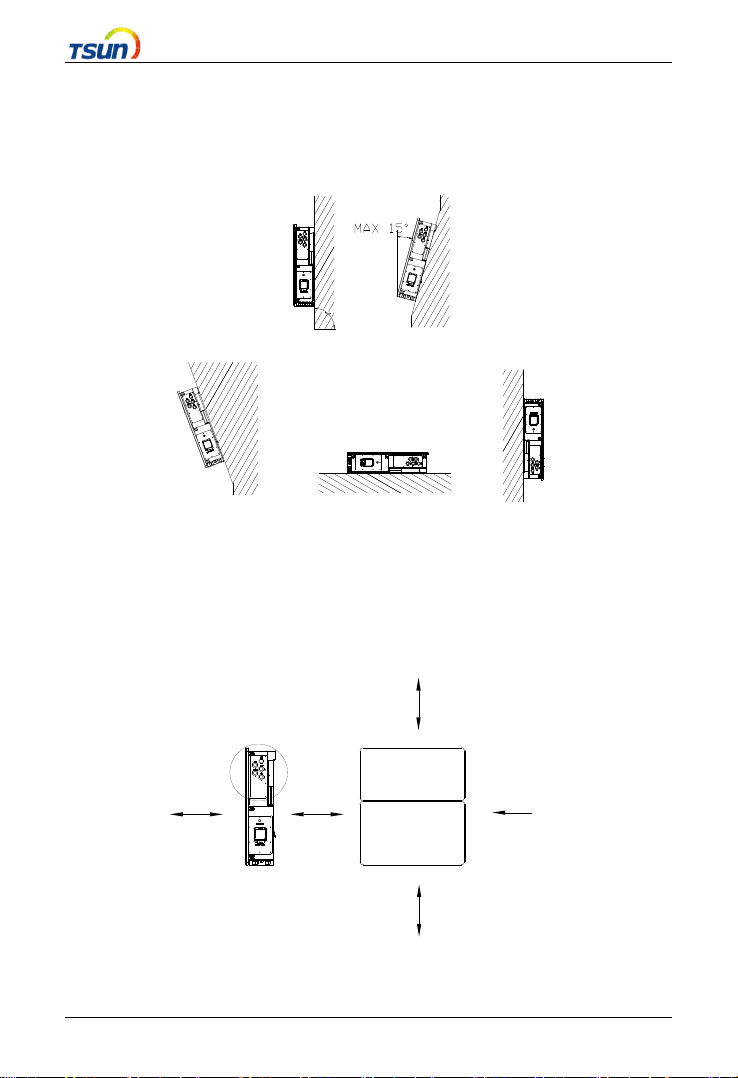

Fig. 3.3 Installation angle
3.2.4 Please ensure that the air at the installation point is circulated. Bad
air ventilation will affect the working performance of internal electronic
components and shorten the service life of ACU.
30CM
30CM
50CM50CM 50CM
Fig. 3.4 Installation distance

- 11 -
3.3 Installation steps
3.3.1 Determine the mounting hole position of the hanging panel
The ACU series is mounted on a hanging panel. The mounting
position is determined according to the position of the hanging hole
on the hanging panel. Unit: mm.

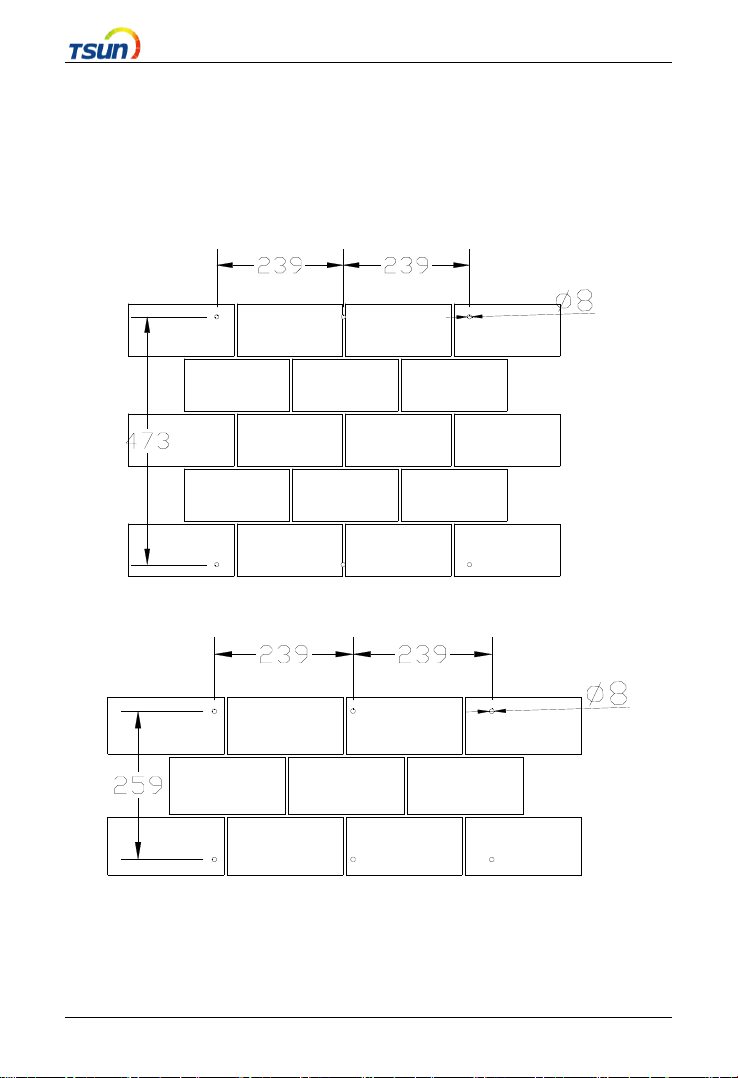

Fig. 3.5 ACU 3.0K hanging panel size (master device)
Fig. 3.6 TSOL-B100E-S hanging panel dimension (slave device)

- 12 -
Before installation, please make sure that the wall has sufficient
strength to fix the screws and bear the weight of ACU. Mark the
hanging hole position of the hanging panel on the wall and drill the
corresponding hole position; then use a rubber hammer to drive the
screw fixing seat into the hole.
Fig. 3.7 TSOL-ACU3.0K (master device)
Fig. 3.8 TSOL-B100E-S hanging panel dimension (slave device)

- 13 -
TSOL-ACU3.0K is the master device and TSOL-B100E-S is the
slave device. In order to ensure normal installation of both, the
installation distance between the master and the slave panel, while that
between the slave panels shall at least meet requirements as follows:
Fig. 3.9 Distance between hanging panels

- 14 -

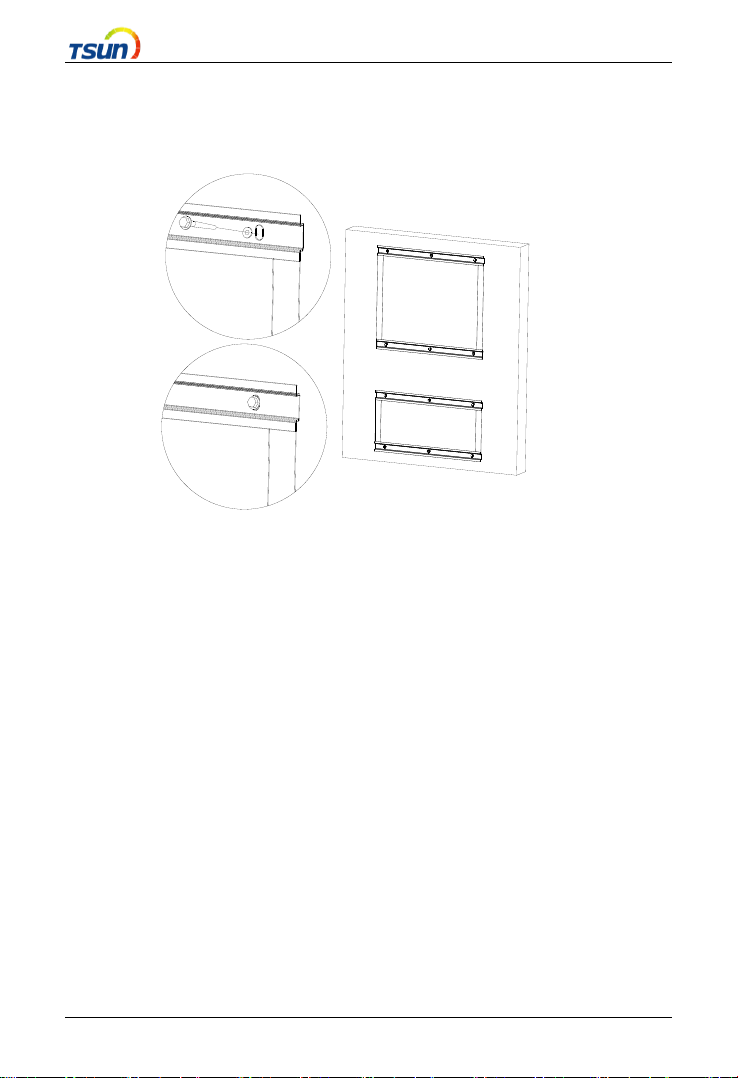

Fix the hanging panel with hex head screw on the installation
position.
Fig. 3.10 Fixing the hanging panel
Please pay attention when installing the device. Please install the
slave device first and then install the master device. In case the distance
between the master device and the slave device is not enough,
installation can’t be done. Carefully attach the device to the hanging
panel and make sure the bottom of the device fits snugly with the panel.

- 15 -

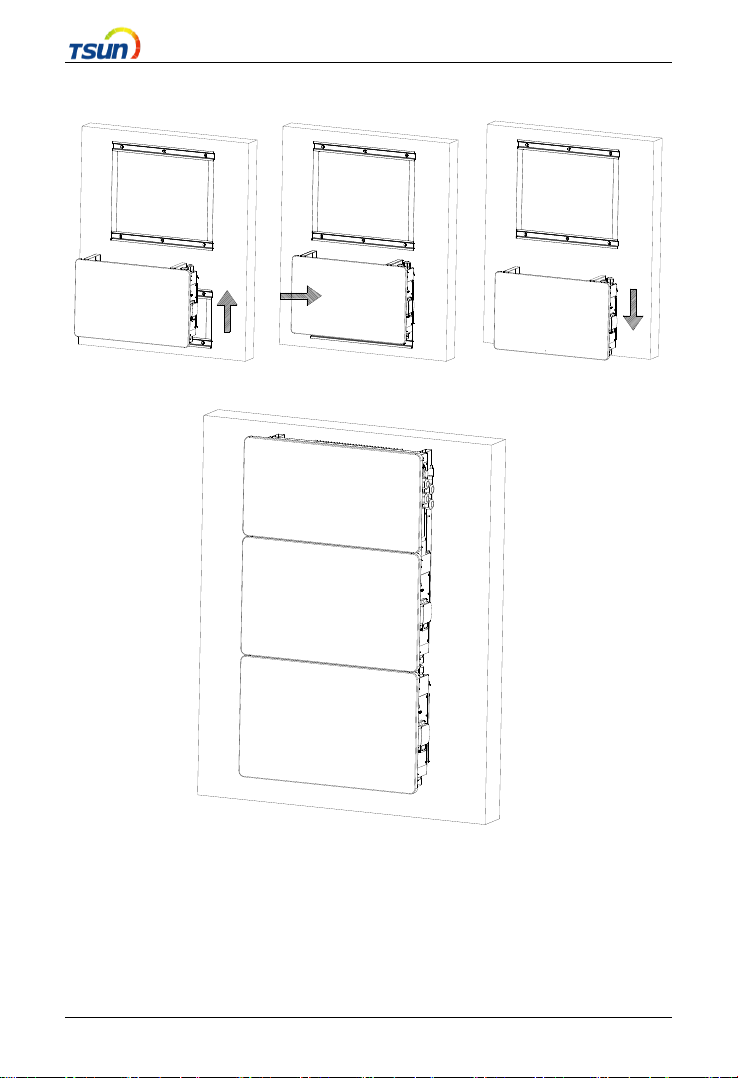

Fig. 3.11 Install TSOL-ACU3.0K

- 16 -
Chapter 4 Electrical Connections
4.1 Electrical Interface Description

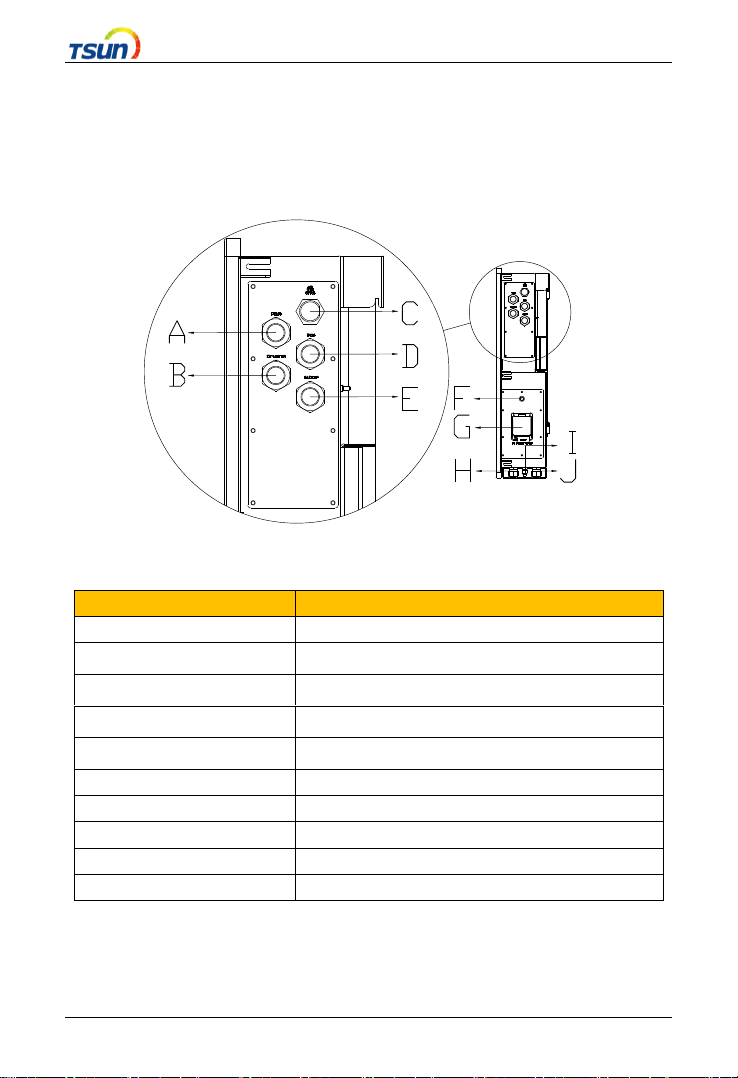

Fig. 4.1 TSOL-ACU3.0K electrical interfaces
Code
Name
A
DRMS Port
B
CT/Meter connection
C
RS232 communication
D
Grid connection
E
Backup connection
F
BMS switches
G
Battery switches
H
BAT+
I
BMS LINK
J
BAT-
Table 4.1 Interface description

- 17 -
4.2 System Wiring Schematic
Meter
Grid
4G
Back-up
Fig. 4.2 Wiring schematic diagram
Don’t connect the backup loads side with the grid or battery
BACKUP BACKUP
Fig. 4.3 Wrong connection example
4.3 Master Device Wiring
When wiring the master device, you need to disassemble the wiring
cover in the upper right corner and connect as per the terminal
identification.

- 18 -

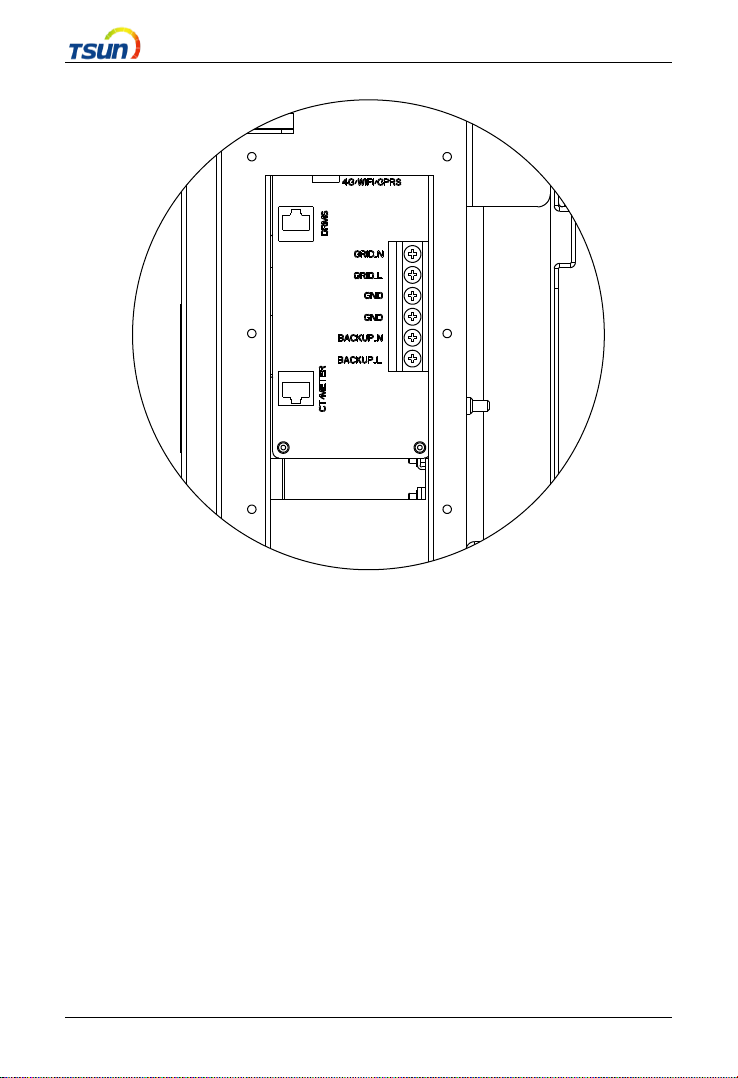

Fig. 4.4 Master device wiring terminals
4.4 Slave Device Wiring
More capacity is required to connect the slave devices in parallel.
Disconnect the battery connector cover of the master device and the
slave unit before wiring. Only 3 lines are required to connect a slave
device. (BAT+-BAT+, BAT--BAT-, LINK-LINK)

- 19 -
Fig. 4.5 Slave device wiring terminals
Notice
• Please use the battery cable in original package.
• Do not share 1 lithium battery slave device on 2 ACU.
