Tsuruga 8528 User manual

TSURUGA ELECTRIC CORPORATION
I-01882-1
MODEL 8528
Withstanding Voltage Tester
Instruction Manual

I
FOR SAFE USE
For safe use of this product, please observe the following warning and caution. In order to help the
users’ safe use of the products, the following symbol marks are used in this manual.
This is the warning to avoid the danger when it is assumed that such danger
as may cause fatal accident or severe injure to a user occurs in case that the
product is mishandled.
This is the caution to avoid the danger when it is assumed that such danger
as may cause minor injure to a user or generate only physical obstacle
occurs in case that the product is mishandled.
WARNING
This tester outputs high voltage. As there is danger of an electric shock, please strictly
follow the directions below:
●Do not touch high voltage cables or test samples during the test.
The places marked with on the tester are the dangerous parts where the
high voltage is generated.
●Make sure to connect the protective ground terminal to the earth.
●Do not short-circuit the output to the ground or commercial power supply line.
It is dangerous as the housing of tester is charged with high voltage. It also causes
the break-down of the tester.
●When operating the tester, put on the rubber gloves for an electric operation.
●For the connection to the sample to be tested, use the attached high voltage
cable or an electric cable appropriate to the operating voltage.
●Do not repeat ON/OFF of the power supply switch. It is dangerous and causes the
break-down of the tester.
●Place for installation
Never install or use this product in the place where such explosive or flammable
materials as mentioned below are used or stored (Occupational Safety and Health
Laws, Enforcement RegulationsAppendix Table 1 Dangerous Materials.
[Explosive material], [Flammable material], [Inflammable material], [Flammable
gas], [Oxidizing material]
※Model 8528 internally uses the metallic materials. There is a fear of deterioration
due to corrosion or rust and explosion or inflaming by an electric spark.
●Do not put anything on the 8528 or use it as foot stool.
※It affects the heat radiation, causing internal heat up and breakdown.
※It may also cause a deformation of the top part of the product.
●When the voltage is applied to the capacitance load (test sample), the output
voltage may rise higher than the case of no load depending upon the capacitance
value of the load. Also, in case of the voltage liable load (test sample), wave
distortion may occur.
In case of test voltage 2kV, the influence of capacitance 2000pF or less can be
ignored.
CAUTION
Pay attention to the following cautions about the power supply.
This tester is equipped with a high voltage transformer 500VA, so it can happen in the
following cases that the considerably big current (a few 10A) flows to the commercial
power supply line which this tester is connected to.
During a few 10ms immediately after the start of withstanding voltage test.
During a few 10ms while this tester makes a NG (no good) judgement for the test
sample.
Take care for the capacity of supply power line and the other equipment or devices
connected to the same line.
Besides, in case that the stabilized AC power supply is used, depending upon the action
of its current limiter circuit, the output is turned ON/OFF at high speed. It eventually
generates the considerably big surge voltage and is very dangerous.
WARNING
CAUTION

II
CAUTION
●To avoid break-down, malfunction or other troubles, do not use the tester in such
places where:
exposed to rain, water drops or direct sunlight.
high temperature or humidity, heavy dust or corrosive gas.
affected by external noise, radio waves or static electricity.
unstable or of much mechanical vibration
high sensitivity measuring instruments or receiver locates nearby
●Do not open the case or modify the tester as it may cause a danger of an electric
shock or other troubles.
●In case that abnormal operation occurs, turn off the power supply switch
immediately and pull out the power supply cable from the plug socket.
●When doing the maintenance or checking, be sure to stop the use of product and turn
off the power supply.
●Do not use the product in the place of vibration or where the shock may occur as it
will cause the breakdown of the product.
MAINTENANCE & TRANSPORTATION
WARNING
●Take care that the water drops like rain do not wet the product.
※It may cause the electric shock or malfunction.
●Do not lay along the product. Also take care that the product does not fall
down by vibration or else.
※It may cause the damage of internal mechanism or malfunction.
CAUTION
●Hold the chassis (bottom plate) when the product is transported.
Do not carry the product holding its red bushing at high voltage output
terminal section (refer to ⑥,⑲of the article 3 Name of parts and functions).
※The bushing (red) may break, causing serious injury by the fallen 8528.
●Minimize the mechanical shock or vibration when transporting the product.
※It may cause the damage of internal mechanism or malfunction.
INTERLOCK
Model 8528 is provided with interlock function.
During the interlock function is in operation, no test is allowed.
The interlock function can be canceled by connecting the attached REMOTE/OUT plug into the
REMOTE/OUT connector ⑱on the back and then pressing the STOP switch ②.
Please refer to the article 13.3 (P31) for the interlock function.

Contents
Page Page
1. Preface................................................................ 1
1.1●Initial setting at the time of delivery.......... 1
2. Confirmation prior to use ...................................2
2.1●Unpacking.................................................. 2
2.2●Cautions for handling ................................ 2
3. Name of parts and functions............................... 3
3.1●Front panel................................................. 3
3.2●Rear panel.................................................. 6
4. Preparation prior to use ......................................8
4.1●Zero adjustment of output voltmeter ......... 8
4.2●Connection of protective ground terminal. 8
4.3●Connection with external control device... 8
4.4●Connection of high voltage cable.............. 8
4.5●Connection of power supply cable ............ 9
4.6●Throw in and shut off of power source...... 9
4.7●Before the test............................................ 9
5. Setting items in each mode............................... 10
5.1●READY status ......................................... 10
5.2●Setting mode of test condition................. 10
5.3●Memory write-in mode............................ 10
5.4●Memory read-out mode........................... 10
6. Flow of setting.................................................. 11
7. Setting of test condition for withstanding voltage
test .................................................................. 12
7.1●Status of display and expression in
instruction manual .................................. 12
7.2●Test range of withstanding voltage test ... 12
7.3●Referential voltage................................... 13
7.4●High limit of leak current ........................ 15
7.5●Low limit of leak current......................... 16
7.6●Test time .................................................. 18
8. Memory function.............................................. 20
8.1●Configuration of memory........................ 20
8.2●Memory write-in...................................... 20
8.3●Memory read-out..................................... 21
9. Test procedure (from start to judgement result) 22
9.1●Setting of test voltage (before starting test)
................................................................ 22
9.2●Test operation.......................................... 22
9.3●Judgement waiting time for lead current. 24
10. Key lock ......................................................... 25
11. Special test mode............................................ 26
12. Remote control............................................... 27
12.1●Operation by REMOTE connector........ 27
12.2●Operation by REMOTE terminal .......... 27
12.3●Operation by REMOTE/OUT connector28
12.4●REAR:MEM operation.......................... 29
12.5●Priority of each remote control.............. 29
13. External control.............................................. 30
13.1●Control by REMOTE/OUT connector .. 30
13.2●Arrangement and function of connector
pins....................................................... 30
13.3●Interlock signal...................................... 31
13.4●Protective function (PROTECTION).... 31
13.5●Output signals and power supply for
control................................................... 32
14.Status output.................................................... 33
14.1●Name of STATUS OUT and condition for
output.................................................... 33
14.2●Specifications of status output............... 33
14.3●Setting of condition for status output .... 34
15. Timing chart ................................................... 35
16. Adjustment of buzzer sound........................... 36
17. Error message................................................. 37
18. Maintenance................................................... 38
18.1●Cleaning ................................................ 38
18.2●Failure symptom.................................... 38
18.3●Replacement of fuse.............................. 38
19. Specifications................................................. 39

1
1. Preface
For proper use of this tester, please carefully read these instructions before initial operation.
Please make sure that this instruction manual reaches the responsible person of operation
and also keep it near the tester so the operator can read it any time.
Model 8528 deals high voltage, so it is designed to provide many protective functions and
various concerns to secure the operators’ safety.
●As the withstanding voltage tester, this model has the capability of max. output 5kV and
output capacity 500VA, which allow for a withstanding voltage test of various electronic
equipment or components, in accordance with the various standard.
●Referential voltage setting, which prevents the test from being started unless the test
voltage comes into the range of either higher value of ±5% of set value or ±50V, high
and low leak current setting, timer function ensures highly accurate measurement.
●Large green LED of high visibility is employed for the display of test voltage, current
and test time.
●A9 memory is provided to write in and read out the test conditions regulated by the
various standards or regulations.
●Arelay contact can be output as the status output during the test.
●By means of REMOTE/OUT connector, an output signal to show “waiting”, “in-test”or
“judgment”is output in open collector, depending upon the status of the tester.
●This tester is also provided with the remote control connector and terminal blocks which
allows remote start/stop of the test. With use of this function jointly with judgement
result and output signals, it facilitates the automation and labour-saving.
1.1●Initial setting at the time of delivery
The tester has the following initial setting at the time of delivery from factory.
Function
Setting
Remarks
Key lock
OFF
For detail, please refer to the article 10 Key lock.
Double action
OFF
For detail, please refer to the article 11 Special test mode.
GOOD hold
OFF
Momentary
OFF
FAIL mode
OFF
Memory (Common for No.1~No.9)
At the delivery from factory, the following data is written in every memory No.1~9.
Keep pressing ENTER key and SHIFT key together, power on the tester, then the
settings are reset to the initial ones at the time of delivery.
Test condition
Test voltage range :2.5kV
Referential voltage :OFF (0.00kV)
High limit leak current :10.0mA
Low limit leak current :OFF (0.0mA)
Test time :60.0s

2
2. Confirmation prior to use
2.1●Unpacking
(1) Unpacking
When the tester is delivered, please check whether it has not been damaged in transit
and unpack it carefully. If any damage or inconvenience is found, please consult the
dealer whom you purchased the tester from for proper solution.
(2) Check of contents
Please do not leave in the carton any item of the contents listed below.
List of accessories:
High voltage cable 2m 1 pair
Earth wire 3m 1 piece
Power supply cord 2.5m 1 piece
REMOTE/OUT plug 1 piece (36P)
Fuse 7A 1 piece
Instruction manual 1 copy
RS-232C interface instruction manual 1 copy
RS-232C connector (D-sub 9 pins) Model 5858-11-020 (9 pins –9 pins / 2.0m) for
external communication is available at option. When a customer procures it,
please use the inch pitch screw type.
2.2●Cautions for handling
Since the Model 8528 deals high voltage, it is designed paying special attention to safety.
However, it is still dangerous as it outputs high voltage of max. 5kV. An erroneous
handling may cause fatal accident. In order avoid any accident, please strictly observe the
following cautions and take utmost care for safety.
(1) Make sure to connect the protective grounding terminals (Rear panel) to the earth. If
the grounding is insufficient, the tester housing is charged with high voltage when the
output is short-circuited to the earth or the power source line, and is very dangerous.
Please also check if the grounding cable is disconnected or not.
WARNING
Insufficient grounding may cause the electric shock.
(2) Never touch the output terminals, high voltage cable and test samples during the test.
(3) When making a connection to the test sample, connect the LOW side prior to the other,
with the output OFF.
(4) When operating the Model 8528, put a rubber glove for prevention of electric shock.
CAUTION

3
3. Name of parts and functions
3.1●Front panel
①POWER Power supply switch. Press right to turn ON and left to turn OFF.
②STOP Switch to interrupt the test operation, to reset a judgement.
③START Switch to start the test.
This switch is disabled when the REMOTE connector ⑤is used, or the
remote operation is made through the REMOTE terminal blocks or the
REMOTE/OUT connector ⑱.
④TEST VOLTAGE Knob to adjust the test voltage.
⑤REMOTE Connector for remote control.
⑥HIGH VOLTAGE High voltage side terminal of the test voltage output.
It outputs high voltage during the test, so never touch it during the
DANGER lamp ⑩is lit up. The operator may suffer electric shock.
It is common with HIGH VOLTAGE on the back panel.
⑦LOW Low voltage side terminal of the test voltage output. It is of the same
voltage as the case of this tester.
⑧Output voltmeter Electrical instrument to indicate the output voltage value.
⑨Zero adjuster Knob to adjust the zero position of the voltmeter.
The adjustment is done when no power is applied.
⑩DANGER lamp It gives warning during the test voltage is output.
Never touch the high voltage cable and test sample during the DANGER
lamp ⑩is lit up. The operator may suffer electric shock.
ＰＲＯＴＥＣＴ
ＲＥＭＯＴＥ
ＭＯＤＥＪＵＤＧＥ
ｋＶ
ＡＣ
ＡＣ
ＯＮＬＩＮＥ
ＫＥＹ ＬＯＣＫ
ＲＥＡＤＹ
ｍＡ
ＣＵＲＲＥＮＴＴＥＳＴ ＶＯＬＴＡＧＥ
BUZZER
LOCK
MAX
MAX 5kV
OUTPUT
HIGH VOLTAGE REMOTE
TEST VOLTAGE
WRITE READ
START STOP
EXIT
POWER
MIN
LOW
DANGER
ＴＩＭＥ
ＲＡＮＧＥ ＭＥＭＯＲＹ
s
Ｎｏ．
ｋＶ
ｋＶ
ＨＩＧＨ ＳＥＴ
ＬＯＷ ＳＥＴ
ＧＯＯＤ
ＨＩＧＨ
ＬＯＷ
SHIFTENTERON/OFF
8 9 10 11 12 13
7 6 5 4 3 2 1
WITHSTAND VOLTAGE TESTER MODEL 8528

4
Name of parts and functions
⑪Buzzer hole Aperture for the buzzer.
WARNING
Do not put any thing in the buzzer hole or insert a screwdriver or else.
●It may cause electric shock if touched with metal piece.
●It may also cause trouble of breakdown or mal-function.
⑫Display section Displays the information of test condition, test result and so on.
READY lamp Lit up in READY status.
REMOTE lamp Lit up when the remote control is done.
During this lamp is lit up, the START switch ③is disabled.
KEY LOCK lamp Lit up when the key lock function is turned ON.
During this lamp is lit up, the switches other than the START switch ③
and the STOP switch ②are disabled.
ONLINE lamp Lit up when the remote controlled by RS-232C interface.
AC lamp Lit up in READY status.
Range display Displays the voltage range of withstanding voltage test. (2.5kV or 5.0kV)
(RANGE)
Voltage display of During the setting of referential voltage, it displays the set value, and
withstanding volt. test during the test, it displays the output voltage value.
(TEST VOLTAGE)
Current display During the setting of high and low leak current, it displays the set value of
(CURRENT) leak current, and during the test, it displays the measured value.
Test time display Displays the test time of the withstanding voltage test.
(TIME) During the test it display the time remaining.
When the test time is set to OFF, the time lapse is displayed during the test.
HIGH SET Lit up at the setting of high limit leak current.
LOW SET Lit up at the setting of low limit leak current.
GOOD Lit up after the W-test, when the test result is acceptable
HIGH Lit up after the W-test, when the test result is rejected for its high limit.
LOW Lit up after the W-test, when the test result is rejected for its low limit.
PROTECT
○
ONLINE
○
○
○
○
KEY LOCK
REMOTE
READYAC
No.s
mA
HIGH SET
SET
LOW
HIGH
GOOD
LOW
MODEJUDGE
CURRENTTEST VOLTAGE
MEMORY
RANGE TIME
kV
kV
AC

5
Name of parts and functions
Memory No. display Displays memory number being set in the memory mode.
(MEMORY No.)
PROTECT lamp Lit up when the PROTECTION is output.
⑬Setting keys Keys to set the test condition such as referential voltage, leak current, test
time etc. and to write in or read out the memory.
key Key to feed and select each setting item toward left.
WRITE (When pressed together with SHIFT key, it becomes WRITE key
used for writing the memory.)
key Key to feed and select each setting item toward right.
READ (When pressed together with SHIFT key, it becomes READ key used
for read-out of the memory.)
▲key Key to increase the first digit of the set value one by one digit.
(When pressed together with SHIFT key, it becomes key used to
increase the second digit of the set value one by one digit.
When kept pressed, the digit continuously increases.
▼key Key to decrease the first digit of the set value one by one digit.
(When pressed together with SHIFT key, it becomes key used to
decrease the second digit of the set value one by one digit.
When kept pressed, the digit continuously decreases.
ON/OFF key Key for selection to set or not to set each setting item.
LOCK (When pressed together with SHIFT key, it becomes LOCK key and
is used to set/cancel the key lock.)
ENTER key Key to finish the setting of test condition or to decide in memory setting.
EXIT (When pressed together with SHIFT key, it becomes EXIT key used
to interrupt the setting or memory mode and return to READY status.)
SHIFT key Shift key to use together with one of other keys.
(The function indicated on each key in blue letters becomes effective.)
ON/OFF ENTER SHIFT
WRITE READ LOCK EXIT

6
Name of parts and functions
3.2●Rear panel
⑭Protecting grounding Terminal for grounding to the earth.
terminal Make sure to ground to the earth using the attached earth cable (green).
It is the same voltage potential as the case of the tester.
⑮FUSE 7A Fuse socket. The rate of fuse is as the following table shows.
Type
Power source voltage
Rate of fuse
Standard
100V AC
125V 7A
Optional
115V AC
200V AC
250V 4A
220V AC
240V AC
Do not use the fuse other than rated one.
⑯100V~50/60Hz Inlet for connection of supply power source.
It conforms to the attached power cord (3P).
⑰RS-232C Connector for RS-232C serial communication (D-sub 9 pins).
Refer to the instruction manual of interface.
⑱REMOTE/OUT Connector for the setting inputs of interlock and to output the output signals.
For detail, refer to the article 13.1 (P30).
⑲HIGH VOLTAGE High voltage side terminal of test voltage output.
It outputs high voltage during the test, so never touch it during the
DANGER lamp ⑩is lit up. The operator may suffer electric shock.
It is common with HIGH VOLTAGE on the front panel.
⑳LOW Low voltage side terminal of the test voltage output. It is of the same
voltage as the case of this tester.
VOLTAGE MONITOR Monitor output of withstanding voltage output.
Output voltage: 0~5V DC (to 0~5kVAC)
100V 50/60Hz
FUSE 7A
CC CREAR:ONSTOPSTART
REMOTE
aｃ
ＮＣ
STATUS OUT
注 意
ＣＡＵＴ ＩＯＮ
PROTECTIVE EARTHTERMINAL .
ENSUREGROUNDINGOF
大地アース して くだ さい 。
保護接地端子は確実に
RS-232C
REMOTE/OUT
LOW
HIGH VOLTAGE
OUTPUT MAX 5kV
1918171615
2014
＋ －
VOLTAGE MONITOR
212223

7
Name of parts and functions
REMOTE Terminal blocks for remote control.
START C When the REAR:ON C terminal is in short-circuit, the test is started by
short-circuiting the START C terminal.
When the REMOTE connector ⑤is in use, START C terminal is
disabled.
STOP C By making the short-circuit between the terminals, the test action can be
interrupted and the judgement result can be reset.
REAR:ON C By making the short-circuit between the terminals, the start of the test
becomes possible from the rear terminals. The START switch ③on the
front panel becomes ineffective.
For detail, refer to the article 12 (P27).
STATUS OUT Terminal blocks for status output.
For detail, refer to the article 14 (P33).

8
4. Preparation prior to use
4.1●Zero adjustment of output voltmeter
Before powering ON the power source switch, please confirm that the pointer of the
output voltmeter ⑧indicates “0”.
If it is deviated, make an adjustment turning the zero adjuster ⑨with the screwdriver.
4.2●Connection of protective ground terminal
Make sure to connect the protective grounding terminal ⑭to the earth. If the grounding
is insufficient, the tester housing is charged with high voltage when the output is
short-circuited to the earth or the power source line, and is very dangerous.
Please also check if the grounding cable is disconnected or not.
WARNING
Insufficient grounding may cause the electric shock.
4.3●Connection with external control device
An external control device can be connected to the REMOTE connector ⑤,
REMOTE terminal , REMOTE/OUT connector ⑱and STATUS OUT
terminal .
For detail of connection, refer to the article 12~14 (P27~34).
4.4●Connection of high voltage cable
Choice of output section
Make a choice where to take out the high voltage output, either from the front panel or
from the rear panel. During the test, the high voltage output terminal at both front and
rear panel are charged with high voltage.
When the front panel is selected
Make a connection of the attached high voltage cable to the HIGH VOLTAGE terminal
⑥and LOW terminal ⑦.
When the rear panel is selected
Make a connection of the attached high voltage cable to the HIGH VOLTAGE terminal
⑲and LOW terminal ⑳.
Use the attached high voltage cable or the cable appropriates to the voltage to use.
WARNING
●Before making a connection of high voltage cable, ensure that the output
is OFF and the output voltmeter ⑧indicates “0”V.
There is a danger of electric shock.
●Avinyl coating of alligator clip of the attached high voltage cable has no
insulation withstandibility, so never touch it during the test.
There is a danger of electric shock.
●Take out the high voltage output at either side, front or rear panel.
Never use the both sides together, as it is very dangerous.

9
Preparation prior to use
After connecting the low voltage side cable to the LOW terminal, make sure to fix
the locking metal to the terminal.
Fasten the U-shape ditch side to the LOW terminal of the tester main unit.
WARNING
If the low voltage side cable is disconnected, whole the test sample is charged
with high voltage and may cause a danger of an electric shock.
4.5●Connection of power supply cable
After confirming that the power supply switch POWER ①is OFF, connect the
attached power source cord to the inlet for the supply source power on the rear panel.
Connect the plug (3P) of power source cord to the socket with the earth connection.
WARNING
Confirm that the power source voltage is 100VAC, and use the tester within
the range of 90V~110VAC. Use of the tester out of this range causes a
breakdown or incomplete operation. In case of optional non-standard power
source voltage, use the tester within ±10% of the nominal voltage.
4.6●Throw in and shut off of power source
Before turning ON the POWER switch ①, confirm that the TEST VOLTAGE knob ④
is completely turned anti-clockwise to the end.
For shut off of the power supply, turn the TEST VOLTAGE knob ④clockwise
completely to the end, and after confirming the DANGER lamp ⑩is turned off and the
output voltmeter ⑧indicates 0V, turn OFF the POWER switch ①.
CAUTION
While the test voltage is output, do not turn OFFthe POWER switch ①,
as it will cause the breakdown, excepting such emergency case that the
voltage output can not decreased even though the STOP switch is pressed.
Test condition is retained when the power is turned OFF and the same condition is
restored when the power is turned ON next time.
4.7●Before the test
(1) Before turning ON the POWER switch ①, carefully read in the article 2.2
Cautions for handling.
(2) When the POWER switch ①is turned ON, a lamp test of the display is carried
out. And when the lamp test is finished, the tester enters into the test mode the last
time when the power is turned OFF.
Locking metal
LOW voltage side cable（black）
Main
8528
LOW terminal ⑦or ⑳

10
5. Setting items in each mode
5.1●READY status
When turned ON the POWER switch ①, after the lamp test, READY is lit up, and the
tester enters into READY status.
The test condition when the power was turned OFF last time is displayed.
Pressing the START switch ③starts the test.
In READY mode, the setting of the following 5 items can be made.
Items to set
(1) Test condition Refer to the article 7 (P12)
(2) Key lock Refer to the article 10 (P25)
(3) Buzzer sounding Refer to the article 16 (P36)
(4) Status output conditions Refer to the article 14.3 (P34)
(5) Special test mode Refer to the article 11 (P26)
①Double action
②GOOD hold
③Momentary
④FAIL mode
5.2●Setting mode of test condition
In READY status, by pressing the (or ) key, READY is turned off and the
tester enters into the test condition setting mode.
In the test condition setting mode, the test mode and condition can be set or changed.
A press of ENTER key finishes the setting and the tester becomes READY status.
Item to set
Test mode →Test condition
Ref. art. 7 (P12)
5.3●Memory write-in mode
After setting the test condition in the test condition setting mode, press the WRITE key
(SHIFT and keys at a time), then the memory number blinks, being ready to write
in the memory.
In the memory write-in mode, 9 memory sets can be written. Each memory set consists
of 5 items of test conditions which are set in the test condition setting mode.
A press of ENTER key finishes the setting and the tester becomes READY status.
Item to set
Test condition setting Memory write-in (No.1) Test condition setting
Ref. art. 7 (P12) Ref. art. 8.2 (P20) Ref. art. 7 (P12)
Memory write-in (No.2) Test condition setting Memory write-in (No.9)
Ref. art. 8.2 (P20) Ref. art. 7 (P12) Ref. art. 8.2 (P20)
5.4●Memory read-out mode
In READY status, by pressing the READ key ( SHIFT and keys at a time) , a
memory No. blinks and the tester becomes ready to read out the memory. In the memory
read out mode, one of the max. 9 memories written in [ref. art. 8.2 (P20)] can be called up
and read out.
A press of ENTER key finishes the setting and the tester becomes READY status.
Item to set
Memory read out (Select memory No.)
Ref. art. 8.3 (P21)

11

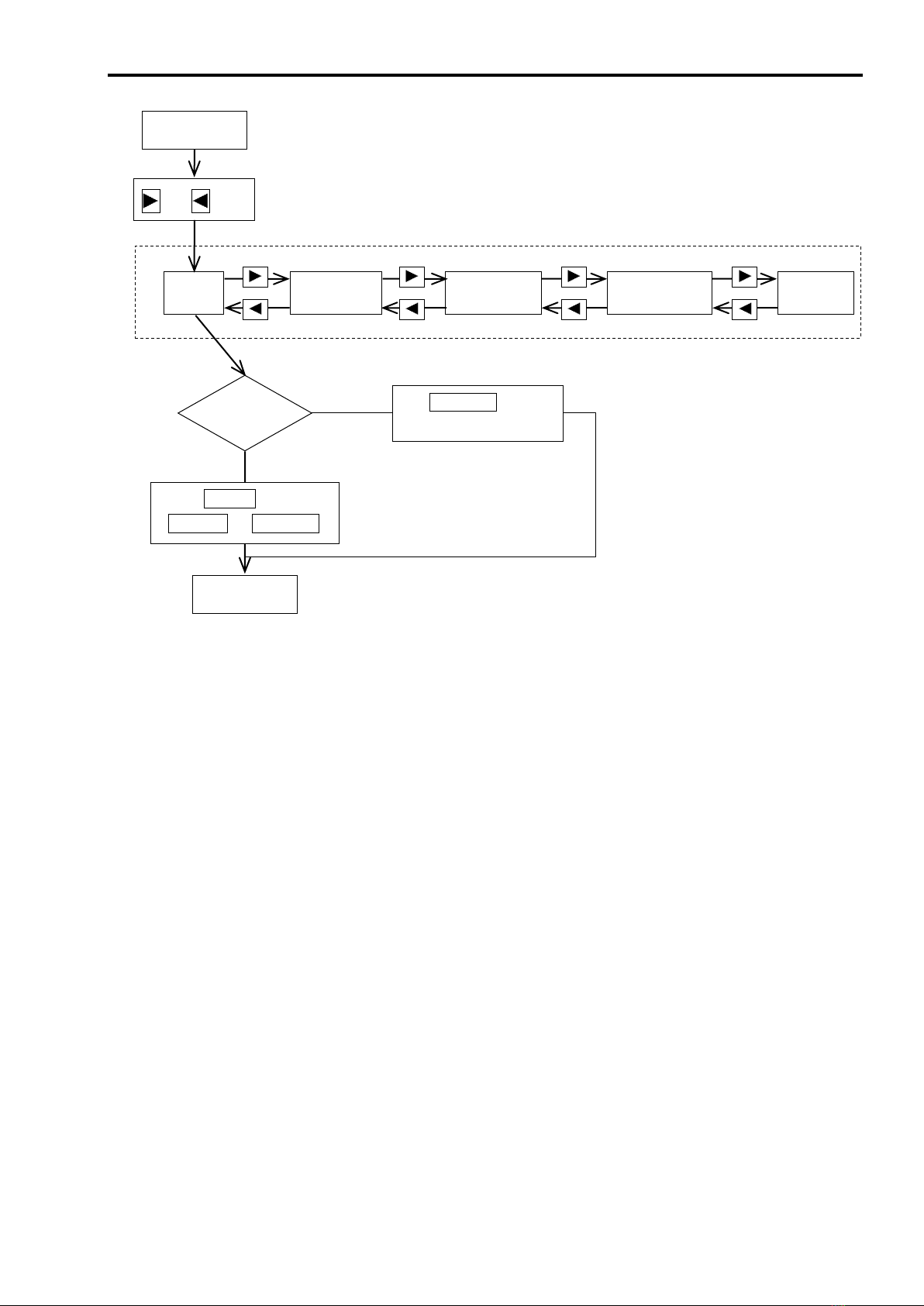

6. Flow of setting
EXIT key
( SHIFT + ENTER )
READY status
or Key
Range
Referential
voltage
High limit
leak current
Low limit
leak current
Test time
Memory of
Setting
YES
NO
READY status
ENTER key
Set value is memorized

12
7. Setting of test condition for withstanding voltage test
7.1●Status of display and expression in instruction manual
Digital display
Flat display
LED lamp
Lit-up mode
GOOD
●KEY LOCK
Blinking mode
GOOD
◎KEY LOCK
Turn-off mode
GOOD
○KEY LOCK

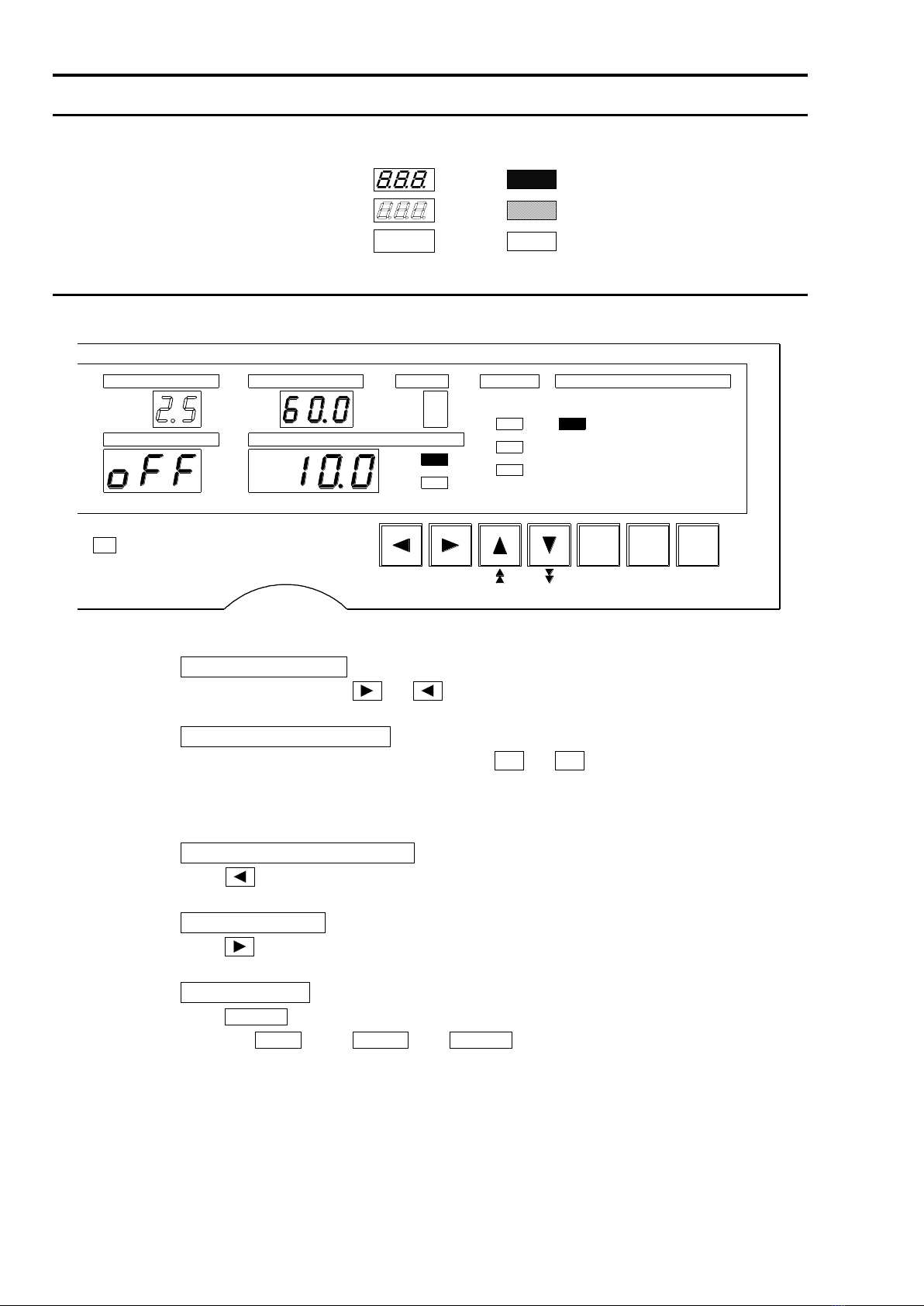

7.2●Test range of withstanding voltage test
Range to set: 2.5kV or 5kV
To enter setting mode
In READY status, press or key, then the display of test voltage range blinks.
Setting of test voltage range
Switch the test voltage to 2.5kV or 5kV with ▲or ▼key.
When the test voltage range is switched, the range display displays the voltage value
having been switched to in blinking.
To move to the previous setting
Press key, then changes to the setting of test time.
To the next setting
Press key, then changes to the setting of referential voltage.
Finish of setting
Press ENTER key, then the setting is memorized and returns to READY status.
When the EXIT key ( SHIFT and ENTER keys at a time) is pressed during the
setting mode, the test condition setting mode is interrupted and the tester becomes READY
status.
The test condition then is the condition before entering the test condition setting mode.
ON/OFF ENTER
WRITE READ LOCK EXIT
SHIFT
BUZZER
PROTECT
○
ONLINE
○
○
○
○
KEY LOCK
REMOTE
READYAC
No.s
mA
SET
SET
LOW
HIGH
GOOD
LOW
MODEJUDGE
CURRENTTEST VOLTAGE
MEMORY
RANGE TIME
kV
kV
HIGHHIGH
AC

13
Setting of test condition for withstanding voltage test
7.3●Referential voltage
Adjustable range: 0.00~5.00kV
[When turning OFF the setting of referential voltage]
To enter setting mode
In READY status, press or key, then the display of test voltage range blinks.
To turn OFF the setting of referential voltage
①During the setting mode, press or key and select the status that the test
voltage display blinks.
②Then, press ON/OFF key and select the status that the display blinks with
(refer to the above figure).
To move to the previous setting
Press key, then changes to the setting of withstanding voltage test range..
To the next setting
Press key, then changes to the setting of high limit of leak current.
Finish of setting
Press ENTER key, then the setting is memorized and returns to READY status.
When the EXIT key ( SHIFT and ENTER keys at a time) is pressed during the
setting mode, the test condition setting mode is interrupted and the tester becomes READY
status.
The test condition then is the condition before entering the test condition setting mode.
ON/OFF ENTER
WRITE READ LOCK EXIT
SHIFT
BUZZER
PROTECT
○
ONLINE
○
○
○
○
KEY LOCK
REMOTE
READYAC
No.s
mA
SET
SET
LOW
HIGH
GOOD
LOW
MODEJUDGE
CURRENTTEST VOLTAGE
MEMORY
RANGE TIME
kV
kV
HIGH
AC

14
Setting of test condition for withstanding voltage test
[When setting the referential voltage]
To enter setting mode
In READY status, press or key, then the display of test voltage range blinks.
Setting of referential voltage
①Press or key and select the blinking test voltage display.
②Press ON/OFF key and select the status that the display blinks with the numeral.
③Press ▲or ▼key and set the referential voltage.
Pressing of key ( SHIFT and ▲keys at a time) or key ( SHIFT
and ▼keys at a time) allows the setting of second digit (the digit of 0.10kV) (refer
to the above figure).
Note: The referential voltage can be set within the range of 0.00~5.00kV.
To move to the previous setting
Press key, then changes to the setting of the withstanding voltage test range.
To the next setting
Press key, then changes to the setting of high limit of leak current.
Finish of setting
Press ENTER key, then the setting is memorized and returns to READY status.
When the EXIT key ( SHIFT and ENTER keys at a time) is pressed during the
setting mode, the test condition setting mode is interrupted and the tester becomes READY
status.
The test condition then is the condition before entering the test condition setting mode.
ON/OFF ENTER
WRITE READ LOCK EXIT
SHIFT
BUZZER
PROTECT
○
ONLINE
○
○
○
○
KEY LOCK
REMOTE
READYAC
No.s
mA
SET
SET
LOW
HIGH
GOOD
LOW
MODEJUDGE
CURRENTTEST VOLTAGE
MEMORY
RANGE TIME
kV
kV
HIGH
AC
