Tunap ICM 2020 User manual

1
OPERATING INSTRUCTIONS
INJECTO CLEAN MACHINE
BEDIENUNGSANLEITUNG

2

3
INTRODUCTION
SPECIAL SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS FOR CHEMICALS
SAFETY INSTRUCTIONS FOR THE CLEANING SYSTEM
SCOPE OF SUPPLY
COMPONENT DESCRIPTION
IMPORTANT INFORMATION
CONNECTION OPTIONS
VEHICLE PREPARATION
DEVICE PREPARATION
CLEANING PROCEDURE
CLEANING TIME
TERMINATION OF CLEANING
ACCESSORIES / SPARE PARTS
4
4
5
5
6
7
8
9
11
12
14
16
17
18
CONTENTS

4
Congratulations on your purchase of the TUNAP ICM 2020 Cleaning System; we are very grateful for your confidence in
TUNAP. We have implemented the most up-to-date technology within the injector cleaning sector in the TUNAP ICM
Cleaning System. This enables you to achieve the best cleaning results and the highest level of customer satisfaction, while
simultaneously sustainably reducing cost. Please carefully observe the summarised information and advice within these
operating instructions/manufacturer's specifications in order to utilise the system's full range of functions.
The information provided within these operating instructions is the result of careful testing. Information regarding application
is to be considered as recommendation based on knowledge and experience. We cannot assume a liability in light of
the product's versatility in terms of use and application. No contractual relationship is therefore created, and no ancillary
obligations arise from any contract of sale. The operating instructions are only valid in their most current form.
Please carefully read the operating instructions/manufacturer's specifications in full before you
use the TUNAP ICM 2020 Cleaning System for the first time.
The TUNAP ICM 2020 Cleaning System is solely for professional use by the motor industry and
is approved for the following cleaning purposes:
• Cleaning of injection systems of diesel vehicles
• Cleaning of injection systems of petrol vehicles
You must adhere to the safety precautions in order to avoid damage to the device and the injection
system being cleaned, as well as avoiding personal injury.
INTRODUCTION
SPECIAL SAFETY INSTRUCTIONS

5
SAFETY INSTRUCTIONS FOR CHEMICALS
SAFETY INSTRUCTIONS FOR THE CLEANING SYSTEM
• Observe the current safety data sheet.
• You must wear safety goggles, gloves and the appropriate protective clothing when
using the cleaning system.
• Suitably protect plastics and paints prior to contact with the cleaning liquid.
• The ICM 2020 Cleaning System is only approved for use with the microflex® 938
Injector Intensive Cleaner Diesel and the microflex® 937 Injector Intensive Cleaner
Petrol. The use of non-approved cleaning chemicals can cause operational or safety-
relevant problems.
• Maintenance and servicing can only be carried out by the manufacturer of the cleaning system. Please contact the
dealer for more information.
• To guarantee safety, only use original TUNAP spare parts and accessories.
• Never use the cleaning system within an explosive environment.
• If there is damage to the connection hoses or a connection cable (power supply), they must be replaced immediately.

6

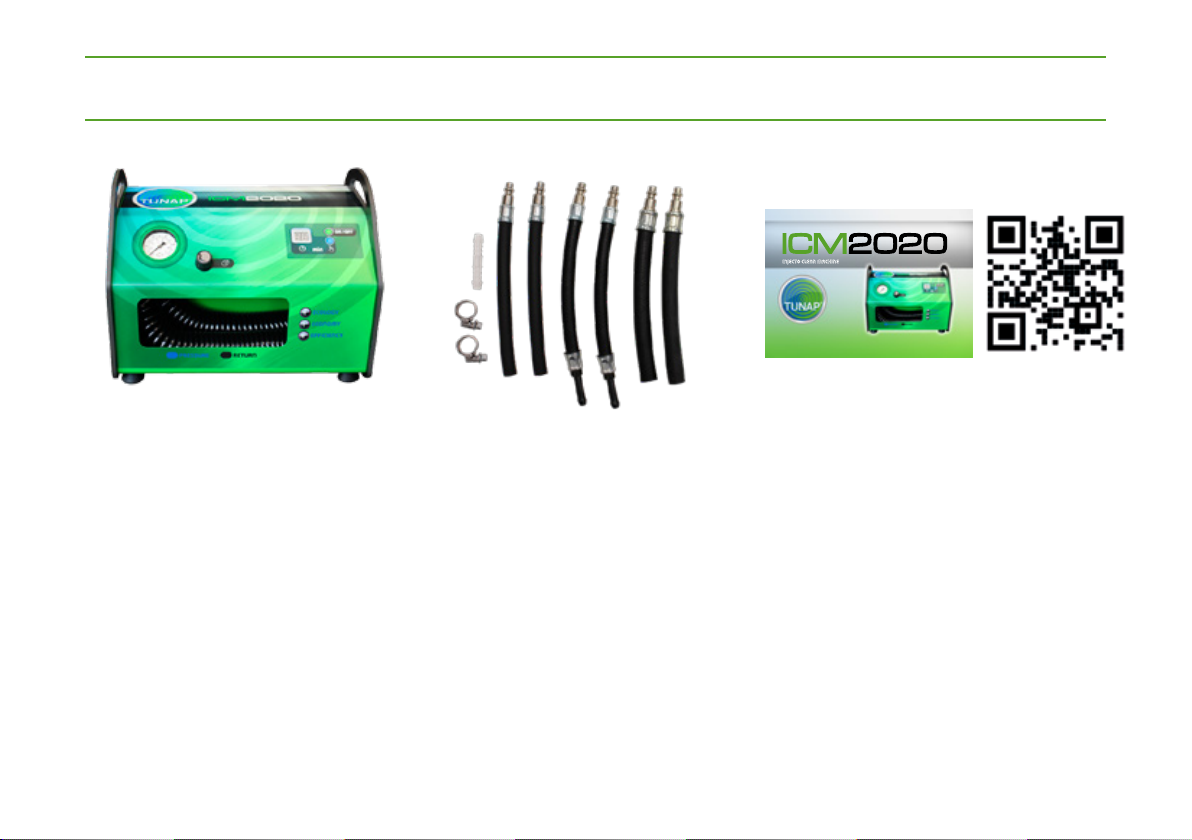

TUNAP ICM 2020 Cleaning System incl.
connection hoses for the fuel inflow and
return flow with quick coupling for the
connection to the supplied universal
connection adapter and the connection
sets 1400880 1400881, which are available
separately.
6 x Universal connection adapter,
2 x Clamps, 1 x Connector for the
installation of the TUNAP ICM 2020
Cleaning System on the vehicle's fuel
inflow and return flow.
Operating instructions for the
TUNAP ICM 2020 Cleaning System.
1 2 3
• Prior to first using the TUNAP ICM 2020 Cleaning System, check the completeness of the delivery. If the delivery is
incomplete, please contact TUNAP.
• Prior to its first use, check the device and connection cables for possible defects or damage.
• Should you determine defects or damage, please contact the dealer and do not use the device.
SCOPE OF SUPPLY
OPERATING INSTRUCTIONS
INJECTO CLEAN MACHINE
Other languages

7
Other languages
TUNAP PRODUCTOS QUÍMICOS, S.A.
C/Pallars, 4-6 local
08402 Granollers
Barcelona (España)
Tel. [phone]
Ref. TUN-ICM2000
00100
Fabricante: B60780202 (ESPAÑA)
Modelo: ICM2000
Num. Serie:
Tensión: 12 Vcc
Potencia: 0.192 Kw
Peso: 12,8 Kg

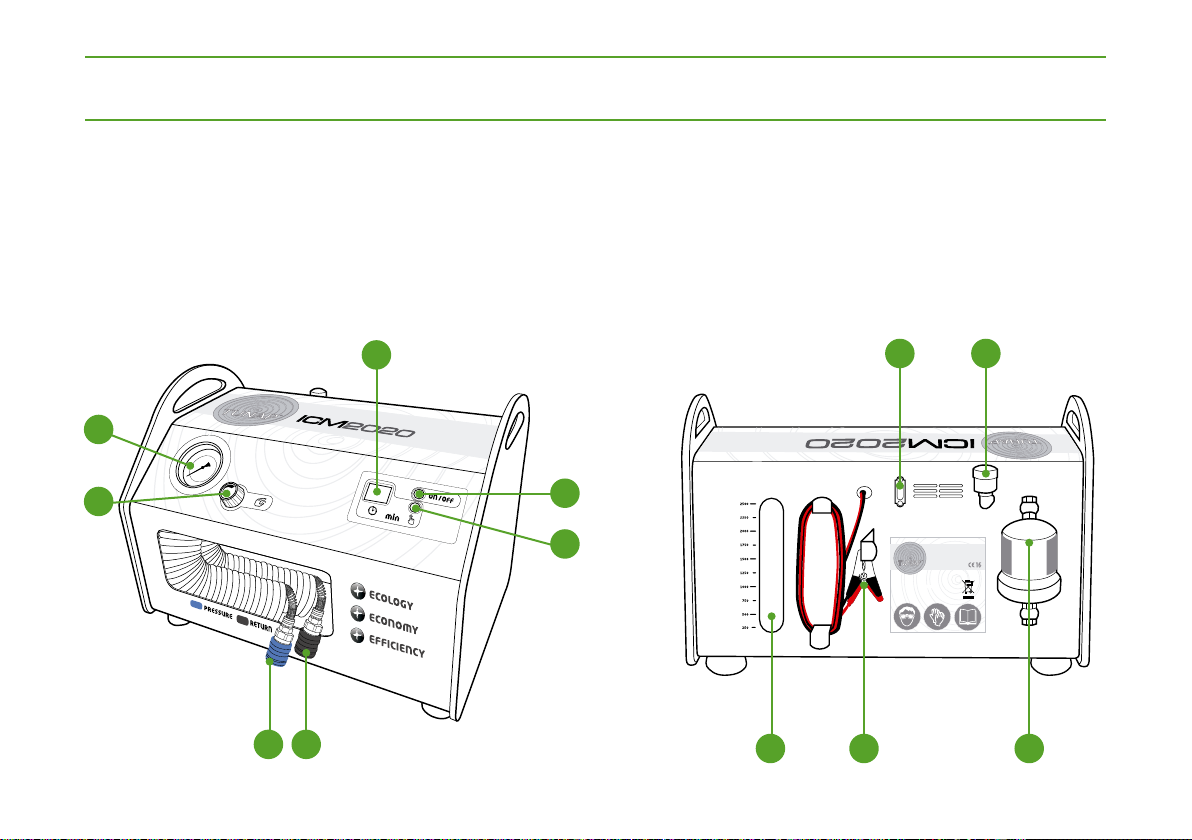

1. Pressure display
2. Pressure regulator
3. Quick coupling for return flow (black)
4. Quick coupling for inflow (blue)
5. Display
6. On/Off button
5
1
2
38 49
1211
10
6
7
7. Button to set cleaning time
8. Fill level indicator
9. Terminals 12V DC
10. Fuel filter
11. Fuse 15A
12. Fill coupling
COMPONENT DESCRIPTION

8
• Use the microflex® 937 Injector Intensive Cleaner Petrol
exclusively for cleaning petrol injector systems.
• Use the microflex® 938 Injector Intensive Cleaner Diesel
exclusively for cleaning diesel injector systems.
• Cleaning takes place via the TUNAP CM 2020 Cleaning
System item no. 1400850, without the removal of the
injectors.
• Before separating fuel lines, ensure that the lines are not
under pressure.
• Before working on the fuel system, observe the
manufacturer's specifications.
• Wear suitable protective clothing, protective gloves and
safety goggles / facial protection when working.
• Only connect to 12V DC. Protect cables so that they
do not become fragile or frayed.
• Do not open the device and tamper with the internal
components.
• Do not let the hoses come into contact with hot
surfaces.
• Should the engine run hot, turn it off, turn the device off
and release the pressure.
• Release the pressure from the device before separating
the connection hoses.
IMPORTANT INFORMATION
• Do not expose the device to temperatures above
50 °C / 122 °F.
• Should flammable liquids come into contact with the
device, wipe them off immediately and maintain drying
time before using the device again.
• Do not use the device as a storage area and do not
make abrupt movements (e.g. allow it to fall).
• Do not smoke when using the device.
• Stand the device on a secure and flat surface.
• The engine should be operationally warm prior to
cleaning.
• Test drive after cleaning. Read out the fault memory
and reset it.
• After cleaning, regularly add microflex® 974 Injector
Direct-Protection Petrol or microflex® 984 Injector
Direct-Protection Diesel to the tank as a preventative
measure.
Maintenance:
• Replace the filter every 6 months or after 50 uses,
whichever first arises. Filter spare part number
1400901.
• Should the device not be used for more than
one week, all liquids should be pumped out of
the device.

9

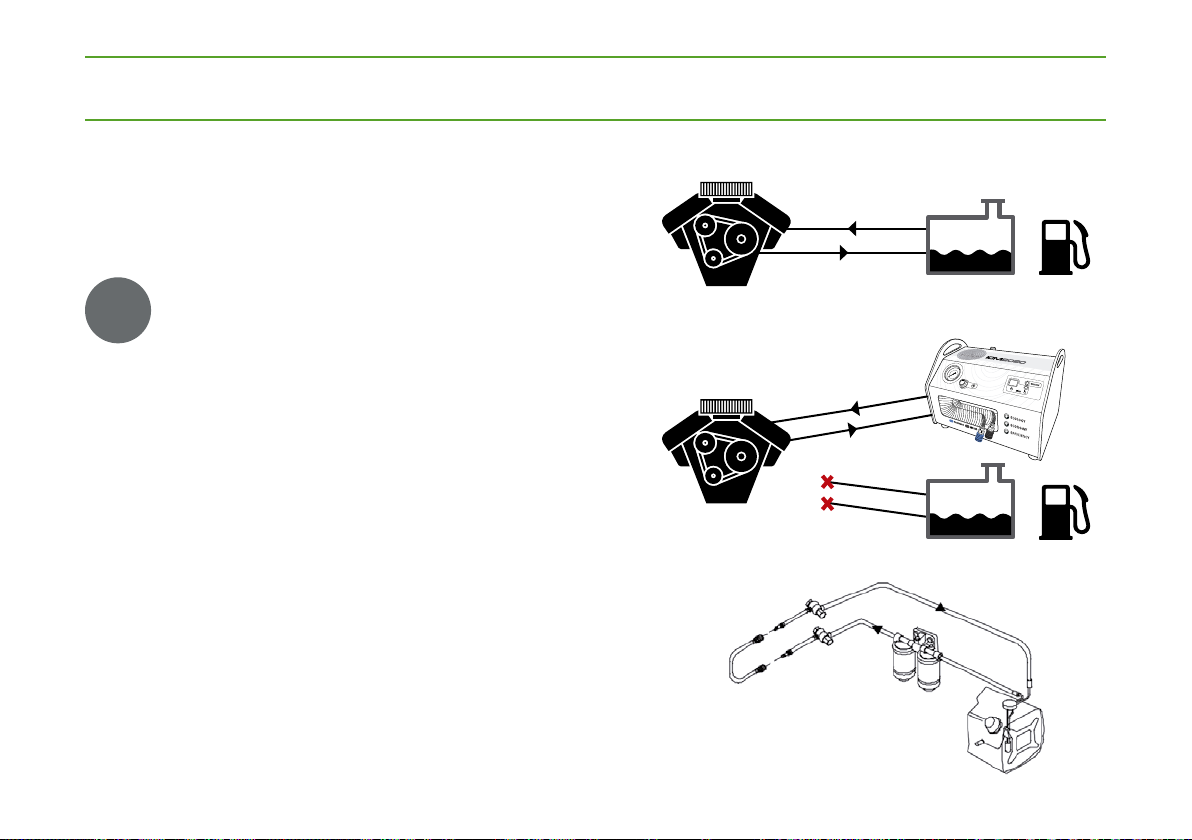

CONNECTION OPTIONS
• Separate inflow and return flow.
• Separate pre-feed pump from the
vehicle or form a closed circuit.
A
Connect the device to the fuel system:

10

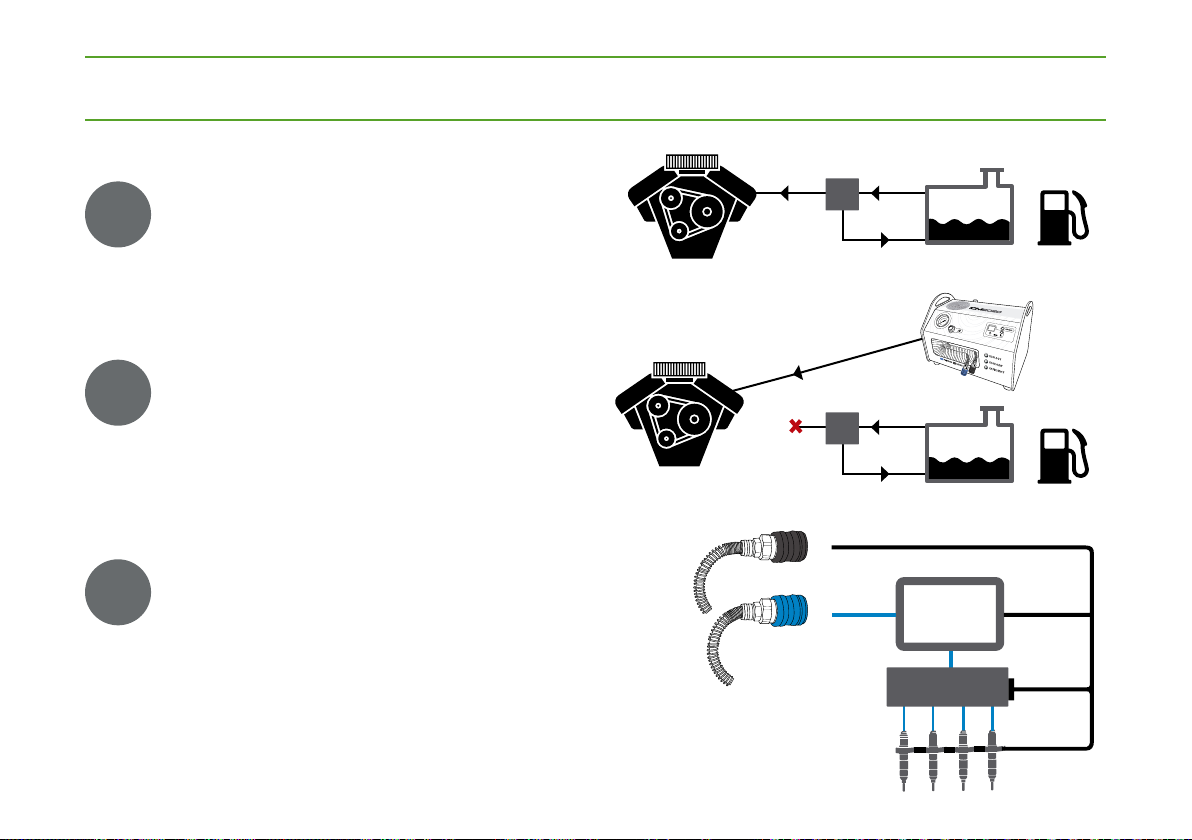

CONNECTION OPTIONS
• If there is no return flow, just
connect the inflow.
• Always ensure that either the pre-
feed pump is disconnected from
the vehicle or a closed circuit has
been created.
• If a vehicle is to be connected
with several return flows, ensure
that the ICM 2020 is connected
after the intersection.
B
C
DPUMP
COMMON RAIL
REGULATOR
REGULATOR

11
VEHICLE PREPARATION
In internal spaces:
Connect the exhaust to
an extraction system
Recommendation:
Read the injector values and injection times
beforehand and compare with those after. As a
result you can check the efficacy of the cleaning.
The cleaning liquid should never flow through the filter. If it is
not possible to connect it any other way, always change the
filter beforehand.

12
TUNAP PRODUCTOS QUÍMICOS, S.A.
C/Pallars, 4-6 local
08402 Granollers
Barcelona (España)
Tel. [phone]
Ref. TUN-ICM2000
00100
Fabricante: B60780202 (ESPAÑA)
Modelo: ICM2000
Num. Serie:
Tensión: 12 Vcc
Potencia: 0.192 Kw
Peso: 12,8 Kg
• Fill the ICM 2020 up with the
937 (petrol) or 938 (diesel).
When first filling the device, it is
recommended to use two doses.
• Ensure that there is enough
cleaning liquid in the tank. If the
warning alarm sounds during
cleaning as a result of a low fill
volume, you can add a dose
when in operation.
TUNAP
MF937
PETROL
TUNAP
MF938
DIESEL
DEVICE PREPARATION
1
2

13
12 VCC
3
• Connect the device to the
vehicle's 12 V battery (do
not connect directly to the
charging device). Ensure that
the red cable is connected to
the + pole and the black cable
is connected to the - pole of
the battery.
DEVICE PREPARATION

14
ON / OFF
min
ON / OFF
min
ON / OFF
min

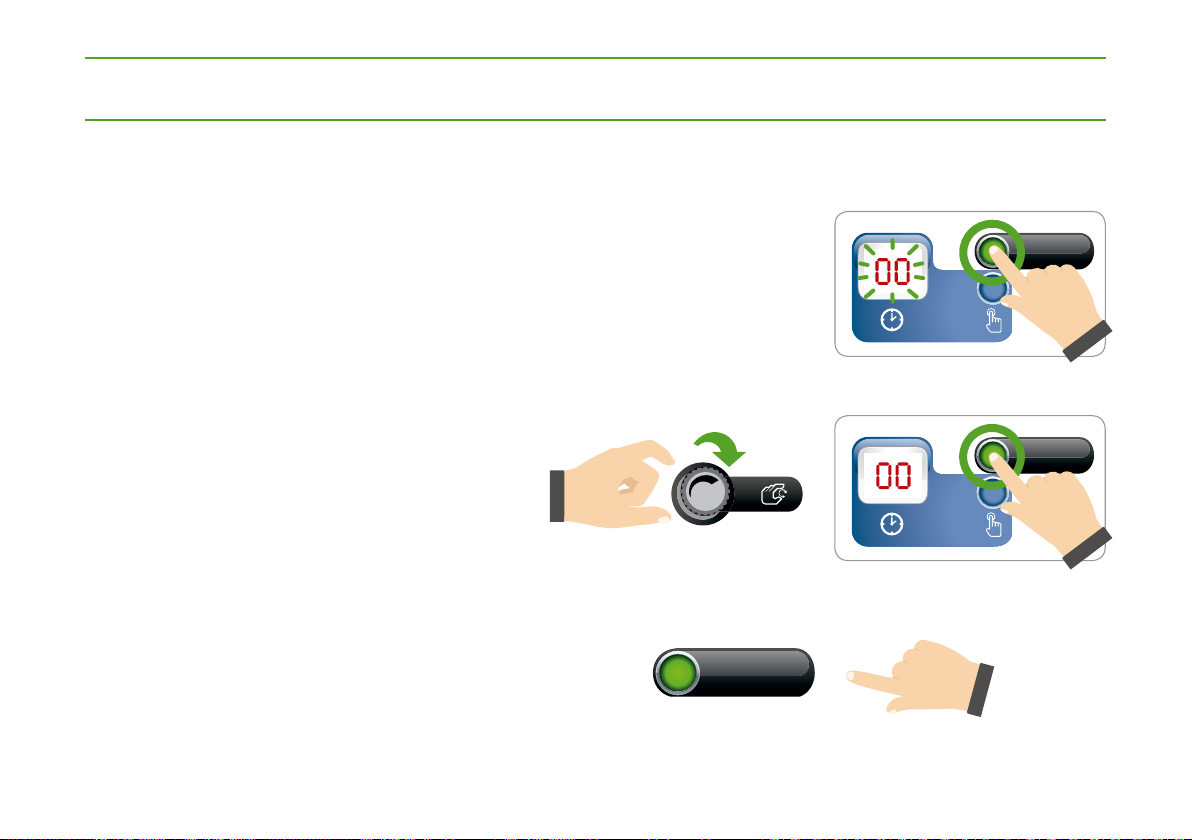

• Ensure that you have correctly
connected the ICM 2020 to the vehicle
(see Connection Options).
• Press ON and hold.
• Whilst doing this, turn the
pressure regulator clockwise
until the pressure builds up.
• Then you can let ON go.
CLEANING PROCEDURE
3
2
1

15
CLEANING PROCEDURE
• Set the working pressure (check
the manufacturer's specifications
if required).
4
• Start the engine and let it run in
neutral (ensure that the pipes
from the tank are all sealed).
• Ensure that the pressure is
being maintained.
6
5
7
• Ensure that all connections
are sealed!
20"

16
• When the time has elapsed, the
ICM 2020 sounds an alarm (turn the
engine off and then the device).
• The cleaning time counts down.
ON / OFF
min
ON / OFF
min
CLEANING TIME
10
9
• Each time the button is pressed it adds
5 minutes to the cleaning time. - To return
to 5 minutes, hold the button for 2 seconds.
• Preventative cleaning 10 min.
8
Problem solver, cleaning time at least
20 min. (see SI 937 or 938).
ON / OFF
min
+5

17
Turn engine off Turn device off
Release pressure: turn
pressure regulator anti-
clockwise (turn back fully).
TERMINATION OF CLEANING
ON / OFF
min
B
C
A
ON / OFF
min
ON / OFF
min
Hold down ON button to
release pressure in the
device.
Let ON button go.

18
TERMINATION OF CLEANING
ACCESSORIES / SPARE PARTS
• Start engine and check fuel lines
are sealed.
• Fuel filter / 1400901
• Read fault memory and reset fault
if present.
• Adapter set quick coupling
/ 1400880
• Reset injector adaptation values,
if possible.
• Adapter set screw connection
/ 1400881
After finishing the cleaning, recondition the ICM 2020 and vehicle to their original condition.
