1 About These Instructions
These instructions for use describe the structure, functions and the use of the product and will
help you to operate the product as intended. Read these instructions carefully before using the
product. This is to avoid possible damage to persons, property or the device. Retain the instruc-
tions for future use during the service life of the product. If the product is passed on, pass on
these instructions as well.
1.1 Target groups
These instructions are aimed at qualified personal and must be carefully read by anyone
mounting, commissioning, operating, maintaining, dismantling or disposing of the device.
1.2 Explanation of symbols used
The following symbols are used in these instructions:
DANGER
DANGER indicates a dangerous situation with high risk of death or severe injury if
not avoided.
WARNING
WARNING indicates a dangerous situation with medium risk of death or severe in-
jury if not avoided.
CAUTION
CAUTION indicates a dangerous situation of medium risk which may result in minor
or moderate injury if not avoided.
NOTICE
NOTICE indicates a situation which may lead to property damage if not avoided.
NOTE
NOTE indicates tips, recommendations and useful information on specific actions
and facts. The notes simplify your work and help you to avoid additional work.
uCALL TO ACTION
This symbol denotes actions that the user must carry out.
aRESULTS OF ACTION
This symbol denotes relevant results of actions.
1.3 Other documents
Besides this document, the following material can be found on the Internet at www.turck.com:
nData sheet
nDeclarations of conformity (current versions)
nCommissioning manual IO-Link devices
nIO-Link parameters manual
nApprovals
1.4 Feedback about these instructions
We make every effort to ensure that these instructions are as informative and as clear as pos-
sible. If you have any suggestions for improving the design or if some information is missing in
the document, please send your suggestions to [email protected].

Notes on the product
Turck service
6Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
2 Notes on the product
2.1 Product identification
These instructions apply to the following limit level sensors:
nNCLS-30-UP6X-H1141
nNCLS-30-UN6X-H1141
2.2 Scope of delivery
The scope of delivery includes:
nCapacitive Limit Level Sensor
nQuick Start Guide
2.3 Turck service
Turck supports you with your projects, from initial analysis to the commissioning of your applic-
ation. The Turck product database under www.turck.com contains software tools for program-
ming, configuration or commissioning, data sheets and CAD files in numerous export formats.
The contact details of Turck subsidiaries worldwide can be found on p. [}22].

V01.01 | 2022/06 7
3 For your safety
The product is designed according to state-of-the-art technology. However, residual risks still
exist. Observe the following warnings and safety notices to prevent damage to persons and
property. Turck accepts no liability for damage caused by failure to observe these warning and
safety notices.
3.1 Intended use
The capacitive limit level sensors from the NCLS product series monitor the filling level of differ-
ent types of media (liquid, viscous, granular, powder form) in containers and pipes by creating
contact with the media. The hygienic process connection, the PEEK sensor tip, the stainless
steel housing and the M12 connector allow the limit level sensor to be used in various applica-
tions, including applications in the food and pharmaceutical industries. The device can be ex-
posed to process temperatures of between 0…100 °C (130 °C < 1 h) and a process pressure of
up to 1 bar.
The devices may only be used as described in these instructions. Any other use is not in accord-
ance with the intended use. Turck accepts no liability for any resulting damage.
3.2 General safety instructions
nThe device meets the EMC requirements for industrial areas. When used in residential areas,
take measures to avoid radio interference.
nThe device may only be assembled, installed, operated, parameterized and maintained by
professionally-trained personnel.
nThe device may only be used in accordance with applicable national and international regu-
lations, standards and laws.
nThe devices may only be used in metal containers. When used in non-metallic containers,
measures must be taken to meet the requirements of the EMC Directive 2014/30/EU.
nThe maximum permissible values for process pressure and process temperature must not be
exceeded.

Product description
Functions and operating modes
8Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
4 Product description
The capacitive limit level sensors of the NCLS series are contained in a stainless steel housing
with a PEEK sensor tip. The devices are provided with a metal M12 male connector for connect-
ing the sensor cable. An IO-Link interface is provided for setting and operating the devices. The
devices are provided with two outputs that can be set independently of each other. Output 1
can be used as a switching output or in IO-Link mode as required.
4.1 Device overview
mm [Inch]
31.2 [1.23]
47.2 [1.96]
94.8 [3.73]
Ø 21.6 [0.85]Ø 18 [0.71] 22/7
G1/2 M12 × 1

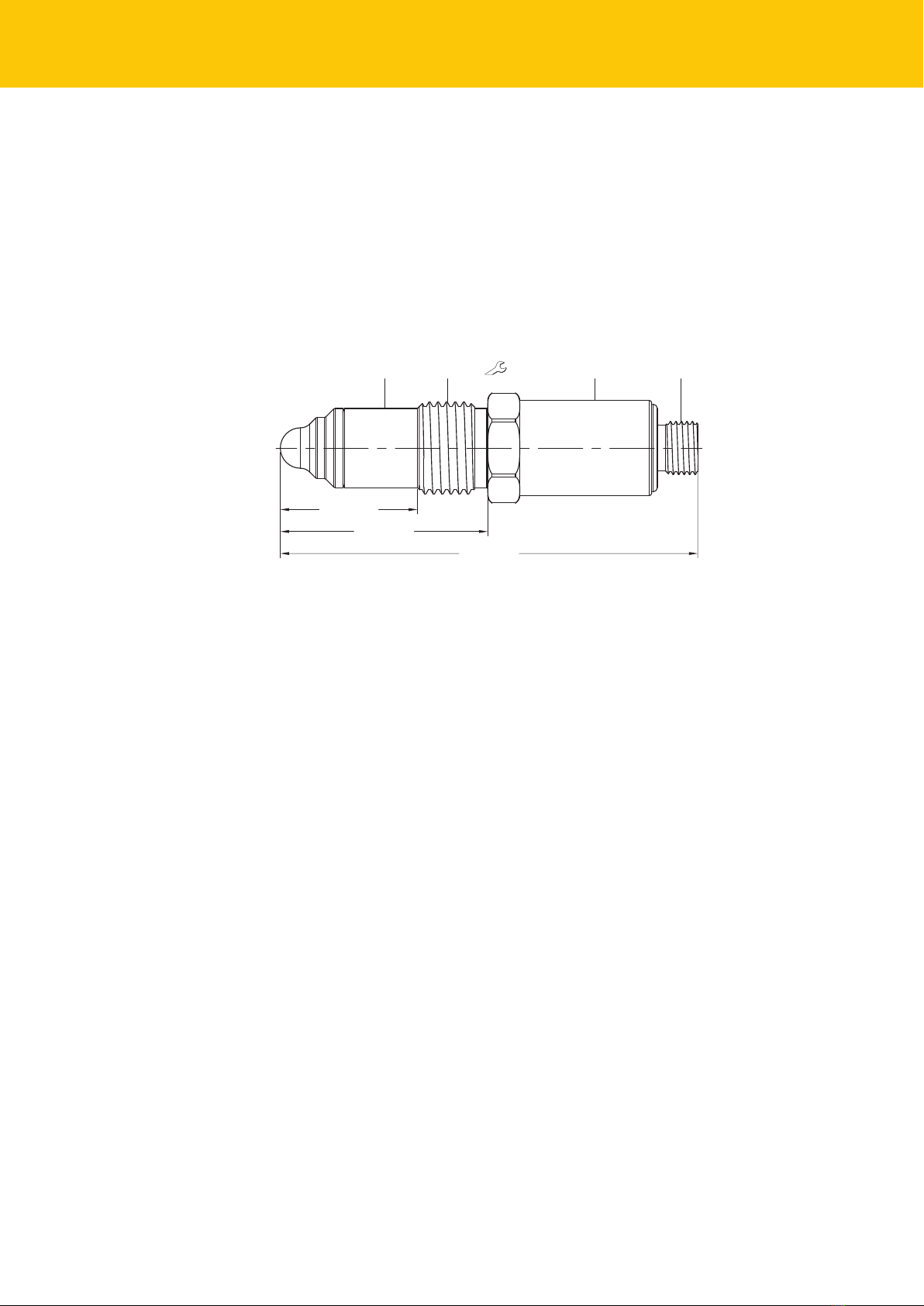

Fig.1: Dimensions
4.2 Properties and features
nMedia-contacting detection of limit levels in tanks and pipes
nDetection of different substances (liquid, viscous, granular, powder form)
nHygienic PEEK sensor tip, CIP/SIP-compatible
nCertified by EHEDG
nHighly visible ring LED
n12…32 VDC, < 1 W power consumption
nTwo digital outputs, separately adjustable as NO contact or NC contact
nPNP, NPN or push-pull, switchable
nIO-Link for parameterization and process values
nProcess connection G1/2” male thread, hygienic (in combination with Turck adapters)
n4-pin connector device, M12×1
4.3 Operating principle
Capacitive sensors measure wear-free metallic (electrically conductive) and non-metallic (elec-
trically non-conductive) objects. When in direct contact with the media, the NCLS limit level
sensors are able to detect and differentiate different substances in liquid, viscous, granular or
powder form. Typical application areas are the detection of limit levels (max./min.) and changes
in media in tanks and pipes.
4.4 Functions and operating modes
The NCLS limit level sensor operates on the basis of the capacitive measurement principle.
When immersed, the active surface of the switch detects whether the medium is present or not.
The device is also able to differentiate between different media. The limit level sensor is
equipped with two parametrizable switching outputs. One of the switching outputs can be
used as an IO-Link interface, thus enabling direct access to the process values and parameters
of the device during normal operation. The device can only be parameterized via IO-Link.

V01.01 | 2022/06 9

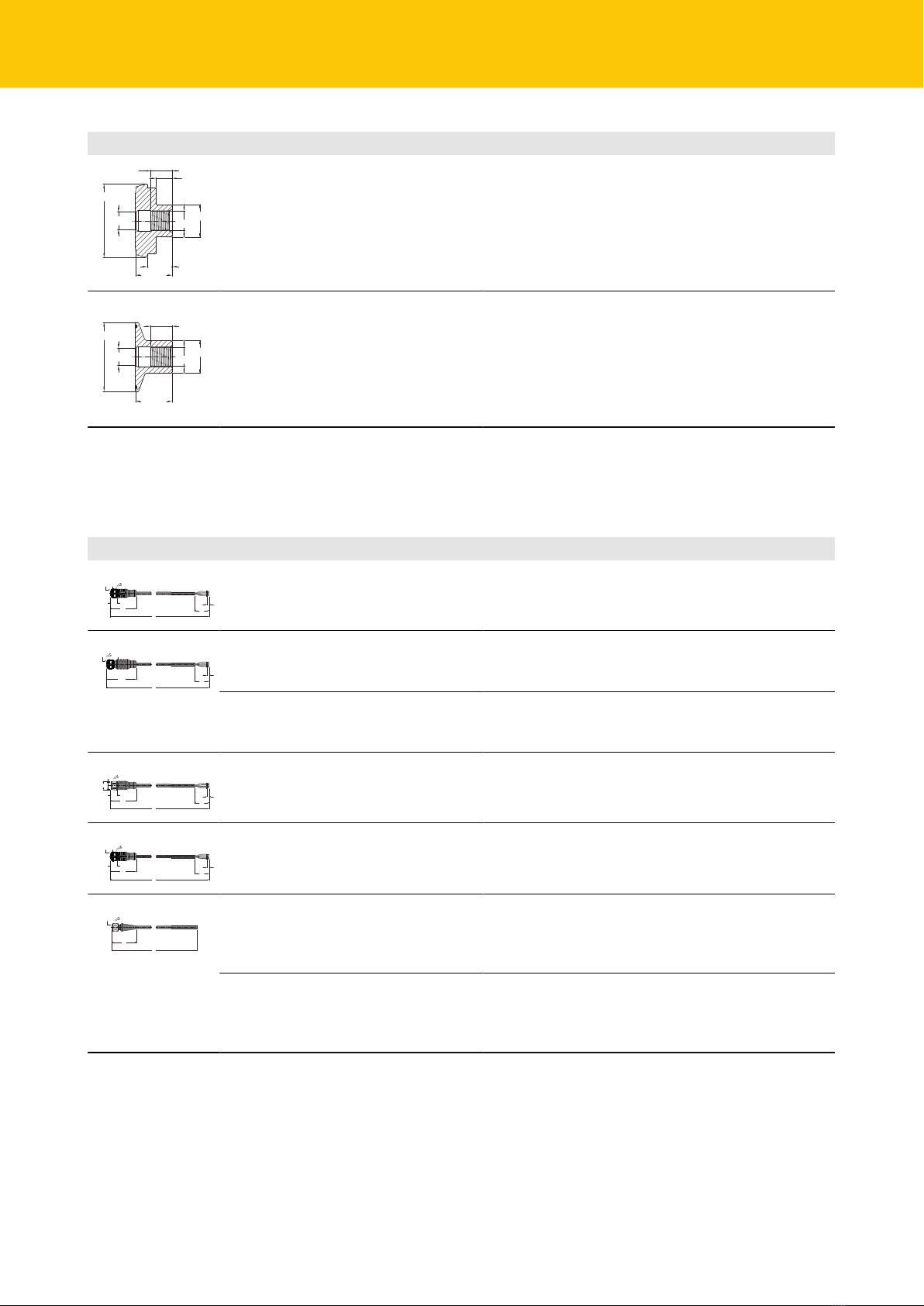

4.5 Technical accessories
4.5.1 Mounting accessories
Dimension drawing Type ID Description
Ø 16 [0.63] G1/2
Ø 30 [1.18]
34 [1.34]
20 [0.79]
NCLS-WA0 100004429 Process adapter, cylindrical welding sleeve without
control bore for capacitive NCLS limit level sensors,
suitable for hygienic applications, material 316L, max.
temperature 140°C
Ø 16 [0.63] G1/2
Ø 30 [1.18]
34 [1.34]
15 [0.59]
15 [0.59]
Ø 3.4 [0.13]
NCLS-WA1 100004430 Process adapter, cylindrical welding sleeve with con-
trol bore for capacitive NCLS limit level sensors, suit-
able for hygienic applications, material 316L, max.
temperature 140°C
Ø 16
[0.63] G1/2
Ø 29 [1.14]
35.5 [1.40]
20 [0.79]
1.5 [0.06]
Ø 26
[1.02]
NCLS-WA2 100004431 Process adapter, cylindrical welding sleeve without
control bore for capacitive NCLS limit level sensors,
suitable for hygienic applications, material 316L, max.
temperature 140°C
Ø 16
[0.63] G1/2
Ø 30 [1.18]
34 [1.34]
20 [0.79]
35
[1.38]
NCLS-WA4 100004432 Process adapter, ball sleeve without control bore for
NCLS capacitive limit level sensors, suitable for hy-
gienic applications, material 316L, max. temperature
140°C
Ø 16
[0.63] G1/2
Ø 30 [1.18]
34 [1.34]
20 [0.79]
Ø 45
[1.77]
10 [0.39]
35°
NCLS-WA7 100004433 Process adapter, welding sleeve with collar for capa-
citive NCLS limit level sensors, suitable for hygienic
applications, material 316L, max. temperature 140°C
Ø 68
[2.68]
Ø 16
[0.63] G1/2
Ø 30
[1.18]
34 [1.34]
Ø 71
[2.80]
Ø 84
[3.31]
12.3 [0.48]
15 [0.59]
NCLS-VA 100004434 Process adapter, Varivent DN50 for NCLS capacitive
limit level sensors, suitable for hygienic applications,
material 316L, max. temperature 140°C

Product description
Technical accessories
10 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
Dimension drawing Type ID Description
Ø 68 [2.68]
Ø 16 [0.63] G1/2
Ø 30 [1.18]
15 [0.59]
23 [0.90]
34 [1.34]
20 [0.79]
NCLS-DF50 100004435 Process adapter, DN50 dairy screw connection for
NCLS capacitive limit level sensors, suitable for hy-
gienic applications, material 316L, max. temperature
140°C
Ø 64 [2.52]
Ø 16 [0.63] G1/2
Ø 30 [1.18]
34 [1.34]
20 [0.79]
NCLS-TC50 100004436 Process adapter, DN50 Triclamp for NCLS capacitive
limit level sensors, suitable for hygienic applications,
material 316L, max. temperature 140°C
4.5.2 Connection accessories
In addition to the above connection cables, Turck also offers other cable types for specific ap-
plications with the correct terminals for the device. More information on this is available from
the Turck product database at www.turck.de/products in the Connectivity area.
Dimension drawing Type ID Description
14
42
11.5
ø 15
M12 x 1
L
50
5
RKC4.4T-2/TEL [phone] Connection cable, M12 female connector, straight,
4-pin, cable length: 2 m, jacket material: PVC, black;
cULus approval
14 ø 16.2
48.5
M12 x 1
L
50
5
RKC4.4T-P7X2-2/TEL [phone] Connection cable, M12 female connector, straight,
4-pin, 2 LEDs, cable length: 2 m, jacket material: PVC,
black; cULus approval
RKC4.4T-P7X2-2/TXL 6626795 Connection cable, M12 female connector, straight,
4-pin, 2 LEDs, cable length: 2 m, jacket material: PUR,
black; cULus approval
14
42
11.5
ø 15
M12 x 1
L
50
5
RKCV4.4T-2/TXL 6627544 Connection cable, M12 female connector, straight,
4-pin, cable length: 2 m, jacket material: PUR, black;
stainless steel coupling nut; cULus approval
14
42
11.5
ø 15
M12 x 1
L
50
5
RKC4.4T-2/TXL1001 6628825 Connection cable, M12 female connector, straight,
4-pin, cable length: 2 m, protective jacket material:
Aramid fibers, yellow; temperature peak: 200°C
44
14
M12 x 1
L
RKH4.4-2/TFE 6934473 Connection cable, M12 female connector, straight,
4-pin, stainless steel coupling nut, cable length: 2 m,
jacket material: PVC, gray; temperature range:
-25…+80°C
RKH4.4-2/TFG 6933086 Connection cable, M12 female connector, straight,
4-pin, stainless steel coupling nut, cable length: 2 m,
jacket material: TPE, gray; temperature range:
-40… +105°C

V01.01 | 2022/06 11
5 Installing
NOTICE
Mounting without or with the wrong process adapter
Material damage caused by leaking connection
Always mount the sensor with the process adapter.
Only use a Turck process adapter for the process connection.
A Turck process adapter must be used for the process connection. The process adapter is avail-
able as a clamp adapter, welding adapter or screw-in adapter.
Fig.2: Process connection with Turck process adapter
5.1 General mounting instructions
nIn principle, the sensor can be installed in any position and in any location.
nAvoid mounting positions in which highly adhesive or viscous media may create deposits.
nAvoid mounting positions in which air pockets may be created.
nEnsure that the minimum distance of at least 15 mm is maintained between the sensor tip
and any adjacent objects (e.g. the wall of a container or pipe).
nThe relative permittivity (εr) of the medium must be >1.5.
Fig.3: Mounting location and position (schematic)

Installing
Mounting the sensor in hygienic applications according to EHEDG
12 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
5.2 Mounting the sensor with the process adapter
The sensor is equipped with a G1/2” thread and is self-sealing when used in combination with
the process adapter. An additional seal is not necessary.
Before assembly, ensure that the system has been depressurized and that there is no me-
dia in the pipe or container.
Mount the process adapter on the tank/pipe, ensuring that it is fully sealed.
Screw the sensor into the Turck process adapter.
Use a wrench to tighten the sensor (tightening torque: 20 Nm).
5.3 Mounting the sensor in hygienic applications according to EHEDG
The sensor is certified for use in hygienic applications in accordance with EHEDG.
Integrate the sensor in the plate in accordance with EHEDG requirements.
Only use an EHEDG-compliant process adapter for mounting.

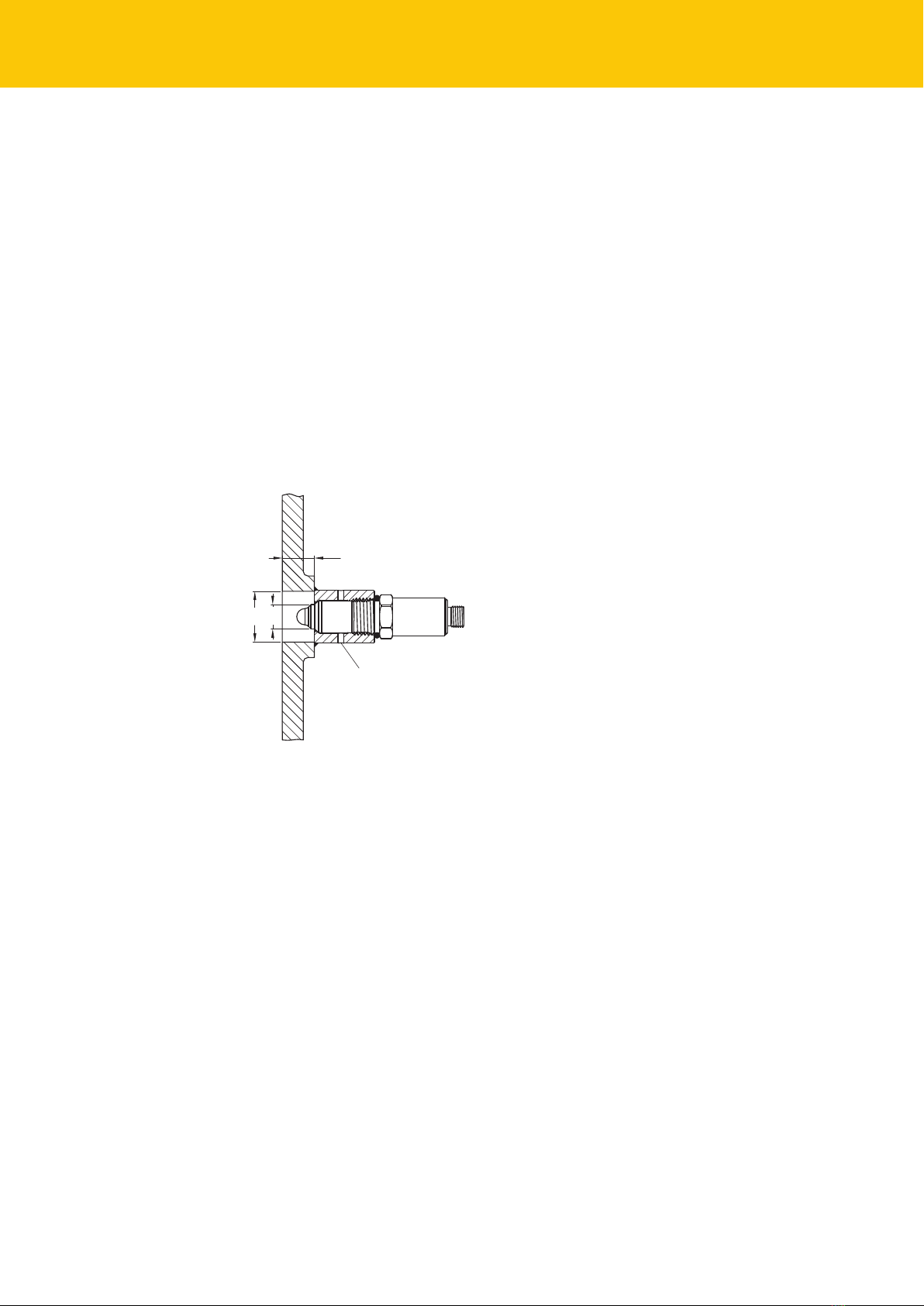

Install the sensor so that there is no dead space. Observe the following dimensions to
avoid dead space: L < (D-d)
d
D
L
A
Fig.4: Avoiding dead space and installing a leakage hole (A)
Install a self-draining sensor.
Choose an installation in the tank so that the sensor is fully accessible from the cleaning
ports.
Install the leakage hole (A) so that it is clearly visible. When using vertical cables, the leak-
age hole must face downward.

V01.01 | 2022/06 13
5.3.1 Installing the welding adapter
Proceed as follows to attach the welding sleeve:
1
2
43
Fig.5: Attach the welding sleeve
If necessary, screw in an auxiliary tool to prevent damage from heat on the welding
sleeve.
Carry out the welding as shown in the following figure. Allow for a reasonable time
between the welding seams in order to avoid heat damage.
1
2 4
3
Fig.6: Carrying out the welding
Welding according to EHEDG
The welding shall be done according to EHEDG Doc 9 with polishing to Ra < 0,8 µm as post-
treatment.

Connection
Wiring diagrams
14 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
6 Connection
Use a suitable connection cable (see "Technical accessories").
Connect the device as shown in the wiring diagram.
6.1 Wiring diagrams
3
2
4
1
1
4
2
3
+
–
out 2: switch
out 1: switch/IO-Link
Fig.7: Pin assignment Fig.8: Wiring diagram

V01.01 | 2022/06 15
7 Commissioning
After connecting and switching on the power supply, the device is automatically ready for op-
eration.

Operation
LEDs
16 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
8 Operation
8.1 LEDs
LED Meaning
Green Switching state of output 1, indication function adjustable:
nLit if output 1 (OUT1) is active
nLit if output 1 (OUT1) is inactive
The LED ignores the set delay in both cases and switches immedi-
ately. The switching state of output 2 (OUT2) cannot be indicated
via an LED.
Green flashing Process value within the set hysteresis

V01.01 | 2022/06 17
9 Setting
The device can only be parameterized via IO-Link. The following settings are possible for each
output:
nOutput type: PNP, NPN, push-pull
nOutput function: NO contact (NO), NC contact (NC), pulse width modulation (PWM)
nSwitching hysteresis (at least 2 %)
nTime delay for the switching signal
Parameter setting via IO-Link is explained in the IO-Link commissioning manual.

Troubleshooting
18 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
10 Troubleshooting
If the device does not function as expected, first check whether ambient interference is present.
If there is no ambient interference present, check the connections of the device for faults.
If there are no faults, there is a device malfunction. In this case, decommission the device and
replace it with a new device of the same type.

V01.01 | 2022/06 19
11 Maintenance
The device is maintenance-free. Clean with a damp cloth if required.
12 Repair
The device must not be repaired by the user. The device must be decommissioned if it is faulty.
Observe our return acceptance conditions when returning the device to Turck.
12.1 Returning devices
Returns to Turck can only be accepted if the device has been equipped with a Decontamination
declaration enclosed. The decontamination declaration can be downloaded from
https://www.turck.de/en/retoure-service-6079.php
and must be completely filled in, and affixed securely and weather-proof to the outside of the
packaging.
13 Disposal
The devices must be disposed of correctly and must not be included in general
household garbage.

Technical data
20 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
14 Technical data
NCLS-30-UP6X-H1141 NCLS-30-UN6X-H1141
ID 100004248 100004249
Mounting position Any
Notes for mounting Only use the NCLS limit level sensors with original Turck pro-
cess adapters.
Required permittivity (εr) 1.5
Pressure resistance 10 bar
Vacuum resistance -1 bar
Temperature drift Typ. 20 %
Ambient temperature -10…+70 °C
Temperature of medium 0…+100°C
Comment on
Temperature of medium
0…+130 °C for <1 h at an ambient temperature of 40°C
Storage temperature -20…+70 °C
CIP/SIP-compatible Yes
Electrical data
Operating voltage 12…32 VDC
Power consumption 3 W
Switch-on time < 0.3 s
Response time < 0.2 s
Switching frequency ≤ 5 Hz
Insulation test voltage ≤ 0.5 kV
Communication protocol IO-Link
SIO mode compatible Yes
Number of digital outputs 2
Output function 4-wire, NO contact/NC contact,
PNP
4-wire, NO contact/NC contact,
NPN
Short-circuit protection Yes
Wire breakage / reverse polar-
ity protection
Yes/yes
Protection class III
Approvals CE
EHEDG
IO-Link
IO-Link specification V1.1
Parameterization FDT/DTM
Physical transmission layer Complies with 3-wire technology (PHY2)
Transmission rate COM 2/38.4 kbps
Process data width 16-bit
Measured value information 14bit
Switching point information 2 bit
Frame type 2.2
Contained in SIDI GSDML Yes
