turck FCS-G3/4A4-NAEX/D100 User manual

Flow monitoring
Immersion sensor without integrated processor
FCS-G3/4A4-NAEX/D100
Edition • 2016-05-15T00:56:36+02:00
1 / 2 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. [phone] ñ Fax [phone] ñ [email protected] ñ www.turck.com
Type code FCS-G3/4A4-NAEX/D100
Ident no. 6870463
Mounting conditions insertion style sensor
Water Operating Range 1…100cm/s
Oil Operating Range 3…200 cm/s
Stand-by time typ. 8 s (2…15 s)
Switch-on time typ. 2 s (1…13 s)
Switch-off time typ. 2 s (1…15 s)
Temperature jump, response time max. 12 s
Temperature gradient ð 250 K/min
Medium temperature 10…120 °C
Device designation É II 2 G EEx ib IIC T6
ignition protection category Ex ib IIC
PowerPið 0.69 W
Internal inductances/capacitances negligibly small
Ex approval acc. to conformity certificate TÜV 99 ATEX 1518
Protection class IP68
Housing material Stainless steel, V4A (1.4571)
Sensor material stainless steel, AISI 316Ti
Max. tightening torque housing nut 30 Nm
Connection PTFE cable
Cable length 2 m
Cable cross section 4 x 0.25 mm2
Pressure resistance 60 bar
Process connection G ¾″
■ATEX category II 2 G, Ex Zone 1
■Ex flow sensor for liquid media
■Calorimetric principle
■Adjustment via signal processor
■Status displayed via signal processor
■Extended temperature range
■Media temperature +10…120 °C
■Temperature range 10…120 °C
■EEx ib IIC T6 (use in zone 1)
■4-wire connection to EX0 processor
■Cable device

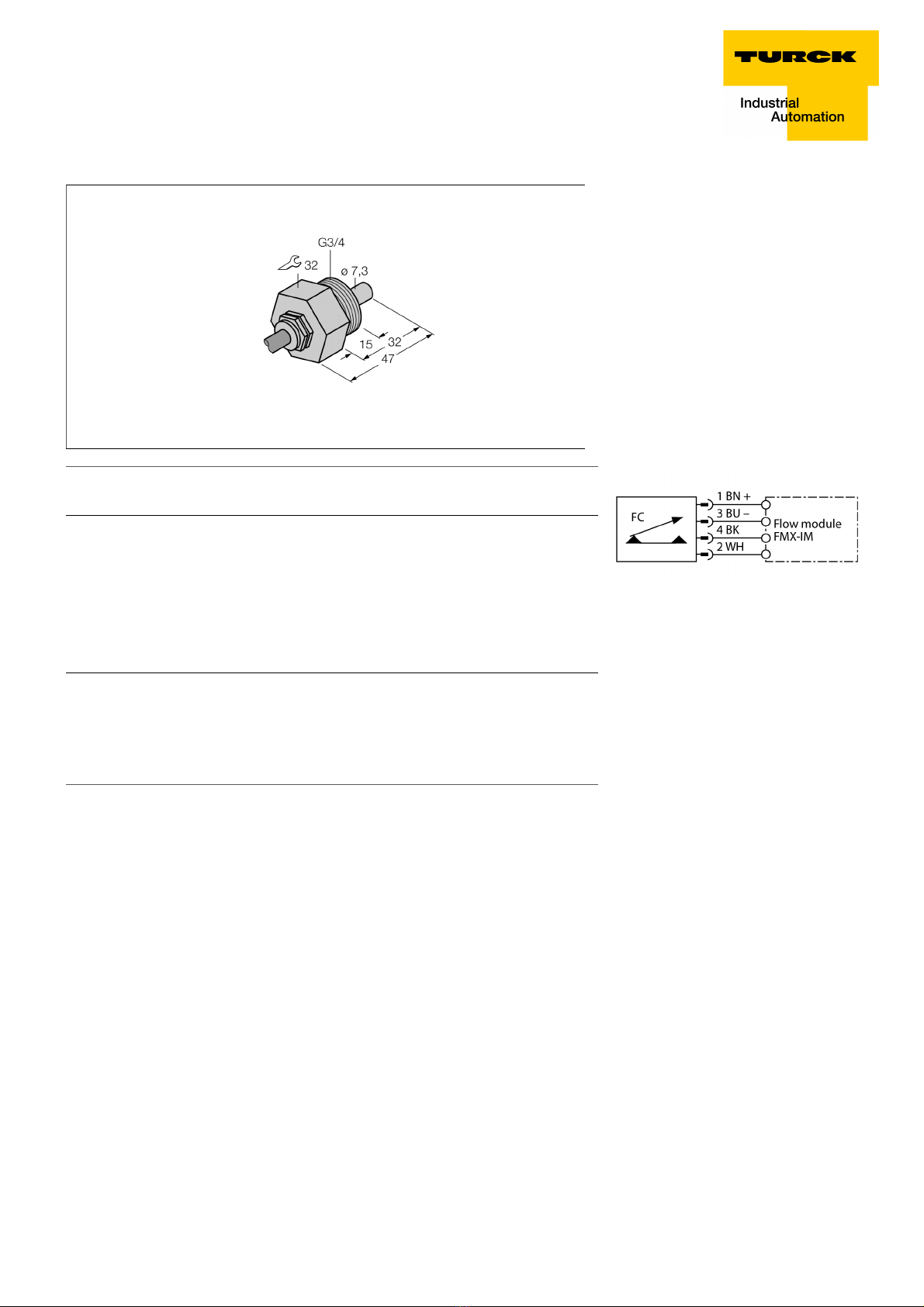

Wiring Diagram
Functional principle
Our insertion - flow sensors operate on the
principle of thermodynamics. The measur-
ing probe is heated by several °C as against
the flow medium. When fluid moves along the
probe, the heat generated in the probe is dis-
sipated. The resulting temperature is mea-
sured and compared to the medium tempera-
ture. The flow status of every medium can be
derived from the evaluated temperature differ-
ence. Thus TURCK's wear-free flow sensors
reliably monitor the flow of gaseous and liquid
media.

Flow monitoring
Immersion sensor without integrated processor
FCS-G3/4A4-NAEX/D100
Edition • 2016-05-15T00:56:36+02:00
2 / 2 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. [phone] ñ Fax [phone] ñ [email protected] ñ www.turck.com
Operating manual
Intended use
This device fulfils the directive 94/9/EC and is suited for use in explosion hazardous areas according to EN50014 and EN50020.
In order to ensure correct operation to the intended purpose it is required to observe the national regulations and directives.
For use in explosion hazardous areas conform to classification
II 2 G (Group II, Category 2 G, electrical equipment for gaseous atmospheres).
Marking (see device or technical data sheet)
É II 2 G and EEx ib IIC T6 acc.to EN50020
Installation / Commissioning
These devices may only be installed, connected and operated by trained and qualified staff. Qualified staff must have knowledge of protection
classes, directives and regulations concerning electrical equipment designed for use in explosion hazardous areas.
Please verify that the classification and the marking on the device comply with the actual application conditions.
This device is only suited for connection to approved Exi circuits compliant to EN60079-0 and -11. Please observe the maximum admissible
electrical values.
After connection to other circuits the sensor may no longer be used in Exi installations. When interconnected to (associated) electrical equip-
ment, it is required to perform the "Proof of intrinsic safety" (EN60079-14).
Installation and mounting instructions
Avoid static charging of cables and plastic devices. Please only clean the device with a damp cloth. Do not install the device in a dust flow and
avoid build-up of dust deposits on the device.
If the devices and the cable could be subject to mechanical damage, they must be protected accordingly. They must also be shielded against
strong electro-magnetic fields.
The pin configuration and the electrical specifications can be taken from the device marking or the technical data sheet.
In order to avoid contamination of the device, please remove possible blanking plugs of the cable glands or connectors only shortly before in-
serting the cable or opening the cable socket.
service / maintenance
Repairs are not possible. The approval expires if the device is repaired or modified by a person other than the manufacturer. The most important
data from the approval are listed.
