CEILING FAN
Owner’s Manual
Models #20308, 20309
Turn of the CenturyTM
If a problem cannot be remedied or you are experiencing diculty with installation,
please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time.

TM
Turn of the Century
PACKAGE CONTENTS
2
HARDWARE CONTENTS
18
19
20
21
22
25
24
23
26
27
28
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Yoke Cover
5. Motor Housing
6. Fitter Plate
7. Light Kit
8. Glass Shade (x 3)
9. Switch Housing Cap
10. Downrod
11. Remote
12. Blade (x 5)
13. Candelabra Bulb (x 3)
14. Blade Arm (x 5)
15. Receiver
16. Hardware Kit
17. Owner’s Manual
18. Motor Screw (x 10)
19. Mounting Bracket
Screw (x 4)
20. Blade Screw (x 15)
21. Blade Washer (x 15)
22. Downrod Set Screw (x 2)
23. Star Washer (x 4)
24. Closemount Screw (x 3)
25. Fitter Plate Screw (x 3)
26. Wire Connector (x 6)
27. Downrod Clip
28. Downrod Pin
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
7
6
5
4
3
2
1
8
9
10
14
17
16
15
12
Hardware Kit
Owner’s
Manual
13
11

TM
Turn of the Century
MOUNTING OPTIONS
3
Triple Mount Drawing
Closemount
Downrod Mount
Angled Ceiling Mount (Up to 10 degrees)
A. 18.1 in. B. 14.57 in. C. 11.81 in.
DIMENSION REFERENCE
C
A
B
Choose one of the following mounting options:
Closemount installation is best suited for ceilings lower than 8 feet. It does not utilize the downrod.
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings, you may want to use a longer
downrod (sold separately).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 10°.

TM
Turn of the Century
WARNING
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
If a stationary appliance is not provided with a supply cord and a plug, or with other means for
disconnection from the main supply having a contact separation of at least 3 mm in all poles, that means for
disconnection must be incorporated in the xed wiring in accordance with the wiring rules.
NOTE: The safeguards provided by these safety instructions and by the separate installation instructions
are not meant to cover all possible conditions and situations that may occur. It must be understood that
common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person(s) installing, caring for and operating the fan.
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE. TURNING OFF THE ELECTRICAL POWER BY
USING THE LIGHT SWITCH IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE AT LEAST 7 FEET
(2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES (0.5 METERS) FROM THE TIP OF THE BLADES
TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT TO OUTLET BOX MARKED
“ACCEPTABLE FOR FAN SUPPORT” AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE, ANSI/NFPA
70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE METHODS OF INSTALLING ELECTRICAL
WIRING, SEEK THE SERVICES OF A QUALIFIED LICENSED ELECTRICIAN.
SAFETY INSTRUCTIONS
IMPORTANT:
Before you begin installing or using the fan, carefully read the entire manual. If unsure about any part of the
installation, contact a qualied electrician.
Save all instructions.
NOTE: The fan weight is Net Weight: 18.52 lb (8.42 kg), Gross Weight: 21.38 lb (9.72 kg).
WARNING: Be sure the outlet box (not included) is securely attached to the building structure and is marked
“Acceptable For Fan Support”. Failure to do so can result in serious injury.
4

Turn of the CenturyTM
Downrod
Clip
Set Screw
Yoke
Downrod
Pin
5
ASSEMBLY INSTRUCTIONS
2
1
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
2. Loosen all four mounting bracket screws, then
completely remove the two mounting bracket screws
from the round holes in the canopy. Detach mounting
bracket from canopy, but retain the mounting bracket
screws for later. Install the mounting bracket to the
outlet box (not included) using the screws and washers
provided with the outlet box.
Warning: To reduce the risk of re electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting
screws and washers provided with the outlet box.
4
3. CLOSEMOUNT INSTALLATION (OPTIONAL)
a. Remove the canopy cover from the bottom of the
canopy.
b. Remove the three Phillips-head closemount screws from
the top of the motor housing.
c. Align the holes in the bottom of the canopy with the
screw holes in the top of the motor housing. The larger
holes in the canopy will encompass the three preinstalled
screws.
d. Secure the canopy to the top of the motor housing with
the closemount screws that were previously removed.
e. Hang the fan on the hook of the mounting bracket.
Proceed to Step 8.
Closemount
Screw
Canopy
Mounting
Bracket
Mounting
Bracket Screw
3

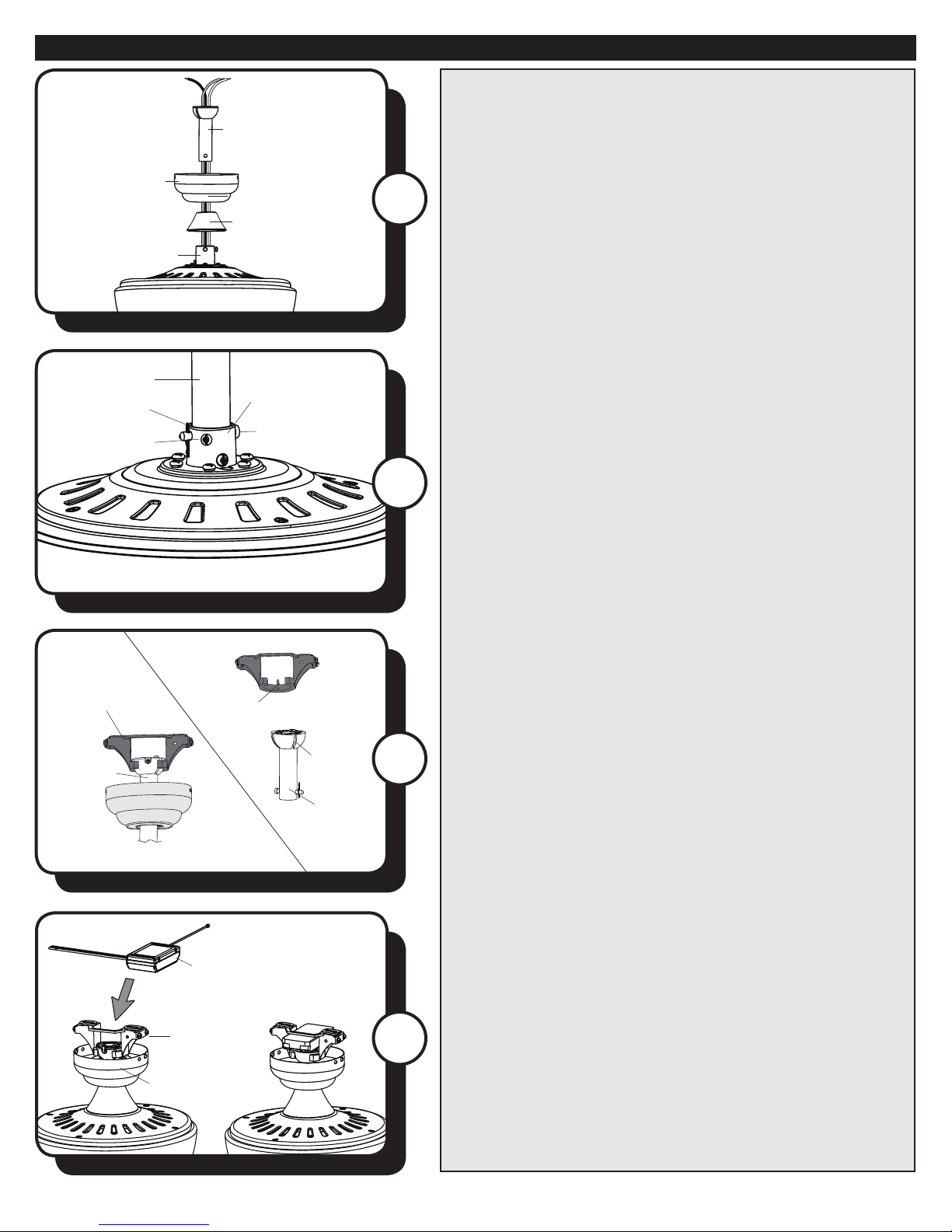

4. DOWNROD OR ANGLED CEILING MOUNT - Remove
the downrod pin and downrod clip from the downrod.
Then, loosen but don’t remove the set screws in the yoke.

6Turn of the CenturyTM
Receiver
Downrod
Mounting
Bracket
ASSEMBLY INSTRUCTIONS
8
7
5
6
5. Feed the wires coming from the yoke through the yoke
cover, canopy, and up through the downrod.
6. Insert the downrod into the yoke and reinstall the
downrod pin and downrod clip. Then retighten the two
set screws.
Note: With wiring extending out of the downrod,
measure 8 inches of lead wire and cut the excess wire
with wire cutters (not included). Then strip 1/2” of
insulation from the end of each wire.
7. Lift the downrod into the mounting bracket. Rotate the
downrod until the tab in the mounting bracket is seated in
the slot in the downrod ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket if installed correctly. Failure to align
the slot in the downrod ball with the tab may result in fan
falling causing serious injury or death.
Downrod
Canopy
Yoke Cover
Downrod Pin
Yoke
Downrod
Downrod Clip
Set Screw
Yoke
Tab
Slot
Downrod
Downrod
Mounting
Bracket
8. Place the receiver in the mounting bracket to prepare
for the wiring process.
Note: The receiver will rest directly on top of the downrod.

7Turn of the CenturyTM
Blade Screw Blade Washer
Blade Arm Blade
ASSEMBLY INSTRUCTIONS
Black (hot/power)
White (neutral)
Bare/Green (ground)
Red White
White
White
Black
Blue
Blue
Green
Green
Antenna
Note:Receiver wires with white
labels connect to wires from fan.
Receiver wires with red labels
connect to wires from outlet box.
12
11
10. Raise the canopy, ensure the two mounting bracket
screws are aligned with the L-shaped slots in the canopy.
Then turn the canopy counter clockwise until the
mounting bracket screws are completely engaged in
the L-shaped slots. Install the two previously removed
mounting bracket screws and star washers in the round
holes. Securely tighten all four mounting bracket screws.
11. Remove the ve motor blocks and ten motor screws
from the underside of the motor. Discard the motor
blocks, but keep the motor screws for installation of the
blade arms.
Note: The notch in the tter plate allows a Phillips
screwdriver (not included) access to the motor screws.
9. Use wire connectors to connect the receiver and fan
wires to the supply wires from outlet box according to the
wiring diagram and the following instructions:
• Connect the blue wire from receiver to blue (light power)
wire from fan.
• Connect the black wire from receiver to black (fan power)
wire from fan.
• Connect the red wire from receiver to black (hot/power)
supply wire.
• Connect the white wire with red label from receiver to
white (neutral/common) supply wire.
• Connect the white wire with white label from receiver to
white (neutral/common) wire from the fan.
• Connect the green wires from the fan and mounting
bracket to the bare/green (ground) supply wire.
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the black and white
wire connections on opposite sides of the outlet box.
10
9
Canopy
Round
Hole
Motor
Block
Notch
Motor
Motor Screw
Fitter Plate
Mounting
Bracket Screw L-shaped Slot
Wire
Connector

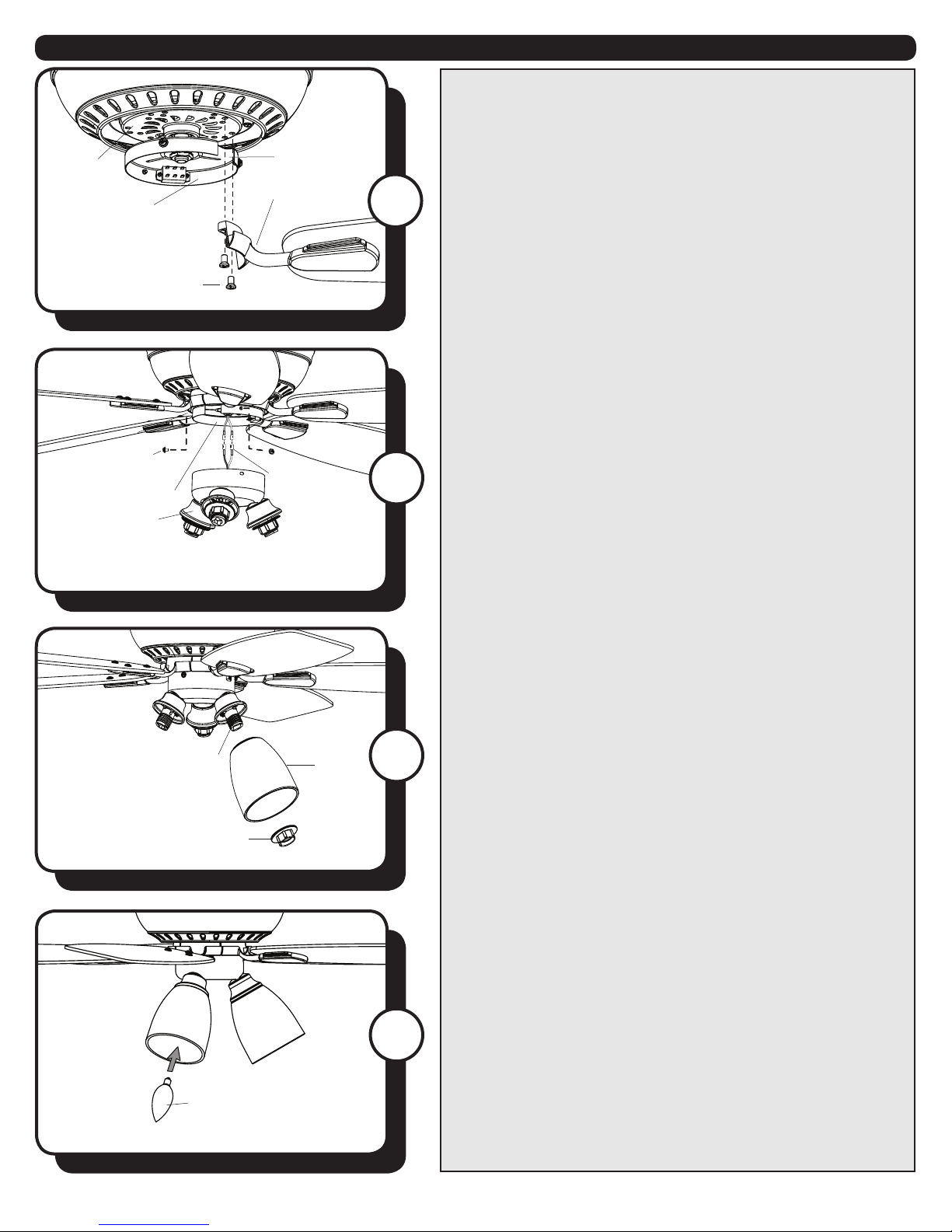

12. Partially insert three blade screws, along with the
blade washers, through the blade and into the blade arm.
Tighten each blade screw, starting with the one in the
middle. Repeat this step for the remaining blades and
blade arms.

8Turn of the CenturyTM
Bulb
ASSEMBLY INSTRUCTIONS
16
15
13. Secure the blade arm to the underside of the motor
using the motor screws removed in Step 11. Secure each
blade arm to the motor before moving to the next.
Note: The notch in the tter plate allows a Phillips
screwdriver access to the motor screws.
To install the fan without the light kit, skip to step 17.
14. Remove the three tter plate screws from the tter
plate. Then, connect the single-pin connectors from the
tter plate to the light kit -- white to white and blue to
black.
Secure the light kit to the tter plate using the three tter
plate screws.
15. Remove the socket ring from the socket. Lift the
glass shade onto the socket and secure with socket ring.
Repeat for each socket.
14
Motor
Screw
Single-pin
Connectors
Socket
Socket Ring
Glass
Shade
Light Kit
Blade Arm
Notch
Motor
Fitter Plate
Fitter Plate Screw
Fitter Plate 13
16. Install the three candelabra-base bulbs (60W max.) into
the sockets of the light kit.

Turn of the CenturyTM
9
ASSEMBLY INSTRUCTIONS
18. Restore the power at the main fuse or circuit breaker.
17. INSTALLATION WITHOUT LIGHT KIT (OPTIONAL)
a. Remove the three tter plate screws from tter plate.
b. Install the switch housing cap to the bottom of the tter
plate with the three tter plate screws.
Switch
Housing Cap
Switch
Housing
Screw
18
17

10 Turn of the CenturyTM
OPERATING INSTRUCTIONS
1
1. Use the fan reverse switch, located on the tter plate to
optimize your fan for seasonal performance.
Using a ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winter without feeling a dierence in your comfort.
Note: Wait for the fan to stop before moving the reverse
switch.
In warmer weather, push the reverse switch left which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch right which
will result in upward airow that can help move stagnant,
hot air o the ceiling area.
A
B
C
D
E
3
2. Remove the battery cover from the back of the remote
transmitter and insert the 12-volt battery. Replace the
battery cover.
D/CFL Switch: Located inside the battery compartment in
the remote. The switch is pre-set to “D”. The switch should
be moved to “CFL” if using CFL bulbs (not included).
IMPORTANT: The dimmer function does NOT work with
CFL bulbs.
3. To operate the fan using the remote control, press and
release the following buttons:
A - High fan speed
B - Medium fan speed
C - Low fan speed
D - Turns the fan o. Press and hold this button for 5
seconds to enter Light Delay O mode, which will turn
o light after one minute. The LED on the remote control
will ash four times to conrm mode setting.
E - Turns the light on and o. Press and hold this button
to dim or brighten when using incandescent bulbs.
2
Remote
Battery
Battery
Cover
Remote
Battery
Compartment
D/CFL Button
Reverse Switch
LED Indicator

TM
Turn of the Century
11
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time.
PROBLEM SUGGESTED REMEDY
1. Fan does not start 1. Check main and branch circuit fuses or circuit breakers.
2. Check wire connections between supply wires and fan and between switch
housing and light kit.
CAUTION: Make sure main power is turned o before entering canopy.
3. Make sure the reverse switch is pushed completely left or right. The fan will not
operate when switch is in the middle.
4. Make sure that the wall control is turned ON.
1. Make sure all screws in the motor housing are snug, but not overtightened.
2. Make sure the motor screws which attach the blade arm to the motor are tight.
3. Make sure the wire connectors in the switch housing are not rattling against
each other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned o before entering switch housing.
4. If using a light kit, be sure the glass shades are nger tight. Check to be sure light
bulb are snug in sockets and not touching glass shade(s). If vibration persists
from glass, tighten the socket rings.
5. Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed control.
1. Ensure all blades are screwed rmly onto the blade arms.
2. Ensure all blade arms are tightened securely to motor.
3. Ensure canopy and mounting bracket are tightened securely to outlet box and
outlet box is mounted rmly to ceiling joist.
4. Switch one blade with a blade from the opposite side. Or balance the fan using a
blade balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot (black) power
supply wire or to a second hot supply wire if the fan and light are controlled by
separate wall switches.
2. Check for loose or disconnected wires in the switch housing.
3. Check for loose or disconnected wires in the light kit.
4. Check for faulty light bulbs.
CAUTION: Make sure main power is turned o before entering switch housing.
1. Press and hold the high and low speed buttons on the remote control at the
same time for 5 seconds. The LED indicator will ash 3 times. When syncing is
complete, the fan will start on the low speed with the light (if applicable) o.
2. Replace the transmitter battery with a new 12-volt battery.
2. Fan is noisy
3. Fan wobbles
4. Light does not work:
TROUBLESHOOTING
5. Remote control does
not work:

TM
Turn of the Century
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 9 a.m.- 5 p.m. Central time.
Model Name: 52” Langner Ceiling Fan
Model No: 20308 - Brushed Nickel (SKU: 355-0465)
20309 - Oil Rubbed Bronze (SKU: 355-0466)
The Limited Lifetime Warranty covers this ceiling fan, for residential use by the original purchaser, against
defects in material or workmanship as follows:
If the Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser
due to defects in material or workmanship, the manufacturer will provide a replacement part free of
charge.
If the fan motor fails at any time within one year of the original date of sale to the original purchaser due
to defects in material or workmanship, the manufacturer will replace the fan with the same or a similar
fan model. Or at its discretion, the manufacturer may choose to refund the original purchase price.
If any fan part, except for glass and light bulbs, fail within one year of the original date of purchase due to
a defect in material or workmanship, the manufacturer will repair or, may choose, replace the defective
part free of charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or tness for a particular purpose, become void.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability
or tness for a particular purpose, with respect to any Turn of Century Ceiling Fan motor, blades, switch,
or accessories, is expressly limited to the period of the express warranty set forth above for such motor,
blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Turn of Century Fan that are caused by
repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling,
improper installation, modications or damage to the fan while in your possession, or unreasonable use,
including failure to provide necessary maintenance.
To obtain service, contact the service department. The original purchaser will be responsible for all
insurance and freight or other transportation charges to our factory or service center. A copy of the
sales receipt is required in order to obtain warranty service. We will return your fan freight prepaid. Your
fan should be properly packed to avoid damage in transit, for we will not be responsible for any such
damages.
In no event shall Turn of Century Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which
case the above limitation or exclusion may not apply.
This warranty gives you specic legal rights and you may also have other rights which vary from state
to state.
12
