Turn of the century 20587 User manual

9281 • 101717
52” HYATTSVILLE
CEILING FAN
Owner’s Manual
Models #20587
Turn of the CenturyTM
1
If a problem cannot be remedied or you are experiencing diculty in installation,
please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time.
RATED FOR
DAMP LOCATION

TM
Turn of the Century
PACKAGE CONTENTS
2
HARDWARE CONTENTS
23 25 2624
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Yoke Cover
5. Set Screw (x 2)
6. Motor Assembly
7. Switch Housing
8. Light Kit
9. E26-base LED Bulb
10. Glass Globe
11. Downrod
12. Downrod Clip
13. Downrod Pin
14. Blade (x 5)
15. Blade Arm (x 5)
16. Hardware Kit
17. Owner’s Manual
18. Mounting Bracket Screw
(x4)
19. Motor Screw (x 10)
20. Switch Housing Screw (x 3)
21. Switch Housing Cap
22. Closemount Screw (x 3)
23. Blade Screw (x 15)
24. Blade Washer (x 15)
25. Wire Connector (x 3)
26. Pull Chain Extension (x 2)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
Hardware Kit
Owner’s
Manual
10
9
19
20
8
7
6
22
5
4
3
1
11
13
12
14
15
21
16
17
18
2

TM
Turn of the Century
MOUNTING OPTIONS
3
Triple Mount Drawing
Closemount
Downrod Mount
Angled Ceiling Mount (Up to 16 degrees)
A. 19.93 in. B. 11.29 in. C. 12.88 in. D. 11.29 in. E. 5.24
DIMENSION REFERENCE
D
E
C
B
A
Choose one of the following mounting options:
Closemount method is best suited for ceilings lower than 8 feet. It does not utilize the downrod.
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.

TM
Turn of the Century
SAFETY INSTRUCTIONS
4
WARNING:
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
If a stationary appliance is not provided with a supply cord and a plug, or with other means for
disconnection from the main supply having a contact separation of at least 3 mm in all poles, that means for
disconnection must be incorporated in the xed wiring in accordance with the wiring rules.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 15.92 lb (7,22 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into and outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ansi/nfpa 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
CAUTION:

Turn of the CenturyTM
5
ASSEMBLY INSTRUCTIONS
2
1
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
2. Remove the canopy from the mounting bracket
by removing the two mounting bracket screws from
the round holes in the canopy. Then loosen the other
two mounting bracket screws from the J-shaped slots.
Retain the mounting bracket screws for later. Install the
mounting bracket to the outlet box (not included) using
the screws and washers provided with the outlet box.
Warning: To reduce the risk of re electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.
3. Remove the 10 motor screws and ve motor blocks from
the underside of the motor assembly. Discard the motor
blocks, but keep the motor screws for later.
If you wish to use the Downrod Mount (shown on page 3),
proceed to Step 5.
4. CLOSEMOUNT INSTALLATION (OPTIONAL)
a. Remove the three Phillips-head closemount screws from
the top of the motor assembly.
b. Remove the canopy cover from the bottom of the
canopy.
c. Align the holes in the bottom of the canopy with the
screw holes in the top of the motor housing. The larger
holes in the canopy will encompass the three pre-installed
screws.
d. Secure the canopy to the top of the motor housing with
the closemount screws.
e. Hang the canopy on the hook of the mounting bracket.
Proceed to Step 9.
Closemount
Screw
Canopy
Hook
Mounting
Bracket Screw
3
4

6Turn of the CenturyTM
ASSEMBLY INSTRUCTIONS
8
6
7

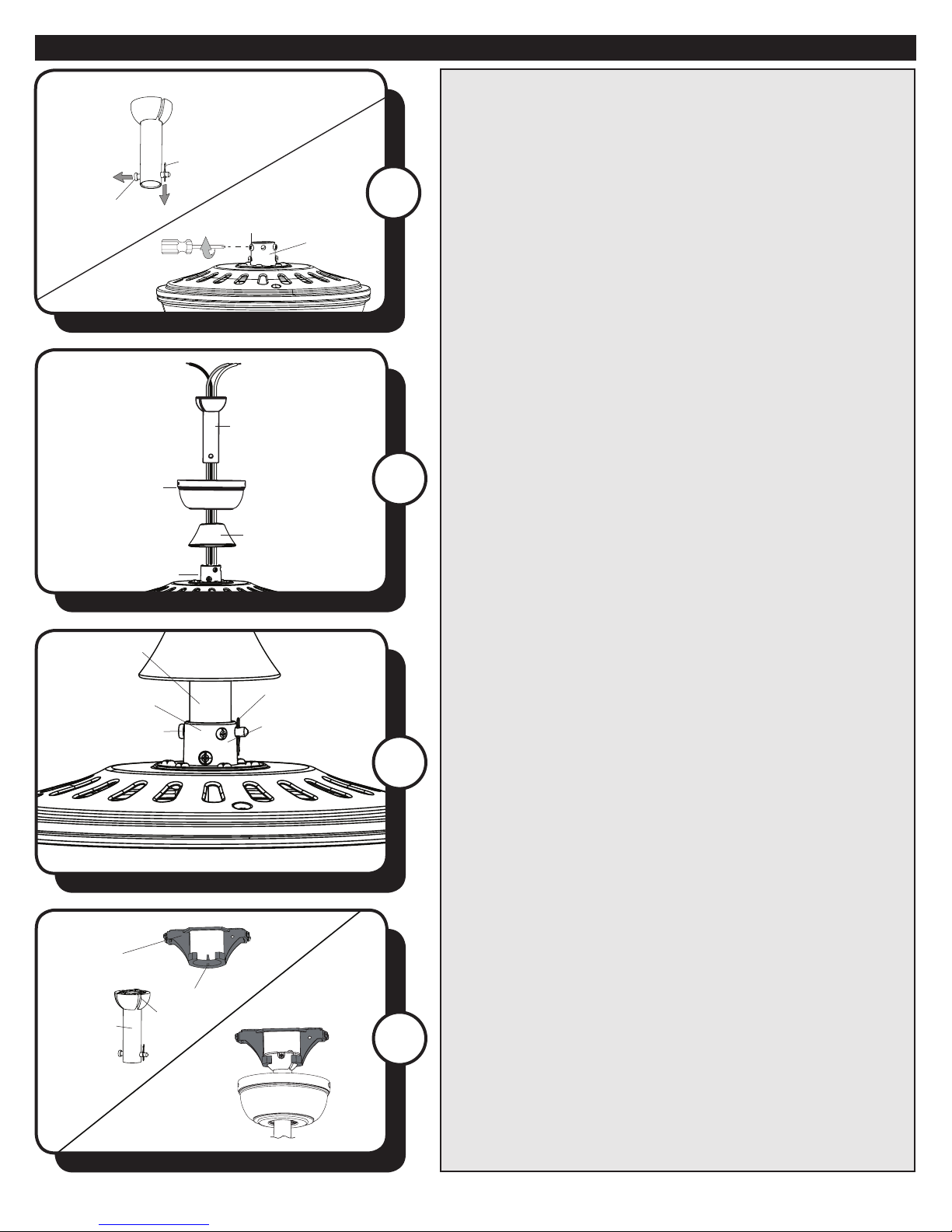

6. Feed the wires coming from the yoke through the yoke
cover, canopy and downrod.
7. Insert the downrod into the yoke and reinstall the
downrod pin and downrod clip. Then retighten the two
set screws.
Note: With wiring extending out of the downrod,
measure 8 inches of lead wire and cut the excess wire
with wire cutters (not included). Then strip 1/2” of
insulation from the end of each wire.
8. Lift the downrod into the mounting bracket. Rotate the
downrod until the tab in the mounting bracket is seated in
the slot in the downrod ball.
WARNING: The fan and/or downrod should
not rotate in the mounting bracket if installed
correctly. Failure to align the slot in the downrod ball with
the tab may result in fan falling causing serious injury or
death.
Downrod
Canopy
Yoke Cover
Downrod Pin Yoke
Downrod
Downrod Clip
Set Screw
Yoke
Tab
Slot
Downrod
Mounting
Bracket
Downrod
Clip
Set Screw
Yoke
Downrod
Pin
5
5. DOWNROD MOUNT - Remove the downrod pin and
downrod clip from the downrod. Then, loosen but don’t
remove the two set screws in the yoke.

7Turn of the CenturyTM
Motor Screw Blade Arm
Motor
Blade Screw Blade Washer
Blade Arm Blade
ASSEMBLY INSTRUCTIONS
Black (Hot)
Wire Connector
White (Neutral)
Bare/Green (Ground)
Black Blue White Green
12
11
10. Raise the canopy, ensure the two mounting bracket
screws are aligned with the L-shaped slots in the canopy.
Then turn the canopy counterclockwise until the
mounting bracket screws are completely engaged in
the L-shaped slots. Install the two previously removed
mounting bracket screws in the round holes. Securely
tighten all four mounting bracket screws.
9. Use wire connectors to connect the fan wires to the
household supply wires from outlet box according to the
wiring diagram and the following instructions:
• Connect white wire from fan to the white (common)
supply wire.
• Connect the black and blue wires from the fan to the
black (hot) supply wire.
• Connect the green wire from the downrod and the
mounting bracket to the bare/green (ground) supply wire.
Note: If a second hot/power wire is available from the
outlet box, connect it to the blue (light power) fan wire for
separate fan and light switches.
10
9
Canopy
Round
Hole
Mounting
Bracket Screw
L-shaped Slot
11. Partially insert three blade screws, along with the
blade washers, through the blade and into the blade arm.
Tighten each blade screw, starting with the one in the
middle. Repeat this step for the remaining blades and
blade arms.
WARNING: Never
connect fan to variable-
speed (dimmer style) wall
control.
12. Secure the blade arm to the underside of the motor
using motor screws removed in Step 3. Secure each blade
arm to motor before moving to the next.
To install the fan without the light kit, skip to step 16.

8Turn of the CenturyTM
Glass Bowl
Pull Chain Extension
Thumbscrew
ASSEMBLY INSTRUCTIONS
16
15
13. Remove the three switch housing screws from the light
kit. Then, connect the single-pin connectors from the
switch housing to the light kit -- white to white and blue
to black.
Align the notch in the light kit with the reverse switch on
the fan. Then, secure the light kit to the switch housing
using the three switch housing screws.
14. Install the E26-base LED bulb into the socket of the
light kit.
Replacement bulbs: Use E26-base LED, CFL, or
incandescent (60 watt max.). Halogen bulbs are not
recommended for this item.
14
Single-pin
Connectors
Socket
Bulb
Light Kit
Notch
Reverse Switch
Switch
Housing
Screw
13
15. Loosen the three thumbscrews at the bottom edge of
the light kit. Lift the glass bowl into the light kit and hand
tighten the thumbscrews to secure the glass bowl.
16. Attach the pull chain extension(s) to the pull chain(s).
Note: If installing the fan without the light kit, do not
attach the pull chain extension to the light pull chain.
When facing the reverse switch, the light pull chain is on
the left and the fan pull chain is on the right.

Turn of the CenturyTM
9
ASSEMBLY INSTRUCTIONS
Restore the power at the main fuse or circuit breaker.

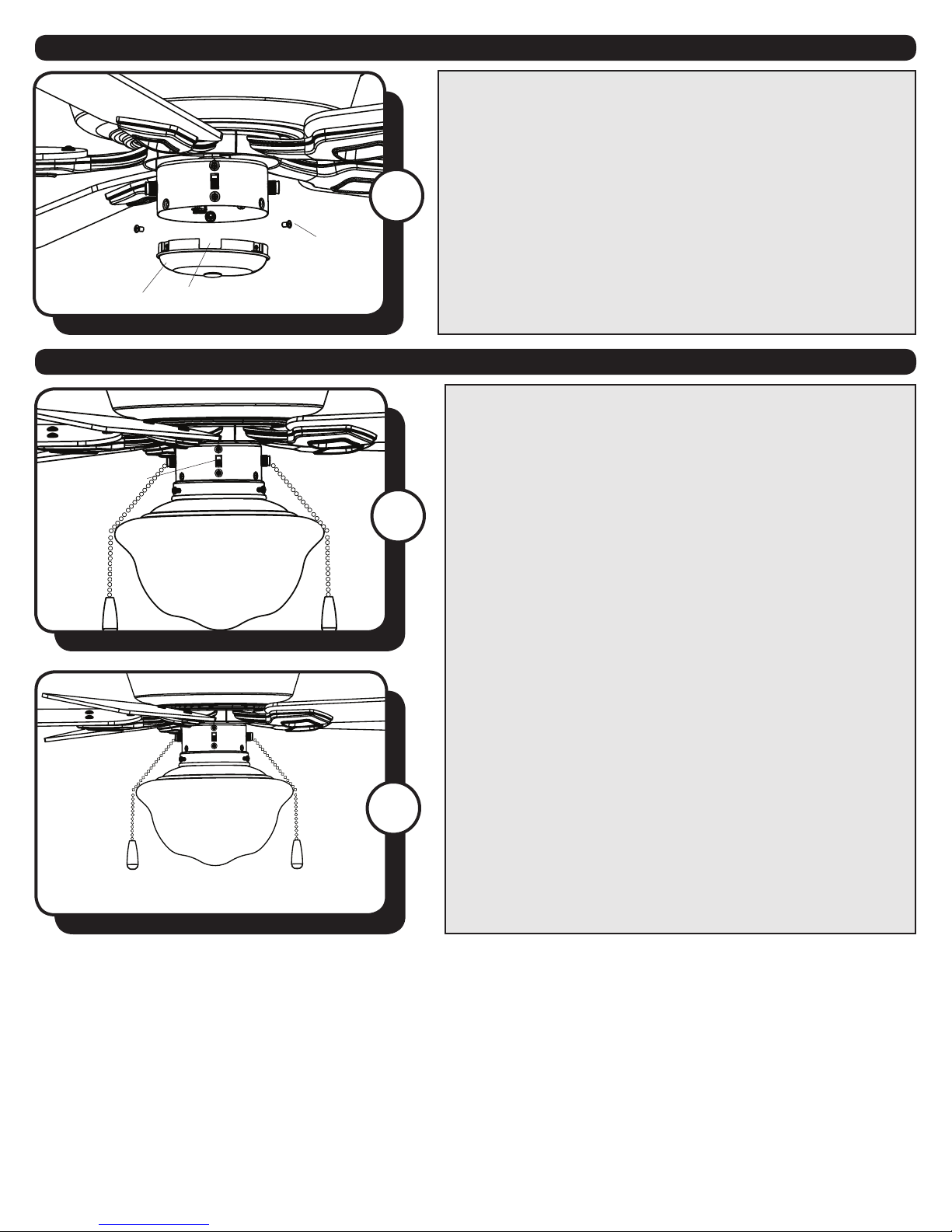

17. INSTALLATION WITHOUT LIGHT KIT (OPTIONAL)
a. Remove the three switch housing screws from top of
the light kit. Attach the switch housing cap to the switch
housing using the switch housing screws.
Switch
Housing Cap
Switch
Housing
Screw
2
17
Notch
OPERATING INSTRUCTIONS
1
1. Use the fan reverse switch, located on the switch
housing to optimize your fan for seasonal performance.
Using a ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winter without feeling a dierence in your comfort.
Note: Wait for the fan to stop before moving the reverse
switch.
In warmer weather, push the reverse switch down which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch up which will
result in upward airow that can help move stagnant, hot
air o the ceiling area.
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW and
four turns the fan OFF.
The light pull chain has two positions to control the light,
ON and OFF.
Note: When facing the reverse switch, the light pull chain
is on the left and the fan pull chain is on the right.
Reverse Switch
Light Pull Chain Fan Pull Chain

TM
Turn of the Century
10
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time.
PROBLEM SUGGESTED REMEDY
1. Fan does not start 1. Check main and branch circuit fuses or circuit breakers.
2. Check power supply wire connections to fan and switch wire connections in
switch housing.
CAUTION: Make sure main power is turned o before entering canopy.
3. Make sure forward/reverse switch pushed completely up or down. Fan will not
operate when switch is in the middle.
4. Make sure that the wall control is turned ON.
1. Make sure all screws in motor housing are snug, but not overtightened.
2. Make sure the screws which attach the blade arm to the motor are tight.
3. Make sure wire connectors in switch housing are not rattling against each other
or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned o before entering switch housing.
4. If using a light kit, be sure the glass shades are nger tight. Check to be sure light
bulb are snug in sockets and not touching glass shade(s). If vibration persists
from glass, remove glass and install a 1/4 in. wide rubber band on glass neck to
act as an insulator. Replace glass and tighten screws against rubber band.
5. Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed control.
1. Ensure all blades are screwed rmly into blade arms.
2. Ensure all blade arms are tightened securely to motor.
3. Ensure canopy and mounting bracket are tightened securely to outlet box and
outlet box is mounted rmly to ceiling joist.
4. Switch one blade with a blade from the opposite side. Or balance the fan using a
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot (black) power
supply wire.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty light bulbs.
CAUTION: Make sure main power is turned o before entering switch housing.
2. Fan is noisy
3. Fan wobbles
4. Light does not work:
TROUBLESHOOTING

TM
Turn of the Century
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 9 a.m.- 5 p.m. central time.
Model Name: 52” Hyattsville Ceiling Fan
Model No: 20587 - Bronze (SKU: 355-0602)
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against
defects in material or workmanship as follows:
If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser
due to defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and
workmanship, we will repair or, if we choose, replace the defective blades, switch, or accessory free of
charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or tness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability
or tness for a particular purpose, do not cover glass globes, light bulbs, or nish on any metal portions
of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or
tness for a particular purpose, with respect to any Turn of Century Ceiling Fan motor, blades, switch,
or accessories, is expressly limited to the period of the express warranty set forth above for such motor,
blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Turn of Century Fan that are caused by
repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling,
improper installation, modications or damage to the fan while in your possession, or unreasonable use,
including failure to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or
other transportation charges to our factory or service center. A copy of sales receipt is required in order
to obtain service. We will return your fan freight prepaid. Your fan should be properly packed to avoid
damage in transit, for we will not be responsible for any such damages.
In no event shall Turn of Century Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which
case the above limitation or exclusion may not apply.
This warranty gives you specic legal rights and you may also have other rights which vary from state
to state.
11
