Down Converters
Models C2-2100A, 2105A, 2150A, 2155A
www.tvone.com •www.tvone.eu
•
www.tvonela.com
•
www.tvoneasia.com

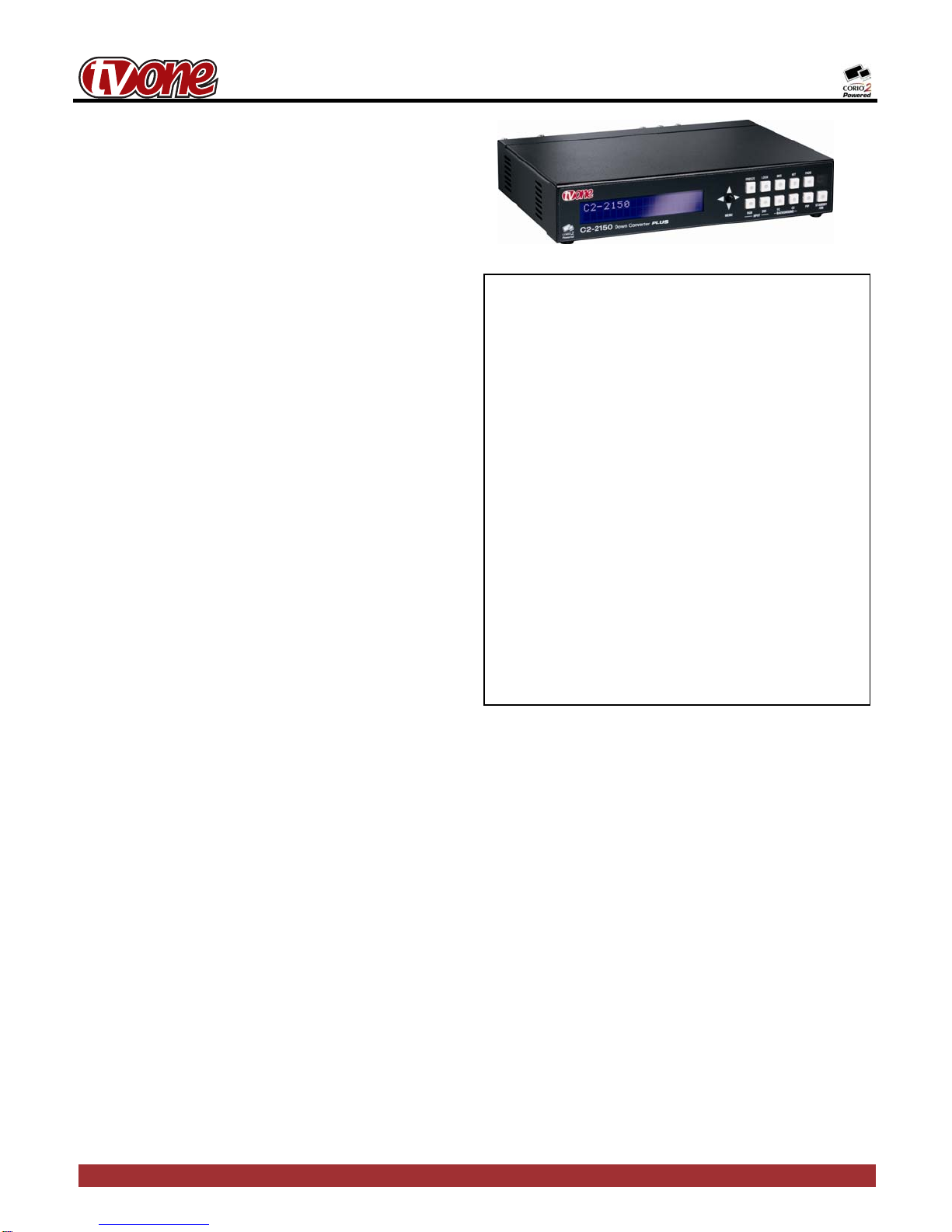

C2-2100A Down Converter is based on TV One’s
exclusive CORIO®2 technology and provides high
quality conversion from DVI and analog PC or HD
sources to standard video formats. The input can be an
y
analog computer resolution up to 2048x2048 and 1080p
or any DVI resolution up to 1920x1200 and 1080p.
A
wide variety of computer signal formats are available to
support PC, Mac and Workstation formats. Our exclusive
A
utoSet feature takes the hassle out of setup by
automatically sizing and positioning the computer image
to fit exactly on the video screen. An analog compute
r
input signal bypass (loop-thru) is also provided. The
output is simultaneously available in Composite, S-Video
(YC), YUV and YPbPr. NTSC, PAL, PAL-M, PAL-N,
SECAM output standards are supported. The C2-2105A
provides an SD/HD-SDI output as well as all the othe
r
features of the C2-2100A.
All settings are stored in non-volatile memory and are
retained even when power is switched off. Ten use
r
defined presets are also available to customize settings
for various applications.
A
ll the functions can be
controlled via the front panel Push Buttons, Infrared,
RS-232 or IP. A Windows Control Panel is provided and
most third party control systems interface directly with
the entire C2 range of products. A front panel LCD
makes setup easy. The unit is housed in a desktop case
and an optional rackmount kit is available that holds one
or two units.
Variable Zoom to 10X enlarges any part of the compute
r
screen to fill the entire video screen and position controls
allow movement to any area desired. Variable Shrink to
as little as 10% allows fitting the image onto mos
t
displays. The advanced Digital Flicker Elimination
circuitry and high sampling rate insures crisp, clea
r
images, while full bandwidth chroma sampling insures
faithfully reproduced, high resolution colors. Temporal
interpolation greatly improves frame rate conversion by
analyzing and merging successive frames. Pixel Level
Motion Adaptive Diagonal Interpolation insures high
quality de-interlacing of PAL and NTSC signals. The
Composite Video Genlock feature insures precise
synchronization of the incoming signals by providing a
wide Subcarrier lock range with SC phase adjustment.
C2-2150A Advanced Features - In addition to all
standard C2-2100A features. The Key Mode allows
computer graphics to be keyed over an external
Composite or YC signal. The keyed image may be faded
in and out. Due to the 4:4:4 sampling format, precise
keying at the pixel level can be achieved. The Mix Mode
permits Seamless Cut, Fade or Wipe transitions
between input sources. The PIP Mode allows either o
f
the computer inputs to be inset in a window over eithe
r
of the video inputs or vice versa. The PIP window may
be placed anywhere on the screen. The C2-2155A
provides an SD/HD-SDI Output as well as all the othe
r
features of the C2-2150A.
Key Features of the C2-2100A Series
•Inputs: DVI-D, RGB/YPbPr, plus CV/YC for Keying
•Outputs: CV, YC, YUV, YPbPr, plus SD/HD-SDI on
models C2-2105A and C2-2155A
•Analog: PC to 2048x2048, HDTV to 1080p/60
•DVI: PC to 1920x1200, HDTV to 1080p/60
•Supports: NTSC, PAL, PAL-M, PAL-N, SECAM
•Motion Compensation & 3:2 Pulldown
•Temporal Interpolation & Diagonal Interpolation
•Automatic Incoming Resolution Detection
•AutoSet - Automatic picture sizing of PC inputs
•4:4:4 Full bandwidth Chroma Sampling
•Video signal parameter adjustments
•Integral 4x1 Stereo Audio Routing Switcher
•RS-232 and IP Interface & Windows Control Panel
•Variable Image Zoom to 10X and Shrink to 10%
•Genlock With Subcarrier Phase Adjustment
•Mix, PIP, Chroma/Lumakey on models C2-2150A
and C2-2155A
•Optional IR Remote Control
•Optional Single/Dual Rackmount Kit
•Optional Input Expansion with S2 Switchers
Input Expansion is possible by using the optional S2
Series Input Expansion Switchers for DVI o
r
RGB/YPbPr. These units link to C2 unit via an
OPTIONS Interconnect Cable and become an integral
part of the main unit from a control and operational
standpoint. The routing of these additional inputs is
controlled directly from the control system of the C2 unit
and multiple different S2 models may be simultaneousl
y
connected.
Advanced Stereo Audio processing and switching is
available via the optional S2-106AD Input Expansion
Switcher, providing six differential audio inputs, which
can be used for low impedance balanced or high
impedance unbalanced sources. The user controls
audio level, audio sampling frequencies and up to
999ms of adjustable audio delay independently for each
input. The unit has numerous choices for audio I/O
connectors, including a terminal block. The S2-106AD
connects to the C2 unit via the OPTIONS interconnec
t
cable and is then fully integrated into the control system
of the host unit.

Down Converters
Models C2-2100A, 2105A, 2150A, 2155A
www.tvone.com •www.tvone.eu
•
www.tvonela.com
•
www.tvoneasia.com
Specifications
Computer Inputs
Signal Type 1x DVI-D via DVI-I Connector
1x Analog via HD-15F w/Loop-thru
Format RGBHV, RGBS, RGsB, YPbPr
Sync TTL Level, 10KΩ, Pos or Neg
Termination 75Ω
R-G-B Level Range 0.5-2.0 Vp-p
Scan Rate Detection Automatic
Analog Signals PC to 2048x2048,HD to 1080p/60
DVI Signals PC to 1920x1024,HD to 1080p/60
Vertical Refresh Rate Any to 250Hz
Max Horiz Scan Rate 150KHz
Computer Compatibility PC, Macintosh, Workstations
Video Outputs
Television Standards NTSC, PAL, PAL-M, PAL-N, SECAM
Impedance 75Ω
RGB/YPbPr Loop-thru 1x Active Buffered via HD-15
Composite Video 1x via BNC
YC (S-Video) 1x via 4-PIN Mini-DIN
YUV, YPbPr 1x via 3-BNC
SD/HD-SDI 1x via BNC (C2-2105A, C2-2155A)
Video Inputs (Note 1)
Composite Video 1x via BNC (C2-2150A, C2-2155A)
YC (S-Video) 1x via 4-Pin Mini-DIN (C2-2155A)
Genlock (Composite) 1x via BNC (C2-2100A, C2-2105A)
General
Size and Position Automatic via AutoSet or Manual
Image Size User-Definable Presets
Image Freeze One Video Frame
Settings Memory Non-Volatile
Zoom Range Variable to 10X Zoom
Shrink Range Variable to 10%
Image Mirroring Horizontal and/or Vertical
Horizontal Filtering Full Digital
Conversion Technology Proprietary – CORIO®2
Framerate Conversion Temporal
Color Resolution 24-bit (16.8 Million Colors)
Sampling Rate 162MHz
Digital Sampling 24-bit, 4:4:4 format
De-interlacing
(PAL-NTSC) Pixel-level Motion Adaptive, Diagonal Interpolation
Firmware Memory Flash, Upgradeable via RS-232
Video Encoder 8-bit Digital
Video Adjustments R-G-B Levels
Operational Modes (C2-2150A, C2-2155A)
Key Chromakey or Lumakey
Mix Mix PC to/from Video
PIP Variable Window Size & Position
Genlock Adjustments
Subcarrier Lock Range +/- 200Hz for NTSC Operation
(+/- 250Hz for PAL Operation)
Subcarrier Phase +/- 180°
SDI Jitter (C2-2105A, C2-2155A)
SMPTE259M-C
(SD-SDI) (270Mbps:525/625Line) Jitter 0.070 +/-0.01 UI
SMPTE292M
(HD-SDI)
(1.485/1.4835Gbps:
720p, 1035i, 1080i, 1080p)
Jitter 0.176 +/- 0.02 UI
SD-SDI Input Vertical Rates (C2-2105A, C2-2155A)
SMPTE259M-C
525i (720x488) 59.94Hz
625i (720x576) 50 Hz
HD-SDI Input Vertical Rates (C2-2105A, C2-2155A)
SMPTE292M
720p (1280x720) 23.98, 24, 25, 29.97, 30, 50,
59.94, 60Hz
1035i (1920x1035) 29.97, 30Hz
1080i (1920x1080) 25, 29.97, 30Hz
1080p (1920x1080) 23.98, 24, 25, 29.97, 30Hz
Control Methods
Local via Front Panel Buttons & OSD
RS-232 Interface via D9 Female Connector
IP Interface via RJ45 Connector
Infrared Remote via optional IRC-5 Remote Unit
Input Expansion Control via D-15 Options Connector
Warranty
Limited Warranty 2 Years Parts and Labor
Regulatory Compliance
Main Units FCC, CE, RoHS
Power Supplies UL, CUL, CE, PSE, GS, RoHS
Mechanical
Size (H-W-D) 41.5x218x150mm(1.63”x8.6”x5.9”)
Weight (Net) 1.28kg (2.82 lbs)
Environmental
Operating Temperature 0°to +50°C (+32°to +122°F)
Operating Humidity 10% to 85%, Non-condensing
Storage Temperature -10°to +70°C (+14°to +158°F)
Storage Humidity 10% to 85%, Non-condensing
Power Requirement
External Power Supply [email protected] (Note 2)
Accessories Included
1x Operations Manual C2-2000A Series
1x Power Adapter US, UK or Euro
Product Item Numbers
C2-2100A Basic Version
C2-2105A Basic Version w/ SD/HD-SDI Out
C2-2150A PLUS Version w/ Key, Mix, PIP
C2-2155A PLUS Version w/SD/HD-SDI Out
plus Key, Mix, PIP
Optional Accessories
RM-220 Single/Dual Rackmount Kit
IRC-5 Infrared Remote Control Unit
S2 Series Input Expansion Switchers
Control Software Downloadable form Website
Note
(1) The C2-2155A uses the Composite Video input
provided for Key/Mix/PIP functions as a Genlock input.
The C2-2105A has a dedicated Composite Video
Genlock input.
(2) The C2 unit uses less than 1A, however, if an S2 unit is
powered via the OPTIONS connector, 1.5A is required.
(3) Balanced Audio (6-inputs) and Audio Delay is available
via the S2-106AD accessory.
