U-Line H-5501 User manual

PAGE 1 OF 2 1115 IH-5501
πH-5501
HEAVY DUTY 5 CHANNEL
CABLE PROTECTOR
1-800-295-5510
uline.com
INSTRUCTIONS

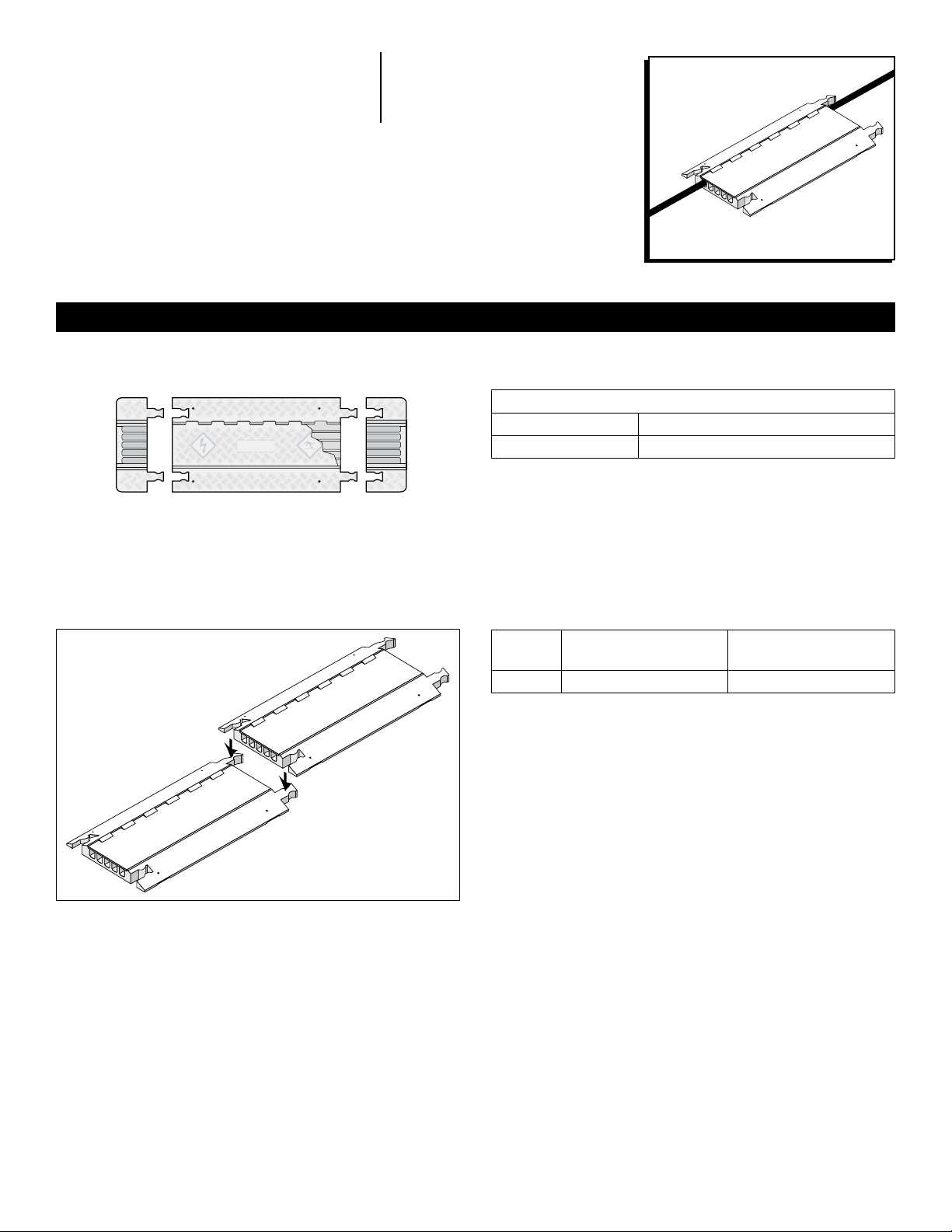

COMPONENTS
ASSEMBLY
Interlock with dog-bone connectors to extend
protection length. (See Figure 1)
• Inspect areas for safety hazards.
• Assemble sections by aligning female connectors
over male connectors and press with foot to secure.
• Open cover and install cables down into channels.
• Close cover flush with base.
• Test installation for intended use.
• Periodically inspect installation.
CHANNEL CAPACITY
CHANNEL CAPACITY - MAXIMUM DIAMETER
4 Outer Channels 1.375" width x 1" height
Center Channel 1.65" width x 1" height
LOAD CAPACITY
The Heavy Duty 5 Channel Cable Protector has different
load supporting capabilities depending on type of
vehicle and temperature. The load capacity decreases
in warm environments. Test before use and inspect
periodically. Suitability must be verified by testing under
actual conditions.
MODEL
NO.
LOAD CAPACITY PER TIRE
MAX LOAD 70°F (21°C)
LOAD CAPACITY PER AXLE
MAX LOAD 70°F (21°C)
H-5501 16,300 lbs. 32,600 lbs.
OPERATING TEMPERATURE
-40° to 120°F (-40° to 48°C)
CHEMICAL RESISTANCE
Tested for compatibility with common motor oils,
gasoline and diesel fuel. Limited resistance to brake
fluids and other chemicals.
MATERIAL
UV-stabilized polyurethane elastomer.
36" Lineal Protector End CapEnd Cap
Figure 1

PAGE 2 OF 2 1115 IH-5501
πCHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA
1-800-295-5510
uline.com
INSTRUCTIONS CONTINUED
CAUTION! Misuse can cause electrical shock
and injury.
• DO NOT use as work surface. NO CUTTING, NO
DRILLING, NO HAMMERING.
• Use with momentary loads only. DO NOT place
ladders, scaffolds or any type of structure on the
protector.
• Avoid concentrated loads.
• Use only on a stable surface. Inclined surfaces,
slippery surfaces and broken ground can cause
injury.
• This protector can be a trip hazard to pedestrian
traffic if they are unaware of its presence.
• Keep the Heavy Duty 5 Channel Cable Protector
clean and bright.
• Keep various services, communications, fluids and
power separated. Limit a channel to one service type.
• Polyurethane is attacked by some chemicals.
Always test a small amount for chemical
compatibility before using and follow maintenance
procedure.
• Vehicular traffic must pass over the protector slowly
and with caution.
MAINTENANCE
• Store in a clean, dry area.
• Inspect protector for damage and replace it if
damaged.
• Remove any foreign materials, solids and liquids.
• Keep clean by using a detergent and water solution.
