U-Reach Silver Fox PRO User manual

V 2.0
EN
The Data Equipment Expert • Duplication/Inspection/Sanitization
USB 3.0 Duplicator
User Guide

Index Content
3
Index Content 3
Disclaimer of Warranties 4
Before You Start 4
1 Introduction
1. Features 6
2. Package Contents 6
3. Hardware Overview 7
4. Power Adapter 8
2 Function Table
Silver Fox Pro Series 9
3 Operation Guide
1. How to Copy 11
2. How to Prevent from Failed Duplication 14
3. How to Ensure Duplication as Correct 15
4. How to Check Flash Device 16
4 Function Overview
1. Copy&Compare 19
2. Compare 19
3. DoD Erase 20
4. Advanced 20
4.1 Copy 20
4.2 Media Check 21
4.2.1 H3 Safe 100%
4.2.2 H5 RW 100%
4.2.3 H6 SafeRW 100%
4.2.4 Setup Range%
4.2.5 Setup Range MB
4.2.6 Setup ErrorLimit
4.2.7 Minimum Read Speed
4.2.8 Minimum Write Speed
4.2.9 Set Capacity Check
4.3 Information 24
4.3.1 USB Info.
4.3.2 System Info.
4.4 Utility 24
4.4.1 Do Format
4.4.1.1 Auto Format
4.4.1.2 FAT16 Format
4.4.1.3 FAT32 Format
4.4.1.4 set FAT 16 Cluster Size
4.4.1.5 set FAT 32 Cluster Size
4.4.2 Measure Speed
4.4.3 Capacity Check
4.4.4 Quick Erase
4.4.5 Full Erase
4.4.6 System Update
4.4.7 Calc. Checksum
4.4.8 A2 Fake Picker
4.5 Setup 28
4.5.1 Copy Area
4.5.1.1 System and Files
4.5.1.2 Whole Media
4.5.2 Button Sound
4.5.3 Target Tolerance
4.5.4 Asynchronous
4.5.5 Check Before Copy
4.5.6 Power Off Time Between
Copy&Compare
4.5.7 Auto Start After Fill Device
4.5.8 Language
4.5.9 Select Speed
4.5.10 Set HDD Mode
4.5.11 Advanced Setup
5 FAQ
§ Q&A 31
§ Maintenance Guide 34
6 Specification
USB Drive/USB-HDD Duplicator 36

Disclaimer of Warranties
4
Disclaimer of Warranties
All duplicators are made specifically for data backup with legal authorities from copyright
owners. Any unauthorized action of copyright is strictly prohibited, and the original
manufacturer disclaims all warranties or representations of illegal actions by users.
The original manufacturer also disclaims any liability for any loss or damage due to not being
able to perform its undertakings or provide any of the services attributed to any events or
circumstances beyond our control. Users agree and accept all statements above as soon as
purchasing our products.
This manual contains materials that should be intended for personal use. All right reserved.
No part of this manual may be reproduced, transmitted or transcribed without the expressed
written permission of the manufacturer. The information present in this manual is subject to
change without prior notice.
Before You Start
Important Notice
• Read the complete operation instructions carefully. This contributes to better operation.
• Make sure the source device is correct and workable.
• To guarantee data consistency, it is strongly suggested that the capacity of source and
targets should be the same.
• It is strongly suggest to use "Copy&Compare" to achieve perfect duplication.
Safety Precautions
• The warranty will expire if damage is incurred resulting from non-compliance with these
operating instructions.
• Please turn off the power before replacing the socket.
• Never turn off the power while processing the firmware update.
• Use only approved power sources.
• The product is only suitable for operation in a dry, dust free, clean environment.
Do not allow liquids or foreign objects to enter. Failure to do so may severely damage
your duplicator.

Before You Start
5
Definition
Flash/ Flash media/ Media
Flash media including SD/microSD memory card, Compact flash card, USB drive and USB-
HDD.
Capacity
The maximum data amount that can be contained in USB drive or USB-HDD.
Total capacity
Socket
A mechanical construction used to connect two applications.
USB裝置拷貝機

1Introduction
6
Introduction
1. Features
Silver Fox Pro series provide USB3.0 ultra high speed duplication, specialized for external
USB-HDD usage. The series support USB3.0 drive, USB3.0-HDD of high-volume, high-
capacity duplication. Each USB port is independent from each other. The series support
ultra high transmission speed, real test up to 2.5GB per min for each port and up to
120 ports.
• Ultra high transmission speed up to 2.5GB/m. Each flash slot channel is independent
from each other.
• Real multi-task processing capability. No matter copy, compare, media check and format
are all independently executed. Each flash slot has an independent control processing
unit. So, during asynchronous copy, it can use button to check the status of each flash
media status and progress.
• Powerful H3/H5/H6 quality check machine for speed and flash quality check.
• Not a PC system, no risk of virus infection. Instant power on and off.
• One-touch copy. Real time information will be shown on the LCD screen.
• Support Synchronous and Asynchronous copy/ compare/ erase/ format/ media check /
speed check.
• Ultra high speed bit-for-bit hardware comparison.
• Different copy speed selection is available for different quality level flash media.
• Special speed selection function to filter out qualified flash media in QC process.
2. Package Contents
USB拷貝機×1
USB拷贝机×1
USB Duplicator × 1
USB Duplicator × 1
Manual × 1
Power adapter × 1 Power cord × 1 USB A-B cable × 1
CD × 1
Manual × 1
Power adapter × 1 Power cord × 1 USB A-B cable × 1
CD × 1
使用指南×1
供電變壓器×1 電源線×1 USB A-B線×1
使用手册×1
变压器×1 电源线×1 USB A-B线×1
光碟×1
光碟×1

1Introduction
7

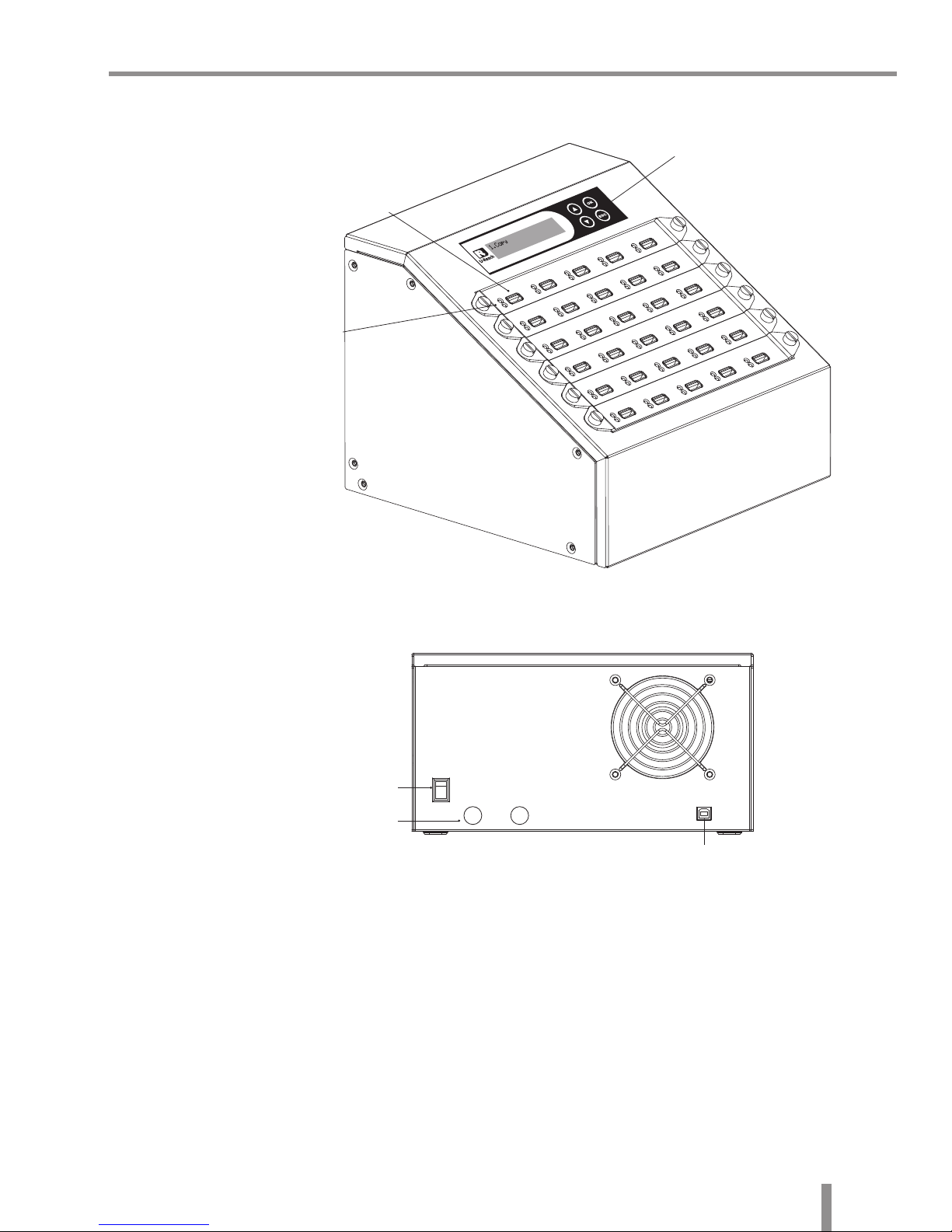

3. Hardware Overview
Source port
Control Button
OK : Confirm
▲: Backward
ESC : Escape
LED
Red: Operation fails
Green: Operation Succeeds
Front Side
USB socket for PC-Link
Power switch
Power supply(12V 12.5A)
Back Side

1Introduction
8
4. Power Adapter
Each model may need different power adapters according to its need. The table below is the
adapter supplying situation for each series.
Port Adapter Adapter volume needed
when copying USB
Adapter volume needed when
copying USB HDD
10 12V 12.5A 1 1
20 12V 12.5A 1 2
30 12V 12.5A 1 2
40 12V 12.5A 1 2
50 12V 12.5A 1 3
60 12V 12.5A 1 4
70 12V 12.5A 1 4
80 12V 12.5A 1 4
120 12V 12.5A 1 6
USB Flash Series
※The standard package contains one adapter. Please contact the manufacturer for
purchasing information.

2Function Table
9
Function Table
Silver Fox Pro Series
Function Description
1.Copy&Compare To make a copy first and then compare the copied flash media with the source immedi-
ately after the copy has finished.
2. Compare Bit-for-Bit comparison between the source and all other copied flash medias.
3. DoD Erase Erase flash three times complying with USA Department of Defense (DoD) standard.
4. Advanced
Enter password to
enter.
4.1 Copy
Data only or whole media duplication.
4.2 Media Check
4.2.1 H3 Safe 100%
To check the quality of flash by reading it. This safe check will not
change flash’s content and format.
4.2.2 H5 RW 100%
To check flash’s quality by reading and writing the flash. This func-
tion will change flash’s content and format.
4.2.3 H6 SafeRW 100%
To check flash’s quality by writing and reading its empty space.
This function will not change flash’s content and format.
4.2.4 Setup Range %
To set the checking range of flash from 1%~100%.
4.2.5 Setup Range MB
To set the checking range of flash from 1MB~9000MB.
4.2.6 Set ErrorLimit
To set the % of tolerance range of error when checking the flash.
4.2.7 Minimum Read Speed
To set the minimum read speed criteria for H3/H5 checking.
4.2.8 Minimum Write Speed
To set the minimum read speed criteria for H3/H5 checking.
4.2.9 Set Capacity
Limit To set capacity
range when check-
ing
4.2.9.1 Set Upper Limit
4.2.9.2 Set Lower Limit
4.2.9.3 Clear Limit
4.3 Information
4.3.1 USB Info.
This feature will show flash’s information of data; file format, con-
tent size, and capacity.
4.3.2 System Info.
This feature will show information of the duplicator system, includ-
ing machine model number and software version.
4.4 Utility
4.4.1 Do Format
To Execute flash FAT
16/32 format
6.1.1 Auto Format
6.1.2 FAT16 Format
Format media to be FAT16.
6.1.3 FAT32 Format
Format media to be FAT32.
6.1.4 Set FAT 16 Cluster Size
Set the size of FAT16 Cluster.
6.1.5 Set FAT 32 Cluster Size
Set the size of FAT 32 Cluster.
4.4.2 Measure Speed
This function can measure the flash reading and writing speed.
This function will damage the format and content.
4.4.3 Capacity Check
To check real capacity of the flash.

2Function Table
10
4. Advanced
4.4 Utility
4.4.4 Quick Erase
To erase the content of flash media. It will keep the FAT format.
4.4.5 Full Erase
To completely bit for bit erase data of flash including format and
content, but it takes more time.
4.4.6 System Update
System firmware updating via the flash media.
4.4.7 Calc. Checksum
Calculate the CRC64 value of the flash media in the source port.
4.4.8 A2 Fake Picker
To check if an USB flash contains fake capacity.
4.5 Setup

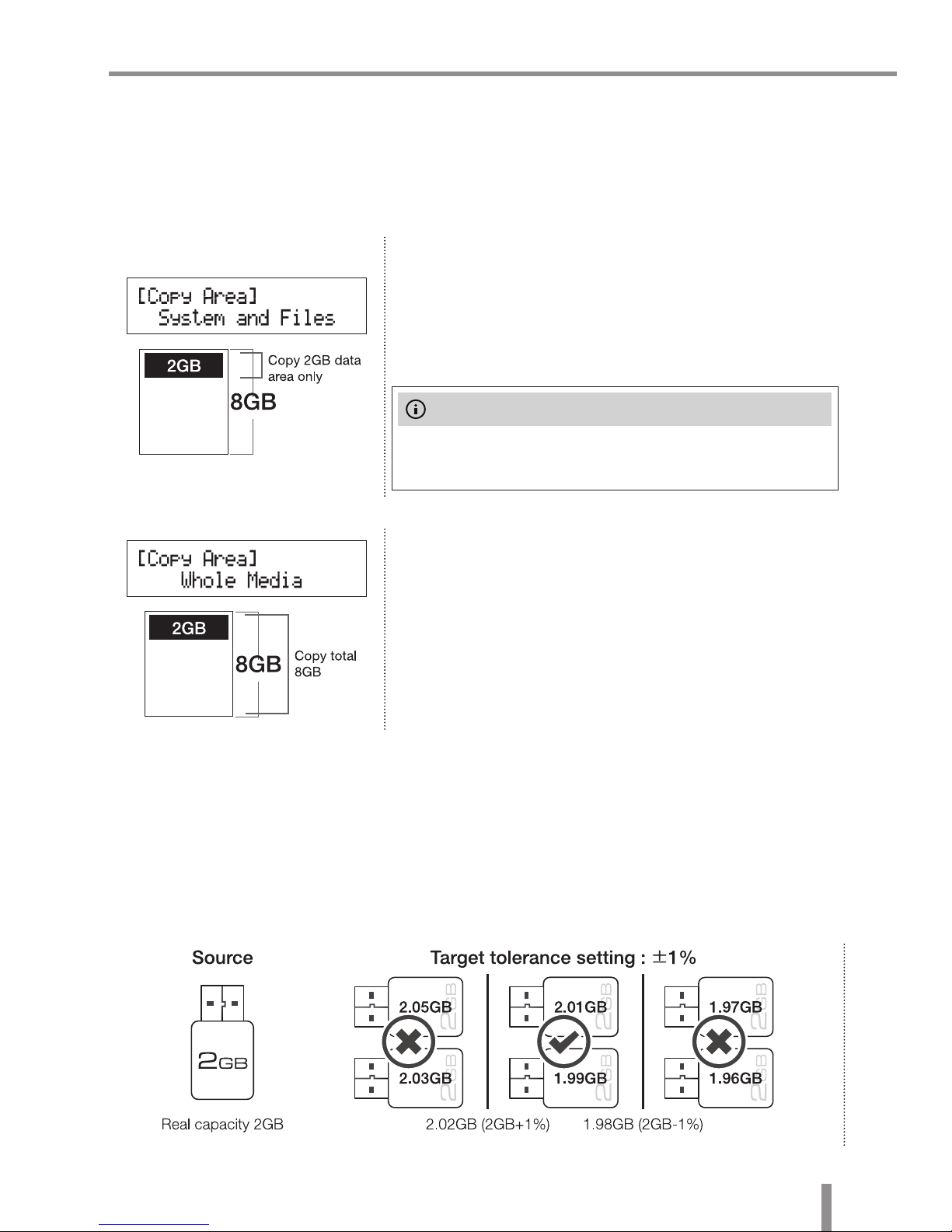

4.5.1 Copy Area
4.5.1.1 System and Files
The system can automatically analyze the
format of source data and only copy the
data area.(Available for FAT16/32, NTFS,
Linux (ext2/ext3/ext4) )
4.5.1.2 Whole Media
The system will copy the whole content of
flash including the empty space.
4.5.2 Button Sound
To choose whether to hear a beep or not when a button is
pressed.

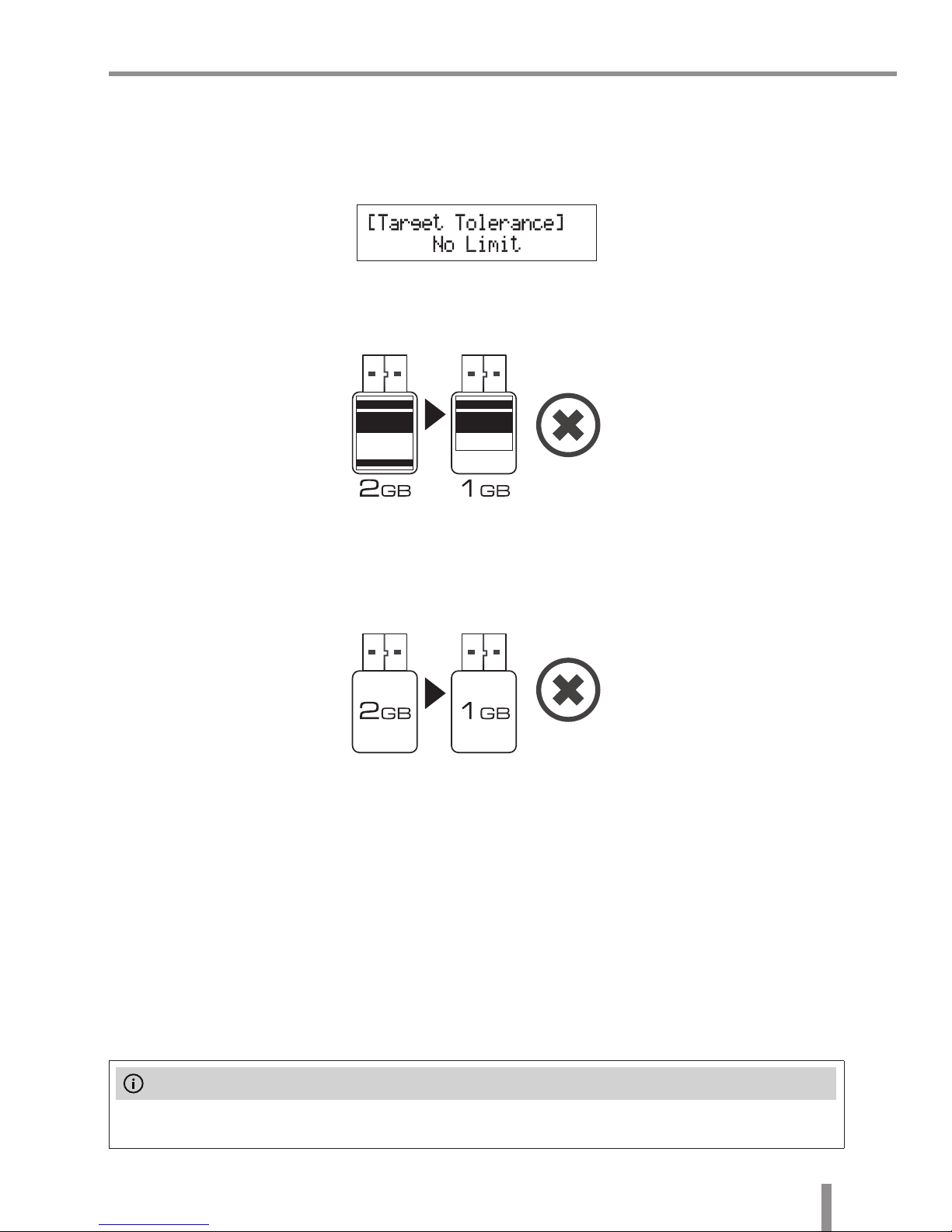

4.5.3 Target Tolerance
To set the tolerance % of capacity gap between the source and
target. The default setting is “No limit”.

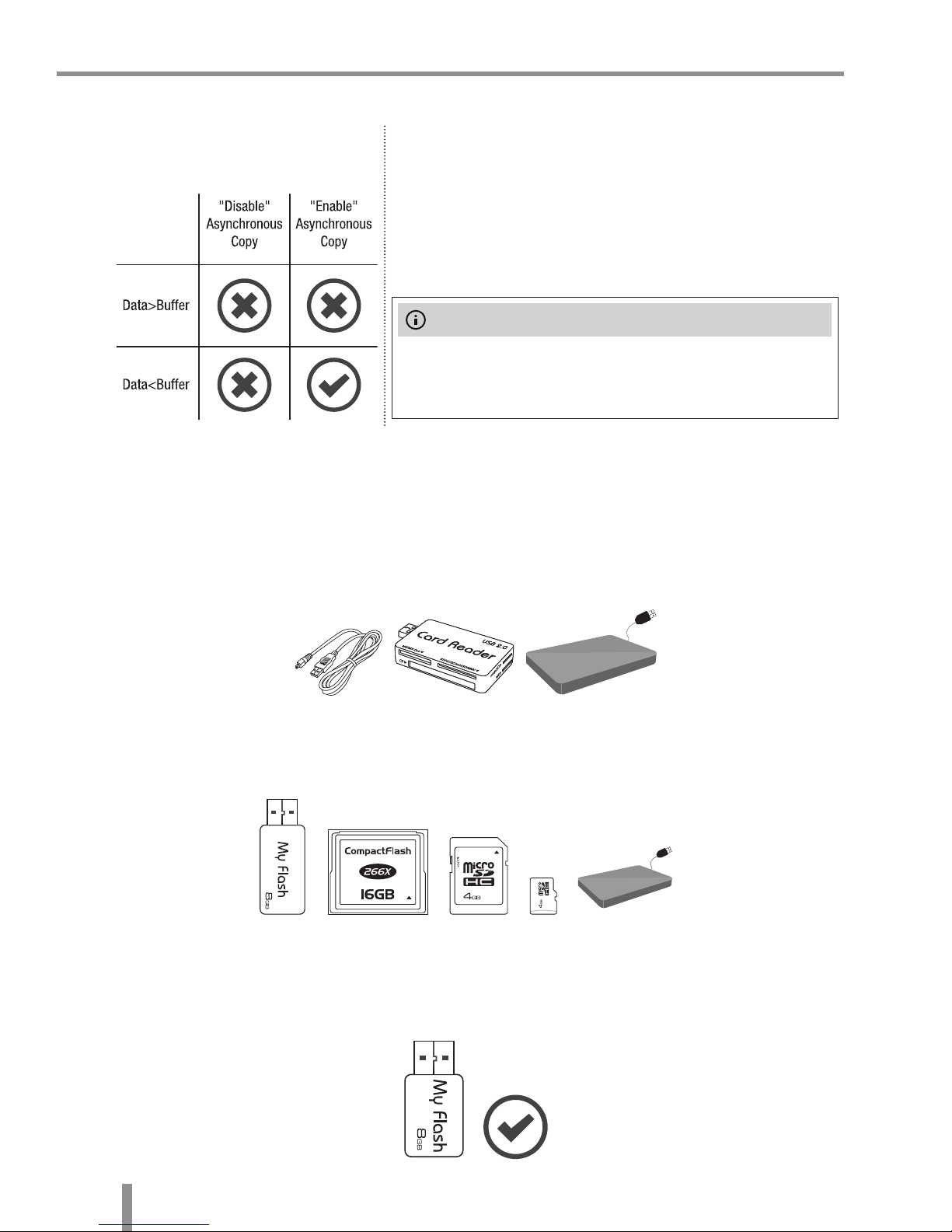

4.5.4 Asynchronous
“Enable” to open Asynchronous function, “Disable” to close the
function.
4.5.5 Check Before Copy
To set if you would like to check the flash media before copy.
4.5.6 Power Off Time Between Copy&Compare
To set the power-off time between Copy and Compare when
executing “Copy+Compare” function.
4.5.7 Auto Start After Fill Device
To set if immediately start “copy/compare” tasks once plug-
ging in all targets.
4.5.8 Language
Set system language interface i.e. English, Japanese.
4.5.9 Select Speed
To select the speed of data transmission among “Fastest”,
“Faster”, “Normal”, “Slower”, and “Slowest”.
4.5.10 Set HDD Mode
Set if you would like to copy USB-HDD or USB drives only.
4.5.11 Advanced Setup
To change LED mode to “Traditional” or
“Factory” mode (both on/both off).
LED in Factory-
Mode

3Operation Guide
11
Operation Guide
1. How to Copy
1.1 Steps to Make Mass Copy
Step 1
Plug-in the flash source.
Step 2
Plug-in the flash targets.
Step 3
The LCD will show the number of flash targets which
are ready to copy.
Step 4
Press "OK" button to start copy.
Step 5:
When copy is finished, the LCD will show the total time
of copy, and quantity of copy pass and copy fail.

3Operation Guide
12

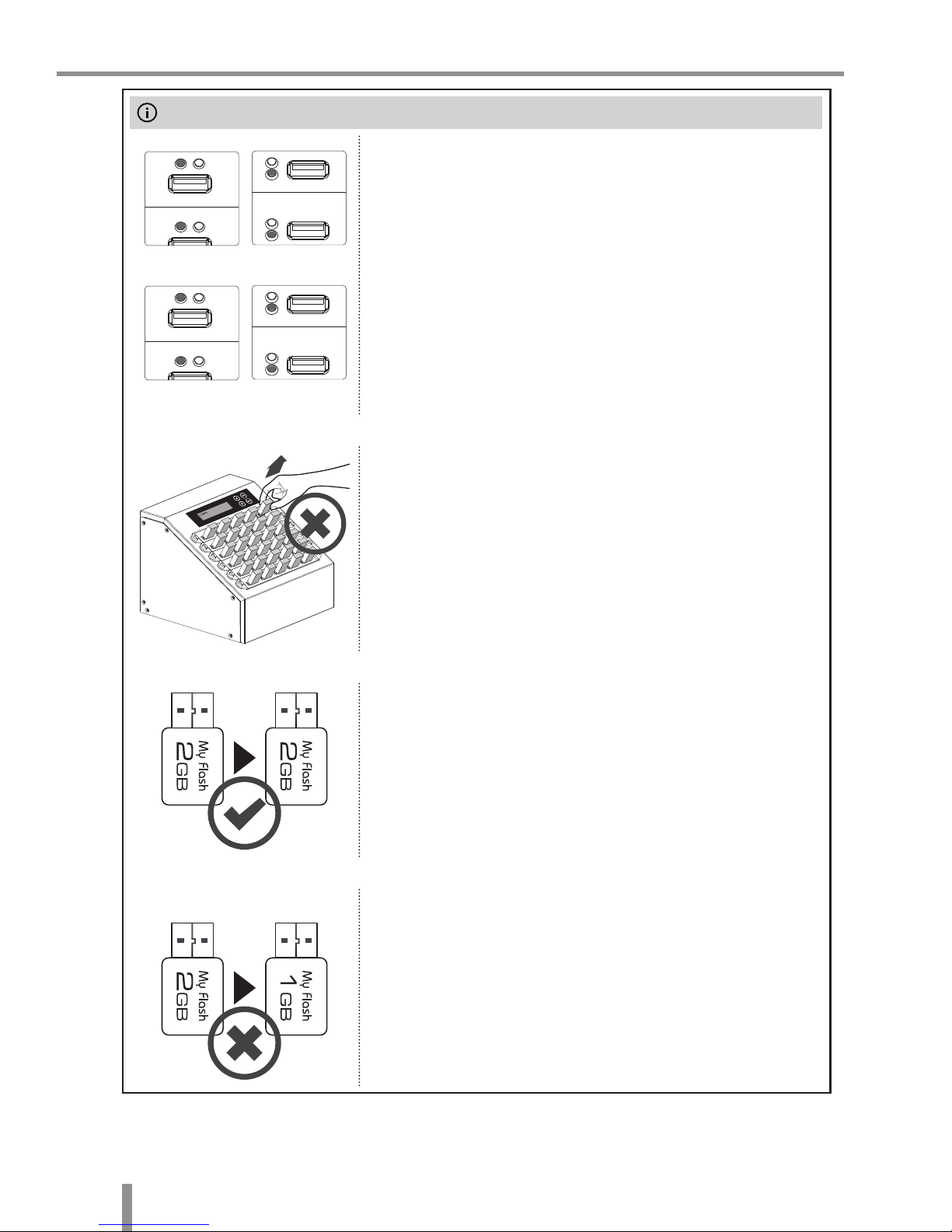

Note:
Green
Red
Green Light
Green
Red
Red Light
❶LED Light indication
a) When copy is processing, the green LED will flash.
When the copy is finished, the green LED will stop
flashing but will remain illuminated.
b) If an error occurs, the red LED will illuminate.
❷DO NOT take out the card during copying process.
❸It is strongly recommended that the target and
source have to be in close range of capacity.
When there is a big difference between target and
source's capacity, such as copying 1GB source to
a 4GB or 1GB source to a 2GB, it may cause error
or copy fail.(Please refer to FAQ for more detailed
information.)
NTFS/Linux format copy
❹If copy NTFS or Linux format, targets' capacity must
be bigger or equal to source's capacity.
For example, when making NTFS or Linux copy, if
the source is 2GB and the target is 1 GB, it'll have a
very big possibility to cause copy fail.

3Operation Guide
13
1.2 The Setting Related to Copy Result
There are several sub-functions related to the results of copy, users could adjust them in
function "4.5 Setup" to meet the needs before copy.
1.2.1. Copy Area Settings (Function4.5.1)
a. Copy Area : System and Files
It is also called "Quick Copy" mode. The system will
automatically analyze the source flash card's file format.
If the data's file format is FAT16/32, NTFS, Linux (ext2,
ext3, ext4) which is recognizable by the system, it will
be able to copy data only instead of the whole flash.
Note:
If the file format is non-recognizable, the system will still copy the
whole flash card including the empty space even that you select
"System and Files" as your copy area.
b. Copy Area : Whole Media
The system will copy the whole flash card, including the
empty space and format. This function is used when
users want to copy the whole flash or have a flash
source with unknown format. It will take longer time to
make "Whole media" copy.
1.2.2. Target Tolerance Settings (Function4.5.3)
This function is to set the acceptable difference range of flash capacities between the source
and target. If the capacity difference between the source and target exceeds the tolerance
setting, the copy will fail.
For example, if the target tolerance setting is " ±1%", the targets whose capacities are
more than 2.02GB or less than 1.98GB won't be able to be copied.

3Operation Guide
14
1.2.3. Asynchronous Settings (Function4.5.4)
The conditions of executing
"Asynchronous Copy"
Users can select "Disable" to close Asynchronous
copy or "Enable" to activate the function. If the
setup is "Enable", and the data in source is smaller
than system's buffer memory, it will automatically
use asynchronous mode to do copy. If the setting
is "Disable", no matter what the content size is, the
system will keep synchronous copy.
Note:
❶The buffer memory of different product models may be different.
❷About the "buffer memory", please refer to page 55~56,
Specification.
2. How to Prevent from Failed Duplication
(1) Stable Devices
a) Good Connector
No matter are the adapter, the extension cord, or the card reader, all of them must have
good quality to make sure of good connection.
b) Stable Flash
Use the flash device of stable quality.
c) Good Source
Make sure your source is a good source.
Good source

3Operation Guide
15
(2) Suitable Data & Settings
a) Target Tolerance Settings
Go to Function "4.5.3 Target Tolerance" to check if the setting of capacity difference range
between source and target is right.
b) Capacity of the Data in Source
Make sure that the data of source is within the capacity of target.
c) Capacity of Targets
When making NTFS/Linux format copy, make sure that the target's capacity is equal or
larger than your source.
NTFS/Linux format copy
3. How to Ensure Duplication as Correct
The series flash duplicators provide the most rigorous "compare function" to assure our
clients with the best duplications. It is strongly suggested to execute function 1. to make
sure of the correctness of copied result.
❶Execute Function "2.Compare" to do data checking between source and targets after
finishing the copying process.
❷Select Function "1.Copy&Compare" to make the duplicator execute data comparison
automatically after copying.
(Please refer to "Function Overview" for the detail of these two functions.)
Note:
These two functions will check the contained data after copy through the strictest bit-for-bit comparison. It can
highly increase the security of data accuracy.

3Operation Guide
16
4. How to Check Flash Device
The series flash duplicator is not only made for duplicating but also has powerful flash
device diagnostic tools to detect flash's quality and check real capacity and speed. It is
very important to own high-quality flash devices, and the flash duplicator can help users to
achieve this goal.
4.1 How to Check Correct Reading/Writing Speed of the Flash
a) Execute function "4.4.2 Measure Speed"
Select function "4.4.2 Measure Speed" to measure the
"read" and "write" speed of flash media.
b) Result of speed measuring
The system will show the exact "read " and "write"
speed of each flash media.
Note:
❶"Measure Speed" function may change or delete the content and format of flash media, please do not
execute this function if there is important data in it.
❷To protect source data, the system will not do "Measure Speed" on the master device.
4.2 How to Check Correct Capacity of the Flash
a) Execute function "4.4.3 Capacity Check"
Select function "4.4.3. Capacity check" to check the real capacity of flash media.
b) Result of capacity checking
Green light: Correct size
Red light: Wrong size
System will show the checking result with Green/Red
LED light. Users can use ▲▼ button to check the status
of each slot.

3Operation Guide
17
Note:
❶This function can support asynchronous operation. Users can continuously plug flash media in and out
without pushing any buttons.
❷"Capacity Check" function may change or delete the content and format of flash media, please do not
execute this function if there is important data in it.
❸To protect the source data, the system will not do capacity check on the master device.
4.3 How to Check Flash's Quality
Select function "4.2 Media Check" to examine flash's quality, that is to see if there are bad
sectors and how many of them in the flash media.

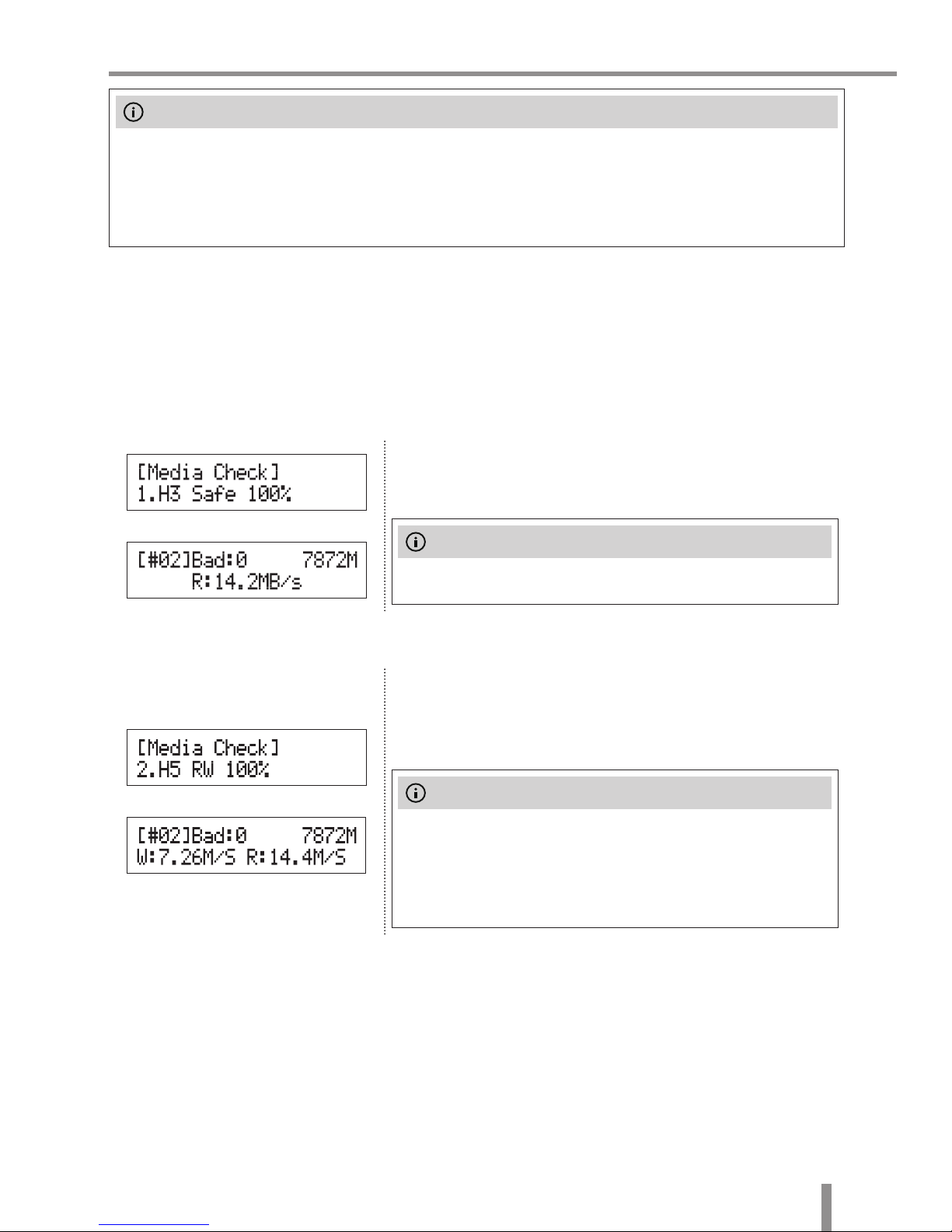

(1)Select function 4.2.1/4.2.2/4.2.3 to check flash's quality.
a) Function "4.2.1 H3 Safe 100%"
"H3 Safe" will check flash's quality with reading method,
and the result will show the volume of bad sectors
and also the reading speed.
Note:
This function will not change or delete the content and format of
flash media.
b) Function "4.2.2 H5 R/W 100%"
"H5 R/W" will check flash's quality by reading and
writing the whole flash, and the result will show the
volume of bad sectors and also the reading/writing
speed.
Note:
❶This function will delete the content and format of flash media,
please do not execute this function if there is important data in
it.
❷To protect source data, the system will not execute this function
on the master device.

3Operation Guide
18
(2)Make the related setting of "Media Check"
a) Function "4.2.4 Setup Range %"
When making quality check, users can set the checking
range from 1% to 100% before executing checking
mode.
b) Function "4.2.5 Setup Range MB"
When making quality check, users can set the checking
range from 1MB~9000MB before executing checking
mode.
c) Function "4.2.6 Set Error Limit"
When making quality check, users can set the % of
error tolerance before executing checking mode.
4.4 How to Check Flash Media's Size
a) Execute function "4.3.1 USB Info."
Select function "4.3.1 USB Info", it will show flash
media's basic information including media type, content
size, and total capacity and users can use ▲▼ button to
check the status of each slot.

4Function Overview
19
Function Overview

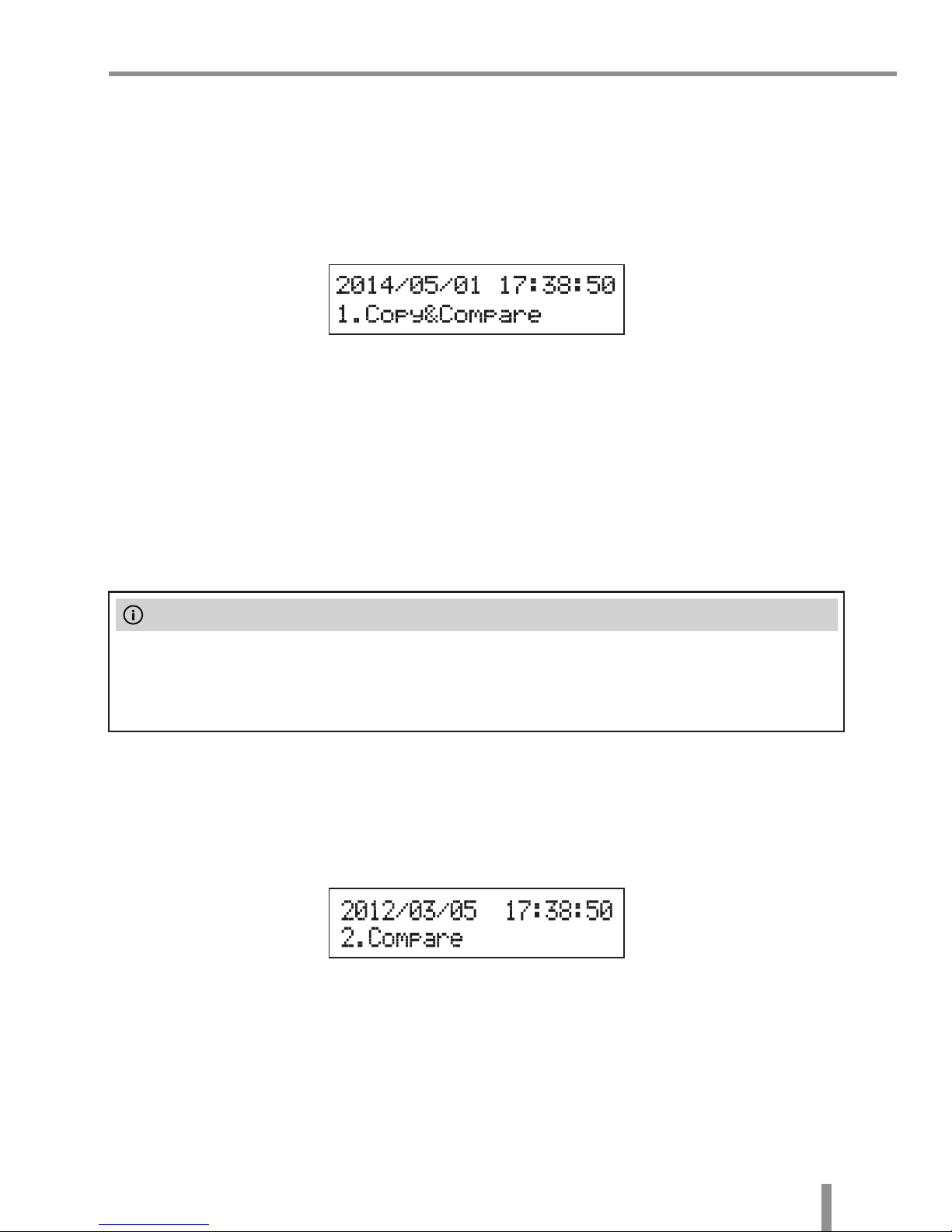

1. Copy&Compare
This function provides a more convenient selection. Instead of going to function "2.Compare"
and pressing "OK" again after copying, function, "1.Copy&Compare" will automatically run
the compare function after finishing copying to make sure if the copied result is correct.
Before executing this function, users can go to "4.5.Setup" to set the copy area and copy
mode.
Copy area setting ➡"4.5.1 Copy Area"
Select "System and Files" or "Whole Media".
Copy mode setting ➡"4.5.4 Asynchronous"
Select "Enable" or "disable" asynchronous.
(Please refer to function 4.5 for more detailed information.)
Note:
If user pulls out the flash card during copy process, the system will stop immediately and red light will on
accordingly to notice user this copy failed. And, we strongly suggest user avoid this action because it will
damage flash card easily.
Data in the target flash card will be damaged after copy process completed. Users need to backup the existing
data before start copy.
2. Compare
Compare function is to check the correctness of copying result. After finishing copying, go to
function 2 and press OK to start executing comparing process

4Function Overview
20
3 DoD Erase
DoD Erase is an erasing method that complies with the U.S.A. Department of Defense (DoD
5220) standard. It can guarantee the data was fully deleted by erasing the flash three times.
Note:
❶It will damage the data in flash, please make sure you have backup all important data before using this function.
❷ If user pulls out the flash card during erase process, the system will stop immediately and red light will on
accordingly to notice user this erase function failed. And, we strongly suggest user avoid this action because it will
damage flash card easily.
4. Advanced
Enter password to use advanced function. The default is "MOFONGO".
4.1 Copy
Before executing this function, users can go to "4.5.Setup" to set the copy area and copy
mode. After finishing these two settings, go back to function "4.1.Copy " and press "OK",
and the system will start copying.
