U-Reach Carry Flash UB600 User manual

V 1.0
EN
The Data Equipment Expert • Duplication/Inspection/Sanitization
USB Drive/ USB-HDD
UB600 Mini USB Duplicator
User Guide
Carry Flash Series

§ Content Index
Content Index 3
Disclaimer of Warranties 5
Before You Start 6
①Product Introduction
1. Overview 7
2. Features 7
3. Package 7
4. Applicance 8
5. Definition 8
②Basic Instruction
1. Front View 9
2. Back View 10
3. LCD Configuration 10
4. Operation Guide 10
③Function Table
-Function Table 13
④Function Introduction
1. Copy 15
2. Compare 16
3. Copy+Compare 16
4. Capacity Check 17
5. Information 17
5.1 USB Info. 17
5.2 System Information 18
6. Utility 18
6.1 Do Format 18
6.1.1 Auto Format
6.1.2 FAT Format
6.1.3 FAT32 Format
6.2 Measure Speed 19
6.3 Media Check 19
6.3.1 H3 Safe 100%
6.3.2 H5 R/W 100%
6.3.3 Setup Range
6.3.4 Setup Error Limit
6.4 Quick Erase 21
6.5 Full Erase 21
6.6 DoD Erase 22
6.7 System Update 22
6.8 Calc. Checksum 22
7. System Setup Function 23
7.1 Copy-up Menu 23
7.2 Copy Area 23
7.2.1 System and Files
7.2.2 Whole Media
7.3 Button Beep 24
7.4 Asyn Hold Time 24
7.5 Target Tolerance 24
7.6 Asynchronous 25
7.7 Check Before Copy 25
7.8 Power Off Time Between
Copy&Compare 25
7.9 Language 25
7.10 Working Mode 26
7.11 Set HDD Mode 26
7.12 Restore Default 26
⑤FAQ
-FAQ 27
⑥Specification
-Specification 28

§ Disclaimer of Warranties
All UREACH flash duplicators are made specifically for data backup with legal authorities
from copyright owners. Any unauthorized action of copyright is strictly prohibited, and
UREACH-INC disclaims all warranties or representations of illegal actions by users.
UREACH-INC also disclaims any liability for any of losses or damages due to not be
able to perform its undertakings or provide any of the services attributable to any events
or circumstances beyond our control. Users agree and accept all statements above as
soon as purchasing our products.
This manual contains materials should be intended for personal use. All right reserved.
No part of this manual may be reproduced, transmitted or transcribed without the
expressed written permission of the manufacturer .The information present in this manual
is subject to change without prior notice.

§ Before You Start
⌘ Important Notice
●Read the complete operation instruction carefully contributes to better operation.
●Make sure the source device is correct and workable.
●To guarantee data consistency, strongly suggest the capacity of source and targets
should be the same.
●It is strongly suggest to use “Copy+Compare” to achieve perfect duplication.
⌘ Safety Precautions
●The warranty will expire if damage is incurred resulting from non-compliance with
theses operating instructions.
●Please turn off the power before replacing the socket.
●Never turn off the power while processing the firmware update.
●Use only approved power sources.
●The product is only suitable for operation in dry, dust free, clean environment.
Do not allow liquids or foreign objects to enter. Failure to do so may severely damage
your duplicator.

7
①Product Introduction
① Product Introduction
1. Overview
The UB600 USB duplicator is a stand alone, high speed and convenient equipment
for easily copy data anytime and quickly check Flash device's quality. The checking
capability assists you to find out defective Flash device efficiently, like Capacity Check
enables you to find out the real capacity of Flash device; Measure Speed helps you to
check each Flash device's read and write speed.
This 5-target Flash duplicator is stand alone, no need of PC or any installation
procedure, when the system is turned off, nothing will be left in it, so there is no risk
of virus infection. And instant power on and off for quick boot up and shut down the
duplicator can save your time greatly. Its lightweight design, friendly interface and easy
operation is ideal for personal, office and shops application.
2. Features
●Ultra high transmission speed up from 1.5GB/m. Each flash slot channel is
independent from each other.
●Real multi-task processing capability. No matter copy, compare, media check and
format are all independently executed. Each flash slot has an independent control
processing unit. So, during asynchronous copy, it can use up and down keys to
check the status of each flash media status and progress.
●Powerful H3/H5 quality check machine for speed and flash quality check.
●Not a PC system, no risk of virus infection. Instant power on and off.
●Real time information will be shown on the LCD screen.
●Support Synchronous and Asynchronous copy/ compare/ erase/ format/ media
check / speed check.
●Ultra high speed bit-for-bit hardware comparison.
●Different copy speed selection is available for different quality level flash media.
3. Package
Carry USB mini Duplicator User Manual

①Product Introduction
8
Power Adapter Power Cord
4. Applicance
USB drive fully plugged USB-HDD
5. Definition
Flash/Flash Media/Media
Flash media including SD/microSD memory card, Compact flash card, and USB flash
drive.
USB-HDD USB Drive
Capacity
The maximum data amount can be contained in a Flash memory card.
Total Content Size
Capacity

9
②Basic Instruction
Port
A mechanical construction used to connect two applications
② Basic Instruction
1. Front View
▲ Up
▼ Down
LCD X ESC
● OK
USB target port
USB source port
Signal LED
Green:pass
Red:fail

②Basic Instruction
10

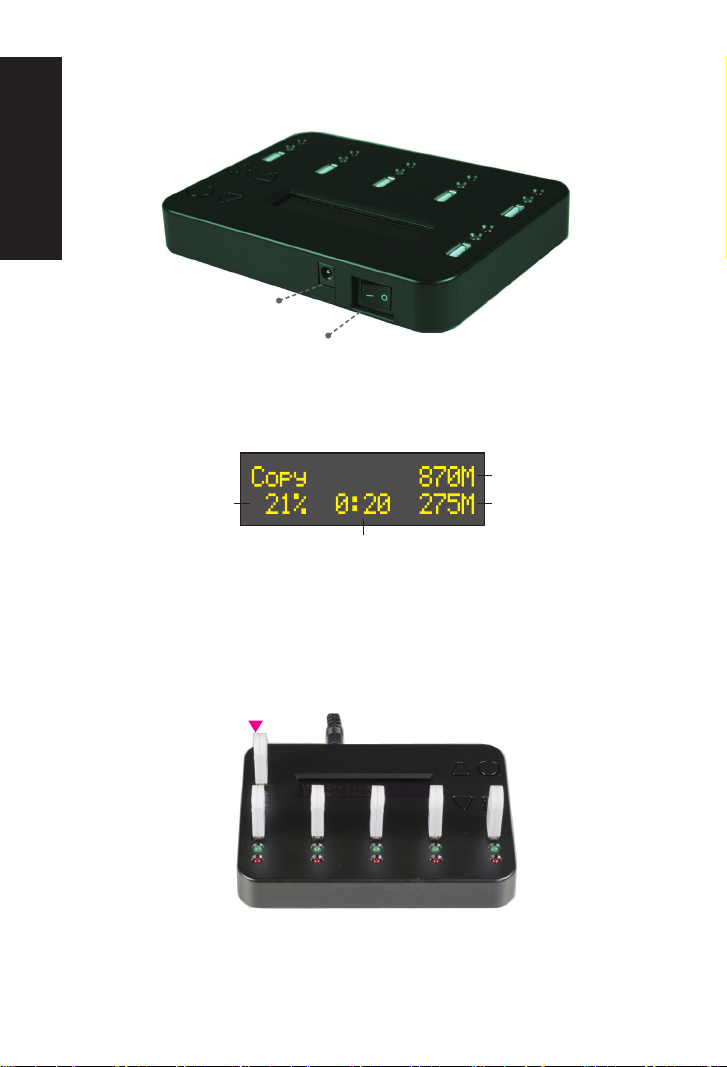

2. Back View
Power Switch and Plug of the Power Supply
Power switch
Power supply
3. LCD Configuration
Copy progress
Time (mm:ss)
Copied Size
Total Content Size
4. Operation Guide
Steps to Copy
Step 1-Plug-in the flash source.

11
②Basic Instruction
Step 2-Plug-in the flash targets.
Step 3
The LCD will show the number of flash targets which are ready to copy.
Step 4
Press <OK> button to start copy.
Step 5
When copy is finished, the LCD will show the result, quantity of copy passed and copy
failed.

②Basic Instruction
12
Note
❶When copy is processing, the green LED will flash. When the copy has finished,
the green LED will stop flashing but will remain illuminated. If an error occurs, the
red LED will illuminate.
Green Light Red Light
❷DO NOT take out the card during copying process.
❸It is strongly recommended that the target and source have to be in close range
of capacity. When there is a big difference between target and source's capacity,
such as copying 1GB source to a 4GB or 1GB source to a 2GB, it may cause error
or copy fail.
❹If copy NTFS or Linux format, targets' capacity must be bigger or equal to source's
capacity. For example, when making NTFS or Linux copy, if the source is 2GB and
the target is 1 GB, it'll have a very big possibility to cause copy fail.
NTFS/Linux format copy

13
③Function Table
③ Function Table
Function Description
1. Copy USB/SD/microSD/CF flash copy.
2. Compare This option makes bit-for-bit comparison between the source and all other copied flash
cards.
3. Copy+Compare This option will make a copy first and then compare the copied Flash media with the
source immediately after the copy has finished.
4. Capacity Check Checks the Flash real capacity.
5. Information
5.1 USB Info
This feature will show flash's information; file format, content size, and capacity.
5.2 System Info
This feature will show information of the duplicator system, including controller model
number and software version.
6. Utility
6.1 Do Format
6.1.1 Auto Format
To Execute flash FAT 16/32 format
6.1.2 FAT Format
Format media to be FAT16.
6.1.3 FAT32 Format
Format media to be FAT32.
6.2 Measure Speed
This function can measure the flash read and support speed. This function might
damage the format and content.
6.3 Media check
6.3.1 H3 Safe 100%
To check the quality of flash by reading it. This safe check will
not delete flash content and format.
6.3.2 H5 RW 100%
To check quality by "0" and "1" reading/writing the flash. Normal
check will delete content and format.
6.3.3 Setup Range
To setup the check area from 1% to 100%
6.3.4 Setup Error Limit
Set the % of error tolerance when checking the Flash.
6.4 Quick Erase
To erase flash media flash content. It will keep the FAT format.
6.5 Full Erase
To completely erase data of flash including format and content, but it needs more
time.
6.6 DoD Erase
Erase Flash three times complying with USA Department of Defense (DoD) standard.
6.7 System Update
System firmware update via the Flash media. i.e. USB/SD/CF/MSD.
6.8 Calc. CheckSum
Calculate the CheckSum number of the Flash media in source port.

③Function Table
14
7. Setup
7.1 Start-up Menu
To select which function is shown first when the system is turned on.
7.2 Copy Area
7.2.1 System and Files
The system can automatically detect the format FAT16, 32/
NTFS/ Linux (ext2, ext3, ext4) and only copy the data area.
7.2.2 Whole Media
The system will copy the whole content of flash including the
empty space, if the data is not format FAT16, 32/ NTFS/ Linux
(ext2, ext3, ext4) .
7.3 Button Beep
Choose whether to hear a beep or not when a button is pressed.
7.4 Asyn Hold Time (Asynchronous)
To set how long the system should wait to ask if to continue or exit the function of
Asynchronous copy job.
7.5 Target Tolerance
To set the tolerance % of capacity gap between the source and target. The default
setting is "No limit".
7.6 Asynchronous
"Enable" to open Asynchronous function, "Disable" to close the function.
7.7 Check Before Copy
Set if you would like to check the Flash media before copy.
7.8 Power Off Time Between Copy&Compare
Set the time gap of power supply between Copy and Compare when executing
"Copy+Compare" function.
7.9 Language
Set system language interface i.e. English, Japanese.
7.10 Working Mode
"Fastest", "Faster", "Normal", "Slower", and "Slowest" to select the speed of data
transmission.
7.11 Set HDD Mode
Set if you would like to copy USB HDD or USB devices only.
7.12 Restore Default
Back to original manufacturer setting.

15
④Function Introduction
④ Function Introduction
1. Copy
There are two kinds of copy modes, which are Asynchronous Copy and Synchronous
Copy. The system will check the content size of the source before executing "copy"
function. If the source content size is less than system's buffer memory, it will
automatically start asynchronous copying. If the source content size is larger than the
system's buffer memory, it will copy with synchronous mode.
1.1 Synchronous Copy
a) How to set "Synchronous Copy"?
1 Go to function "7.6 Asynchronous" to select "Disable".
2 If the source's content size is larger than system's buffer memory, it will execute
Synchronous Copy no matter which copy mode you set at function 7.6.
b) Operating Process
1 Plug in the source and target flash media. Select copy function and then press
"OK" button .
Capacity of source
The number of target flash plugged in and ready to copy
2 When all flash cards are plugged in, press "OK" button to start copy. Or when all
slots are plugged, the system will automatically start copy.
Progressed time and percentage
Progressed size
Content size

④Function Introduction
16
3When finishing copying, the LCD will show the total time of copy, quantity of pass
and quantity of copy fail.
Copy area setting
Copy Area ➡7.2 Copy Area.
Select System and File or Whole Media.
Copy mode setting
Copy mode ➡7.5 Asynchronous.
Select Enable or Disable asynchronous.
Note
When there is an error (Red LED on), you can also press ▲▼ key to check each
Flash media’s status. For example:
2. Compare
Compare function is to check the correctness of copying result. The operation is the
same as copy.
3. Copy + Compare
This function provides a more convenient selection. Instead of going to function "2.
Compare" and pressing "OK" button again after copying, function "3. Copy+Compare"
will automatically run the compare function after finishing copying to make sure if the
copied result is correct.

17
④Function Introduction
4. Capacity Check
This function can check the real capacity of Flash media.
1 Plug the Flash media into slot and select function "4.Capacity Check", then press
"OK" button. About 2~3 seconds, the system will find out its exact capacity.
2 System will show the checking result by Green/Red LED light.
3You can use ▲▼ button to check the status of each slot.
4This function supports asynchronous operation. You can continuously plug in and
pull out the flash media without pushing any buttons.
Green Light: Correct Size Red Light: Wrong Size
Note
❶The function may change the data and format of the flash media.
❷To protect the source data, the system will not do Capacity Check on the master
device.
❸When the Red light illuminates (Error), you can use ▲▼ to check the error
information.
5. Information
5.1 USB Info.
This function will show Flash media's basic information such as media type, content
size, and total capacity.
Press ▲▼ buttons to check the information of each flash media including the source.

④Function Introduction
18
Device Format
Port Number
File content size
USB total capacity
Note
Executing this function will not delete the content or format of flash media.
5.2 System Information
This function will show information of the duplicator system, including model number
and software version.
System firmware
USB duplicator model
System firmware
2.30.9
Model
6. Utility
6.1 Do Format
6.1.1 Auto Format
This function is to do flash FAT formatting. Plug the Flash media in the slot and press
"OK" button, the system will automatically detect its capacity and formate the media
according to it.
●If Flash media format is already FAT16 or FAT32, the format function won't change
its original format.
●If Flash media format is not FAT format, i.e. NTFS, Linux or FAT multi-partition.
The system will execute format according to flash's capacity. When it is capacity
is above 2GB, the system will format the Flash to FAT32, if its capacity is below
2GB, the system will format the media to be FAT16.
During format process, you can use ▲▼ to check each Flash Card's formatting
status, progress and information.
Capacity < 2GB
Format FAT16
Capacity < 2GB
Format FAT32

19
④Function Introduction
Note
The source port (port#1) will not execute any formatting, because this function will delete
the data of the flash media.
6.1.2 FAT Format
Format any flash media to be FAT16.
6.1.3 FAT32 Format
Format any flash media to be FAT32.
6.2 Measure Speed
This function can measure the "read" and "write" speed of Flash media.
1 Plug the Flash media into slot and select function "6.2 Measure Speed", then
press "OK" button to start.
2 Use ▲▼ buttons to see Flash media exact "Read" and "Write" speed from each
port.
Note
• This function may change the content of data and format of flash.
• To protect source data, the system will not do "Measure Speed" on the master
device.
6.3 Media Check
This function is to analyze flash's quality. There are two kinds of methods to do media
checks, "H3 Safe" and "H5 R/W". Before executing quality check, user can go to
function "6.3.3 Setup Range" "6.3.4 Set Error Limit" to finish setting.

④Function Introduction
20
6.3.1 H3 Safe 100%
This function is to check the flash's quality by reading the flash media. After executing
the function, it will show the volume of bad sectors and also the reading speed of the
flash device.
good sector Test capacity
Reading speed
Note
This function will not delete the content or format.
6.3.2 H5 R/W 100%
This function is to check the flash's quality by reading and writing the flash media. After
executing the function, it will show the volume of bad sectors and also the reading/
writing speed of the flash device.
Bad sector Test capacity
Writing speed Reading speed
good sector Task
bad sectors number in processing
Note
❶This function will delete the content and format of flash media, please do not
execute this function if there is important data in it.
❷To protect the source data, the system will not execute this function on the master
device.
