Uberhaus 72255110 User manual

Model/Modèle ：72255110 / 72255113
10' x 12' Gazebo
Operators’ Manual p. 2
Abri-soleil 10 x 12 pi
Guide de l'utilisateur p. 31

Important Safety Instructions
WARNING! To reduce the risk of serious injury or damage to equipment, read all
following safety instructions before assembling and using the gazebo.
Failure to follow these warnings may result in serious injury or death.
• Keep all children and pets away from assembly area. Children and pets should be supervised while gazebo
is being assembled.
• The assembled gazebo should be located at least 6 feet (2 m) from any obstruction such as fence, garage,
house, overhanging branches, laundry lines or electrical wires.
Consult with local municipal office for specific requirements
• This product is for domestic outdoor use (providing shade) only.
• Install the gazebo on level ground. Stakes are provided to secure the gazebo to the ground. Do not
assemble the gazebo on sandy, muddy or loose soil, as stakes do not have enough holding power in these
types of soil. If you wish to secure the gazebo to a wood deck or concrete surface, use anchors suited to
these surfaces (anchors not included).
• Some parts may contain sharp edges. Wear protective gloves if necessary during assembly.
• This unit is heavy. DO NOT assemble this item alone. Make sure you have the help of at least 3 people for
safe assembling or moving the gazebo.
• Check all nuts and bolts periodically for tightness and when required, tighten them again.
• While this gazebo is manufactured to withstand winds through only the supplied ground stakes, in areas
subject to frequent severe weather, securing the gazebo to a deck, concrete patio or footings should be
considered.
•Remove accumulated water on the roof immediately, or disassemble the gazebo in order to avoid
damages.
•Snow must be cleared off regularly throughout the winter season. Remove the snow on the top when it
is thicker than 4'' (10 cm). In order to avoid damages, use a plastic snow shovel to remove snow and ice
buildup from roof and keep away from falling debris.
•ALWAYS DISASSEMBLE the gazebo before experiencing heavy wind conditions, as it is semi-permanent
construction and not designed to withstand harsh weather, including high wind, or heavy rain and snow.
• Please check your state and local regulations prior to installing the gazebo. Some jurisdictions may
require permits for installation and use. Some special procedures may be valid in your area.
CAUTION
• DO NOT use or enter the gazebo under harsh weather (e.g. thunderstorms, high winds, hail, heavy snow
etc.). In these conditions, it might tip over and could cause serious injury to bystanders. Any damage or
injury caused by these conditions is not covered by the warranty.
• DO NOT install the gazebo adjacent to trees or a sloped roof. Snow and ice may slide onto the gazebo and
cause it to collapse.
• DO NOT use or enter the gazebo if there exist any of the following or of similar conditions:
1. visible movement of support members, roofing panels or sagging roofline.
2. creaks or audible noise from the gazebo.
3. cracks, fractures or malformation of support member or roof panels.
4. damaged or missing fasteners.
• DO NOT hang any weights on the roof frame.
• DO NOT use ladder leaning against the gazebo or climbing onto the roof.
• Keep away from heat or flame source.
• If the gazebo will not be used for a long period of time (e.g. during winter time), disassemble and store it

in a clean, dry location.
PREPARATION
Required for assembly:
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Have 4 or more people help you when assembling or moving the product.
Estimated assembly time: 90 - 120 minutes.
CARE AND MAINTENANCE
• Our steel components for gazebo and garden accessories are treated with rust inhibiting paint that
protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur if these
protective coatings are scratched. This is not a defect and thus not covered by the warranty.
To minimize this condition, we recommend care when assembling & handling the product to prevent
scratching the paint. Should any scratching or damage occur, we recommend immediate touch-up with rust
inhibiting paint.
Surface rust can also be easily removed with a very light application of regular cooking oil. If surface
oxidation (rusting) occurs and if no preventive measure is taken, the oxidation may start dripping onto deck
or patio and caused damaging stains, which may be difficult to remove.
This damage can be prevented if the above-mentioned measures are taken to keep the gazebo’s frame from
oxidizing.
• Do not use bleach, acid, or other abrasive cleaners on the roof or frame parts.
• Keep instruction manual for future reference.
• Keep the original packaging to store the gazebo.

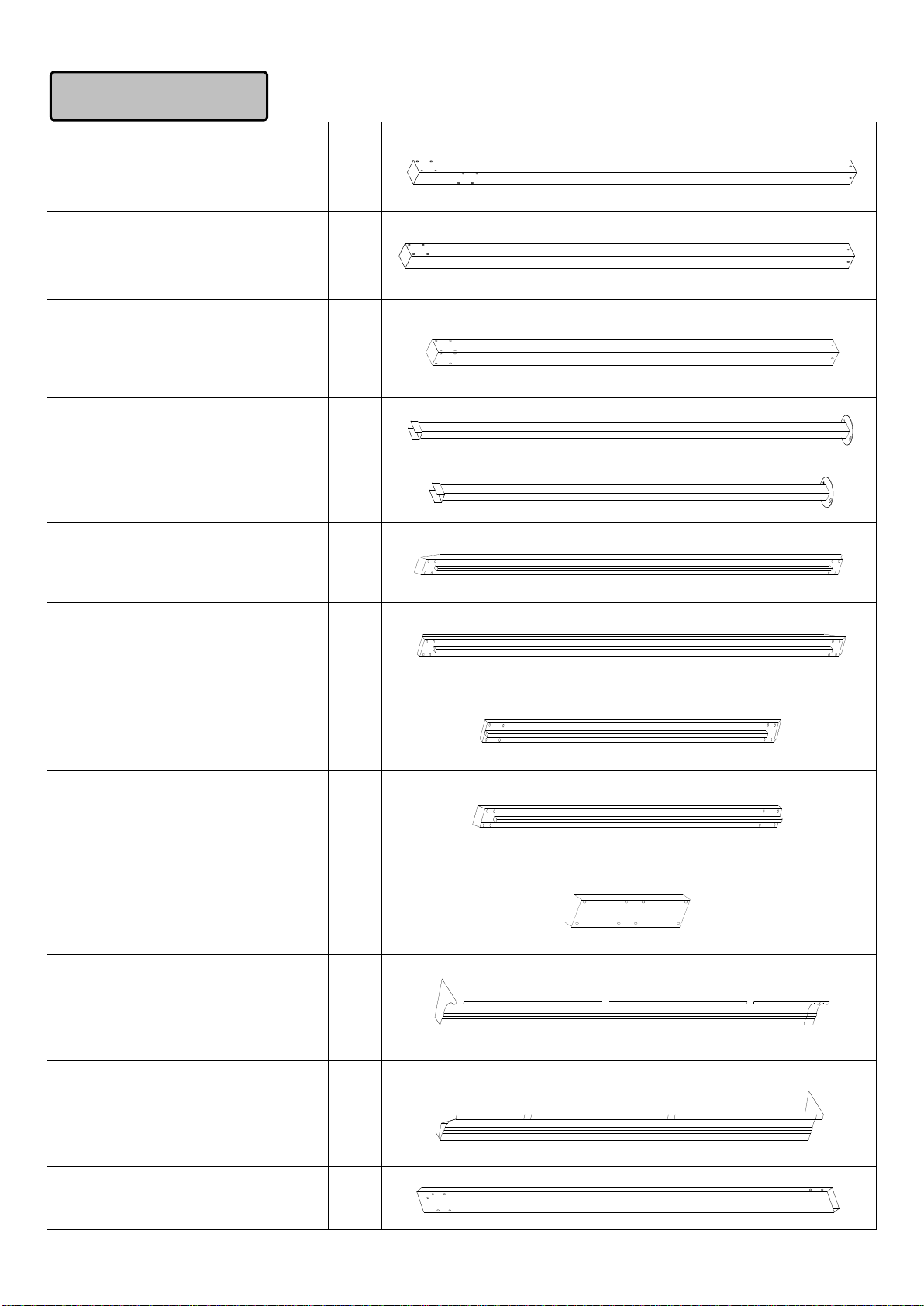

Page 4
A
Post
1
A1
Post
1
B
Post
2
B2
Post for extra winter support
1
B3
Post for extra winter support
1
C
Rail
1
C1
Rail
1
D
Rail
1
D1
Rail
1
D2
Connector
1
E
Rail
1
E1
Rail
1
F
Lintel
1
Parts List
PIECES

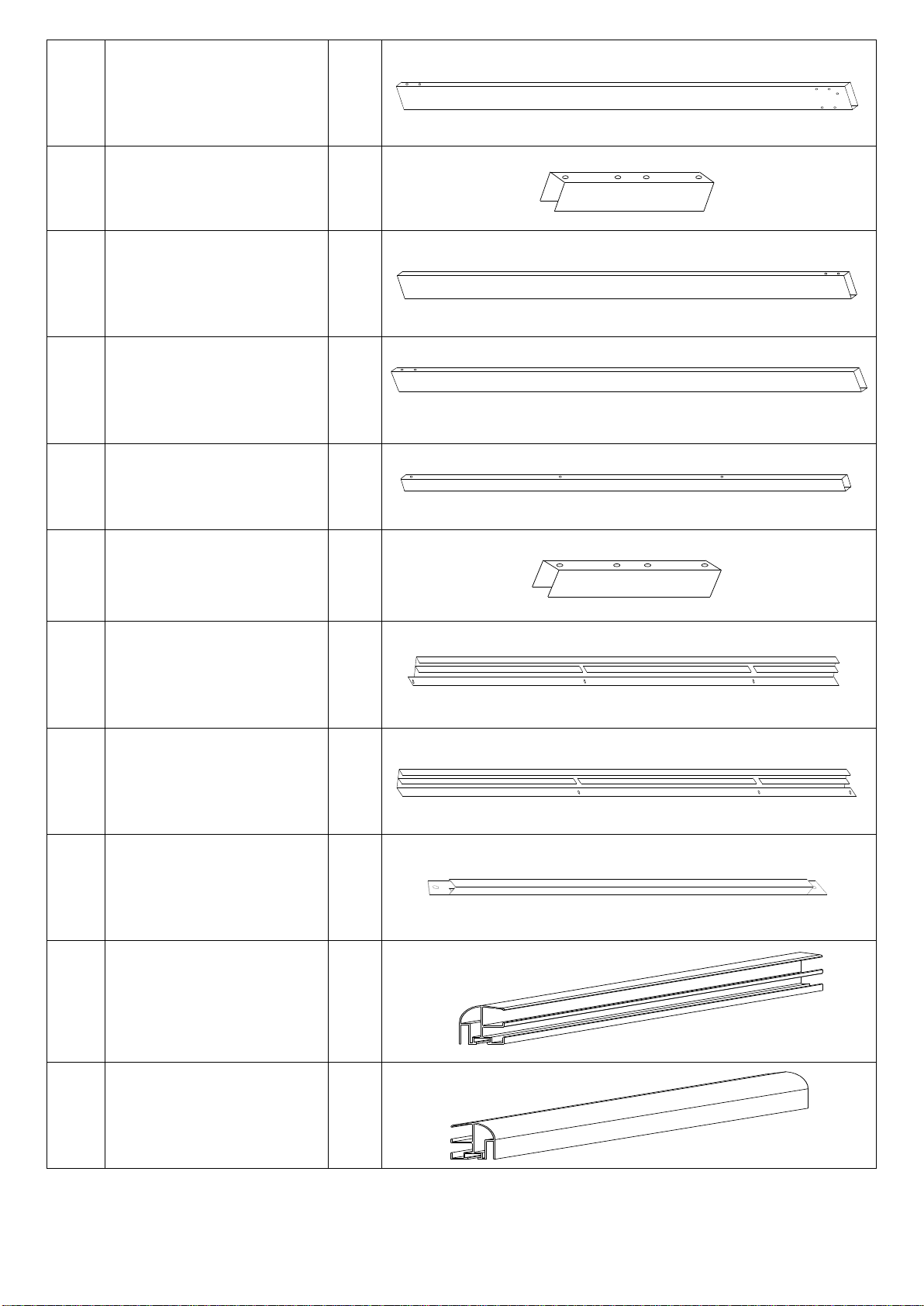

Page 5
F1
Lintel
1
F2
Connector
4
G
Lintel
1
G1
Lintel
1
G2
Decorative Reinforcement
Bar
4
G3
Connector
2
H
Roof Holder Bar (back)
1
H1
Roof Holder Bar (back)
1
I
Roof Holder Bar (front)
5
J
Roof Corner Bar
1
J1
Roof Corner Bar
1

Page 6
J2
Roof Central Bar
4
K
Main Roof Panel
10
K1a
Side Roof Panel
1
K2a
Side Roof Panel
1
K1b
Side Roof Panel
1
K2b
Side Roof Panel
1
L
Roof Supporting Tube
5
M
Side Cap
1
M1
Side Cap
1
R
Hook
38
S
Mosquito Net
4
S1
Curtain
(sold separately)
4
X1
Plastic Cap
32

Page 7

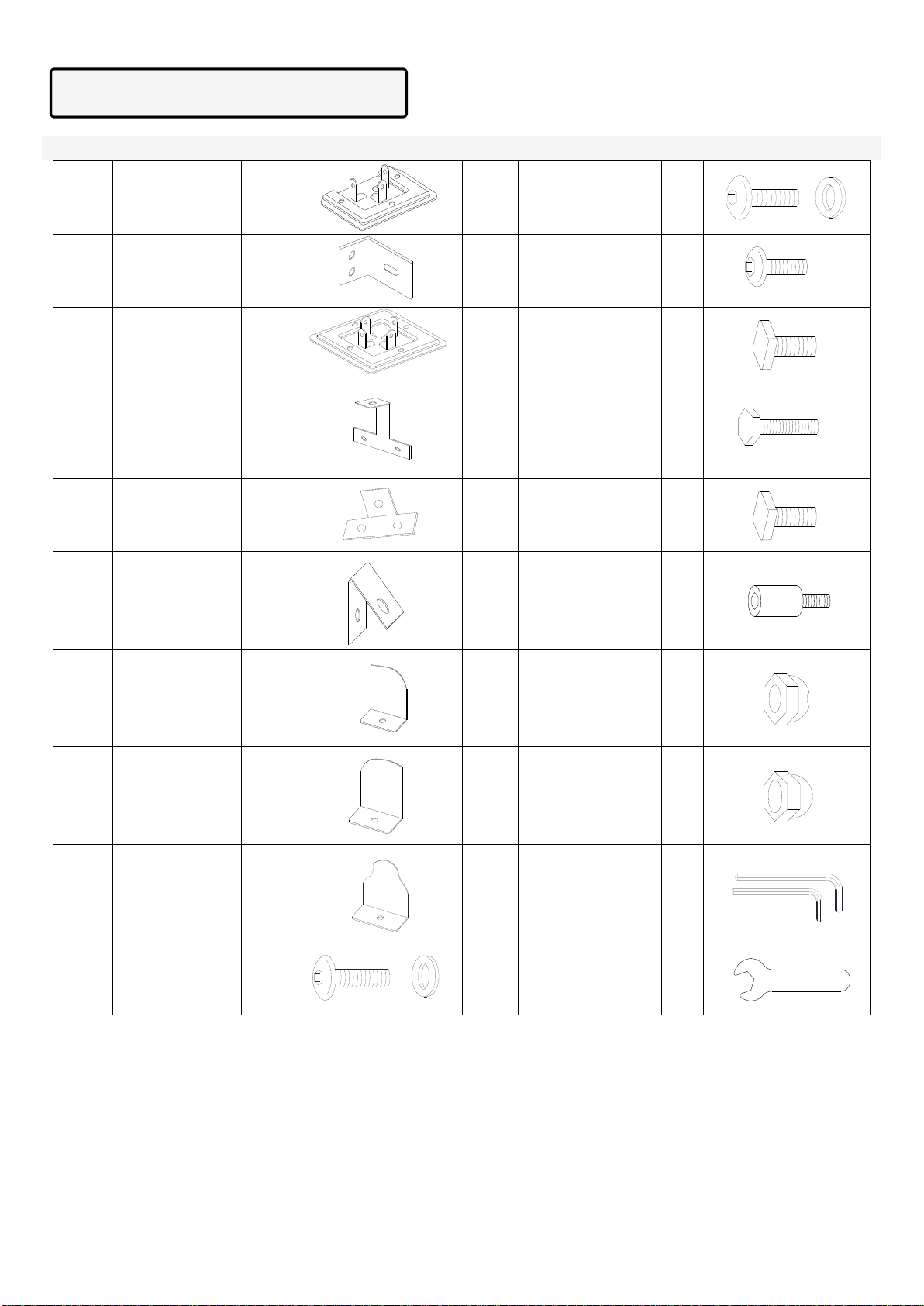

NOTE: The material is not to scale
N
Base Plate
2
U
Screw M6*20
4
N1
Anchor Bracket
4
V
Screw M6*15
106
N2
Base Plate
2
W
Screw M6*10
6
O
Connector
2
W1
Screw M6*50
12
P
Connector
12
W2
Screw M6*12
6
P1
Connector
6
X
Screw M6*15
32
Q
End Cap
1
Y
Nut
12
Q1
End Cap
1
Y1
Nut
12
Q2
End Cap
4
Z
Allen Key
2
T
Screw M6*38
6
Z1
Wrench
1
HARDWARE KIT INCLUDED

Page 8
Step 1
A
N1
U
A
VN
B
VN2
N2
B
A
N1
N1
A1
N1
U
N2
B
N1
N1
A1
N
1.1. Attach the Connector (N1) onto the Post (A) and (A1) by using Screws (U).
1.2. Attach the Base Plate (N) to the bottom of the Post (A and A1) by using Screws (V).
1.3. Attach the Base Plate (N2) to the bottom of the Post (B) by using Screws (V).
NOTE:
Make sure the convex edge of the Base Plate (N) is facing the front of the post, as shown in the
above drawing.
Warning: Suitable bolts to fix the Anchor Bracket (N1) to the wall are not provided and must be
purchased separately.

Page 9
Step 2
2.1. Insert twelve Hooks (R) into the Rail (C) and twelve Hooks (R) into the Rail (C1) by sliding them
into the appropriate location.
2.2. Insert seven hooks (R) into the Rail (D) and seven hooks (R) into the Rail (D1) by sliding them into
the appropriate location.
NOTE:
Make sure the hooks’ direction is the same as per the above drawing.
NOTE:
The gazebo has two rails: one for the mosquito net and one for the curtains. The curtains and
matching hooks are sold separately (while supplies last). The mosquito net hooks must be
placed on the internal rail. The same number of hooks must be used for the curtains and
mosquito net.

Page 10
Step 3
D1
D2
D
D1
D
D
D1
V

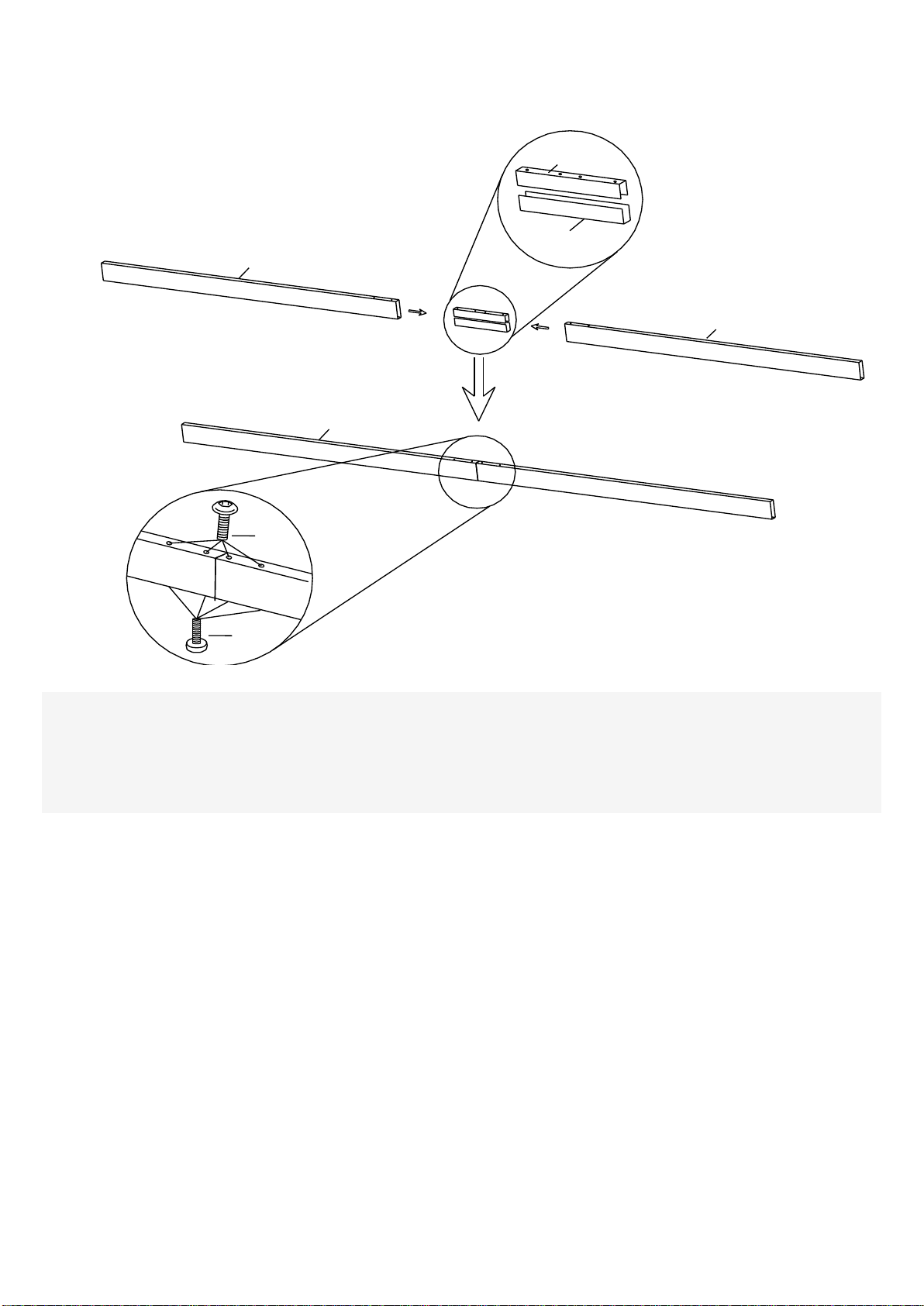

3.1. Insert one end of the Connector (D2) to the end of the Rail (D), making sure that the holes from
both pieces align. Fix both parts together using Screws (V).
3.2. Insert the other end of the Connector (D2) to the end of the Rail (D1), making sure that the holes
from both pieces align. Fix both parts with Screws (V). Make sure the screws are well tightened.

Page 11
Step 4
F2
F2
F1
F
F
F1
V
V
4.1. Insert one end of the Connector (F2) inside of Lintel (F), making sure that the holes from both
pieces align. Fix both parts together using Screws (V).
4.2. Insert the other end of the Connector (F2) inside the Lintel (F1), making sure that the holes from
both pieces align. Fix both parts together using Screws (V). Make sure the screws are well tightened.

Page 12
Step 5
F2
F2
G1
G
G
G1
V
V
5.1. Insert one end of the Connector (F2) inside of the Lintel (G), making sure that the holes from both
pieces align. Fix both parts together using Screws (V).
5.2. Insert the other end of the Connector (F2) inside of the Lintel (G1), making sure that the holes
from both pieces align. Fix both parts together using Screws (V). Make sure the screws are well
tightened.

Page 13
Step 6
G3
G2
G2
G2
G2
V
6.1. Insert the Connector (G3) halfway into the Decorative Reinforcing Bar (G2) and tighten with
Screws (V).
6.2. Insert the other end of the Connector (G3) into the Decorative Reinforcing Bar (G2) and tighten
with Screws (V).
Make sure the screws are well tightened.
Repeat this step on the other side.

Page 14
Step 7
X
X
XX
A
C
F
F1
C1
A1
D
D1
B
B
¡ Á2 ¡ Á2
¡ Á2
X1 ¡ Á2
X1
¡ Á2
X1
¡ Á2
X1

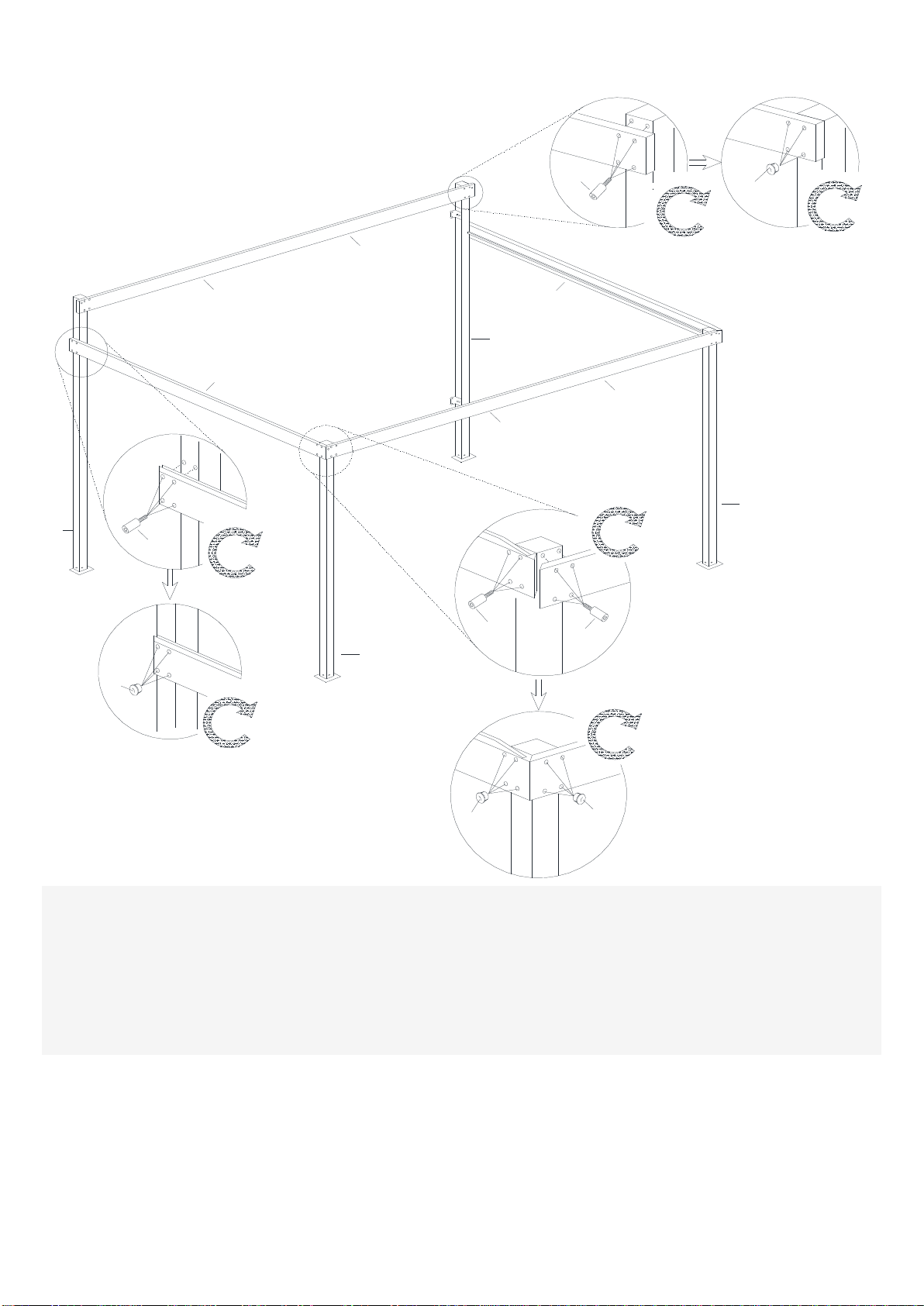

7.1. Attach the assembled Rails (D & D1) to both Posts (B) with Screws (X).Attach the Plastic Cap (X1)
to the Rails (D & D1) .
7.2. Attach the assembled Lintels (F & F1) to Posts (A & A1) with Screws (X).Attach the Plastic Cap
(X1) to the Lintels (F & F1) .
7.3. Attach the side Rail (C) to Posts (A & B) with Screws (X). Attach the Rail (C1) to Posts (A1 & B)
with Screws (X).Attach the Plastic Cap (X1) to the side Rails (C & C1) .
Make sure the rails are placed with the sides with hooks towards the inside of the gazebo.

Page 15
Step 8
C
G
G1 C1
O
O
O
V

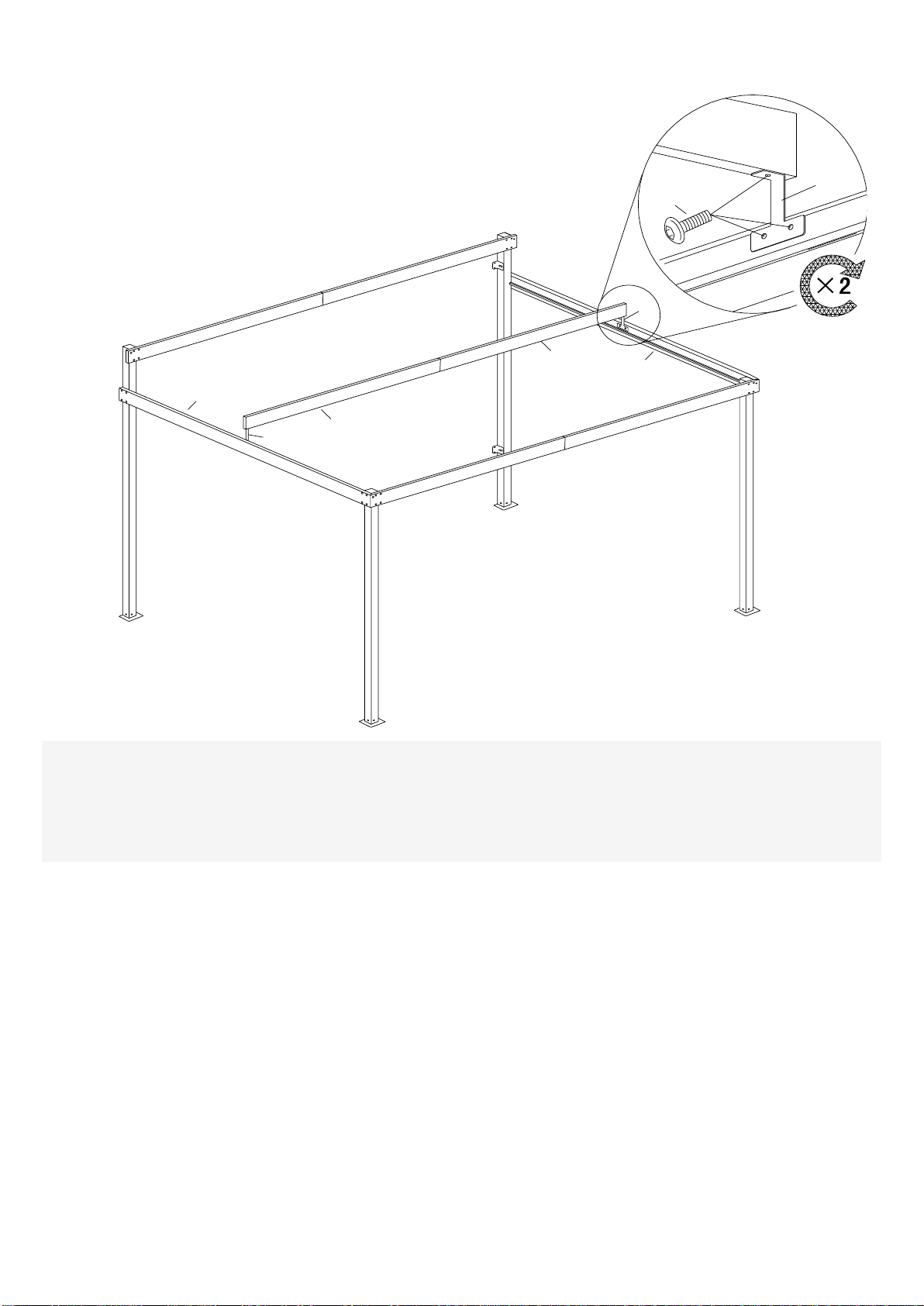

8.1. Attach Connector (O) to Rail (C) with Screws (V).
8.2. Attach Connector (O) to Rail (C1) with Screws (V).
8.3. Place the assembled Lintels (G & G1) onto the Connectors (O) with Screws (V).
Ensure that the screws are well tightened.

Page 16
Step 9
W2
W1 W1
W2 W1
J
J1
J2
¡ Á6
W1
W2 W1
W1
W2 W1
W1
9.1. Insert the Screws (W1), (W2), (W1) into the grooves of each Roof Corner Bar (J & J1) and each
Roof Central Bar (J2).

Page 17
Step 10
G
G1 C1
P1 V
Y1
P1 V
V
P1
F
F1
D1
D
J1
J
10.1. Attach a Connector (P1) to each end of the Lintels (F1 & F) and (G & G1) and to the end of the
Rails (D /D1) with the Screws (V).
10.2. Put the Roof Holder Bars (J & J1) onto the Connectors (P1) which are installed at the ends of the
Lintels (G & G1). Place Screws in the center of the Roof Holder Bars (J & J1) into the holes of the
Connectors, and tighten in place with Nuts (Y1).
10.3. Attach the Roof Holder Bars (J & J1) by passing Screws (V) through the holes on the top of
Connectors (P1).
NOTE:
The Long Screws (W1) previously inserted on the Roof Holder Bars (J & J1) will be used in Step 14.

Page 18
Step 11:
¡ Á2
K1a
J
K1b
K2b
J1
K2a
J
K1a
C
C1
C
11.1. Insert the Side Roof Panels (K1a & K1b) between the Rails (C & C1) and the Roof Holder Bars
(J & J1), which form a triangle on the sides of the gazebo.
11.2. Insert the Side Roof Panels (K2a & K2b) between the Rails (C & C1) and the Roof Holder Bars
(J & J1), which form a triangle on the sides of the gazebo, until they reach the Side Roof Panels (K1a
& K1b).
CAUTION:
One side of each roof panel has been treated to provide UV protection. Make sure that the side treated with
UV protection is facing outward. This step is very important –if the roof is not assembled as per the
instructions shown, it will not be covered by the warranty.
NOTE:
The panels are covered with a plastic film to identify which side has UV protection. Once this film is removed,
it is not possible to tell which side protects against UV rays. Therefore, it is recommended to remove the film
only once the panels have been installed, one at a time.

Page 19
Step 12
E1
E
¡ Á2
E
T
D
DD1
T
.
12.1. Attach the Rails (E) to the Rails (D) with Screws (T).
12.2. Attach the Rails (E1) to the Rails (D1) with Screws (T).

Page 20
Step 13
V
P
¡ Á12
P
P
P
P
P
P
P
PPPPP
F
F1
G1
G
D
D1
13.1 Attach the Connectors (P) to the assembled Lintels (D, D1, F, F1, G & G1) with Screws (V).
