Uberhaus L-GZ924PCO-NEW User manual

MODEL # L-GZ924PCO-NEW
ITEM # 807716/38115211
1
GAZEBO
23
1 844 786-5691

2
WARNING
To reduce the risk of serious injury or damage to equipment, read all following
safety instructions before assembling and using the sun shelter. Failure to
follow these warnings may result in serious injury or death.
• Keep all children and pets away from the assembly area. Children and pets should
be supervised while sun shelter is being assembled.
•The assembled sun shelter should be located at least 6 ft. (2 m) from any
obstruction such as fences, garage, house, overhanging branches, laundry lines
or electrical wires. Consult with local municipal office for specific requirements.
• This product is for domestic outdoor use i.e. decorative and sunshade purpose only.
• Install the sun shelter on level ground. Stakes are provided to secure the sun shelter
to the ground. Do not assemble the sun shelter on muddy, sandy or loose soil, as
stakes do not have enough anchorage in these types of soil. If you wish to secure
the sun shelter to a wood deck or concrete surface, use anchors suited to these
surfaces (anchors not included).
• Some parts may contain sharp edges. Wear protective gloves if necessary during
assembly.
• This unit is heavy. DO NOT assemble this item alone. Make sure there is sufficient
manpower for safe assembling or moving the gazebo.
• Check all nuts and bolts periodically for tightness and when required, tighten them
again.
• While this sun shelter is manufactured to withstand winds through only the supplied
ground stakes, in areas subject to frequent severe weather, securing the sun shelter
to a deck, concrete patio or footings should be considered.
• Remove accumulated water on the roof immediately, or disassemble the sun shelter
in order to avoid damages.
•Snow must be cleared off regularly during snowy day, remove the snow at the top
when it is thicker than 4 inches (10 cm). In order to avoid damages, use a plastic
snow rake to remove excessive snow and ice buildup from roof and keep away
from falling debris.
• ALWAYS DISASSEMBLE the sun shelter before experiencing heavy wind
conditions, as it is semi-permanent construction and not designed to withstand
harsh weather, including high wind, rain and snow.
• Please check your state and local regulations prior to purchasing. Some
jurisdictions may require permits for installation and use. Some special procedures
may be valid in your area.

3
CAUTION
• DO NOT use or enter the gazebo under harsh weather (e.g. thunderstorms, high
winds, hail, heavy snow etc). In these conditions, it might tip over and could cause
serious injury to bystanders. Any damage or injury caused by which is not covered
by the warranty.
• DO NOT install the gazebo adjacent to trees or a sloped roof. Snow and ice may
slide onto the gazebo and cause it to collapse.
• DO NOT use or enter the gazebo if there exist any of the following or of similar
conditions:
1. visible movement of support members, roofing panels or sagging roofline.
2. creaks or audible noise from the gazebo.
3. cracks, fractures or malformation of support member or roof panels.
4. damaged or missing fasteners.
• DO NOT hang any weights on the roof frame.
• DO NOT use ladder leaning against the gazebo or climbing onto the roof.
• Keep away from heat or flame source.
• If the gazebo will not be used for a long period of time (e.g. during winter time),
disassemble and store it in a clean, dry environment.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If any part is missing
or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 90-120 minutes
(Use four or more persons to assemble or move the product.)

4
CARE AND MAINTENANCE
• Our steel components for sun shelter and garden accessories are treated with
rust inhibiting paint that protects it from rusting. However, due to the nature of
steel, surface oxidation (rusting) will occur if these protective coatings are
scratched. This is not a defect and thus not covered by the warranty.
To minimize this condition, we recommend care when assembling & handling
the product to prevent scratching the paint. Should any scratch or damage
occurs, we recommend immediate touch-ups with rust inhibiting paint. Surface
rust can also be easily removed with a very light application of regular cooking oil.
If surface oxidation (rusting) occurs and if no measure is taken to prevent this, the
oxidation may start dripping onto the deck or patio and caused damaging stains,
which may be difficult to remove. This can be prevented if the above-mentioned
measures are taken to keep the product from oxidizing.
• Do not use bleach, acid, or other abrasive cleaners on the roof or frame parts.
• Keep instruction manual for future reference.
• Keep the original packaging to store the sun shelter.

5

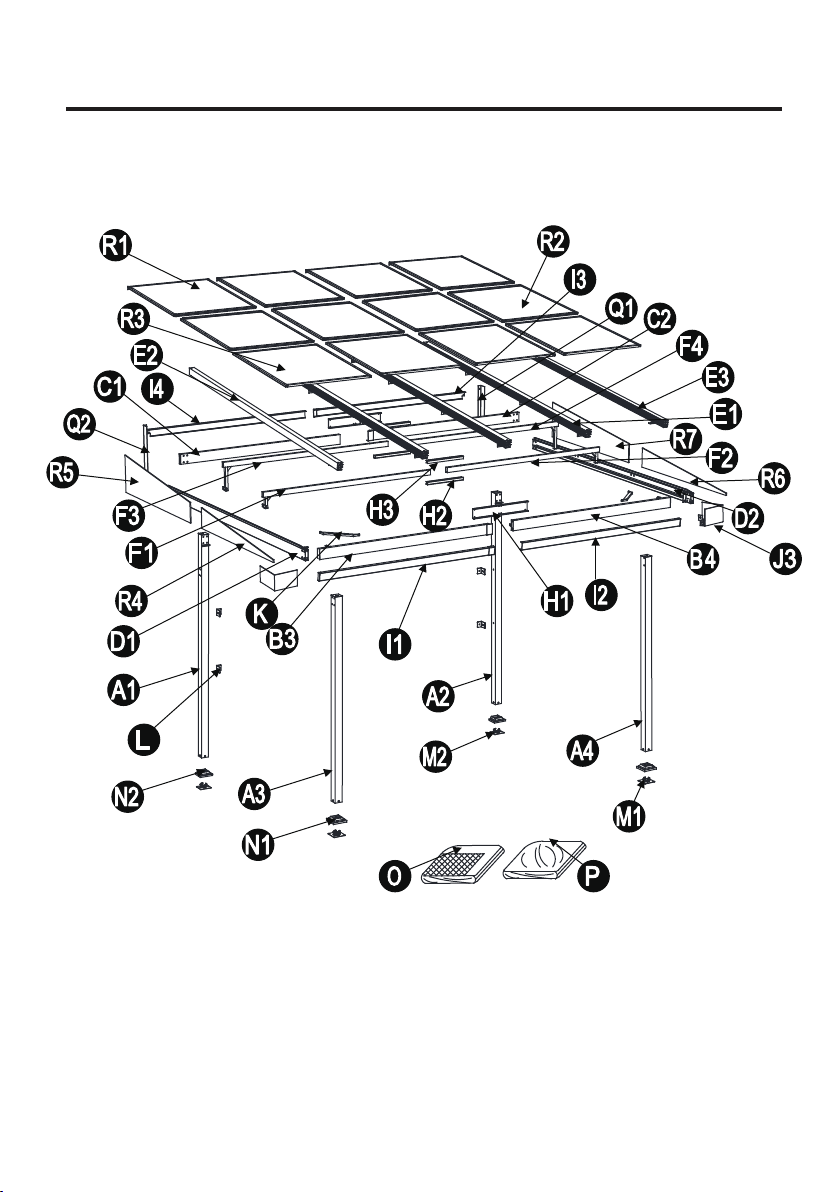

PACKAGE CONTENTS

6
PACKAGE CONTENTS
PART
A1
A2
A3
A4
B3
B4
1
1
1
1
1
1
1
Post 1
Post 2
Post 3
Post 4
Front Beam 1
Front Beam 2
Rear Beam 1
Rear Beam 2
DESCRIPTION QTY#
C1
C2
1
1
Side Beam 1
D1
D2
Side Beam 2
1
PART
1
1
1
2
2
1
1
1
Support Beam 1
Support Beam 2
Support Beam 3
Support Beam 4
PC Panel 5
PC Panel 6
PC Panel 7
Beam Connector 1
Decorative Railing 1
Decorative Railing 2
DESCRIPTION
F1
F2
F3
F4
R5
R6
R7
H1
H2
H3
I2
I1
1
3
Top Beam
E1
E2 Top Side Beam 1 1
E3 Top Side Beam 2 1
Decorative Railing 3
I3
Beam Connector 2
Beam Connector 3
QTY#
1
1
1
2
1
1
1
2
4
2
2
2
I4
Q1
Q2
K
L
M1
M2
N1
Decorative Railing 4
L-Shaped Bracket 1
L-Shaped Bracket 2
Support Bar
Wall Mount Sheet
Base 1
Base 2
Base Cover 1
4
1
PC Panel 2
PC Panel 3
PC Panel 4
R2
R3
R4
4
R1 PC Panel 1 4
2
1
1
N2
O
P
Base Cover 2
Mosquito Netting
Curtain
2
J3 Decorative Sheet

7

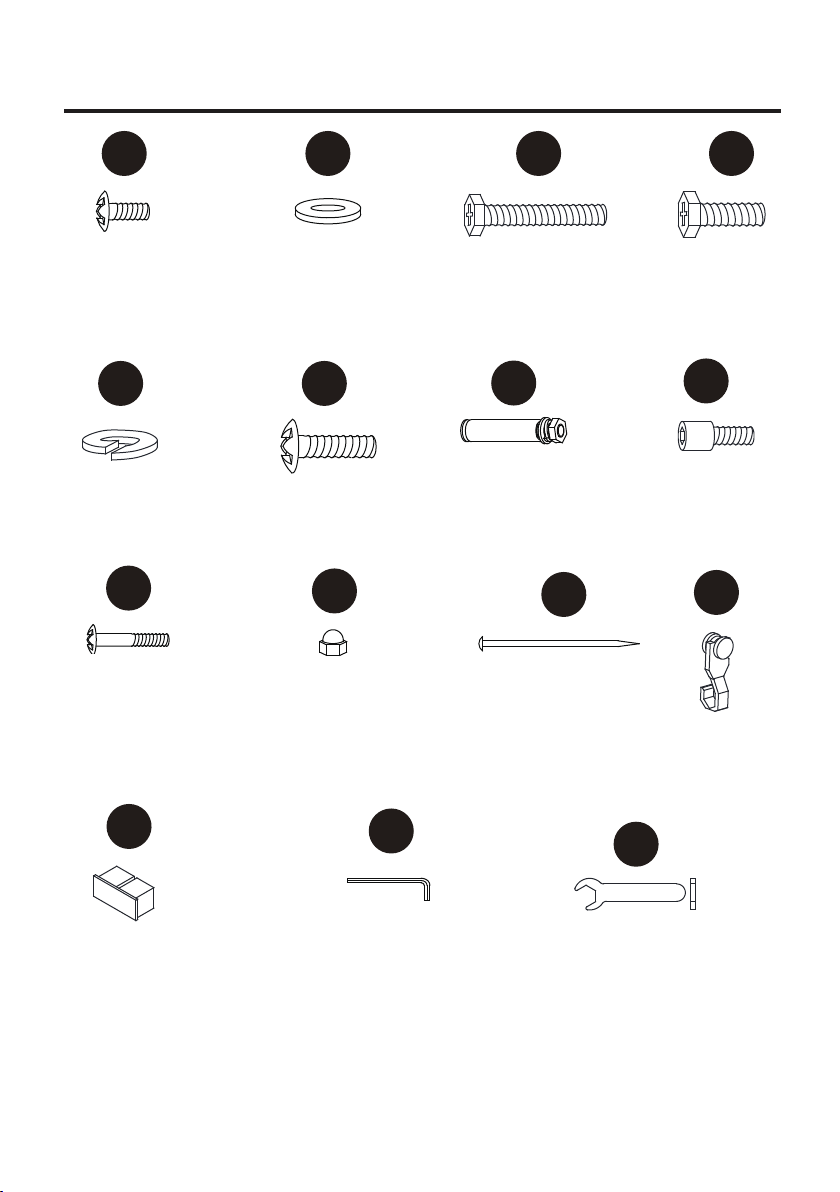

HARDWARE CONTENTS( not shown to size)
M6
Flat Washer M6 x 25 BoltM6 x 15 Bolt
Qty. 26 + 2 spare
M6 Wrench
Qty. 2
Qty. 120 + 6 spare Qty. 8 + 1 spare
AA CC DDBB
EE GG
Z
FF
M6 Spring Washer
M6 x 40 Bolt
Qty. 40 + 2 spare
M6 x 25 Bolt
Qty. 16 + 1 spare
HH
II JJ KK
W
M6 x 15 Sockets
Bolt
Qty. 16 + 1 spare
M6 x 65 Bolt
Qty. 8 + 1 spare
M6 Nut
Qty. 8 + 1 spare
Φ8 x 180 Stake
Qty. 8
M6 Socket Head Wrench
Qty. 1
Qty. 54 + 3 spare
LL
Hook
Qty. 76 + 4 spare
MM
Plastics Stopper
Qty. 6 + 1 spare
M6 x 80 Expansion
Qty. 4

8
ASSEMBLY INSTRUCTIONS
•

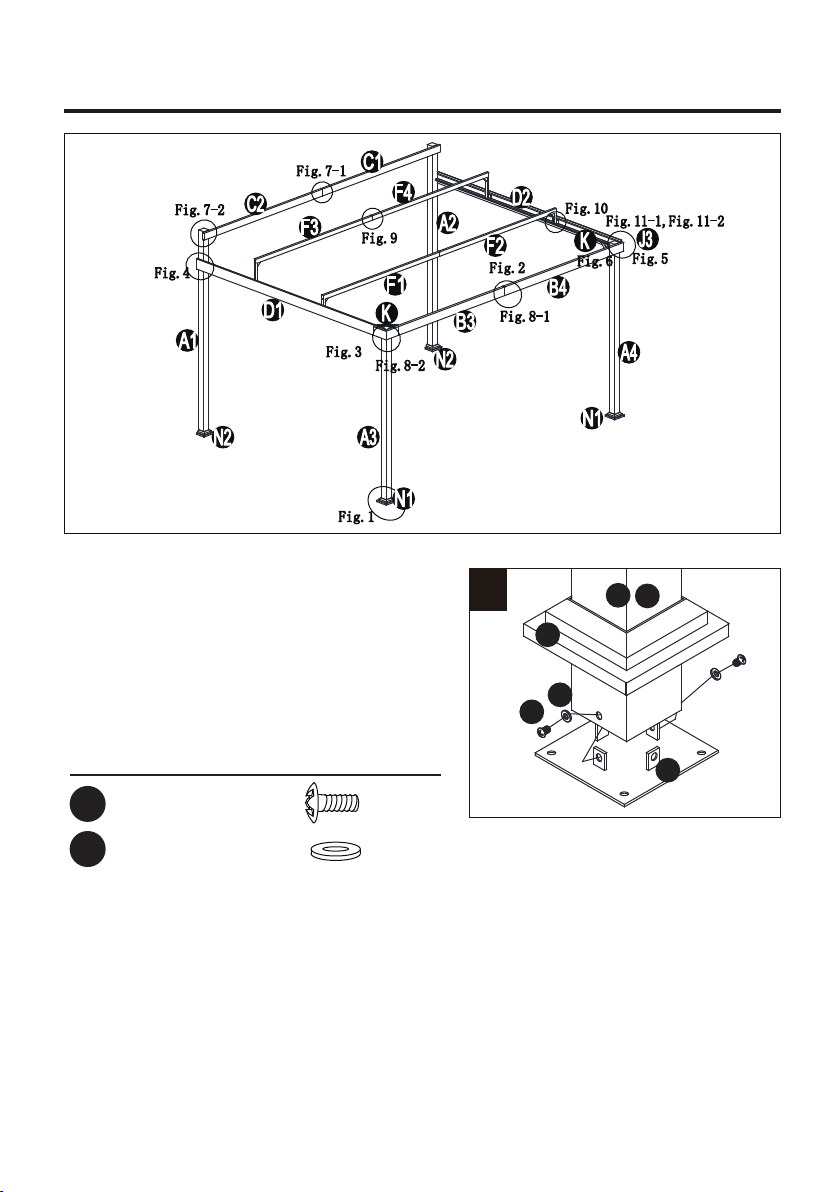

1. Insert the posts (A3/A4) into the base
cover 1 (N1), and then install the base 1
(M1) to the bottoms of posts (A3/A4)
using bolts (AA) and washers (BB).
Repeat this step to base cover 2 (N2),
base 2 (M2) and posts (A1/A2). Tighten
with screwdriver (not included).
Hardware Used
AA M6 x15 Bolt
BB M6 Flat Washer
x 8
x 8
1A3 A4
N1
AA BB
M1
BB

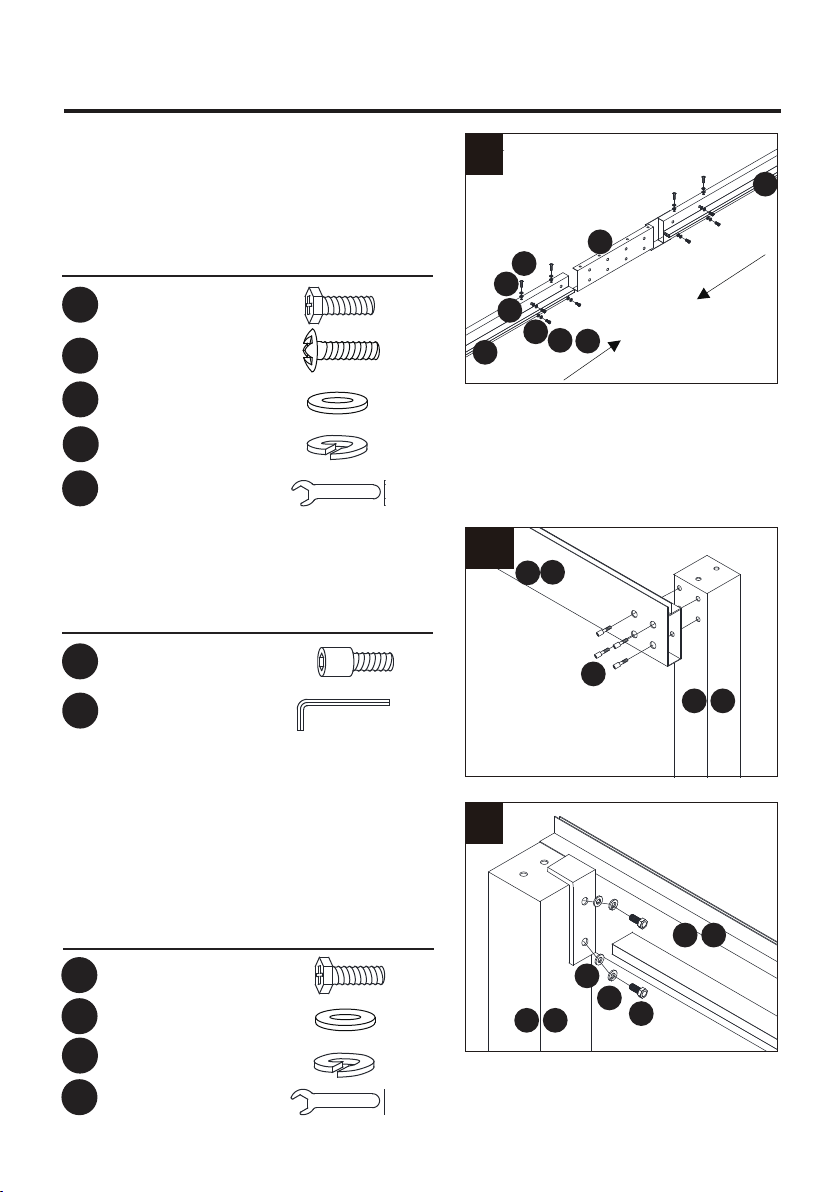

2. Connect the front beam 1 (B3) to front
beam 2 (B4) with beam connector 1 (H1)
using bolts (DD/FF), washers (BB) and
spring washers (EE). Tighten with wrench
(Z).
9
ASSEMBLY INSTRUCTIONS
2
4. On the inside of the post direction, attach
side beams 1/2 (D1/D2) to posts 3/4
(A3/A4) using bolts (DD), flat washers (BB)
and spring washers (EE). Tighten with
wrench (Z).
4
Hardware Used
DD
FF
x 6
x 4
M6 x 25 Bolt
M6 x 25 Bolt
Hardware Used
B4
B3
H1
BB
EE
FF
BB
EE DD
BB
EE
x 10
x 10
M6 Flat Washer
M6 Spring Washer
3. Attach one end of side beams 1/2 (D1/D2)
to post 3/4 (A3/A4) using bolts (HH).
Tighten with wrench (W).
HH
A3 A4
Outside of the post
Hardware Used
x 8
HH M6 x 15 Sockets bolt
D1 D2
3
inside of the post
A3 A4 DD
BB
EE
D1 D2
DD x 4
M6 x 25 Bolt
BB
EE
x 4
x 4
M6 Flat Washer
M6 Spring Washer
ZW6 Wrench x 1
W
x 1M6 Socket Head
Wrench
ZW6 Wrench x 1

10
ASSEMBLY INSTRUCTIONS
5
5. Attach the other end of side beams 1/2
(D1/D2) to posts 1/2 (A1/A2) using bolts
(HH). Tighten with wrench (W).
Hardware Used
A1 A2
D1 D2
HH
x 8
HH M6 x15 Sockets bolt

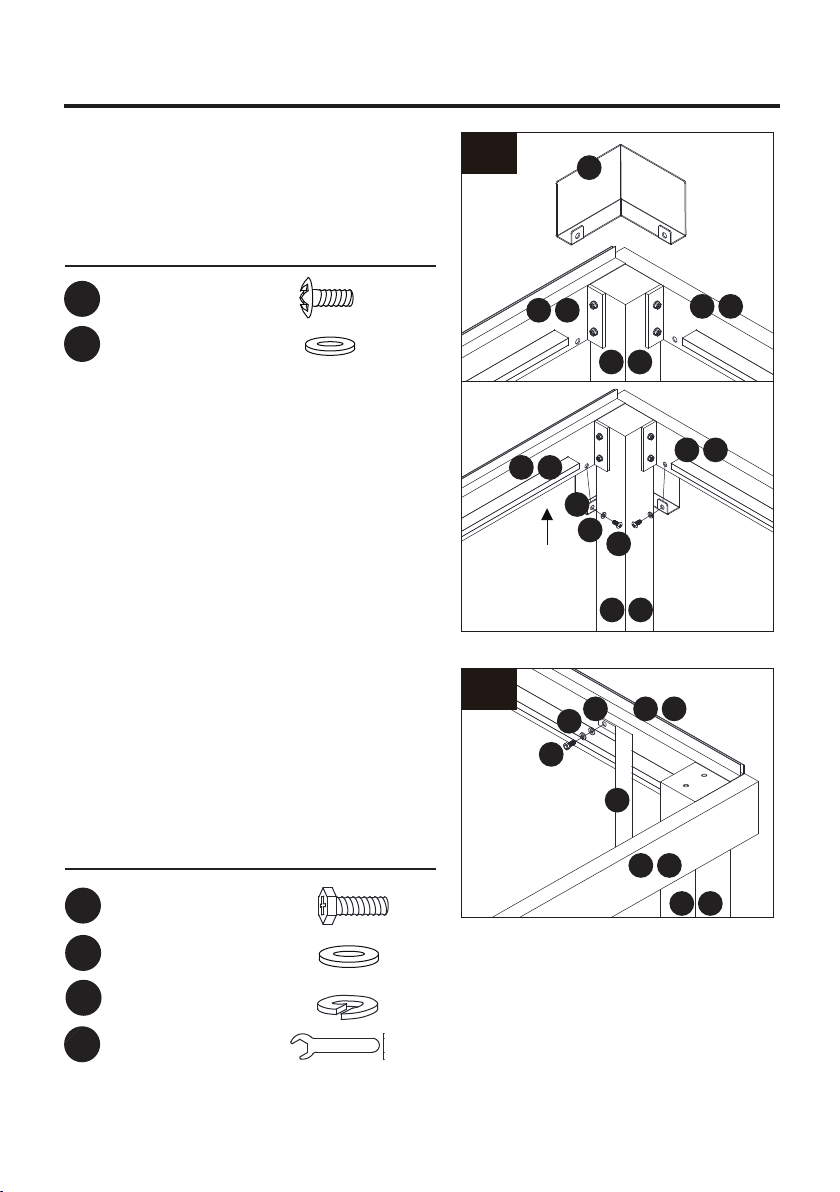

6. Attach rear beams 1/2 (B3/B4) to posts
3/4 (A3/A4) using bolts (DD), flat washers
(BB) and spring washers (EE). Tighten
with wrench (Z).
6
A3 A4
Hardware Used B3 B4
DDBB
EE
DD x 4
M6 x 25 Bolt
BB
EE
x 4
x 4
M6 Flat Washer
M6 Spring Washer
7-1. Connect rear beam 1 (C1) to rear beam
2(C2) with beam connector 1 (H1) using
bolts (DD/FF), flat washers (BB) and
spring washers (EE). Tighten with
wrench (Z).
7-1
H1
Hardware Used
C2
C1
BB
EE
FF
BB
EE DD
DD
FF
x 6
x 4
M6 x 25 Bolt
M6 x 25 Bolt
BB
EE
x 10
x 10
M6 Flat Washer
M6 Spring Washer
ZW6 Wrench x 1
W
x 1M6 Socket Head
Wrench
ZW6 Wrench x 1

11
ASSEMBLY INSTRUCTIONS
7-2. Attach rear beams 1/2 (C1/C2) to
posts 1/2 (A1/A2) using bolts (CC), flat
washers (BB) and spring washers (EE).
Tighten with wrench (Z).
7-2

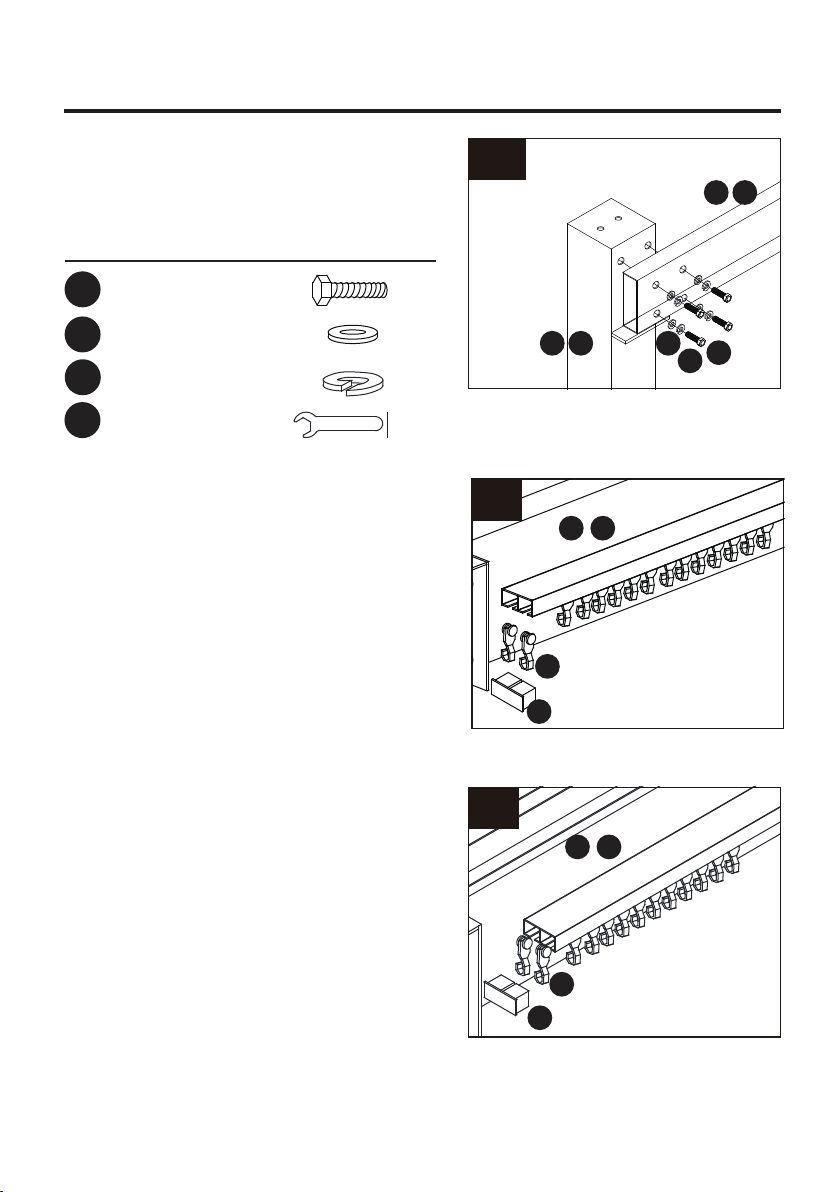

8-1. Insert 7 hooks (LL) into the front beams
1/2 (B3/B4) as shown, then attach
plastic caps (MM) to one end of each
front beams 1/2 (B3/B4).
A2 A1
C1 C2
BB CC
Hardware Used
x 8
x 8
EE
x 8
CC M6 x40 Bolt BB
M6 Flat Washer EE
M6 Spring Washer
W6 Wrench x 1
8-2
8-2. Insert 12 hooks (LL) into the side
beams 1/2 (D1/D2) as shown, then
attach plastic caps (MM) to one end
of each side beams 1/2 (D1/D2).
MM
LL
8-1
B3 B4
MM
LL
D1 D2
BB
EE
Z

12
ASSEMBLY INSTRUCTIONS

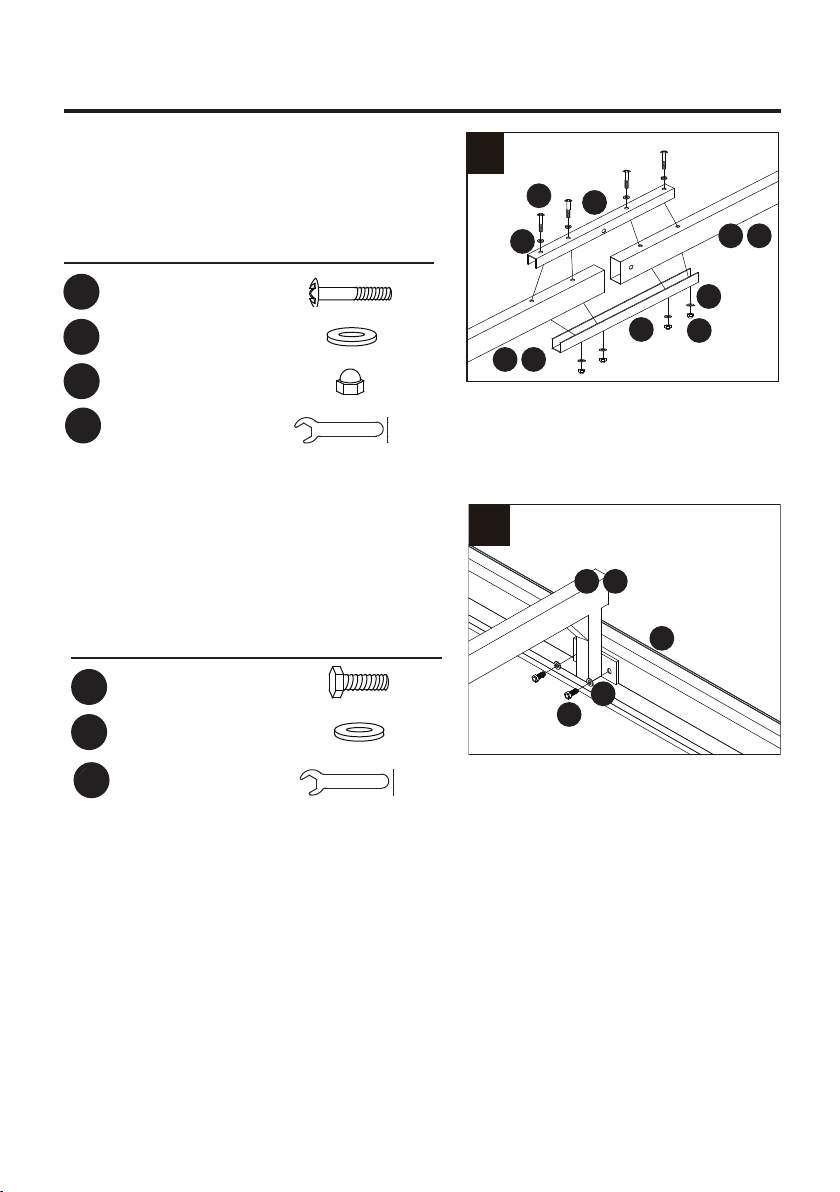

9. Connect support beams 1/2/3/4 (F1/F2/
F3/F4) with beam connector 2/3 (H2/H3)
using bolts (II), flat washers (BB) and nuts
(JJ). Tighten with wrench (Z).
10. Attach support beams 2/4 (F2/F4) to side
beam 2 (D2) using bolts (DD) and flat
washers (BB). Repeat this step to attach
support beams 1/3 (F1/F3) to side
beam 1 (D1). Tighten with wrench (Z).
10
9
F1 F3
BB
JJ
H2
F2 F4
H3
BB
II
F2 F4
D2
BB
DD
Hardware Used
x 8
x 16
II M6 x65 Bolt BB
M6 Flat Washer JJ
M6 Nut x 8
Hardware Used
DD M6 x25 Bolt
BB M6 Flat Washer
x 8
x 8
W6 Wrench x 1
ZW6 Wrench x 1
BB
JJ
Z
BB

A3 A4
B3 B4
K
D1 D2BB
DD
EE

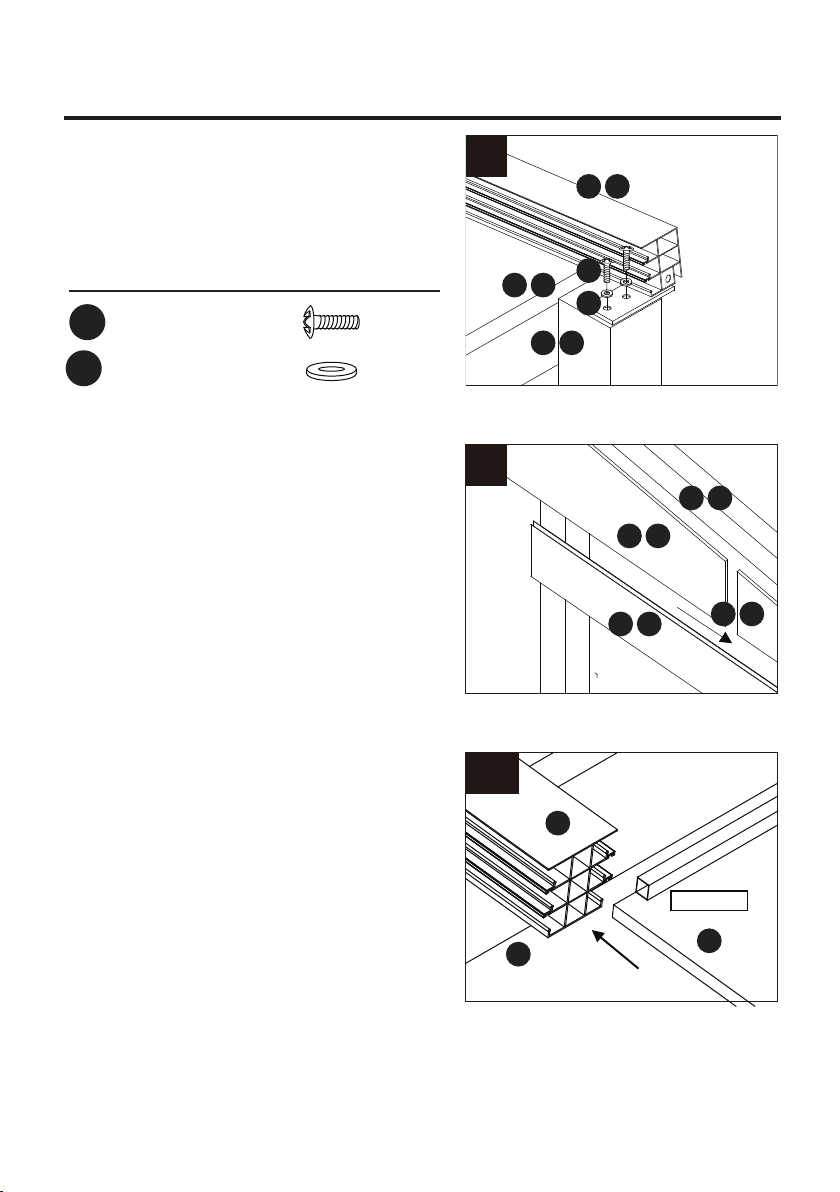

11-1. Attach decorative sheet (J3) to side
beams 1/2 (D1/D2) and front beams
1/2 (B3/B4) using bolts (AA) and flat
washers (BB).
11-1
ASSEMBLY INSTRUCTIONS
13
Hardware Used
AA M6 x15 Bolt
BB M6 Flat Washer
x 4
x 4
J3
B3 B4
B3 B4
D1 D2
D1 D2
A3 A4
A3 A4
J3
BB AA
11-2. Attach support bar (K) to side beam 1
(D1) and front beam 1 (B3) using bolts
(DD), flat washers (BB) and spring
washers (EE). Repeat this step to
attach support bar (K) to side beam 2
(D2) and front beam 2 (B4). Tighten
with wrench (Z).
11-2
Hardware Used
DD x 4
M6 x 25 bolt
BB
EE
x 4
x 4
M6 Flat Washer
M6 Spring Washer
ZW6 Wrench x 1
BB

E1
BB
DD
C1 C2
14
ASSEMBLY INSTRUCTIONS
12. Attach top beam (E1) to rear beams 1/2
(C1/C2) using bolts (DD) and flat
washers (BB). Repeat this step to attach
top beam (E1) to front beams 1/2
(B1/B2). Tighten with wrench (Z).
12
13. Attach top beam (E1) to support beams
1/2/3/4 (F1/F2/F3/F4) using bolts (DD)
and flat washers (BB). Tighten with
wrench (Z).
Hardware Used
DD
M6 Flat Washer
BB
M6 x 20 mm Bolt x 12
x 12
13
Hardware Used
DD
M6 Flat Washer
BB
M6 x 20 mm Bolt x 6
x 6
E1
BB DD
F1 F2 F3 F4
ZW6 Wrench x 1
Z
W6 Wrench x 1

15
ASSEMBLY INSTRUCTIONS
14. Attach top side beams 2/3 (E2/E3) to
posts 1/2 (A1/A2) using bolts (FF) and
flat washers (BB). Repeat this step to
attach top side beam 2/3 (E2/E3) to
posts 3/4 (A3/A4).
15. Insert PC panels 4/6 (R4/R6) and PC
panels 5/7 (R5/R7) to side beams 1/2
(D1/D2) and top side beams 2/3 (E2/E3).
16-1. Insert PC panel 3 (R3) to the lower slot
of the top beam (E1), do not fully insert.
14
15
E2 E3
C2 C1
A1 A2
FF
BB
E2 E3
R5 R7
D1 D2 R4 R6
R3
E1
C2
Hardware Used
M6 Flat Washer
BB x 8
x 8
FF M6 x 25 Bolt
UP / OUT
16-1

R2
E1
UP / OUT
R1
R1
R2
R3
R3
E1
R2
UP / OUT
16
ASSEMBLY INSTRUCTIONS
16-3. Lock PC panel 1 (R1) to PC panel 2
(R2) and then fully insert the PC
panel 1 (R1) to the upper slot of top
beam (E1).
17. Attach decorative railings 3/4 (I3/I4) to
top beam (E1) and top side beam1/2
(E2/E3) using bolts (AA) and washers
(BB).
16-2. Lock PC panel 2 (R2) to PC panel 3
(R3) and then insert PC panel 2 (R2)
to the middle slot of top beam (E1),
do not fully insert.
16-2
16-3
17
AA
BB
I4
I3
E1 R1
Hardware Used
AA
M6 Flat Washer
BB
M6 x15 Bolt x 5
x 5

BB
AA
A2 A1
D1 D2
Q1 Q2
E2 E3
17
ASSEMBLY INSTRUCTIONS
19. Attach decorative railings 1/2 (I1/I2) to
top beam 1 (E1) and top beams 2/3
(E2/E3) using bolts (AA) and washers
(BB).
20. Attach wall mount sheets (L) to posts 1/2
(A1/A2) using bolts (DD) and washers
(BB). Tighten with wrench (Z).
20
18. Attach L-shaped brackets 1/2 (Q1/Q2) to
top side beams 1/2 (E2/E3) and side
beams 1/2 (D1/D2) using bolts (AA) and
washers (BB).
18
19
AA
BB
I2
I1
E1 R3
A1 A2
L
BB
DD
Hardware Used
AA M6 x15 Bolt BB
Flat Washer
x 4
x 4
Hardware Used
AA M6 x15 Bolt
M6 Flat Washer
x 5
x 5
Hardware Used
x 2
x 2
ZW6 Wrench x 1
BB
BB
BB M6 Flat Washer
DD M6 x 20Bolt

A1 A2
O
18
ASSEMBLY INSTRUCTIONS
22. Secure the netting (O) to the posts 1/2
(A1/A2) using the loop and hoop.
23. Secure the gazebo to the wall with wall
mount sheets (L) using bolts (GG).
23
21. Hang the netting (O) and curtain (P) to
the netting tube of front beams 1/2
(B3/B4) and side beams 1/2 (D1/D2).
21
22
B3 B4 D1 D2
O
P
A1 A2
L
GG
Hardware Used
GG x 4 M6 X 80
Expansion Bolt

19
ASSEMBLY INSTRUCTIONS
24. Secure the gazebo to the ground using
stakes (KK).
24 A1 A2 A3 A4
KK
N1 N2
M1 M2
ONE-YEAR LIMITED WARRANTY
This limited warranty is extended to the original purchaser and applies to defects in
material and workmanship of your item provided the item is maintained with care
and used only for personal, residential purposes.
The manufacturer warranty for this item, is to be free of defects in material and
workmanship for a period of one year. If any defect is found, please call our
customer service department at 1 844 786-5691 for help. The manufacturer will not
cover transportation or delivery costs or compensate the individual or any outside
party for assembling or disassembling the product. This warranty gives you certain
rights, and you may have other rights that vary from state to state.
Hardware Used
x 8
KK Φ8 x 180 Stake

20
For replacement parts, call our customer service department at 1 844 786-5691,
8 a.m. - 8 p.m., EST, Monday - Friday.
REPLACEMENT PARTS LIST
A1
B4
C1 C2
B3
A2 A3
A4
D1
D2 E1
E2 E3
F1
F2
F3 F4
R1
R2 R3
R4
R5 R6 R7
H1 H2 H3 I1
I2 I3 Q1
