Uberhaus Gazebo User manual

Model/Modèle : 38115207
10 x 10’Gazebo
Operators’ Manual (p. 2)
Abri-soleil 3 x 3 m
Guide de l'utilisateur (p.11)

WARNING!
To reduce the risk of serious injuries or damage to equipment, read all the following
safety instructions before assembling and using the gazebo.
Failure to follow these warnings may result in serious injuries or death.
•Keep all the children and pets away from the assembly area. Children and pets should be supervised while the gazebo is
being assembled.
•The assembled gazebo should be located at least 6 ft (2 m) from any obstruction such as a fences, garage, house,
overhanging branches, laundry lines, or electrical wires. Consult with your local municipal office for specific requirements.
•This product is for domestic outdoor use, i.e. for decorative and sunshade purposes only.
•Install the gazebo on level ground. Stakes are provided to secure the gazebo to the ground. Do not assemble the gazebo on
muddy, sandy, or loose soil, as stakes do not have enough anchorage in these types of soil. If you wish to secure the gazebo
to a wood deck or concrete surface, use anchors suitable for these surfaces (anchors not included).
•Some parts may contain sharp edges. Wear protective gloves if necessary during assembly.
•This unit is heavy. DO NOT assemble this item alone. Make sure there is sufficient manpower for safe assembling or moving
the gazebo.
•Check all the nuts and bolts periodically for tightness and when required, tighten them again.
•While this gazebo is manufactured to withstand winds through only the supplied ground stakes, in areas subject to frequent
severe weather, securing the gazebo to a deck, concrete patio, or footings should be considered.
•Remove accumulated water on the roof immediately, or disassemble the gazebo in order to avoid damages.
•Snow must be cleared off regularly during snowy days. Remove the snow at the top when it is thicker than 4'' (10 cm). In
order to avoid damages, use a plastic snow rake to remove excessive snow and ice buildup from the roof and keep away
from falling debris.
•ALWAYS DISASSEMBLE the gazebo before heavy wind conditions occur, as it is a semi-permanent construction that is not
designed to withstand harsh weather, including high wind, rain, and snow.
•Please check your state and local regulations prior to purchasing. Some jurisdictions may require permits for installation and
use. Some special procedures may be valid in your area.
CAUTION:
• DO NOT use or enter the gazebo under harsh weather (e.g. thunderstorms, high winds, hail, heavy snow, etc.). In these
conditions, it might tip over and cause serious injuries to bystanders. Any damage or injury caused by these conditions is not
covered by the warranty.
• DO NOT install the gazebo adjacent to trees or a sloped roof. Snow and ice may slide onto the gazebo and cause it to
collapse.
• DO NOT use or enter the gazebo if any of the following conditions, or similar ones, occur:
1. Visible movement of support members, roofing panels, or sagging roofline.
2. Creaks or audible noise from the gazebo.
3. Cracks, fractures, or malformation of support member or roof panels.
4. Damaged or missing fasteners.
• DO NOT hang any weights on the roof frame.
• DO NOT use ladder leaning against the gazebo or climbing onto the roof.
•Keep away from heat or flame source.
• If the gazebo will not be used for a long period of time (e.g. during winter time), disassemble and store it in a clean, dry
environment.

PREPARATION:
Required for assembly:
Before beginning the assembly of the product, make sure all the parts are present. Compare parts with
the package and hardware contents lists.
If any part is missing or damaged, do not attempt to assemble the product.
Four people or more are necessary to assemble or move the product. Estimated assembly time: 90 - 120
minutes.
CARE AND MAINTENANCE:
• Our steel components for gazebo and garden accessories are treated with rust-inhibiting paint that
protects them from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur if
these protective coatings are scratched. This is not a defect and thus not covered by the warranty.
To minimize this condition, we recommend care when assembling and handling the product to prevent
scratching the paint. Should any scratch or damage occur, we recommend immediate touch-ups with rust-
inhibiting paint. Surface rust can also be easily removed with a very light application of regular cooking oil.
If surface oxidation (rusting) occurs and no measure is taken to prevent this, the oxidation may start
dripping onto the deck or patio and cause damaging stains, which may be difficult to remove. This can be
prevented if the above-mentioned measures are taken to keep the product from oxidizing.
• Do not use bleach, acid, or other abrasive cleaners on the roof or frame parts.
• Keep the user manual for future reference.
• Keep the original packaging to store the gazebo.

Description
Part
Quantity
Post
A
4
Base cover
B
4
Base
C
4
Triangle
support
D
8
Decorative
railing 1
E1
4
Decorative
railing 2
E2
4
Corner
support
F
4
Slanting bar
connector
G
(pre-assembled
to part A)
4
Top bar
connector
H
4
Mosquito net
bar
I
8
Top connector
J
1
Slanted beam
K1
4
Middle beam
K2
4
Top short
beam 1
L1
4
Top short
beam 2
L2
4
Top middle
beam 1
M1
4
Top middle
beam 2
M2
4
Top long beam
1
N1
4
Top long beam
2
N2
4
Big top cover
O
1
Hook
P
1
Roof panel 1
Q1
4
Roof panel 2
Q2
4

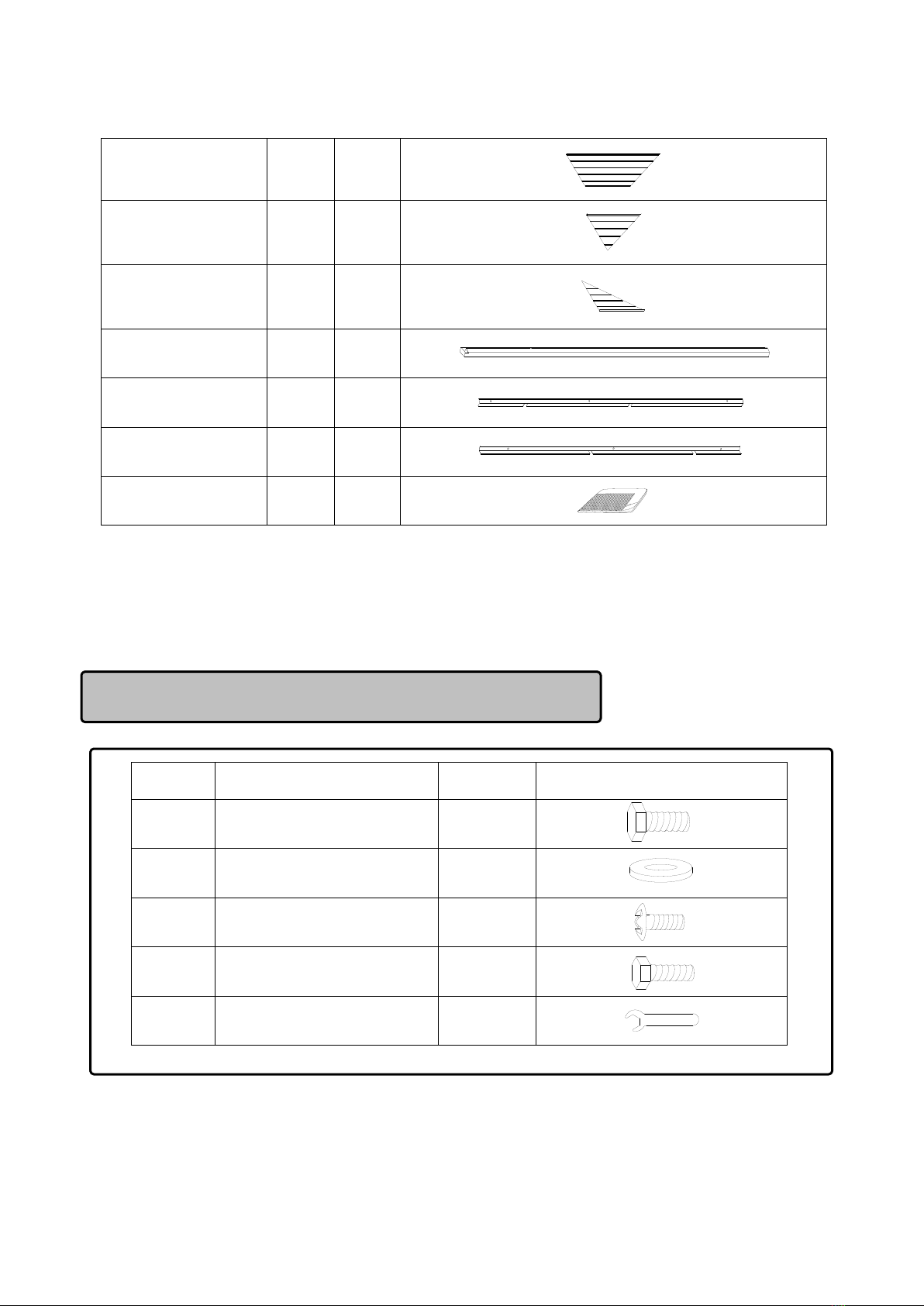

Parts List

Roof panel 3
Q3
4
Roof panel 4
Q4
4
Roof panel 5
Q5
4
Cover bar 1
R
4
Cover bar 2
S1
4
Cover bar 3
S2
4
Mosquito net
T
1
Part
Description
Quantity
AA
M6X20 bolt
68
BB
M6 washer
108
FF
M6X15 screw
8
HH
M6X35 bolt
32
Z
M6 wrench
2
Hardware Pack 1

SUN SHELTER ASSEMBLY INSTRUCTIONS
Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start
to finish.
All that is required is a screwdriver, a hammer, and two ladders of at least 8ft (2.5 m) high (not
included).
For you safety, DO NOT assemble this item alone. Four people or more are required for a
smooth and safe installation.
Item identification: For ease of identification, all the parts are labelled to correspond to the step
number in which the part is used

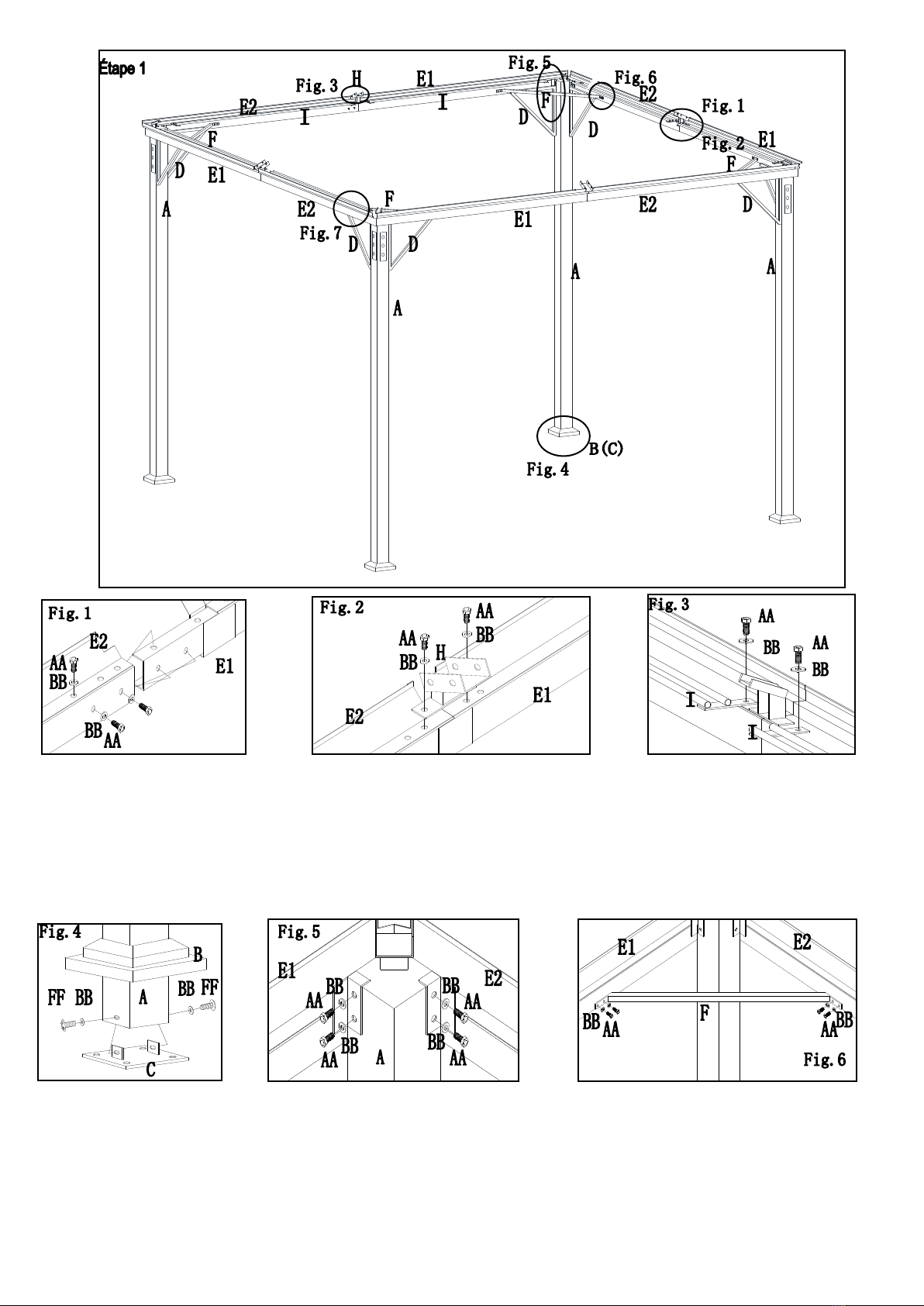

Fig. 1: Insert decorative railing 1 (E1) into decorative railing 2 (E2) and attach them with bolts (AA) and washers (BB).
Fig. 2: Attach top the bar connector (H) at the junction of decorative railing 1 (E1) and decorative railing 2 (E2) with bolts
(AA) and washers (BB).
Fig. 3: Attach the mosquito net bar (I) to assembled decorative railing 1 (E1) and decorative railing 2 (E2) with bolts (AA)
and washers (BB).
Fig. 4: Attach the base cover (B) to the post (A), then install the base (C) to the post (A) with screws (FF) and washers (BB).
Fig. 5: With some help, raise the assembled top structure onto the posts, then attach each post (A) at the corners with bolts
(AA) and washers (BB).
Fig. 6: Attach the corner support (F) to decorative railing 1 (E1) and decorative railing 2 (E2) with bolts (AA) and washers
(BB).

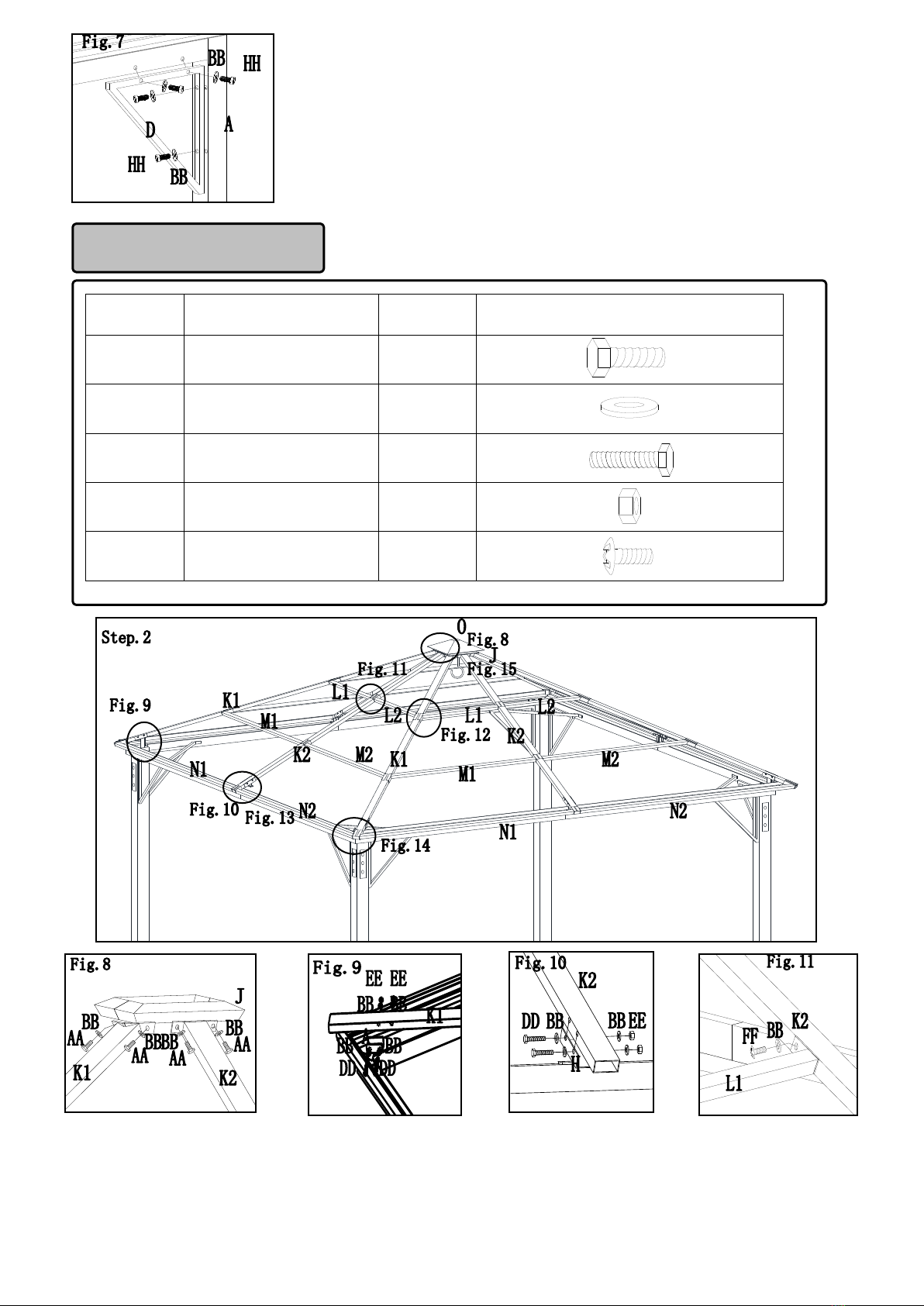

Fig. 8: Attach the slanted beam (K1) and middle beam (K2) to the top connector (J) with bolts (AA) and washers (BB).
Fig. 9: Attach the lower side of the slanted beam (K1) to the post (A) with bolts (DD), washers (BB), and nuts (EE).
Fig. 10: Attach the lower side of middle beam (K2) to top bar connector (H) with screws (DD), washers (BB) and nuts (EE).
Fig. 11: Attach the lower side of top short beam 1 / top short beam 2 (L1/L2) to the middle beam (K2) with screws (FF) and
washers (BB).
Hardware Pack 2
Part
Description
Quantity
AA
M6X20 bolt
16
BB
M6 washer
96
DD
M6X55 bolt
16
EE
M6 nut
16
FF
M6X15 screw
48
Fig. 7: Attach the triangle support (D) to each post (A)
and roof bar with bolts (HH) and washers (BB).

Part
Description
Quantity
BB
M6 washer
56
FF
M6X15 screw
48
II
M6X40 screw
8
JJ
Φ8*260mm stake
16
GG
Ring
48
Hardware pack 3
Fig. 12: Attach top short beam 1 / top short beam 2 (L1/L2) to the slanted beam (K1) with screws (FF) and washers (BB).
Then attach top middle beam 1/ top middle beam 2 (M1/M2) to the slanted beam (K1) and middle beam (K2) with screws
(FF) and washers (BB) as shown.
Fig. 13: Attach top long beam 1/ top long beam 2 (N1 /N2) to the middle beam (K2) with screws (FF) and washers (BB).
Fig. 14: Attach top long beam 1/ top long beam 2 (N1 /N2) to the slanted beam (K1) with screws (FF) and washers (BB).
Fig. 15: Place the big top cover (O) onto the top connector (J) and, then screw the hook (P) to the big top cover (O). Do not
fully tighten bolts at this stage.

Fig. 19-1 Fig. 19-2: Insert the upper side of cover bar 1 (R) into the lower side of the big top cover (O) and tighten with bolts
(II) and washers (BB). Attach the lower side of cover bar 1 (R) to the slanted beam (K1). Making sure it is tightened.
Fig. 20: Attach cover bar 2 / cover bar 3 (S1/S2) to top long beam 1 / top long beam 2 (N1 / N2) with screws (FF) and
washers (BB).
Fig. 21: Use rings (GG) to attach the mosquito net (T) to the net tube (I).
Fig. 16: Place roof panel 2 (Q2) onto roof panel 1 (Q1).
Fig. 17: Attach roof panel 1 (Q1) to the slanted beam (K1) with screws (FF) and washers (BB).
Fig. 18: Attach roof panels 2/3/4/5 (Q2/Q3/Q4/Q5) to the slanted beam (K1) with screws (FF) and washers
(BB).。
Fig. 22: Raise the base covers (B), and anchor the gazebo on the ground with stakes
(JJ).
Your gazebo is completely assembled.
