Ubiquiti EdgeSwitch 48 LITE User manual

Managed Gigabit Switch
with SFP+
Model: ES-48-Lite

Introduction
Thank you for purchasing the Ubiquiti Networks® EdgeSwitch™
Lite. This Quick Start Guide is designed to guide you through
installation and also includes warranty terms.
Package Contents
EdgeSwitch Lite
Power Cord Rack-Mount Brackets
(Qty. 2)
Bracket Screws
(M4, Qty. 8)
Managed Gigabit Switch
with SFP+
Model: ES-48-Lite
Mounting Screws
(#10-32 x 5/8", Qty. 4)
Cage Nuts
(#10-32 x 5/8", Qty. 4)
Quick Start
Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.

Installation Requirements
• Phillips screwdriver (for rack- or wall-mounting)
• Standard-sized, 19" wide rack with a minimum of 1U height
available (for rack-mounting)
• For indoor applications, use Category 5 (or above) UTP
cabling approved for indoor use.
• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the
power supply.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial-grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit: www.ubnt.com/toughcable
Note: Although the cabling can be located outdoors,
the EdgeSwitch Lite itself should be housed inside a
protective enclosure.
Hardware Overview
Front Panel LEDs
System
RJ45: Speed/Link/Act
SFP: Speed/Link/Act
SFP+: Speed/Link/Act

The LEDs on the left side of the ports are not used. The other
LEDs are described below:
LED State Status
System
White Ready for Use
Blue
Bootup in Progress
Flashing Indicates Reset to
Factory Defaults
RJ45 1-48
Speed/
Link/
Act
Off No Link
Amber
Link Established at
10/100Mbps
Flashing Indicates Activity
Green
Link Established at
1000Mbps (1Gbps)
Flashing Indicates Activity
SFP+ 1-2
Speed/
Link/
Act
Off No Link
Green Link Established at 1Gbps
Flashing Indicates Activity
White Link Established at 10Gbps
Flashing Indicates Activity
SFP 1-2
Speed/
Link/
Act
Off No Link
Green Link Established at 1Gbps
Flashing Indicates Activity

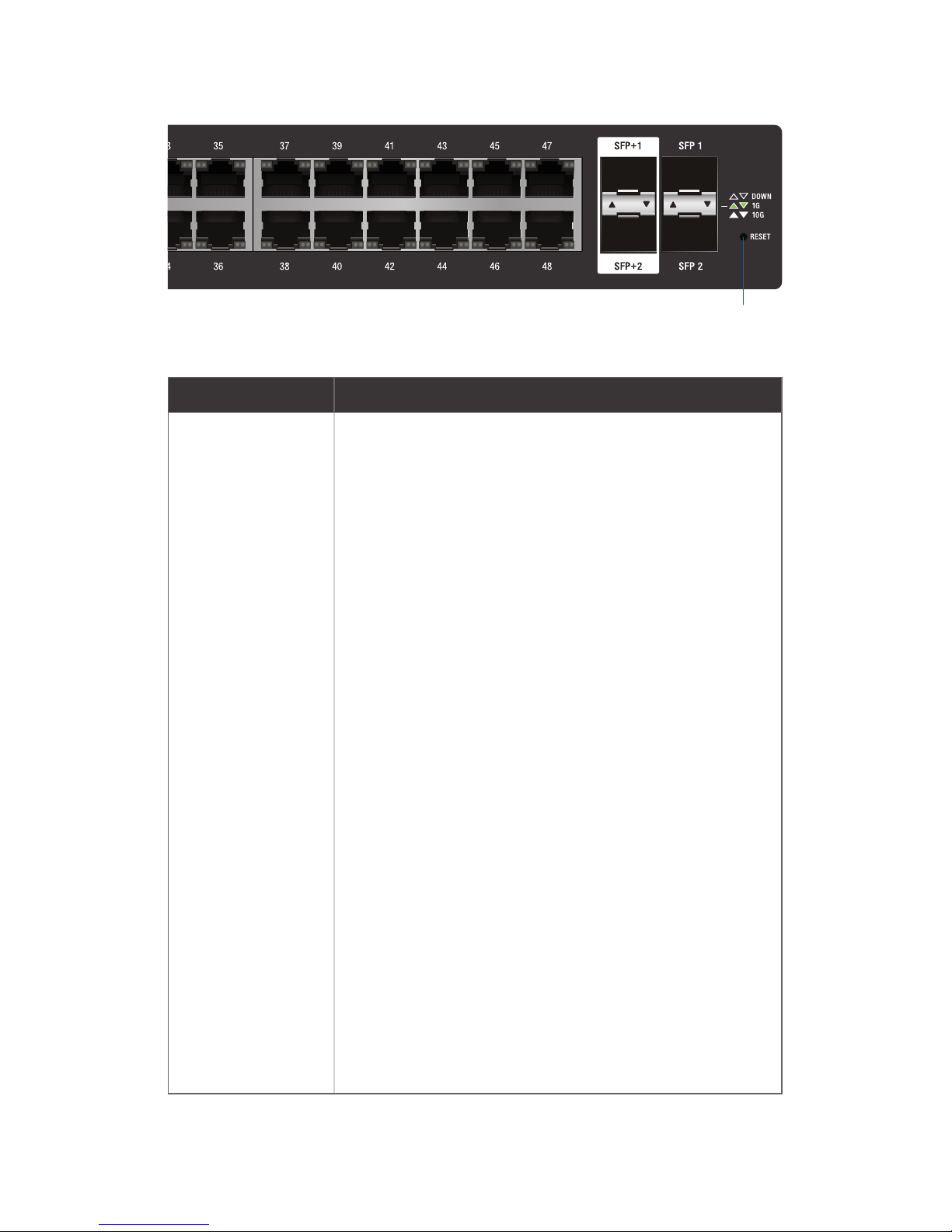

Front Panel Button
Reset
Button Description
Reset
There are two methods to reset the
EdgeSwitch Lite to factory defaults:
Runtime Reset (Recommended)
The EdgeSwitch Lite should be running
after bootup is complete, and the System
LED is white. Press and hold the Reset
button. The EdgeSwitch Lite will reboot,
and the System LED becomesblue after
three seconds. Continue to hold the Reset
button for about 15seconds until the
System LED flashes blue for two seconds.
This indicates that the EdgeSwitch Lite has
reset to its factorydefaults.
Power-on Reset
1. Disconnect the Power Cord from the
EdgeSwitch Lite.
2. While connecting the Power Cord to the
EdgeSwitch Lite, hold the Reset button
for about 15seconds until the System
LED flashes blue for two seconds. This
indicates that the EdgeSwitch Lite has
reset to its factory defaults.

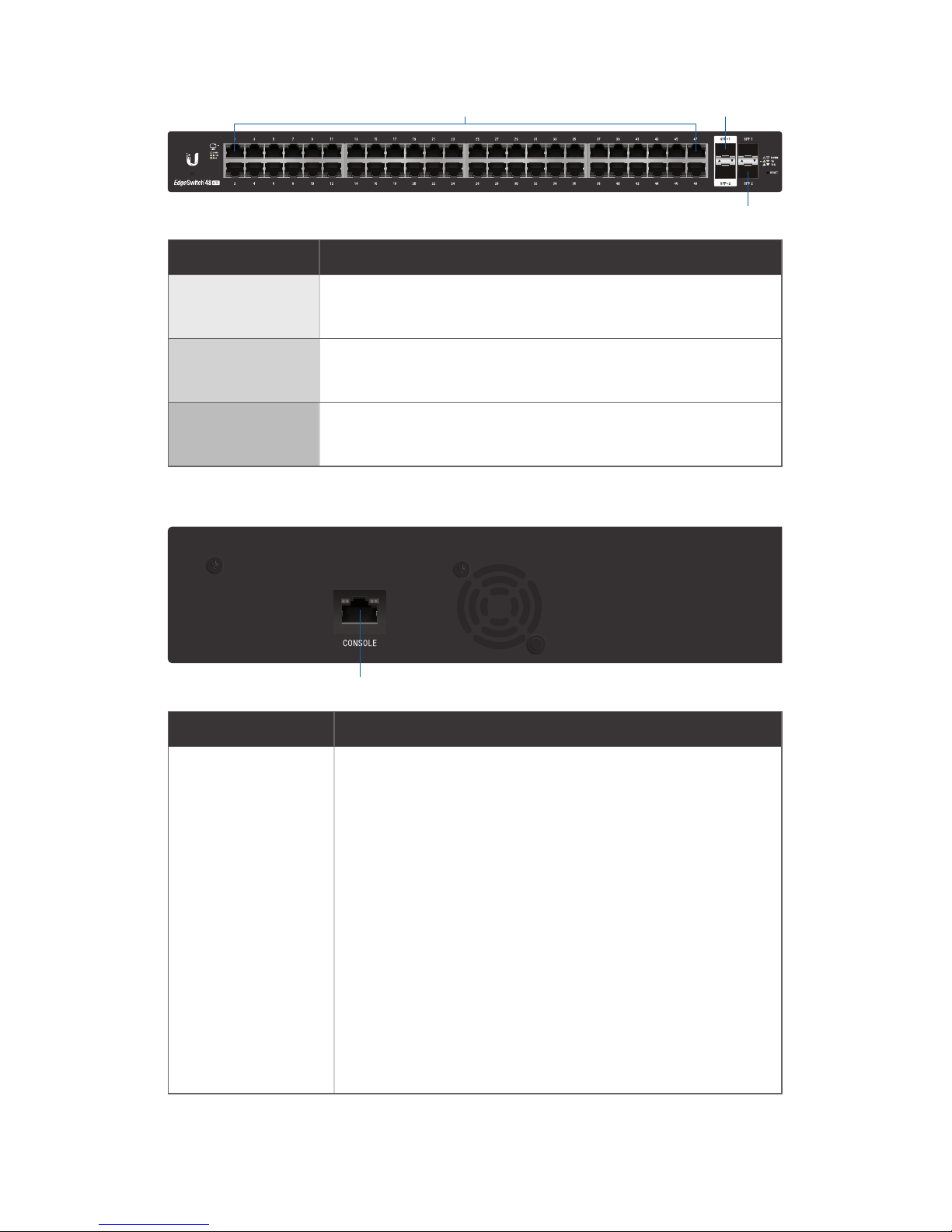

Front Panel Ports
RJ45 1-48 SFP+ 1-2
SFP 1-2
Port Description
RJ45 1-48 RJ45 ports support 10/100/1000 Ethernet
connections.
SFP+ 1-2 Hot-swappable SFP+ ports support
1/10Gbps connections.
SFP 1-2 Hot-swappable SFP ports support 1 Gbps
connections.
Back Panel Console Port
Console
Port Description
Console
RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also
known as a rollover cable, to connect
the Console port to your computer. Then
configure the following settings as needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
*640-00168-02*
640-00168-02

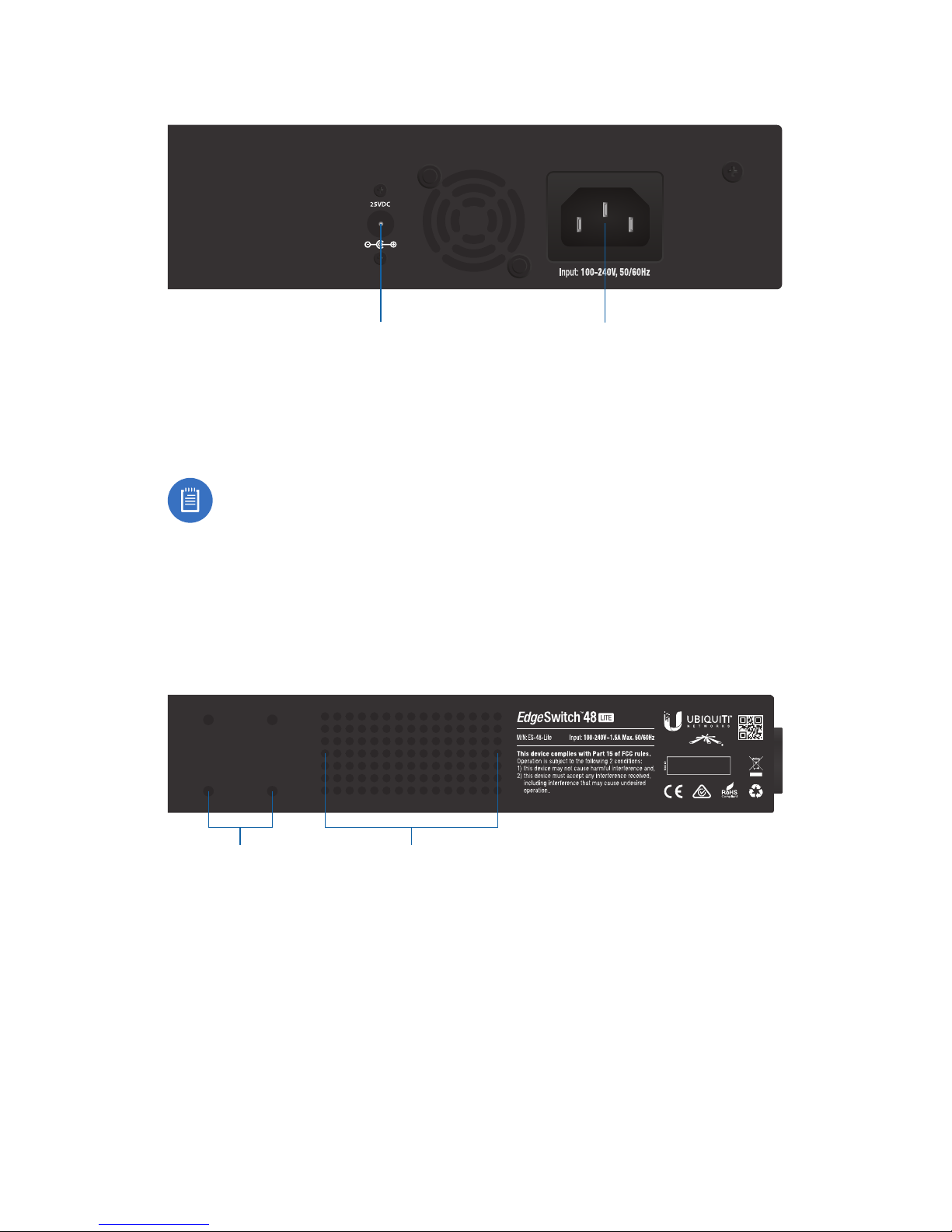

Back Panel Power
Power
DC Input
DC Input The 25VDC input can connect a redundant or
stand-alone DC power source (not included) with minimum
power: 56W, 25 to 16V, and 2.5 mm DC power inline connector.
Note: You can use the redundant DC power source as a
hot spare; if the internal AC/DC power supply no longer
provides power, then the EdgeSwitch Lite will switch to
the DC power source without interrupting its operation.
Power Connect the included Power Cord to the Power port.
Side Panel
Ventilation
Holes
Bracket Mounting
Holes

Hardware Installation
The EdgeSwitch Lite can be placed on a horizontal surface,
mounted on a wall, or mounted in a rack.
Note: Keep 20 mm of clearance next to the ventilation
holes for adequate airflow.

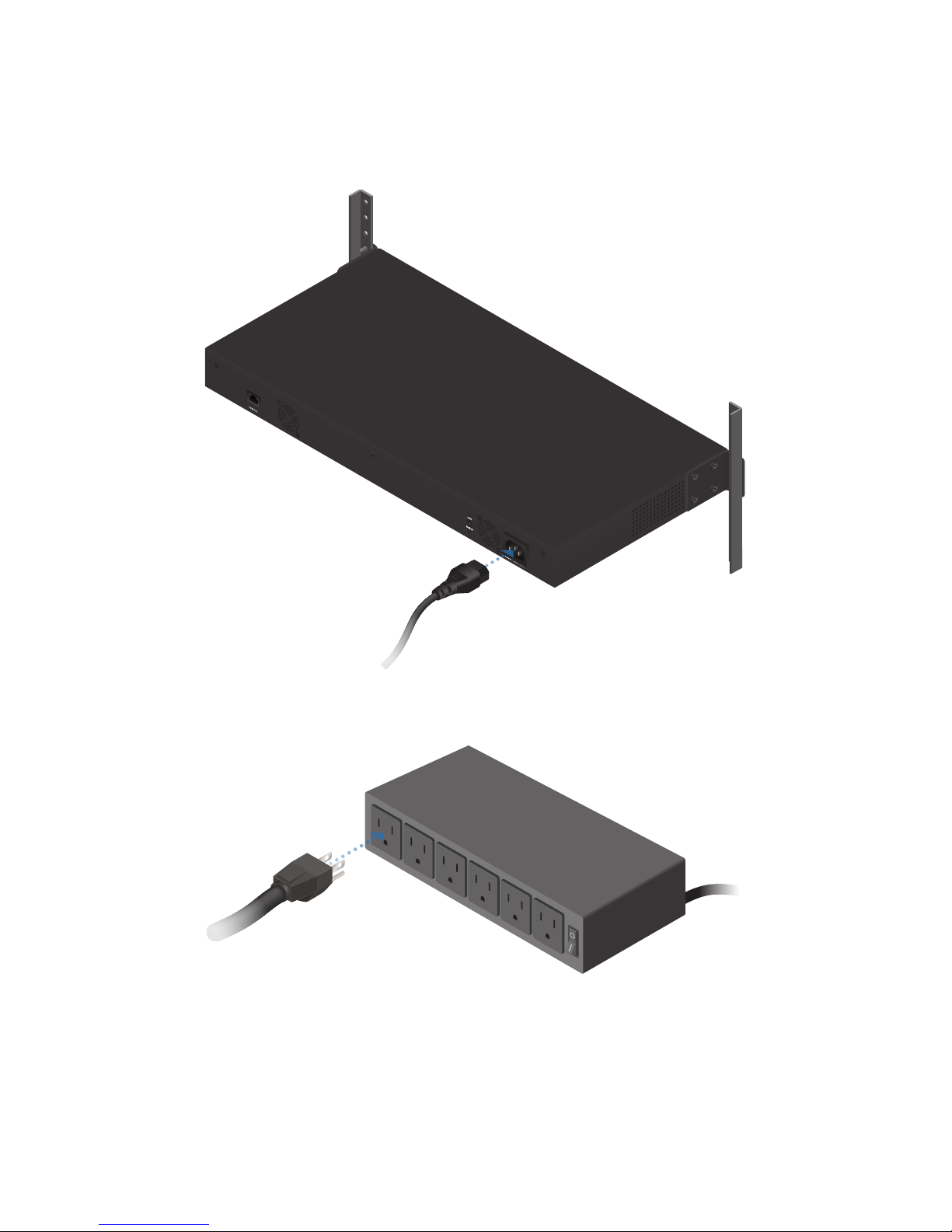

Mounting in a Rack (Optional)
1. Attach the Rack-Mount Brackets to the EdgeSwitch Lite
using the eight Bracket Screws.
2. Attach the EdgeSwitch Lite to the rack using the four
Mounting Screws. (If the rack has square slots, then use the
Cage Nuts with the Mounting Screws.)

Connecting Power
1. Connect the Power Cord to the Power port of the
EdgeSwitch Lite.
2. Connect the other end of the Power Cord to a power outlet.

Connecting Ethernet
1. Connect an Ethernet cable from your computer or host
system to any port of the EdgeSwitch Lite.
2. Connect Ethernet cables from the Ethernet ports of your

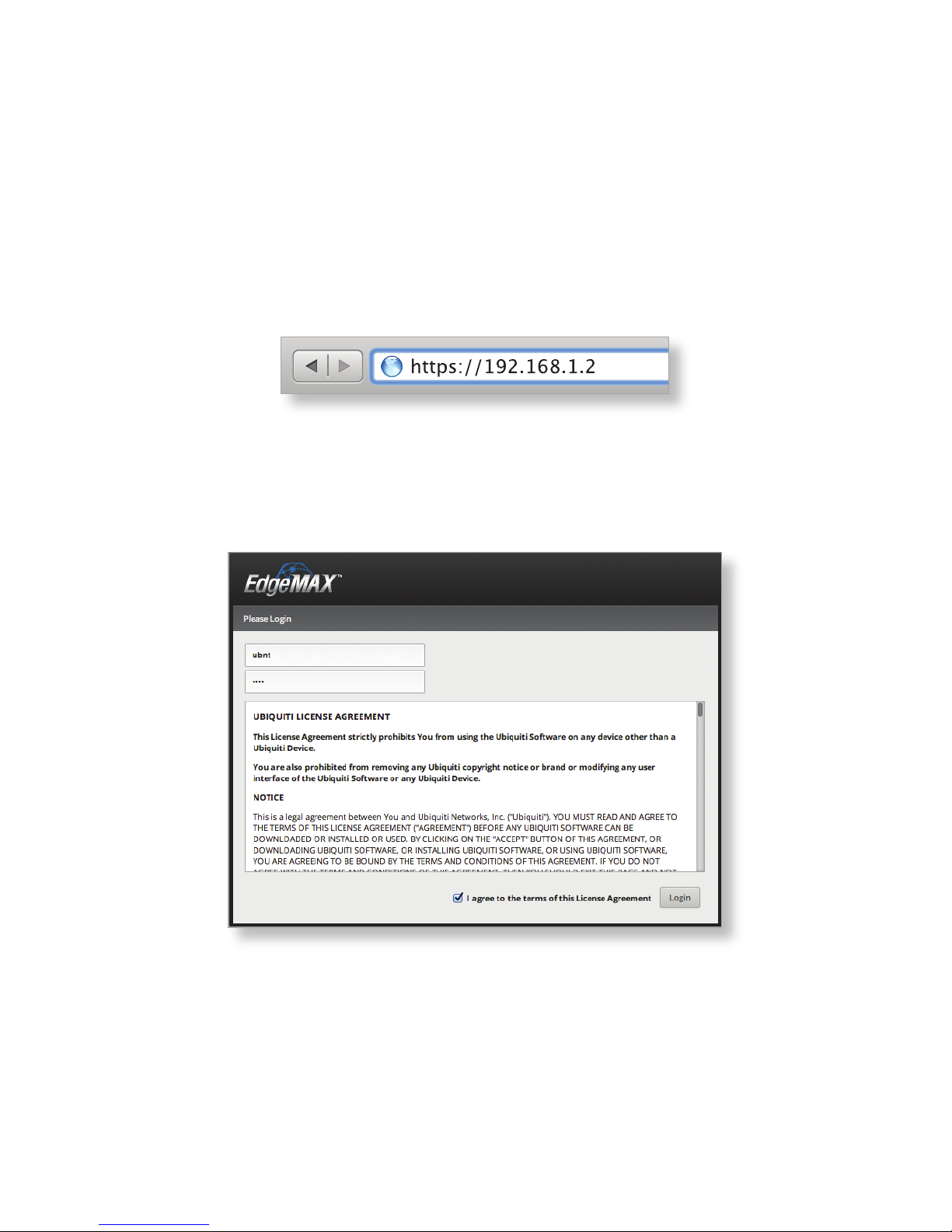

devices to the numbered ports of the EdgeSwitch Lite.
