ulrich medical neon3 CS 3921 Series Configuration guide

neon3™
universal OCT spinal stabilization
Assembly and disassembly instructions
with special cleaning instructions

2
neon3™ Assembly and disassembly instructions
This document lists all of the assembly and disassembly instructions available for the neon3system. The instruments
must be disassembled according to the manufacturer's instructions in order to guarantee the processing and storage.
The product descriptions in the component overview are listed in English according to the labeling on the instruments.
The user must ensure that the current versions of the system-related surgical technique and the "Processing
manual implants and instruments" UH 1100 are on hand and are followed. These are also available at:
www.ifu.ulrichmedical.com.
Labeling and symbols
Brush Rinse Move back and forth several
times
"Click" sound when engaged Visual inspection Instrument maintenance
Notes on assembly and
disassembly instructions

3
4
7
12
13
16
20
25
27
neon3™ Assembly and disassembly instructions
1
2
3
4
5
6
7
8
neon3™ Assembly and disassembly instructions for CS 3921-XX
neon3™ Assembly and disassembly instructions for CS 3929-XX
neon3™ Assembly and disassembly instructions for CS 3930-XX
neon3™ Assembly and disassembly instructions for CS 3932-XX
neon3™ Assembly and disassembly instructions for CS 3938-03/-04/-05
neon3™ Assembly and disassembly instructions for CS 3938-07/-08/-09
neon3™ Assembly and disassembly instructions for CS 3954-01
neon3™ Assembly and disassembly instructions for CS 3955-02
Contents

4
1
2
3
neon3™ Assembly and disassembly instructions
1
neon3™
Assembly and disassembly instructions
for CS 3921-XX

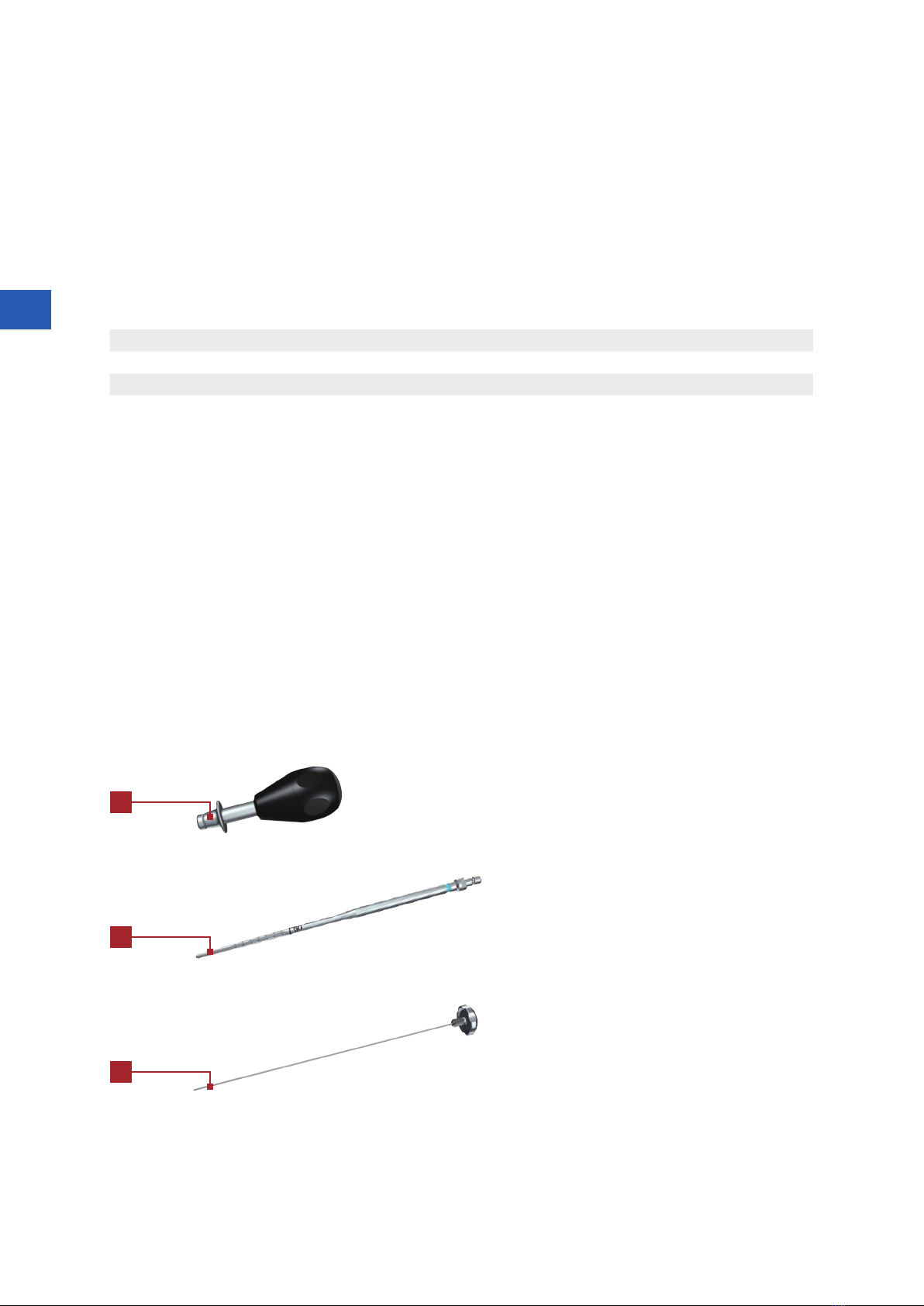

Components involved:
No. Product no. Product description
1 CS 7150 Gearshift handle, coupling B
2 CS 3921-01 Awl, cannulated, for screws Ø 4.5/5.5 mm, coupling B
3 CS 3921-02 Trocar wire for awl, thoracic

5
neon3™ Assembly and disassembly instructions
1
Assembly instructions

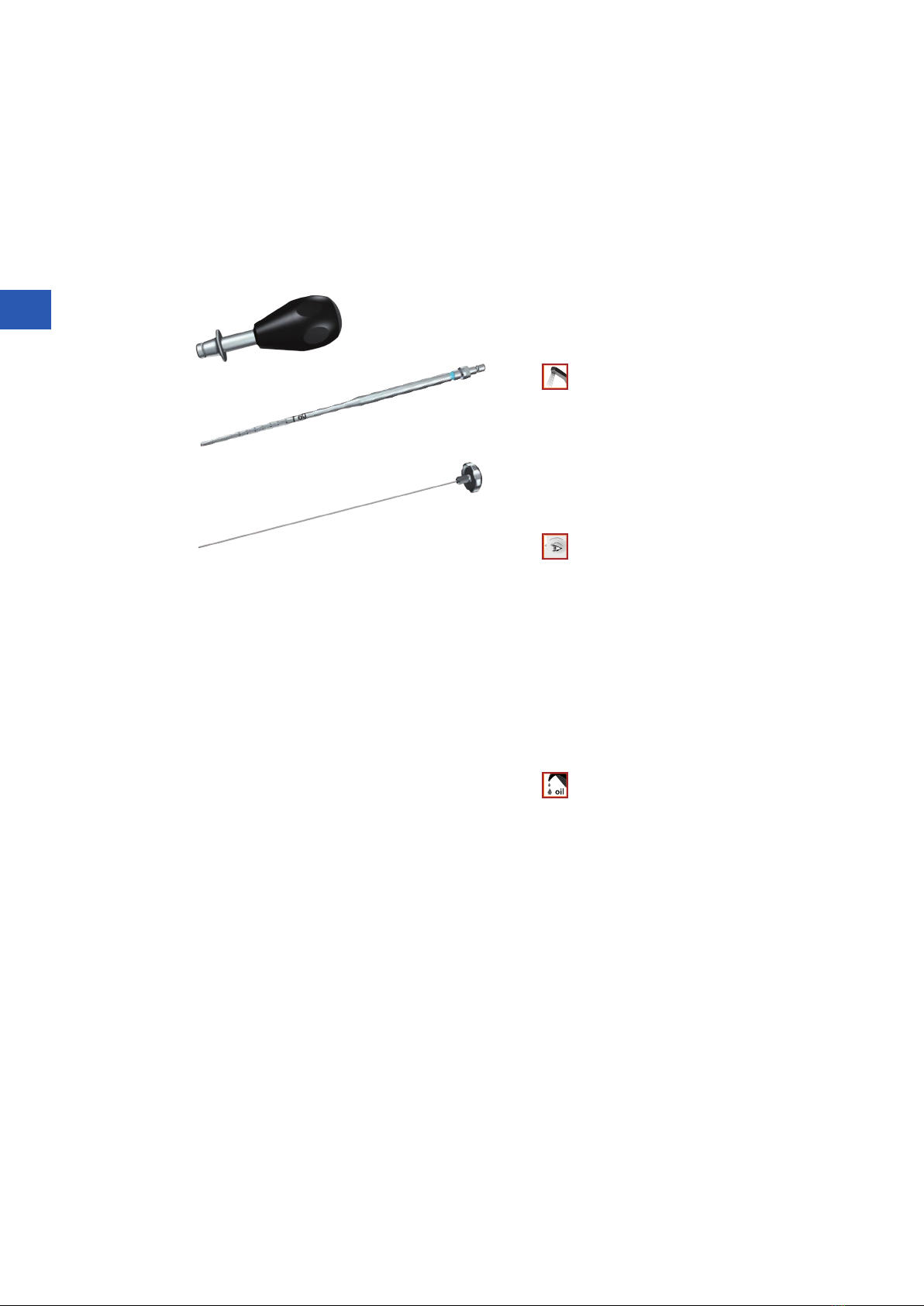

Assembly of the cannulated awl
The gearshift handle (CS 7150)
is placed on the cannulated awl
(CS 3921-01) and the trocar wire
(CS 3921-02) is screwed in. While
inserting the awl, the release on
the gearshift handle must be pulled
backwards.
Disassembly instructions
All the individual parts of the awl
with trocar wire must be disassem-
bled for cleaning and storage on
the tray.
Disassembly of the cannulated
awl
The trocar wire is unscrewed from
the awl and pulled out to the rear.
By pulling the release, the awl can
be removed from the gearshift
handle.

6
neon3™ Assembly and disassembly instructions
1

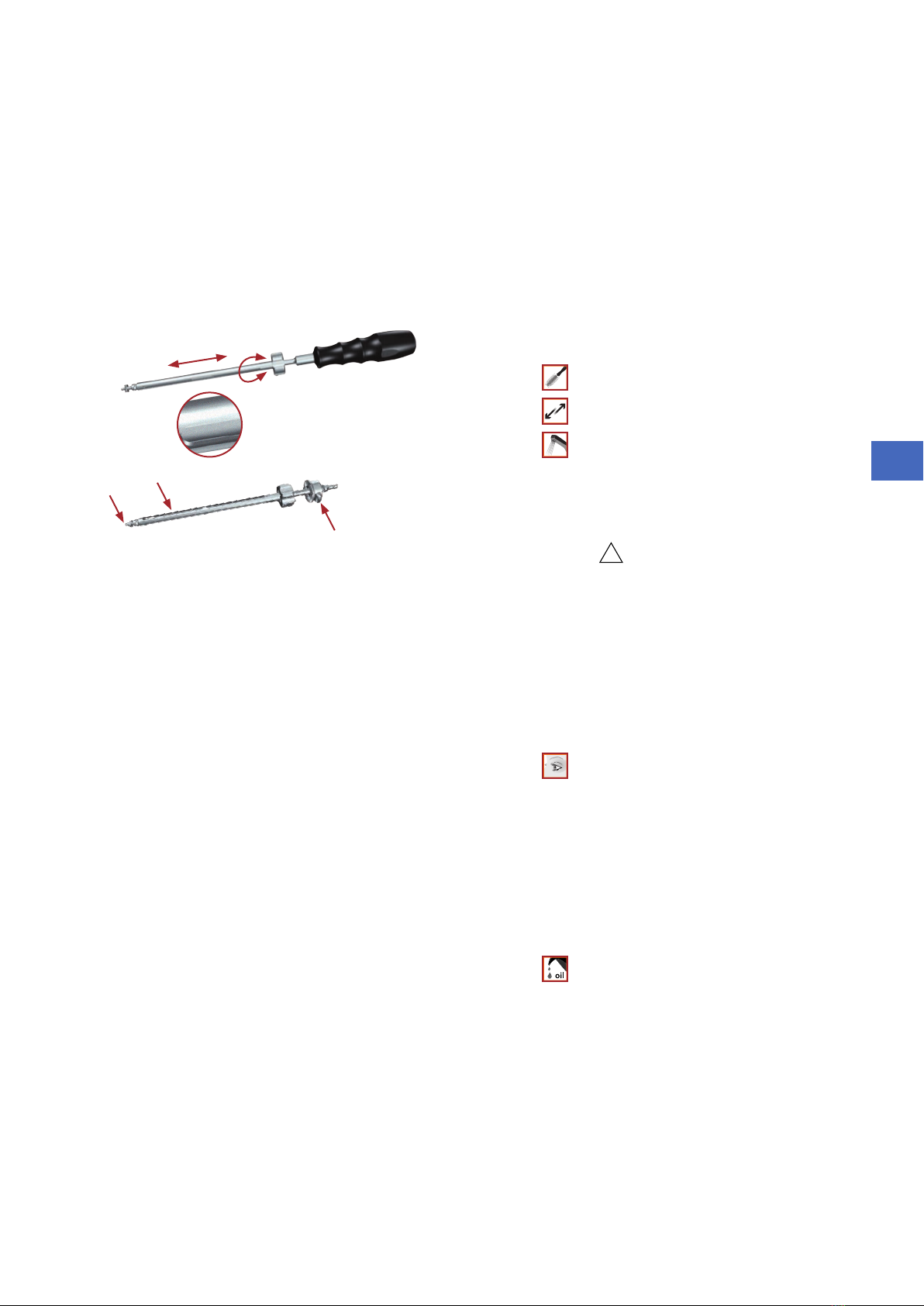

Special cleaning instructions
Manual cleaning
All lumens and cavities must be
rinsed out carefully and thoroughly.
Visual inspection
Finally, it must be checked whether
there is any visible soiling. If this is
the case, the previous steps must
be repeated.
Maintaining the awl with trocar
wire
For their maintenance, movable
parts such as joints, hinges and
threaded parts should be treated
with suitable maintenance oil.
In addition, the general cleaning
instructions of the Processing
manual implants and instruments
UH 1100 also apply.
neon3™
Assembly and disassembly instructions
for CS 3921-XX

7
4
3
1 2 8
5
7
6
neon3™ Assembly and disassembly instructions
2
Components involved:

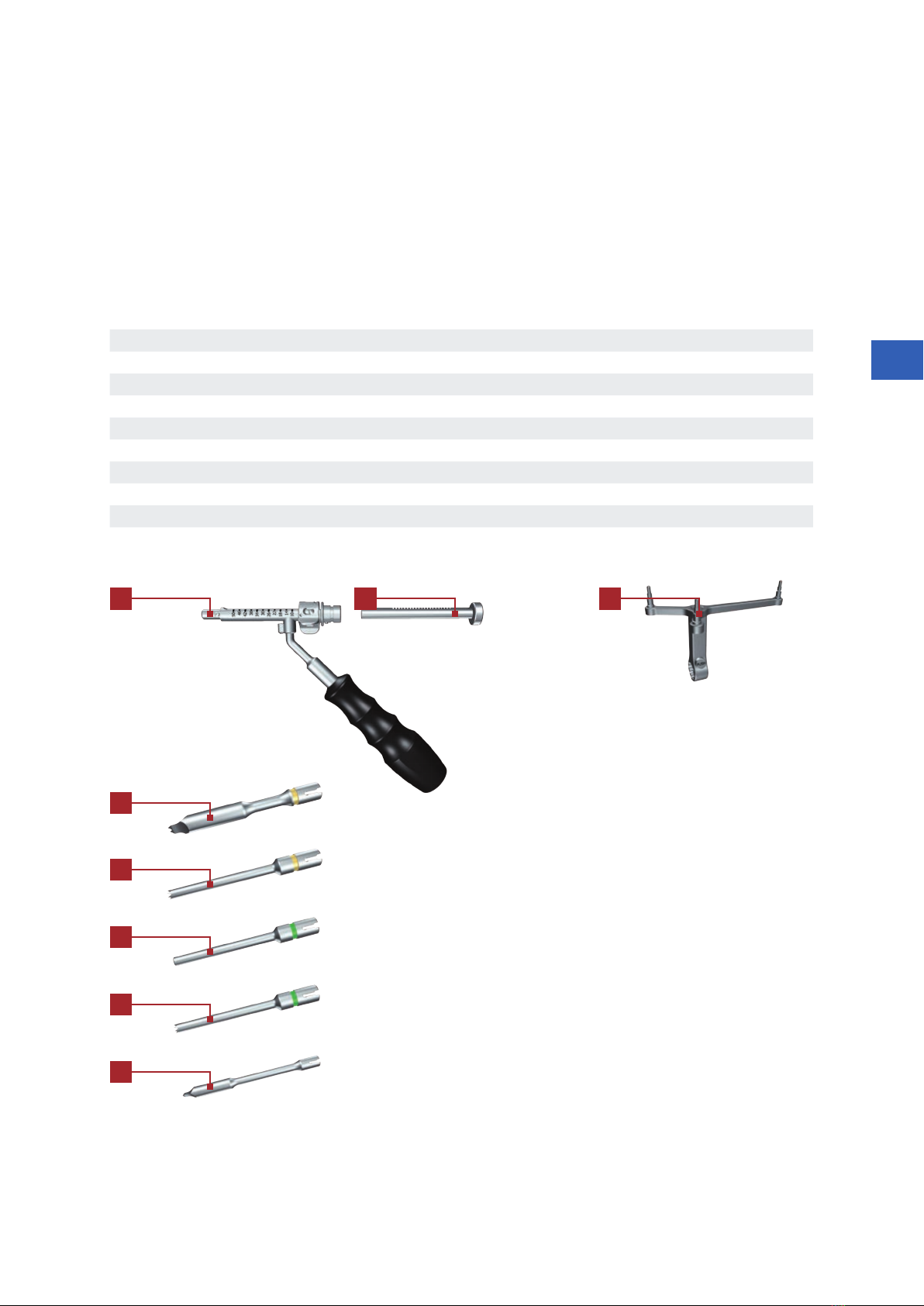

No. Product no. Product description
1 CS 3929-05 Drill guide
2 CS 3929-02 Depth stop, adjustable
3 CS 3928-04 Trocar, cannulated, for drill 2
4 CS 3927-04 Adapter for drill 2, serrated
5 CS 3926-04 Adapter for drill 1, blunt
6 CS 3926-05 Adapter for drill 1, serrated
7 CS 3923-01 Trocar, cannulated, for trocar tipped drill wire Ø 1.5 mm
8 CS 3929-06 Reference star, for use with Brainlab
neon3™
Assembly and disassembly instructions
for CS 3929-XX

8
1
2 3
neon3™ Assembly and disassembly instructions
2
neon3™
Assembly and disassembly instructions
for CS 3929-XX
Assembly instructions

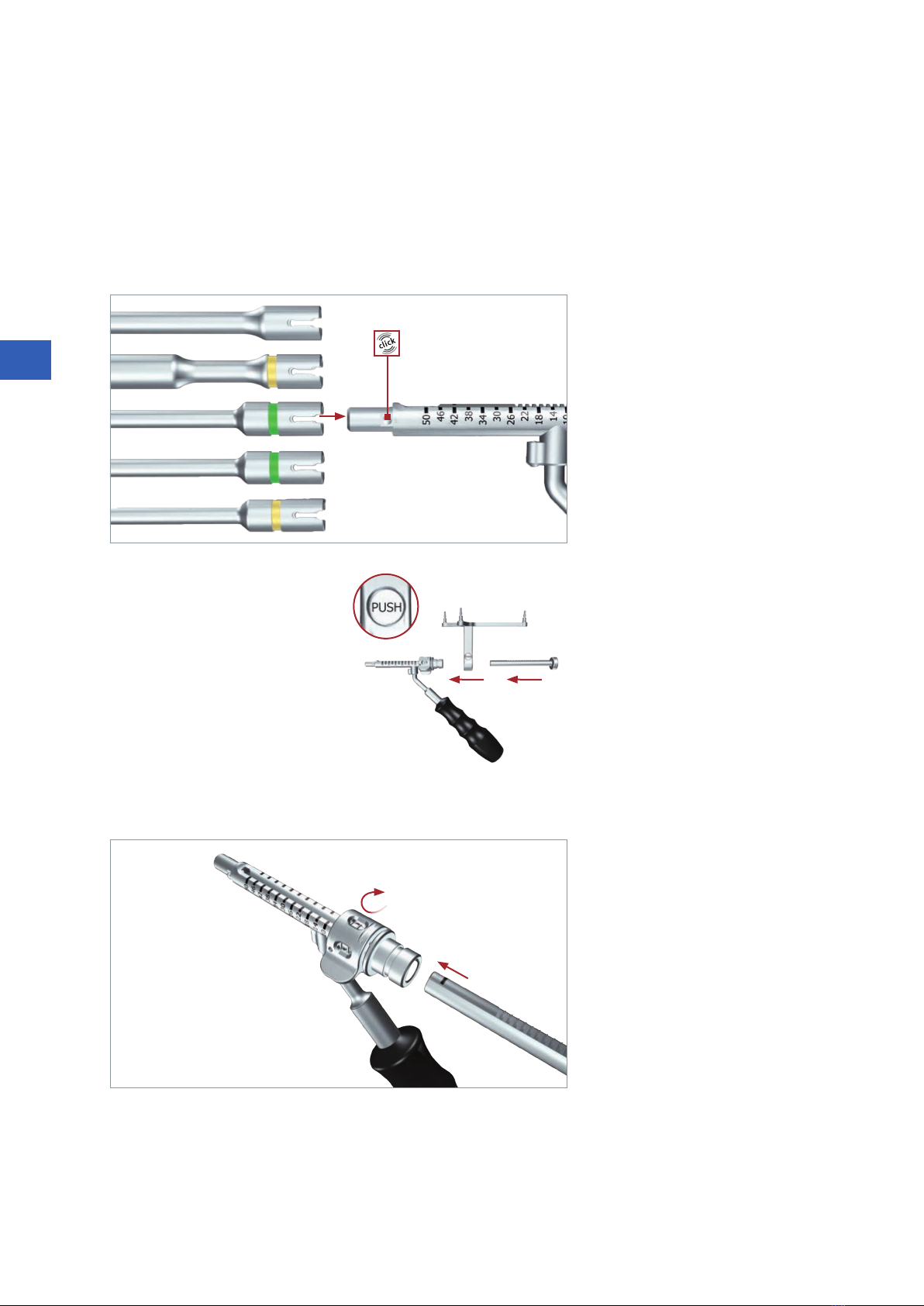

Inserting the drill attachments
onto the drill guide
The drill attachments (CS 3923-01,
CS 3928-04, CS 3926-04,
CS 3926-05, CS 3927-04) are
attached to the drill guide
(CS 3929-05) until it engages.
Attaching the reference star
The push-button on the reference
star for use with Brainlab
(CS 3929-06) must be held down
so that the reference star can
be placed onto the drill guide
(CS 3929-05).
Inserting the depth stop
The release of the drill guide
(CS 3929-05) is turned clockwise.
Then the depth stop (CS 3929-02)
can be pushed into the drill guide
(CS 3929-05).

9
1
2 3
neon3™ Assembly and disassembly instructions
2
Disassembly instructions
The drill guide must be
disassembled for cleaning and
storage on the tray.

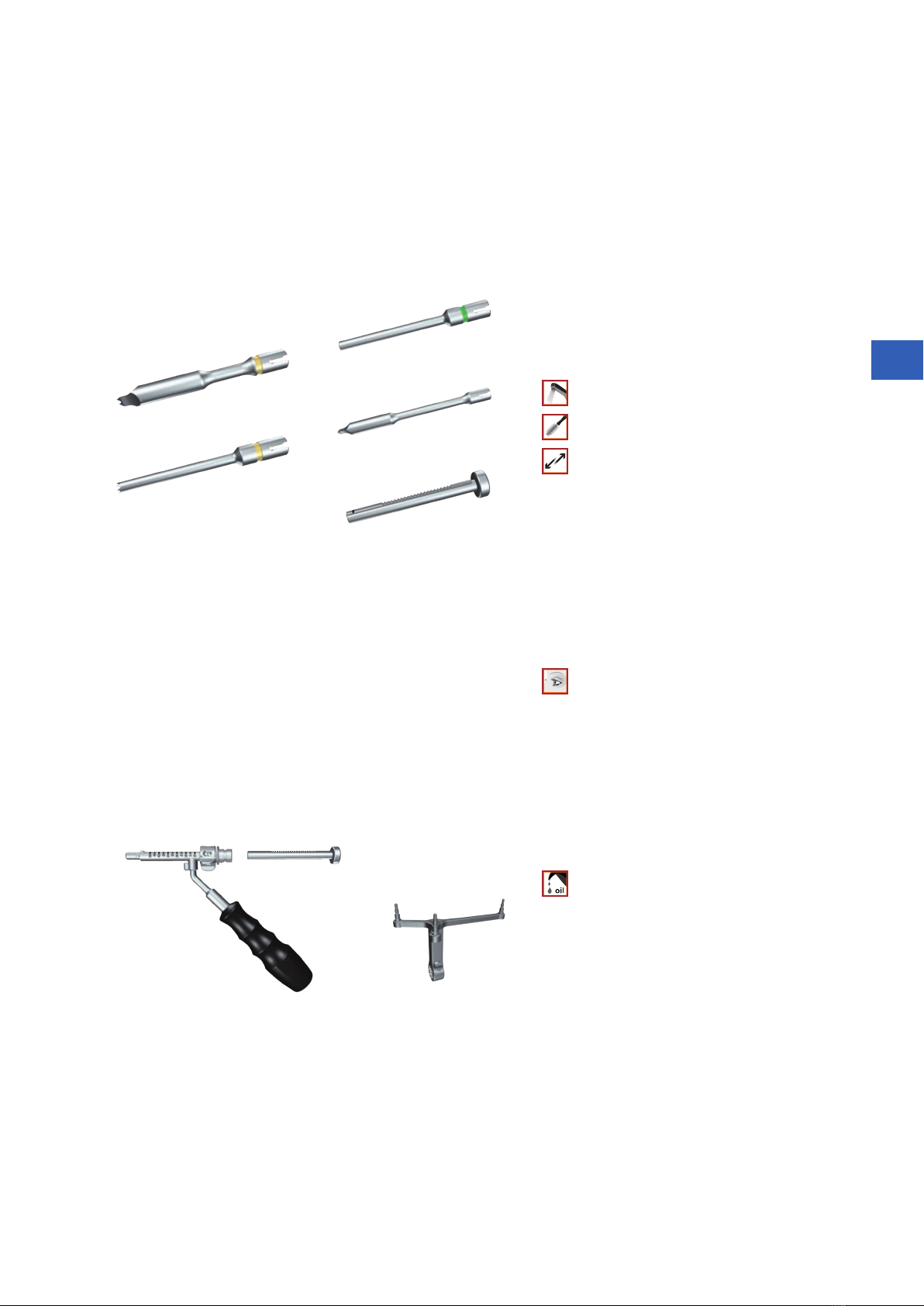

Removing the drill attachments
from the drill guide
They can be removed from the
drill guide by pulling on the drill
attachment.
Removing the depth stop
The release of the drill guide is
turned clockwise. Then the depth
stop can be pulled out of the drill
guide.
Removing the reference star
The push-button on the reference
star for use with Brainlab
(CS 3929-06) must be held down
so that the reference star can be
pulled off of the drill guide.

10
neon3™ Assembly and disassembly instructions
2

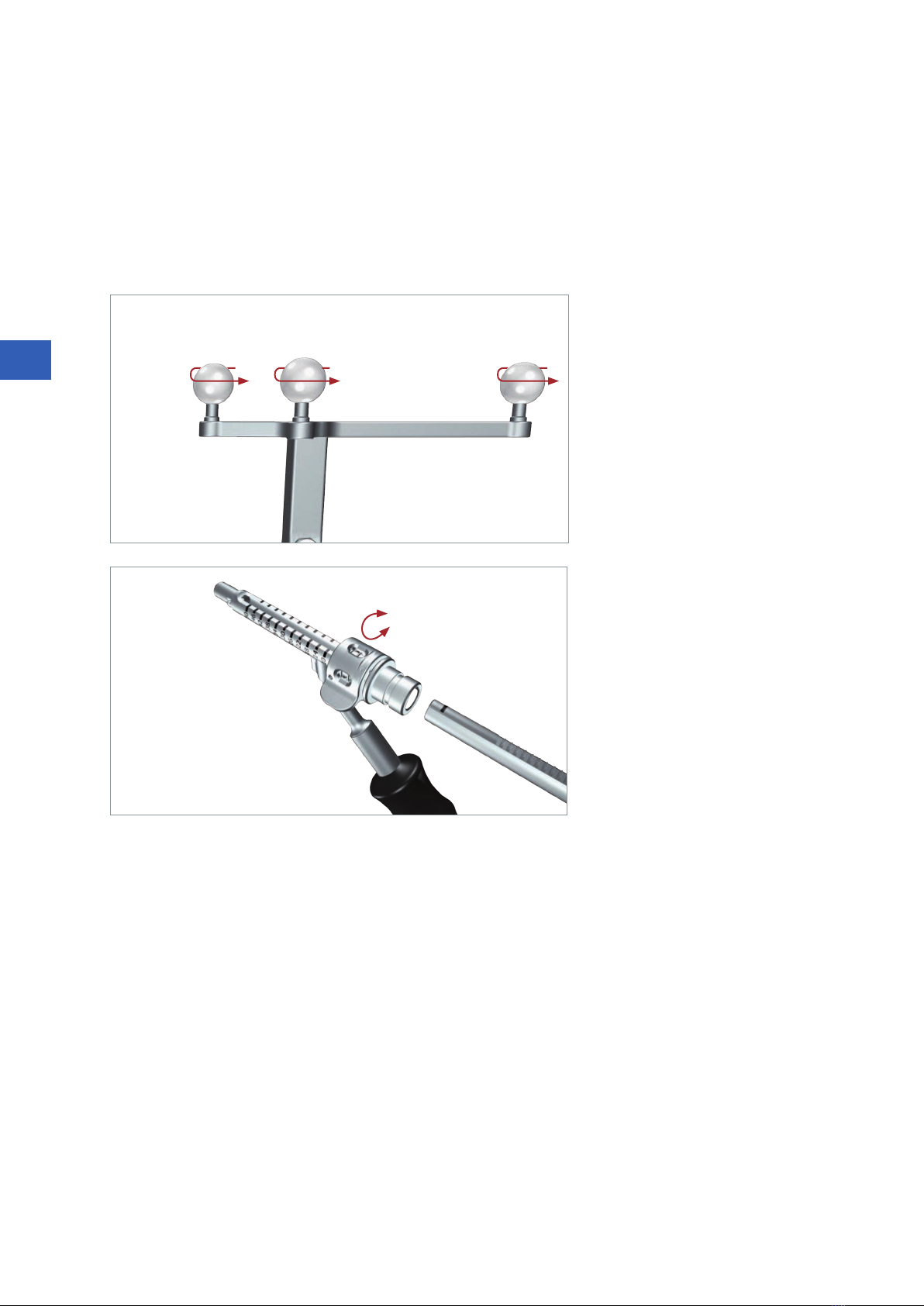

Removing the spheres from the
reference star
The spheres are single-use products
that must be unscrewed after use
and disposed of professionally.
Dismantling the drill guide
Difficult to reach parts must be pre-
cleaned manually with a brush in a
water bath. In addition, the release
should be brushed when both
opened and closed, and moved
back and forth several times. The
instrument must then be rinsed
thoroughly, to avoid any residue
from drying.
neon3™
Assembly and disassembly instructions
for CS 3929-XX

11
neon3™ Assembly and disassembly instructions
2
Special cleaning instructions
Cleaning the drill attachments
and the depth adjuster
Difficult to reach parts should be
pre-cleaned manually with a brush
in a water bath. In addition, the
cannulation should be rinsed. The
instrument must then be rinsed
thoroughly, to avoid any residue
from drying.
Visual inspection
Finally, it must be checked whether
there is any visible soiling. If this is
the case, the previous steps must
be repeated.
Components maintenance
For the maintenance of the com-
ponents, movable parts, threads,
hinges and buttons should be treat-
ed with suitable maintenance oil.
In addition, the general cleaning in-
structions of the Processing manual
implants and instruments UH 1100
also apply.

12
1
neon3™ Assembly and disassembly instructions
3
Components involved:

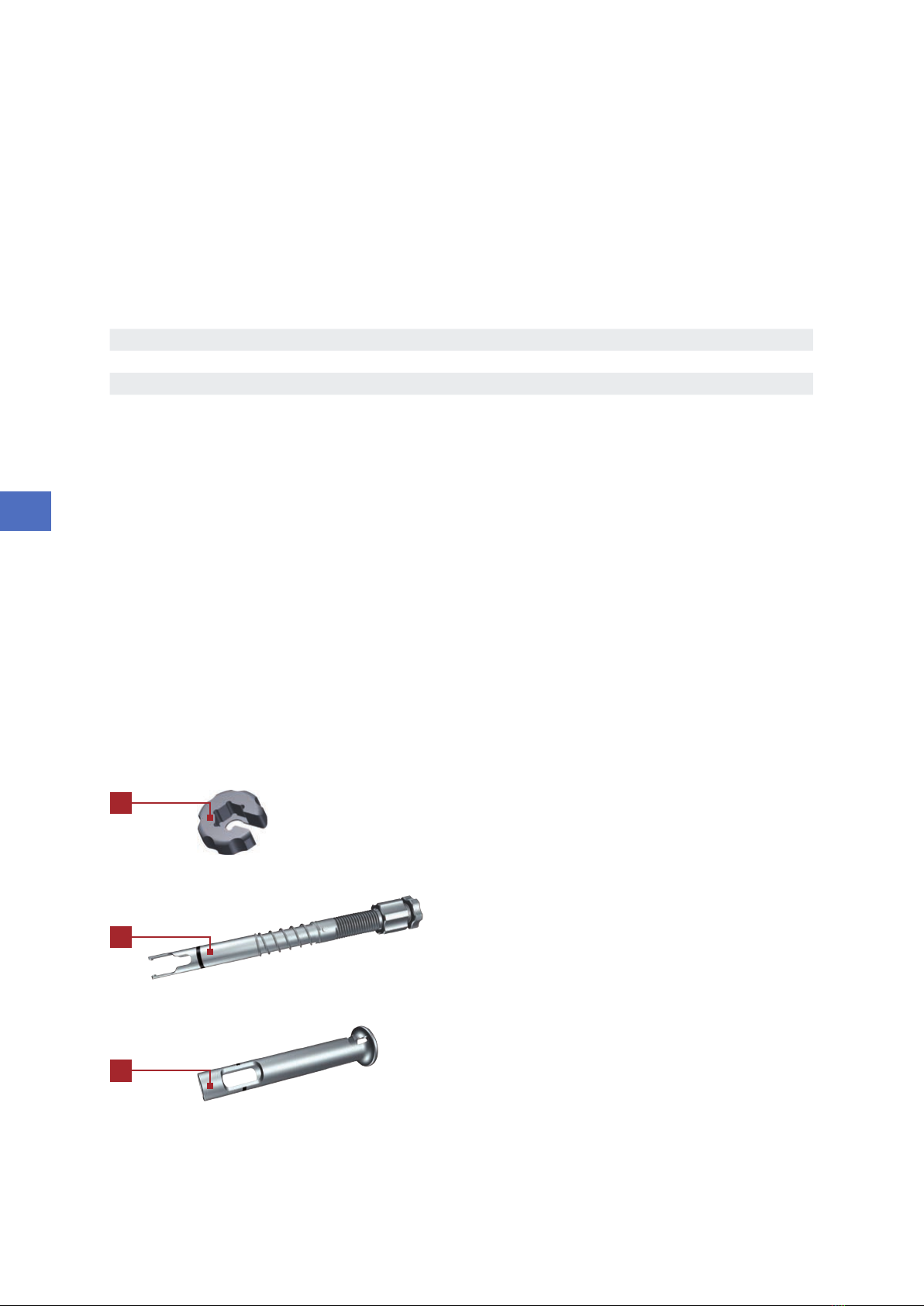

No. Product no. Product description
1 CS 3930 Depth gauge
neon3™
Assembly and disassembly instructions
for CS 3930-XX
Special cleaning instructions
Manual cleaning
Difficult to reach parts must be pre-
cleaned manually with a brush in
a water bath. The instrument must
then be rinsed thoroughly, to avoid
any residue from drying.
Visual inspection
Finally, it must be checked whether
there is any visible soiling. If this is
the case, the previous steps must
be repeated.
In addition, the general cleaning
instructions of the Processing
manual implants and instruments
UH 1100 also apply.

13
2
4
3
1
neon3™ Assembly and disassembly instructions
4
Components involved:
No. Product no. Product description

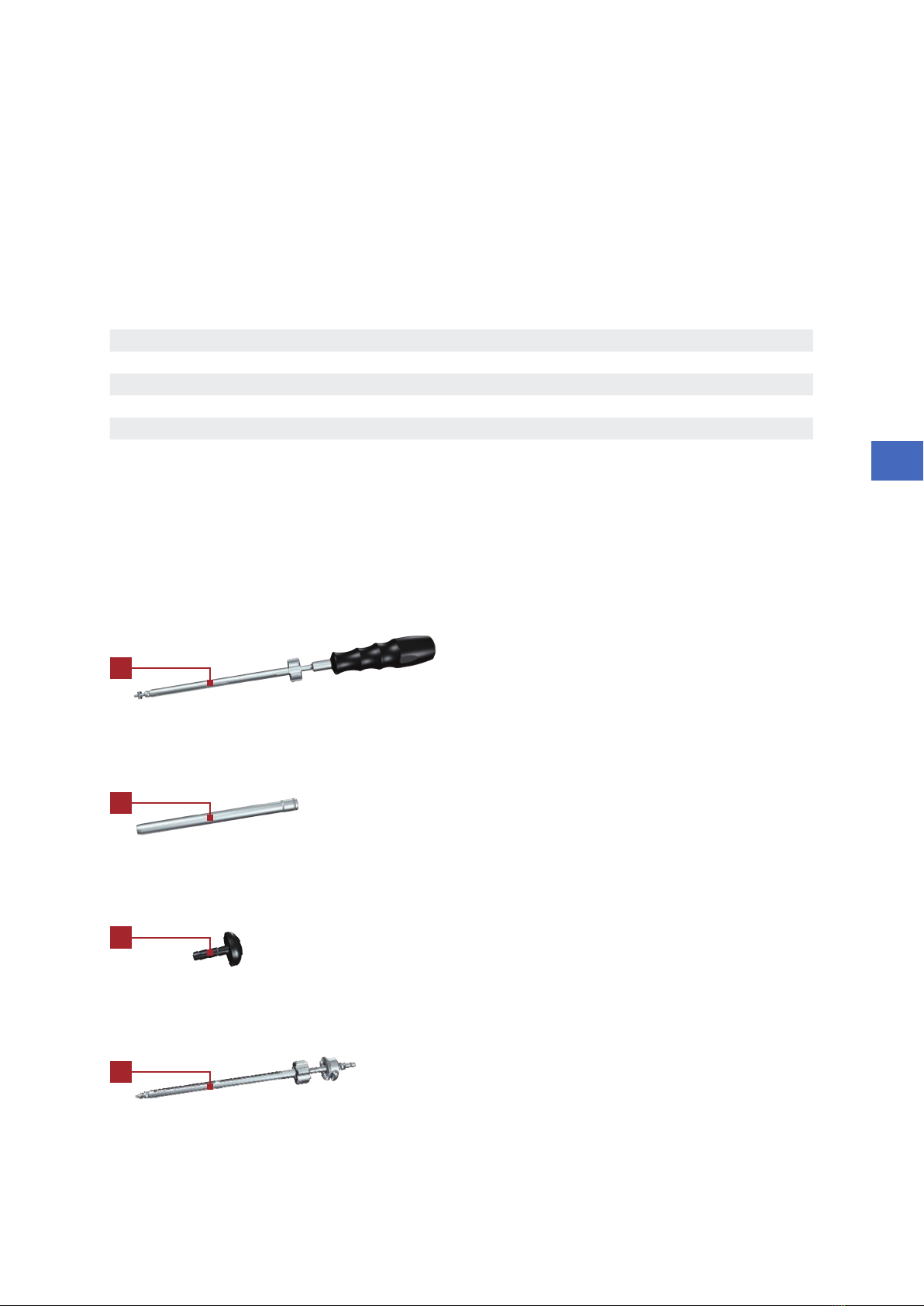

1 CS 3932-04 Screwdriver, cannulated, with SR 15
2 CS 3932-02 Sleeve for screwdriver
3 CS 3932-05 Rotating end for CS 3932-04
4 CS 3932-07 Screwdriver, cannulated, with SR 15, coupling B
neon3™
Assembly and disassembly instructions
for CS 3932-XX

14
neon3™ Assembly and disassembly instructions
4
neon3™
Assembly and disassembly instructions
for CS 3932-XX
Disassembly instructions
The screwdriver must be
disassembled for cleaning and
storage on the tray.
Removing the sleeve
By pulling on the sleeve, it can be
removed from the screwdriver.
Removing the rotating end
The rotating end is pulled off of the
handle to the rear.

15
neon3™ Assembly and disassembly instructions
4
Special cleaning instructions
Manual cleaning
Difficult to reach parts must be
pre-cleaned manually with a brush
in a water bath. The movable sleeve
and the locking mechanism with a
push-button must be moved back
and forth and brushed during the
manual cleaning in the water bath.
The instrument must then be rinsed
thoroughly, to avoid any residue
from drying.
!Important: All lumens and
cavities must be rinsed out carefully
and thoroughly.
Visual inspection
Finally, it must be checked whether
there is any visible soiling. If this is
the case, the previous steps must
be repeated.
Maintaining the screwdriver
For their maintenance, movable
parts such as joints, hinges and
threaded parts should be treated
with suitable maintenance oil.
In addition, the general cleaning
instructions of the Processing
manual implants and instruments
UH 1100 also apply.

16
2
3
1
neon3™ Assembly and disassembly instructions
5
neon3™
Assembly and disassembly instructions
for CS 3938-03, -04 and -05
Components involved:

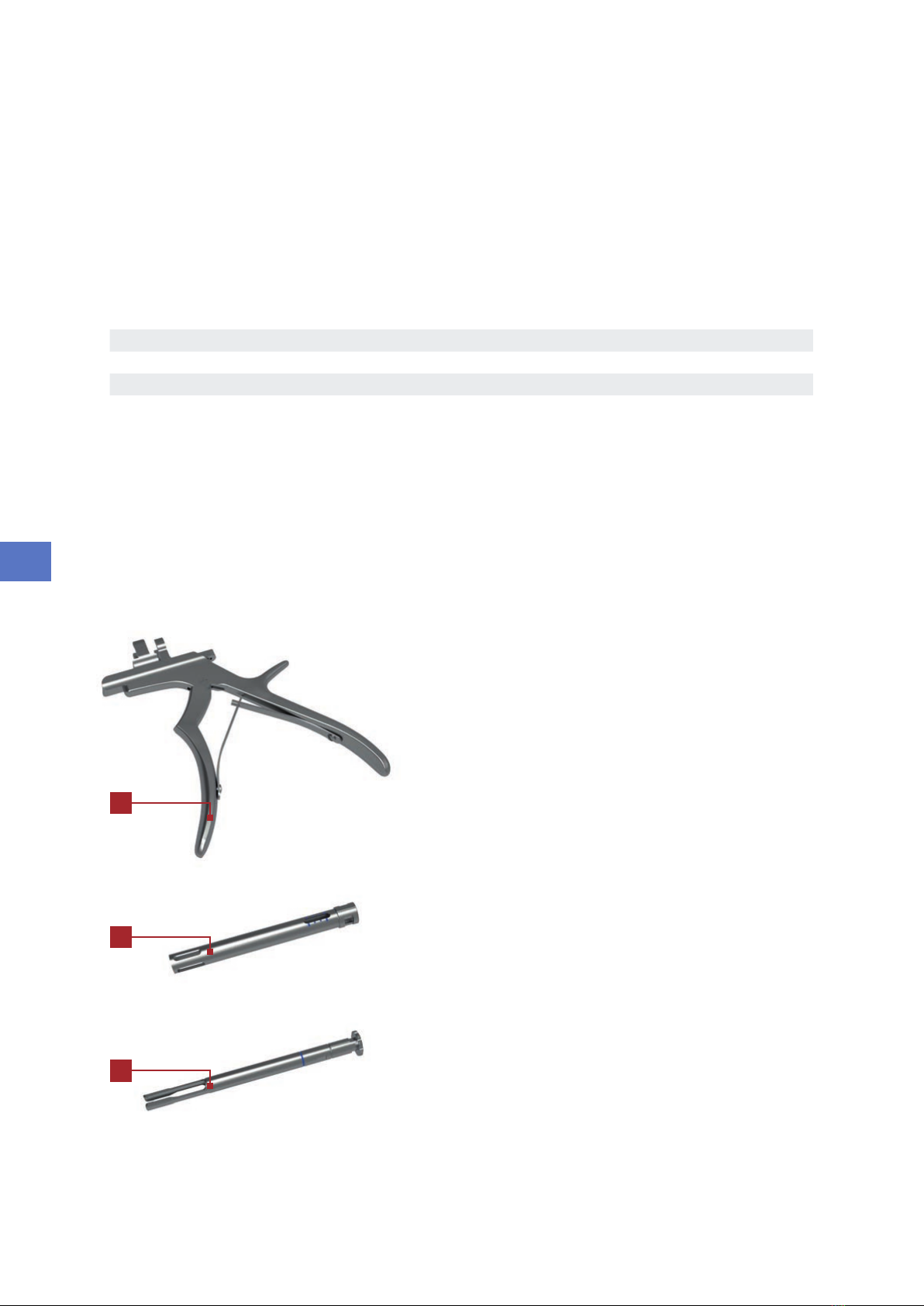

No. Product no. Product description
1 CS 3938-03 Star grip handle for rod pusher (Persuader)
2 CS 3938-04 Inner sleeve for rod pusher (Persuader)
3 CS 3938-05 Outer sleeve for rod pusher (Persuader)

17
neon3™ Assembly and disassembly instructions
5
Assembly instructions
Assembling the rod pusher
The inner sleeve for rod pusher
(CS 3938-04) is inserted into
the outer sleeve for rod pusher
(CS 3938-05) so that the pins can
be guided into the recess. When
the first stop is reached, the inner
sleeve turns clockwise and after
releasing it, it snaps securely into
the outer sleeve.
For better handling, a star grip
handle (CS 3938-03) can optionally
be attached to the rod pusher.
Disassembly instructions
The rod pusher must be
disassembled for cleaning and
storage on the tray.
Removing the outer sleeve.
If the inner sleeve is turned to the
left when in a released state and
with the adjusting nut loosened,
the inner sleeve can be pulled off of
the outer sleeve.

18
neon3™ Assembly and disassembly instructions
5
neon3™
Assembly and disassembly instructions
for CS 3938-03, -04 and -05
Special cleaning instructions
Cleaning the outer sleeve
Difficult to reach parts should be
pre-cleaned manually with a brush
in a water bath. In addition, the
notch at the end of the outer sleeve
should be brushed. The instrument
must then be rinsed thoroughly, to
avoid any residue from drying.
Cleaning the inner sleeve
Difficult to reach parts should be
pre-cleaned manually with a brush
in a water bath. The spring and
adjusting nut must be moved back
and forth several times. In addition,
the cannulation and the adjusting
nut should be rinsed while being
constantly turned. The instrument
must then be rinsed thoroughly, to
avoid any residue from drying.

19
neon3™ Assembly and disassembly instructions
5
Visual inspection
Finally, it must be checked whether
there is any visible soiling. If this is
the case, the previous steps must
be repeated.
Components maintenance
For the maintenance of the
components, movable parts,
threads, hinges and buttons
should be treated with suitable
maintenance oil.
In addition, the general cleaning
instructions of the Processing
manual implants and instruments
UH 1100 also apply.

20
2
3
1
neon3™ Assembly and disassembly instructions
6
neon3™
Assembly and disassembly instructions
for CS 3938-07, -08 and -09
Components involved:
No. Product no. Product description
1 CS 3938-07 Handle for rod reduction instrument
2 CS 3938-08 Outer sleeve for rod reduction instrument
3 CS 3938-09 Inner sleeve for rod reduction instrument
