Ultra Power UP-S6 User manual

FEATURES
CHARGE PROCEDURES (Connections and Diagnostics):
- 2 -
Six independent charging ports can be used simultaneously
Three different battery connectors for each port
LED and audible sound charge status indicators
Adjustable charge current from 0.1-1.0A per channel
Powered USB port for charging phones, tablets, and other devices
Extensive safety features include: Battery reverse voltage protection, battery
overcharge voltage protection, and DC input voltage reverse polarity protection.
INTRODUCTION
SPECIFICATION
- 1 -
UP-S6 INSTRUCTION MANUAL
LIPO/LIHV SMART CHARGER FOR 1S BATTERY
DC input voltage
Charge power
Charge current
Battery type
Battery cell count
Indication
Support battery port
Support USB charge port
Net weight
Dimension
9.0V-15.0V
Max. 4.35W x6, ±10%
(0.1-1.0A) x6, ±10%
LiPo/LiHV
1cell
LED light
Micro, MX, mCPX
5V/2.1A
70g
100x50x22mm
DCInput
9-15V
DCOutput
5V/2.1A
MICRO
MX
mCPX
Segment LED Display
Button
LED Indicators
Battery
Sockets
Thank you for your purchase of the Ultra Power UP-S6 for precision charging of 1S
lithium batteries. Although simple and easy to use, please take a moment to
completely familiarize yourself with the features and operation of this product by
reading this instruction manual completely.
The UP-S6 features intelligent circuitry with six independent but identical channels
delivering 4.35W per channel. The charger is designed to accurately charge up to
six single cell LiPo and LiHV batteries simultaneously. Once the battery lead is
connected to the proper output port, the charge current can be adjusted from
0.1-1.0 Amps, as well as a fully-powered 5V, 2.1A USB output for charging phones,
tablets, or other devices. Important information is displayed via the digital
LED display.
1. Connect a 12V DC Power Supply, 3S or 4S LiPo battery, or AC 12V adapter to the
charger using the appropriate input plug or receptacle.
2. Once powered up, the UP-S6 will go through a self-test cycle. All six channel
indicator lamps will illuminate and the LED will illuminate with“888”on the display.
3. As the cycle progresses, all indicator lamps will change from red to green color
and the LED will display the input voltage.
4. Next, each channel will check itself individually. This will be visually confirmed by
each channel indicator lighting one by one in sequence from channel one through
channel six. When all checks are successfully completed, the indicator lights
will extinguish.
5. Next, the LED will display the charge current setting for each channel, this is your
indication that the UP-S6 is ready for use.
6. Users can change the charge current values prior to connecting a battery to the
charger. Please refer to the section titled “Charge Settings” for further details
and instructions.
7. Once settings are completed, 1S batteries can be connected to the UP-S6. Once
connected, batteries begin charging automatically, indicated by a flashing red
LED. Frequency of the LED flash indicates the type of battery being charged
(LiHV=fast flash, LiPo=normal flash).
8. During the charge process, the display will show the battery chemistry type and
the voltage of the battery connected to each channel.
9. Once a battery is fully charged, the respective channel indicator lamp will change
from red to green and glow solid (no flash).

- 4 -
ERROR MESSAGES
SAFETY PROTECTION
We guarantee this product to be free of manufacturing and assembly defects for a
period of one year from the time of purchase. The warranty only applies to material
or operational defects, which are present at the time of purchase. During that period,
we will repair or replace free of service charge for products deemed defective due to
those causes, For any repair or replace service, please contact your dealer in the
first instance, who is responsible for processing guarantee claims. This warranty is
not valid for any damage or subsequent damage arising as a result of misuse,
modification or as a result of failure to observe the procedures outlined in
this manual.
For “input voltage too low”, the LED will display an E-1 message. For “input voltage
too high” an E-2 will be displayed by the LED.
Other errors corresponding to specific channels
are indicated by a flashing channel indicator lamp and a blank LED screen.
WARRANTYANDSERVICE
Input voltage too low protection
If DC input with battery and cell voltage lower
than 3.3V, UP-S6 will stop charging and make
reminder warning.
Polarity protection If the battery connected with wrong polarity,
UP-S6 can not start charging.
Over voltage protection if detect the battery over voltage, UP-S6 will
stop charging and keep flashing.
input voltage too high
input voltage too low
If you wish to change settings for all six channels at once, simply short press the
button and select “A” for all channels, then long-press the button to select the
appropriate chemistry.
After all settings are complete, wait for 3 seconds and 2 beeps which indicate that
the settings have been confirmed in the UP-S6 memory. The UP-S6 defaults to the
last chosen settings when powered up the next time.
- 3 -

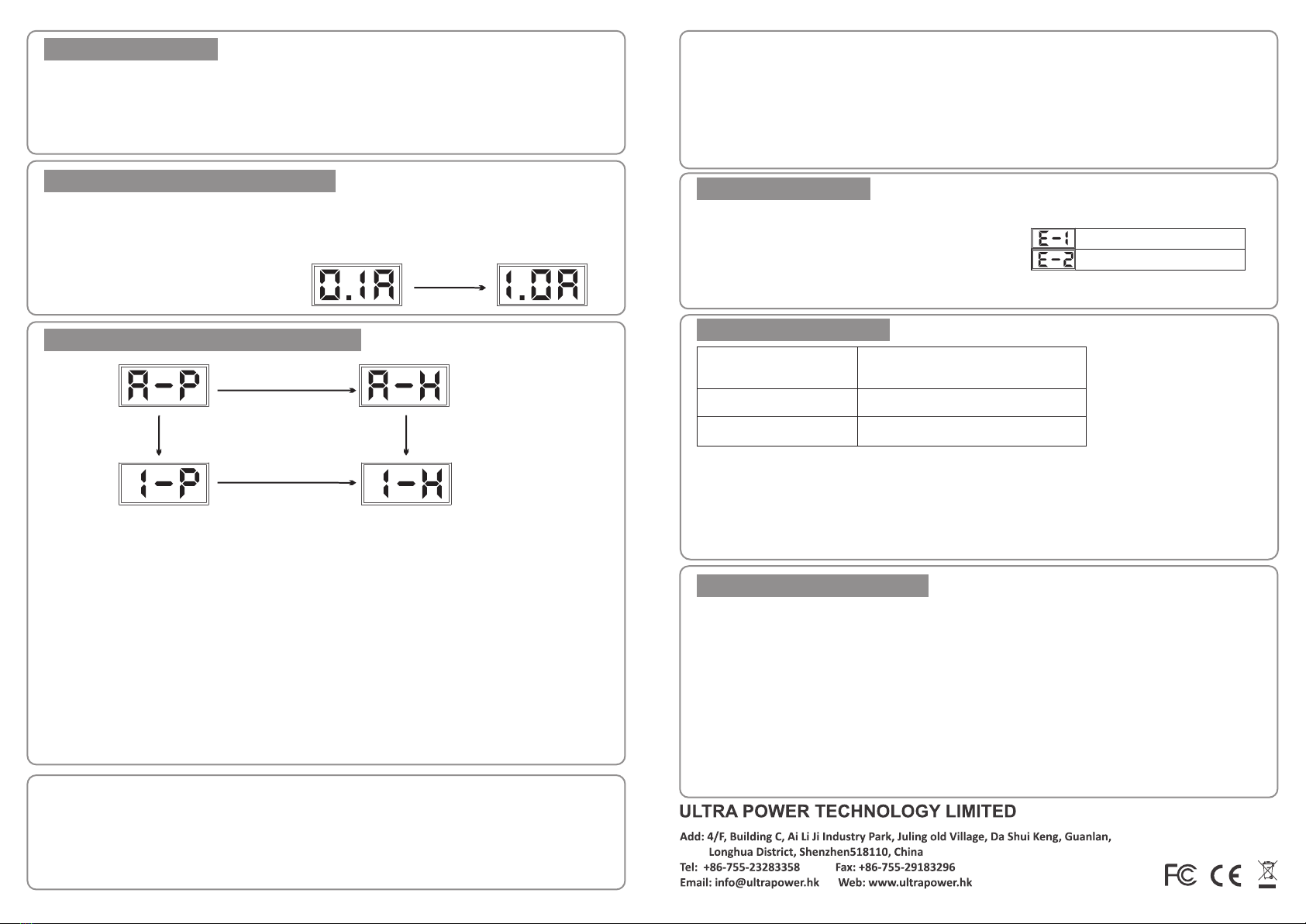

The UP-S6 allows for the charge current to be set from 0.1A-1.0A as indicated in the
picture below. Please note that the value will apply to all six channels. Short-press
the button to change the charge current at the desired amperage.
Short press button
The UP-S6 allows independent settings for charge current as well as battery
chemistry. “Short-press” the button to change the charge current and “long-press”
the button for changing battery chemistry (LiPo or LiHV).
NOTE: Both settings can be changed while the battery is charging.
1. The UP-S6 allows charging of both LiPo and LiHV batteries. Long-press the
button to activate the display as shown in the illustration.
2. The LED will display default setting “A-P” which confirms that the battery
chemistry selecting mode has been activated.
3. The first letter (position “A”) represents which channel is being set. The indicator
may read A, 1, 2, 3, 4, 5, or 6, whereas A=all channels and individual numbers
correspond to the respective channel.
4. The second letter (position “P”) represents battery type and will toggle between
“P” and “H”, with “P” meaning LiPo and “H” indicating LiHV.
5. Short press the button to toggle between channels and long press the button to
select the chemistry.
CHARGER SETTING
SETTING THE CHARGE CURRENT
BATTERY TYPE (Chemistry) SETTING
Note:
Short press button to activate
current setting mode and long
press the button to activate
battery type setting
Short press button,
change to below status
Long press button (3 seconds),
change to right side status
If you wish to change specific channels one by one, short press the button to choose
the appropriate channel. The last letter of the LED display will indicate the charge
current setting for the chosen channel. You must long-press the button to change the
battery chemistry (if desired). After setting one channel, you may short-press the
button to advance to the next channel.
1. Never attempt to connect 2 or more batteries in one channel, it can be only allowed
to insert one battery into one channel, otherwise, it will cause charger broken.
2. Never attempt to connect both DC jack and battery socket simultaneously,
otherwise, it will cause battery burned.
WARNING
