Ultra Power UP240AC Plus User manual

UP240AC Plus: 2X120W or 4X60W AC/DC Multi Charger

Warning and Safety Notes........................................................................2
Introduction...............................................................................................4
Specification..............................................................................................4
Special Features.......................................................................................6
Warning and Safety Notes........................................................................8
Lithium Battery Connection Diagram......................................................10
Program Flow Chart................................................................................12
Lithium Battery(LiPo/LiFe/LiIon/LiHV)Program.......................................13
Charging Lithium Battery at Balance Mode............................................13
Charging of Lithium Battery.....................................................................14
'Fast' Charging of Lithium Battery...........................................................15
'Storage' Control of Lithium Battery.........................................................16
Discharging Lithium Battery....................................................................17
Pb Battery Program.................................................................................18
Charging of Pb Battery...........................................................................18
Discharging of Pb Battery.......................................................................18
NiMH/NiCD Battery Program..................................................................19
Charging of NiMH/NiCD Battery.............................................................19
Charging NiMH/NiCD Battery in the Auto Charge Mode........................19
Charging NiMH/NiCD Battery in re-peak Charge Mode.........................20
Discharging of NiMH/NiCD Battery.........................................................20
Charge/Discharge & Discharge/Charge Cycle of NiMH/NiCD Battery....21
Battery Memory Set................................................................................22
Lithium Battery Meter..............................................................................24
System Set up.........................................................................................25
Various Information During the Process.................................................27
Warning and Error Message...................................................................28
Warranty and Service.............................................................................29
TABLE OF CONTENTS
1

These warnings and safety notes are particularly important. Please
follow the instructions for maximum safety; otherwise the charger and
the battery can be damaged or at worst it can cause a fire. Also read
the chapter before you begin.
Never leave the charger unsupervised when it is connected to its
power supply. If any malfunction is found, TERMINATE THE
PROCESS IMMEDIATELY and refer to the operation manual.
Keep the charger well away from dust, damp, rain, heat, direct
sunshine and vibration. Never drop it.
The allowable DC input voltage is 11-18V DC.
The allowable AC input voltage is 110V or 220V AC.
This charger and the battery should be put on a heat-resistant,
non-flammable and non-conductive surface. Never place them on
a car seat, carpet or similar surface. Keep all flammable volatile
materials away from the operating area.
Make sure you know the specifications of the battery to be
charged or discharged to ensure it meets the requirements of this
charger. If the program is set up incorrectly, the battery and
charger may be damaged. Fire or explosion can occur due to
overcharging. This warranty is not valid for any damage or
subsequent damage arising as a result of a misuse or failure to
observe the procedures outlined in this manual.
To avoid short circuiting between the charge lead, always connect
the charge cable to the charger first, then connect the battery.
Reverse the sequence when disconnecting.
Never attempt to charge or discharge the following types of
batteries:
A battery pack which consists of different types of cells (including
different manufacturers)
A battery that is already fully charged or just slightly discharged
Non-rechargeable batteries (pose an explosion hazard)
A faulty or damaged battery
A battery fitted with an integral charge circuit or a protection circuit.
WARNING AND SAFTEY NOTE
2

Batteries installed in a device or which are electrically linked to
other components
Batteries that are not expressly stated by the manufacturer to be
suitable for the currents the charger delivers during the charge
process
Please bear in mind the following points before commencing
charging:
Did you select the appropriate program suitable for the type of
battery you are charging?
Did you set up appropriate current for charging or discharging?
Have you checked the battery voltage? Lithium battery packs can
be wired in parallel and in series, i.e. a 2-cell pack can be 3.7V (in
parallel) or 7.4V (in series).
Have you checked that all connections are firm and secure? Make
sure there are no intermittent contacts at any point in the circuit.
Standard Battery Parameters
Be very careful to choose the correct voltage for different types of
battery otherwise you may cause damage to the batteries. Incorrect
settings could cause the cells to fire or explode.
WARNING AND SAFTEY NOTE
3
3.7V/cell
Nominal
Voltage
Min. Discharge
Voltage
Max Charge
Voltage
Storage
Voltage
Allowable
Fast Charge
3.7V/cell
4.2V/cell
3.8V/cell
1C
LiPo LiIon
3.6V/cell
4.1V/cell
1C
3.3V/cell
3.6V/cell
3.3V/cell
4C
LiFe
3.0-3.3V/cell 2.9-3.2V/cell 2.6-2.9V/cell
1.2V/cell
1.5V/cell
n/a
1C-2C
NiCd
1.2V/cell
1.5V/cell
n/a
1C-2C
MiMH
2.0V/cell
2.46V/cell
n/a
0.4C
Pb
0.1-1.1V/cell 0.1-1.1V/cell
1.8V/cell
LiHV
3.7V/cell
4.35V/cell
3.85V/cell
1C
3.1-3.4V/cell

Thank you for purchasing UP240AC Plus charger by Ultra Power. This
product is a rapid charger with a high performance microprocessor and
specialized operating software. Please read this entire instruction
manual completely and attentively before using this product, as it
covers a wide range of information on operation and safety.
INTRODUCTION
4
Input voltage
Charge power
Discharge power
Charge current
Discharge current
Balance current
LiIo/LiPo/LiFe/LiHV cell count
NiCd/NiMH battery cell count
Pb battery voltage
Battery data memory
Weight
Dimension
AC 100-110V or 220-240V DC 11.0-18.0V
CH1+CH2=2x120W CH1+CH2+CH3+CH4=4x60W
CH1+CH3=120W CH2+CH4=120W
Max. 10W(CH1, CH2) Max. 5W(CH3, CH4)
0.1-12.0A(CH1, CH2) 0.1-6.0A(CH3, CH4)
0.1-5.0A(CH1, CH2) 0.1-2.0A(CH3, CH4)
500mA/cell
1~6 series
1~15cells
2V~20V (1-10cells)
10 profiles
1.65KG
205x180x70mm
UP240AC Plus Specification

INTRODUCTION
5

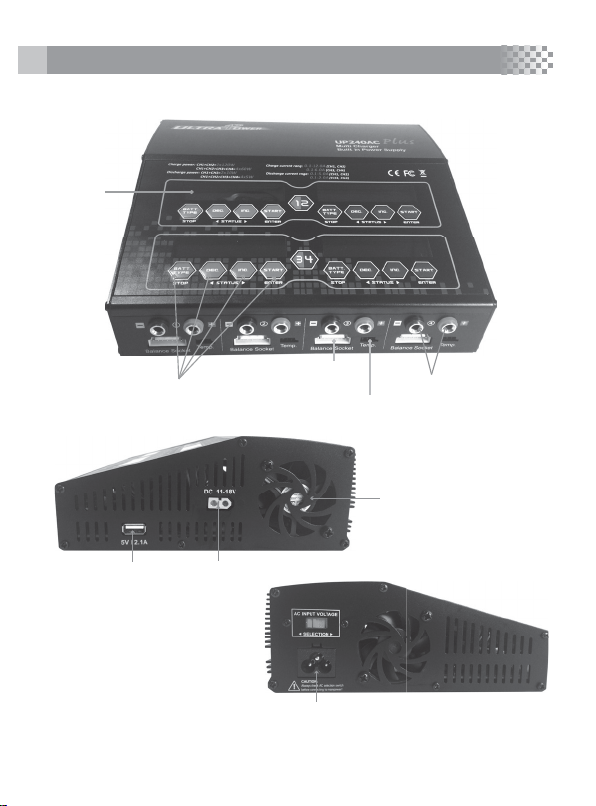

LCD Screen
Battery Sockets
Balance
Socket
Temp. Sensor
DC Output
5V/2.1A
Menu Control Buttons
AC Input
110V or 220V AC
Cooling fan with Temp.
Sensor Control
DC Input
11-18V DC

Optimized Operating Software
UP240AC Plus features the AUTO function that set the feeding current
during the process of charging or discharging. Especially for lithium
batteries, it can prevent the overcharging which may lead to an
explosion. It can disconnect the circuit automatically and alarm once
detecting any malfunction. All the programs of this product were
controlled through two way linkage and communication, to achieve the
maximum safety and minimize the trouble. All the settings can be
configured by users!
Balancing Individual Cells For Battery Discharging
During the process of discharging, UP240AC Plus can monitor and
balance each cell of the battery individually. Error message will be
indicated and the process will be ended automatically if the voltage of
any single one cell is abnormal.
Adaptable to Various Type of Lithium Battery
UP240AC Plus is adaptable to various types of lithium batteries, such
as LiPo, LiIon and the new LiFe series of batteries.
Fast and Storage Mode of Lithium Battery
Purposes to charge lithium battery varies, 'fast' charge reduce the
duration of charging, whereas 'store' state can control the final voltage
of your battery, so as to store for a long time and protect useful time of
the battery.
Cyclic Charging/Discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge
> charge is operable for battery refreshing and balancing to stimulate
the battery's activity.
Re-Peak Mode of NiMH/NiCD Battery
In re-peak charge mode, the charger can peak charge the battery
once, twice or three times in a row automatically. This is good for
making certain the battery is fully charged, and for checking how well
the battery receives fast charges.
SPECIAL FEATURES
6

Data Store/Load
The charger can store up to 10 different charge/discharge profiles for
your convenience. You can keep the data pertaining to program setting
of the battery of continuous charging or discharging. Users can call out
these data at any time without any special program setting.
Terminal Voltage Control(TVC)
The charger allows user to change the end voltage.
LiPo Battery Meter
The user can check battery's total voltage, the highest voltage, the
lowest voltage and each cell's voltage.
Maximum Safety
Delta-peak sensitivity for NiMH/NiCd battery: The automatic charge
termination program based on the principle of the Delta-peak voltage
detection. When the battery's voltage exceeds the threshold, the
process will be terminated automatically.
Automatic Charging Current Limit
You can set up the upper limit of the charging current when charging
your NiMH or NiCd battery, it is useful for the NiMH battery of low
impedance and capacity in the 'AUTO' charging mode.
Capacity Limit
The charging capacity is always calculated as the charging current
multiplied by time. If the charging capacity exceeds the limit, the
process will be terminated automatically when you set the maximum
value.
Temperature Threshold*
The battery's internal chemical reaction will cause the temperature of
the battery to rise. If the temperature limit is reached, the process will
be terminated.
*This function is available by connecting optional temperature probe,
which is not included in the package.
Processing Time Limit:
You can also limit the maximum process time to avoid any possible
defect.
SPECIAL FEATURES
7

Charging
During charge process, a specific quantity of electrical energy is fed
into the battery. The charge quantity is calculated by multiplying charge
current by charge time. The maximum permissible charge current
varies depending on the battery type or its performance, and can be
found in the information by the battery manufacturer. Only batteries
that are expressly stated to be capable of quickcharge are allowed to
be charged at rates higher than the standard charge current.
Connect the battery to the terminal of the charger: red is positive and
black is negative. Due to the difference between resistance of cable
and connector, the charger can not detect resistance of the battery
pack. The essential requirement for the charger to work properly is that
the charge lead should be of adequate conductor cross-section, and
high quality connectors which are normally goldplated should be fitted
to both ends.
Always refer to the manual by the battery manufacturer pertaining
to charging methods. Operate according to their recommended
charging current and charging time. lithium batteries, in particular,
should be charged strictly according to the manufacturer’s instruction.
Close attention should be paid to the connection of lithium batteries.
Do not attempt to disassemble the battery pack arbitrarily.
Please get highlighted that lithium battery packs can be wired in
parallel and in series. In the parallel connection, the battery's capacity
is calculated by multiplying single the battery's capacity by the number
of cells, bearing in mind that total voltage stays the same. If the voltage
is imbalanced, it may cause a fire or explosion. Lithium batteries are
recommended to charge in series.
WARNING AND SAFTEY NOTE
8

Discharging
The main purpose of discharging is to clean the residual capacity of the
battery, or to reduce the battery' voltage to a defined level. The same
attention should be paid to the discharging process as the charging
process. The final discharge voltage should be set up correctly to avoid
deep discharging. Lithium batteries cannot be discharged to lower than
the minimum voltage, or it will cause a rapid loss of capacity or a total
failure. Generally, lithium batteries don't need to be discharged. Please
pay attention to the minimum voltage of lithium batteries to protect
them.
Some rechargeable batteries have a memory effect. If they are partly
used and recharged before the whole charge is accomplished, they
remember this and will only use that part of their capacity next time.
This is a 'memory effect' It is said that NiMH and NiCD batteries are
suffering from memory effect. NiCD has more ‘memory effect’ than
NiMH.
Lithium batteries are recommended to be discharged partially rather
than fully. Frequent full discharging should be avoided if possible.
Instead, charge the battery more often or use a battery of larger
capacity. Full capacity cannot be reached until it has been subjected to
10 or more charge cycles. The cyclic process of charge and discharge
will optimize the capacity of battery pack.
WARNING AND SAFTEY NOTE
9

UP240AC Plus charger come with the built in switch mode power
supplies. You can connect the AC power cord directly to the main AC
socket (110V or 220V AC), or you can connect an external power supply
(12-18v) or 12v car battery to the DC input socket.
PLEASE NOTE: The charger MUST be powered before you connect a
battery to the charger, failure to have the charger powered up before
connecting a battery can cause charger failure if any connections are
incorrect. The charger must to be powered in order for it to recognize
an incorrect connection and warn you of this before you can go too far
and cause damage. If you get the warning “Reverse Polarity” you
MUST disconnect the battery immediately! Never remove power from
the charger first.
Before connecting any battery it is absolutely essential to check one
last time that you have set the charging parameters correctly. If the
settings are incorrect, the battery may be damaged, and could even
burst into flames or explode. Check that your wiring is correct polarity
from the charger to your battery, double check to be safe.
To avoid short circuiting a battery you must always connect the charge
leads to the charger first, and only then to the battery. Always unplug
the battery from the charge leads when disconnecting the pack, never
remove the leads from the charger when a battery is connected to
them.
BALANCE SOCKET:
The balance wire attached to the battery must be connected to the
charger with the black wire aligned with the negative marking. Take
care to maintain correct polarity! (See the wiring diagram on the next
page.)
CONNECTING THE BATTERY
To connect a lithium battery with a balance plug please follow these
procedures.
LITHIUM BATTERY CONNECTION DIAGRAM
10

1. Connect charge leads to the charger, making sure polarity of all
leads is correct.
2. Turn the charger on and check your settings that they match the
battery pack you intend to charge.
3. Connect the main leads of the battery to the main leads of the
charger.
4. Connect the balance lead of the battery to the correct balance port
on the multi balance board. If in doubt as to which socket to use please
ask your dealer for clarification.
5. Start the charge cycle, wait and watch that the charger starts to
charge and shows correct readings on the screen.
6. When charging is finished disconnect the balance lead from the
board, then disconnect the battery main leads from the charging lead.
This diagram shows the correct way to connect your battery to the
UP240AC Plus while charging in the balance charge program mode
only.
WARNING:
Failure to connect will damage this charger.
LITHIUM BATTERY CONNECTION DIAGRAM
11

PROGRAM FLOW CHART
12
PROGRAM SELECT
BATT MEMORY
ENTER
START
BATT MEMORY [1]
ENTER SET
ENTER
START
START/ENTER 3 seconds
BATT TYPE
LiPo
BATT VOLTS
7.4V ( 2S )
CHARGE CURRENT
4.9A
DSCH CURRENT
2.2A
DSCH VOLTAGE
3.0V/CELL
TVC=YOUR RISK
4.20V
ENTER
START
ENTER
START
PROGRAM SELECT
SYSTEM SET->
Rest Time
CHG>DCHG 10Min
VERSION
1.00
ENTER
START
SAFETY TIME
ON 120Min
Capacity Cut-Off
ON 5000mAH
Key Beep ON
Buzzer ON
DECINC
Input Power Low
Cut-Off 11.0V
Ext. Temp
Int. Temp 37C
0C
LOAD FACTORY SET
ENTER
STOP
SAVE PROGRAM
ENTER
SAVE PROGRAM
SAVE….
BATT MEMORY [1]
LiPo 7.4V (2S )
ENTER
START
BATT MEMORY [1]
C:4.9A D:2.2A
ENTER CHARGER
LOAD……
LiPo BALANCE
4.9A 7.4V(2S)
LiPo CHARGE
4.9A 7.4V(2S)
LiPo FAST CHG
4.9A 7.4V(2S)
LiPo STORAGE
4.9A 7.4V(2S)
LiPo DISCHARGE
2.2A 7.4V(2S)
BATT MEMORY 2
NiMH 2.4V (2S)
BATT TYPE
MiMH
BATT VOLTS

2.4V (2S)
ENTER
START
CHARGE CURRENT
3.3A
TRICKLE
100mA
PEAK DELAY
1Min
DSCH CURRENT
2.2A
DSCH VOLTAGE

1.1V/CELL
DELTA PEAK SENSE

4Mv/C
SAVE PROGRAM
ENTER
BATT MEMORY 3
Pb 4V (2S)
ENTER
START
BATT TYPE
Pb
BATT VOLTS
4.0V (2S)
CHARGE CURRENT
3.3A
DSCH CURRENT

1.5A
DSCH VOLTAGE

1.7V/CELL
SAVE PROGRAM
ENTER
PROGRAM SELECT
Pb BATT
ENTER
START
Pb CHARGE
2.0A 2.0V (1P)
Pb DISCHARGE
0.1A 2.0V (1P)
PROGRAM SELECT
NiCD BATT
NiCD CHARGE
CURRENT 2.0A
ENTER
START
NiCD DISCHARGE
0.1A CUT: 1.0V
NiCD CYCLE
CHG>DCHG 1
PROGRAM SELECT
NiMH BATT
ENTER
START
NiMH CHARGE
CURRENT 2.0A
NiMH DISCHARGE
0.1A CUT: 1.0V
NiMH CYCLE
CHG>DCHG 1
PROGRAM SELECT
LiPo BATT
LiPo BALANCE
2.0A 7.4V (2S)
LiPo CHARGE
2.0A 7.4V (2S)
LiPo FAST CHG
2.0A 7.4V (2S)
LiPo STORAGE
2.0A 7.4V (2S)
LiPo DISCHARGE
2.0A 7.4V (2S)
ENTER
START
PROGRAM SELECT
Lilo BATT
Lilo BALANCE
2.0A 7.2V (2S)
Lilo CHARGE
2.0A 7.2V (2S)
Lilo FAST CHG
2.0A 7.2V (2S)
Lilo STORAGE
2.0A 7.2V (2S)
Lilo DISCHARGE
2.0A 7.2V (2S)
ENTER
START
PROGRAM SELECT
LiFe BATT
LiFe BALANCE
2.0A 6.6V (2S)
LiFe CHARGE
2.0A 6.6V (2S)
LiFe FAST CHG
2.0A 6.6V (2S)
LiFe STORAGE
2.0A 6.6V (2S)
LiFe DISCHARGE
2.0A 6.6V (2S)
ENTER
START
ENTER
START
PROGRAM SELECT

Li BATT METER
4.20 4.19 4.19 V
0.00 0.00 0.00 V
MAIN 0.00V
H0.000V L0.000V
NiCD RE-PEAK
1
NiMH RE-PEAK
1
NiMH Auto CHARGE
CURRENT 2.0A
NiCD Auto CHARGE
CURRENT 2.0A
TEMPERATURE
CUT-OFF 50C
TEMPERATURE
CUT-OFF 50C
TEMPERATURE
CUT-OFF 50C
BATT TYPE/STOP
STOP
PROGRAM SELECT
LiHV BATT
LiHV BALANCE
2.0A 7.4V (2S)
LiHV CHARGE
2.0A 7.4V (2S)
LiHV FAST CHG
2.0A 7.4V (2S)
LiHV STORAGE
2.0A 7.4V (2S)
LiHV DISCHARGE
2.0A 7.4V (2S)
ENTER
START

These programs are only suitable for charging and discharging lithium
batteries with a nominal voltage of 3.7V, 3.3V and 3.6V per cell. These
batteries need to adopt different charge technique which is termed as
constant voltage(CV) and constant current(CC) method. The charge
current varies according to the battery capacity and performance. The
final voltage of charge process is also very important; it should be
precisely matched with the charge voltage of the battery. They are
4.2V for LiPo, 3.6 V for LiFe, and 4.1V for Lilon. The charge current
and nominal voltage as for cell count set on the charge program must
always be correct for the battery to be charged.

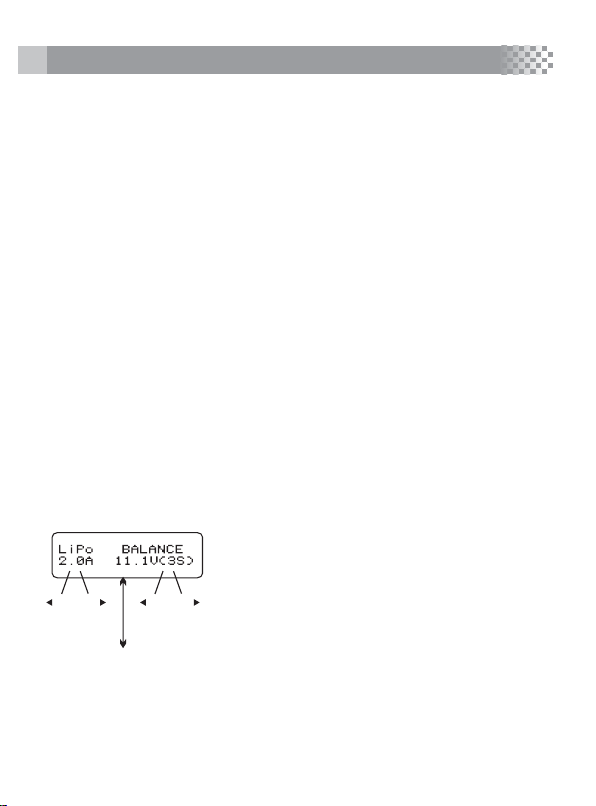

CHARGING LITHIUM BATTERY AT BALANCE MODE
This function is for balancing the voltage of lithium-polymer battery
cells while charging.
In the balance mode, the battery needs to connect to the battery's
power lead with balance wire.
In this mode, the charging process will be different from ordinary
charging mode. The internal processor of the charger will monitor the
voltages of each cell of the battery pack and control charging current
which is feeding to each cell to equalize the voltage.
Note: We recommend charging lithium batteries with a balance wire in
the balance mode only.
-
-+
+
Start
Enter
Batt type
Stop >3 seconds
The left side of the first line shows the type
of battery you choose. The value on the left
of the second line of the charger is current
the user sets. After setting the current and
voltage, press the START/ENTER button for
more than 3 seconds to start the process.
DEC. INC. DEC. INC.
LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM
13

This screen displays the number of cells you
set up and the processor detects.
R=Number of cells detected by charger.
S=Number of cells set by you at the previous
screen.
If both numbers are identical you can start
charging process. If not, press BATT TYPE/
STOP button to go back to previous screen
to recheck the number of cells of the battery
pack before going ahead.
This screen shows the real-time status during
charge process. Press BATT TYPE/STOP
button once to stop the charge process.
The left side of the first line shows the type
of battery you choose. The value on the left
of the second line of the charger is current
the user sets. After setting the current and
voltage, press the START/ENTER button for
more than 3 seconds to start the process.
This displays the number of cells you set up
and the processor detects.
R=Number of cells detected by charger.
S=Number of cells set by you at the previous
screen.
Start
Enter
Batt type
Stop >3 seconds
DEC. INC. DEC. INC.
Number
of
cells
Battery
voltage
Charging
time Charged
capacity
Charging
current
Start
Enter

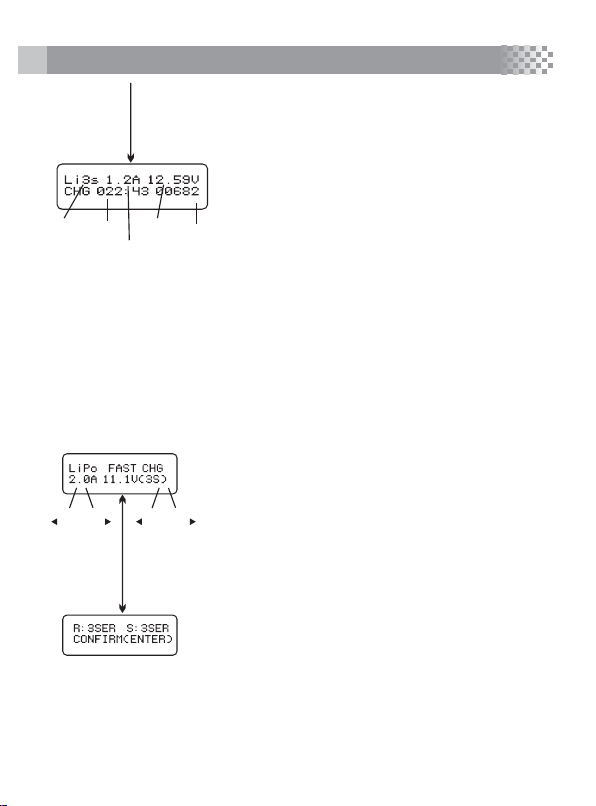

CHARGING OF LITHIUM BATTERY
This charging mode is for charging LiPo/LiFe/LiIon/LiHV battery in normal
mode.
Note: We recommend charging lithium batteries with a balance lead
in the balance mode only.
-
-+
+
LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM
14

If both numbers are identical you can start
charging process. If not, press BATT TYPE/
STOP button to go back to previous screen
to recheck the number of cells of the battery
pack before going ahead.

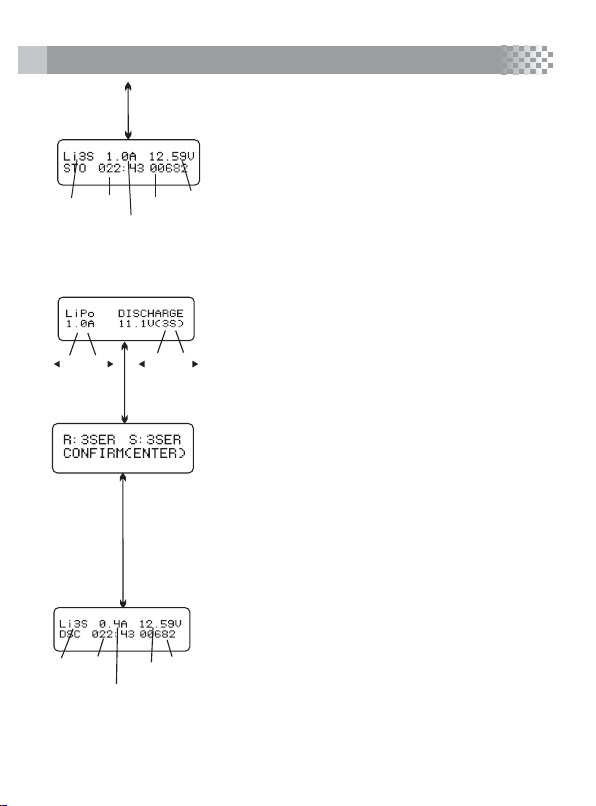

This screen shows the real-time status
during charge process. Press BATT TYPE/
STOP button once to stop the charge
process.
The value on the left side of the second lines
shows the charge current. The value on the
right side of the second lines shows the
battery pack's voltage. After setting current
and voltage, press the START/ENTER button
for more than 3 seconds to start the process.
This displays the number of cells you set up
and the processor detects.
R=Number of cells detected by charger.
S=Number of cells set by you at the previous
screen.
‘FAST' CHARGING OF LITHIUM BATTERY
Charging current will drop towards the end of charging, a specific CV
process is reduced to the charging process earlier. In fact, the
charging current reach 1/5 when the charging process comes to 1/10
during CV period, charging capacity is a little smaller than normal
charging but charging time is shorted accordingly.
Start
Enter
Batt type
Stop >3 seconds
DEC. INC. DEC. INC.
Start
Enter
Charged
capacity
Number
of
cells
Charging
time
Charging
current
Battery
voltage
-- ++
LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM
15

If both numbers are identical you can start
charging process. If not, press BATT TYPE/
STOP button to go back to previous screen
to recheck the number of cells of the battery
pack before going ahead.
This screen shows the real-time status during
charge process. Press BATT TYPE/STOP
button once to stop the charge process.
At this screen, you can set up the current
and voltage of the battery pack. Charging
and discharging will make the batteries
come to the voltage level of storage state.
This screen displays the number of cells you
set up and the processor detects.
R=Number of cells detected by charger.
S=Number of cells set by you at the previous
screen.
If both numbers are identical you can start
charging process by press START/ENTER
button. If not, press BATT TYPE/STOP
button to go back to previous screen to
recheck the number of cells of the battery
pack before going ahead.
'STORAGE' CONTROL OF LITHIUM BATTERY
This function is for charging/discharging batteries which are not used at
once. This program is designed for charging or discharging of batteries
of specific original state. They are classified by types: 3.75V Lilon,
3.85V LiPo and 3.3V LiFe. The program will begin to discharge if the
original state of battery exceeds the voltage level of storage.
Start
Enter
Start
Enter
Batt type
Stop >3 seconds
DEC. INC. DEC. INC.
Number
of
cells
Charging
timeCharge
current
Supplied
capacity
Current
voltage
battery
-+-+
LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM
16

LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM
This screen shows the real-time status
charging. Press BATT TYPE/STOP button
once to stop the charge process.
The value of discharge current on the left
can not exceed 1C, and the value on the
right can not be under the voltage
recommended by the manufacturer to avoid
over discharging. press the START/ENTER
button for more than 3 seconds to start
discharging.
This screen displays the number of cells you
set up and the processor detects.
R=Number of cells detected by charger.
S=Number of cells set by you at the previous
screen.
If both numbers are identical you can start
charging process. If not, press BATT TYPE
/STOP button to go back to previous screen to
recheck the number of cells of the battery pack
before going ahead.
This screen shows the real-time status of
discharging, you can press BATT TYPE/STOP
button to stop discharging.
DISCHARGING LITHIUM BATTERY
Start
Enter
Start
Enter
Start
Enter
Batt type
Stop >3 seconds
DEC. INC. DEC. INC.
Number
of
cells
Elapsed
timeCharge
or discharge
current
Supplied
capacity
Current
voltage
battery
Number
of
cells
-
Elapsed
time
+
Battery
voltage
Discharged
capacity
Discharge
current
-+
17

Set up the charge current on the left and
nominal voltage on the right. Range of current
the voltage should match the battery being
charged. Press START/ENTER button for
more than 3 seconds to start charging.
The screen display the real-time charging
status. Press START/ENTER button again
to store the parameter value you set. Press
BATT TYPE/STOP button to end the
program.
Set up the discharge current on the left and
nominal voltage on the right. Range of
discharge current is 0.1-5.0A(CH1,CH2),
0.1-2.0A(CH3,CH4), the voltage should match
the battery being discharged. Press
ENTER/START button for more than 3
seconds to start discharging.
This program is only suitable for charging Pb lead-acid battery with
nominal voltage from 2 to 20V, Pb lead-acid battery is a completely
different from NiMH/NiCD battery. These batteries can only deliver
current lower in comparison to their capacity. The same restriction
applies to the charging process consquently, the optimum charge
current can only be 1/10 of the capacity. Pb battery can not be used
for fast-charging. Please follow the instructions provided by the
battery manufacturer.
CHARGING OF PB BATTERY
DISCHARGING OF PB BATTERY
Start
Enter
Batt type
Stop >3 seconds
DEC. INC. DEC. INC.
Start
Enter
Batt type
Stop >3 seconds
DEC. INC. DEC. INC.
Battery
type
-
Elapsed
time
+
Charge
current
Battery
voltage
-+
Charged
capacity
-+-+
PB BATTERY PROGRAM
18
0.1-12.0A(CH1,CH2), 0.1-6.0A(CH3,CH4),
