Ultra Power UP1200AC PLUS User manual

INSTRUCTION MANUAL
Dual Channels LiPo/LiHV Charger For Big Drones UP1200AC PLUS
Product Description
Operation Procedure
Features
UP1200AC PLUS is specifically designed for dual channels LiPo/LiHV charger of big drones, it can
charge & storage 2pcs of 6-12S LiPo/LiHV battery packs simultaneously, with “one-button charge”
function, easy to use. In addition, UP1200AC PLUS has over-voltage, over-current, reverse polarity,
and over-temperature protection to ensure maximum safety.
1. Power on: Connect to the power source and turn on the power switch. The two-color indicators
will illuminate for 2 seconds, and the LCD display screen will show the start-up page for 2 seconds,
and then it will enter into the standby page.
Specification
Battery Type: LiPo / LiHV
Battery Cell Count: 6-12S
Working Mode: Charge / Storage
Dimension: 268X140X127mm
Net Weight: 3.1KG
Input Voltage: AC 220V
Charge Output Power: 1200W(600W x2)
Discharge Power: 140W(70WX2)
Charge Current : 5A
Balance Current: 1.5A/cell
Support charging 2 pcs of 6-12S LiPo/LiHV batteries.
Charging current is adjustable: 2A/5A/8A/10A/15A.
Two working modes: Balance charge mode, Storage mode.
Memorizing last charging current.
Multiple protection function: over-voltage, over-current, reverse polarity, and over-temperature
protection.
- 1 - - 2 -
2. Battery connection: Please connect your batteries according to below picture.
1) Connect to the battery 2) Connect to the balance socket.
3. Setting the charging parameter.
1) Press button to choose the appropriate current, 2A,5A,8A,10A,15A (Normally, we
suggest to charge with 1C charge current).
2) Pressbutton to choose the mode you need, the default mode is charge mode.
3) Long press  for 2 seconds until heard “beep” sound, the two-color indicator will
flash, now the charger is under charging process.
Stop: If you want to stop in working process, please press button.
Handle
Current Button
Working Mode Setting Button
Two-color Indicator
LCD Display Screen
Start/Stop Button
XT90 Battery Port
Balance Socket
Cooling Fan
Cooling Fan
Power Switch
AC Input 110V or 220V
1
1
5
9
4.16V
4.17V
4.16V
4.17V
4.17V
4.17V
4.17V
4.17V
4.16V
4.17V
4.16V
4.17V
LiPo4.20LiPo4.20 ChargeCharge 15A15A

- 3 - - 4 -

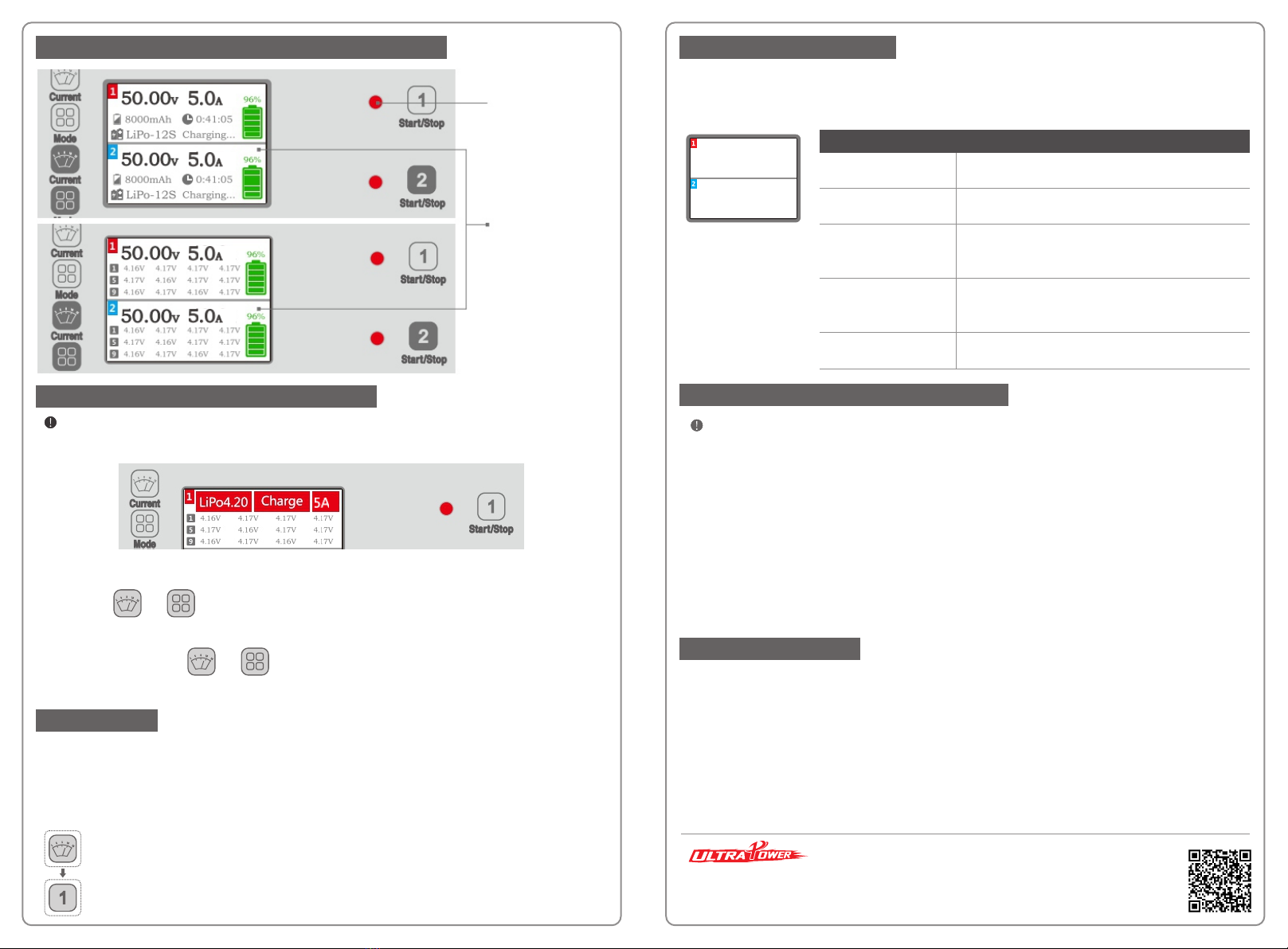

Charging Process, Indicate The Battery Level Status
Switch With LiPo Battery And LiHV Battery
Storage Mode
Please take seriously with this function, wrong battery type connected will damage battery even
catch fire explosion.
If a Lithium battery is not used for long time, it's highly recommended to charge or discharge the
battery to 3.80V with Storage mode so as to extend the battery’s life. when the battery voltage is
higher than 3.80V per cell, the charger will discharge the battery; on the opposite, when the battery
voltage lower than 3.80V per cell, the charger will charge the battery under Storage mode.
1) LiPo battery switch to LiHV battery
2) LiHV battery switch to LiPo battery
Press the  and  simultaneously for 3 seconds, the device will go into LiHV battery mode.
Only need to press the  and simultaneously, the device will go into LiPo battery mode,
( LiPo cut off voltage: 4.20V, LiHV cut off voltage: 4.35V ).
Press the “Mode” button, choose the Storage mode.
Long press the “Start/Stop” button, enter into the Storage mode.
Fault message
Connection Break
Reverse Polarity
Cell Voltage High
INT. TEMP High
Over Load!
No battery connected: check if the battery main port
correctly connected to the device .
Battery polarity reversed: check the battery main port,
polarity connected.
Balance socket voltage abnormality: check if the battery
balance port correctly connected to the device; check the
battery voltage is normal or not.
Temperature protection: check the cooling fan running is
normal or not and check if the external environment
temperature is too high.
Current overload protection: the device will stop charging
once the current over 30A.
Cause analysis
When the charger appear below abnormal situations, the two-color indicators will flash in red, and
LCD display screen will appear fault message, please refer to below specific message notification
and reasons.
Important Warning And Safety Instruction
Warranty And Service
We guarantee this product to be free of manufacturing and assembly defects for a period of one year
from the time of purchase. The warranty only applies to material or operational defects, which are
present at the time of purchase. During that period, we will repair or replace free of service charge
for products deemed defective due to those causes.
You will be required to produce proof of purchase (invoice or receipt). This warranty is not valid for
any damage or subsequent damage arising as a result of misuse, modification or as a result of failure
to observe the procedures outlined in this manual.
These warnings and safety instructions are particularly important. Please follow the instructions
for maximum safety. Otherwise the charger and the battery can be damaged or at worst it can
catch fire.
Connection Break
Reverse Polarity
Note: the two-color indicators
will flash in red, and LCD screen
will appear fault message.
www.ultrapower.hk 0755-23283358 [e-mail]
ULTRA POWER TECHNOLOGY LIMITED
Important Information Tips
1. Never leave the charger unattended when it is connected to its power supply. If any malfunction
is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.
2. Keep the charger away from dust, moist, rain, heat, direct sunshine and vibration.
3. The input voltage is AC 110V or AC 220V, before connect to the power source, please keep its
input voltage is the same as the charger’s.
4. Default battery type is standard LiPo battery type with charge mode. Before connecting the
battery, please keep the battery type comply with the charger setting.
The LCD screen will
switch the interface
display every few
seconds, as shown
on the left picture.
The two-color indicator
will show in red color
