unicraft MSSG 105 A User manual

MSSG 105 A
MSSG 105 A
Instruction Manual
Mobile sand-blasting unit
MSSG 105 A

2 MSSG 105 A | Version 1.05
Imprint
Product identification
Mobile sand-blasting unit Item number
MSSG 105 A 6204030
Manufacturer
St rmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Fax: [phone] - 55
E-Mail: [email protected]
Internet: www.unicraft.de
Information on the operating instructions
Original operating instructions
according to DIN EN ISO 20607:2019
Edition: 23.08.2021
Version: 1.05
Language: english
Author: MS
Copyright information
Copyright © 2021 St rmer Maschinen GmbH, Hallstadt,
Germany.
The contents of these operating instructions are the sole
property of the company St rmer. Passing on and repro-
duction of this document, exploitation and communica-
tion of its contents are prohibited unless expressly per-
mitted. Contraventions obligate to compensation for
damages.
Technical changes and errors excepted.
Contents
1 Introduction .............................................................3
1.1 Copyright ............................................................ 3
1.2 Costumer service................................................ 3
1.3 Limitation of liability............................................. 3
2 Safety........................................................................3
2.1 Symbol explanation ............................................ 3
2.2 Obligations of the operating company ................ 4
2.3 Requirements to staff.......................................... 4
2.4 Personal protective equipment ........................... 5
2.5 General Safety Instructions ................................ 5
2.6 Safety labels ....................................................... 6
2.7 Safety data sheets.............................................. 6
3 Intended use ............................................................6
3.1 Predictable misuse ............................................. 6
3.2 Residual risks ..................................................... 6
4 Technical Data .........................................................6
4.1 Type plate ........................................................... 7
5 Transport, pac aging, storage...............................7
6 Description of the device........................................8
6.1 Scope of delivery ................................................ 8
7 Assembly and connection......................................8
7.1 Assembly ............................................................ 8
7.2 Compressed air connection................................ 9
8 Operation .................................................................9
9 Care, maintenance and repair ..............................11
9.1 Care through cleaning ...................................... 11
10 Troubleshooting ..................................................12
11 Disposal, recycling of used devices.................... 13
11.1 Decommission ................................................ 13
11.2 Disposal of electrical equipment..................... 13
11.3 Disposal via municipal collection points.......... 13
12 Spare parts...........................................................13
12.1 Ordering spare parts....................................... 13
12.2 Spare parts drawing MSSG 105 A.................. 14
13 Electrical circuit diagram....................................14
14 EC-Declaration of Conformity ............................15

Introduction
MSSG 105 A | Version 1.05 3
1 Introduction
You have made a good choice by purchasing the UNI-
CRAFT mobile sand-blasting unit.
Read the operating manual thoroughly before com-
missioning the device.
It gives you information about the proper commissioning,
intended use and safe and efficient operation and main-
tenance of your Mobile sand-blasting unit.
The operating manual is part of the Mobile sand-blasting
unit. Always keep this operating manual in the location
where your Mobile sand-blasting unit is being operated.
All local accident prevention regulations and general
safety instructions for the operating range of your Mobile
sand-blasting unit must also be complied with.
1.1 Copyright
The contents of these instructions are copyright. They
may be used in conjunction with the operation of the Mo-
bile sand-blasting unit. Any application beyond those de-
scribed is not permitted without the written approval of
St rmer GmbH.
We are claiming branded-, patent and design rights to
protect our products, if this is possible in individual
cases. We vigorously oppose any infringement of our in-
tellectual property.
1.2 Costumer service
Please contact your dealer if you have any questions
about your product or for technical information. They will
be happy to help you with expert advice and information.
Germany:
St rmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Repair service:
Fax: [phone]-111
E-Mail: [email protected]
Internet: www.unicraft.de
Spare parts orders:
Fax: [phone]-119
E-Mail: [email protected]
We are always interested in valuable experience and
knowledge gained from using the application-which then
could be shared and be valuable to develop our products
even further.
1.3 Limitation of liability
All information and notes in these operating instructions
were summarised while taking applicable standards and
rules, the state-of-the-art technology and our long-term
knowledge and experiences into consideration.
In the following cases the manufacturer is not liable for
damages:
- Non-observance of the operating instructions,
- Inappropriate use
- Use of untrained staff,
- Unauthorised modifications
- Technical changes,
- Use of not allowed spare parts.
The actual scope of delivery may deviate from the expla-
nations and presentations described here in case of spe-
cial models, when using additional ordering options or
due to latest technical modifications.
The obligations agreed in the delivery contract, the gene-
ral terms and conditions as well as the delivery conditi-
ons of the manufacturer and the legal regulations valid at
the time of the conclusion of the contract apply
2 Safety
This section provides an overview of all important safety
packages for the protection of operating personnel as
well as for safe and fault-free operation. Other task-
based safety notes are included in the paragraphs of the
individual phases of life.
2.1 Symbol explanation
Safety instructions
The safety notes in these operating instructions are high-
lightet by symbols. The safety notes are introduced by si-
gnal words which express the concern of the risk.
ANGER!
This combination of symbol and signal words indi-
cates an imminently dangerous situation which may
lead to death or severe injuries if they are not
avoided.
WARNING!
This combination of symbol and signal words indi-
cates a possibly dangerous situation which may lead
to death or severe injuries if they are not avoided.

4 MSSG 105 A | Version 1.05
Safety
Tips and recommendations
It is necessary to observe the safety notes written in
these operating instructions in order to reduce the risk of
personal injuries and damages to property.
2.2 Obligations of the operating company
The operator is the person who operates the machine for
commercial or economic purposes himself or leaves it to
a third for use or application and bears the legal product
responsibility for the protection of the user, personnel or
third during operation.
If the Mobile sand-blasting unit is used for commercial
purposes, the operating company of the Mobile sand-
blasting unit must comply with the legal working safety
regulations. Therefore, the safety notes in this operating
manual, as well as the safety, accident prevention and
environment protection regulations applying for the area
of application of the Mobile sand-blasting unit must be
met. The following applies in particular:
- The operating company must be informed about
the applying industrial safety regulations and fur-
ther analyse hazards resulting from the special
working conditions at the place of use Mobile sand-
blasting unit. She must implement these in form of
operating manuals for the operation of the Mobile
sand-blasting unit.
- During the entire lifetime of the Mobile sand-blast-
ing unit, the operating company must verify
whether the operating manuals prepared by her
correspond to the current status of the regulations,
and must adapt these if necessary.
- The operating company must unambiguously regu-
late and determine the responsibilities for installa-
tion, operation, troubleshooting, maintenance and
cleaning.
- The operating company must ensure that all per-
sons who work with the Mobile sand-blasting unit,
have read and understood this manual. Further-
more she must instruct the staff in regular intervals
and inform them about the hazards.
- The operator must provide the necessary protec-
tive equipment to the staff and order the use of the
necessary protective equipment in a binding way.
Furthermore the operating company is responsible to
keep the Mobile sand-blasting unit always in a techni-
cally flawless state. Thus, the following applies:
- The operator must ensure that the maintenance in-
tervals described in this manual are kept.
- The operator must have all safety devices checked
regularly for their good working order and their in-
tegrity.
2.3 Requirements to staff
The different tasks described in this manual represent
different requirements to the qualification of the persons
entrusted with these tasks
entrusted with these tasks.F r alle Arbeiten sind nur
Only persons reliable working procedures can be ex-
pected from, are allowed to perform all works. Persons
the responsiveness of which is affected by e. g. drugs,
alcohol or medication, are not allowed to work with the
machine.
The qualifications of the personnel for the different tasks
are mentioned below:
ATTENTION!
This combination of symbol and signal word indicates
a possibly dangerous situation which may result mild
or minor injuries.
CAUTION!
This combination of symbol and signal word indicates
to a potentially dangerous situation, which can lead
to material and environmental damage if not avoided.
NOTE!
This combination of symbol and signal words indi-
cates a possibly dangerous situation which may lead
to property and environmental damages if they are
not avoided.
Tips and recommendations
This symbol highlights useful tips and recommenda-
tions as well as information for an efficient and trou-
ble-free operation.
WARNING!
anger due to insufficient qualification of
persons!
Insufficiently qualified persons cannot estimate the
risks while using the device and expose themselves
and others to the danger of severe or lethal injuries.
- Have all works only performed by qualified persons.
- Keep insufficiently qualified persons out of the work-
ing area.

Safety
MSSG 105 A | Version 1.05 5
Operator:
The operator is instructed by the operating company
about the assigned tasks and possible risks in case of
improper behaviour. Any tasks which need to be per-
formed beyond the operation in the standard mode must
only be performed by the operator if it is indicated in
these instructions and if the operating company expres-
sively commissioned the operator.
Qualified personnel:
Due to their professional training, knowledge and experi-
ence as well as their knowledge of relevant regulations
the specialist staff is able to perform the assigned tasks
and to recognise and avoid any possible dangers them-
selves.
Manufacturer:
Certain works may only be performed by specialist per-
sonnel of the manufacturer. Other personnel is not au-
thorized to perform these works. Please contact our cu-
stomer service for the execution of all arising work.

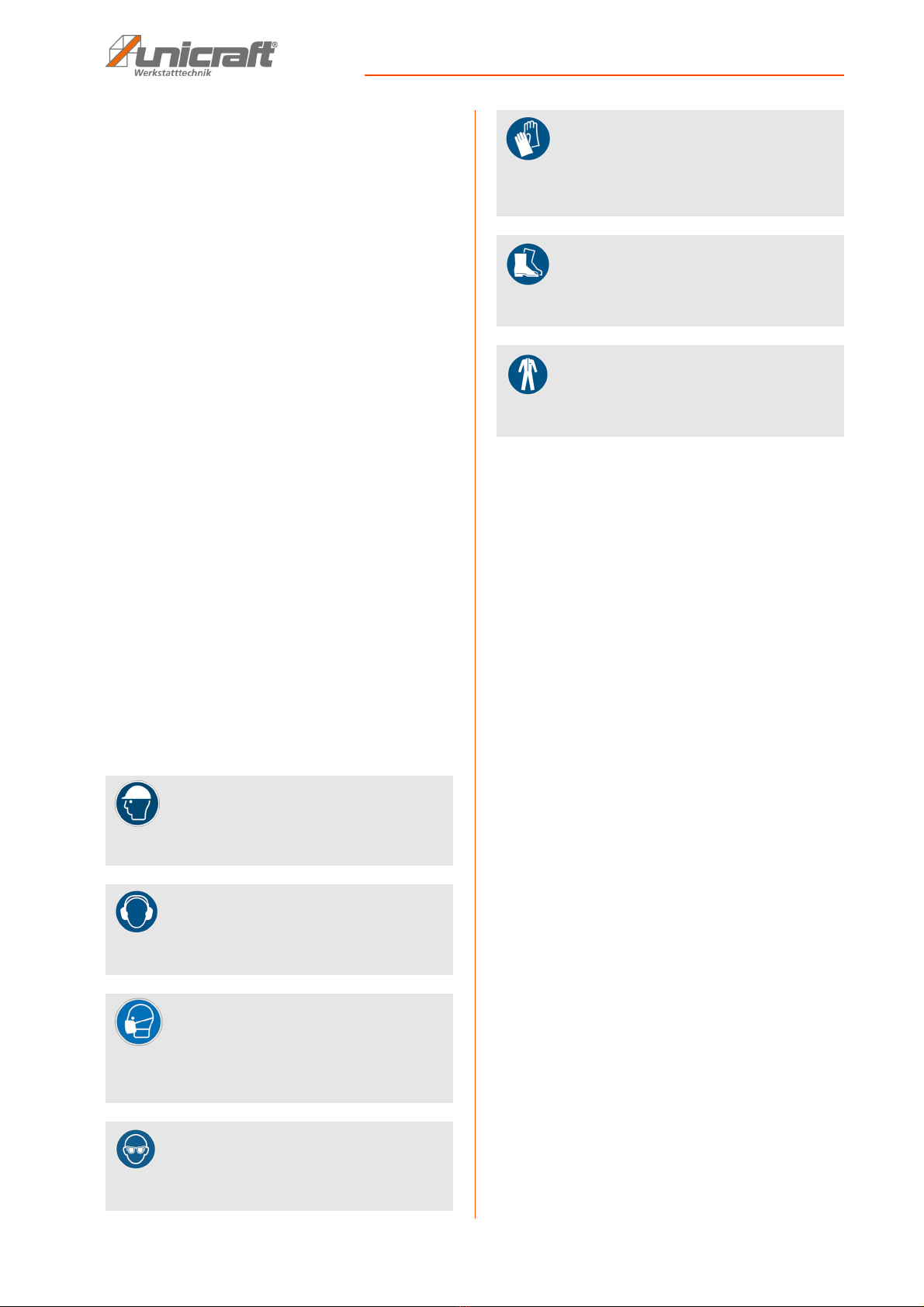

2.4 Personal protective equipment
The personal protective equipment serves to protect per-
sons against impairments of safety and health while
working. The staff member has to wear personal protec-
tive equipment while performing different tasks on and
with the machine which are indicated in the individual
paragraphs of these instructions.
The personal protective equipment is explained in the
following paragraph:
2.5 General Safety Instructions
Please note the following:
- Observe the statutory accident prevention regulati-
ons as well as the other generally recognised safety,
occupational health and safety rules and the acci-
dent prevention regulations for compressed air-ope-
rated work equipment.
- Do not operate the Mobile sand-blasting unit in a
damp or wet environment.
- Never operate or store the Mobile sand-blasting unit
near open fire or heat sources!
- Always keep the Mobile sand-blasting unit and its
working environment clean.
- Ensure sufficient lighting.
- Never direct the Mobile sand-blasting unit at people,
animals or your own body parts. Sandblasting parti-
cles can cause serious injuries.
- Keep children and unauthorised persons away from
the Mobile sand-blasting unit.
- Never fill the container with abrasive while the com-
pressed air line is still connected to the sMobile
sand-blasting unit.
- Make sure that the sand flow control valve is in the
OFF position before connecting the compressed air
line to the Mobile sand-blasting unit.
- Always disconnect the Mobile sand-blasting unit
from the power supply and from the compressed air
source before carrying out adjustment, cleaning and
repair work.
- Constructional and technical changes to the Mobile
sand-blasting unit are prohibited! St rmer Maschi-
nen GmbH accepts no liability for any damage or ac-
cidents caused by such modifications.
Head protection
The industrial helmet protects the head against fall-
ing objects and hitting on fixed objects.
Ear protection
The hearing protection protects against damages of
hearing due to noise.
Respiratory protection
The respiratory protection protects the respiratory
tract against the ingress of dust and small foreign
bodies.
Use safety glasses!
The protective goggles serve to protect the eyes
against parts flying off.
Protective gloves
The protective gloves serve to protect the hands
against sharp components as well as against fric-
tion, abrasions or deep injuries.
Safety boots
The safety boots protect the feet against crushes, fall-
ing parts and slipping over on slippery underground.
Protective clothes
Protective clothes are made of a tightly fitted fabric
without the protruding parts of low tear strength.

6 MSSG 105 A | Version 1.05
Intended use

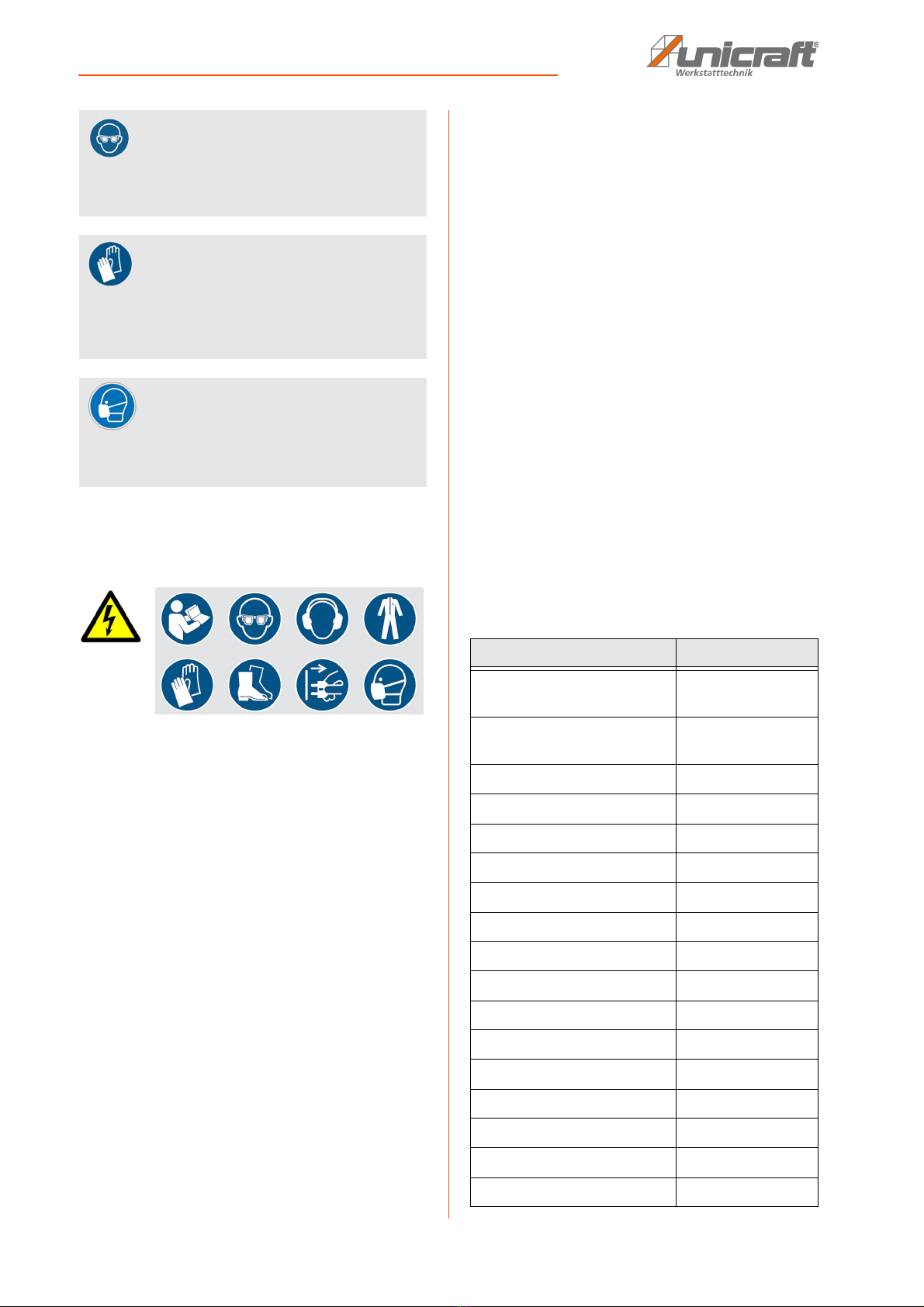

2.6 Safety labels
Various safety markings are attached to the Mobile sand-
blasting unit which must be observed and followed (Fig. 1).
Fig. 1: Safety labels
The safety markings must not be removed. Damaged or
missing safety markings can lead to mishandling, perso-
nal injury and damage to property. They must be re-
placed immediately.If the safety markings are not visible
and understandable at first glance, the machine must be
taken out of operation until new safety markings have
been applied.
2.7 Safety data sheets
You can obtain safety data sheets for dangerous goods
from your specialist dealer or by calling +49 (0) 951 /
96555-0.
Specialist dealers can find safety data sheets in the
download area of the partner portal.
3 Intended use
The Mobile sand-blasting unit MSSG 105 A is used for
blasting work in places that are difficult to access and on
large objects with metal, wood and other surfaces. The
sandblasting unit is also used to create a well adhering
surface.The workpiece must be well fixed and must not be
able to change its position during processing.The mobile
sand-blasting unit may only be operated by persons who
have been instructed in this product.
3.1 Predictable misuse
- Processing of loose objects.
- Fixation of the workpiece by hand.
3.2 Residual ris s
- Inhalation of substances hazardous to health due to
insufficient respiratory protection.
- Hearing damage due to inadequate hearing protec-
tion when operating compressors.
- Leakage of pipes, especially when exposed to
draught.
- Leakage of seals due to wear.
- Tipping over of the Mobile sand-blasting unit due to
insufficient protection.
- Lines can act as tripping hazards.
- Damage to the workpiece due to lack of experience
with sandblasting.
4 Technical Data
Wear protective goggles
Always operate the Mobile sand-blasting unit with eye
protection. Sand, rust, paint, etc. can bounce back from
the blasted surface and cause serious injury.
Wear protective gloves
Always operate the Mobile sand-blasting unit with
protective gloves. Sand particles move at high
speed. Direct contact with hands and other parts of
the skin can cause severe abrasion.
Wear breathing protection
Always operate the sandblasting unit with a
breathing mask. Inhalation of dust and other air-
borne particles can cause a serious health hazard.
Model MSSG 105 A
Air requirement average,
approx. 420 l/min
Air requirement maximum un-
der load, approx.
616 l/min
Working pressure 5,5 – 7,9 bar
Inlet pressure max. 8,6 bar
Supply voltage 230 V / 50 Hz
Extraction unit current draw 1200 W
Connecting thread Quick Connector
Nozzle diameter 7 mm
Abrasive grain size 0,12 – 0,18 mm
Max. weight of blast media 9-16 kg
Container volume 106 Liter
Diameter of hand hole 20 mm
Sand Hose length 2,5 m
Sand Hose inner diameter 12 mm
Compressed air hose length 2,5 m
Air Hose inner diameter 9 mm
Suction hose inner diameter 35 mm

Transport, packaging, storage
MSSG 105 A | Version 1.05 7
4.1 Type plate
Fig. 2: Type plate MSSG 105 A
5 Transport, pac aging, storage
elivery
Check the Mobile sand-blasting unit after delivery for vi-
sible transport damage. If you discover any damage, re-
port it immediately to the transport company or the de-
aler.
Transport
Improper transport of individual devices, unsecured de-
vices stacked on top of each other or next to each other
in packed or already unpacked condition is accident-
prone and can cause damage or malfunctions for which
we do not grant any liability or guarantee.
Transport the scope of delivery secured against shifting
or tilting with a sufficiently dimensioned industrial truck to
the installation site.
General risks during internal transport
Devices may only be transported by authorized and qua-
lified persons. Act responsibly during transport and al-
ways consider the consequences. Refrain from daring
and risky actions.
Gradients and descents (e.g. driveways, ramps and the
like) are particularly dangerous. If such passages are
unavoidable, special caution is required.
Before starting the transport check the transport route for
possible danger points, unevenness and disturbances
as well as for sufficient strength and load capacity.
Danger points, unevenness and disturbance points must
be inspected before transport. The removal of danger
spots, disturbances and unevenness at the time of trans-
port by other employees leads to considerable dangers.
Careful planning of internal transport is therefore essen-
tial.
Packaging
All used packaging materials and packaging aids are re-
cyclable and should be taken to a materials recycling de-
pot to be disposed of.
The delivery packaging is made of cardboard, so please
dispose carefully by having it chopped up and given to
the recycling collection. The film is made of polyethylene
(PE) and the cushioned parts of polystyrene (PS).
These materials should be taken to a collection point for
recyclable materials or to the local waste disposal com-
pany.
Storage
The Mobile sand-blasting unit must be cleaned thoro-
ughly before storing it in a dry, clean and frost-free env-
ironment.
Suction hose outer diameter 48 mm
Dimensions (LxBxH) ca. 612x404x1040 mm
Weight ca. 27 kg
NOTE!
Protect the Mobile sand-blasting unit from moisture.
CAUTION!
Injuries caused by parts falling over or off a forklift,
pallet truck or transport vehicle.
Only use means of transport that can carry the total
weight and are suitable for it.
Model MSSG 105 A
CAUTION: ANGER OF TIPPING!
The device may be lifted unsecured by a maximum
of 2cm.
Employees must be outside the danger zone, the
reach of loads. Warn employees and, if necessary,
advise employees of the hazard.

8 MSSG 105 A | Version 1.05
escription of the device
6 Description of the device
Illustrations in this operating manual may differ from
the original.

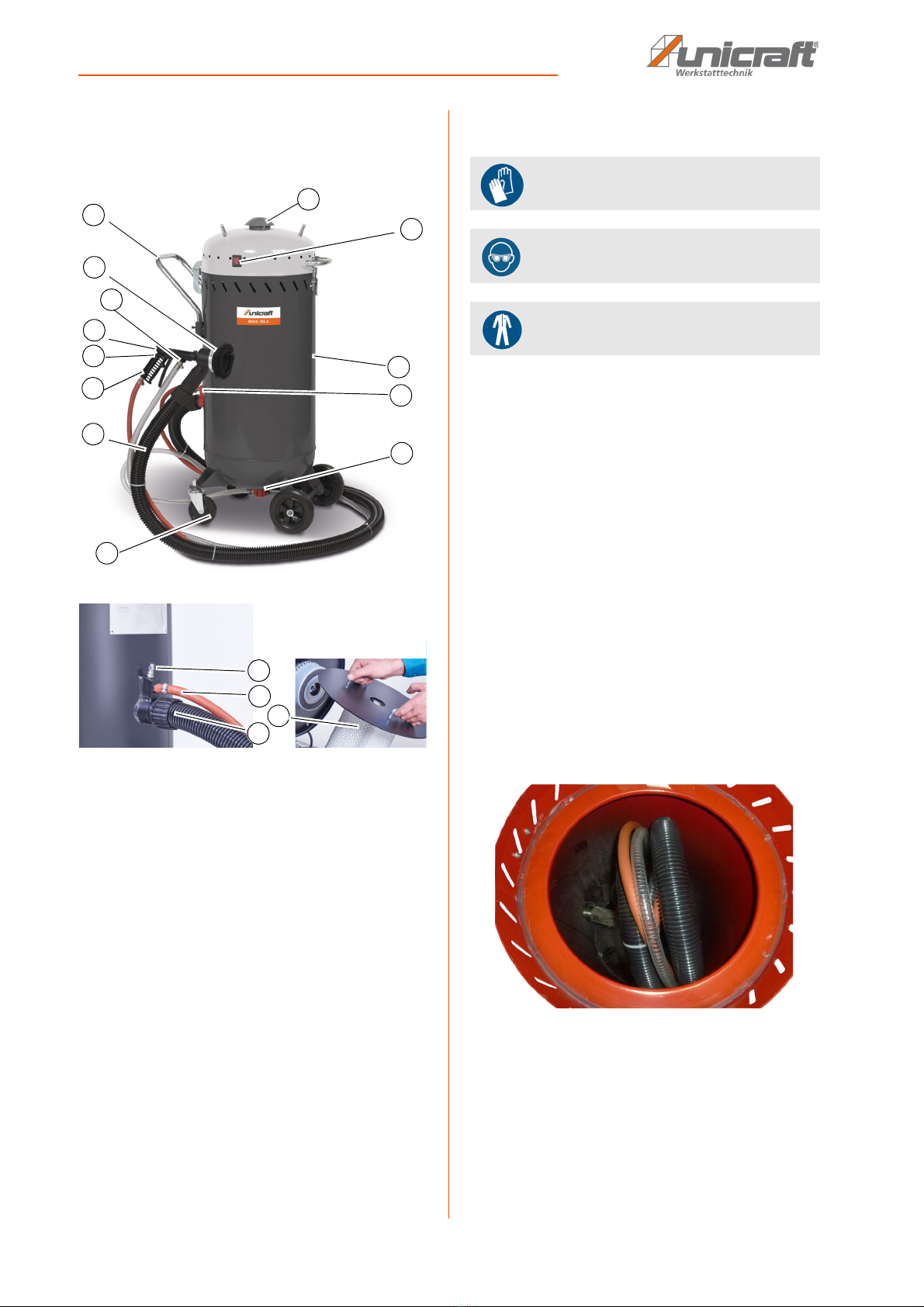

Fig. 3: Mobile sand-blasting unit MSSG 105 A
1 Exhaust air outlet on container cover
2 ON/OFF switch
3 Tanks
4 Compressed air connection from compressor
5 Blasting agent line connection
6 Filters
7 Swivel castor
8 Suction hose
9 Compressed air hose
10 Blasting gun with brush and suction
11 Adjusting screw for nozzle position
12 Blasting agent line
13 Brush
14 Transport handle
6.1 Scope of delivery
- Sandblasting gun with brush
- Ceramic nozzle 7 mm
- Compressed air hose Length 2.5 m, inside Ø 9 mm
- Suction hose Length 2.5 m, inside Ø 12 mm
- Suction hose Length 2.5 m, inside Ø 35 mm
- Plug nipples
7 Assembly and connection
7.1 Assembly
Before commissioning, some components must be
mounted on the Mobile sand-blasting unit.
Components are delivered in a carton:
- Container with suction hose, compressed air hose
and abrasive hose
- Blasting gun
- Wheels
- Axis
- Handle
- Operating Instructions
Step 1: Open carton, remove contents and remove pac-
king material.
Step 2: Open the lid of the container and remove the
suction hose, compressed air hose and blasting
agent hose.
Fig. 4: Remove hoses
Step 3: Insert the axle into the axle bearing and mount
the wheels on the axle. Screw the castors to
the roller carriers.
3
7
13
2
14
10
5
12
8
4
9
4
6
1
11
9
8
Wear protective gloves!
Wear protective goggles!
Wear protective work clothing!

Operation
MSSG 105 A | Version 1.05 9
Fig. 5: Fitting wheels and castors
Step 4: Screw the handle to the container.
Fig. 6: Screw the handle to the container
Step 5: Connect the hoses to the container and to the
blasting pistol and tighten the hose clamps or
the union nuts (suction hose) (Fig. 7)
Fig. 7: Connect hoses to container and blasting gun
7.2 Compressed air connection
To operate the Mobile sand-blasting unit you need a
compressor with sufficient filling capacity (approx. 420
litres/min, max. 616 litres/min, working pressure 5.5 to
7.9 bar). The generated air must be cleaned, dry (free of
condensate) and oil-free.
Step 1: Connect the compressed air hose from the com-
pressor to the compressed air connection on
the sandblasting machine container.
Fig. 8: Connect the compressed air hose to the container
Step 2: Set the desired working pressure on the com-
pressor. Make sure that the maximum pres-
sure (see chapter "Technical Data") is not ex-
ceeded.
8 Operation
ANGER!
Moisture in the compressed air impairs the flow of
the abrasive and can lead to lumps and blockages of
valves and lines.
WARNING!
Risk to life!
There is danger to life if you do not follow these
rules.
- Never carry out work with the Mobile sand-blasting
unit if you are under the influence of alcohol, drugs
or medication and/or if you are overtired or suffer
from concentration disorders.
- The Mobile sand-blasting unit may only be operated
by one person. Other persons must stay away from
the working area during the work.

10 MSSG 105 A | Version 1.05
Operation
The sandblasting unit may only be operated in a dry,
well-ventilated environment and on level, solid ground.
It must be ensured that there is sufficient freedom of mo-
vement and adequate lighting for working.
Step 1: Select suitable blasting medium.
Step 2: The workpiece must be free of oil, grease and
moisture. If necessary, clean the workpiece.
Step 3: Check that the compressed air line coming from
the compressor is separated from the Mobile
sand-blasting unit. Open the container lid and
fill max. 9-16 kg of blasting agent into the con-
tainer. Close the container and insert the mains
plug into the socket.
Step 4: Connect the compressed air source to the sand-
blasting unit.
Step 5: Start the compressor and set the desired working
pressure on the compressed air fitting of the
compressor. Make sure that the maximum pres-
sure is not exceeded! Depending on the sensiti-
vity of the material, set a lower working pressure
accordingly.
Step 6: Put on breathing protection and protective
gloves.
Step 7: Open the compressed air valve on the compres-
sor
Step 8: Turn on the on/off switch on the lid of the Mobile
sand-blasting unit.
Step 9: Place the abrasive gun on the workpiece so that
the brush touches the surface.
Fig. 9: Application of the blasting pistol
CAUTION!
HEALTH HAZAR .
Inhalation of blasting material and abrasion may
cause lung damage by quartz dust! Possible forma-
tion of pneumoconiosis and silicosis. For further
information see
https//en.wikipedia.org/wiki/silicose
Inhaling substances with particle sizes below 5 µm is
particularly dangerous!
Never use abrasives with particle sizes smaller than
0.12 mm.
Always wear breathing protection!
Wear protective goggles!
Wear breathing protection!
Wear protective gloves!
Wear protective work clothing!
NOTE!
Before operating the Mobile sand-blasting unit for the
first time, carry out the following points.
- Check all connections and tighten them if necessary.
- Check the tank and all lines for leaks.
ANGER!
The sand jet must always be directed away from the
operator.
ANGER!
Only use abrasives with a maximum grain size of
0.18 mm. Larger particles clog the valve and cause a
malfunction.
ANGER!
The workpiece must be clean and dry.
NOTE!
The distance of the blasting gun to the object plays
an important role. The distance must be selected so
that the brushes touch the workpiece.

Care, maintenance and repair
MSSG 105 A | Version 1.05 11
Step 10: Guiding the blasting agent gun:
One hand on the gun handle, the other hand on
the brush housing (Fig. 9).Slowly open the bla-
sting agent control valve until the desired flow
rate is reached. Keep the nozzle at an optimum
distance from the workpiece. The closer to the
surface, the finer the pattern.
Step 11: By adjusting the position of the nozzle with the
adjusting screw on the head of the blasting
gun, the size of the jet can be varied.
Step 12: When the work is finished, close the valve of the
blasting gun and switch off the Mobile sand-
blasting unit (set switch to position 0).Switch off
the compressor and disconnect the compres-
sed air line from the Mobile sand-blasting unit.
Step 13: Disconnect the power plug of the sandblasting
machine from the socket. Open the lid of the
sandblasting machine, pull out the filter a little
and tap the blasting material from the filter. Af-
ter longer use (one hour or more) clean the fil-
ter with compressed air, wear eye and
breathing protection!

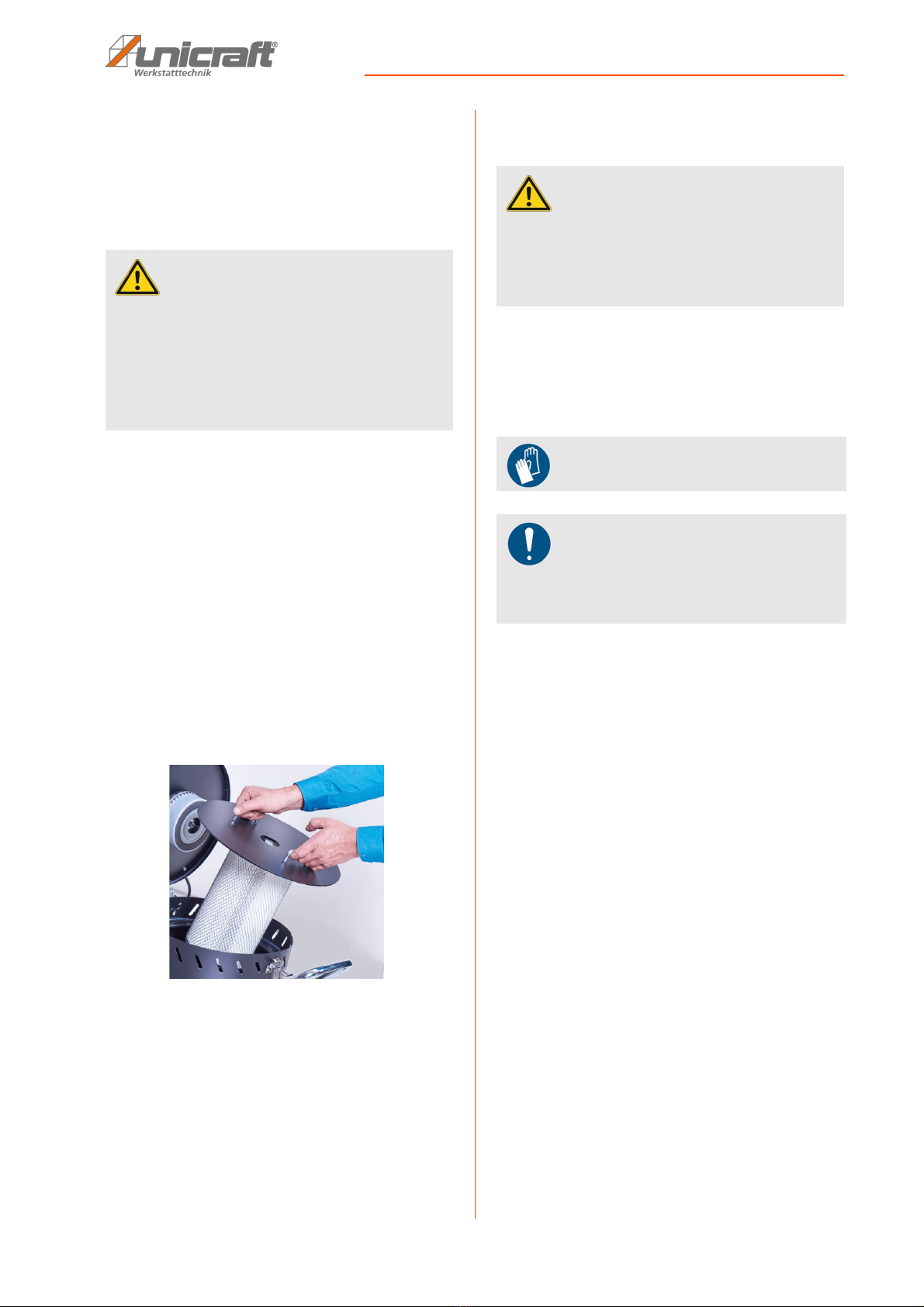

Fig. 10: Filter
Step 14: At the end of the working day, remove the abra-
sive from the container. Store the abrasive and
the Mobile sand-blasting unit in a safe and dry
place.
9 Care, maintenance and repair
9.1 Care through cleaning
The Mobile sand-blasting unit must always be kept in a
clean condition.
Clean the tool regularly from dirt. Regular cleaning
makes it easier to work with the pneumatic tool.
Clean all plastic parts with a soft, damp cloth and a little
neutral cleaner.
Check the quality of the blasting medium regularly. In
case of unsuitable grain size, wear and tear or soiling re-
place the blasting agent.
Check the screw connections for a tight and tight fit and
retighten them, if necessary.
Store the tool clean and dry.
If the Mobile sand-blasting unit does not function pro-
perly, contact a specialist dealer or our customer service.
The contact details can be found in chapter 1.2 Custo-
mer service.
All protective and safety devices must be reinstalled im-
mediately after repair and maintenance work has been
completed.
ANGER!
The brush is intended to prevent the blasting agent
from escaping outside and being lost, but to ensure
that it is returned to the container by the suction unit.
Depending on the shape of the workpiece or at
corners and edges, make sure that the brush covers
the surface as completely as possible.
The brush has no function when treating the surface!
ANGER!
Disconnect the Mobile sand-blasting unit from the
compressed air supply and the mains before car-
rying out any maintenance, servicing or cleaning
work. Maintenance and repair work may only be car-
ried out by qualified personnel.
Wear protective gloves!
NOTE!
Never use harsh cleaning agents for any cleaning
work. This can lead to damage or destruction of the
Mobile sand-blasting unit.

12 MSSG 105 A | Version 1.05
Troubleshooting
10 Troubleshooting
ANGER!
If one of the following errors occurs, stop working
with the Mobile sand-blasting unit immediately.
Serious injury or damage to the tool may occur. All
repair or replacement work must only be carried out
by qualified and trained personnel. The tool must first
be disconnected from the compressed air source and
the power supply.
Fault Possible Cause / Remedy
Poor abrasive flow 1. Working pressure too low. Check compressed air supply. At least 5.5 bar required.
2. Dirty or clogged filter. Clean the filter
3. Blasting medium clumps together. Compressed air too moist. Make sure that a suitable
water separator is installed at the compressed air source.
4. Nozzle clogged. Blow the nozzle freely (wear protective goggles).
Poor blasting result 1. Compressed air too moist. Make sure that a suitable water separator is installed at the
compressed air source.
2. Blasting medium has uneven grain sizes and/or is worn out. Replace the abrasive.
3. The nozzle is worn out and has to be replaced.
Poor abrasive extrac-
tion
1. Dirty or clogged filter. Clean the filter.
2. Leaking or clogged suction pipe. Check lines for damage and/or clogging. Clean or re-
place the lines.
3. Damaged seals. Replace the seals.
Blasting medium is
blown through the
brush
1. Working pressure too high. Check compressed air supply. Max. working pressure Max.
working pressure 7,9 bar.
2. Leaking or blocked suction pipe. Check lines for damage and/or blockage. Clean or re-
place the lines.
3. Brush damaged. Replace the brush.

isposal, recycling of used devices
MSSG 105 A | Version 1.05 13
11 Disposal, recycling of used devices
In your own interests and in the interests of the environ-
ment, please ensure that all components of the equip-
ment are disposed of in the proper and authorized way.
11.1 Decommission
Disused devices must be taken out of service immedi-
ately in order to avoid later misuse and endangering the
environment or people.
Step 1: Remove all environmentally hazardous fluids
from the Mobile sand-blasting unit.
Step 2: If necessary, disassemble the Mobile sand-bla-
sting unit into manageable and usable as-
semblies and components.
Step 3: The product components and operating materi-
als must be routed through the appropriate dis-
posal routes.
11.2 Disposal of electrical equipment
Electrical equipment contains a large number of recyclable
materials and environmentally harmful components.
These components must be disposed of separately and
properly. In case of doubt, contact the municipal waste dis-
posal service.
If necessary, use the services of a specialized waste dispo-
sal company for processing.
11.3 Disposal via municipal collection
points
Disposal of used electrical and electronic equipment
(Applicable in the countries of the European Union and
other European countries with a separate collection sys-
tem for these appliances).
The symbol on the product or its packaging indi-
cates that this product should not be treated as normal
household waste, but must be returned to a collection
point for the recycling of electrical and electronic equip-
ment. By helping to properly dispose of this product, you
are protecting the environment and the health of others.
Environment and health are endangered by improper
disposal. Material recycling helps to reduce the con-
sumption of raw materials. For more information about
recycling this product, contact your local community, mu-
nicipal waste management, or the shop where you pur-
chased the product.
12 Spare parts
12.1 Ordering spare parts
The spare parts can be obtained from the dealer. Specify
the following key data when inquiring or ordering spare
parts:
- Device type
- Item number
- Position number
- Construction year
- Amount
- Desired shipping method (post, freight, sea, air, ex-
press)
- Delivery address
Spare parts orders without details given above can not be
considered. If the shipping method is missing, shipping will
be at the discretion of the supplier. Details of the device
type, item number and year of construction can be found
on the type plate, which is attached to the device.
Example
The Suction hose for the Mobile sand-blasting unit MSSG
105 A must be ordered. The Suction hose has the num-
ber 1 in the spare parts drawing 1.
By ordering spare parts, send a copy of the spare parts
drawing (1) with the marked part (Suction hose) and
marked positon number (1) to the dealer and provide the
following information:
- Type of device: Mobile sand-blasting unit MSSG 105 A
- Item number: 6204030
- Position number: 1
ANGER!
Risk of injury through use wrong
spare parts!
The use of incorrect or faulty replacement parts can
be dangerous to the operator and cause damage and
malfunction.
- Only original spare parts from the manufacturer or
replacement parts approved by the manufacturer
must be used.
- In case of doubt, always contact the manufacturer
Tips and recommendations
Using non-approved spare parts voids the manu-
facturer's warranty.

14 MSSG 105 A | Version 1.05
Electrical circuit diagram
12.2 Spare parts drawing MSSG 105 A
Fig. 11: Spare parts drawing
13 Electrical circuit diagram
Fig. 12: Electrical circuit diagram

EC- eclaration of Conformity
MSSG 105 A | Version 1.05 15
14 EC-Declaration of Conformity
According to machine directive 2006/42/EG Annex. II 1.A
Manufacturer/distributing company: St rmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
hereby declares that the following product
Product group: Unicraft® Werkstatttechnik
Machine type: Mobile sand-blasting unit
esignation of the machine: MSSG 105 A
Item number: 6204030
Serial number*: ____________
Year of manufacture *: 20___
* please fill in according to the information on the type plate
due to its design and construction, as well as in the version marketed by us, complies with the relevant, basic safety and
health requirements of the above-mentioned directive and the following EU directives.
Relevant EU irectives: 2014/30/EU EMC Directive
2012/19/EU WEEE-Directive
The following harmonized standards were applied:
EN 60204-1:2006+A1:2009 Safety of machinery - Electrical equipment of machines -
Part 1: General requirements
Responsible for documentation: Kilian St rmer, St rmer Maschinen GmbH,
Dr.-Robert-Pfleger-Str. 26, D-96103 Hallstadt
Hallstadt, 31.03.2020
______________________
Kilian St rmer
Manager

www.unicraft.de
