unicraft SSK 2.5 User manual

SSK 2.5
Operating Instructions
Sandblasting Cabinet
SSK 2.5
SSK 2.5

2 SSK 2.5 | Version 1.08
Imprint
Product identification
Sandblasting cabinet Item number
SSK 2.5 6204003
Manufacturer
St rmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Fax: [phone] - 55
E-Mail: [email protected]
Internet: www.unicraft.de
Indications regarding the operating instructions
Original instructions
Edition: 28.03.2019
Version: 1.08
Language: English
Author: MS/SN
Indications regarding the operating instrucions
Copyright © 2019 St rmer-Maschinen GmbH, Hallstadt,
Germany.
The contents of these operating instructions are the sole
property of the company St rmer.
Passing on as well as copying of this document, the use
and distribution of its content are prohibited if not explic-
itly permitted. Contraventions are liable to compensa-
tion.
Subject to technical modifications and error.
Content
1 Intorduction .............................................................3
1.1 Copyright ............................................................ 3
1.2 Customer Service ............................................... 3
1.3 Limitation of liability............................................. 3
2 Safety........................................................................3
2.1 Symbol explanation ............................................ 3
2.2 Obligations of the operating company ................ 4
2.3 Requirements to staff.......................................... 4

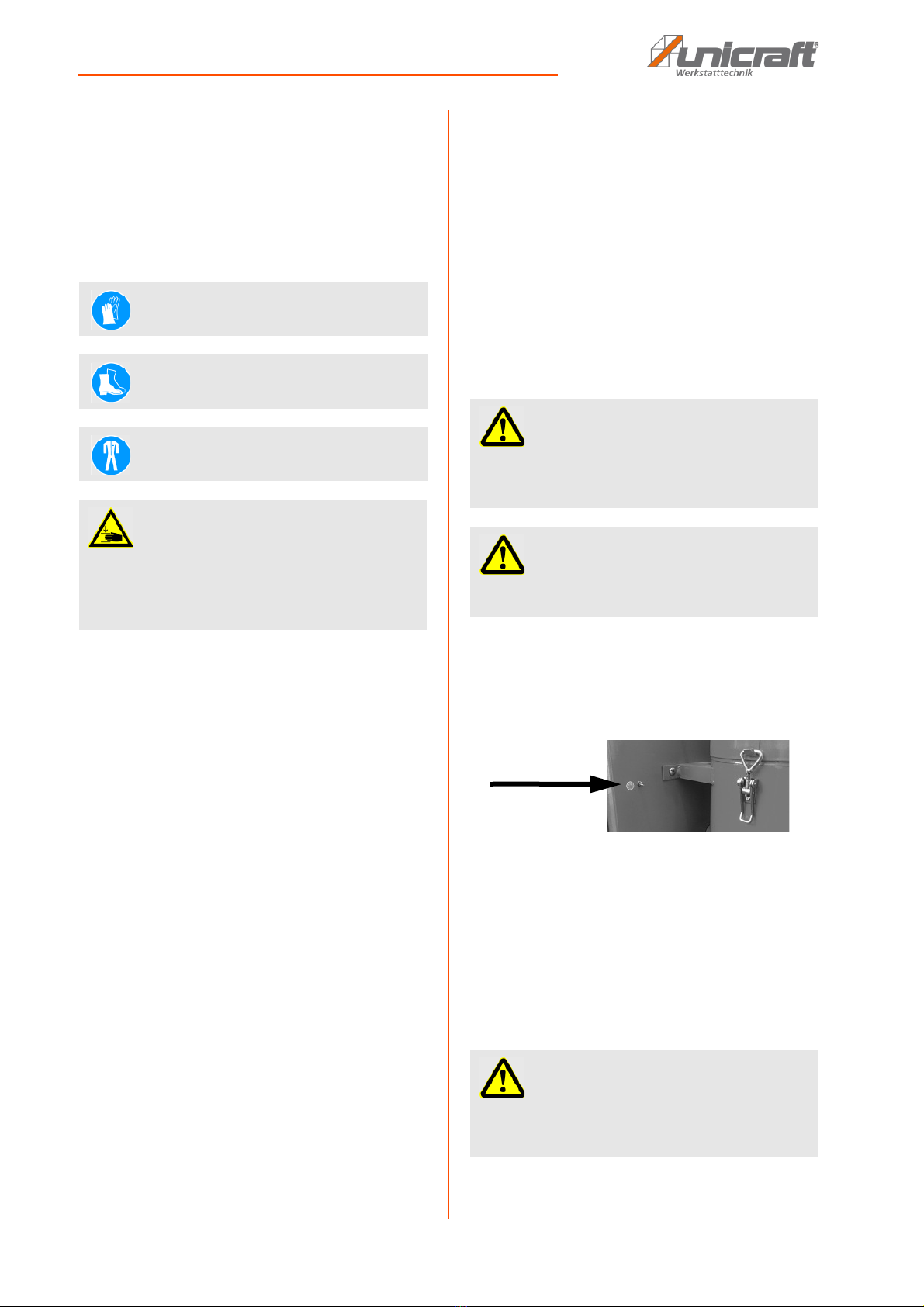

2.4 Personal protective equipment ........................... 5
2.5 Safety Information............................................... 5
3 Intended use ............................................................6

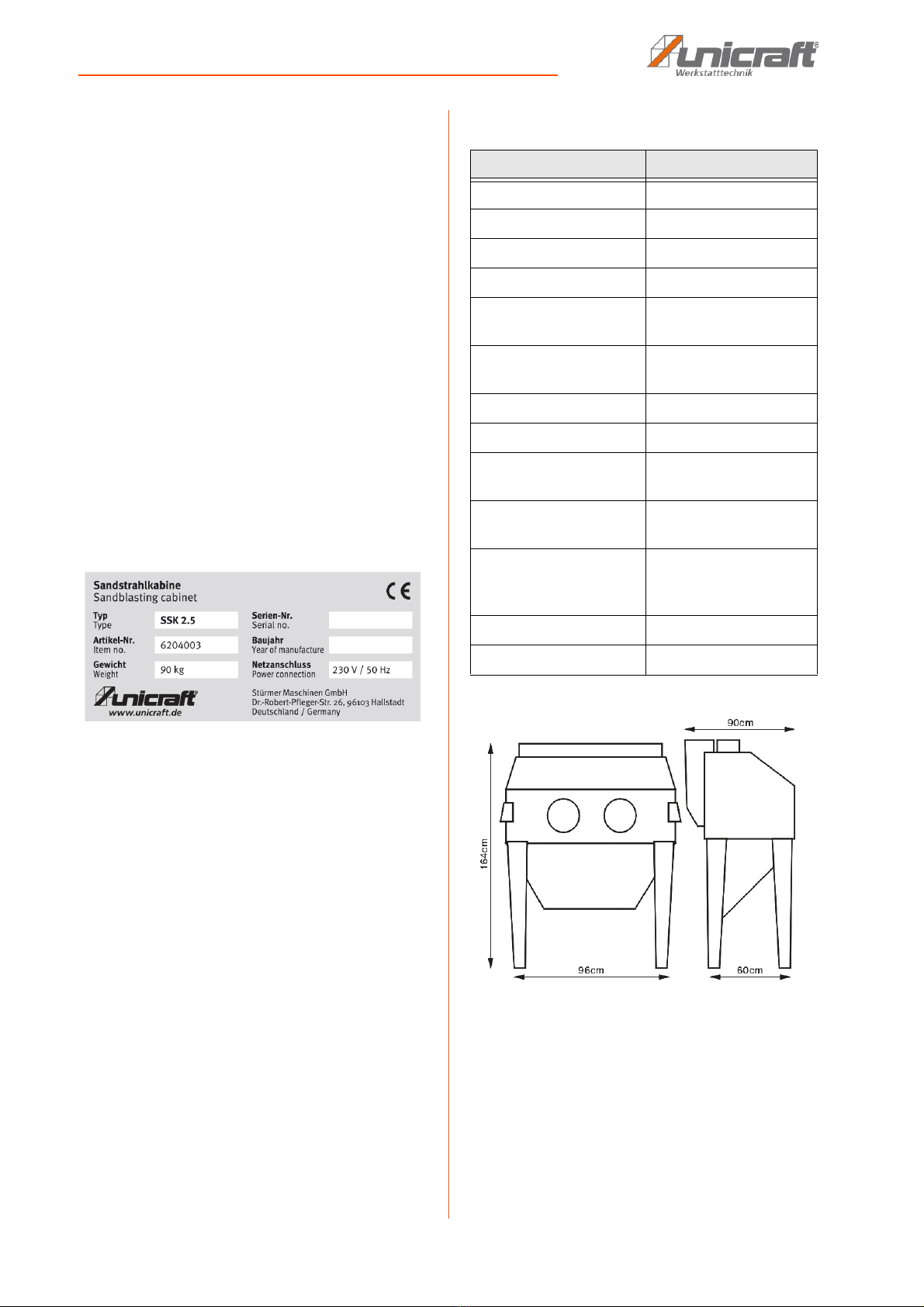

3.1 Type plate ........................................................... 6
4 Technical Data .........................................................6
5 Transport, packaging, storage...............................7
5.1 Packaging ........................................................... 7
5.2 Storage ............................................................... 7
6 Device description ..................................................7
6.1 Delivery............................................................... 7
7 Assembly and connecting......................................8
7.1 Assembly ............................................................ 8
7.2 Electrical connection........................................... 8
7.3 Compressed air connection................................ 8
8 Commissioning .......................................................9
9 Care, maintenance and overhaul .........................10
9.1 Care by cleaning............................................... 11
9.2 Maintenance and repair.................................... 11
10 Troubleshooting ..................................................12
11 Disposal, recycling of used device....................12
11.1 Decommission ................................................ 12
11.2 Disposal of lubricants...................................... 12
12 Spare parts...........................................................13
12.1 Spare parts ordering....................................... 13
12.2 Spare parts drawing........................................ 14

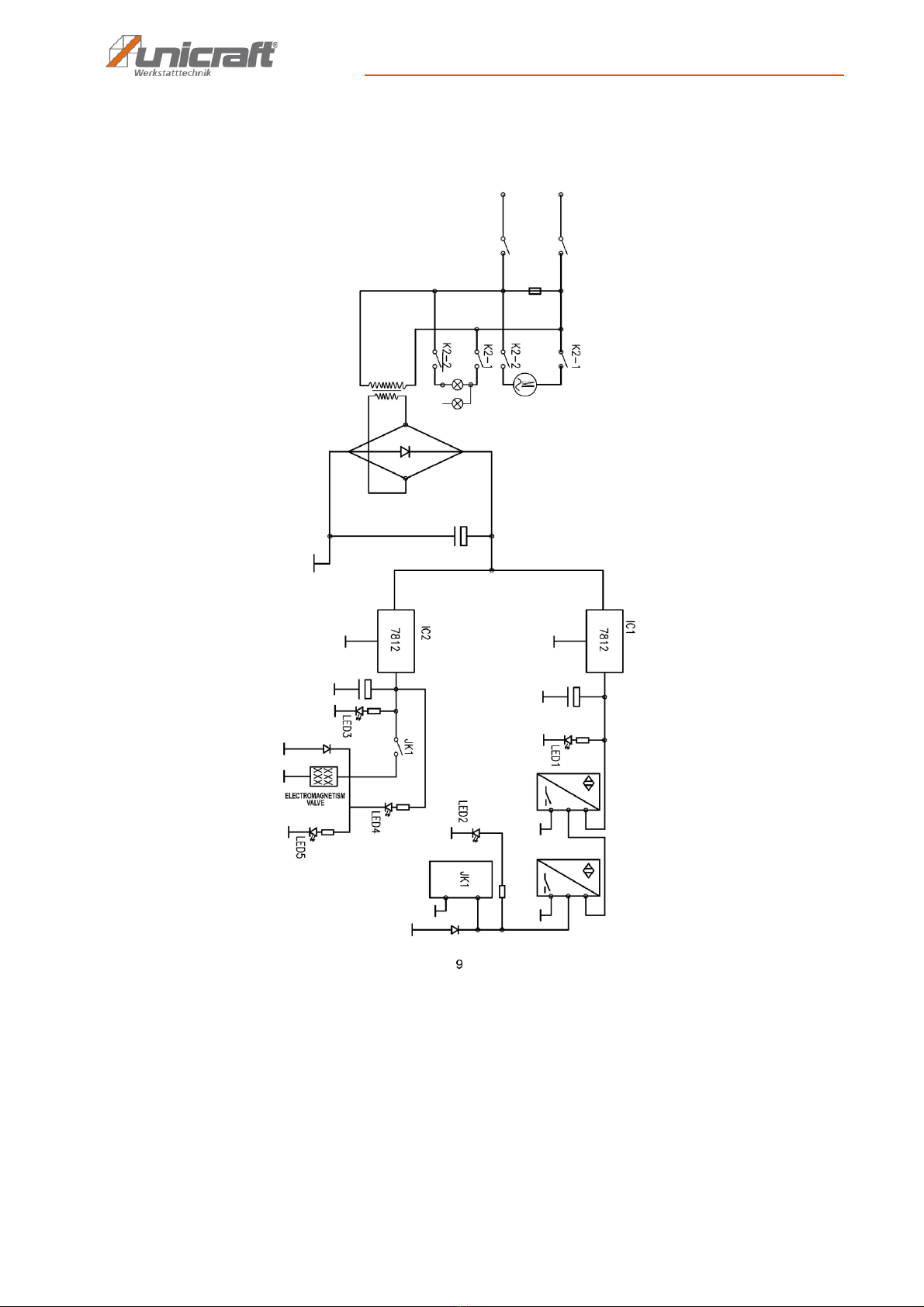

13 Electrical wiring diagram....................................15
14 EC Declaration of Conformity ............................16
15 Attachment...........................................................17

Intorduction
SSK 2.5 | Version 1.08 3
1 Intorduction
You have made a good choice by purchasing the UNI-
CRAFT Sandblasting Cabinet.
Read the operating manual thoroughly before com-
missioning the machine.
It gives you information about the proper commissioning,
intended use and safe and efficient operation and main-
tenance of your sandblasting cabinet.
The operating manual is part of the Sandblasting Cabi-
net. Always keep this operating manual in the location
where your Sandblasting Cabinet is being operated. All
local accident prevention regulations and general safety
instructions for the operating range of your Sandblasting
Cabinet must also be complied with.
1.1 Copyright
The contents of these instructions are copyright. They
may be used in conjunction with the operation of the
Sandblasting Cabinet. Any application beyond those de-
scribed is not permitted without the written approval of
St rmer GmbH.
We are claiming branded-, patent and design rights to
protect our products, if this is possible in individual
cases. We vigorously oppose any infringement of our in-
tellectual property.
1.2 Customer Service
Please contact your dealer if you have questions con-
cerning your product or if you need technical advice.
They will help you with specialist information and expert
advice.
Germany:
St rmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Repair-Service:
Fax: [phone]-111
E-Mail: [email protected]
Internet: www.unicraft.de
Spare part orders:
Fax: [phone]-119
E-Mail: [email protected]
We are always interested in valuable experience and
knowledge gained from using the application-which then
could be shared and be valuable to develop our products
even further.
1.3 Limitation of liability
All information and notes in these operating instructions
were summarised while taking applicable standards and
rules, the state-of-the-art technology and our long-term
knowledge and experiences into consideration.
In the following cases the manufacturer assumes no lia-
bility for damages:
- Failure to follow the instructions,
- Improper use,
- Use of untrained personnel,
- Unauthorized modifications,
- Technical changes,
- Use of unauthorized spare parts.
The actual scope of delivery may deviate from the expla-
nations and illustrations described here in the case of
special designs, use of additional order options or due to
the latest technical changes.
The obligations agreed in the delivery contract, the gene-
ral terms and conditions as well as the delivery conditi-
ons of the manufacturer and the legal regulations valid at
the time of the conclusion of the contract apply.
2 Safety
This section provides an overview of all important safety
packages for the protection of operating personnel as
well as for safe and fault-free operation. Other task-
based safety notes are included in the paragraphs of the
individual phases of life.
2.1 Symbol explanation
Safety instructions
The safety notes in these operating instructions are high-
lightet by symbols. The safety notes are introduced by si-
gnal words which express the concern of the risk.
ANGER!
This combination of symbol and signal words indi-
cates an imminently dangerous situation which may
lead to death or severe injuries if they are not
avoided.
WARNING!
This combination of symbol and signal words indi-
cates a possibly dangerous situation which may lead
to death or severe injuries if they are not avoided.

4 SSK 2.5 | Version 1.08
Safety
Tips and recommendations
It is necessary to observe the safety notes written in
these operating instructions in order to reduce the risk of
personal injuries and damages to property.
2.2 Obligations of the operating company
The operator is the person who operates the machine for
commercial or economic purposes himself or leaves it to
a third for use or application and bears the legal product
responsibility for the protection of the user, personnel or
third during operation.
If the sandblasting cabinet is used for commercial pur-
poses, the operating company of the sandblasting cabi-
net must comply with the legal working safety regula-
tions. Therefore, the safety notes in this operating
manual, as well as the safety, accident prevention and
environment protection regulations applying for the area
of application of the sandblasting cabinet must be met.
The following applies in particular:
- The operating company must be informed about
the applying industrial safety regulations and fur-
ther analyse hazards resulting from the special
working conditions at the place of use sandblasting
cabinet. She must implement these in form of oper-
ating manuals for the operation of the sandblasting
cabinet.
- During the entire lifetime of the sandblasting cabi-
net, the operating company must verify whether
the operating manuals prepared by her correspond
to the current status of the regulations, and must
adapt these if necessary.
- The operating company must unambiguously regu-
late and determine the responsibilities for installa-
tion, operation, troubleshooting, maintenance and
cleaning.
- The operating company must ensure that all per-
sons who work with the sandblasting cabinet, have
read and understood this manual. Furthermore she
must instruct the staff in regular intervals and in-
form them about the hazards.
- The operator must provide the necessary protec-
tive equipment to the staff and order the use of the
necessary protective equipment in a binding way.
Furthermore the operating company is responsible to
keep the sandblasting cabinet always in a technically
flawless state. Thus, the following applies:
- The operator must ensure that the maintenance in-
tervals described in this manual are kept.
- The operator must have all safety devices checked
regularly for their good working order and their in-
tegrity.
2.3 Requirements to staff
The different tasks described in this manual represent
different requirements to the qualification of the persons
entrusted with these tasks
Only persons reliable working procedures can be ex-
pected from, are allowed to perform all works. Persons
the responsiveness of which is affected by e. g. drugs,
alcohol or medication, are not allowed to work with the
machine
The qualifications of the personnel for the different tasks
are mentioned below:
ATTENTION!
This combination of symbol and signal word indicates
a possibly dangerous situation which may result mild
or minor injuries.
ATTENTION!
This combination of symbol and signal word indicates
a potentially hazardous situation which, if not avoi-
ded, could result in property damage and environ-
mental damage.
NOTE!
This combination of symbol and signal word indicates
a potentially hazardous situation which, if not avoi-
ded, could result in property damage and environ-
mental damage.
Tips and recommendations
This symbol highlights useful tips and recommenda-
tions as well as information for an efficient and trou-
ble-free operation.
WARNING!
anger due to insufficient qualification of
persons !
Insufficiently qualified persons cannot estimate the
risks while using the machine and expose them-
selves and others to the danger of severe or lethal
injuries.
- Have all works only performed by qualified persons.
- Keep insufficiently qualified persons out of the work-
ing area.

Safety
SSK 2.5 | Version 1.08 5
Operator:
The operator is instructed by the operating company
about the assigned tasks and possible risks in case of
improper behaviour. Any tasks which need to be per-
formed beyond the operation in the standard mode must
only be performed by the operator if it is indicated in
these instructions and if the operating company expres-
sively commissioned the operator.
Electrician:
The electrician is due to their professional training,
knowledge and experience as well as knowledge of the
relevant standards and regulations able to work on
electrical systems and independently recognize and
avoid possible dangers. The electrician is specially trai-
ned for the work environment in which he works and
knows the relevant standards and regulations.
Qualified personnel:
Due to their professional training, knowledge and experi-
ence as well as their knowledge of relevant regulations the
specialist staff is able to perform the assigned tasks and to
recognise and avoid any possible dangers themselves.
Manufacturer:
Certain works may only be performed by specialist per-
sonnel of the manufacturer. Other personnel is not au-
thorized to perform these works. Please contact our cu-
stomer service for the execution of all arising work.
2.4 Personal protective equipment
The personal protective equipment serves to protect per-
sons against impairments of safety and health while
working. The staff member has to wear personal protec-
tive equipment while performing different tasks on and
with the machine which are indicated in the individual
paragraphs of these instructions.
The personal protective equipment is explained in the
following paragrapht
2.5 Safety Information
The sandblast cabin has a number of safety markings
that must be observed and followed.
The safety labels must not be removed. Damaged or
missing safety markings can lead to malfunctions, perso-
nal injury and material damage. They are to be replaced
immediately. If the safety markings are not immediately
recognizable and comprehendible, the sandblasting ca-
binet should be taken out of service until new safety mar-
kings have been made.
The following safety labels and symbols are appropriate:
Fig. 1: Safety markings on the sandblasting cabinet SSK 2.5
Head protection
The industrial helmet protects the head against fall-
ing objects and hitting on fixed objects.
Ear protection
The industrial helmet protects the head against falling
objects and hitting on fixed objects.
Respiratory protection
The respiratory protection protects the respiratory
tract against the ingress of dust and small foreign
bodies.
Safety glasses
The protective goggles serve to protect the eyes
against parts flying off.
Protective gloves
The protective gloves serve to protect the hands
against sharp components as well as against fric-
tion, abrasions or deep injuries.
Safety boots
The safety boots protect the feet against crushes, fall-
ing parts and slipping over on slippery underground.
Protective clothes
Protective clothes are made of a tightly fitted fabric
without the protruding parts of low tear strength.

6 SSK 2.5 | Version 1.08
Intended use
3 Intended use
The sandblasting cabinet SSK 2.5 must only be used to
Rust removal and cleaning of metal surfaces with air
tools using sandblasting with grain size of 0,12 mm -
0,25 mm .The working pressure may be max. 8,3 bar
amount. The work may only be carried out in the closed
box, attention must be paid to absolute tightness.
The sandblasting cabin may only be operated by per-
sons who have been instructed in the device.
Proper use also includes compliance with all information
in this manual. Any use beyond the intended use or
otherwise is considered misuse.
For structural and technical changes to the sand blasting
cabin, the company St rmer Maschinen GmbH assumes
no liability.
Claims of any kind due to damage due to improper use are
excluded.
3.1 Type plate
Fig. 2: Type plate of the Sandblasting SSK 2.5
4 Technical Data
Model SSK 2.5
Volumen work cabine 310 Liters
Working pressure 4,1 - 8,0 bar
Inlet pressure max. 8,3 bar
Suction power 2,5 m3/h
blasting agent particle
size
0,12 - 0,25 mm
compressed air connec-
tion
3/8“
air requirements approx. 200 - 350 Liters/min
Electrical connection 230 V / 50 Hz
max. weight blasting
agent particle
50 kg
max. weight on the auf
dem Storage grid
120 kg
Inside dimensions wor-
king cabin (LxWxH front/
back)
945 x 605 x 605 mm
Dimension 960 x 900 x 1640 mm
Weight 90 kg

Transport, packaging, storage
SSK 2.5 | Version 1.08 7
5 Transport, packaging, storage
elivery
Check the sandblasting cabin for visible transport da-
mage after delivery. If you discover any damage, imme-
diately report it to the transport company or the dealer.
Transport
The sandblasting cabinet may only be transported
upright. The sandblasting cabins must not be stacked on
top of each other. Also, no other objects may be parked
on them.
For transport, the sand blasting cabin is on a pallet. The
pallet must be secured in the loading area in accordance
with the regulations.
To protect against moisture and dirt, all bare metal parts
are greased.
Transport with a forklift / pallet truck:
For transport with a sufficiently dimensioned pallet truck
or forklift, the sandblasting booth must be secured on a
flat, firm surface (for example on a pallet) secured with
bolts.
5.1 Packaging
All used packaging materials and packaging aids are re-
cyclable and should be taken to a materials recycling de-
pot to be disposed of.
The delivery packaging is made of cardboard, so please
dispose carefully by having it chopped up and given to
the recycling collection.
The film is made of polyethylene (PE) and the cushioned
parts of polystyrene (PS). These materials should be
taken to a collection point for recyclable materials or to
the local waste disposal company.
5.2 Storage
The sand blasting cabinet should be cleaned and then
stored in a dry, frost-free environment.
6 Device description
Illustrations in this manual may differ fromt the origi-
nal.
Fig. 3: Sandblasting cabinet SSK 2.5
1 Extraction with Filter for grain sizes < 5 µm
2 Door with seal
3 Sandblasting gun
4 Pedal for dosing the compressed air supply

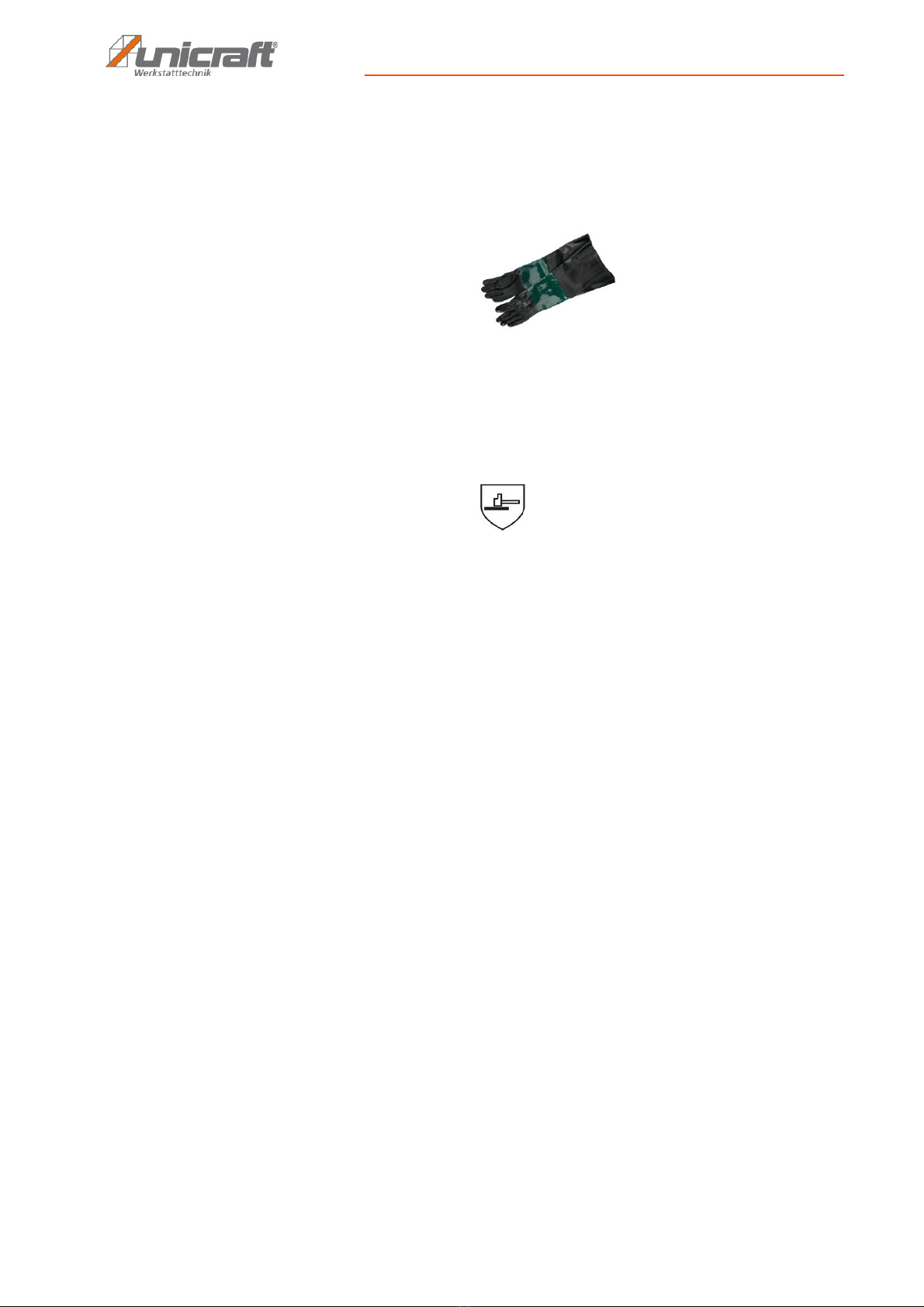

5 Gloves, hand hole diameter 195 mm
6 Viewing window
7 Use strip
1 Fuse 2 Main switch
3 Light switch 4 Grain suction
5 Performance indicator 6 Circuit display
7 door protection display 8 Fixed spray gun
9 Mobile spray gun 10 Air pressure display
11 Air pressure regulation
6.1 Delivery
- Premium blasting gun with ceramic nozzle
- 5 replacement films for view window
- 4 ceramic nozzles (2 x 6 mm/ 2 x 7 mm)
NOTE!
Observe the weight of the device during transport and
lifting. The transport and lifting equipment must be
able to pick up the load.
HINWEIS!
Protect the device from moisture.
Tips and recommendations
For longer transports, make sure that the corrosion
protection is intact or renewed if necessary.
1
2
3
4
7
6
5

8 SSK 2.5 | Version 1.08
Assembly and connecting
7 Assembly and connecting
The sandblasting cabinet may only be set up and opera-
ted in dry, well-ventilated rooms.
It must be set up stable on a level and firm ground.
It is important to ensure that there is enough freedom of
movement and sufficient lighting to work.
7.1 Assembly
The Sandblasting cabinet has to be mounted as shown
in (Fig. 8).
Step 1: Remove all loose parts and the grille from the
inside of the sandblasting cabin housing.
Step 2: Put the housing on its side.
Step 3: Screw the four feet to the housing with the en-
closed M6x12 screws, spacers and nuts. Hand
tighten nuts.
Step 4: Die Sandstrahlkabine auf die F ße stellen.
Step 5: Put the housing on its side .
Step 6: Place the pedal between the front feet and
connect the leads.
Step 7: Fit the side doors to the cab.
Step 8: Insert the inspection window on the cabin top.
Step 9: Secure the lights to the cabin top with the four
enclosed screws, spacers and nuts.
Step 10: Screw the exhaust system to the rear of the
cab. Insert the motor and the filter into the top
of the extraction system housing.
Remove the hood cover on the cab, insert the
pipe and seal with sealant. hen secure the
corner with the suction tube again.
Step 11: Tighten all screws and nuts.
Step 12: Insert the storage rack into the cabin and
guide the lines up through the opening.
Step 13: Connect the electrical cable of the suction de-
vice to the connection socket of the lighting
and connect the plug of the lighting to the po-
wer supply. When the suction switch is swit-
ched on, the light switch simultaneously swit-
ches on the suction and the lighting.
Step 14: Fill the blasting abrasive through the storage
grid into the funnel of the sandblasting cabi-
net.
7.2 Electrical connection
Step 1: Check if the mains voltage corresponds to the
voltage indicated on the nameplate.
Step 2: Ensure a good grounding of the sand blasting
cabin.
Fig. 4: ground connection
Step 3: Connect the power cord to the mains.
7.3 Compressed air connection
To operate the sand blasting cabin you need a compres-
sor with at least 200-350 Liters/min Filling capacity and a
container size of at least 100 Liters.The generated air
must be cleaned, free of condensate and oil-free.
Adjustable operating pressure: ca. 4,1 - 8,0 bar.
Use safety gloves!
Use safety schoes!
Use protective clothing!
ATTENTION!
crushing!
Injuries to hands and fingers may result from
improper use of the sandblasting cabin.
- Pay attention to stable supports and support de-
vices.
ANGER!
anger of life by electric current!
There is an immediate danger of electrocution on
contact with live components..
Work on the electrical system only by electricians.
ATTENTION!
The sand blasting cabin must have a good groun-
ding to avoid static electricity and sparking.
ATTENTION!
Moisture in the compressed air impairs the flow of
abrasive and can cause clogging and clogging of val-
ves and line!

Commissioning
SSK 2.5 | Version 1.08 9
8 Commissioning
In order to meet the most varied requirements, va-
rious settings must be made before the operation for
the trouble-free operation of the sand blasting cabin.
Proper functioning depends on various factors. On the
one hand, a clean and dry blasting medium and free li-
nes are an important prerequisite (operating pressure as
in the technical data). On the other hand, it depends on
which workpieces are to be processed with which abra-
sive, because each workpiece and abrasive has other
properties (hardness, grain size, weight, aggressive-
ness). The blasting media (e.g., normal, mixed, noble
corundum, crushed slag, glass beads, blasting balls,
etc.) are offered in various grain sizes.
It follows that the sandblast cabin has to be adjusted
individually depending on the type and requirement.
Adjustment of the amount of blast feed
The amount of blasting material feed, consisting of the
negative pressure flowing through the screw [Pos. 38] air
and the blasting agent used, is adjustable on the mete-
ring valve [Pos. 13].
WARNING!
anger of life!
There is danger to your life if you do not follow these
rules.
- Never work on the blast cabinet if you are under the
influence of alcohol, drugs or medicines and / or
you are overtired or suffer from concentration-im-
pairing illnesses..
- The sandblasting cabin may only be operated by
one person. Other persons must keep away from
the work area during operation.
ATTENTION! HEALTH HAZAR
Inhalation of abrasive material and abrasion can
cause lung damage from fumed silica! Possible for-
mation of a silicosis. Information on this
https//de.wikipedia.org/wiki/Silikose
Particularly hazardous is the inhalation of substances
with particle sizes below 5 µm!
Never use abrasives with smaller particle sizes than
0,12 mm and make sure the cab is absolutely tight.
Wear respiratory protection.
Use ear protection!
During operation, a noise level of over 85 dB (A) may
occur. From 85 dB (A), ear protection must be worn!
Use safety goggles!
Use respiratory protection!
Sicherheitsschuhe tragen!
Use protective clothing!
NOTE!
Before using the sand blasting cabin for the first time,
carry out the following points.
- Check all screw connections on the installed sand-
blast cabinets and tighten them if necessary.
- Check the sand blasting cabin for leaks.
- Check the function of the door monitoring. When
opening the cabin doors during operation, the sand-
blasting booth switches off automatically.
ATTENTION!
The sandblasting gun must always be directed away
from the operator. Never work with the sandblasting
cabin door open.
ATTENTION!
Never use sand as abrasive.
ATTENTION!
The workpiece must be clean and dry
NOTE!
The distance of the blasting gun to the object plays an
essential role and should not exceed 20 cm.

10 SSK 2.5 | Version 1.08
Care, maintenance and overhaul
It must be conveyed fluidly and without interruption, so
that the blasting material can not accumulate in the hose.
If the hose is blocked, turn up the screw [Pos.38]
slightly. Then perform a test blast to check the function.
Fig. 5: Valve Pos. 13
Adjustment of the blowgun
The generated negative pressure in the blow gun can be
determined by the depth of engagement of the compo-
nent [Pos. 7] . To do this, lock the nut [Pos. 5] and, if
necessary, disconnect the air pressure connection [Pos.
8].
Fig. 6: Blasting gun
Both settings are interdependent!
You should always try several settings to get the
best results.
Here are two examples and their effects:
- too deeply screwed in component [pos. 7] (small di-
stance inside to the nozzle): too little negative
pressure and thus also little abrasive
- too far back turned component [pos.7] (large di-
stance inside to the nozzle): no negative pressure
is generated, but blown into the blasting medium
line -> pressure build-up
Step 1: Select a suitable blasting medium and fill in the
sandblast booth.
Step 2: The workpiece must be free of oil, grease and
moisture. If necessary, clean the workpiece be-
fore placing it in the blast cabinet.
Step 3: Set the desired working pressure at the com-
pressed air supply (compressor). Make sure
that the maximum pressure is not exceeded!
Adjust according to the sensitivity of the mate-
rial according to lower working pressure.
Step 4: Connect the sandblast booth to the compres-
sed air source.
Step 5: Place the workpiece to be machined in the blast
cabinet, close the door and turn on the blast
cabinet lighting.
Step 6: Use the integrated protective gloves to hold the
sand blasting gun and the workpiece and start
sandblasting. Hold the sand blasting gun at an
angle of 45 ° to 60 ° to the workpiece, the abra-
sive should be blown from the workpiece against
the back wall of the sandblast cabine.Use the
pedal to dose the blasting agent addition.
Attention: When opening the cabin doors during
operation, the sandblasting booth switches off au-
tomatically.
Step 7: After finishing work, disconnect the tool from
the compressed air source and remove the
workpiece.Pflege, Wartung und Instandset-
zung
9 Care, maintenance and overhaul
NOTE!
The setting of the jet supply described above influen-
ces the subsequent adjustment of the blow gun.
NOTE!
There are no general guidelines for these settings.
Optimal values must be obtained by testing, depen-
ding on the blasting media
ATTENTION!
Disconnect the tool from the compressed air supply
and the sandblasting booth from the mains before
carrying out any maintenance, servicing or cleaning
work. Maintenance and repair work may only be car-
ried out by qualified personnel.

Care, maintenance and overhaul
SSK 2.5 | Version 1.08 11
9.1 Care by cleaning
The sandblasting booth should always be kept in a clean
condition.
All plastic parts and painted surfaces should be cleaned
with a soft, damp cloth and some neutral detergent.
Keep the tool clean and dry.
9.2 Maintenance and repair
If the sandblasting booth does not work properly, contact
a dealer or our customer service. The contact details can
be found in chapter 1.2 Customer Service.
All protection and safety equipment must be reinstalled
immediately after completion of repair and maintenance
work.
The air hoses should be checked at regular intervals for
damage and leaks. The damaged hoses must be re-
placed.
Hose material compressed air hose: PVC.
Bursting pressure:16,5 bar
Clean the tool regularly from dirt. Regular cleaning
makes working with the pneumatic tool easier.
After 10 to 12 hours of operation, check the nozzle. In
case of uneven wear, the nozzle should be rotated by 1/
4 turn every 10 operating hours.
To ensure a good flow of blasting media, the compres-
sed air must be dry and free of oil.
Regularly check the quality of the compressed air, if
necessary install a drainage system upstream.In case of
uneven flow of blasting medium, briefly close the nozzle
and press the pedal for a few seconds to blow the sy-
stem free.
Check the quality of the abrasive regularly. If the particle
size is too small or if soiled, replace the abrasive.
Check and clean the filter regularly. Replace if neces-
sary. Filter material: nonwoven fabric
Fig. 7: Filter of the sandblasting cabin SSK 2.5
Check the fittings for a firm and tight fit and retighten if
necessary.
Use protective gloves!
NOTE!
Never use harsh detergents for cleaning. This can
lead to damage or destruction of the device.
ATTENTION!
Maintenance and repair work may only be carried out
by qualified personnel.
ust filter specification
Filtered area 2.35 m²
Flow amount 3.8 m³ / Stunde
Filtered precision < 5 µm
Filtered efficiency 99.8%
temperature stability < 100 °C

12 SSK 2.5 | Version 1.08
Troubleshooting
10 Troubleshooting
11 Disposal, recycling of used device
In your own interests and in the interests of the environ-
ment, please ensure that all components of the equip-
ment are disposed of in the proper and authorized way.
11.1 Decommission
Disused devices must be taken out of service immedi-
ately in order to avoid later misuse and endangering the
environment or people.
Step 1: Remove all environmentally hazardous fluids
from the old unit.
Step 2: If necessary, dismantle the devices into mana-
geable and usable assemblies and compo-
nents.
Step 3: The device components and operating materi-
als must be routed to the appropriate disposal
routes.
11.2 Disposal of lubricants
Remove any escaping, used or excess grease from the
lubricated lubrication points.
The disposal instructions for the lubricants used are pro-
vided by the lubricant manufacturer. If necessary, ask for
the product-specific data sheets.
ATTENTION!
If any of the following errors occur, immediately stop
working with the sandblasting gun. It can cause
serious injury or damage to the tool.
All repairs or replacement work must only be carried
out by qualified and trained personnel. The tool must
first be disconnected from the compressed air
source.
Fault Possible Cause Remedy
the device is not working 1. Defective pedal
2. No connection to the compressed
air source
1. Replace the pedal.
2. Establish compressed air connec-
tion.
Bad ray result 1. Worn jet nozzle
2. Compressor power insufficient
3. Working pressure too low
1. Replace blast nozzle.
2. Use more powerful compressor
3. Increase working pressure
There is not enough or no blasting
sprayed
1. Nozzle clogged
2. Venting on blasting jar blocked
3. Air pipe blocked on the material in-
take nose
4. Too humid air
5. Line leaking
1. Clean or replace the nozzle
2. Clean the breather
3. Clean or replace the air tube
4. Insert water separator
5. Replace line
Pressure drop on the sandblasting 1. Compressed air line clogged or
with insufficient cross section
2. Compressed air line too long
1. Clean line or replace with larger
line
2. Lay the cables shorter

Spare parts
SSK 2.5 | Version 1.08 13
12 Spare parts
12.1 Spare parts ordering
The spare parts can be obtained from the dealer or di-
rectly from the manufacturer. The contact details are in
chapter 1.2 Customer Service. Specify the following key
data when inquiring or ordering spare parts:
- device type
- item number
- Position number
- Construction year
- amount
- desired shipping method (post, freight, sea, air, ex-
press)
- Versandadresse
Spare parts orders without details given above can not
be considered. If the shipping method is missing, ship-
ping will be at the discretion of the supplier.
Details of the device type, article number and year of
construction can be found on the type plate, which is at-
tached to the sand blasting cabin.
Example
The filter for the suction device of the sandblasting cabin
must be ordered.
- Type of device: Sandblasting cabin SSK 2.5
- Item number: 6204003
- Position number: 56
The order number is:0-6204003-56
The order number consists of the article number, the
item number and one digit in front of the item number.
- Place the digit 0 in front of the item No.
- Also place the digit 0 in front of the position 1
through 9.
The Item number of your device:
Sandblasting cabinet SSK 2.5: 6204003
ANGER!
Risk of injury through use
wrong spare parts!
The use of incorrect or faulty replacement parts can
be dangerous to the operator and cause damage and
malfunction.
- Only original spare parts from the manufacturer or
replacement parts approved by the manufacturer
must be used.
- In case of doubt, always contact the manufacturer.
Tips and recommendations
Using non-approved spare parts avoids the manu-
facturer's warranty.

14 SSK 2.5 | Version 1.08
Spare parts
12.2 Spare parts drawing
In case of service, the following drawing shall help to identify the necessary spare parts. If necessary, send a copy of the
parts drawing with the marked components to your authorised dealer.
Fig. 8: Spare parts drawing SSK 2.5

Electrical wiring diagram
SSK 2.5 | Version 1.08 15
13 Electrical wiring diagram
Fig. 9: Electric wiring diagram SSK 2.5

16 SSK 2.5 | Version 1.08
EC eclaration of Conformity
14 EC Declaration of Conformity
According to machine directive 2006/42/EG Annex II 1.A
Manufacturer/distributing company: St rmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
hereby declares that the following product
Product group: Unicraft® Werkstatttechnik
Type of machine: Sandblasting cabin
esignation of Machine: SSK 2.5
Item number: 6204003
Serial number: ____________
Year of manufacture: 20___
due to its desing and construction, as well as in the version that we have placed on the market, it complies with the rele-
vant basic health and safety requirements of the above-mentioned EC-Directive and other applicable directives (hereaf-
ter), including amendments in force at the time of declaration.
Relevant EU directives: 2014/30/EU EMC Directive
89/686/EWG Personal Protective Equipment Directive
The following harmonized standarts were applied:
DIN EN ISO 12100:2010: Safety of machines - General principles of design- Risk evaluation and
Risk reduction
DIN EN 60204-1:2007-06 Safety of machines - Electrical equipment of machines, Part 1: General
requirements
DIN EN ISO 13849-1:2015: Safety of machinery - Safety-related parts of control systems -
Part 1: General principles of design
DIN EN 1248:2001/A1:2009: Foundry machines - Safety requirements for blast machines
DIN EN 61000-6-1:2007: Generic Standards - Interference emission for residential and
Commercial areas as well as small businesses
DIN EN 61000-6-3:2007: Generic Standards - Interference emission for residential and
Commercial areas as well as small businesses
DIN EN 61000-3-2:2014: Limits - Limits for harmonic currents
(Device input current <= 16 A per conductor)
DIN EN 61000-3-3:2013: Limit values - limitation of voltage changes, voltagefluctuations and
flicker in public low-voltage for devices with a rated current <= 16 A per
conductor,which are not subject to any special connection conditions.
Person responsible for the documentation: Kilian St rmer, St rmer Maschinen GmbH,
Dr.-Robert-Pfleger-Str. 26, D-96103 Hallstadt
Hallstadt, 08.11.2017
______________________
Kilian St rmer
Manager

Attachment
SSK 2.5 | Version 1.08 17
15 Attachment
Information zu den mitgelieferten Handschuhen/ Information about the supplied
gloves
Schutzhandschuhe 1 Paar Artikelnummer
Protection gloves 1 Pair Item number
HS-SSK2.5/3/4 6204120
Hersteller: YONGKANG XIEHENG ZHEJIANG PROVINCE INDUSTRY & COMMERCE CO., LTD.
Manufacturer: NO. 9 XISHAN WEST ROAD, ECONOMIC
Artikel: SBC Gloves – 1 (Size 470)
Article: SBC Gloves – 2 (Size 630)
Abriebsfestigkeit / abrasion resistance 4 (1-4)
Schnittfestigkeit / blade cut resistance 1 (1-5)
Weiterreißkraft / tear resistance 2 (1-4)
urchstichkraft / puncture resistance 1 (1-4)
Baumusterprüfung durchgeführt:
EC type examination executed by:
Beschreibung / Description:
PVC – Schutzhandschuhe, geeignet f r Sandstrahlen und Reinigen mit wasserbasierenden Lösungsmitteln.
Eine Eignung f r andere Einsatzgebiete ist nicht gegeben.
PVC – Protection gloves, suitable for sand blasting and cleaning wit water based solvent.
A suitability for ot er applications is not given
Reinigung und Pflege / Cleaning and maintenance
Zur Reinigung d rfen keine chemischen Reinigungsmittel eingesetzt werden da diese das Material beschädigen können.
(Empfohlen: Lappen und Wasser).
Die Handschuhe m ssen vor jedem Gebrauch auf Unversehrtheit gepr ft werden.
It is not suitable to use c emical cleaning supplies because t ey can cause damage on t e material. (Recommended
cleaning clot es and water)
T e integrity of t e gloves must be c ecked before every use.
Hinweis / Note
Die Handschuhe wurden entsprechend der Richtlinie 89/686/EWG hergestellt und gepr ft.
Folgende Normen wurden hierf r angewandt: EN 388:2003 und EN 420:2003 + A1:2009.
Diese Informationsbrosch re muss den Schutzhandschuhen (PSA), welche in dieser aufgef hrt sind, bei Weitergabe im-
mer beigef gt werden. Die Vervielfältigung hierzu ist uneingeschränkt gestattet.
T e gloves w ere manufactured and c ecked in accordance wit t e directive 89/686/EWG.
Following standards w ere used: EN 388:2003 and EN 420:2003 + A1:2009.
T is leaflet as to be supplied wit every protection glove listed in t is broc ure. T e leaflet can t erefore be copied
wit out any restrictions.
EN 388
4 1 2 1
Intertek ITS Testing Services (UK)
LT .
Centre Court
Meridian Business Park
Leicester , LE 19 1W
United Kingdom

www.unicraft.de
