Unitech HT580 Product information sheet

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412 1
Unitech
HT580 User Reference Guide
Version 1.0

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412 2
NOTICE
1. Li-Ion Battery Pack
This unit is equipped with a Li-Ion battery pack. Due to storage, your
HT580’s battery may not be fully charged when you first receive it. As a
precaution, please ensure the battery is at full capacity when first starting
to use the terminal.
2. USB Driver Installation
The HT580’s USB driver is located on the CD included in the package. To
activate USB, please install the driver first.

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412 3
Content
Chapter 1: Introduction
1.1 Overview…………………………………………………………………………………4
1.2 Support………………………………………………………………………………….4
1.3 Features…………………………………………………………………………………5
1.4 Technical Specifications……………………………..………………………………5
1.5 Product Illustration……………………………………………………………………6
1.6 Battery Storage & Safety Precautions……………………………………………..7
1.7 Communication Cradle……………………………………………………………….8
1.8 HT580 Communication with the Host……………………………………………...9
1.9 Interface Port…………………………………………………………………………...9
1.10 Pin Assignment……………………………………………………………………….9
1.11 Keypad…………………………………………………………………………………10
1.12 Barcode Scanning Spectrum………………………………………………………10
Chapter 2: Operating the HT580
2.1 Setting System………………………………………………………………………….11
2.1.1 DATE & TIME………………………………………………………………………....11
2.1.2 DEVICE………………………………………………………………………………...11
2.1.3 MODEM INIT…………………………………………………………………………..12
2.1.4 SUPERVISOR…………………………………………………………………………12
2.2 FORMCACHING………………………………………………………………………...12
2.3 RUN APG580…………………………………………………………………………….12

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412 4
Chapter 1 - Introduction
1.1 Overview
Thank you for choosing the HT580 from Unitech Electronic Co. Ltd. This Portable Data
Collection Terminal is one of the most user-friendly handheld terminals on the market -
perfect for small retailers.
Developed under the C language, the HT580’s proprietary Operating System is capable of
running, and helping you develop, application programs specifically designed by you for
your own unique business.
Weighing only 150g (5.3 oz), the light weight of the HT580 is ideal for the long work days
typical in a retail environment. Despite it’s light weight, the HT580 is unusually robust -
capable of sustaining 1.2 meter (four foot) drops to a concrete floor.
With all this, we believe the HT580 will more than satisfy your own unique retail
requirements. The HT580 standard package includes the HT580 terminal, communication
cradle, adaptor, USB & RS232 Y cable, holster, and strap. Additionally, two alternative
types of communication/charging cradles - RS232 and Modem - are offered as options.
1.2 Support
Unitech has professional support teams around the world to answer your questions or any
related technical issues. Should equipment problems occur, please contact one of our
regional service centers for a quick response. Our six regional service centers and their
contact information can be found on the websites provided below.
UTC (China) http://www.ute.com.cn
APAC (Taipei, Taiwan) http://www.unitech-adc.com
UTJ (Japan) http://www.unitech-japan.co.jp
UTA (North and South America) http://www.unitech-adc.com
UTI (Netherlands, UK) http://www.unitech-
europe.nl

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412 5
1.3 Features
HT580 includes the following features:
Operation System: Proprietary
Memory: 512KB
Display: 128 x 64 pixel
Keypad: 18-key keypad
Data Capture: CCD
Communication: Bluetooth / RS232 / USB
1.4 Technical Specifications
Model HT580
Dimensions 123mm x 55mm x 25mm (4.8” x 2.2” x 1.0”)
Weight 150g (5.3 oz)
Drop Specification 1.2M (4 foot) free drop to concrete floor
Display 128 x 64 pixels; 16 x 8 characters or 12 x 4 characters
Battery One 3.7V 600mAH Li-ion battery
Environmental Sealing IP42
Operation Temperature 0°~50°C (32°~122°F)
Storage Temperature -20°~70°C (-4°~158°F)
Humidity 20% to 85% RH; not condensed
Electrostatic Discharge (ESD) 4 KV contact discharge
8 KV air discharge
Back-Lit Display Yes
Keypads 18 alphanumeric keys including one scan trigger
CPU ST UPSD3354DV
Operating System Proprietary (C Language)
Memory 512KB Flash ROM
Application Development EZ Job
Communication RS232 / USB1.1 / Bluetooth / Modem
Battery Life Up to 8 hours
Symbologies China Postal Code, Codabar, Code 32, Code 39, Code 93,
Code 128, Interleaved 2 of 5, MSI, UPC/EAN
Buzzer Yes, over 75 dB
One LED Reading – green color

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412 6
1.5 Product Illustrations
This section is designed to familiarize you with the HT580 and its cradle. For detailed explanations
on some of the functions, please refer to subsequent chapters.
Figure 0-1:HT580 Front View
Figure 0-2: HT580 Back View
Figure 0-3 HT580 Top View
Figure 0-4: HT580 Bottom View
Figure 0-5: HT580 Battery Position
Figure 0-6: HT580 charging/communication
cradle, featuring 2 types of communication:
RS232 and modem
Figure 0-7: Modem cradle Back View
Figure 0-8: RS232 Cradle Back View

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412
7
Figure 0-9: HT580 communication/charging cable (Unitech part number: )
Figure 0-10: HT580 Li-Ion Battery (Unitech part number: )
1.6 Battery Storage and Safety Precautions
Batteries should be stored at normal room temperature. Avoid placing them in any situation where
explosion or damage could possibly occur. The Li-Ion batteries may lose their charge if not used for
several months due to back up and internal resistance. If this happens, we suggest recharging prior to
use.
Remove Main Battery
To remove the main battery, press down on the release button while pushing out the cover on the unit.
We suggest that the battery not be removed, if possible.
Charging
When starting to operate the HT580, the main battery must be fully charged before the first use. The
HT580 is equipped with a 3.7V 600m.A.h Lithium-Ion battery. It takes 8 hours to fully charge the main
battery when empty. We suggest users recharge the battery regularly after long hours of use.
This icon shown in the menu is to indicate the current battery capacity status.
There are 2 ways to charge the main battery:
1. Mount the unit in the cradle and connect power adaptor between the back of the cradle and any
power outlet.
2. Or, use the standard USB cable and connect it to your PC’s USB port.
Bottom
Top

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412
8
1.7 Communication Cradle
The HT580’s battery can be charged by placing the HT580 into its charging/communication cradle - part
number: 5000-601557 (RS232) /5000-601558 (Modem)
Positioning Terminal Into Cradle
.1. Proper Position
2. Improper Position
The picture to the right shows the proper
way to insert your terminal while using the
cradle to transmit data or to charge.
Please note that the connector in the
bottom of the cradle may be damaged if you
use excessive force to insert the terminal.
The picture to the right shows the improper
way to insert the terminal into the cradle.
Do not insert the terminal into the cradle
incorrectly. It will not function properly and
damage can occur.
Front View
Back View

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412
9
Communication Cradle LED Icons
This LED light (Red) shows the power status of the cradle itself. When the light is on it indicates
the cradle is charging. To determine if the terminal is fully charged, it may be necessary to check
the terminal LCD.
This LED light (Green) shows transmission status of the cradle itself. When the light is on, it
indicates that data is in transmission
1.8 HT580 Communication with the Host
1.9 Interface Port
The HT580 communicates via the RS232 communication port located on the bottom of the unit. You can
connect the HT580 directly via the communication cable to your PC’s RS232 port for data transfer, or
connect via the cradle.
1.10 Pin Assignment
Pin Name Pin Name
1 US-POWER
7 DSR
2 GND 8 GND
3 DC-IN 9 DTR
4 USB DP 10 TXD
5 CTS 11 RXD
6 RTS 12 USB DP
USB 1.1 or RS232
connection through cable
RS23
2
/Modem Cradle Communication

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412
10

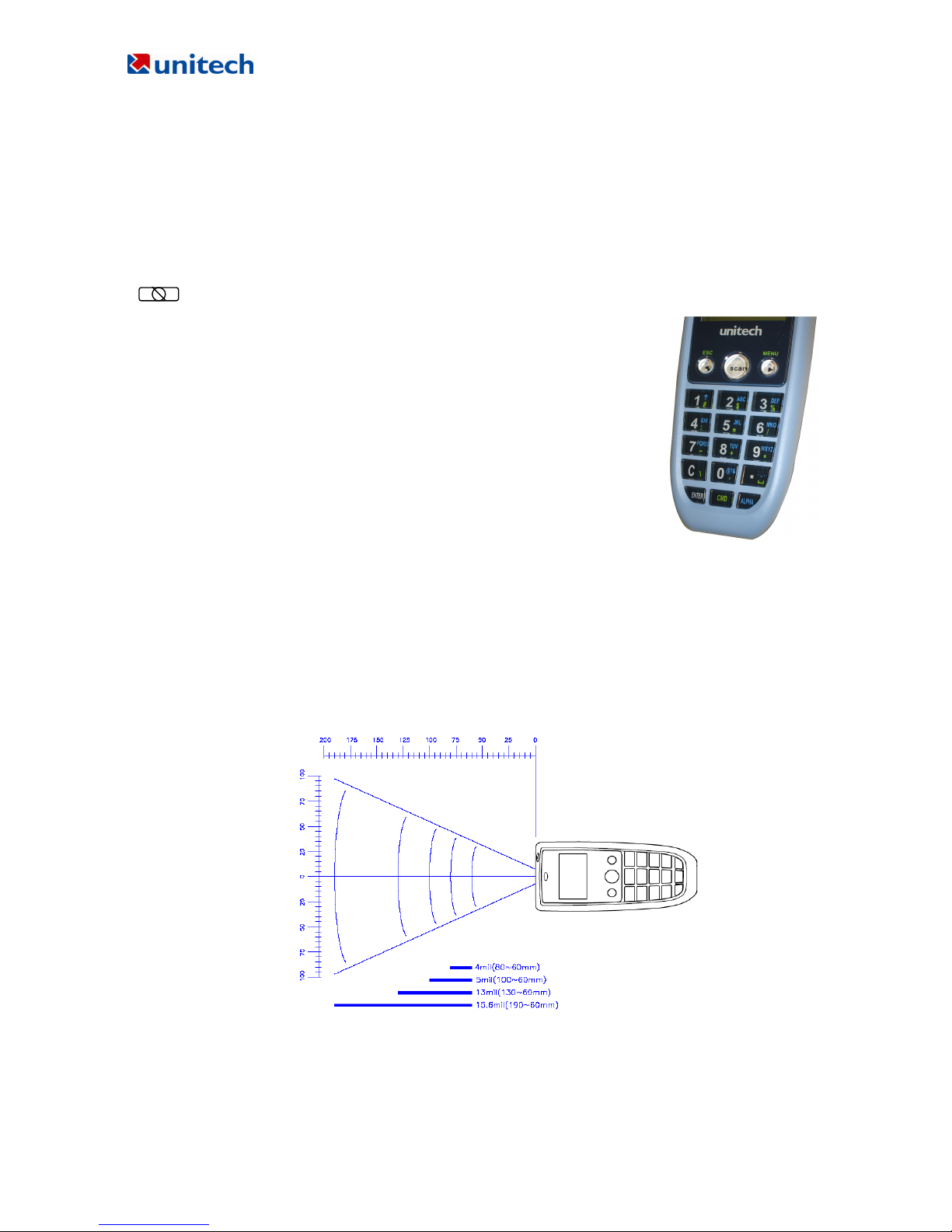

1.11 Keypad
The keypad of HT580 consists of 18 rubber keys and one power key; the keyboard is configured into three
different modes: Numeric mode, Command mode, and Alphabetic mode.
The keyboard is configured in Numeric mode by default, Command mode when the light green CMD key is
selected, or Alphabetic mode when the blue ALPHA key is selected.
Keypad Description
[ ] To power on the unit press the power key.
The power key is on top right corner of the cover.
[ESC] Returns you back to the previous menu.
[MENU] Press [MENU] to scroll items you require.
[SCAN] Press [SCAN] to trigger scanning function or to perform
as the [ENTER] key while in [ SETTING ] mode.
[C] Press [C] to delete.
[ENTER] Press [ENTER] to save changes or to go to the next page.
[ALPHA] Press [ALPHA] to switch to Alphabet.
Any alphabetical character (printed in blue) can be activated with the ALPHA key.
[CMD] Press [CMD] to perform delimiters such as “#”, “$” etc.
Any delimiter (printed in green) can be activated with the CMD key.
1.12 Barcode Scanning Spectrum

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412
11
Chapter 2 - Operating the HT580
After powering on the HT580, you will see the Main Menu as below:
2.1 Setting System
Press [1] or [MENU] to enter” SETTING” category. There you will see the following four options:
1. DATE & TIME, 2. DEVICE, 3. MODEM INIT, 4. SUPERVISOR
2.1.1 DATE & TIME:
Press [1] or [MENU] to enter the DATE & TIME category to set the correct date and time. The page will
appear as it is shown below:
Press numeric keys to input correct date and time. Once complete, press [ENTER] to save the revised
settings. To return to the previous menu, press [ESC].
2.1.2 DEVICE
When you select device setting, you will be able to see three settings as shown below:
2.1.2-1 <BACKLIGHT>
Press [1] or [scan] to enter <BACKLIGHT> mode and to press [ ESC ] to go back to the device
setting mode.
< BACKLIGHT > selection: press [MENU] to scroll down on your preferred mode of backlight duration as
ON 10 SECS / ON 20 SECS / ON 30 SECS / ON 60 SECS / Always OFF
Once you select the preference for backlight duration, press [ENTER] to complete the setting.
Note: Selecting “ON 10 SECS“ means that backlight remains active for 10 seconds. The default may be
reset if you press any key while the backlight is active.
HT580 V1.06
1. SETTING
2. FORMCACHING
3. RUN APG580
YYYY-MM-DD
2000-01-08
HH-MM-SS
05:50:35
1. BACKLIGHT
2. SCANNER
3. AUTORUN

HT580 User Reference Guide Unitech Electronic CO. LTD
Unitech Part Number: 400412
12
2.1.2-2 <SCANNER>
Press [2] or [scan] to enter < SCANNER > mode. Press [ ESC ] to return to the device setting mode.
< SCANNER > selection: ON NORMAL/ON FLASH/OFF. Selecting your preference and press [ENTER] to
complete the setting.
2.1.2-3 <AUTORUN>
Press [3] or [scan] to enter < AUTORUN > mode. Press [ ESC ] to return to the device setting mode.
<AUTORUN> automatically runs the selected program once you change the default. The default of
AUTORUN has been set up in “off” mode. Three programs can be selected; they are <FORMCACHING>,
<APG580>, and <OFF>. Once you define the selected program, the program will automatically activate
when you restart the unit. The main menu will be run in the program.
2.1.3 <MODEM INIT>
To perform modem command, plug in the modem and it will be automatically initiated. To execute
<MODEM INIT>, press [3] or [scan] to enter this mode. Press [ESC] to return to the previous menu.
2.1.4 <SUPERVISOR>
When entering into “SUPERVISOR” mode, you will be required to input your password.
For password and detail reference, please refer to the Technical Binder.
Press [4] or [scan] to enter <SUPERVISOR> mode setting. Press [ESC] to return to the previous menu.
2.2 FORMCACHING
From the main menu, FORMCACHING can be selected to input simple inventory information.
In the default setting for FORMCACHING, Field 1 is defined as “item”, and Field 2 is defined as “Q’ty”. To
change the default of the fields, go to “FORM” under “SUPERVISOR” in the mode category.
To start <FORMCACHING>, press [2] or [scan] to enter. Press [ESC] to return to the previous menu.
2.3 RUN APG580
“APG580” is an application generator that enables you to create applications that perform more
sophisticated inventory tracking than is possible with FORMCACHING.
To run APG580, download it to your HT580 from the included CD. Please refer to technical binder for a
detailed description.
