Unitech MS380 User manual

Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Wireless Scanner
- MS380 -
User’s Manual
Version 1.7

Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com

i
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Table of Contents
Chapter 1
Overview ...................................................................................................................................1
Introducing the MS380............................................................................................................1
Package Contents ..................................................................................................................2
Chapter 2
Installation and Connection ....................................................................................................5
Connecting (Pairing) the Scanner to the Cradle................................................................5
Wireless mode – HID Plug & Play (Default)........................................................................5
Connecting (Pairing) the Scanner to a Host PC.................................................................6
Connecting via Serial Port Profile (SPP) Mode...................................................................6
Connecting via Human Interface Device (HID) Mode..........................................................6
Power Management..............................................................................................................7
Scanner LED & Beeper Indication.......................................................................................8
LED Lamp Indication ..............................................................................................................8
Detach the Interface Cable.....................................................................................................9
Chapter 3
Specification........................................................................................................................... 11
Chapter 4
User Preferences....................................................................................................................13
Appendix A
Examples ................................................................................................................................19
Quick Setup Sheet..............................................................................................................19
Beeps and Delays Group 1 ................................................................................................21
Keyboard Wedge Settings Group 2...................................................................................22
Scanner Port: Group 3 .......................................................................................................23
Define Code ID Group 3......................................................................................................24
Code 39 / Full ASCII Code Group 4 ...................................................................................25
I 2of5 Group 5......................................................................................................................26

ii
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
S 2of5 / Code 32 Group 6 ...................................................................................................27
EAN 128 Group 7 ................................................................................................................28
Code 128/ Code 93 / MSI Code Group 8............................................................................29
Code 11 / Codabar Group 9................................................................................................30
UPC / EAN Code Group 10.................................................................................................31
UPC / EAN Code Group 11.................................................................................................32
Supplement Code Group 12 / MATRIX 2of5 Group 13.....................................................33
IATA Group 14 .....................................................................................................................34
UK PLESSY CODE GROUP - 15.........................................................................................34
Full ASCII Chart...................................................................................................................35
Barcode Chart.....................................................................................................................38
Appendix B
Worldwide Support ................................................................................................................39

1
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Chapter 1
Overview

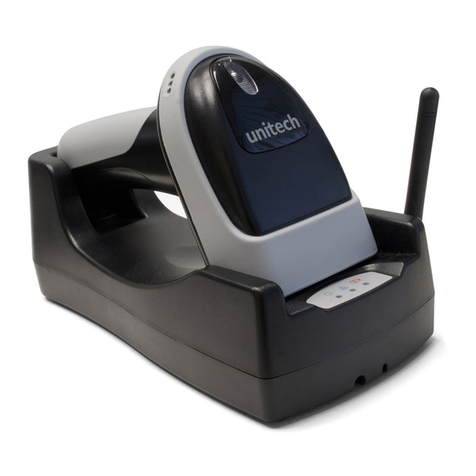

Introducing the MS380
The MS380 scanner combines precision barcode scanning and integrated long-range
Bluetooth technology to provide the best value in a wireless handheld scanner. Featuring
advanced ergonomics, the MS380 scanner ensures comfort and ease-of-use for both
moderate and scan intensive applications.
The MS380 includes a charging cradle with integrated wireless dongle, so you can enjoy the
benefits of cordless scanning even if your host PC is not Bluetooth compatible. The MS380
also features excellent battery life for extended device uptime and scanning performance.
Enjoy the benefits of accelerated productivity, lower cost of ownership, and freedom of
movement. The MS380 is a multipurpose scanner from a partner you can trust.
Thank you for choosing Unitech products.
Application:
 Warehouse
 Pharmacy
 Logistics
 Retail
 Point of Sale (POS)
 Inventory Management
 Distribution & Transportation
※ SCM does NOT support the MS380B.

2
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Package Contents
Please make sure the following contents are in the MS380 box. If something is missing or
damaged, please contact your Unitech representative.
MS380 scanner Power Adapter Product Resource CD
Charging /
Communication Cradle USB Interface Cable Quickly Reference Guide
Note:
1. Environmental temperature for charging should be within 0ºC – 40ºC (32ºF – 104ºF).
2. This device uses one cradle with only one host.
3. The scanner’s default power off (idle mode) time is 3 minutes.
4. Please charge scanner for 4 hours prior to initial use.

3
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
[Scanner Detail]
12
3
1 LED Indicator 3 Scan Trigger
2 LED Lights (Scan Window) 4 Charging / Communication Contacts
[Cradle Detail]
1 Charging / Communication Contacts 5 Power Port
2 Power / Wireless /Charging LED Indicator 6 USB Port
3 Antenna 7 Cradle Reset Pinhole
4 Host Address 8 USB Release Pinhole
4
2 3
14
5
8
7
6

4
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com

5
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Chapter 2
Installation and Connection
Connecting (Pairing) the Scanner to the Cradle
Wireless mode – HID Plug & Play (Default)
Most users will wish to use the scanner by connecting it wirelessly directly to the cradle. By
default, the scanner is set up to perform this way. If you wish to pair the scanner directly to
another Bluetooth-enabled device, you may do so by following the steps in another section.
Follow these steps to connect the scanner directly to the cradle, and then from the cradle’s
USB cable to the USB port of the Host PC.
1. Connect the power supply to the cradle’s power port.
2. Plug the power adapter into an electrical outlet.
3. Turn on the host PC.
4. Insert the USB cable firmly into the cradle’s USB port until it clicks.
5. Connect the other end of the USB cable firmly to the host PC until it clicks.
6. Scan the [HID Plug & Play] barcode below:
HID Plug & Play
7. The scanner will emit 8 beeps.
8. Pair the scanner to the cradle by scanning the host address barcode on the bottom of the
cradle.
The host address barcode is on the bottom of the cradle.
9. The scanner will emit 2 beeps and the cradle’s blue LED indicator will illuminate to verify a
successful connection.

6
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Connecting (Pairing) the Scanner to a Host PC
If your host PC or Smart Phone is Bluetooth-enabled technology compatible, then you could
use it; the MS380 supports both HID and SPP wireless profiles. If you are connecting it to a
mobile smart phone, you will need to use the steps in “Connecting via Human Interface Device
(HID) Mode”.
Connecting via Serial Port Profile (SPP) Mode
1. Turn on your host PC.
SPP
2. Connect the cradle to your host PC, by inserting the USB cable firmly until it clicks, if it
doesn’t have a built-in wireless adaptor. If your computer already has one, please turn on
the adaptor (Bluetooth Switch)
3. Use the MS380 to scan the [SPP] barcode.
4. The scanner will emit 8 beeps.
5. Conduct a search for the MS380 on your host PC. When your host PC locates the
“Wireless Scanner” device, select it.
6. Depending upon your version of the Windows operating system, you may receive a
prompt to enter a paring code/PIN. The default code is “1234”.
Connecting via Human Interface Device (HID) Mode
1. Turn on your host PC.
2. Verify that Bluetooth-enabled communication is active on the host PC.
3. Use the MS380 to scan the [HID] barcode shown below:
HID
4. The scanner will emit 8 beeps.
5. Conduct a search for the MS380 on your host PC. When your host PC locates the
“Wireless Scanner” device, select it.
6. Next, you will receive a pin code from the host PC and will be instructed to input the pin
code by scanning the barcodes below. Begin by scanning the [PIN-Start] barcode:
PIN-Start
7. Refer to the barcode table below, and scan the barcodes that correspond to the pin
number you received in Step 6. For example, if your pin code is “241657”,
scan [2] – [4] – [1] – [6] – [5] – [7] in sequential order:

7
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
8. After scanning all the barcodes in your pin code, scan the [Enter] barcode:
Enter
9. To complete verification of your pin code, scan the [Pincode-Stop] barcode:
Pincode-Stop
10. The scanner will beep twice to verify a successful connection.
Note. To disconnect the scanner from the cradle/host PC or to switch the wireless profile from one to another, first
scan the [Disconnect] barcode:
Disconnect
After scanning the [Disconnect] barcode, the MS380 will emit 3 beeps.
Power Management
When not in use the scanner will enter idle mode to conserve battery power. Scan the appropriate
barcode below to set the time it takes the scanner to enter idle mode after any scanning activity.
3 Minute (Default)
1 Minute
Idle Mode Disable
5 Minute 10 Minute

8
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Scanner LED & Beeper Indication
Scanner LED & Beeper Indication
Blue LED Red LED Blue +
Red LED Beeper Remark
Initializing - -
alternating
between a
red blink
and then a
blue blink
Long beep
1 time
Connection complete - - - 2 beeps
1 time -
No connection - -
alternating
between a
red blink
and then a
blue blink
3 beeps
1 time
Barcode scanning
without proper
connection - - -
3 short
beeps
Successful barcode
scan Flash 1 time - - Beep 1 time -
Low power - Flash -
5 short
beeps
each time
for 1 min
Power off after 1
min. or electricity
exhaust
Scanner
Power off - - - -
Scan barcode
setting for 1 min./
3 min. / 5 min. /
10 min.
Charging Flash - - - -
Cradle
Full charge On - - - 4 hours spent for
full battery charge
LED Lamp Indication
Charging LED
Wireless Link LED Power LED

9
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Detach the Interface Cable
Insert a pin or the straight end of a paper clip into the USB Release Pinhole and push down to
disengage the cable connection. Continue pressing downward on the pin / paper clip while
pulling the cable out of the USB port with your other hand.

10
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com

11
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Chapter 3
Specification
MS380
Performance/Optical
Image Sensor 2048 pixel CCD (Charge-coupled device)
Light Source 660nm Visible Red LED
Max. Resolution 4 mil
Scan Rate 200 scans/second
Skew Angle 60º
Pitch Angle 60º
Printing Contrast Scale 60%
Depth of Field
Reading Distance 75 - 85mm / 2.9 - 3.3 in (4 mil Code 39) 70 - 115mm / 2.7 - 4.5 in (5 mil Code 39)
40-300mm / 1.5 - 11.8 in (15.6mil EAN)
Width of Field
Code 39: 200mm / 7.8 in / PCS=90% (40 mil)
Operation Mode Trigger Mode / Flash Mode /
Continuous Mode
Decoder
Symbologies
UPC-A/UPC/E, EAN-8/EAN-13, Industrial 2
of 5, Codabar, Matrix 2 of 5, Code 11, Code
93, Code 32, Code 128, Standard Code 39,
Full ASCII Code 39, Interleaved 2 of 5,
China Postal Code, MSI Plessy Code, RSS
Code, UK Plessy Code, EAN/UCC 128,GS1
Code, and Telepen Code
Electrical
Battery Type Lithium-Ion
Battery Capacity 1620mAh
Battery Charging Time 4 hours
Operating Time 8 hours (1 scan/5 seconds)

12
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Environmental
Operating Temperature 0°C to 50°C / 32ºF to 122ºF
Storage Temperature -10°C to 60°C / 14ºF to 140ºF
Relative Humidity 20% to 85% (non-condensing)
ESD Protection 4kv contact / 8kv air
IP ranking IP43
Mechanical Shock 1.2m / 4ft onto concrete
Communication
Radio Frequency 2.4GHz Wireless, Class 1
Interface Supported USB (HID)
Range 100m / 300ft
Physical Characteristics (Scanner)
Dimensions L160 x W69 x H88mm / 6.3 x 2.7 x 3.4in
Weight 160g / 5.6oz
Physical Characteristics (Cradle)
Dimensions L202 x W111 x H70mm / 7.9 x 4.3 x 2.7in
Weight 170g / 5.9oz
Power 3.45VDC
Regulatory Approvals
FCC Class B, CE, BSMI
Accessory
Adapter, USB cable

13
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Chapter 4
User Preferences
Setup Procedures
This chapter describes the user-configurable settings for the MS380 and provides the
programming bar codes for selecting these features for the scanner. To configure your MS380
scanner:
1. Locate the appropriate feature setting listed in the following pages.
2. Set feature values by scanning single barcodes or short barcode sequences.
3. The MS380 will beep to confirm a successful scan and will store the new setting in the scanner’s
memory.
Min. Length / Max. Length
Step 1: Scan MIN LENGTH or MAX LENGTH.
Step 2: Scan two digits from Full ASCII Chart of Appendix A.
Step 3: Scan MIN LENGTH or MAX LENGTH.
NOTES:
1. If the scanner beeps three times, it is an alert that a setting update is incomplete.
2. If you make a mistake in attempting to update a scanner setting, such as accidentally scanning
the wrong barcode or forgetting a step, scan the [Reset] barcode below to start the process over.
Reset
Default
3. If you want to restore the scanner back to factory settings, please scan the [Default]
barcode below.
Bar Code Length Setting
The following examples illustrate how to set up Code 39 with a minimum length of 5 and a
maximum length of 20, respectively.
 Minimum length of 5
1. Go To "Group 4".
2. Scan "MIN LENGTH" to enter minimum length setting.
3. Scan "0 " and "5" to select length S. (Full ASCII Chart of Appendix A)
4. Scan "MIN LENGTH" to end minimum length setting.

14
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
 Maximum length of 20
1. Go To "Group 4"
2. Scan "MAX LENGTH" to enter maximum length setting.
3. Scan "2" and "0" to select length 20. (Full ASCII Chart of Appendix A)
4. Scan "MAX LENGTH" to end maximum Length Setting.
Code ID Setting
Disable Code ID
Factory ID ON
Each bar code symbology supported by the scanner has a default ID character defined as
below:
CODE ID IDENTIFIER
SYMBOLOGES Factory ID SYMBOLOGES ID Factory ID
MSI OCODABAR N
EAN 8 S UKPLESSY P
UPC -E EFULL ASCII Code 39 D
UPC -A A
STANDARD Code
39 M
EAN 13 FIATA 2of5 R
Code 93 LINTERLEAVED 2 of
5 I
Code 11 J
TELEPEN UINDUSTRIAL 2 of S
(Code 2 of 5) V
EAN 128 TChina Post Code H
Code 128 KCode 32 B
Preamble (prefix) and Postamble (Surffix):
PREAMBLE & POSTAMBLE (PREFIX AND SUFFIX)
Postamble(16)
Preamble(16)
Clear Preamble_Postamble
EXAMPLE:
Set PREAMBLE String as "##"
POSTAMBLE String as " $$ "
SETTING PROCEDURE:
STEP 1: Scan: PREAMBLE.
STEP 2: Scan: " # " twice from Full ASCII Chart of Appendix A.
STEP 3: Scan: PREAMBLE.
STEP 4: Scan: POSTAMBLE.
STEP 5: Scan: " $" twice from Full ASCII Chart of Appendix A.
STEP 6: Scan: POSTAMBLE.

15
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Dump Settings
FORMAT:
{Preamble} {Code ID}{Bar Code }{Postamble}
NOTES:
1. A PREAMBLE is a string of up to 16 characters added to the beginning of a scanned barcode.
2. A POSTAMBLE is a string of up to 16 characters added to the end of a scanned bar code.
3. Default value for either: None.
Quick Setup
Appendix A has a quick setup chart, which gives you one label or one function for quick
customization of the scanner. To set up the scanner, locate the label with the function you want
and scan that label.
Batch Setup
If you need to configure more than one scanner, you can duplicate the settings of one scanner
(master) and quickly deploy these settings to the others. You can do this by producing a set of
custom setup labels derived from the master scanner. Then simply scan these labels to
configure the other scanners.
The following label is called the “Dump Settings” label. Before you scan the label, please open
a text editor application (such as Notepad or Microsoft Word) on the host PC. When you scan
the [Dump Settings] barcode, the settings of the scanner will appear within the text editor
application as one or several ASCII string(s). Use any barcode printing software, select the
Code 39 symbology, and use the string(s) to generate bar code labels. Use the batch setup
labels to duplicate these settings to the other scanners.
EXAMPLE:
1. PROJECTASSIGNMENTS:
1.1 Beep tune: BEEP LOW -- HIGH
1.2 Caps Lock Mode: CAPSLOCK ON (FIXED).
1.3 Reading Mode: CONTINUOUS AUTO OFF.
2. SETTING PROCEDURE:
1.1 Scan BEEP LOW – HIGH. (GROUP 3).
1.2 Scan CAPSLOCK ON (FIXED). (GROUP 3)
1.3 Scan CONTINUOUS AUTO OFF. (GROUP 2)
3. All parameters will be converted to alphanumeric characters and shown on the monitor.

16
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: [phone]  website: www.ute.com
Wrong Setting because you added "…" after .A017$.
The .A017$ is a FIXED parameter required for setup.
It is an uneditable parameter. Do not add, delete, or
rearrange data from the FIRST row.
4. Print the results shown on the monitor as bar codes with a bar code printer. The bar codes
should be in the Code 39 symbology.
5. Scan these labels with any of the scanners you wish to configure similarly to the master.
Be sure to scan from the first row to the second row and so on sequentially, top to bottom.
CORRECT SETTING
WRONG SETTING
Wrong Setting: The string “…" consists of 4
Dots, located at the beginning of second
rows. Do not break the "…" into multiple
strings.
Wrong Setting: The string lengths in the
second and third rows do not match the
length requirements because rows should
be in lengths that are multiples of 4.
 Only the settings that are different from the default values will be dumped.
 The settings can be dumped to either a PC or terminal, if the Device Types of the PC or
terminal match that of the scanner. The previous example of “Keyboardless Wedge” as
Device Type is equivalent to a PC/AT interface, so you cannot dump the scanner settings
to a system that does not support a PC/AT keyboard interface.
The following label dumps the settings to a PC/AT regardless of the type of device that
has been chosen on the scanner.
Dump Settings on PC_AT
