Urban Electric ABBOTT Quick start guide

SG-1245
ABBOTT
ASSEMBLY AND MOUNTING INSTRUCTIONS
GENERAL NOTES
COMPONENTS PROVIDED FOR INSTALLATION
• THIS LUMINAIRE IS SUITED FOR DAMP LOCATIONS.
• THIS LUMINAIRE IS UL LISTED. WHEN INSTALLING LUMINAIRE, CONFORM
TO ALL APPLICABLE LOCAL ELECTRICAL CODES, ORDINANCES, AND THE
NATIONAL ELECTRICAL CODE (NEC).
• FOR YOUR SAFETY AND PROPER OPERATION OF LUMINAIRE, READ AND
UNDERSTAND ALL INSTRUCTIONS COMPLETELY BEFORE COMMENCING
INSTALLATION OF THIS LUMINAIRE.
• CAREFULLY UNPACK THE LUMINAIRE AND INSPECT FOR DAMAGE.
• THIS PRODUCT IS RATED ONE 60W MAX, TYPE B BULB(S).
• SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
CAUTION
THIS PRODUCT SHOULD BE INSTALLED ONLY BY A LICENSED ELECTRICIAN.
WARNING
THE ELECTRICITY MUST BE TURNED OFF AT THE MAIN FUSE BOX BEFORE
INSTALLING THIS LUMINAIRE. TURNING THE POWER OFF USING THE LIGHT
SWITCH MAY NOT BE SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
WOOD SCREWS SET SCREWS WIRE NUTS EXPANSION ANCHORS
TORPEDO BULB(S) MOUNTING PLATE ALLEN WRENCH
TORPEDO TIP

ABBOTT
ASSEMBLY AND MOUNTING INSTRUCTIONS SG-1245
MOUNTING INSTRUCTIONS

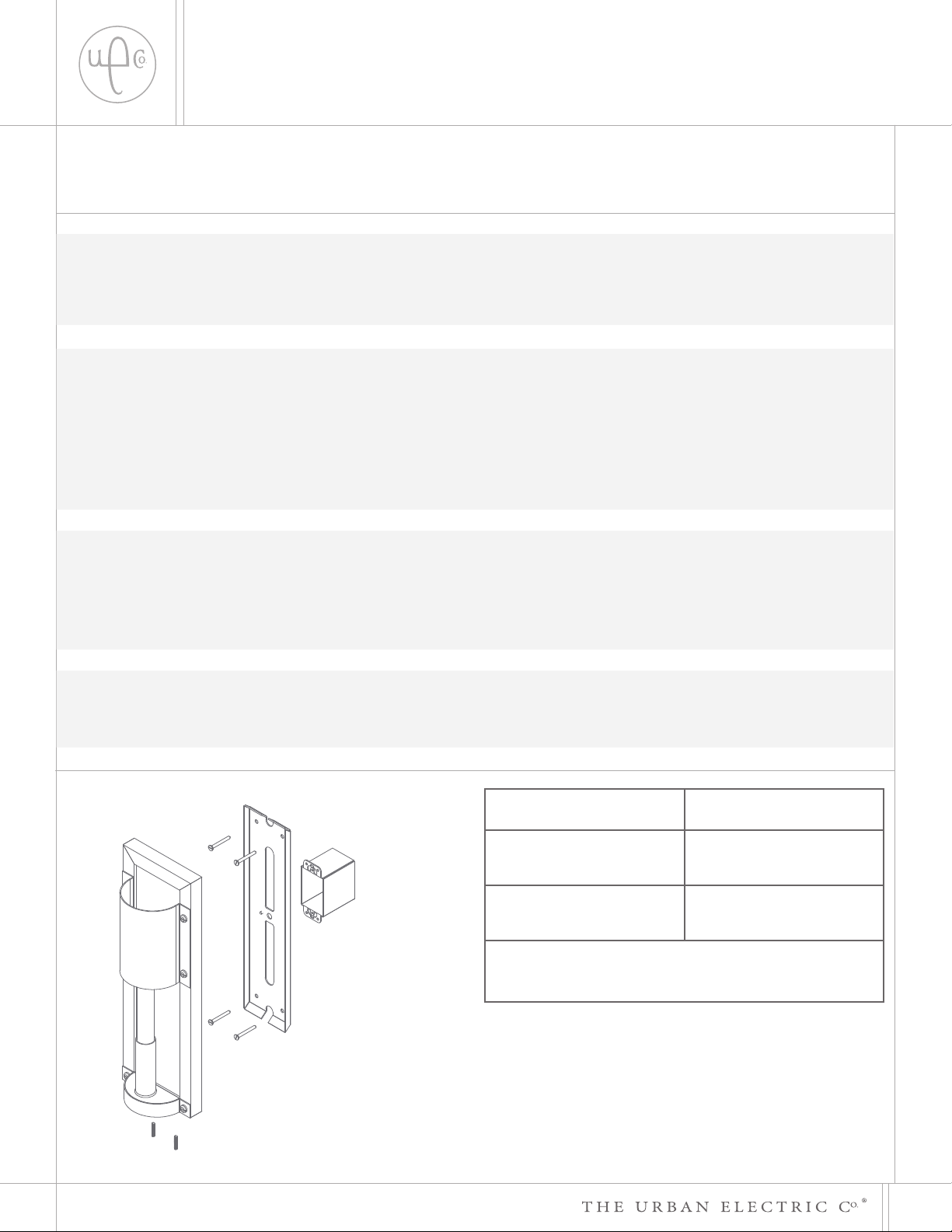

MOUNTING DIAGRAM ELECTRICAL CONFIGURATION TABLE
FROM HOME FROM LUMINAIRE
CONNECT BLACK OR RED (HOT)
HOUSE SUPPLY CIRCUIT WIRE TO:
LUMINAIRE ROUND WIRE (HOT)
CONNECT WHITE (NEUTRAL)
HOUSE SUPPLY CIRCUIT WIRE TO:
LUMINAIRE RIBBED WIRE
(NEUTRAL)
CONNECT GREEN INSULATED OR BARE COPPER (GROUND -) HOUSE
SUPPLY CIRCUIT WIRE AND LUMINAIRE BARE STRANDED WIRE
(GROUND -) TO GREEN GROUND SCREW ON CROSSBAR.
GENERAL NOTE: USE UL LISTED WIRE NUTS FOR THE
WIRING CONNECTIONS IN THIS LUMINAIRE. WRAP WIRE NUT
CONNECTIONS WITH UL LISTED ELECTRICAL TAPE.
FOR QUESTIONS, PLEASE CONTACT CLIENT SERVICES AT:
843.723.8140 OR [email protected]
STEP 1
SHUT OFF THE MAIN ELECTRICAL SUPPLY TO THE JUNCTION
BOX FROM THE FUSE BOX/CIRCUIT BREAKER. TURNING
POWER OFF AT THE SWITCH IS NOT SUFFICIENT.
STEP 2
REMOVE MOUNTING PLATE FROM THE BACK OF THE FIXTURE
USING THE ALLEN WRENCH PROVIDED AND SET FIXTURE AND
SET SCREWS ASIDE.
STEP 3
LOCATE JUNCTION BOX AND PULL HOUSE SUPPLY CIRCUIT
WIRING THROUGH THE WIRE-WAY HOLE OF THE MOUNTING
PLATE. ATTACH THE MOUNTING PLATE DIRECTLY TO THE
JUNCTION BOX AND/OR DIRECTLY TO THE WALL SURFACE
USING THE MOUNTING SCREWS AND EXPANSION ANCHORS
PROVIDED. IT IS IMPORTANT TO CHECK LEVEL ON THE
MOUNTED WALL PLATE.
STEP 4
USING THE WIRE NUTS PROVIDED, MAKE ELECTRICAL
CONNECTIONS BY FOLLOWING THE ELECTRICAL CONFIGURATION
TABLE BELOW. ENSURE THAT ALL ELECTRICAL CONNECTIONS
ARE WRAPPED WITH UL-LISTED ELECTRICAL TAPE.
STEP 5
ATTACH THE FIXTURE TO THE MOUNTING PLATE BY SLIDING
THE FIXTURE OVER THE TOP OF THE MOUNTING PLATE AND
THEN SECURE THE FIXTURE AT THE BOTTOM WITH THE SET
SCREWS PROVIDED. BE CAREFUL TO AVOID SCRATCHING THE
FINISH ON THE FIXTURE.
STEP 6
INSTALL LIGHT BULB/S IN FIXTURE SOCKET AND RESTORE
POWER TO THE CIRCUIT.
STEP 7
CONFIRM PROPER OPERATION OF THE LIGHT FIXTURE
