Utilitech 148013 User manual

JET PUMP &
TANK SYSTEM
ITEM #0955552
MODEL #148013
Español p. 19
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-994-4148, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
JW1801
1025212 B

2
Power supply required...........................................................................115 volts or 230 volts, 60 Hz
(Pump is set by the factory to run on 115 volts)
Maximum water temperature...........................................................................................77°F (25°C)
Individual branch circuit required............................................................................15 Amp minimum
Discharge connection..........................................................................................................1 in. NPT
Suction connection ........................................................................................................1-1/4 in. NPT
Motor duty..................... Continuous duty with enforced air cooling and thermal overload protection
Pressure switch ...........................................................................Preset at 20 PSI “on” / 40 PSI “off”
Water depth rating ................................................................................................. Maximum of 25 ft.
ITEM # MODEL # HP VOLTAGE HZ AMP
CAPACITY - U.S. GALLONS PER
MINUTE AT DISCHARGE 20 PSI
0 FT. 5 FT. 15 FT. 25 FT.
0955552 148013 1/2 115/230 60 9.5/4.8 11 9.5 6.5 3.5
• ELECTRICAL SHOCK HAZARD.
Always disconnect power source before performing any work on or near the motor or its
connected load. If the power disconnect point is out-of-sight, lock it in the open position and tag it
to prevent unexpected application of power. Failure to do so could result in fatal electrical shock.
• ELECTRICAL SHOCK HAZARD.
Do not handle the pump with wet hands or when standing in water as fatal electrical shock could
occur. Disconnect main power before handling unit for ANY REASON!
• RISK OF ELECTRIC SHOCK.
These pumps have not been investigated for use in swimming pool areas.
• ELECTRICAL SHOCK ALERT.
Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSHA).
• ELECTRICAL SHOCK ALERT.
Replace damaged or worn wiring cord immediately. Never use an extension cord.
• ELECTRICAL SHOCK ALERT.
Do not kink power cable and never allow the cable to come in contact with oil, grease, hot
surfaces, or chemicals.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install
the product.
• NOTE: Pumps with the “UL” Mark and pumps with the “US” mark are tested to UL Standard
UL778. CSA certied pumps are certied to CSA Standard C22.2 No. 108. (CUS.)
DANGER
WARNING
PRODUCT SPECIFICATIONS

3
• ELECTRICAL SHOCK ALERT.
Wire motor to correct supply voltage. See motor nameplate and wiring diagrams, and check
voltage of power supply.
• ELECTRICAL SHOCK ALERT.
Unit must be securely and adequately electrically grounded. This can be accomplished by wiring
the unit to a ground metal-clad raceway system, or by using a separate ground wire connected to
the bare metal of the motor frame or other suitable means.
• ELECTRICAL SHOCK ALERT.
Do not disassemble the motor housing. This pump has no repairable internal parts, and
disassembling may cause leakage or dangerous electrical wiring issues.
• ELECTRICAL SHOCK ALERT.
Make certain the electrical power source is adequate for the requirements of the pump.
• ELECTRICAL SHOCK ALERT.
Never use an extension cord with this pump.
• CHEMICAL ALERT.
This product contains chemicals known to the state of California to cause cancer and birth defects
or other reproductive harm.
• HAZARDOUS PRESSURE ALERT.
Install pressure relief valve in discharge pipe. Release all pressure on system before working on
any component.
• EXPLOSION ALERT.
Do not use to pump ammable or explosive uids such as gasoline, fuel oil, kerosene, etc. Do not
use in ammable and/or explosive atmospheres.
• PRODUCT DAMAGE MAY RESULT.
This pump is not to be used for irrigation or water systems.
• PRODUCT DAMAGE MAY RESULT.
Protect the power cable from coming in contact with sharp objects.
• PRODUCT DAMAGE MAY RESULT.
Do not run pump dry.
• PRODUCT DAMAGE MAY RESULT.
Pump and plumbing must be full of water before startup.
• PRODUCT DAMAGE MAY RESULT.
Do not pump water which contains sand, mud, silt, or debris.
• INJURY MAY RESULT.
Be careful when touching the exterior of an operating motor. It may be hot enough to be painful
or cause injury.
CAUTION

4
A
PREPARATION
Before beginning installation of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Compare parts to package contents list and
hardware contents list.
Estimated Installation Time: 2 hours.
Tools Required for New Installation (not included): pipe wrench, pliers, Phillips screwdriver, pipe clamp,
2-step PVC glue system (primer and sealer), thread tape, tire gauge.
Parts Required for New Installation (not included): well seal, 1-1/4 in. male PVC adapter (2), 1 in. male
PVC adapter, 1-1/4 in. foot valve, 1-1/4 in. PVC pipe and couplings, 1 in. PVC pipe and couplings, 1-1/4
in. PVC elbow, 1 in. discharge tee, galvanized bushing, pressure gauge (optional) or pipe plug, 1-1/4 in.
union (optional), 1 in. union (optional), electrical wire, electrical wire strain relief, shut off valve (optional).
IL1104
Water Level
25 ft.
Max
Suction
Lift
3/4 or 1 in.
Discharge Pipe
1-1/4 in.
Suction
Pipe
Discharge
to Home
Pipe
Support
Foot Valve
1
FOR USE WITH A PRESSURE TANK. DO NOT
USE FOR IRRIGATION APPLICATIONS!
Typical Pump Setup
1. Shallow well jet pumps are designed for use
where the suction lift is 25 ft. or less. They
can be used with drilled or cased wells.
A
GENERAL PUMP INFORMATION
PART DESCRIPTION QUANTITY
A Pump/Tank 1
B Tank Hose 1
CTank Tee 1B
AA Tank Hose
Gasket
x 1
HARDWARE CONTENTS
PACKAGE CONTENTS
C

5
Ventilation - Ventilation and drainage must be provided to prevent damage to the motor from heat
and moisture.
Freezing - Pump/tank (A) and all piping must be protected from freezing. If freezing weather is
forecast, drain pump or remove completely from the system.
Water Supply - The water source must be able to supply enough water to satisfy the capacity of
pump/tank (A) and water needs. See performance chart on page 2.
Suction Lift - Suction lift is the vertical distance from the lowest level of the water to the pump/tank
(A) intake. Pump/tank (A) will move water as long as it is within 25 vertical ft. of the water source.
Horizontal Distance - The horizontal distance is the horizontal measurement between pump/tank (A)
suction and the water source. This distance may affect the ability of pump/tank (A) to operate. If it is
more than 100 ft., call the manufacturer for assistance: 1-866-994-4148.
IL1472
Water Level
25 ft.
Max
Suction
Lift
3/4 or 1 in.
Discharge Pipe
1-1/4 in.
Suction
Pipe
Discharge
to Home
Pipe
Support
Drive Point
Check
Valve
2
2. Jet pumps can also be used with dug wells,
driven wells, or with cisterns or lakes.
A
31 in.
Discharge
1-1/4 in.
Suction
Pipe And Fittings
3. Use galvanized steel or NSF PW Schedule
40 PVC pipe and ttings. This material is
designed for water pressure and will seal
against air and water under pressure. Do
not use DWV ttings, as these are designed
for drains without pressure and will not seal
properly.
CAUTION: The entire system must be air
and water tight for efcient operation, and to
maintain prime.
Wire Size:
The wire size is determined by the distance from the power source to the pump motor and the
horsepower rating of the motor. See the wire chart in ELECTRICAL CONNECTIONS for proper wire
size.
A

6
1. Thread 1-1/4 in. male PVC adapter (not
included) into a 1-1/4 in. foot valve (not
included). Hand tighten, then tighten 1/2 turn
with a pipe wrench.
CAUTION: Dry-t entire assembly to ensure proper t before gluing or taping parts.
CAUTION: Follow all proper gluing procedures as specied by the glue manufacturer. Always
glue in a vertical direction whenever possible to prevent glue from dripping inside pipe or ttings
CAUTION: Use pipe tape and pipe paste compound on all male threads. Tighten with wrench to
a snug t and add another 1/4 turn to ensure proper seal.
2. Using a 2-step PVC system (not included),
attach enough 1-1/4 in. PVC pipe and
couplings (not included) to the adapter to
equal the depth of the well, minus 5 ft.
WELL TO PUMP CONNECTION (SUCTION PIPE)
1-1/4 in. male
PVC adapter
1-1/4 in. Foot valve
1-1/4 in. PVC pipe
2
1

7
3. Before sliding the pipe assembly into the
well, rmly clamp the assembly with a pipe
clamp (not included) to prevent the assembly
from sliding down into the well.
4. Remove the pipe clamp and slide a well seal
(not included) over the PVC pipe and onto
the well casing. The PVC pipe should extend
approximately 12 in. above the top of the well
seal, depending on the height of the pump.
NOTE: Do not let the assembly slide down into the
well. Tighten the well seal until the rubber gaskets
are tight against the well casing and the PVC pipe.
5. Using a 2-step PVC system, attach a 1-1/4 in.
PVC elbow (not included) onto the rigid PVC
pipe extending from the well seal.
Pipe clamp
25 ft. maximum
Water level
5 ft. minimum
3
IL1535
Approx.
12 in.
Well Seal
4
1-1/4 in. PVC
Elbow
5

8

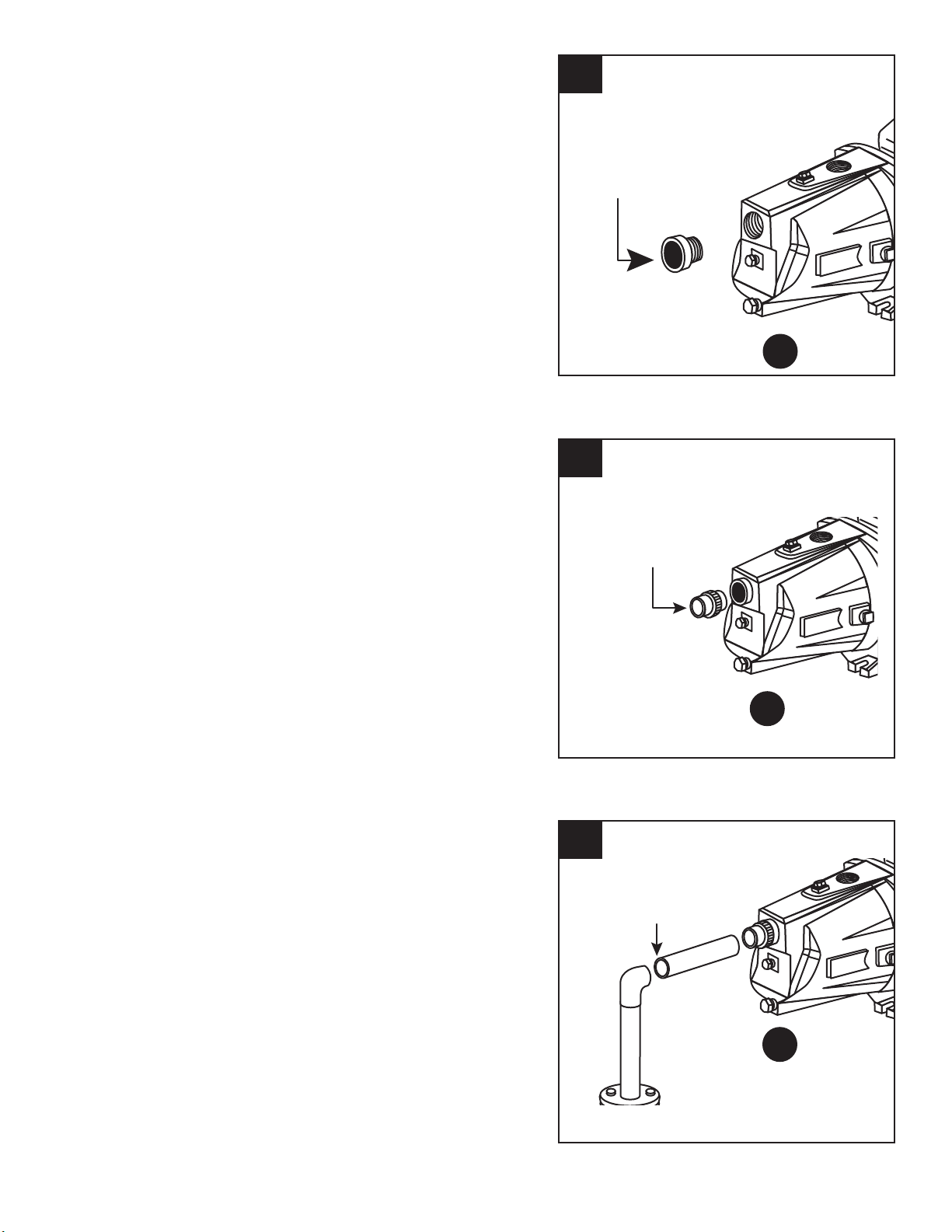

6. Wrap thread tape (not included) around the
threads of a 1-1/4 in. male PVC adapter (not
included). Thread the adapter into the 1-1/4 in.
opening in the front of pump/tank (A).
8. Using 2-step PVC system, attach 1-1/4 in.
PVC pipe and couplings as needed to connect
the 1-1/4 in. male PVC adapter to the 1-1/4 in.
PVC elbow attached to the top of the well pipe
in Step 6.
NOTE: Be sure the pipe slopes downward slightly
from pump/tank (A) to the well to prevent air
pockets.
A
7. An optional 1-1/4 in. union (not included)
is recommended for easy connection and
disconnection.
A
1-1/4 in. Male
PVC adapter
1-1/4 in. PVC Pipe
Well
8
1-1/4 in. Union
7
6
A

9

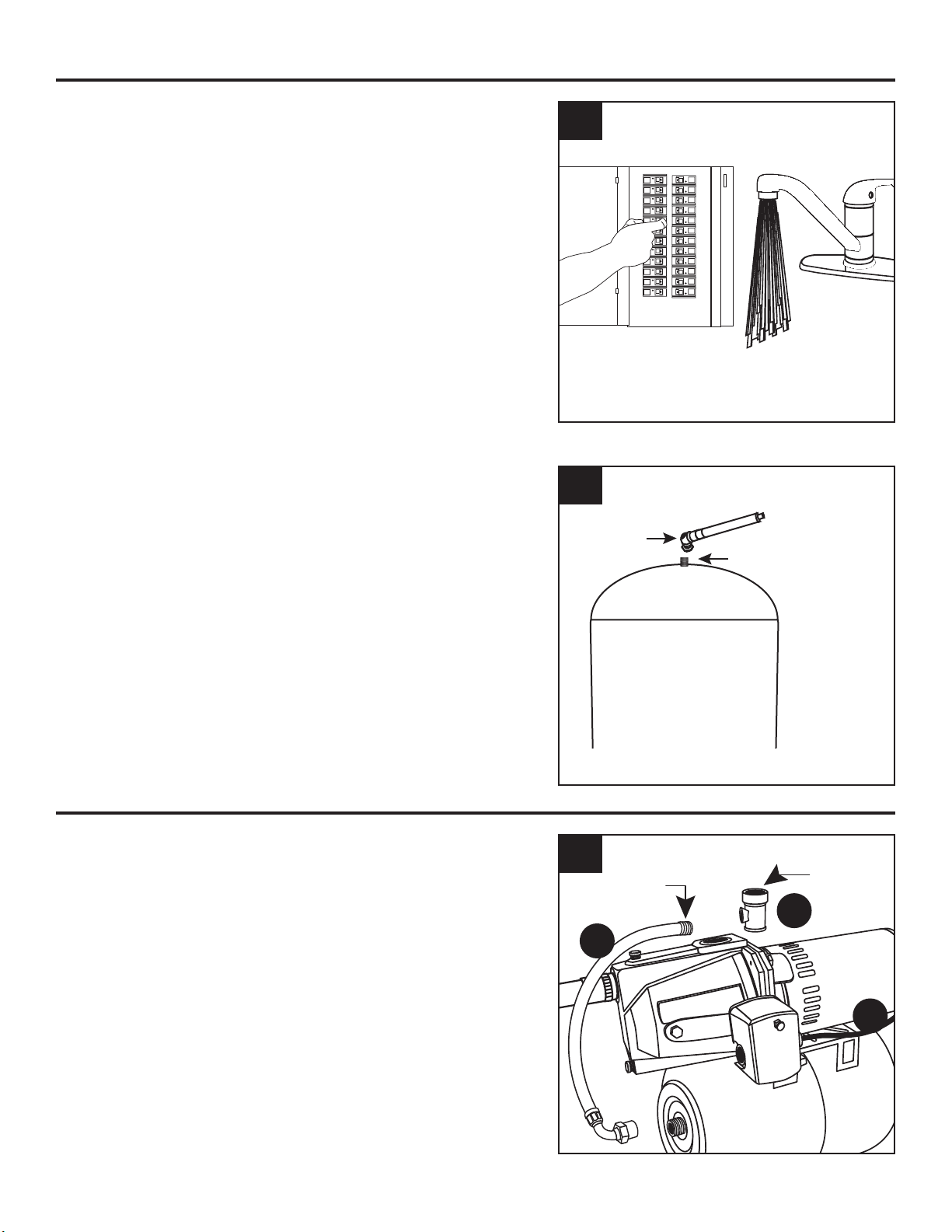

1. Completely drain all water from tank by
turning off pump and opening a faucet until
water stops.
2. Use a pressure gauge to ensure it’s set to
18 psi.
a. Use a tire pump to adjust the psi to 18 psi.
b. If water leaks from the air release valve,
replace the pressure tank.
20
20
20
20
Breaker Box
1
Pressure
gauge Air release valve
Set to
18 psi
2
CHECK TANK PRESSURE
PUMP TO HOUSE CONNECTION (DISCHARGE PIPE)
1. Wrap thread tape around threads of tank
tee (C). Install into discharge of pump.
Wrap thread tape around threads of the
1 in. connector on tank hose (B). Using
wrench, thread onto 1 in. tank tee on top of
pump/tank (A).
Tank Tee
1 in. Hose
Connector
1
A
B
C

10
PUMP TO HOUSE CONNECTION (DISCHARGE PIPE)
3. Wrap thread tape around the threads of a
1 in. discharge tee (not included). Using a
pipe wrench, thread the 1 in. discharge tee
into the 1 in. opening in the top of the tank
tee.
4. Install a 1 in. MPT x 1/4 in. FPT galvanized
bushing and (optional) pressure gauge (both
not included), or a pipe plug (not included). Do
not tighten, as you will prime pump/tank (A)
later at this location.
5. Wrap thread tape around the threads of a 1 in.
male PVC adapter (not included) and thread
the adapter into the discharge tee.
1 in.
Discharge Tee
1 in. male
PVC adapter
5
Pressure Gauge
or Pipe Plug with
Bushing 1 in.
Discharge Tee
4
1 in.
Discharge Tee Tank Tee
3
2
Tank
Inlet
2. Wrap thread tape around the tank inlet
threads on pump/tank (A). Insert tank hose
gasket (AA) into the inlet of tank hose (B).
Using wrench, tighten tank hose (B) onto tank
inlet.
A
BAA

11
6. Continue with 1 in. ttings and pipe to the
house plumbing. An optional 1 in. union (not
included) is recommended for easy connection
and disconnection. An optional shut off valve
(not included) is also recommended.
7. IMPORTANT: Air pressure in the tank
must be 2 psi lower than the “cut-in” of
the pressure switch. Pump/tank (A) has a
20/40 psi pressure switch, so tank pressure
must be set at 18 psi. Locate the air valve/

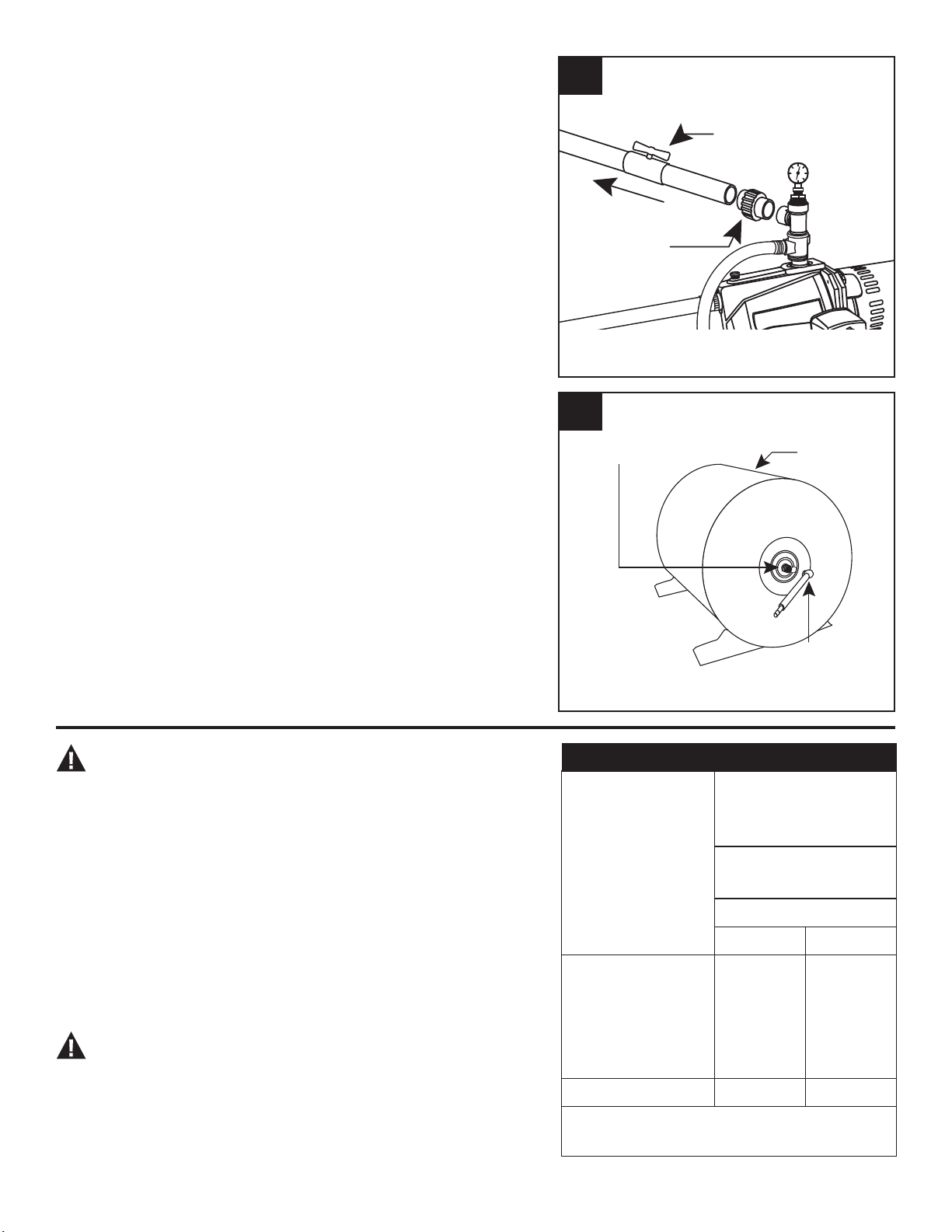

stem on the tank and check pressure with
a tire gauge (not included). If air needs to
be removed, press down on valve to bleed
air off. Use a tire pump or air compressor to
add air if needed.
Tire gauge
Tank
Air Valve/Stem
1 in. union
To house plumbing
Shut off valve
6
7
PUMP ELECTRICAL CONNECTIONS
WARNING:
• Always disconnect pump from electricity before
performing any work on the motor.
• Under-sized wiring can cause motor failure and
even re. Use proper wire size specied in the Wire
Size Chart.
• Replace damaged or worn wiring cord immediately.
• Do not kink power cable and never allow the cable
to come in contact with oil, grease, hot surfaces, or
chemicals.
• The pump must be properly grounded using the
proper wire cable with ground.
CAUTION:
• Protect the power cable from coming in contact with
sharp objects.
• All wiring should be performed by a qualied
electrician in accordance with the National Electric
Code and local electric codes.
WIRE SIZE CHART
Distance from
Motor to Meter
Recommended
Copper Wire and
Fuse Sizes
Single Phase
Motors
1/2 HP
115 Volt 230 Volt
0-50 Ft.
50-100 Ft.
100-150 Ft.
150-200 Ft.
200-300 Ft.
14
12
10
8
*
14
14
14
14
12
Fuse Size (Amps) 15 15
(*) Not economical to run in 115 V,
use 230 V

12
2. To connect the pressure switch, remove the
switch cover and insert an electrical wire
strain relief (not included) into the opening in
the side of the pressure switch.
3. Thread the electrical wire (not included) from
the power supply through the strain relief and
tighten both screws on the strain relief. Do
not crush wire.
Ground
Ungrounded
line
Voltage
selector
230V
115V
IL1957
1
Wiring The Pressure Switch
CAUTION: Make certain that the power source
matches the pump requirements. This pump has
a dual voltage motor and can run on either 115 V
or 230 V.
Pump is pre-set at the factory to run on 115 V.
1. To change voltage:
a. Pump MUST be disconnected from the
power source.
b. Pull selector plug out approximately 1/4-in.
c. Rotate plug to align arrow to 115 V or 230 V
as desired.
d. Push plug back in approximately 1/4-in.
Voltage selector
• Connect the pump to a separate electrical circuit with a dedicated circuit breaker. Refer to the Wire
Size Chart for proper fuse size.
IL1376
Wire from
motor
Pressure
switch
Strain
relief
2
Wire from
motor
Wire from
power
supply
3

13

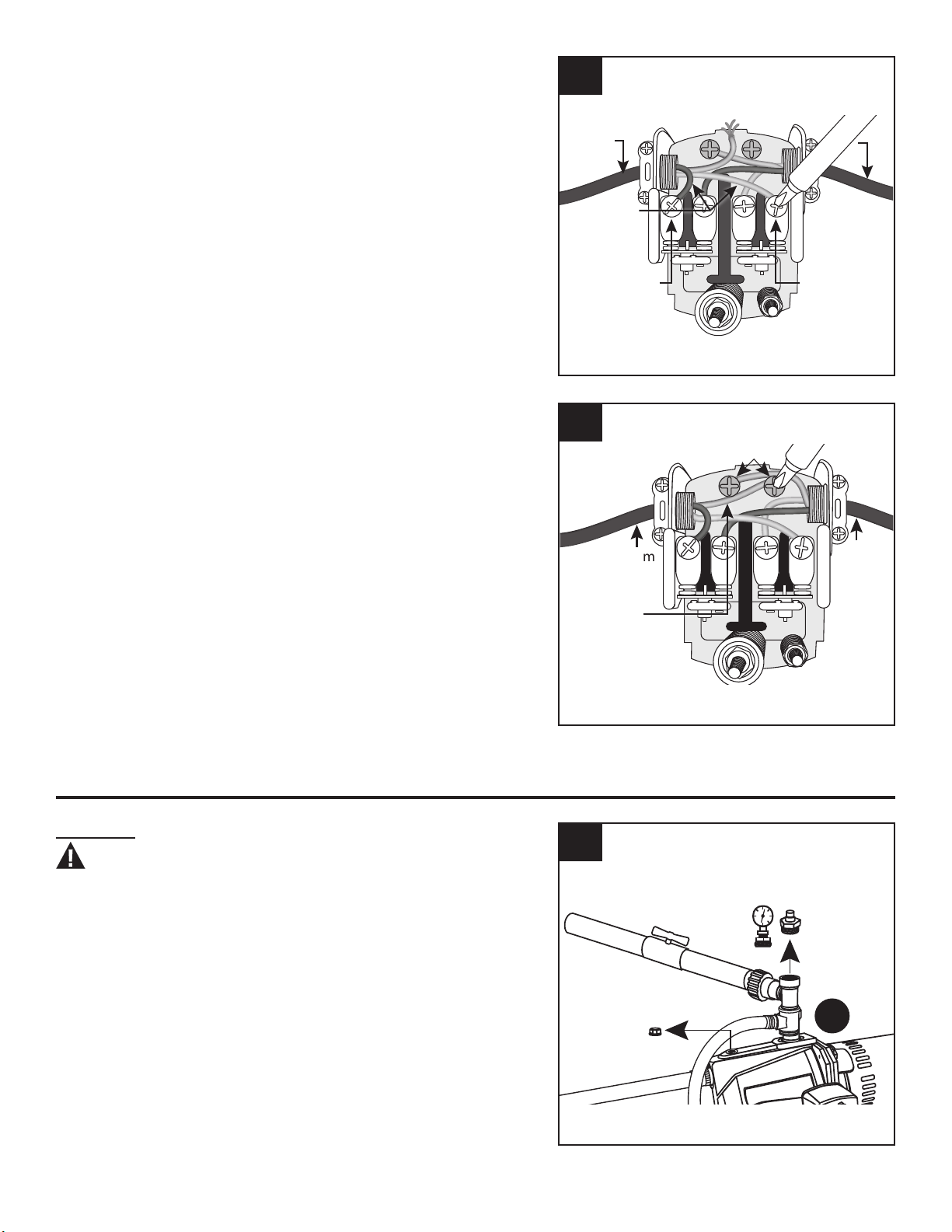

4. Connect the two wires from the power supply
to the two outside terminals on the pressure
switch.
5. Connect the green ground wire from the
power supply to the remaining green ground
screw in the pressure switch, and re-attach
the pressure switch cover.
Wire
from
motor
Wire from
power
supply
Ground Screws
Green
ground
wire
Outside
terminal
Two wires
from power
supply
Outside
terminal
Wire from
motor
Wire from
power
supply
4
5
Vent Plug
Pressure
Gauge or
Pipe Plug
Suction Pipe
1
PRIMING
CAUTION: All pumps must be primed
(lling the cavity with water) before they are
rst operated. This may take several gallons
of water, as the suction pipe will be lled in
addition to the cavity of pump/tank (A).
1. Remove pipe plug or pressure gauge (not
included) at the top of the discharge tee and
the vent plug in front of the discharge tee.
PUMP PRIMING AND STARTUP
A

14

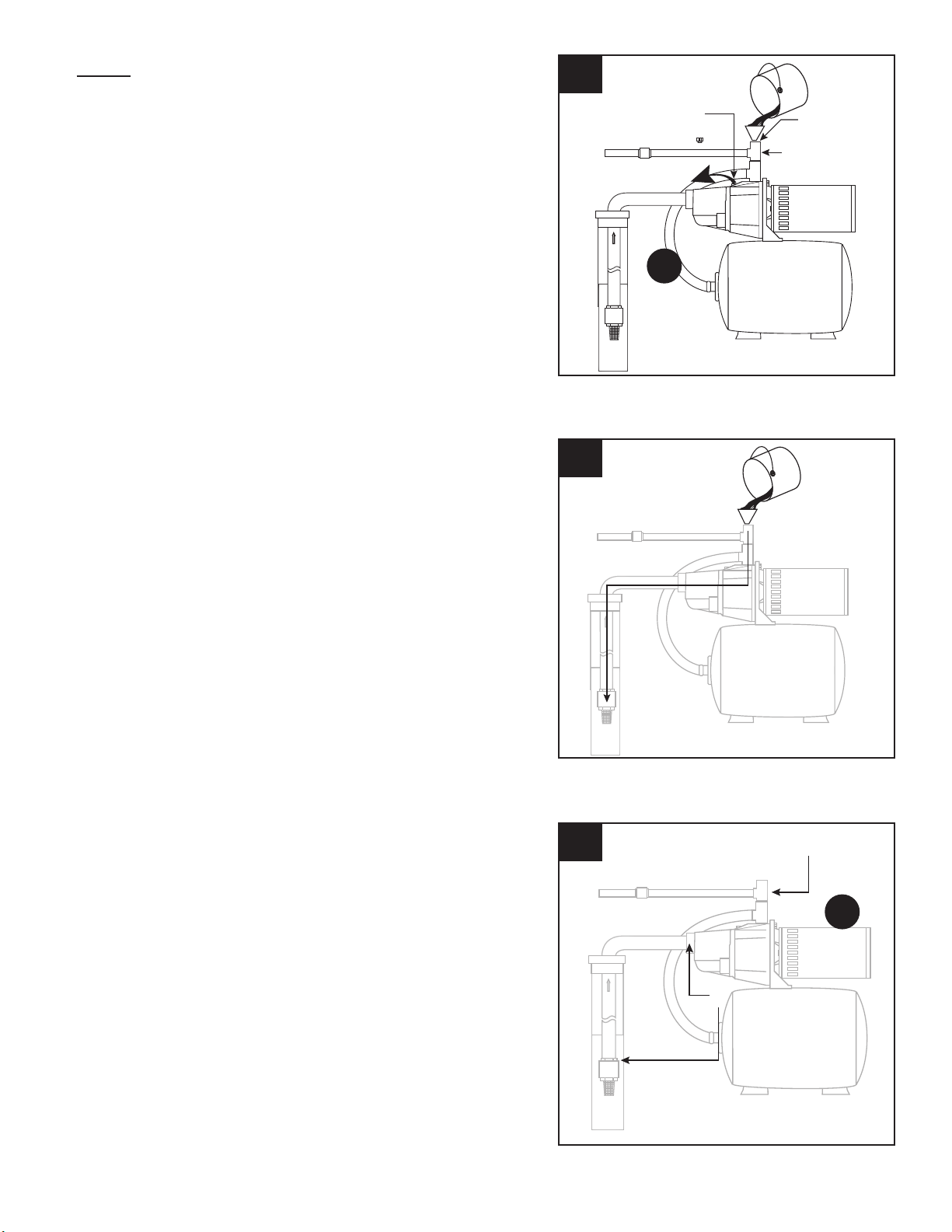

2. Slowly ll the discharge tee with water until
water overows the vent plug opening.
Replace the vent plug loosely.
NOTE: It will take several minutes to fill pump/
tank (A) and suction pipe completely.
3. Be sure entire suction pipe is filled when
priming. Depending on the length of suction
pipe, many gallons will be needed to fill the
entire system.
4. Check to be sure water in the cavity of pump/
tank (A) stays constant. If water level goes
down, it could indicate a leak in the foot
valve, check valve or suction pipe.
Suction pipe
Discharge Tee
Vent plug
Vent plug
opening
Priming plug
opening
Suction pipe
Suction pipe
Water Level
Check for leaks
4
3
2
A
A

15
5. Once pump/tank (A) is lled, wrap the
pressure gauge or discharge tee plug, and
vent plug threads with thread tape, and
thread into pump/tank (A). Tighten with
wrench.

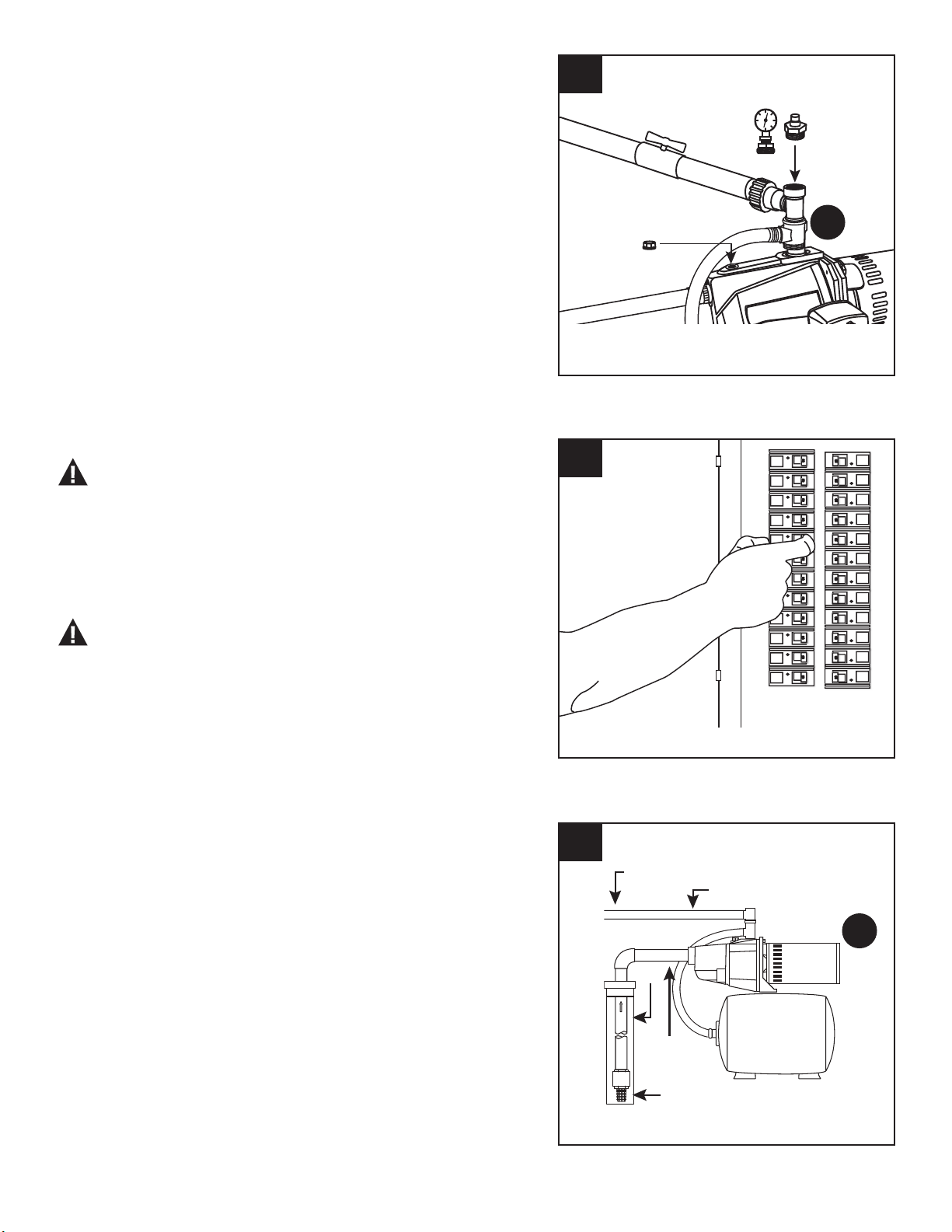

NOTE: Before turning on breaker, open several
outlets or faucets to allow water ow during
priming.
6. Turn on breaker to start pump/tank (A).
IMPORTANT: If pump/tank (A) hums
instead of pumping or turns off repeatedly, shut
pump off immediately. Check voltage. Make
sure your incoming voltage matches pump/tank
(A) wiring voltage. See PUMP ELECTRICAL
CONNECTIONS.
IMPORTANT: If pump/tank (A) fails to prime
within ve minutes:
Turn power off at the breaker box and check all
pipe connections for leaks. All connections must
be water and air tight in order for pump/tank (A)
to operate.

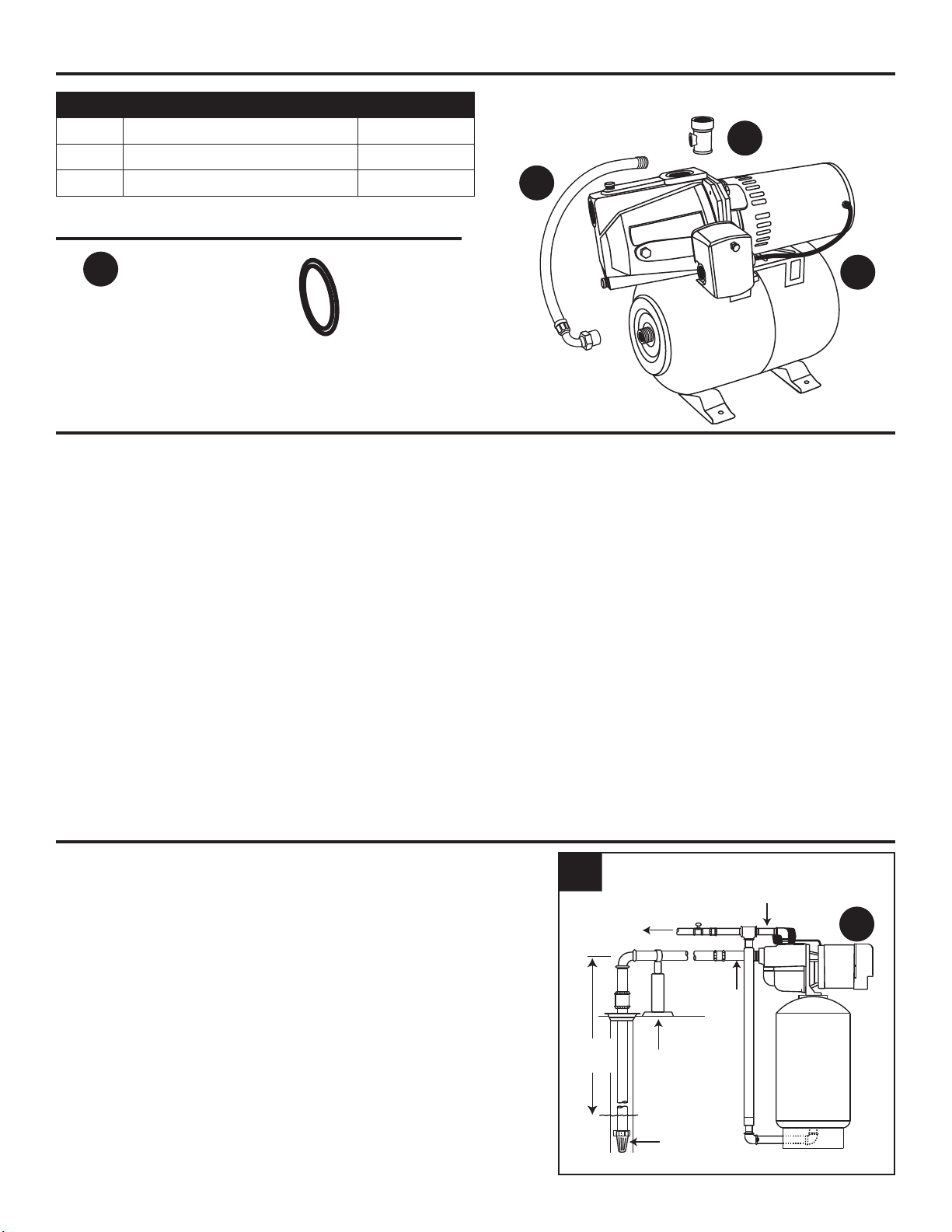

1 in. Discharge Pipe
Discharge to
Home
1-1/4 in.
Suction
Pipe
Foot Valve
Well
20
20
20
20
Breaker Box
Vent Plug
Pressure
Gauge or
Pipe Plug
5
6
7
7. Check suction pipe for any sagging. Support
suction pipe in a straight line to pump/tank (A).
NOTE: Look for leaks or a milky color in the
discharged water, which indicates an air leak.
Re-prime if necessary, following steps 1 through
6 above. Reset breaker at the breaker box. All
connections must be water and air tight in order for
pump/tank (A) to operate.
A
A

16
CARE AND MAINTENANCE
Winterizing
CAUTION: Drain the entire system if
there is danger of freezing.

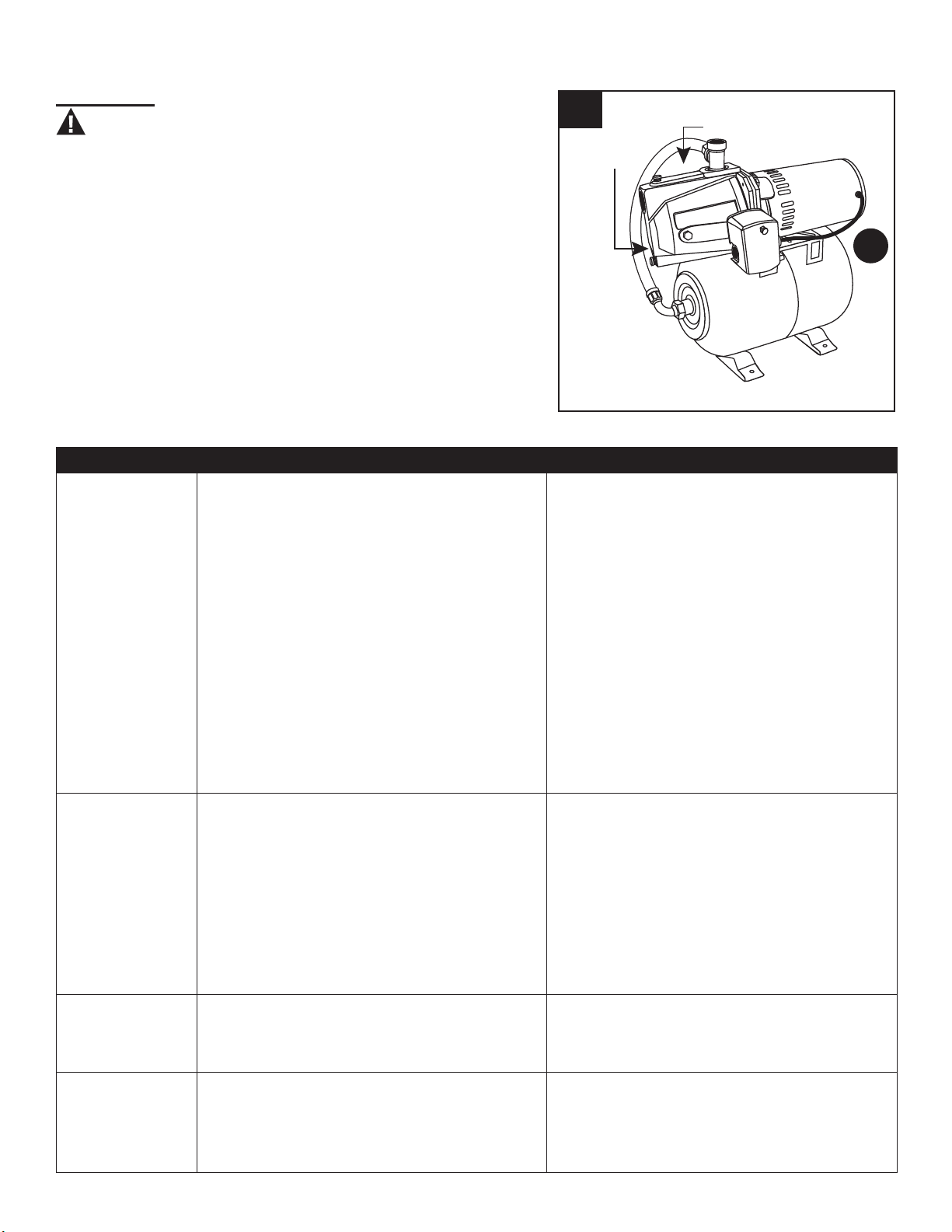

1. To drain pump/tank (A), remove the drain
plug located on the front of pump/tank (A)
and the vent plug located on the top of
pump/tank (A). A
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Little or no
discharge
1. Casing not initially lled with water 1. Fill pump casing (see Priming page
13-14)
2. Suction lift too high or too long 2. Move pump closer to water source
3. Hole or air leak in suction line 3. Repair or replace. Use pipe tape and
pipe sealing compound
4. Foot valve too small 4. Match foot valve to piping or install
one size larger foot valve
5. Foot valve or suction line not
submerged deep enough in water
5. Submerge lower in water
6. Motor wired incorrectly 6. Check wiring diagram
7. Casing gasket leaking 7. Replace
8. Suction or discharge line valves
closed
8. Open
Pump will not
deliver water
or develop
pressure
1. No priming water in casing 1. Fill pump casing (see Priming page
13-14)
2. Leak in suction line 2. Repair or replace
3. Discharge line is closed and priming
air has nowhere to go
3. Open ball valve and several outlets or
faucets to allow ow.
4. Suction line (or valve) is closed 4. Open
5. Foot valve is leaking 5. Replace foot valve
6. Suction screen clogged 6. Clean or replace
Loss of suction 1. Air leak in suction line 1. Repair or replace
2. Suction lift too high 2. Move pump closer to water source
3. Clogged foot valve or strainer 3. Unclog
Pump vibrates
and/or makes
excessive
noise
1. Mounting plate or foundation not rigid
enough
1. Reinforce
2. Foreign material in pump 2. Disassemble pump and clean
3. Impeller damaged 3. Replace
Priming Plug
Drain Plug
1

17
WARRANTY
This product is warranted for one year from the date of purchase or two years from the date of
manufacture, whichever occurs rst. Subject to the conditions hereinafter set forth, the manufacturer
will repair or replace to the original consumer, any portion of the product which proves defective due
to defective materials or workmanship. This warranty does not cover replacement parts for failure
due to normal wear and tear. To obtain warranty service, contact the retailer from whom the product
was purchased. The manufacturer retains the sole right and option to determine whether to repair or
replace defective equipment, parts or components. Damage due to conditions beyond the control of
the manufacturer is not covered by this warranty. For warranty questions or service, call
1-866-994-4148.
THIS WARRANTY WILL NOT APPLY: (a) To defects or malfunctions resulting from failure to properly
install, operate or maintain the unit in accordance with printed instructions provided; (b) to failures
resulting from abuse, accident or negligence; (c) to normal maintenance services and the parts
used in connection with such service; (d) to units which are not installed in accordance with normal
applicable local codes, ordinances and good trade practices; and (e) the unit is used for purposes
other than for what it was designed and manufactured.
RETURN OF WARRANTED COMPONENTS: Any item to be repaired or replaced under this warranty
must be returned to the manufacturer at such place as the manufacturer may designate, freight
prepaid.
THE WARRANTY PROVIDED HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES,
AND MAY NOT BE EXTENDED OR MODIFIED BY ANYONE. ANY IMPLIED WARRANTIES SHALL
BE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY AND THEREAFTER ALL SUCH
IMPLIED WARRANTIES ARE DISCLAIMED AND EXCLUDED. THE MANUFACTURER SHALL
NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGES, SUCH AS, BUT NOT LIMITED TO DAMAGE TO, OR LOSS OF, OTHER
PROPERTY OR EQUIPMENT, LOSS OF PROFITS, INCONVENIENCE, OR OTHER INCIDENTAL
OR CONSEQUENTIAL DAMAGES OF ANY TYPE OR NATURE. THE LIABILITY OF THE
MANUFACTURER SHALL NOT EXCEED THE PRICE OF THE PRODUCT UPON WHICH SUCH
LIABILITY IS BASED.
This warranty gives you specic legal rights, and you may have other rights which vary from state to
state. Some states do not allow limitations on duration of implied warranties or exclusion of incidental
or consequential damages, so the above limitations may not apply to you.
Pump will not
start or run
1. Improperly wired 1. Check wiring diagram on motor
2. Blown fuse or open circuit breaker 2. Replace fuse or close circuit breaker
3. Loose or broken wiring 3. Check all wiring connections
4. Stone or foreign object lodged in
impeller
4. Disassemble pump and remove
foreign object
5. Thermal overload has opened circuit 5. Allow unit to cool, restart after reason
for overload has been determined
In those instances where damages are incurred as a result of an alleged pump failure, the
Homeowner must retain possession of the pump for investigation purposes.

18
Printed in the U.S.A.
There are no warranty replacement parts available for this product. For non-warranty replacement
parts listed below, call our customer service department at 1-866-994-4148,
7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
PART DESCRIPTION PART NO.
B O-rings / Nozzle / Venturi Kit 023735
C Repair Kit (Includes Diffuser, Impeller Seal,
and O-Ring
023768
D Pressure Switch 023722
B
C
D
REPLACEMENT PARTS LIST

BOMBA DE CHORRO Y
SISTEMA DE TANQUE
Artículo #0955552
MODELO #148013
Número de serie Fecha de compra
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, comuníquese con
nuestro Departamento de Servicio al Cliente al 1-866-994-4148, 7:30 a.m. a 5:00 p.m.,
hora estándar del Este.
ADJUNTE SU RECIBO AQUÍ
19 025212 S

20
Suministro de electricidad necesario................................................ 115 voltios o 230 voltios, 60 Hz
(La bomba está congurada de fábrica para funcionar a 115 voltios)
Temperatura máxima del agua .......................................................................................25°C (77°F)
Se requiere circuito de derivación individual ..................................................... Mínimo 15 amperios
Conexión de descarga ................................................................................................NPT de 1 pulg
Conexión de succión ............................................................................................NPT de 1-1/4 pulg
Trabajo del motor ...........Trabajo continuo con enfriamiento por aire reforzado y protección contra
sobrecargas térmicas
Interruptor de presión ..............Precongurado a 20 PSI para “encendido” / 40 PSI para “apagado”
Clasicación de profundidad del agua....................................................................... 7,62 m máximo
ARTÍCULO
#MODELO HP VOLTAJE HZ AMPERIOS
CAPACIDAD: LITROS POR MINUTO CON
UNA DESCARGA DE 20 PSI
0 M 1,52 M 4,57 M 7,62 M
0955552 148013 1/2 115/230 60 7.8/3.6 41,6 36,0 24,6 13,2
• PELIGRO DE DESCARGA ELÉCTRICA.
Siempre desconecte la fuente de alimentación antes de llevar a cabo cualquier trabajo en el motor o
cerca de este o en su carga conectada. Si el punto de desconexión de la alimentación está fuera de la
vista, fíjelo en la posición abierta y etiquételo para evitar una aplicación de alimentación inesperada. El
incumplimiento de dicho paso podría provocar una descarga eléctrica fatal.
• PELIGRO DE DESCARGA ELÉCTRICA.
No manipule la bomba con las manos húmedas ni cuando esté parado en el agua, ya que podría ocurrir
una descarga eléctrica fatal. SIN IMPORTAR EL MOTIVO, desconecte la alimentación principal antes de
manipular la unidad.
• RIESGO DE DESCARGA ELÉCTRICA.
No se ha vericado el uso de estas bombas en piscinas.
• ALERTA DE DESCARGA ELÉCTRICA.
Siga todos los códigos locales eléctricos y de seguridad, además del Código nacional de electricidad (NEC,
por sus siglas en inglés) y la ley de la Administración de Salud y Seguridad Ocupacional (OSHA, por sus
siglas en inglés).
• ALERTA DE DESCARGA ELÉCTRICA.
Reemplace inmediatamente los cables dañados o desgastados. Nunca utilice una extensión eléctrica.
INFORMACIÓN DE SEGURIDAD
Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el
producto.
• NOTA: las bombas que exhiban la marca “UL”, así como aquéllas que exhiban la marca
“US”, satisfacen la norma UL778 de Underwriters Laboratory. Las bombas certicadas por la
Asociación Canadiense de Normalización (CSA) satisfacen la norma C22.2 de la CSA. 108.
PELIGRO
ADVERTENCIA:
ESPECIFICACIONES DEL PRODUCTO
