KSP‐F01ADosingPumpUserManual
2
Warranty
Wewarrantyourproductagainstanydefectinmaterialandworkmanship,under
normaluse.Intheeventaproductisfoundtobedefectivewithinthewarranty
periodofoneyear,wewill,atouroption,repairorreplacethedefectiveproduct.
Thewarrantyperiodstartsatthedayofpurchase.Forwarrantyvalidation,aproofof
purchasemustbefurnished.

Thefollowingsareexcludedfromthewarranty:
1.Improperuseofthedevicecausingmalfunction;
2.Thedeviceisrepairedormodifiedbyanunauthorizedperson;
3.Useofnon‐producedmaterialbyourcompanyi.e.pumptube;
4.Damagebydisaster;
5.Impropermaintenancecausingdamage;
6.Useofreagentorsamplecausingcorrosion;
7.Damagebyaccidentoroverload;
8.Consumables,suchassiliconetubeandfuseetc.

Toobtainwarrantysupport,youmaycontactourlocaltechnicalsupport.Our
technicalsupportwillattempttodiagnoseandcorrecttheproblem.Iftheproblem
cannotberectified,ourtechnicalsupportwillaskyoutoreturntheproduct.Youwill
beaskedtofurnishproofofpurchasetoconfirmthattheproductisstillunder
warranty.

















KamoerisregisteredtrademarkofKamoerFluidTech(Shanghai)Co.,Ltd.Wereserve
therighttoimproveoralterappearanceandtechnicalspecificationswithoutnotice.

KSP‐F01ADosingPumpUserManual
3
Notice
Wehaveconsideredusersafetyinthedesignprocess.Pleasereadthismanual
carefully.Anyimproperoperationmaycausedamageordanger.

1. Safety
TheproductbelongstoActiveProducts.Toavoiddanger,youshould
observethefollowingrules.
Ifyoufindanyvisibledamage,pleasedonotswitchon;
Besurenottoaddanyacid,alkali,orvolatilesolvents;
Besurenottouseinhumidenvironment,avoiddamagebyshortcircuit;
Temperaturechangeormechanicalwearmayincreasethevolumeerror.

2. Defectandanomaloussituation

Youmuststopanyoperationimmediatelyiftheequipmentisdamaged.
Theequipmentmaybedamagedwhenthefollowingsituationsoccur:
1) Thereisvisualdamage.
2) Theproductsuddenlydoesnotwork.
3) Theproductislocatedinaninappropriateposition.

3. Caution
Avoidthemain‐bodyfallingintothewater,don’trisktheelectronic
componentscausingashortcircuit.
Avoidpoweradapterbeingscrapedandconcaved,especiallythepinpointonthe
endofwire.
Don’ttiepoweradapteronotherarticles.
Avoidpumppipebeingbentasaconcave,otherwiseitwillblockuptheflowing
liquid.











KSP‐F01ADosingPumpUserManual
4
1Productintroduction
1.1Features
Powerfulfunctionwithacompactappearance.
Friendman‐machineinterfacewithlcdbacklightdisplayandkeyoperation.
Supportcontrollingspeedwithaspeedcontrolknob.
Realtimeclock,supporttimingstartandstop.
Intervalbetweeneachruncanbeset,supportcyclerun,supporttime‐spanrun.
Supportflowratecalibration.
Supportmultiplemachineuseinaserieswithexpansioncable.
1.2PartsName










1.Button2.LCDdisplay3.LCDprotectivescreen4.Pumpheadcomponent
5.Speedcontrolknob6.DCIN7.DCOUT
1.3Buttonintroduction
Manualkey:Clicktorunorstoppumpmanually
Calibratekey:Clicktostartflowcalibration
Setkey:Clicktoswitchtheparameterstobeset
OKkey:Clicktoconfirmthesetparameters
Autokey:Clicktostartorstopautomaticmode



KSP‐F01ADosingPumpUserManual
5
key:Clicktominusoneorpresstominustenwhensettingparameters,or
switchtopreviewparameterswhennotinsettingmode
key:Clicktoplusoneorpresstoplustenwhensettingparameters,orswitch
topreviewparameterswhennotinsettingmode
1.4Displayintroduction
Run:thefieldofrunpage
Delay:thefieldofdelaypage
From:thefieldofstarttimeofperiodpage
To:thefieldofendtimeofperiodpage
Clock:thefieldofclockpage
Note:
1.Thelowerleftcornerofthelockiconshowsthatthepumpisrunning,atthis
timeitcannotbeoperatedotherfunctions.
2.Afteraperiodoftimewithoutanyoperation,thepumpwillenterstandbymode,
backlightoff.
1.5Accessory
Name Model Quantity Description
PowerAdapterSeetheadapter
tag1pcs
PVCConnectingtube 3meters
Extensioncable
L‐FormDC
Socket
connector
Size:5.5*2.1mm
Length:75mm
1pcs
Plasticcylinder10ml/25ml1pcs
Usermanual 1pcs
Certification 1pcs

KSP‐F01ADosingPumpUserManual
6
2Interfaceintroduction
2.1Runinterface

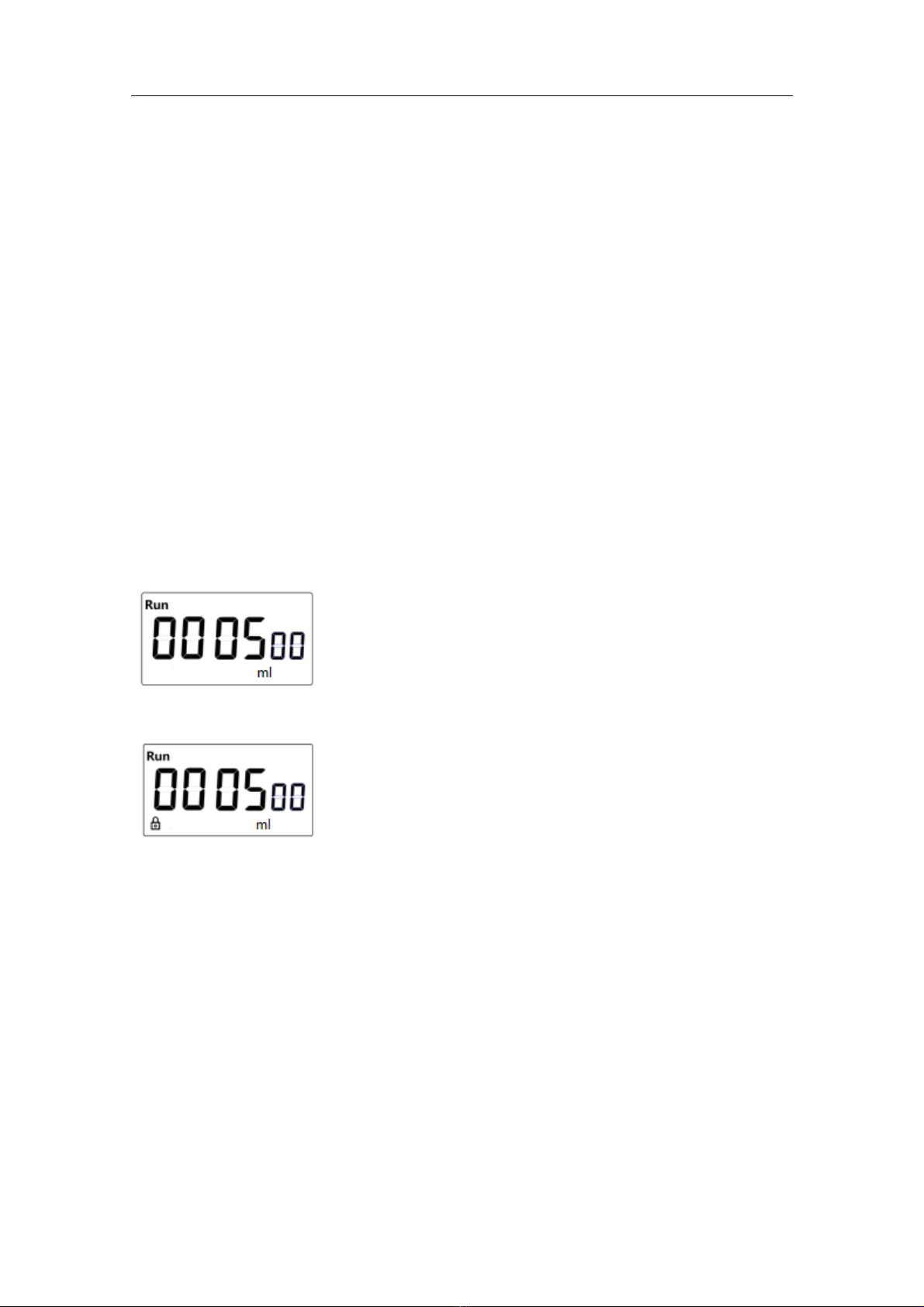

Runbyvolume,numbersrepresentvolumesinmilliliters,
wherelargenumbersrepresentintegervolume,small
numbersrepresentdecimalvolume,andvolumesettings
rangefrom0.01to9999.99milliliters.

Runbytime,numbersinturnrepresenthours,minutesand
seconds,thetimesettingrangeis1second‐99hours59
minutes59seconds.

Note:Intheidlestate,longpress"Calibration"for5seconds,switchvolume
runningmodeandtimerunningmode.
2.2Delayinterface
Thewaitingtimebetweeneachrunning,therangeofdelay
timeisfrom0secondto99hours59minutesand59
seconds.
Note:delay0seconds,themachinerunonlyonce.
2.3Starttimeandendtimeinterfaceintimeperiod
Fromstandsforthestarttimeintime
period,Tostandsfortheendtimein
timeperiod,pumprunsinthetime
periodandstopsoutsideofthetime
period.
2.4Clockinterface
Setandseecurrenttime.

KSP‐F01ADosingPumpUserManual
7
2.5Calibrationinterface

Thecountdownpage.



Thehighdigitalstandsfortheintegerpartofcalibration
volume,theshortdigitstandsforthedecimalpartof
calibrationvolume,theunitismilliliter.

























KSP‐F01ADosingPumpUserManual
8
3Installation

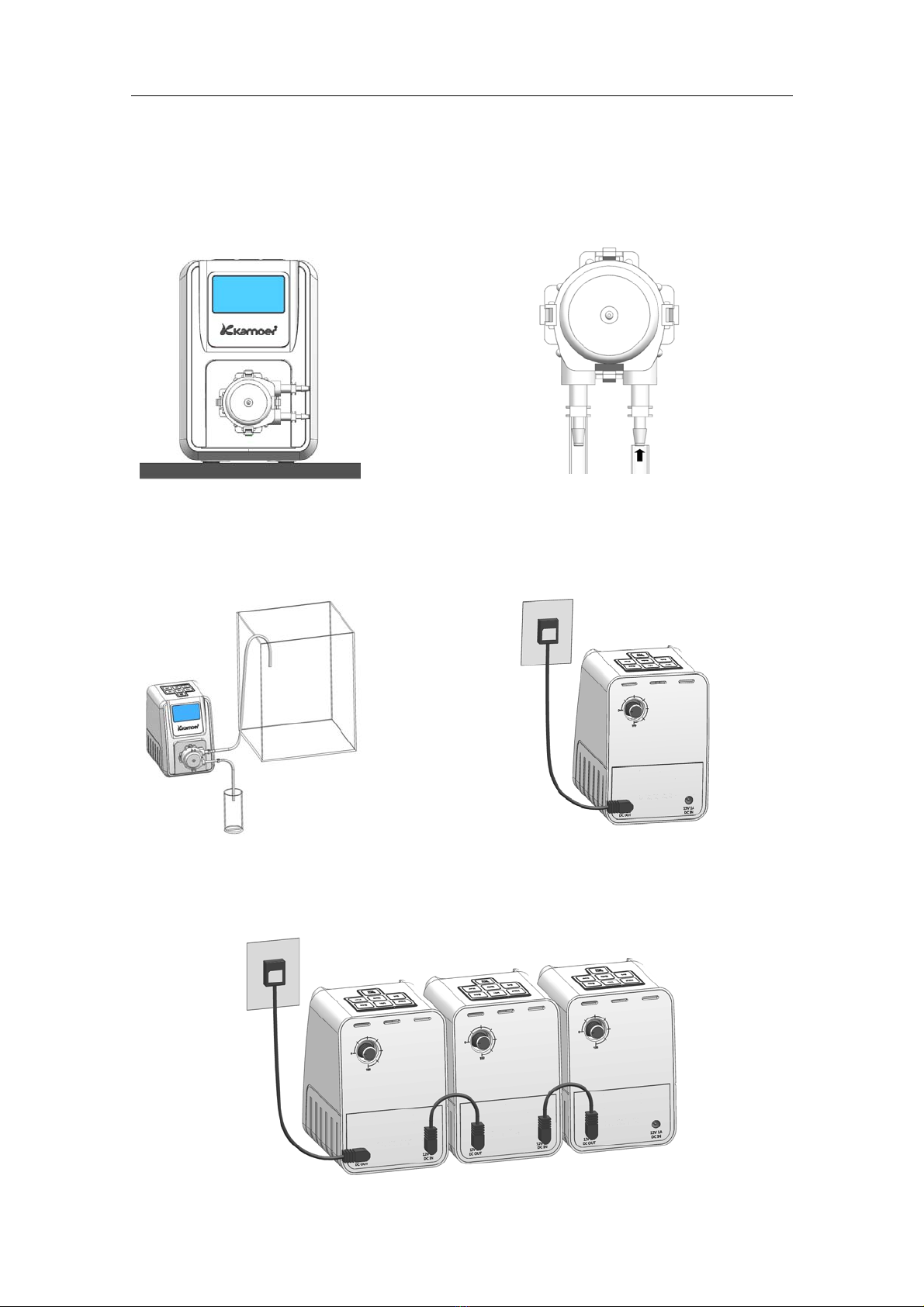

1.Layonthedesktop,pluginthepump2.PutPVCtubeintothejointforplastic
shownasthepicture.tube.
3.ImmersethePVCtubeinletintothe4.PoweradapterpluggedintoACpower
fluidcontainer,whileputtheoutletintosocket,outputterminalpluggedinto
thefishtank(headisaround2meters).DCINsocketofthedosingpump.

Byusingtheattachedextensioncable,oneadaptercansupportupto3setsof
machinerunningatthesametime,inthesameway,twoadaptersfor6setsof
machine.

KSP‐F01ADosingPumpUserManual
9
4Operationmode
Thedosingpumpcansupportsevenoperationmodesasbelow:
ModeDescriptionSetting
Manual
pressthe"Manual"
keytostartrunning;
pressthe"Manual"
keytostopwhen
running
Note:Onlythis
modesupportspeed
adjustbyknob.


Single
quantitative
add
Afterreachingthe
settingamount,the
pumpwillstop.

Note:Aftersetting,
press“Auto”torun.
ParametersDelay,FromandToare0


ParameterRunisnot0
Cycle
quantitative
add
Setamountand
time,thenthepump
willruncyclically.
Note:Press“Auto”
tostart,andpress
“Auto”againto
stop.
ParametersFromandToare0

ParametersRunandDelayarenot0
Single
quantitative
addduringa
certaintime
Insettingtime,the
pumpwillrun.
Note:Press“auto”
tostart,andpress
“auto”againto
stop.
ParameterDelayis0

ParameterRunisnot0

KSP‐F01ADosingPumpUserManual
10

eitherFromorToisnot0
Cycle
quantitative
addduringa
certaintime
Setamountand
time,thenthepump
willruncyclically
duringthistime.

Thepumpwillnot
workwithoutthe
timeyouset.
Note:Press“auto”
tostart,andpress
“auto”againto
stop.
parametersRunandDelayarenot0

eitherFromorToisnot0


KSP‐F01ADosingPumpUserManual
11
5Flowrateadjustment
OnlyinManualmode,youcanadjustdosingflowratethroughturningthebackside
rotaryknobofthedosingpump.
Note:Youcanchangetheflowrateonlyinmanualmode.Inotherstates,therotary
knobdoesnotchangetheflowrateimmediately.Thenexttimeyoustartthe
manualrun,thedosingpumpwillrunaccordingtotheadjustedposition.

6Calibration
6.1Overview
Calibrationisaprocesstodetermineaccurateflowratebyusingapropermeasuring
tooltomeasureaddedvolumeduringacertaintimeperiod.(10mlmeasuring
cylinderisdeliveredforfreewiththemachine,formoreaccurateflowrate,alarger
measuringcylindercanbeused).Pumpisneededtobecalibratedunderthe
followingoccasions:
Dosingpumpusedforthefirsttime;
Afterrunningforalongtime,thedisplayedflowrateisquitedifferentfrom
actualflowrate(pumpmaybewore);
Flowrateisadjustedbyusingrotaryknob.
6.2Operation
1.connectedtothepipeline;
2.Emptytheliquidinthepipeline;
3.Emptythegraduatedcylinder;
4.Pressthe"calibration"keytostartcalibration;
5.Waitingfortheendofthecountdownoperation;
6.Measurethevolumeofliquidinthecylinder
7.Inputthevolumebypress and 

KSP‐F01ADosingPumpUserManual
12
7Application
Forbetterunderstandingcustomers’needsandtestingourdosingpump’s
performance,ourcompanyresortstoseniorcoralexpertstotakecareofourcoral
tanksbyusingKSP‐F01Adosingpumptoaddnutrientsolution(Ca,Mg,KHetc.)

Tankvolume:360L
Creature:SPS6；LPS5；Fish4；Other8
Dosingsolution：Calcium,Magnesium,KH
Dosingamount：20ml（takeCalasanexample）
Dosingtimes：4times/day

Howtouse：
1.Connectthetubing；
2.Emptythetubing(manualoperationemptying,whileadjustingtheknobtothe
appropriateflowrate);
3.Calibrateflowrate;
4.Needtoadd20mlperday,drop4times;eachdrop5ml,interval6hours;




5.Press“Auto”tostart.


KSP‐F01ADosingPumpUserManual
13
8Maintenance
Thepumpheadcomponentsandmotorsareconsumables,regularlyreplacethemis
necessary.

Model:F01A‐DC
Pumpheadcomponents:replacethemafterrunning1000hours.
Motor:replaceitafterrunning800hours.

Model:F01A‐STP
Pumpheadcomponents:replacethemafterrunning1000hours.
Motor:replaceitafterrunning5000hours.

Iftheyareusedunderhigh‐load,high‐humidityorenvironmentsfullofdust,replace
themaccordingtothedosingpump’sactualstatus.
9Specifications
Model F01A‐DCF01A‐STP
PumpheadKPPKAS
Pumpheadlife1000hours
MotorlifeDCmotor,800hours Steppermotor,5000hours
Adapter InputAC100‐240V50‐60Hz1.0Amax
OutputDC12V1ADC24V1.9A
powersupply12W
Addingtimes96times/day‐onetime/4days
Volumerange1ml‐9999ml
Precision<±2%
WorkingenvironmentTemperature0‐70℃
Storage
environment
humidity10%‐90%（non‐condensable）
temperature‐20℃‐85℃
humidity10%‐90%（non‐condensable）
dimensions(L*W*H)200*170*110mm
Weight 660g



KamoerisregisteredtrademarkofKamoerFluidTech(Shanghai)Co.,Ltd.Wereserve
therighttoimproveoralterappearanceandtechnicalspecificationswithoutnotice.
