UWE VFM User manual

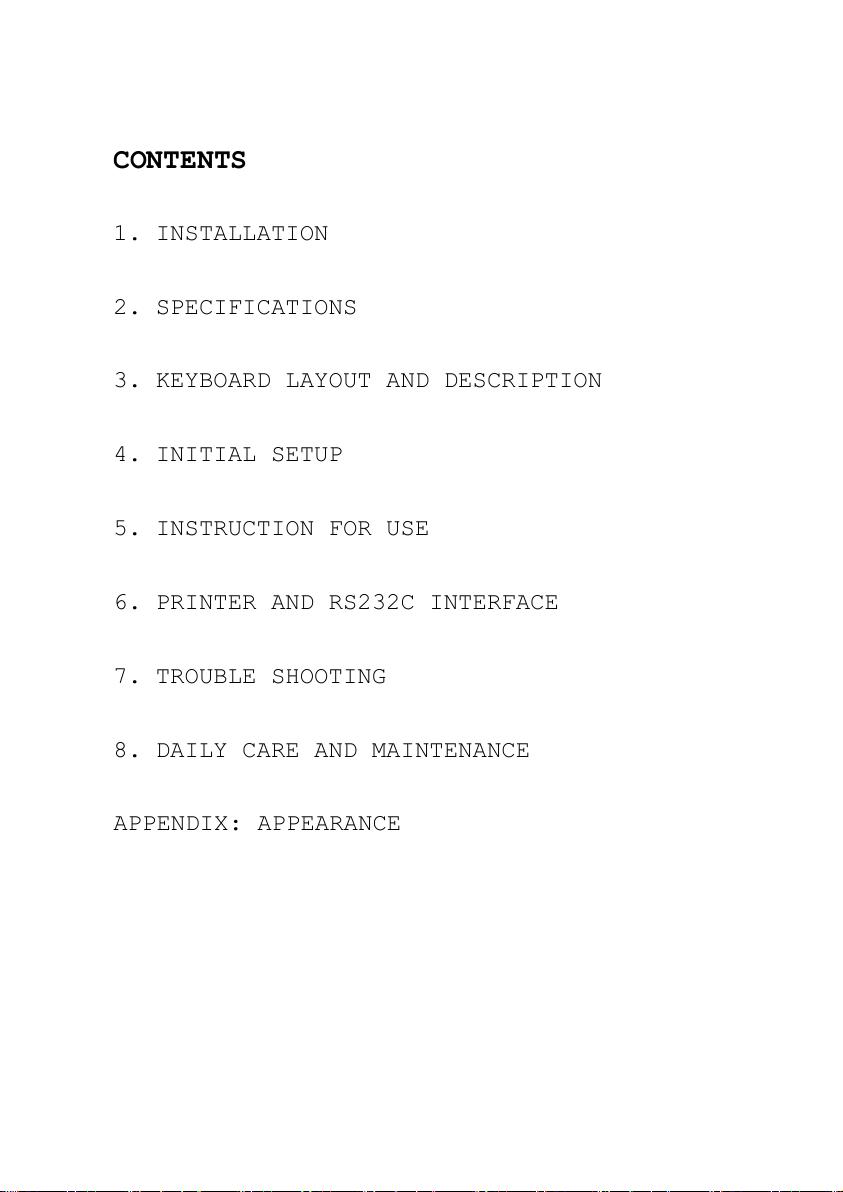

CONTENTS
1. INSTALLATION
2. SPECIFICATIONS
3. KEYBOARD LAYOUT AND DESCRIPTION
4. INITIAL SETUP
5. INSTRUCTION FOR USE
6. PRINTER AND RS232C INTERFACE
7. TROUBLE SHOOTING
8. DAILY CARE AND MAINTENANCE
APPENDIX: APPEARANCE

1. INSTALLATION
Because of metrological legislation, installation/some
metrological parameter settings are limited to be done
by authorized personnel only. Do not attempt to change
any of the built-in parameters. Contact your dealer for
installation and technical assistance.
CAUTION:
This unit is legal for trade only when it is sealed (and/or
stamped) and bearing a serial number. Do not attempt
to break the seal (or stamp) affixed to this indicator
or remove the serial number. Contact your dealer for
more information and after sales service.
For most accurate weighing result, do not use the
indicator in where or when the environment condition
falls beyond as those listed on SPECIFICATIONS.
Do not attempt to open this unit or conduct any trouble
shootings other than those listed on TROUBLE SHOOTING.

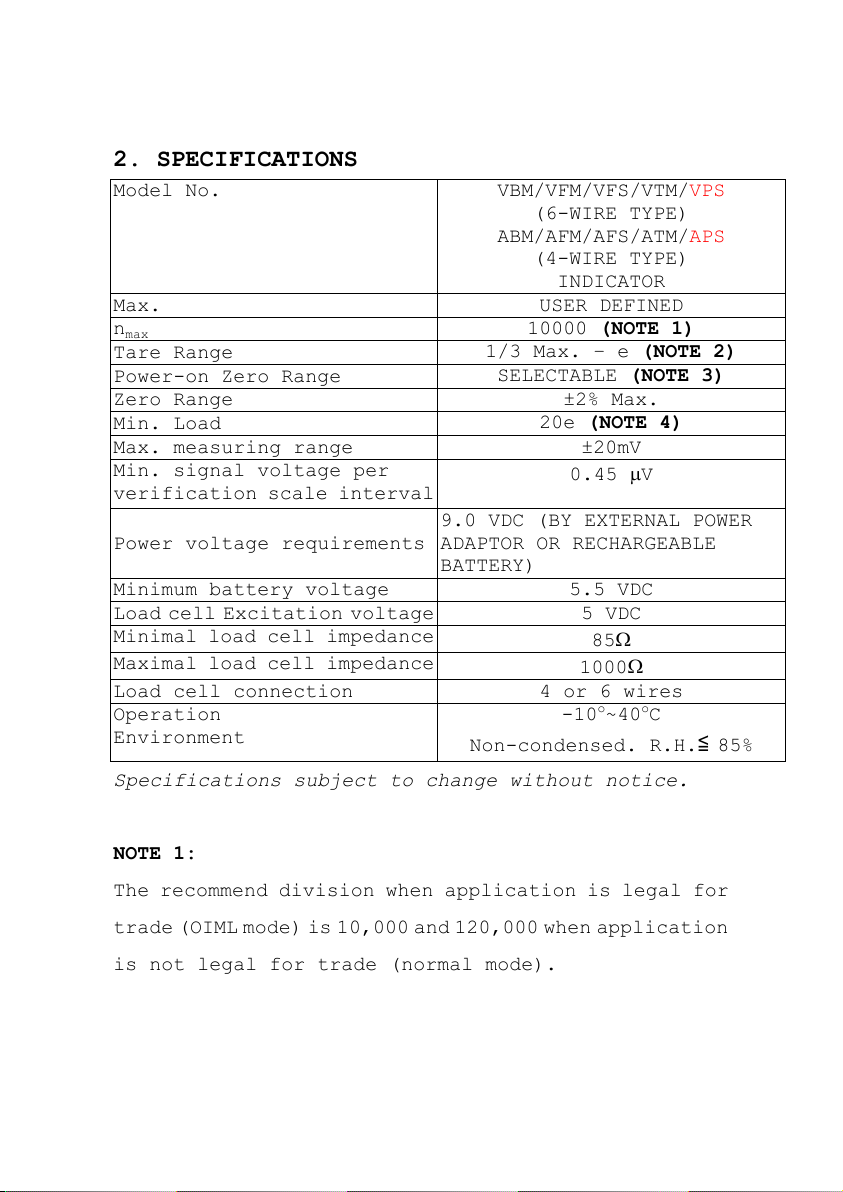

2. SPECIFICATIONS
Model No.
VBM/VFM/VFS/VTM/VPS
(6-WIRE TYPE)
ABM/AFM/AFS/ATM/APS
(4-WIRE TYPE)
INDICATOR
Max.
USER DEFINED
nmax
10000 (NOTE 1)
Tare Range
1/3 Max. –e (NOTE 2)
Power-on Zero Range
SELECTABLE (NOTE 3)
Zero Range
±2% Max.
Min. Load
20e (NOTE 4)
Max. measuring range
±20mV
Min. signal voltage per
verification scale interval
0.45 V
Power voltage requirements
9.0 VDC (BY EXTERNAL POWER
ADAPTOR OR RECHARGEABLE
BATTERY)
Minimum battery voltage
5.5 VDC
Load cell Excitation voltage
5 VDC
Minimal load cell impedance
85
Maximal load cell impedance
1000
Load cell connection
4 or 6 wires
Operation
Environment
-10o~40oC
Non-condensed. R.H.≦85%
Specifications subject to change without notice.
NOTE 1:
The recommend division when application is legal for
trade (OIML mode) is 10,000 and 120,000 when application
is not legal for trade (normal mode).

NOTE 2:
When under OIML mode, for Multi range or interval, change
e to e1. When under non-OIML mode, the default setting
is full tare range.
NOTE 3:
The power-on zero (initial zero) range can be selected
with ±2%, ±5%, ±10%, ±15%, ±20%, ±30%, ±40% at F3
function followed CAP1.? setting.
When under OIML mode, the default setting is ±10%.
NOTE 4:
For Multi range or interval, change e to e1.

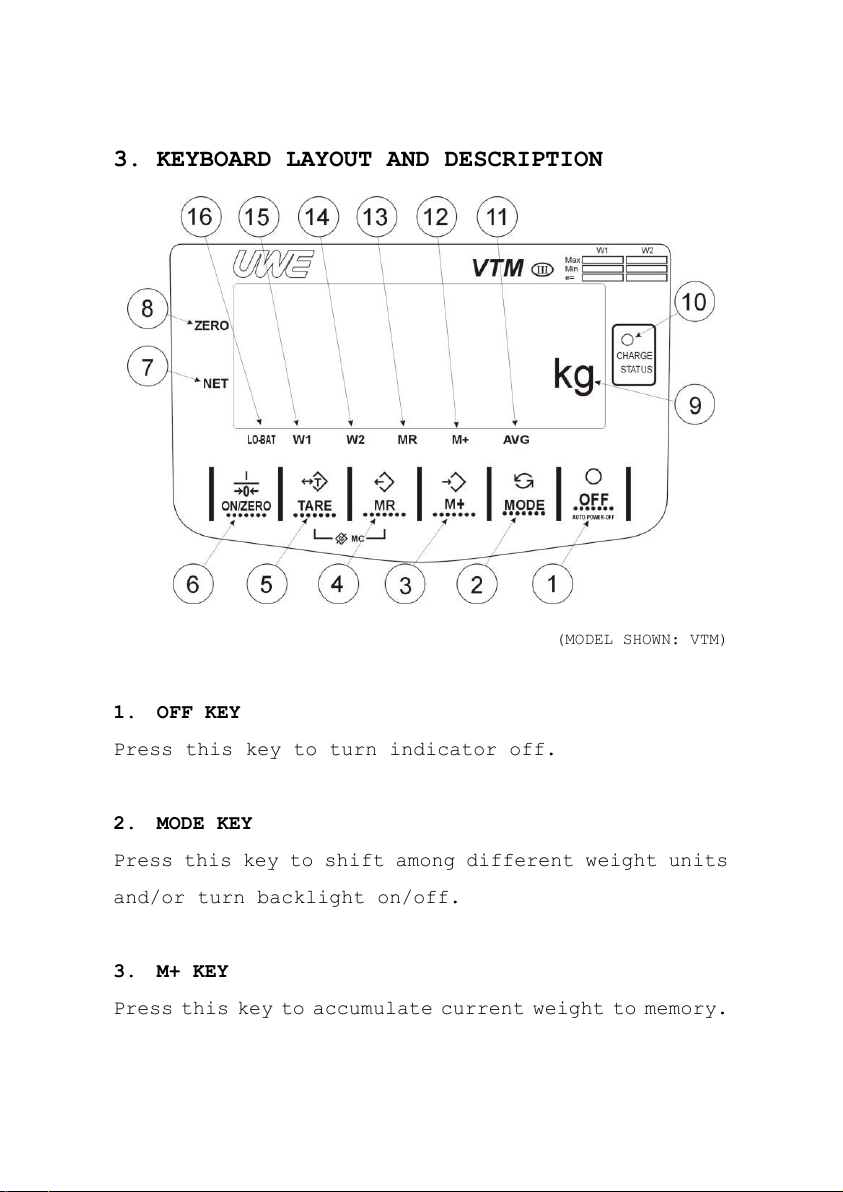

3. KEYBOARD LAYOUT AND DESCRIPTION
(MODEL SHOWN: VTM)
1. OFF KEY
Press this key to turn indicator off.
2. MODE KEY
Press this key to shift among different weight units
and/or turn backlight on/off.
3. M+ KEY
Press this key to accumulate current weight to memory.

4. MR KEY
Press this key to recall the total accumulated weight
from memory.
5. TARE KEY
Press this key to tare off the weight of a container.
6. ON/ZERO KEY
Press this key to turn indicator on and/or set weight
displayed to zero.
7. NET INDICATOR
This indicator appears to indicate the tare function
is in operation and weight shown is net weight.
8. ZERO INDICATOR
This indicator appears to indicate zero weight status.
9. WEIGHT UNIT INDICATOR
“kg”indicates the metric unit is being employed.
“lb”indicates the avoirdupois unit is being employed.
10. IN-CHARGE INDICATOR
Red color: Recharging on process

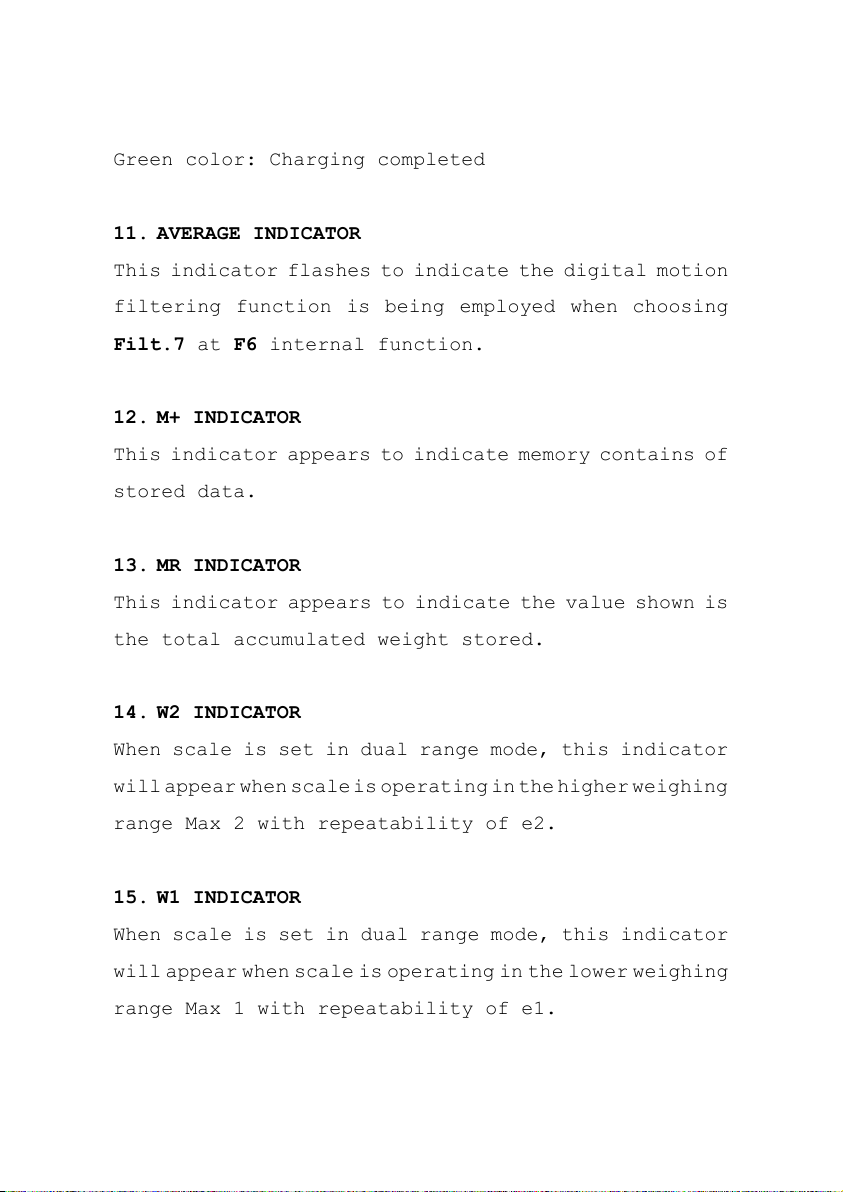

Green color: Charging completed
11. AVERAGE INDICATOR
This indicator flashes to indicate the digital motion
filtering function is being employed when choosing
Filt.7 at F6 internal function.
12. M+ INDICATOR
This indicator appears to indicate memory contains of
stored data.
13. MR INDICATOR
This indicator appears to indicate the value shown is
the total accumulated weight stored.
14. W2 INDICATOR
When scale is set in dual range mode, this indicator
will appear when scale is operating in the higher weighing
range Max 2 with repeatability of e2.
15. W1 INDICATOR
When scale is set in dual range mode, this indicator
will appear when scale is operating in the lower weighing
range Max 1 with repeatability of e1.

16. LO-BAT INDICATOR
This indicator appears when input voltage is below the
lowest input limit. Check the power supplied to the
indicator.

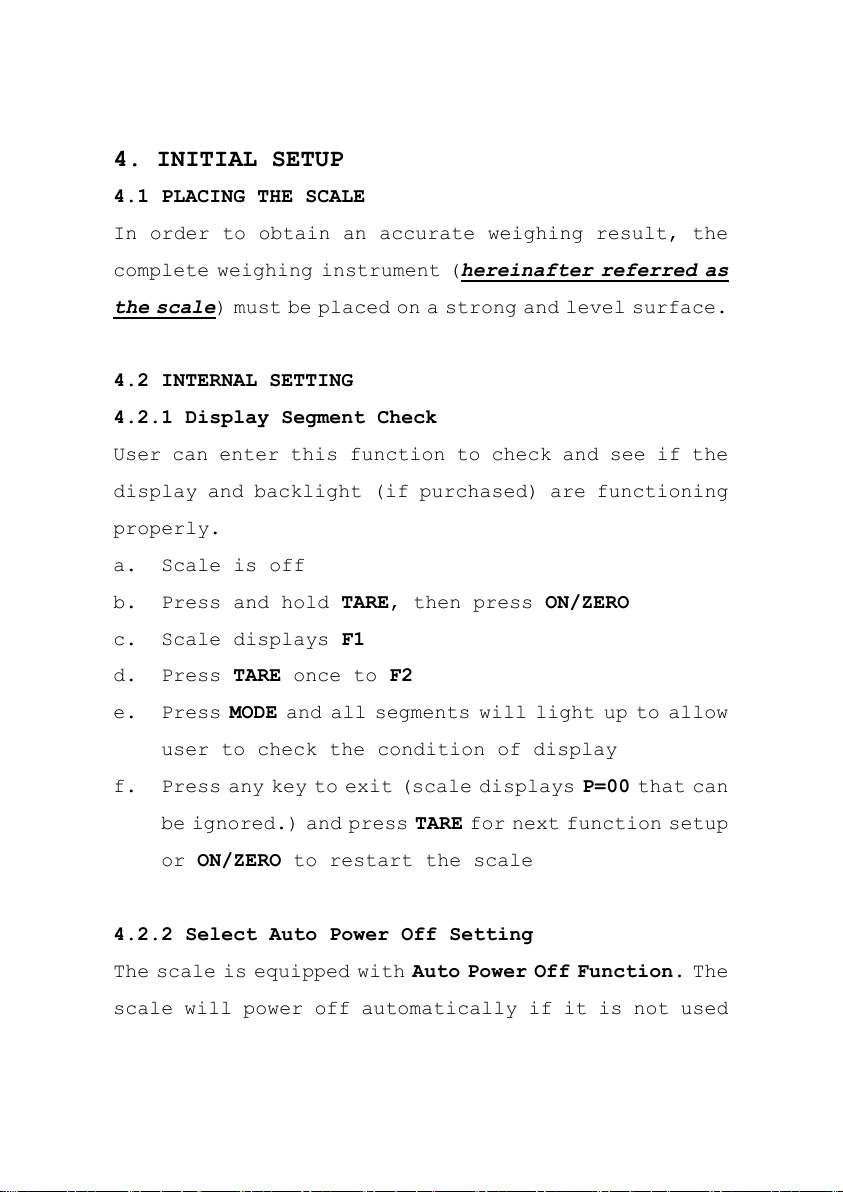

4. INITIAL SETUP
4.1 PLACING THE SCALE
In order to obtain an accurate weighing result, the
complete weighing instrument (hereinafter referred as
the scale) must be placed on a strong and level surface.
4.2 INTERNAL SETTING
4.2.1 Display Segment Check
User can enter this function to check and see if the
display and backlight (if purchased) are functioning
properly.
a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays F1
d. Press TARE once to F2
e. Press MODE and all segments will light up to allow
user to check the condition of display
f. Press any key to exit (scale displays P=00 that can
be ignored.) and press TARE for next function setup
or ON/ZERO to restart the scale
4.2.2 Select Auto Power Off Setting
The scale is equipped with Auto Power Off Function. The
scale will power off automatically if it is not used

for 4 minutes. Follow the below steps to enable/disable
Auto Power Off Function.
a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays F1
d. Press TARE three times to F4
e. Press MODE to shift between 0_OFF or 4_OFF
-To enable Auto Power Off Function, press TARE when
4_OFF appears
-To disable Auto Power Off Function, press TARE when
0_OFF appears
f. Press TARE to exit and press ON/ZERO to restart the
scale
4.2.3 Select RS-232 Baud Rate & Protocol
This scale is equipped with 4 RS232C output baud rate
and 2 transmission protocol settings for user to select.
a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays F1
d. Press TARE four times to F5
e. Press MODE to enter
f. Press M+ to select baud rate of 4800, 9600, 19200
or 38400

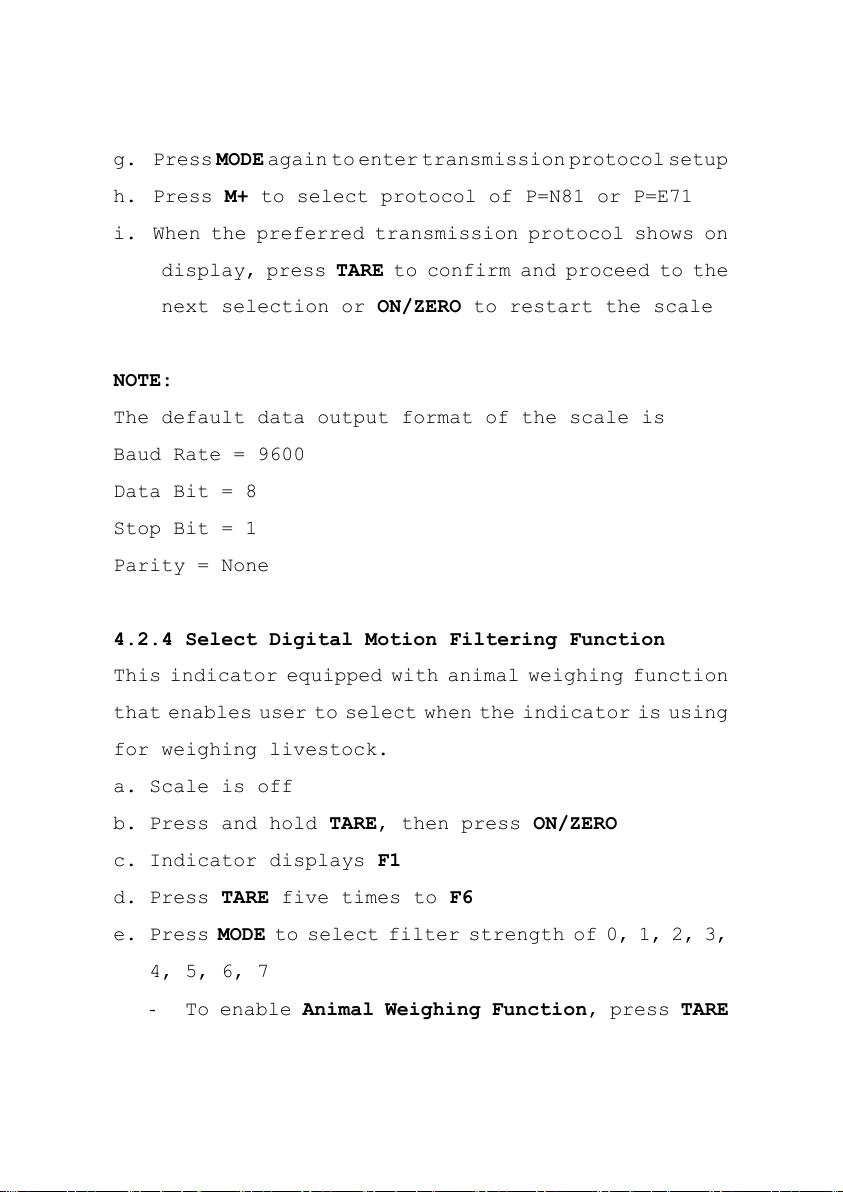

g. Press MODE again to enter transmission protocol setup
h. Press M+ to select protocol of P=N81 or P=E71
i. When the preferred transmission protocol shows on
display, press TAREto confirm and proceed to the
next selection or ON/ZERO to restart the scale
NOTE:
The default data output format of the scale is
Baud Rate = 9600
Data Bit = 8
Stop Bit = 1
Parity = None
4.2.4 Select Digital Motion Filtering Function
This indicator equipped with animal weighing function
that enables user to select when the indicator is using
for weighing livestock.
a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Indicator displays F1
d. Press TARE five times to F6
e. Press MODE to select filter strength of 0, 1, 2, 3,
4, 5, 6, 7
-To enable Animal Weighing Function, press TARE

when display shows Filt.1~Filt.7.
Select Filt.7 will get strongest filter effect.
-To disable Animal Weighing Function, press TARE
when display shows Filt.0
f. After TARE is pressed, indicator display F7
g. Press MODE to enter next set up or ON/ZERO to restart
the scale
4.2.5 Select Serial Output Mode
There are four selectable transmission modes to choose
according to end user preference. For which “Conti”is
continuous transmission when weight is stabilized,
“Auto”sends data once when weight is stabilized and
“P_Out”sends data in table form when press M+.
“OFF”disable Serial transmission
a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays F1
d. Press TARE six times to F7
e. Press MODE to shift between Conti, Auto, P_Out or
OFF
-For continuous sending, press TARE when display
shows Conti
-For sending data once, press TARE when display

shows Auto
-For manual sending, press TARE when display shows
P_Out
-Disable Serial output, press TARE when display
shows OFF
f. After TARE is pressed, indicator display F8
g. Press MODE to enter next set up or ON/ZERO to restart
the scale
4.2.6. Select Printer Output Mode
There are three selectable printout formats to choose
according to end user preference. Prnt.1will only print
the stabled weight detects when press M+ and Prnt.2 will
print in table form when press M+.
Choose utP will employ UTP thermal printer protocol.
a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays F1
d. Press TARE seven times to F8
e. Press MODE to shift between Prnt.1, Prnt.2 or utP
-For simple printout result, press TARE when
display shows Prnt.1
-For detail printout result, press TARE when
display shows Prnt.2

-For connecting to UTP printer, press TARE when
display shows utP (When choosing utP, the setting
of F7 will change to OFF)
f. After printout format is selected, will enter
sub-menu for auto-printing or not.
Press MODE to shift between Auto or Nauto(non-auto)
-For auto printout when weight is stabilized , press
TARE when display shows Auto
-For manual printout when pressing M+ , press TARE
when display shows Nauto
-When choosing utP, form number from 0 to 9, Prnt.1
or Prnt.2 can be selected according to end user
preference prior to auto printout setting.
g. After TARE is pressed, scale display F9
h. Press MODE to enter next set up or ON/ZERO to restart
the scale
4.2.7 Select Auto Tare Function
This scale is equipped with auto tare function which
tares off the initial weight automatically when this
function is engaged. The tare weight is automatically
cleared when everything is removed from platter.
a. Scale is off

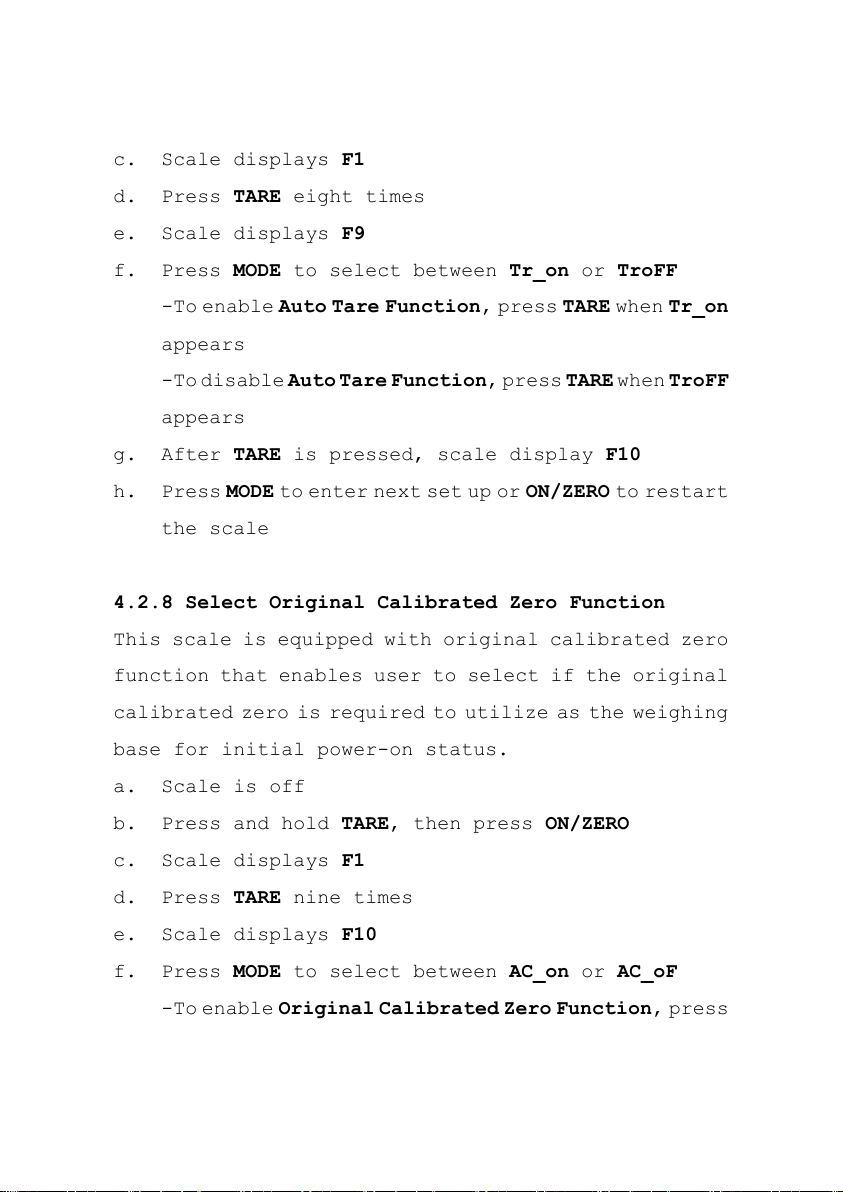

b. Press and hold TARE, then press ON/ZERO

c. Scale displays F1
d. Press TARE eight times
e. Scale displays F9
f. Press MODE to select between Tr_on or TroFF
-To enable Auto Tare Function, press TARE when Tr_on
appears
-To disable Auto Tare Function, press TARE when TroFF
appears
g. After TARE is pressed, scale display F10
h. Press MODE to enter next set up or ON/ZERO to restart
the scale
4.2.8 Select Original Calibrated Zero Function
This scale is equipped with original calibrated zero
function that enables user to select if the original
calibrated zero is required to utilize as the weighing
base for initial power-on status.
a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays F1
d. Press TARE nine times
e. Scale displays F10
f. Press MODE to select between AC_on or AC_oF
-To enable Original Calibrated Zero Function, press

TARE when AC_on appears
-To disable Original Calibrated Zero Function,
press TARE when AC_oFappears
g. After TARE is pressed, scale display F11
h. Press MODE to enter next set up or ON/ZERO to restart
the scale
NOTE:
1. For OIML approval, this function would be prohibited.
2. Scale will perform Initial Zero Range setting after
turn-on when choosing AC_oF.
4.2.9 Select Accumulation Function when Pressing M+
This scale is equipped with accumulation function
enabled/disabled when pressing M+. When accumulation
function is engaged, press M+ will simultaneously print
out RS-232/printer data and perform accumulation
function.
a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays F1
d. Press TARE ten times
e. Scale displays F11
f. Press MODE to select between Ad._on or Ad._oF

-To enable Accumulation Function when pressing M+,
press TARE when Ad._on appears
-To disable Accumulation Function when pressing M+,
press TARE when Ad._oFappears
g. After TARE is pressed, scale display F13
h. Press MODE to enter next set up or ON/ZERO to restart
the scale
4.2.10 Select Number of Printout Copy (This function
is UTP printer related)
9 parameters (copy 1 to copy 9) are available. Select
the required number of printout copy here.
a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays F1
d. Press TARE eleven times
e. Scale displays F13
f. Press MODE to select number of printout copy of
COPY1 ~COPY9
g. When preferred number of printout copy shows on
display, press TARE to confirm.
h. After TARE is pressed, scale display F14
i. Press MODE to enter next set up or ON/ZERO to restart
the scale
4.2.11 Select Total Print when Performing Memory-clear

Function
This scale is equipped with total print enabled/disabled
when performing memory-clear function. When total print
is disabled, press MR & TARE will only perform
memory-clear function, it won’t print out data of total.
a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays F1
d. Press TARE twelve times
e. Scale displays F14
f. Press MODE to select between tt_on or tt_oF
-To enable Total Print when Performing Memory-clear
Function, press TAREwhen tt_on appears
-To disable Total Print when Performing
Memory-clear Function, press TARE when tt_oF
appears
g. After TARE is pressed, scale display F15
h. Press MODE to enter next set up or ON/ZERO to restart
the scale
4.2.12 Set and Send Date & Time Data to UTP

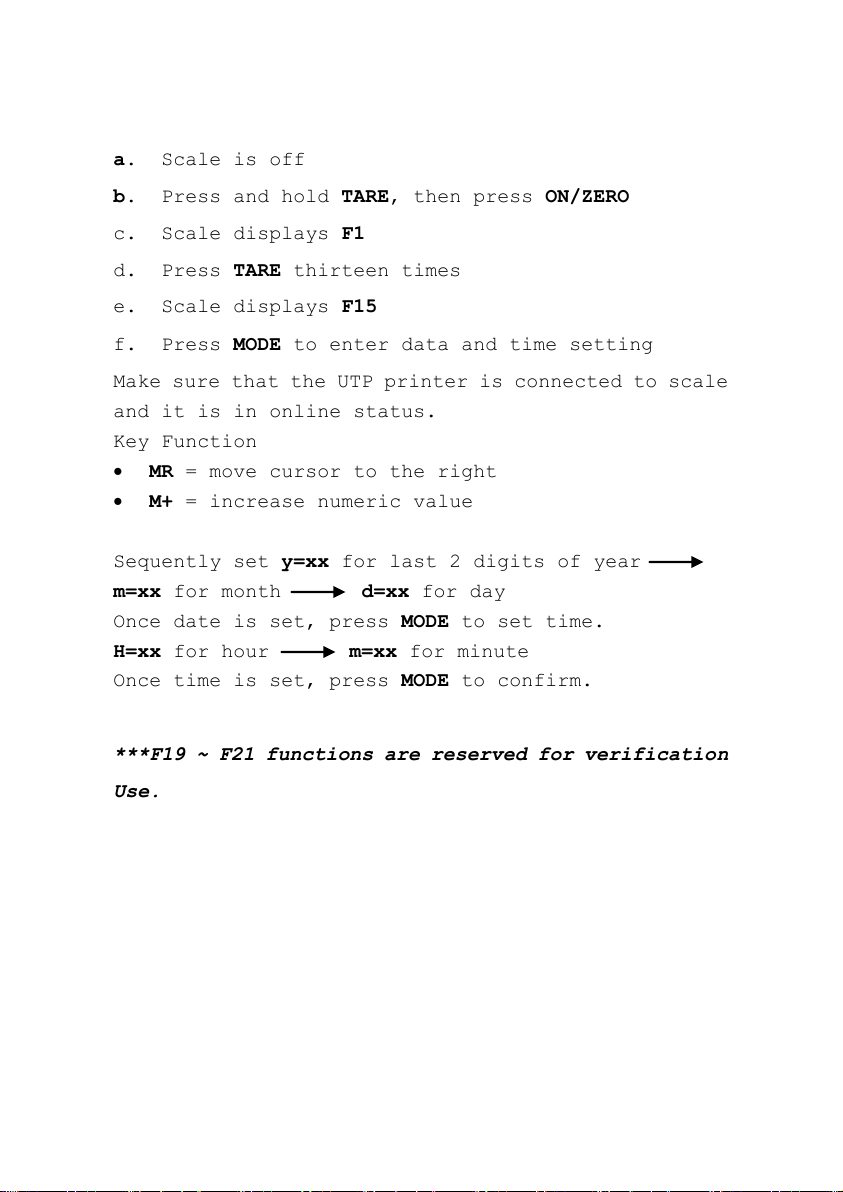

a. Scale is off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays F1
d. Press TARE thirteen times
e. Scale displays F15
f. Press MODE to enter data and time setting
Make sure that the UTP printer is connected to scale
and it is in online status.
Key Function
MR = move cursor to the right
M+ =increase numeric value
Sequently set y=xx for last 2 digits of year
m=xx for month d=xx for day
Once date is set, press MODE to set time.
H=xx for hour m=xx for minute
Once time is set, press MODE to confirm.
***F19 ~ F21 functions are reserved for verification
Use.
