UWE SEK-3000 User manual

UNIVERSAL WEIGHT ELECTRONICS | UWE-EUROPE.COM
OPERATION MANUAL
PLEASE READ THIS MANUAL VERY CAREFULLY BEFORE OPERATING
SEK

CAUTION
3
SPECIFICATIONS
3
FEATURES 4
KEYBOARD LAYOUT & FUNCTIONS 5
Numeric Keypad and Basic Functions 5
Memory Functions 6
Limit Functions 6
Other Functions and Indicators 6
DISPLAY INDICATORS 7
INTERNAL FUNCTIONS 8
CHECKWEIGHING APPLICATION 8
Setting HI-OK-LO Limits: 8
Managing HI-OK-LO Limit Data: 9
TROUBLESHOOTING 9
CALIBRATION 10

CAUTION
Before using the scale, please adhere to the following safety guidelines:
●Verify Voltage Compatibility: Ensure the power adaptor's input voltage
matches the outlet's output voltage. If not, do not plug in the adaptor; contact
your dealer instead.
●Charge Before Use: For first-time use, charge the scale for at least 8 hours by
plugging the main adaptor into the wall outlet.
●Retain Packing Materials: Save packing materials for future transport.
●Avoid Unauthorized Repairs: Only perform troubleshooting as listed in the
TROUBLESHOOTING section; do not attempt to open the unit.
●Clean Properly: Use a soft, damp cloth and mild detergent if necessary. Avoid
using harsh materials, acetone, volatile solvents, thinner, or alcohol.
●Avoid Pressurized Water: Do not clean with a pressurized water nozzle.
●Store Horizontally: During transport or long-term storage, keep the scale
horizontal.
●Remove Platter for Storage: Before transport or long-term storage, remove the
platter.
●Dry and Clean Storage: Always store the scale in a clean, dry place.
SPECIFICATIONS
The SEK series electronic piece counting/check weighing scales are available in
various models, each with specific capacities and divisions. The specifications for
each model are provided below:
Model No.
Capacity (Max)
Division (d)
SEK-3000
3000g / 6.6lb
0.05g / 0.01oz
SEK-6000
6000g / 13.2lb
0.1g / 0.01oz
SEK-12K
12kg / 26.45lb
0.2g / 0.01oz
SEK-30K
30kg / 66lb
0.5g / 0.02oz
SEK-60K
60kg / 132lb
1g / 0.1oz

Power Requirements for Light Tower Connectivity
When using the SEK series electronic piece counting/check weighing scales in
conjunction with a light tower for check weighing alarm functionality, please be
advised of the following:
The built-in 6V 4Ah rechargeable battery in the SEK series scales is not capable of
powering the light tower.
To ensure proper operation of both the scale and the light tower, the SEK series scale
must be connected to an external power.
Additional Specifications:
●Max. Tare Range: Subtractive Full Tare Range
●Max. Zero Range: 2% of Rated Capacity
●Weight Units: Metric (g), Avoirdupois (e.g., pounds, ounces), Pieces (pcs)
●Operation Environment: 040℃(32104℉), with Relative Humidity ≤ 85%,
Non-condensed
●Power Source: 6V 4Ah Rechargeable Battery or External Power Adaptor
NOTE: Depending on regional regulations and preferences, the options to weigh in
Avoirdupois units and traditional Taiwanese units may be disabled on certain
models. Please consult with your dealer to ensure that the scale you are purchasing
supports the weight units required for your specific needs.
FEATURES
The SEK series electronic piece counting/check weighing scales are designed with
the following features to provide versatile functionality:
●Manual Zero Function: Allows manual zeroing within ±2% of full scale (F.S.).
●Tare Function: Full tare functionality to offset the weight of containers or
packaging.
●Selectable Resolution and Weighing Units: Choose from resolutions of
1/60,000, 1/30,000, or 1/15,000, and weighing units including grams (g),
pounds (lb), pound-ounces (lb-oz), taels, or pieces (pcs).
●Low Battery Warning Indicator: An icon appears when the battery is low,
prompting timely recharging.
●Backlight: For improved visibility in low-light conditions.
Optional Features:
●Rear Display: Provides additional viewing angles.
●RS-232 Interface: Allows connectivity with computers and other devices.
●Relay Output: Enables integration with other systems.

Please consult with your dealer or refer to the specific model's specifications to
determine the availability of these optional features. They may be included in certain
models or available as separate add-ons.

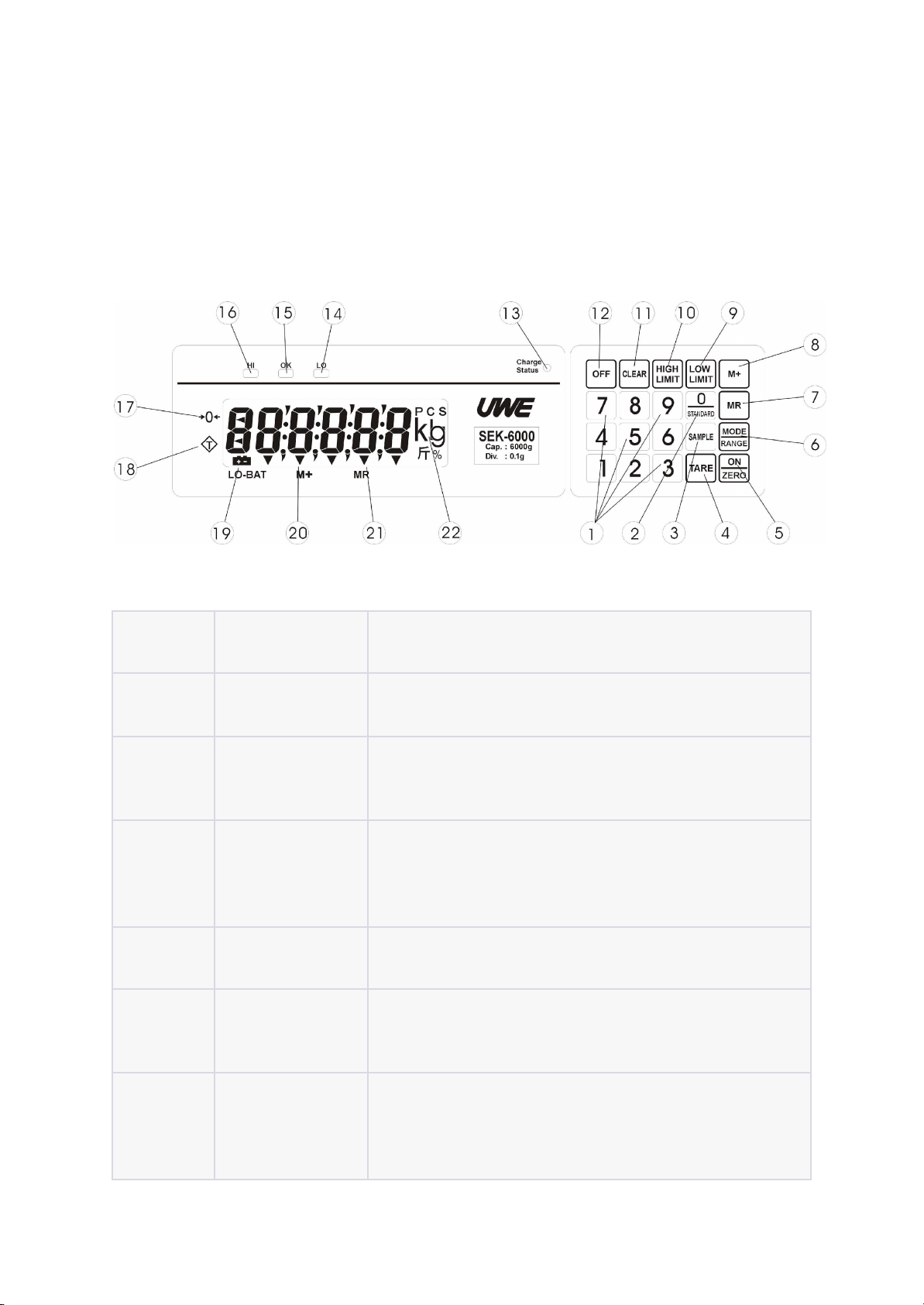

KEYBOARD LAYOUT & FUNCTIONS
Numeric Keypad and Basic Functions
Key
Number
Key
Function
1
NUMERIC
KEYPAD (0-9)
Input numbers for settings (e.g., setting the
HI-OK-LO values).
2
0 / STANDARD
Input “0” in regular use. Press and hold to set the
weight displayed as the OK value. The LED for OK
lights up when stored.
3
SAMPLE
Used in counting (pcs) function. Input the number
of items on the platter, then press SAMPLE. The
scale stores the sample weight, and the display
shows the item count.
4
TARE
Tare off the weight of the load on the platter (full
tare available).
5
ON/ZERO
Turn on the scale or manually set to zero (up to 2%
of full capacity). Press and hold to turn the
backlight on/off.
6
MODE/RANGE
Change the weighing units/resolution and the range
of HI-OK-LO. Press and hold to shift between units
and division (e.g., 6000.1g →6000.2g →0.0000lb
→etc.).

Memory Functions
Key
Number
Key
Function
7
MR
1. Recall accumulated total weight or total
pieces.
2. Press and hold, then enter 0-9 to recall
HI-OK-LO data from saved memory location.
8
M+
1. Accumulate weight or pieces displayed into
memory.
2. Press and hold, then enter 0-9 following
screen prompt to save HI-OK-LO data to a
designated memory location.
Limit Functions
Key
Number
Key
Function
9
LOW LIMIT
Set the LO limit for HI-OK-LO by inputting the number
using the numeric keypad or placing a load on the
scale.
10
HIGH LIMIT
Set the HI limit for HI-OK-LO by inputting the number
using the numeric keypad or placing a load on the
scale.
11
CLEAR
Clear previous settings for HI-OK-LO (high limit, low
limit, standard, and range settings).
Other Functions and Indicators

Key
Number
Key/Indicator
Function
12
OFF
Turn the scale off.
Note 1
Backlight
Control
Backlight can be turned on/off by pressing and
holding the ON/ZERO key. Auto-off after 20 seconds
at zero weight, auto-on with weight.
Note 2
Auto Zero
Function
Works within 20% of the rated capacity. Remove all
weight from the platter before turning on the scale.
DISPLAY INDICATORS
Indicator
Description
CHARGE STATUS
LIGHT
Displays the charging status. Red during charging, green
when fully charged.
LED for LO
Lights up when the weight or pieces on the scale are lower
than the LO value set for HI-OK-LO.
LED for OK
Lights up when the weight or pieces on the scale are within
the range of the OK value for HI-OK-LO.
LED for HI
Lights up when the weight or pieces on the scale are higher
than the HI value set for HI-OK-LO.
ZERO INDICATOR
Arrow indicates a zero weight status.
TARE INDICATOR
Arrow indicates TARE function in operation; the displayed
weight is NET weight.
LOW-BATTERY
INDICATOR
Appears when the battery is low. Charge the scale
immediately to avoid shortening battery life.
M+ INDICATOR
Arrow indicates that the accumulation function is in use.
MR INDICATOR
Arrow indicates that the accumulated data is currently
displayed.
WEIGHING UNITS
INDICATOR
Shows the current weighing unit employed.

INTERNAL FUNCTIONS
Function
Description & Options
F0
Set Auto Zero Tracking Range: Select how many divisions of "e" to
Auto Zero. Within the setting range, the weight is forced to be zero.
F1
Span Value Display: Displays the span value.
F2
Software Version Display and Full Display Test: Shows the software
version and runs a full display test.
F3
Weighing Unit Selection: Select and set the default weighing unit.
Enable or disable the unit by pressing the MODE key.
F4
Auto Power Off Function: Select the Auto Power Off time (no auto
power off, or auto power off after 30 minutes).
F5
RS-232 Interface Setting: Select Baud Rate (4800, 9600, or 19200 bps)
and Parity Setting (no Parity bit, Even Parity bit).
F6
Enable/Disable Digital Filter: Select from FiLt_0 (Disable) to FiLt_5
(Enable). Higher number represents a stronger filter with more
weighing stability.
F7
RS-232 Transmission Mode: Select from Auto (Send data once), P-Out
(Printer Output), or Conti (Send data continuously).
F8
Tare Mode Selection: Choose from n_tArE (Tare function when weight
is not stable) or S_tArE (Tare function when weight is stable).
F9
Sound Alarm for HI-OK-LO: Select from nobEEP (disable), gobEEP (OK
value), HLbEEP (HI/LO value), HbEEP (HI value), LbEEP (LO value).
F10
Relay Output Mode Selection: Choose from Act L (open/close) or Act
H (open/close) for relay output status.
CHECKWEIGHING APPLICATION
The SEK series scales provide a checkweighing function that enables users to define,
save, and recall specific high and low weight limits. Here's how to use these features:
Setting HI-OK-LO Limits:
High Limit: Input the desired high limit using the numeric keypad, then press the
HIGH LIMIT key to save.

Low Limit: Input the desired low limit using the numeric keypad, then press the LOW
LIMIT key to save.
Note: These settings are retained in the system memory even when the power is off
and are separate from the SEK's 10 other memory sets.
Managing HI-OK-LO Limit Data:
Saving to Memory: After setting the HI-OK-LOW limits, press and hold the M+ key,
then enter a number (0-9) following the screen prompt. This will save the data to a
specific memory location.
Recalling from Memory: Press and hold the MR key, then enter the corresponding
number (0-9) following the screen prompt. This will recall the HI-OK-LO data from the
saved memory location.
By integrating these features, the SEK series scales offer enhanced flexibility for
applications that require consistent weight monitoring against predefined limits.
TROUBLESHOOTING
Should you encounter any difficulties while using the SEK series scale, please refer to
the following troubleshooting guide. If the problem persists, contact your dealer or
authorized service provider.
Syndrome
Possible Cause
Solution
Scale cannot be
turned on
1. Adaptor not plugged
correctly.
1. Re-plug the adaptor.
2. Rechargeable battery
has low battery.
2. Recharge the battery.
3. Adaptor voltage
incompatible with electrical
outlet.
3. Replace the adaptor with
the correct voltage.
Scale turns off
automatically after a
while.
Auto Power Off function is
in operation.
Enter function F4 and
change the setting.
Scale display shows a
low battery symbol.
Low battery warning.
Recharge the battery.

Weight is not
accurate.
1. Object stuck on the
scale.
1. Remove the object and try
again.
2. Outside interference
such as wind or RF
interference.
2. Move to an environment
free of interference and try
again.
Note: This troubleshooting guide covers common issues and resolutions. For
specific concerns or more complex problems, refer to the detailed manual or contact
your authorized service provider.
CALIBRATION
Step
Action
Display
Notes
1
Press ON/ZERO to turn on
the scale. Hold
MODE/RANGE during
countdown.
“CAL.?_1”
Initiates calibration mode.
2
Press MODE/RANGE.
“YES”
Confirm zero point with no
loads on the platter.
3
Wait for zero point
calibration.
“LOAD”
“XXXX.X”
Place a weight marker
corresponding to the weight
shown on the display.
4
Complete first point
calibration.
“CAL.?_2”
Press ON/ZERO to exit or
repeat steps 3 and 4 for
second point calibration if
needed.
5
(Optional) Calibrate second
point.
“LOAD”
“XXXX.X”
Repeat step 3 if second point
calibration is needed.
6
Finish and return to
weighing mode.
Normal
Display
Scale is now calibrated and
ready for use.
Note: Use only calibrated weights for this procedure. Incorrect calibration can lead to
measurement errors.
