UWE MII-ECO User manual

CONTENTS
1. INSTALLATION

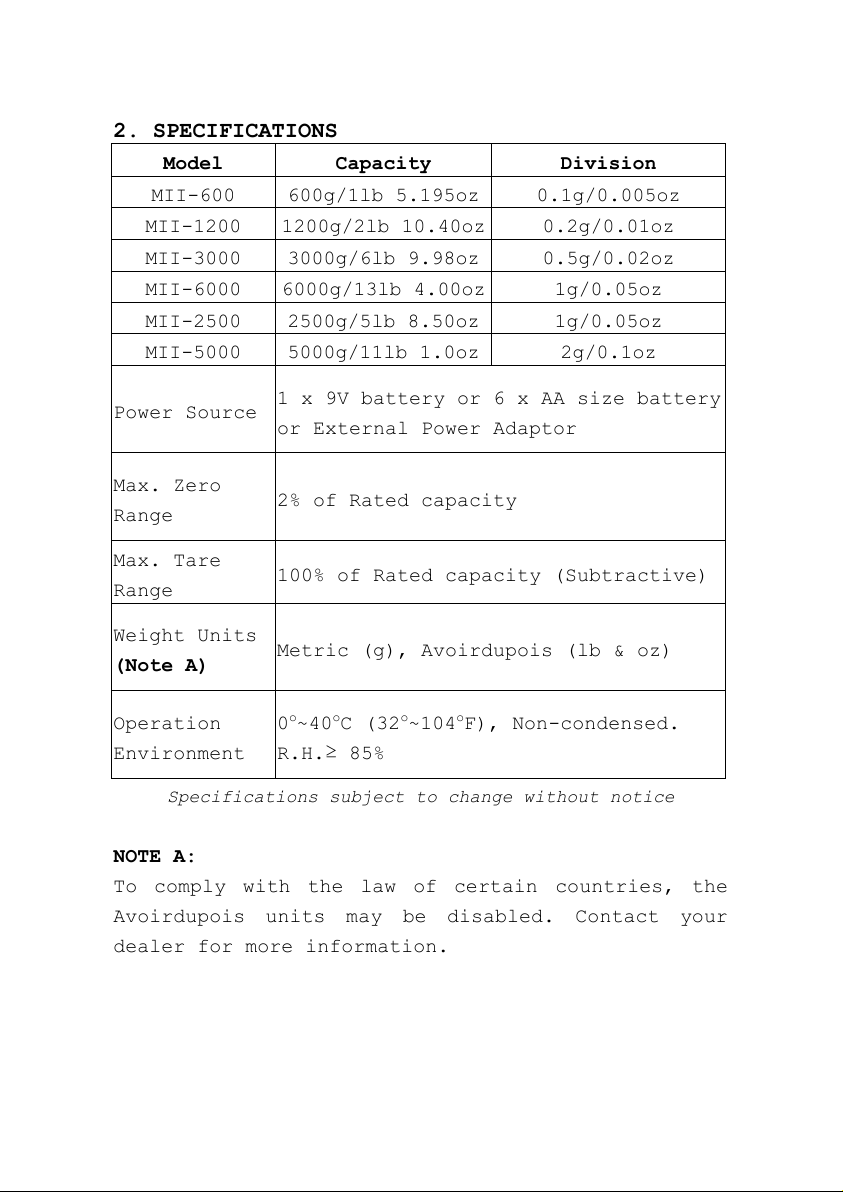

2. SPECIFICATIONS

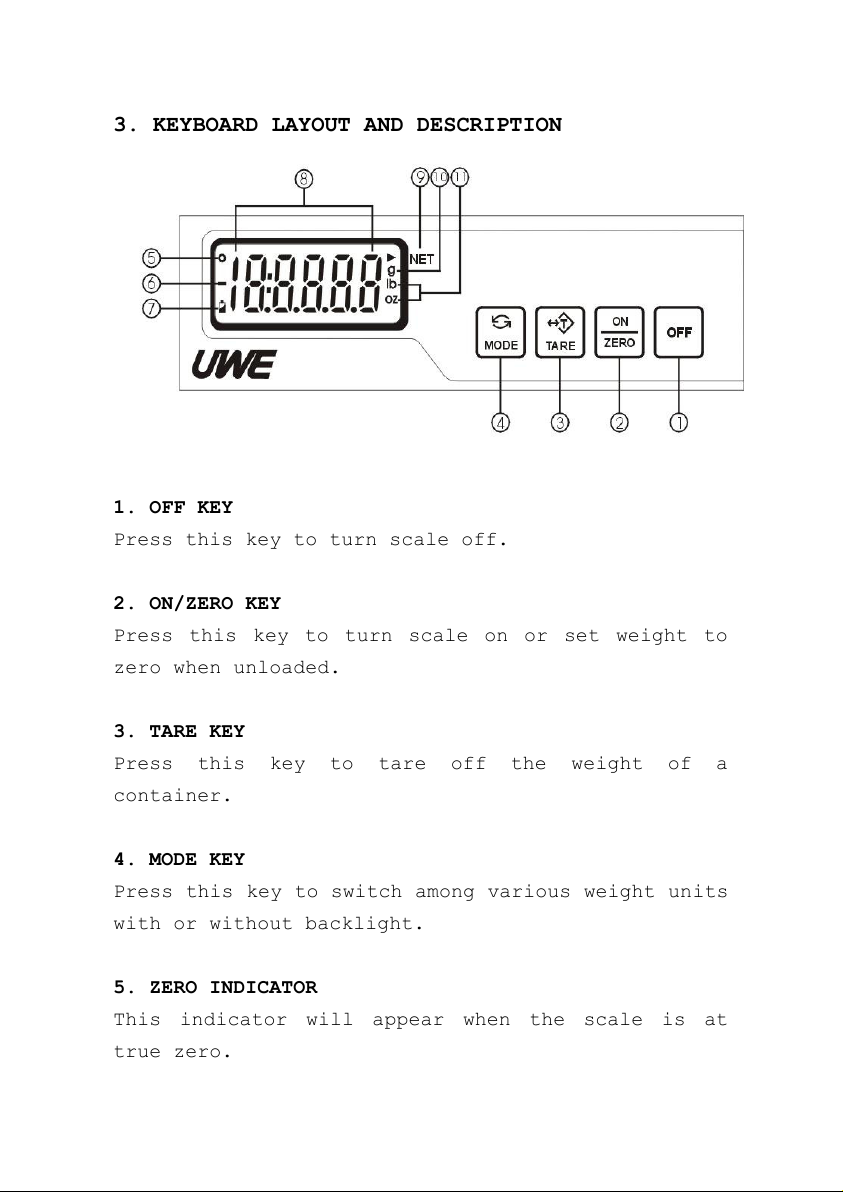

3. KEYBOARD LAYOUT AND DESCRIPTION
4. INTERNAL FUNCTIONS AND INITIAL SETUP

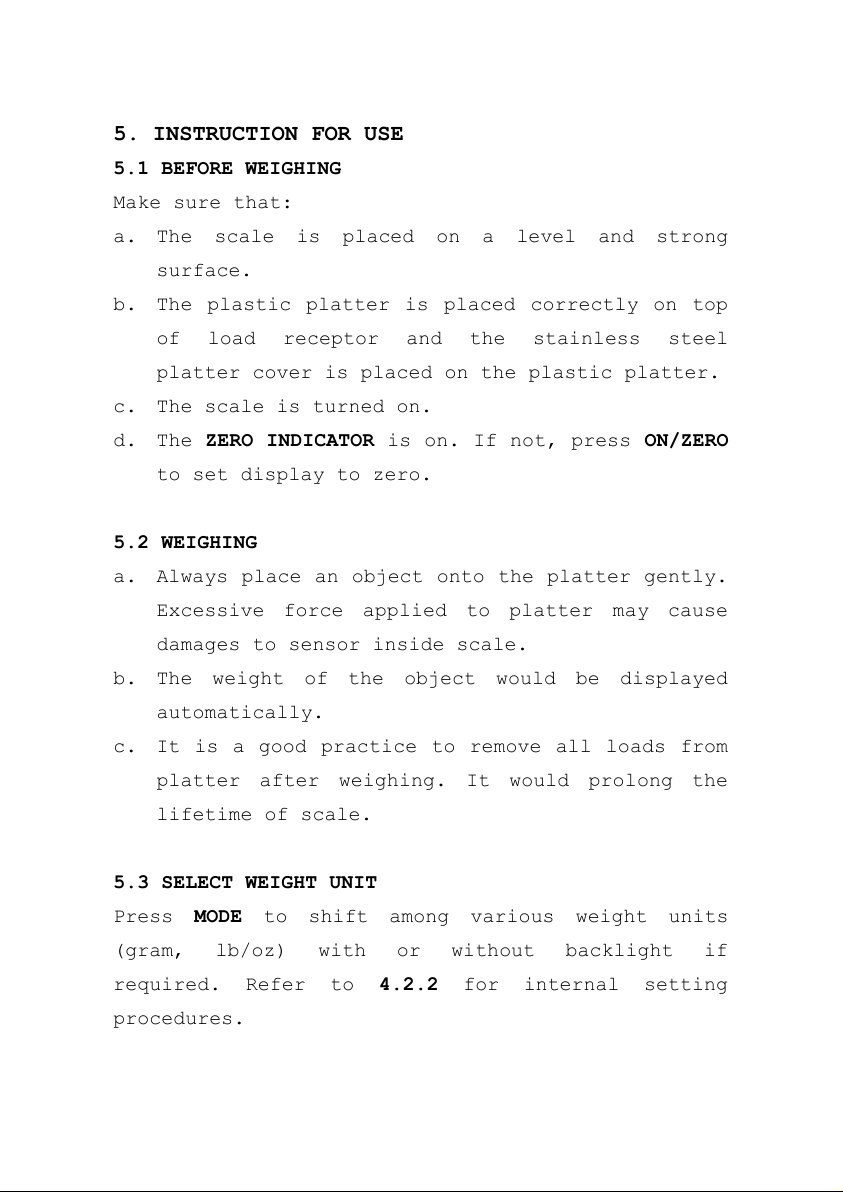

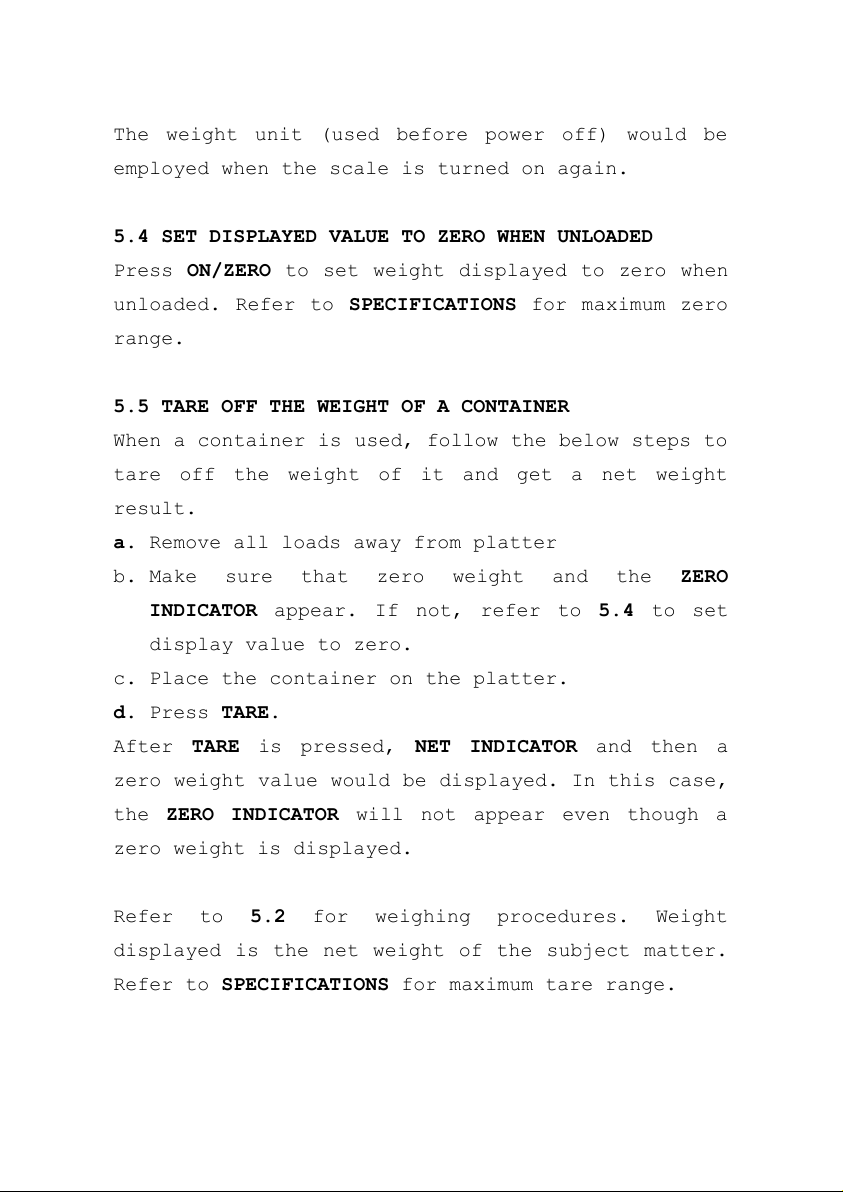

5. INSTRUCTION FOR USE

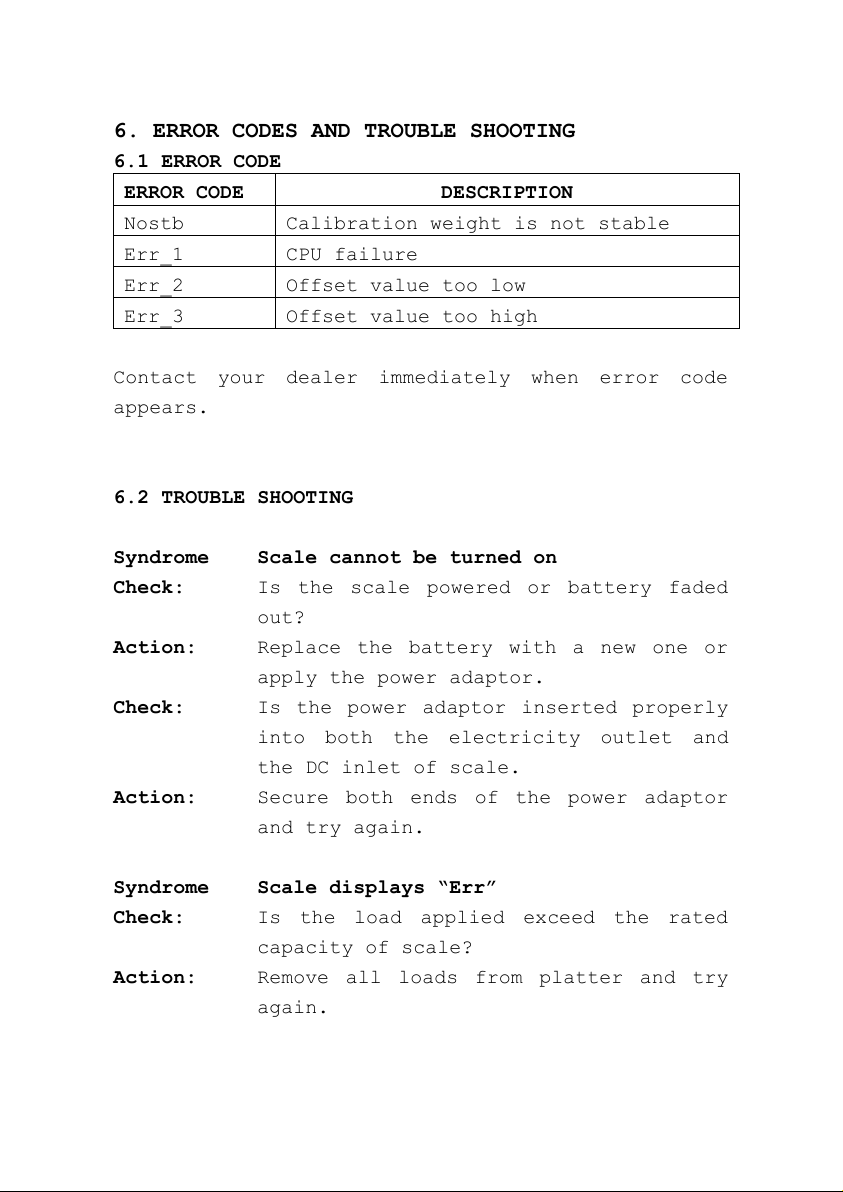

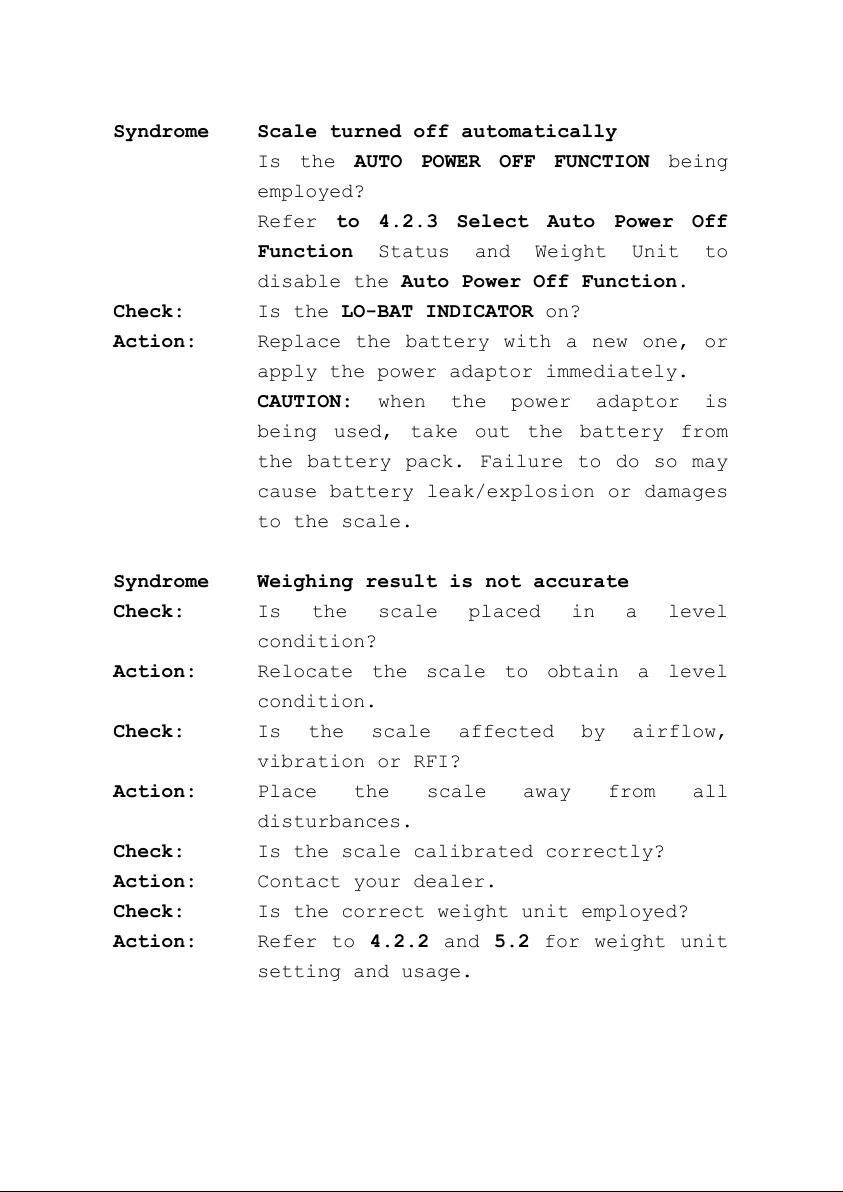

6. ERROR CODES AND TROUBLE SHOOTING

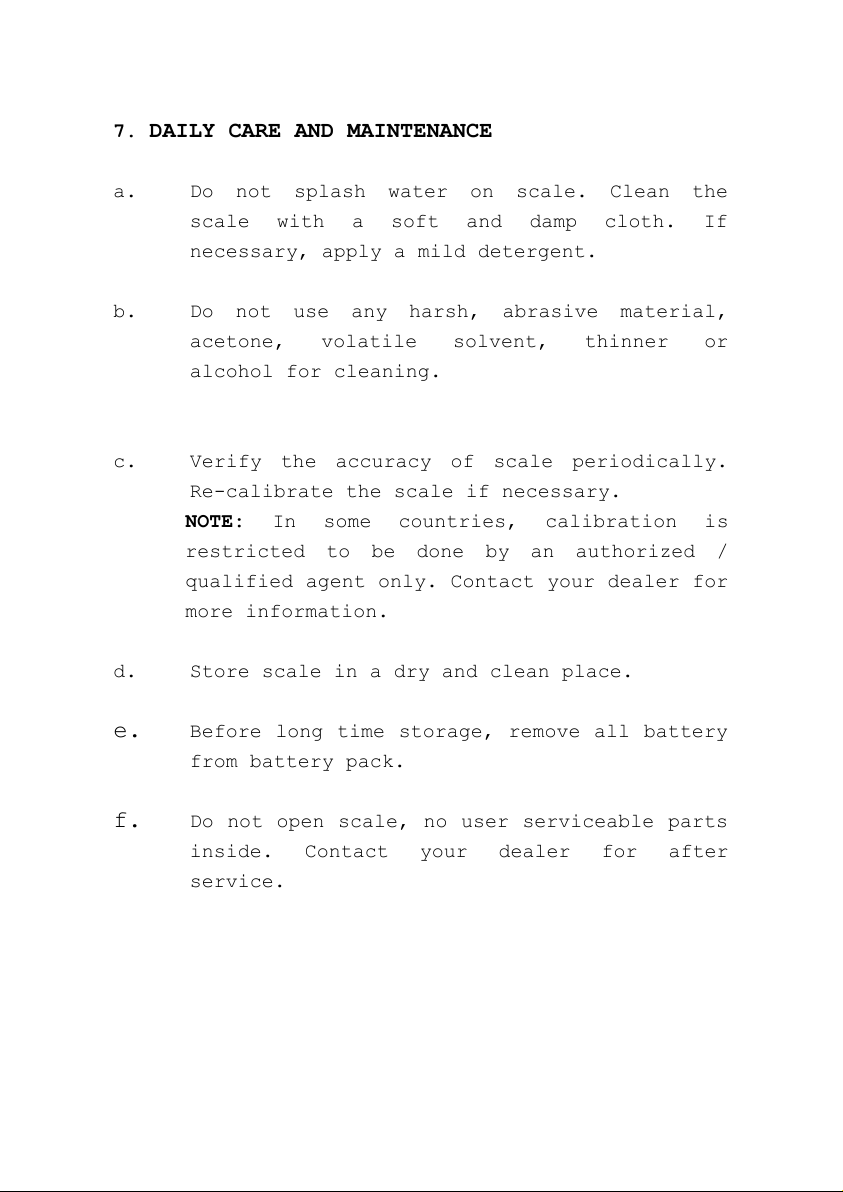

7. DAILY CARE AND MAINTENANCE

1. INSTALLATION
This product has a manufacturer serial number. If
missing, the manufacturer’s warranty is invalid and
the product should be returned to your retailer for
a full refund.
1.1 CHECK and make sure that the following items
are included:
This operation manual
Scale x 1
Plastic Platter x 1
Stainless steel platter cover (if ordered)x 1
Power adaptor x 1
Contact your dealer if any items are missing.
1.2 INSTALL plastic platter and stainless steel
platter cover (if ordered) by pressing downward
gently.
1.3 POWER the scale
a. Insert one 9V battery or 6 AA size battery
into the battery pack underneath the scale, or
b. Apply the external power adaptor.
c. Before plugging the power adaptor into
electricity outlet, check and make sure that
the input voltage of power adaptor matches
with the output voltage of the outlet.

If not, do not plug in the adaptor, contact
your dealer immediately.
CAUTION:
When the power adaptor is being used, take all
battery out from the battery pack. Failure to do
so may cause battery leak/ explosion or damages to
the scale. Do not use any rechargeable battery.
The scale does not recharge any battery.
1.4 RETAIN all packaging materials for future
transportation purposes. Warranty may void if
transported in other than original packaging.
CAUTION:
In some cases, this unit is legal for trade only
when it is sealed and bearing a serial number. Do
not break or remove the seal or the serial number.
Contact your dealer for more information or after
sales service.

2. SPECIFICATIONS
Model
Capacity
Division
MII-600
600g/1lb 5.195oz
0.1g/0.005oz
MII-1200
1200g/2lb 10.40oz
0.2g/0.01oz
MII-3000
3000g/6lb 9.98oz
0.5g/0.02oz
MII-6000
6000g/13lb 4.00oz
1g/0.05oz
MII-2500
2500g/5lb 8.50oz
1g/0.05oz
MII-5000
5000g/11lb 1.0oz
2g/0.1oz
Power Source
1 x 9V battery or 6 x AA size battery
or External Power Adaptor
Max. Zero
Range
2% of Rated capacity
Max. Tare
Range
100% of Rated capacity (Subtractive)
Weight Units
(Note A)
Metric (g), Avoirdupois (lb & oz)
Operation
Environment
0o~40oC (32o~104oF), Non-condensed.
R.H.≥ 85%
Specifications subject to change without notice
NOTE A:
To comply with the law of certain countries, the
Avoirdupois units may be disabled. Contact your
dealer for more information.

3. KEYBOARD LAYOUT AND DESCRIPTION
1. OFF KEY
Press this key to turn scale off.
2. ON/ZERO KEY
Press this key to turn scale on or set weight to
zero when unloaded.
3. TARE KEY
Press this key to tare off the weight of a
container.
4. MODE KEY
Press this key to switch among various weight units
with or without backlight.
5. ZERO INDICATOR
This indicator will appear when the scale is at
true zero.

6. MINUS INDICATOR
This indicator will appear when the value being
displayed is at negative value.
7. LO-BAT INDICATOR
This indicator will appear when the battery voltage
is too low. Replace all battery or apply the
external power adaptor immediately.
8. WEIGHT PANEL
Weight result is displayed here.
9. NET INDICATOR
This indicator will appear when tare function is
being employed. Weight result being displayed is
the net weight.
10. METRIC INDICATOR
This indicator will appear when the metric weight
unit is being employed.
11. AVOIRDUPOIS UNITS INDICATOR
This indicator will appear when the avoirdupois
weight unit is being employed.

4. INTERNAL FUNCTIONS AND INITIAL SETUP
4.1 SETTING PROCEDURES AND KEY FUNCTIONS
Press and hold TARE and then press ON/ZERO.
Release ON/ZERO and display shows F1.
Use TARE to scroll through the menu and
MODE to enter each function. (F1, F2,…etc)
Once entering into the function menu, use
MODE to scroll through options and TARE to
confirm setting.
Changes must be saved. To save changes, go back
to internal setting menu and press ON/ZERO.
Changes are saved after a beep sound is
produced.
CAUTION
Do not alter any parameters set in Fun 1, which may
cause system unstable or error or not accurate
weighing result.

4.2 INTERNAL SETTINGS
FUNCTION
FUNCTION DESCRIPTION
F0
Backlight setting
F1
For Qualified Technical Personnel Only
F2
Check Display Segment-
Under this function, backlight (if
equipped) functional indicators and
display segments will be lit up. Contact
your dealer if any display element is
missing.
F3
Select Auxiliary Weight Units
F4
Select Auto Power Off
3 parameters are available:
• 0oFF (Auto Power Off Function disable)
• 10oFF (Auto off when left idle for 10
min)
• 30oFF (Auto off when left idle for 30
min)
F5
Select Rs-232 Baud Rate & Protocol
F6
ECO mode setting-
Smart power saving function that will
force system into sleep mode when leave
idle for 10 seconds. Scale will come back
to life when it detects an active weight,
but initial response may be slower, though
just factions of seconds.
F7
Select Serial Output Mode
F8
Select UTP Printout Format
(This function is UTP related)
F9
Select Auto Tare Function

5. INSTRUCTION FOR USE
5.1 BEFORE WEIGHING
Make sure that:
a. The scale is placed on a level and strong
surface.
b. The plastic platter is placed correctly on top
of load receptor and the stainless steel
platter cover is placed on the plastic platter.
c. The scale is turned on.
d. The ZERO INDICATOR is on. If not, press ON/ZERO
to set display to zero.
5.2 WEIGHING
a. Always place an object onto the platter gently.
Excessive force applied to platter may cause
damages to sensor inside scale.
b. The weight of the object would be displayed
automatically.
c. It is a good practice to remove all loads from
platter after weighing. It would prolong the
lifetime of scale.
5.3 SELECT WEIGHT UNIT
Press MODE to shift among various weight units
(gram, lb/oz) with or without backlight if
required. Refer to 4.2.2 for internal setting
procedures.
