Valeo Eleon Series User manual

Rev. 07/2019
Id.No. DOK28101
Operating instructions
Betriebsanweisung
Eleon
Ventilation and Emergency Escape Hatch
Lüftungs- und Notaustiegsluke
HATCHES / FANS

Eleon Roof Hatches
II
NOTE: Subject to modification. In multilingual versions the German language is binding. The latest version of this document is pro-
vided for download on www.valeo-thermalbus.com. /
HINWEIS: Änderungen vorbehalten. Im Fall einer mehrsprachigen Version ist Deutsch verbindlich. Die aktuelle Fassung dieses
Dokuments steht unter www.valeo-thermalbus.com zum Download bereit.
Highlighted words like Warning!, Caution!, ATTENTION and NOTE in these Operating instructions signify the following precautions:
In dieser Betriebsanweisung haben die Hervorhebungen Warnung!, Vorsicht!, ACHTUNG: und HINWEIS: folgende Bedeutungen:
This caption is used to indicate possible severe inju-
ries or fatal accidents if instructions or procedures
are carried out incorrectly or entirely disregarded.
Diese Überschrift wird benutzt, wenn ungenaues
Befolgen oder das Nichtbefolgen von Anweisungen
oder Verfahren zu schweren Verletzungen oder
tödlichen Unfällen führen kann.
This caption is used to indicate possible minor inju-
ries if instructions or procedures are carried out incor-
rectly or entirely disregarded.
Diese Überschrift wird benutzt, wenn ungenaues
Befolgen oder das Nichtbefolgen von Anweisungen
oder Verfahren zu leichten Verletzungen führen
kann.
ATTENTION:
ACHTUNG:
This caption points to actions which may cause ma-
terial damage.
Weist auf Handlungen hin, die zu Sachbe-
schädigungen führen können.
NOTE:
HINWEIS:
This caption is used to draw attention to an important
feature.
Wird benutzt, wenn auf eine Besonderheit aufmerk-
sam gemacht werden soll.
Warning!
Warnung!
Caution!
Vorsicht!

Eleon Roof Hatches
III
Table of contents
1 Introduction 1
1.1 General 1
1.2 Use 1
1.3 Statutory regulations 1
2 Safety regulations and hints 2
3 Versions 3
4 General description 4
4.1 Hatch with plastic cover - manually operated 4
4.2 Hatch with plastic cover - electrically operated 4
4.3 Hatch with glass cover - manually operated 6
4.4 Hatch with glass cover - electrically operated 7
5Operation 8
5.1 Hatch with plastic cover - manually operated 8
5.2 Hatch with plastic cover - electrically operated 10
5.3 Hatch with glass cover - manually operated 12
5.4 Hatch with glass cover - electrically operated 12
6 Troubleshooting 13
Inhaltsverzeichnis
1 Einleitung 16
1.1 Allgemeines 16
1.2 Verwendung 16
1.3 Gesetzliche Bestimmungen 16
2 Sicherheitsbestimmungen- und Hinweise 17
3 Ausführungen 18
4 Allgemeine Beschreibung 19
4.1 Luke mit Kunststoffdeckel - Manuell 19
4.2 Luke mit Kunststoffdeckel - Elektrisch 19
4.3 Luke mit Glasdeckel - Manuell 21
4.4 Luke mit Glasdeckel - Elektrisch 22
5 Bedienung 23
5.1 Luke mit Kunststoffdeckel - Manuell 23
5.2 Luke mit Kunststoffdeckel - Elektrisch 25
5.3 Luke mit Glasdeckel - Manuell 27
5.4 Luke mit Glasdeckel - Elektrisch 27
6 Fehlersuche und -beseitigung 28

Eleon Roof Hatches
IV

Eleon Roof Hatches Introduction
1
1 Introduction
1.1. General
This instruction manual is intended to assist personnel in the correct and
safe operation, maintenance and servicing of the Eleon series ventila-
tion and emergency hatches (in the following roof hatches).
1.2. Use
The roof hatches are used for ventilation of the passenger compartment
in city buses, coaches or scheduled service buses as well as emergency
exit of persons in case of danger.
1.3. Statutory regulations
As European standard the ECE R107 is valid. Other national standards
may need to be considered.
The use of emergency exits in buses and coaches is regulated in terms
of position, number and size for Germany in the StVZO §35 and Annex
X, No. 5.

Safety regulations and hints Eleon Roof Hatches
2
2 Safety regulations and hints
Basically, general accident pevention provisions and the valid industrial
safety directions must be adhered to.
These operating instructions must be read before driving so that
the roof hatches can be operated correctly and safely in normal
operation and in the event of danger.
When sticking limbs out of the roof hatches there is a great risk of
injury. Do not reach through open roof hatches while driving.
Keep hands away from electrically powered roof hatches. Do not
attempt to operate electrically operated roof hatches by hand in the
event of a controller failure, power failure or other defects, except
procedures acc. to 5.2.3 and 5.4.2.
ATTENTION!
After an emergency operation the roof hatch cover must be rein-
stalled by qualified personnel of a Valeo service partner.
Danger to life and health!
Warning!
Risk of injury
Caution!

Eleon Roof Hatches Versions
3
3 Versions
The ventilation and emergency escape hatch Eleon is available in the
following versions:
1. Eleon - Hatch with plastic cover, manually operated
2. Eleon Comfort - Hatch with plastic cover, electrically operated
Operable by two switches or a control panel, installed within reach
of the driver.
3. Eleon Clear - Hatch with glass cover, manually operated
4. Eleon Clear Comfort - Hatch with glass cover, electrically
operated. Operable by two switches or a control panel, installed
within reach of the driver.
Optionally the hatches are available without emergency escape func-
tion.
Technical data:
* ESG - Toughened safety glass, ** LT - Light transmission rate
Eleon Eleon Comfort Eleon Clear Eleon Clear Comfort
Hatch cover (mm) (A) 1092 x (B) 777 (A) 1092 x (B) 777 (A) 1055 x (B) 715 (A) 1055 x (B) 715
Hatch, inner dim. (mm) (C) 806 x (D) 602 (C) 806 x (D) 602 (C) 806 x (D) 602 (C) 806 x (D) 602
Hight,
closed /open (mm) (E) 68 / (F) 144 (E) 68 / (F) 144 (E) 29 / (F) 98 (E) 29 / (F) 98
Ventilation gap (mm) (G) 68 (G) 68 (G) 59 (G) 59
Operating voltage (V) -- 12 / 24 -- 12 / 24
Control device -- integrated -- integrated
Glass -- -- 4mm, ESG*, LT** approx.
16%
4mm, ESG*, LT** ca.
approx. 16%
Electrical protection (A) -- 5 - up to 2 hatches
10 - 3 up to 4 hatches
-- 5 - up to 2 hatches
10 - 3 up to 4 hatches

Eleon Roof Hatches General description
4
4 General description
The hatches can generally be opened at the front side, at the rear side
or completely.
4.1. Hatch with plastic cover - manually operated
See Fig. 2 and 3.
The manually operated hatch basiscally consists of the cover (1), the
frame with the integrated mechanism units (hidden), and an inner hatch
trim (2).
To operate the hatch in the plastic body front and rear recessed grips (3)
are embedded.
For the emergency operation, the cover has one handle on the top (4)
and one at the bottom (5) under a cover (6, shown in the image transpa-
rent).
NOTE:Optionally the hatches are available without emergency escape
function.
4.2. Hatch with plastic cover - electrically operated
See Figure 2 and 3.
The hatch basiscally consists of the cover (1), the frame with the integ-
rated electrically operated mechanism units (hidden), and an inner hatch
trim (2).
To operate the hatch, switches or a control panel is located within reach
of the driver (see operation of electric hatch).
For the emergency operation, the cover has one handle on the top (4)
and one at the bottom (5) under a cover (6, shown in the image transpa-
rent).
NOTE:Optionally the hatches are available without emergency escape
function.

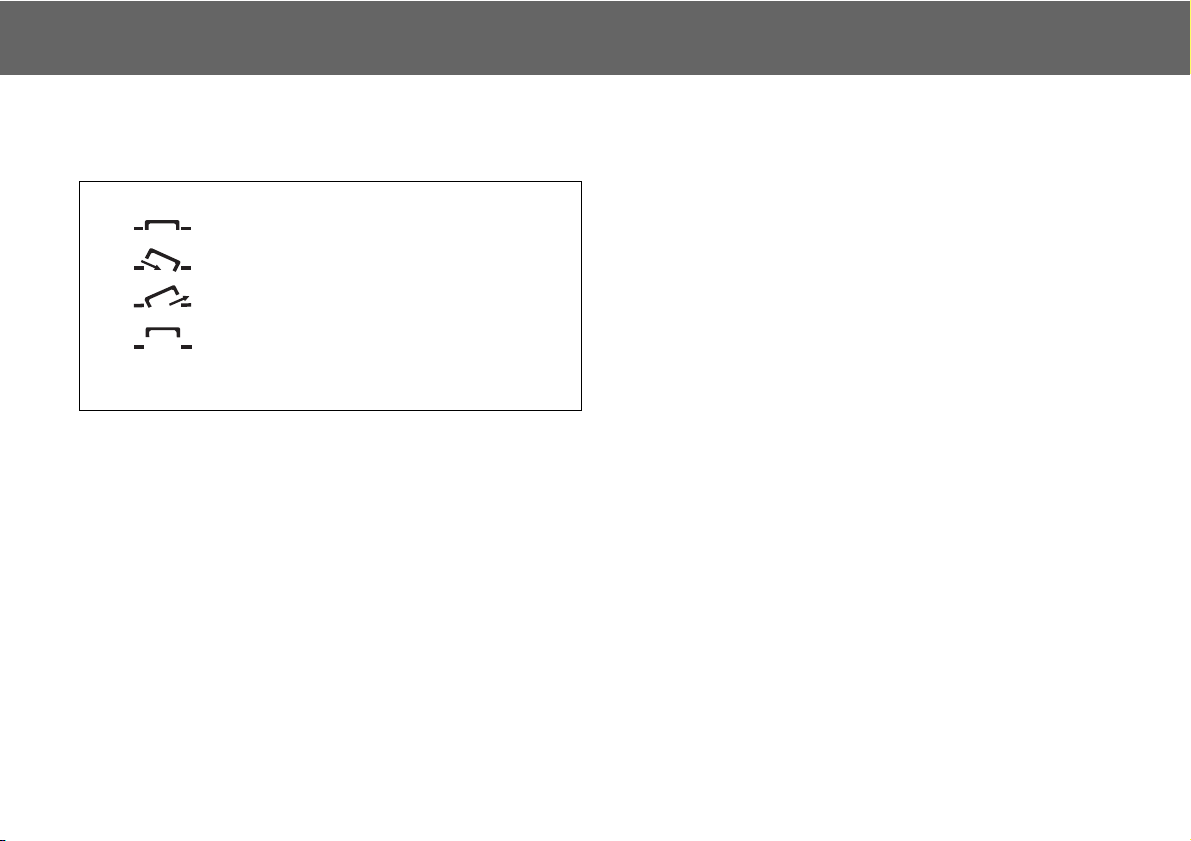

Bild 1: Hatch cover positions
= closed
= opened at the front side
= opened at the rear side
= completely open

Eleon Roof Hatches General description
5
Bild 2: View of the hatch from below
6
5
3
1
2
1 Roof hatch cover 4 Handle, emergency escape operation, outside
2 Inner hatch trim 5 Handle, emergency escape operation, inside
3 Recessed grip 6 Cover
Bild 3: View of the hatch from above
4
1

Eleon Roof Hatches General description
6
4.3. Hatch with glass cover - manually operated
The manually operated hatch basiscally consists of the cover (1), the
frame with the integrated mechanism units (hidden), and an inner hatch
trim (2).
To operate the hatch, a handle (3) is attached to the cover in the forward
and in the rear area each.
For the emergency operation, an emergency hammer (4) is attached to
the underside of the cover.
NOTE:Optionally the hatches are available without emergency escape
function, that means without emergency hammer.
Bild 4: View of the hatch from below
1
23
4
1 Hatch cover
2 Inner hatch trim
3 Handle
4 Emergency hammer
Bild 5: View of the hatch from above
1

Eleon Roof Hatches General description
7
4.4. Hatch with glass cover - electrically operated
The hatch basiscally consists of the cover (1), the frame with the integ-
rated electrically operated mechanism units (hidden), and an inner hatch
trim (2).
To operate the hatch, switches or a control panel is located within reach
of the driver (see operation of electric hatch).
For the emergency operation, an emergency hammer (3) is attached to
the underside of the cover.
NOTE:Optionally the hatches are available without emergency escape
function, that means without emergency hammer.

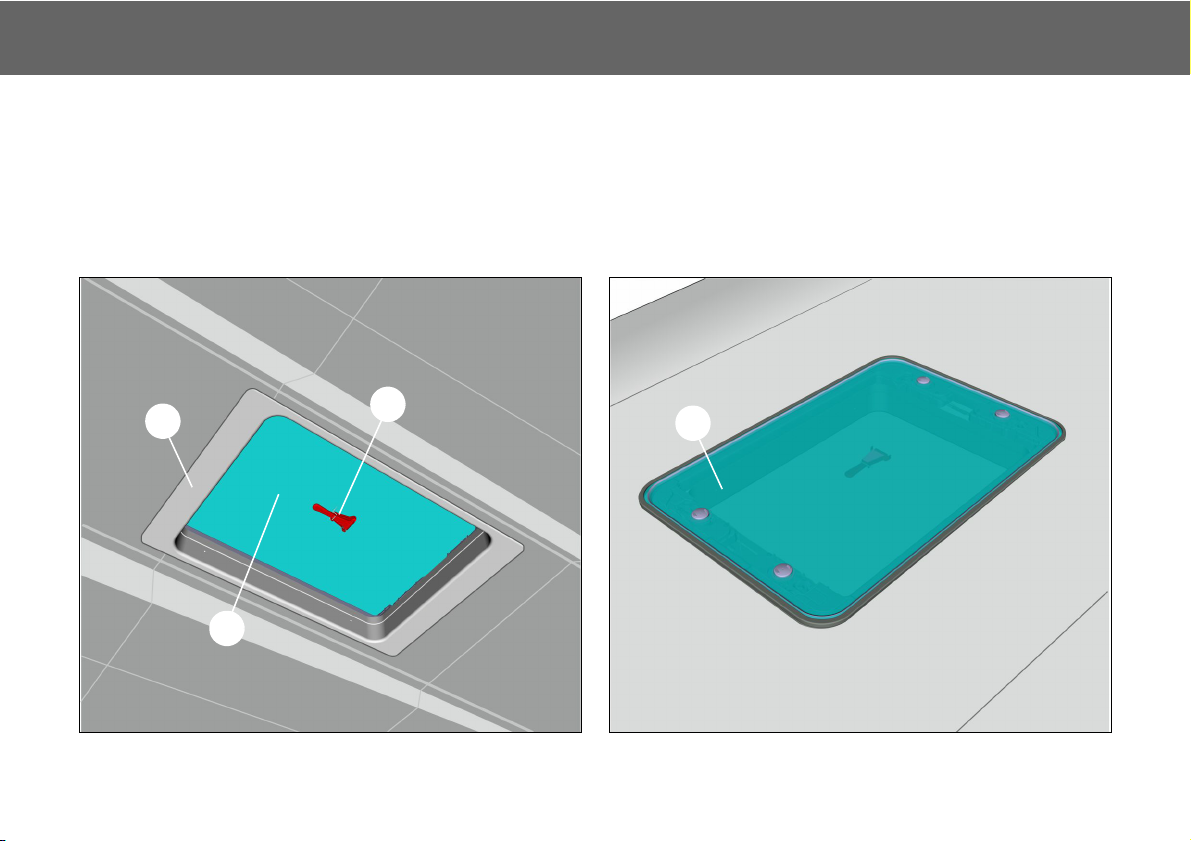

Bild 6: View of the hatch from below
1
23
1 Hatch cover
2 Inner hatch trim
3 Emergency hammer
Bild 7: View of the hatch from above
1

Eleon Roof Hatches Operation
8
5 Operation
5.1. Hatch with plastic cover - manually operated
For opening push the hatch cover upwards at the corresponding handle
(recessed grip). After overcoming the closing pressure, the hatch au-
tomatically moves into the open position, spring-loaded.
For closing pull the hatch cover downwards at the corresponding handle
(recessed grip). After overcoming the opening pressure, the hatch au-
tomatically moves into the closed position, spring-loaded.
5.1.1. Emergency operation (if available)
From inside:
1. Pull off cover of emergency handle.
2. Turn the emergency handle clockwise until it stops.
3. Push cover outward.

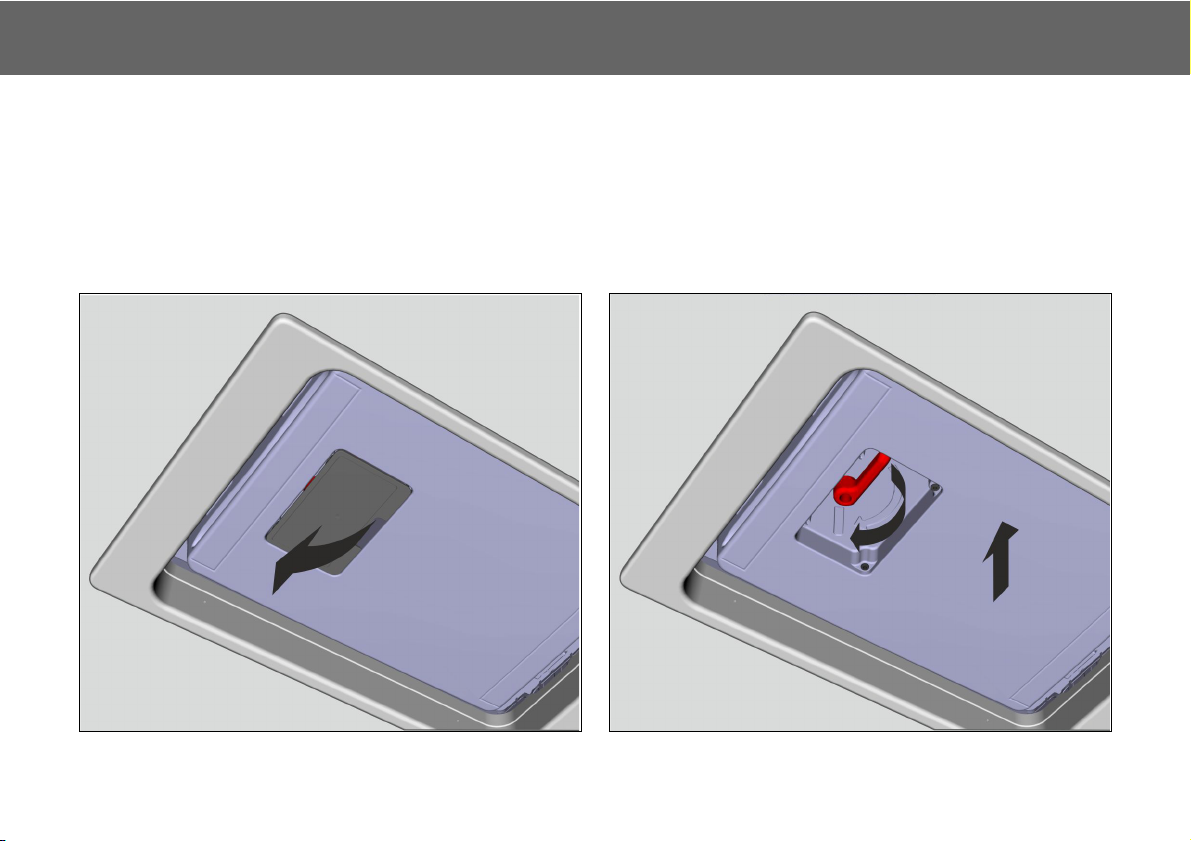

Bild 8: Emergency operation from inside (1)
1
Bild 9: Emergency operation from inside (2)
2
3

Eleon Roof Hatches Operation
9
NOTE: The cover remains due to the safety line with the vehicle
roof connected.
4. Leave the vehicle through the hatch.

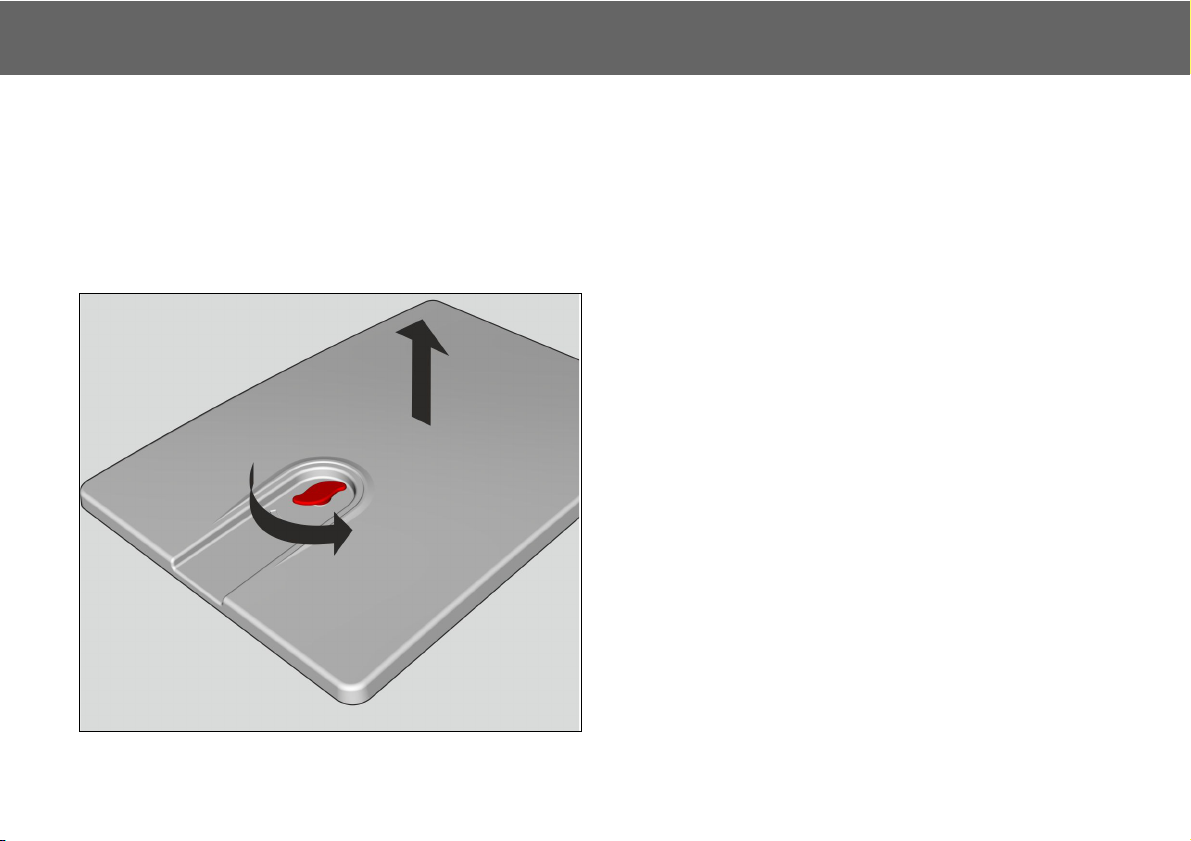

From outside:
1. Turn emergency handle (red) counterclockwise until it stops.
2. Remove the cover.
NOTE:The cover remains due to the safety rope with the vehicle
roof connected.
Bild 10: Emergency operation from outside
1
2

Eleon Roof Hatches Operation
10
5.2. Hatch with plastic cover - electrically operated
The operation of the hatch can be done with two switches or with a
control panel.
5.2.1. Operation using two switches
The following switch matrix shows the dependencies between switch
and hatch position.
Switch position 0 (contact open)
Switch position 1 (contact closed)
If the hatch is not closed, the roof position indicator light (if connected)
lights up.

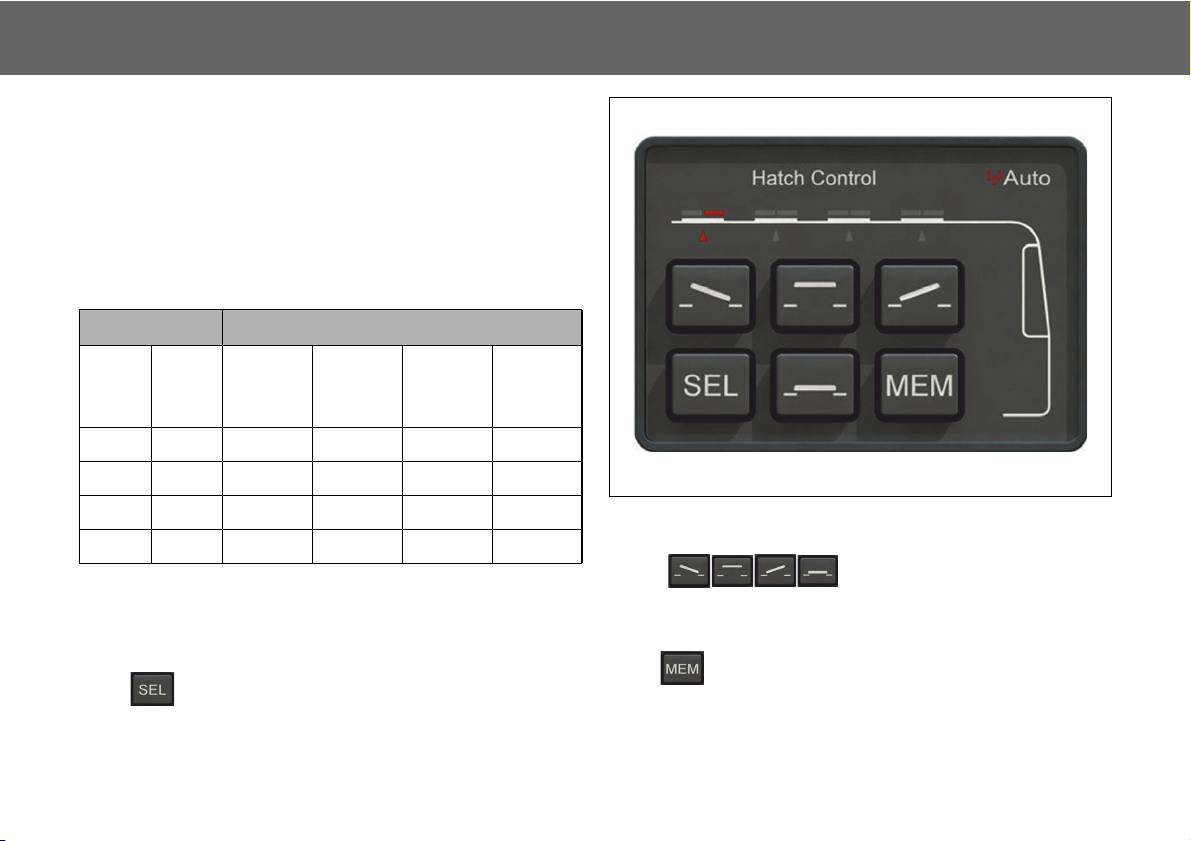

5.2.2. Operation using the control panel
Button (select)
By pressing once, all existing hatches are selected. By pressing the SEL
key again, each hatch can be selected separately.
Buttons
Use these buttons to set the desired hatch position, the effect of the ac-
tion is limited to the selected hatches.
Red LEDs indicate the current position of the hatch cover.
Button (memory)
A scene can be stored by pressing the MEM (Memory) button for a
longer time.
In the case of short-term actuation, the last stored scene is activated.
Switch Roof hatch position
S1
(rear)
S2
(front)
closed at the rear
opened
at the rear
and at the
front
opened
at the front
opened
00 X
10 X
01 X
11 X
Bild 11: Control panel

Eleon Roof Hatches Operation
11
5.2.3. Manually closing an electric hatch
The procedure described below is identical for roof hatches with plastic
cover as well for hatches with glass cover.
To protect the interior of the vehicle (for example against rainwater), the
individual hatch mechanisms can be operated manually (see fig. 12).
1. Remove the screws securing the inner hatch trim and remove the
trim.
2. Locate the hole on the bottom of the hatch mechanism, insert Allen
key (6mm) and turn the key clockwise to operate the respective
mechanism.
NOTE: Always operate the left and right hatch actuator alternately, so
that the hatch cover does not tilt.
5.2.4. Emergency operation (if available)
The emergency operation of the hatch is identical to that of the manual
hatch with plastic cover.
Bild 12: Manually closing the electric hatch (exemplary)
Hole for Allen key

Eleon Roof Hatches Operation
12
5.3. Hatch with glass cover - manually operated
For opening push the hatch cover upwards at the corresponding handle.
After overcoming the closing pressure, the hatch automatically moves
into the open position, spring-loaded.
For closing pull the hatch cover downwards at the corresponding hand-
le. After overcoming the opening pressure, the hatch automatically mo-
ves into the closed position, spring-loaded.
5.3.1. Emergency operation (if available)
From inside:
Risk of injury from sharp-edged splinters and edges when smas-
hing in and breaking out the glass cover.
Flying around splinters also endanger people in the vicinity.
- Protect hands, face and eyes.
- Use the emergency hammer to smash the glass cover.
1. Take the emergency hammer from out the holder.
2. Break glass cover using the hammer.
3. Remove any glass residue from the hatch.
4. Leave the vehicle through the hatch.
From outside:
Risk of injury from sharp-edged splinters and edges when smas-
hing in and breaking out the glass cover.
Flying around splinters also endanger people in the vicinity.
- Protect hands, face and eyes.
- If you use foots:
Pay attention to sturdy shoes and keep calves and shins away
from frame parts.
1. Break glass cover with a suitable object, e.g. a stone.
2. Remove any glass residue from the hatch.
3. Assist people in escaping the vehicle through the hatch.
5.4. Hatch with glass cover - electrically operated
The operation of the hatch is identical to that of the hatch with plastic co-
ver - electrically operated (see 5.2).
5.4.1. Emergency operation
The emergency operation of the hatch is identical to that of the manual
hatch with glass cover (see 5.3.1).
5.4.2. Manually closing the hatch
See 5.2.3.
Risk of injury!
Caution!
Risk of injury!
Caution!

Eleon Roof Hatches Troubleshooting
13
6 Troubleshooting
The safety hints and regulations in Section 2must be adhered.
The following table contains approaches to detect and correct errors that
may occur when operating the roof hatches.
Risk of injury!
Caution!
Kind of operation Fault symptom Possible cause Troubleshooting
electrically hatch does not open / close
no power supply - switch on vehicles main switch
- replace fuse
- inspect contacts and if necessary
repair them
one cable not connected check cable connection between
hatch mechanism and control device,
if necessary repair it
hatch mechanism asynchronous consult workshop
manual adjustment possible (see
5.2.3)
- continued on next page -

Eleon Roof Hatches Troubleshooting
14
electrically movement stops repeatedly
moves sluggishly consult workshop
plug connection to the hatch
mechanism defective
inspect plug connections and
contacts, repair if necessary
cable damaged consult workshop
sporadic power interruptions, power
supply not stable
- check power supply
- check plug connections and
contacts, repair if necessary
hatch mechanism defective or too
sluggish
consult workshop
manually
hatch does not open / close
mechanism is blocked by an object remove the object
mechanism is damaged or sluggishly consult workshop
noises defective mechanism or parts of it consult workshop
manually and
electrically
water ingress into the closed
hatch
hatch seal defective, permeable or
worn
consult workshop
water ingress via outer emergency
handle
consult workshop
lever mechanism is damaged consult workshop
Kind of operation Fault symptom Possible cause Troubleshooting

Eleon Roof Hatches Troubleshooting
15
For notes:

Eleon Luken Einleitung
16
1 Einleitung
1.1. Allgemeines
Diese Bedienungsanweisung dient zur Unterstützung von Personal, die
Lüftungs- und Notaustiegsluken der Eleon-Reihe (nachfolgend Dachlu-
ken) richtig und sicher zu bedienen, zu warten und zu pflegen.
1.2. Verwendung
Die Dachluken dienen zur Be- und Entlüftung des Innenraums in
Stadt-, Reise- oder Linienbussen sowie zum Notausstieg von Personen
im Gefahrenfall.
1.3. Gesetzliche Bestimmungen
Als Europäische Norm ist die ECE R107 gültig. Andere nationale Nor-
men sind gegebenenfalls zu beachten.
Die Verwendung von Notausstiegen in Kraftomnibussen ist hinsichtlich
Position, Anzahl und Größe für Deutschland in der StVZO §35 und
Anlage X, Nr. 5, geregelt.
