Valor 807 Instructions for use

5109269/02
INSTALLER AND OWNER GUIDE
This guide is intended to help you install and care for your Valor electric heater. Please
read carefully before installing and using your heater. However, if further information is
required, our Valor Technical Helpline will be pleased to help.
Telephone [phone] (National call rates apply in the United Kingdom)
In the Republic of Ireland call 0044 08706 061 065
Important: Please keep your guide in a safe place for future reference
© Valor Heating
Model 807
Electric Heater
Fitted with the following fascia
Adage
Victorian
or
Dream

Safety First.
Valor fires are CE Approved and designed to meet the appropriate British Standards and
Safety Marks.
Quality and Excellence.
At the heart of every Valor heater.
All Valor fires are manufactured to the highest standards of quality and excellence and
are manufactured under a BS EN ISO 9001 quality system accepted by the British
Standards Institute.
CUSTOMER CARE
Thank you for choosing Valor
All Valor heaters are designed to meet the most stringent quality, performance and
safety requirements to provide our customers with many years of trouble free service.
This guide aims to improve your understanding and appreciation of your new Valor
heater, by providing simple and informative instructions to enable you to install it and to
ensure that you benefit from the excellent performance and features it has to offer.
If you require further assistance, the Valor Technical Helpline will be pleased to help.
Please telephone [phone] (local rates apply in the United Kingdom)
FOR OTHER USEFUL TELEPHONE NUMBERS SEE THE LAST PAGE OF THIS GUIDE
Valor Heating, Erdington, Birmingham B24 9QP
www.valor.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
INSTALLER AND OWNER GUIDE

HANDLING AND UNPACKING
Before continuing any further with the installation of this heater please read the
following:
Unpacking Dream Heater.
This heater has a fascia which is heavy (13.35 kG).
To avoid damage it is packed in a separate box within the main box.
When unpacking it is important that the box containing the fascia is removed before the
main body of the heater. This is to prevent the main box tipping over and causing
damage or injury.
Important Safety Instructions.
!The lifting weight of the heater parts are listed below: -
Heater Heat engine (kG) Complete Fascia (kG) Spacer (kG)
Adage 6.8 2.16 2.2
Victorian 6.8 5.56 2.3
Dream 6.8 13.35 ---
!
One person should be sufficient to lift the heater. If for any reason this weight is
considered too heavy then obtain assistance.
!
When lifting always keep your back straight. Bend your legs and not your back.
!Avoid twisting at the waist. It is better to reposition your feet.
!
Avoid upper body/top heavy bending. Always bend from the knees rather than the
waist. Do not lean forward or sideways whilst handling the heater.
!
Always grip with the palm of the hand. Do not use the tips of fingers for support.
!
Always keep the heater as close to the body as possible. This will minimise the
cantilever action.
!Use gloves to provide additional grip.
!Always use assistance if required.
Always
! Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
! Always make sure the electrical socket is accessible and located adjacent to, but
not above the heater.
! Always disconnect the heater from the electrical supply before carrying out
Page 3
INSTALLER AND OWNER GUIDE

cleaning, maintenance or replacing the light bulb.
! Always
make sure the heater is firmly secured to prevent it from being tipped over.
! Always use a fireguard when young children and infirm persons can come into
contact with the heater.
! Always use genuine Valor spares.
Never
! Never leave children unsupervised in a room where the heater is ON and
unguarded.
! Never obstruct or cover the fan outlet or force items into heater openings.
! Never install or use the heater anywhere where water is in use, i.e.
Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.
! Never use aerosols or steam cleaners on or around the heater.
! Never route the mains supply cable under carpet etc.
! Never install the heater close to curtains or combustible materials.
! Never use the heater to dry clothes etc.
! Never sit or stand on the heater.
FITTING THE HEATER
The installation of this heater requires a reasonable level of DIY skills.
Please read this guide thoroughly before commencing installation and if in doubt,
seek help from a competent person
Do I need any tools?
1. You will need two screwdrivers: -
1 off Pozidrive / Phillips / cross head
screwdriver. This should have a number 2 size
end. If you are unsure about the size of the end simply make sure that the end fits into
the screws supplied with the heater. If the end is too small then the end will spin and
damage the screw.
1 off Flat end
screwdriver. The end should fit into the slot head screws supplied with
the heater.
2. For drilling into brickwork you will need an electric hammer drill and appropriate
size drill bit for the wallplugs supplied (See figure 15).
Page 4
INSTALLER AND OWNER GUIDE

Where can I fit the heater?
This heater can be fitted into fireplaces or surrounds where the following dimensions
are available.
Width 390mm - 450 mm (15.35 inches - 17.72 inches)
Height 555mm - 590 mm (21.9 inches - 23.2 inches)
Depth At least 75mm (At least 3 inches)
There should be at least 30mm (1.2 inches) clearance between the top of the fascia and
anything such as a shelf, fireplace surround or mantel etc. This will allow the fascia to
be lifted off or removed during servicing. To check this gently place the fascia against
the surface to which it is to be fixed. Measure the distance from the top of the fascia.
Using the 75mm (3 inch) spacer kit supplied, the Adage and Victorian heaters can also
be used where a fireplace opening or fireplace surround opening are not available i.e. a
flat wall. The Dream heater does not have the 75mm (3 inch spacer) and cannot
be used
against flat walls.
Important Electrical Safety
The heater must not
be located in front of or under an electrical socket, the socket must
always be accessible in order to disconnect the heater from the electrical supply for
maintenance and cleaning.
Important! This heater must be earthed.
!
The heater is supplied with a 3 pin 13 Amp fused re-wireable plug with 1mm² 3 core
cable.
! The wires in the cable are coloured in accordance with the following code: -
Live =Brown Neutral = Blue Earth = Green /Yellow
! The mains supply must be safely routed from the heater to an electrical socket.
Page 5
INSTALLER AND OWNER GUIDE

Moving the Cable Guide
At the base of the heater you will find an electric
cable which runs through a rectangular plastic cable
guide. As supplied the cable guide is fitted into the
rectangular cutout on the right side of the heater. If
required, the cable guide can be removed and put in
the rectangular slot in the centre or left hand side of
the heater. For removal and fitting please see below.
Removing the cable guide
1. Before removing the cable guide please note that
the wider part of the cable guide is on the outer edge
of the base (See figure 1- Item 1).
2. To remove the cable guide push and lift the tab on
the bottom of the cable guide. The bottom of the
cable guide will open (See figure 1- Item 2).
3. Lift the electric cable clear of the cable guide.
4. Hold the bottom of the cable guide close to the
heater then gently pull the cable guide away from
the rectangular slot (See figure 1- Item 3).
Fitting the cable guide.
When fitting the cable guide please remember that
the wider part of the cable guide has to be fitted
against the outer edge of the base (See figure 1- Item
1).
1. Gently pinch the sides of the cable guide (See
figure 1 - Item 4) and push the cable guide into the
required rectangular slot.
2. Place the electrical cable into the guide and close
the top of the cable guide.
If the mains cable is damaged, to avoid a hazard it
must be replaced by a Valor authorised service agent,
or similarly qualified person (See the last page of
this guide for useful telephone numbers).
All external wiring between the heater and the electrical supply shall comply with
current IEE regulations.
Page 6
INSTALLER AND OWNER GUIDE

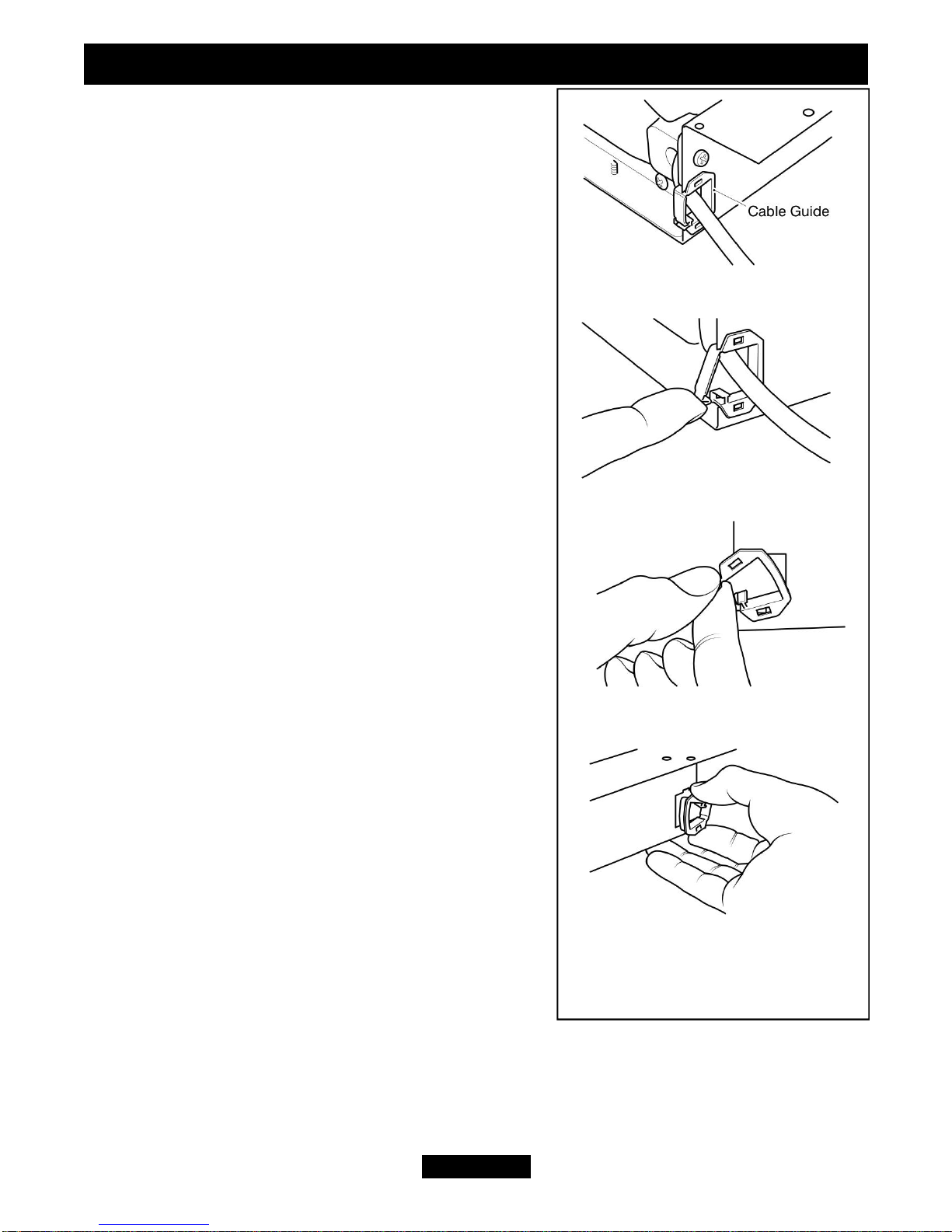

Figure 1. Removing and
positioning the cable guide.
Item 1
Item 2
Item 3
Item 4

Removing the fascia
Victorian Heater
1. Remove the two fascia securing screws (See figure 2).
Remove the front fascia by gently pulling the base of the
fascia forward whilst lifting clear of the support brackets at
the top of the heater (See figure 2).
2. Keep the fascia in a safe place while installing the heater
Adage Heater.
1. Very strong magnets attach the fascia to the heater. Support
the rear of the heater and gently pull the fascia forward (See
figure 3).
2. Keep the fascia in a safe place while installing the heater.
Dream Heater
The fascia is supplied in a separate box within the main box.
Heater Fixing
All of the fixings supplied with the heater have been
identified as in figure 15.
The heater must be fixed into position to prevent it
from being tipped over
The following fixing options are available:
Screw Fixing
Wire Fixing
Spacer Frame (Adage and Victorian heaters only)
If fitting the heater into a fireplace or surround opening,
try the heater in the opening to ensure that it will fit.
If fitting the heater onto a decorative hearth surface such
as marble or tile it is advisable to protect the hearth
surface. Do not drag the heater across the surface of the
hearth as this may scratch the hearth surface.
Page 7
INSTALLER AND OWNER GUIDE
Figure 3. Removal of
Adage fascia.
Figure 2. Removing
Victorian fascia.

Method A - Screw fixing
Note - If fixing to marble it is recommended that
Method B - ‘Wire fixing’ is used. Drilling marble
without the correct tools and experience may result in
the marble cracking.
1. Place the heater into the fireplace or surround
opening. Make sure that the heater is in the middle of
the surround or fireplace.
2. There are two slotted holes in the top of the heater
(See figure 4). Mark through the slotted holes so that
their position is clear when the heater is removed.
3. Remove the heater
4. Drill an appropriate size hole in each of
the marked positions. Insert wall plugs
into the drilled holes.
5. Place the heater so that the slotted holes
are in line with the wallplugs in the fixing
surface.
6. Screw and secure the heater with two
‘H' screws (See figure 15).
Method B - Wire Fix
This method of fixing needs a fireplace
opening and is recommended when fixing
the heater to a marble surround or where
the wall or brickwork is in poor condition.
1. The fixing kit supplied with the heater
includes a steel wire and eyescrew (See
figure 15). These can be used to secure the heater to the back of a fireplace opening.
2.
Mark the eyescrew position on the centre line at the back of the fireplace opening and
at a height of 533-560mm (21 inches - 22 inches) (See figure 5).
3. Drill an appropriate size hole in the marked position.
4. Insert a wallplug into the drilled hole.
5. Screw the eyescrew into the wallplug.
6. Position the heater in front of the fireplace opening.

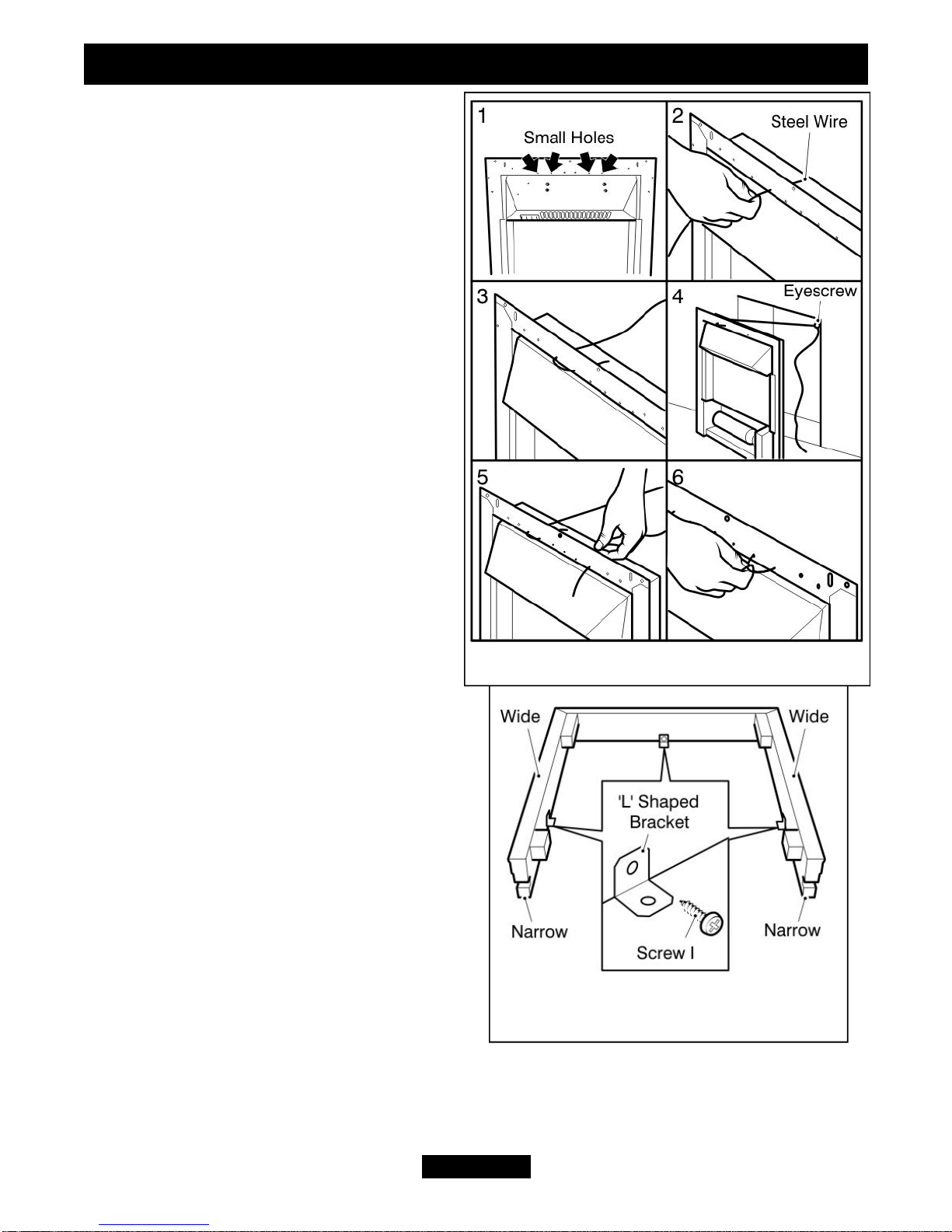

7. At the top of the heater there are four small holes, two each side of the heater (See
figure 6- Item 1). From the front of the heater, thread about 50mm ( 2 inches) of the
steel wire into the inside small hole on the left side of the heater (See figure 6 - item 2).
8. Thread the other end of the wire through the remaining small hole on the left hand
Page 8
INSTALLER AND OWNER GUIDE
Figure 5. Eyescrew position.
Figure 4. Slots for screw
fixing.

side of the heater. Continue to push the
wire through this hole until there is only a
small loop of wire at the front of the
heater (See figure 6 - item 3).
9. At the back of the heater there will be a
long piece and a short piece of wire
coming through the two holes. Hold the
short piece and give the long piece a
gentle tug. This will secure the steel wire.
Take the long piece and thread this
through the eyescrew in the back of the
fireplace opening (See figure 6 - item 4).
10. From the back of the heater thread the
long piece of steel wire through the outer
small hole on the right hand side of the
heater (See figure 6 - item 5).
11. Locate the heater in the fireplace
opening, then from the front of the heater,
gently pull the steel wire on the right hand
side to gather up the excess until the
heater is secure. Thread the wire through
the remaining small hole to lock the wire
and heater in place (See figure 6 - item 6).
Method C - Spacer Frame (A spacer
frame is NOT available for the Dream
heater)
1. There are three ‘L’ shape brackets supplied
with the heater (See figure 15). To fix the
brackets to the spacer frame there are three
‘I’ screws (See figure 15). The spacer frame
has a stepped outer. The rear of the spacer is
the narrow side - when positioned against the
wall or fixing surface the steps should widen
as they come closer to you. Position and
screw the ‘L’ shaped brackets to the rear of
the spacer frame as shown in figure 7.
2.
Position the spacer frame against the wall or front of the opening. Make sure that the
spacer frame is central to the fireplace surround or is in the correct position against the
wall. Mark through the rear holes in the brackets so that their position is clear when the
Page 9
INSTALLER AND OWNER GUIDE

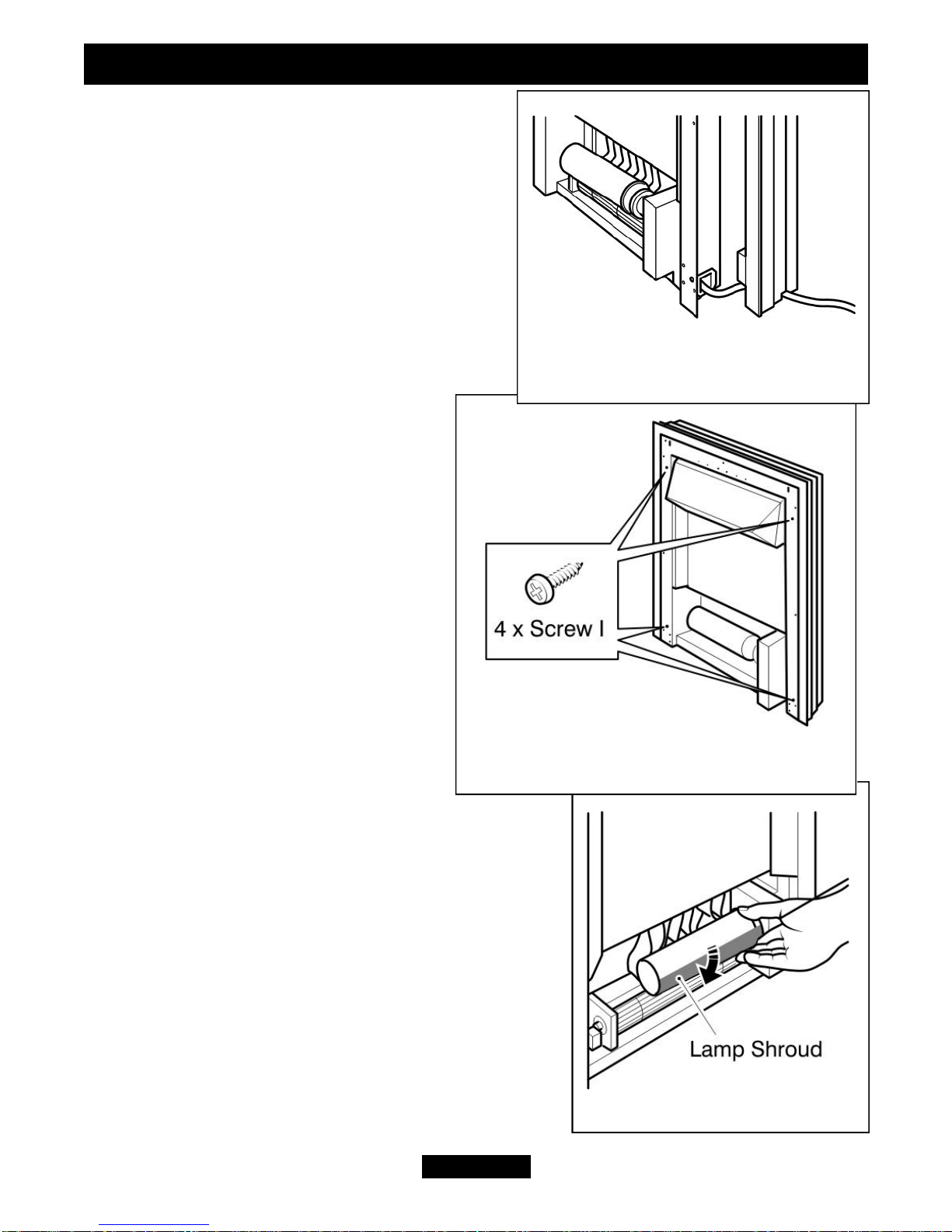

Figure 7. Bracket positions
Figure 6. Steel wire fixing

spacer frame is removed.
3. Remove the spacer frame.
4. Drill appropriate sized holes in the marked
position.
5. Insert a wallplug into the drilled holes.
6. Place the spacer frame so that the holes in the
brackets are in line with the wallplugs in the
fixing surface. If the electric cable is to go to
the left or right of the heater then stand the
heater in front of the spacer frame. Pass the
electrical cable underneath the spacer frame and
locate it into the cutout in the centre of
the spacer frame (See figure 8).
7. Screw and secure the spacer frame
with three ‘H’ screws (See figure 15).
8. Place the heater centrally against the
spacer frame. The heater has holes in its
left side, right side and top. Secure the
heater to the spacer frame through the
four hole positions as in figure 9 using
four ‘I’ screws (See figure 15).
Setting the position of the Light
bulb shroud.
What is the light bulb shroud?
The light bulb shroud (See figure 10) is
the coloured tube that sits around the light bulb.
What is it for?
The light bulb shroud can be rotated to give different
light effects. If you look at the light bulb shroud you
will see a dark area. This dark area is there to reduce
the amount of light from the light bulb to the areas
which it faces. The slots are there to give a white or
brighter light.
Page 10
INSTALLER AND OWNER GUIDE
Figure 10. Shroud rotation
Figure 9. Fixing the Heater to the
spacer frame.
Figure 8. Locating the electric cable
into the spacer frame.

How will I know which position to set the light bulb shroud?
! Positioning the dark area of the shroud underneath the light bulb will reduce the
amount of light onto the hearth or floor surface.
!
Positioning the dark area to the rear of the light bulb will reduce the amount of light
to the flame effect at the rear of the heater.
A good start point is to have the light bulb shroud dark area facing the front of the
heater. If the light effect is not to your liking then the lower fascia can be removed and
adjustments made to the shroud after the heater is fitted (On the Adage heater it will be
necessary to remove the whole magnetic front fascia).
How do I set the position of the light bulb
shroud?
Hold the right hand side of the light bulb shroud
and rotate it in a downward direction. Never
rotate the light bulb shroud in an upward
direction as you may be unscrewing the light
bulb at the same time (See figure 10).
Fitting the Adage and Victorian Fascia
Adage Heater
1. Removing the fascia may have moved the
magnets used to fix the fascia to the heater.
There should be a magnet on each of the four
raised tabs on the rear of the fascia (See figure 11).
2. Locate the fascia onto the heater. Ensure that the
sides of the fascia sit on the floor / hearth.
3. Place the loose coals onto the orange coloured
fuel support (a glove is provided with the coal
pack). It is not necessary to use all the coal
supplied.
Victorian Heater
1. Hook the brackets on the rear of the main fascia
over the brackets on the heater (See figure 12).
2. Secure with the two screws removed previously
(See figure 1)
3.Locate the lower fascia onto the main fascia (See
Page 11
INSTALLER AND OWNER GUIDE

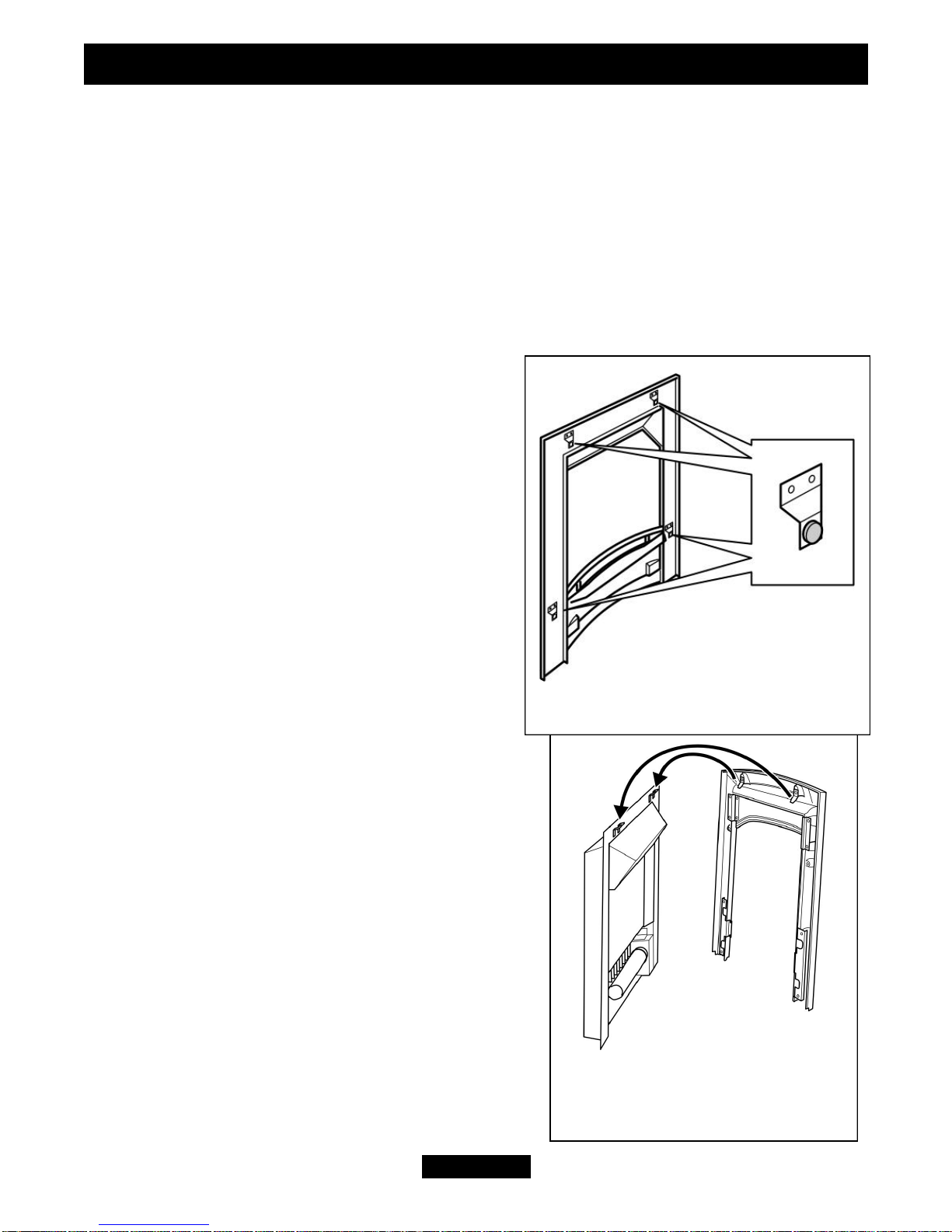

Figure 12. Fitting the facia. The
Fascia shown is the ‘Dream’ The
Victorian fits in the same way
Figure 11. Magnet locations

figure 13)
4. Place the loose coals onto the fuel support (a glove
is provided with the coal pack). It is not necessary to
use all the coal supplied.
Fitting the Dream Fascia
Note: A certain amount of self-assembly is required
in building up this fascia.
The fixings used can be identified by referring to
figure 15.
Follow the steps below while referring to figure 16.
Unpacking and preparing the Dream Fascia
1. Open fascia pack, remove the main fascia
and lay it face down on the floor, taking care
no to damage either floor covering or main
fascia. If necessary, flatten the box and lay it
on the floor first.
2.Place the remaining parts in a safe place.
3. Place the white top polystyrene packing
piece against a wall. This will prevent the
polystyrene packing piece from moving .
Position the top of the main fascia on top of
the polystyrene packing piece (See figure 14).
Page 12
INSTALLER AND OWNER GUIDE
Figure 15. Loose parts
Figure 14.
Figure 13. Front lower fascia
location. (Shown with the
Victorian fascia - Dream
locates in same way)

Page 13
INSTALLER AND OWNER GUIDE

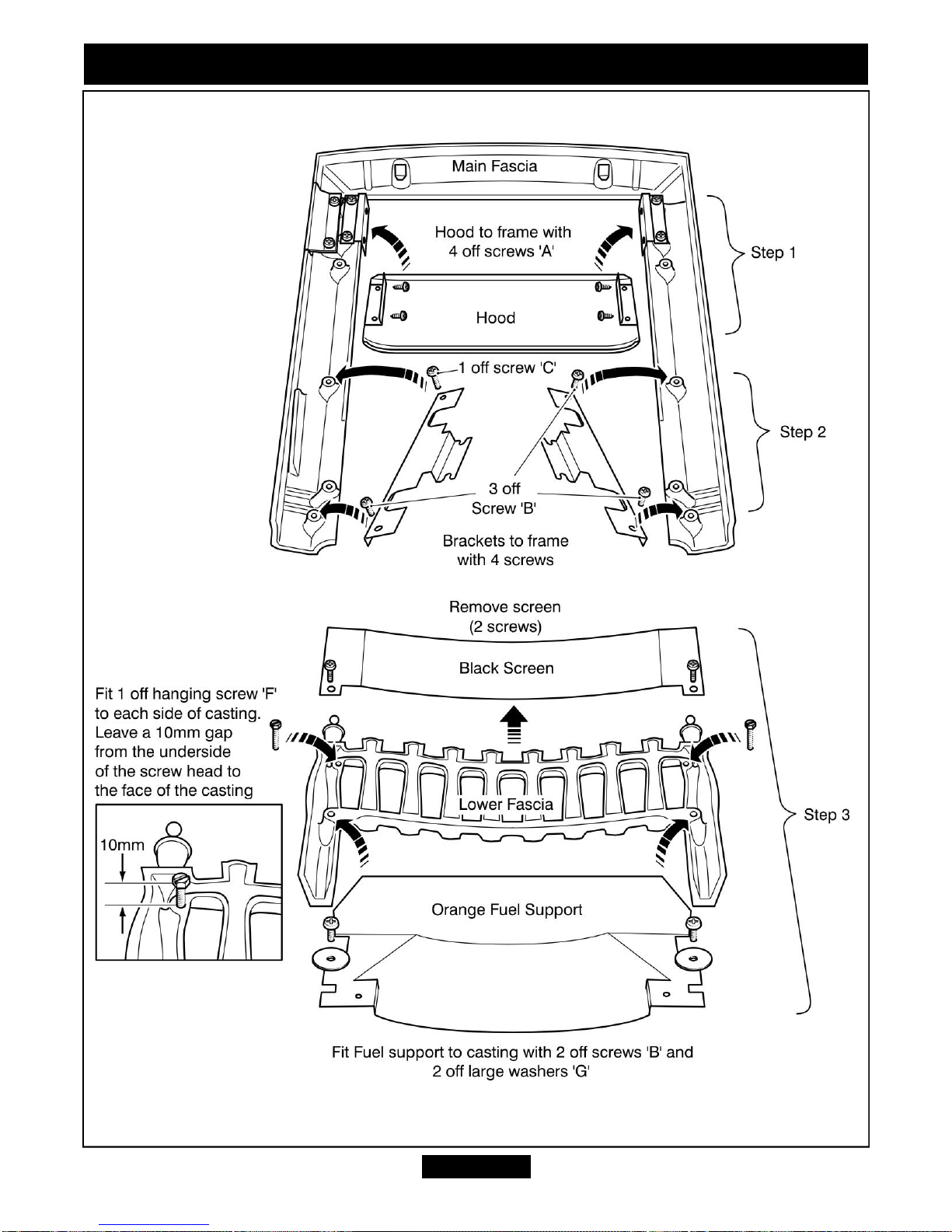

Figure 16.

Assembling the Dream Fascia
Step 1.
Locate the hood into the brackets at the top of the casting and secure with 4 off screws
'A' (See figure 14 & 16 - step 1).
Step 2.
Locate the lower brackets onto the fascia and secure with 3 off screws 'B' and 1 off
screw 'C' as in figure 16 - step 2. Ensure the brackets project downward towards the
front face of the main fascia.
Step 3.
1. Lay the lower fascia face down on a flat surface. Remove the 2 screws holding the
black screen to the rear of the lower fascia. Remove and discard the black screen.
2. Locate 2 off screws 'F' into the upper two holes in the rear of the lower fascia,
leaving a gap of about 10mm from the underside of the screw head to the rear face of
the casting (See figure 16 - step 3). The 10mm gap is to enable the lower fascia to be
hung onto the main fascia.
3.
Place the orange fuel support onto the rear of lower fascia and secure it in place with
2 off screws 'B' and 2 off large washers 'G '(See figure 16 - step 3).
Fitting the Dream Fascia to the heater.
1.
Fit the main fascia to the heater by hooking the brackets on the rear of the fascia over
the brackets on the heater (See figure 12).
2. Secure the main fascia to the heater with 2 off screws 'D' and 2 off washers 'E'
through the holes in the lower side legs of the main fascia.
3. Hook the lower fascia on to the main fascia as in figure 13.
4. Position the ash pan cover beneath the lower fascia.
5.
Place the loose coals onto the top of the orange fuel support (a glove is provided with
the coal pack). It is not necessary to use all the coal supplied.
Page 14
INSTALLER AND OWNER GUIDE

USING THE HEATER
Important Safety
Never cover the heater or obstruct the openings at the base of the heater, this could
cause overheating and consequent risk of fire.
What are the three switches for?
The heater is operated by three switches located below the hood on the left hand side of
the heater.
Switch 1 = OMain On - Off
In the On position only the fuel effect operates
Switch 2 = I1kW fan heat setting and fuel effect
Switch 3 = II 2kW fan heat setting and fuel effect
The switches are connected on the inside, so when switch 1 is turned off, all switches
turn off.
CLEANING AND MAINTAINING THE HEATER
How do I Clean my heater?
The heater fascia and glass parts need only to be wiped clean with a dry soft cloth, do
not use polishes or abrasive materials. The Adage heater may have finger prints on the
fascia surface. These can be removed by applying a small amount of ‘baby oil’ to a lint
free non-abrasive cloth and wiping the surface. Use a clean cloth to remove the oil.
I have a problem with my heater!
Important Safety
Before undertaking maintenance or replacing the light bulb always disconnect the
heater from the electricity supply by removing the 3 pin plug and allowing the
heater to cool.
1. My heater is on but there is no light.
This is possibly a light bulb failure. Remove the light bulb as detailed below and check
it in a table lamp that is known to work. If it does not work in the table lamp then
replace it as below.
Page 15
INSTALLER AND OWNER GUIDE

The light bulb fitted to this heater is a long life compact fluorescent type, but due to the
indeterminate life span and ease of replacement, it is specifically excluded from the
guarantee.
To replace the light bulb.
1. To gain access to the light bulb, remove the loose coals from the fuel support and
place them onto an old newspaper or plastic bag. This will prevent them from marking
the surface.
2. Remove the lower fascia, (On the Adage heater it will be necessary to remove the
whole magnetic front fascia), see figure 2 & 3 and the section headed “ Removing the
fascia”.
3. Note the position of the dark area on the light bulb shroud. Remove the light bulb
shroud by sliding it to the left.
4. Replace the light bulb with an 18 - 20 Watt (maximum) Edison screw, compact
fluorescent light bulb eg. ‘Philips Ecotone’. Do not use standard tungsten light bulbs
due to the excessive heat.
5. Refit the light bulb shroud into the position noted earlier. Refit the lower fascia /
magnetic fascia and refit the coals.
2. My heater is on but there is no light or heat.
The first thing to do is check the wall socket. To do this plug in a known working
appliance. If the appliance you have plugged in works then there is a good chance that
the problem lies with the 13Amp fuse in the heater plug. If either fuse or socket is
suspected, have them checked by an electrician.
3. My heater is on but there is no heat.
A cut out device is fitted to the heater to prevent damage due to over heating. If it
operates due to an obstruction in the airflow, the heater must be turned off and allowed
to cool for 15 minutes and the obstruction removed before restarting.
Page 16
INSTALLER AND OWNER GUIDE

4. I Have a problem that is different to those in the previous examples 1- 3.
Below is a list of Useful Telephone numbers
For general advice about your heater:
VALOR TECHNICAL HELPLINE 08706 061 065.
To report faults or arrange for your heater to be serviced:
VALOR SERVICE 08706 090 081.
For sales or product information:
VALOR SALES 08706 061 067.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 08706 061 065
For spares inquiries
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow pages under ‘Central Heating’.
When ordering spare parts please have the below information available. This will help
us to deal with your call quicker and avoid you having to make a second call.
! Your Post Code
! Type of Heater (Electric or gas)
! Model, Name and serial number (This information can be found on a small label
attached to the inside lower left of the heater. To see this you will have to remove the
lower fascia (On the Adage heater it will be necessary to remove the whole magnetic
front fascia)
! The fault, problem or request.
What should I do when I’m ready to dispose of my heater?
At the end of the products serviceable life it should be disposed of thoughtfully and
safely in accordance with local authority regulations. The plug should be removed from
the mains cable and the mains cable cut from the heater.
Page 17
INSTALLER AND OWNER GUIDE
