Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

3
Please read tis manual thoroughly before using this product and keep it for future
reference.
Packing list
Leisure 470 Remote (Batteries not included) User Manual
HD Cable Power Cable
Notice
Recommended – Video, Movie
NOT Recommended – PowerPoint, Excel, Word

4
Function overview
Lens
Focus
Keystone
Menu
Input Source
Down
Left
Up
Right
HD-1
USB
Air Outlet
Memory
Card Slot
AV In
Audio
Out
Play/Pause
On/Off
Fast Reverse
Up
Left
Back
Volume -
Mute
Fast Forward
Right
Down
Input Source
Menu
Volume +
HD-2
Power Button
OK
Menu/Back
Play/Pause
Power Input
Air Inlet
IR
Speaker

5
Quick Start
1) Plug the power cord into an outlet.
2) Take off lens cover.
3) Connect your device to the projector correctly.
* Original USB cable (not included)
4) Press the Power Button to turn on the projector.
5) Select the correct input source to project your device.
6) Adjust the kickstand accordingly.
7) Adjust the keystone and focus ring to get the best image performance.
8) Press the Power Button twice to turn off the projector.
Keystone
Focus

6
Input source
Press on the projector or press on the remote to enter the interface of Input
Source.
A. Screen Mirroring
B. HD Connection
C. Multimedia Connection

7
Projector Connections
Screen Mirroring
IMPORTANT:
Before screen mirroring, please press the button on the projector/remote to
enter the interface on Input Source and select Screen Mirroring.
Press OK an wait for several seconds for the projector to switch interfaces between
Screen Mirroring for iOS System and Screen Mirroring for Android System.

8
Screen Mirroring through Wireless Connection
For iOS System
* Streaming with cellular data
1) Turn on the projector, select Screen Mirroring as the input source to enter the
interface of Screen Mirroring for iOS System.
2) Go to the settings of your iOS mobile device and connect it to the WIFI of LEISURE470-
XXXXXX (password:12345678). Please ignore the exclamation mark before it.
3) Activate Screen Mirroring/Air Play Mirroring function on your iOS mobile device,
then search for the projector.

9
4) Select LEISURE470-XXXXXX from the searching results to connect.
5) The display of your iOS mobile device will be projected to the wall/screen via cellular
data after a successful connection.
* Streaming with your router’s WIFI
1) Turn on the projector, select Screen Mirroring as the input source to enter the
interface of Screen Mirroring for iOS System.
2) Go to the settings of your iOS mobile device and connect it to the WIFI of LEISURE470-
XXXXXX.
3) Visit http://192.168.49.1 from a browser on your mobile device, tap WIFI AP > Scan,
select your router’s WIFI and enter the right password, then tap Connect to continue.
4) Your router’s WIFI will be displayed on interface of Screen Mirroring for iOS System
after a successful connection.

10
5) Get back to the WIFI setting of your iOS mobile device, then connect it to the same
router’s WIFI.
6) Activate Screen Mirroring on your iOS mobile device, then search for the projector
and select LEISURE470W-XXXXXX from the searching results to connect.
7) The live streaming content from your iOS mobile device will be projected to the
wall/screen through WIFI connection.
TIP: If you would like to connect to another router’s WIFI, please repeat the procedures
mentioned on the section of Streaming with your router’s WIFI.
For Android System
To activate this function, your android device must support Multi-Screen/Wireless
Display. Names may differ from different devices.
1) Turn on the projector, select Screen Mirroring as the Input Source, then press the
OK to switch to the interface of Screen Mirroring for Android System.

11
2) Turn ON the WIFI Switch on your Android device. Successfully connected WIFI on
Android device is not a must unless the live streaming content is needed.
3) Activate Multi-Screen function on your Android device and search for the projector.
4) Select LEISURE470-XXXXXX from the searching results to connect.
5) Your Android device display will be projected to the wall/screen after a successful
connection.
Important Tips for Wireless Connection:
1) Due to the copyright restriction from Hulu, Netflix, and similar services, the contents
CAN NOT be mirrored or cast.
2) If the projected image freezes when you switch the screen mirroring interfaces, please
long press OK for 5s to do a reset, process will complete in 2 minutes, please wait
patiently.
3) The fluency of screen mirroring with wireless connection will be affected by the
network environment. A bandwidth of 100Mbit or more is recommended when using
screen mirroring.
4) Make sure your mobile device is close to the projector when using wireless
connection. A distance within 1 meter is recommended.
5) Some mobile devices may not support mirroring due to the compatibility.
Screen Mirroring with the Original USB Cable
For iOS System
1) Turn on the projector, select Scree Mirroring as the input source to enter the interface
of Screen Mirroring for iOS System.
2) Connect your iOS mobile device to the ISB port of the projector with the ORIGINAL
lightning cable.

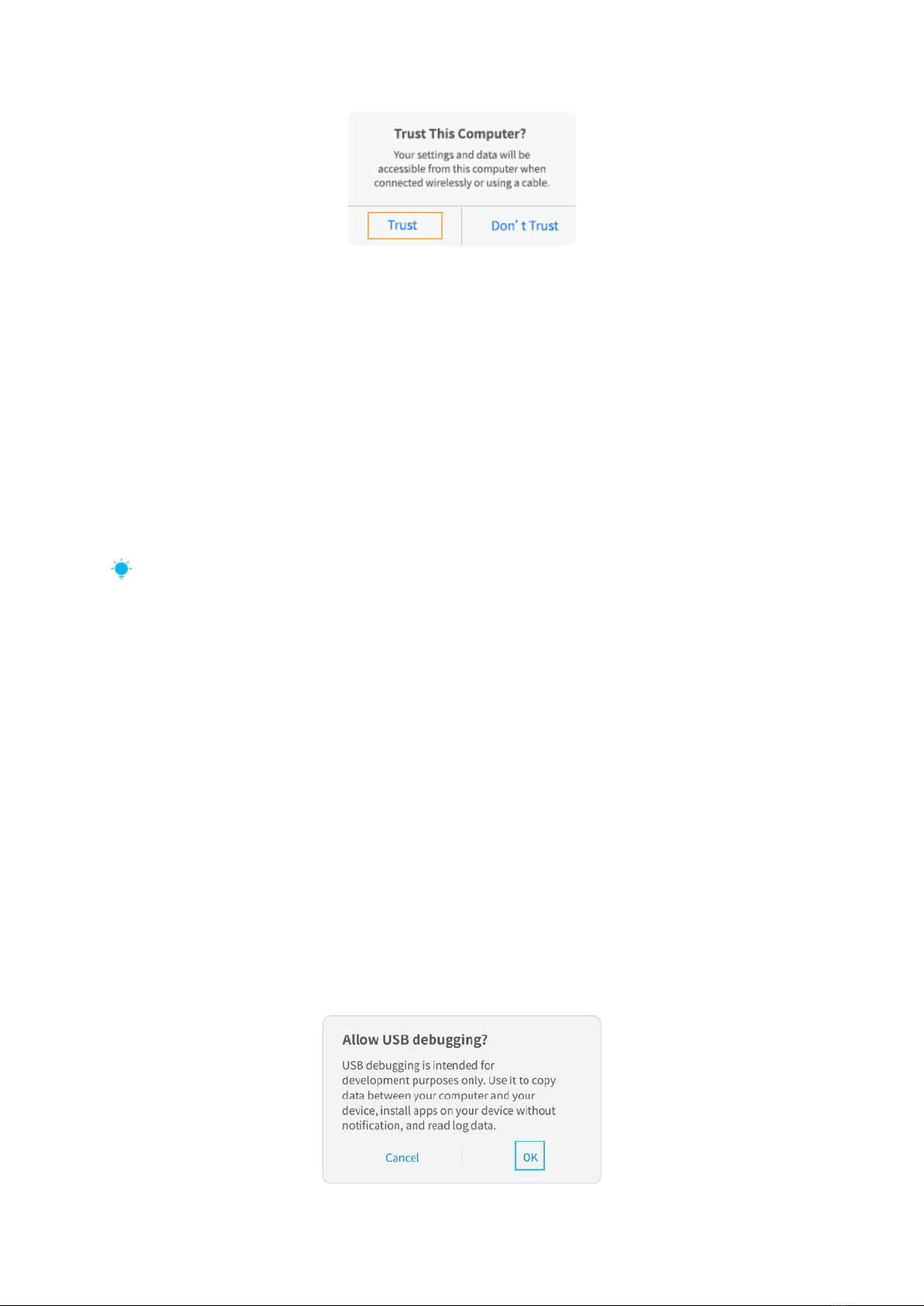

3) Select Trust in the pop-up window of Trust This Computer.

12
4) The display of your iOS mobile device will be projected to the wall/screen after a
while.
For Android System
1) Turn on the projector, select Scree Mirroring as the input source to enter the interface
of Screen Mirroring for Android System.
2) Go to the settings of your mobile device, find Developer options, and turn on USB
debugging.
TIP:
The steps to turn on Developer options vary from different models of Android device.
You may check or from internet or contact us for the detailed steps. We take Samsung
Galaxy S8+ as an example.
* Go to settings of your Android device, then tap About phone > Software information >
Built number.
* Continuously tap on Built number for several times until it shows Developer mode had
been turned on.
* Get back to the settings of your mobile device, it will show Developer options.
3) Connect your Android mobile device to the USB port of the projector with the
ORIGINAL USB cable.
4) Tap OK when your Android mobile device pops out the window of Allow USB
debugging?, then your Android device will be projected to the wall/screen.

13
1) The USB cable MUST be the ORIGINAL cable or the cable which can transfer the data,
otherwise screen mirroring may fail. You can plug the cable into your laptop to check the
availability of transferring the data.
2) Some mobile devices may not support screen mirroring due to the compatibility.
3) Some Android mobile devices may only transfer the display without audio due to the
protocol restrictions.
* Upgrade the Firmware Version of Screen Mirroring
When there is a newer version, you will see Discover new firmware… on the projected
screen, please press OK button on the projector/remote and follow the steps to upgrade
the firmware version of screen mirroring as needed.
Notes:
1) Make sure the projector is connected to WIFI and DO NOT power off during updating.
2) It takes around 6-8 minutes for the update completes, please wait patiently.
3) The projector will automatically reboot once the upgrade is completed.
TIP:
After entering the interface of Screen Mirroring for iOS system, you can press and hold
the OK button to reset the firmware version of screen mirroring.

14
Projection distance & size
*The recommended projection distance varies with different projection contents. Please
adjust the distance between the wall/screen and the projector properly as needed.
*Ambient darkness will improve the clarity of the projected images.

15
Specification
Display Technology
LCD
Resolution
Native 1280 x 720
Speaker
3W/4ohm
Unit Dimension
19.7 x 14.5 x 7.1cm
(7.8 x 5.7 x 2.8inches)
Photo Format Supported
BMP/JPG/PNG/GIF/JPEG
Video Format Supported
AVI/MP4/MKV/FLV/MOV/RMVB/3GP/MPEG/H.264/XVID
Mounting Screw
1/4"
Light Source
LED
Input Signal
576i-720P-1080i-1080P
Aspect Ratio
4:3/16:9/auto
Focus
Manual
Keystone
±15°
Power Supply
100V-240V, 50/60Hz
Unit Net Weight
1.kg (2.2lbs)
Audio Format Supported
ACC/MP2/MP3/PCM/FLAC/WMA
Ports
HD in 2x/ USB Port x1/ VGA Port x1/ AV In x1/ Audio
Out x1/Memory Card Slot x1
Screw Number
1
Troubleshooting guide
1) The content form Hulu, Netflix, and similar services can not be mirrored or cast.
*Due to the copyright restrictions from Hulu, Netflix, and similar services, the contents
MAY NOT be mirrored.
2) What should I do if I want to watch the content from Hulu, Netflix, and similar
services via the projector?
* Please prepare a Fire TV Stick, Roku stick or Chromecast™ (nit included), then connect
it to the projector to watch the content.
3) Blurry Image
* Adjust focus ring (keystone)
* Projector and screen/wall must be in effective distance.
4) Remote Unresponsive
* Make sure remote points at IR receiver directly.
* Do not cover IR receiver.
* Try a new pair of AAA batteries.
5) Upside Down Images
* Go to Menu > PICTURE > Projection Direction to flip the projection image

16
6) Factory Reset
*Reset the projector to default settings
Go to Menu > OPTION > Restore Factory Default to restore the projector to default
settings.
*Reset the screen mirroring module to default settings
Press and hold the OK button for around 5s in the interface of Screen Mirroring for iOS
System or Screen Mirroring for Android System to do a reset on the screen mirroring
module.
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g. during transport, cleaning
by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.

17
EU Declaration of Conformity
Identification data of the manufacturer's / importer's authorized representative:
Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
IČO: 27082440
Subject of the declaration:
Title: Projector
Model / Type: Leisure 470
The above product has been tested in accordance with the standard(s) used to
demonstrate compliance with the essential requirements laid down in the
Directive(s):
Directive No. (EU) 2014/53/EU
Directive No. 2011/65/EU as amended 2015/863/EU
Prague, 27.3.2021

18
WEEE
This product must not be disposed of as normal household waste in accordance with
the EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU).
Instead, it shall be returned to the place of purchase or handed over to a public
collection point for the recyclable waste. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. Contact your local authority or the nearest collection point for further
details. Improper disposal of this type of waste may result in fines in accordance with
national regulations.

19
Vážený zákazníku,
Děkujeme vám za zakoupení našeho produktu. Před prvním použitím si prosím pečlivě
přečtěte následující pokyny a uschovejte si tento návod k použití pro budoucí použití.
Zvláštní pozornost věnujte bezpečnostním pokynům. Pokud máte k přístroji jakékoli
dotazy nebo připomínky, obraťte se na zákaznickou linku.
✉www.alza.cz/kontakt
✆[phone]
Dovozce Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

20
Před použitím tohoto výrobku si důkladně přečtěte tento návod a uschovejte si jej pro
budoucí použití.
Balicí seznam
Leisure 470
Dálkový ovladač
(baterie nejsou
součástí dodávky)
Uživatelská příručka
Kabel HD Napájecí kabel
Oznámení
Doporučeno - Video, Film
NEdoporučuje se - PowerPoint, Excel, Word
