Vax Compact Power CWCPV011 User manual

CWCPV011
CDCW-CPXP
QUICK, COMPACT AND LIGHT
LET’S GET STARTED.

2
BASIC SAFETY PRECAUTIONS
This machine is intended for household use only and NOT for commercial or
industrial use.
• Only use the machine indoors and keep the area you’re cleaning well lit.
• Keep fingers, hair and loose clothing away from moving parts and openings
whilst using the machine.
• The clean water/solution tank should be filled with warm water (max 40°C)
only. Filling the clean water/solution tank with hot or boiling water will damage
the machine and invalidate the guarantee.
• This machine is not intended to be used or cleaned by persons with reduced
physical, sensory or mental capabilities, or lack of experience or knowledge,
unless they have been given instructions concerning the safe use of the
machine by a person legally responsible for their safety. They should be
supervised whilst using the machine. Children shall not use, clean or play with
this machine, which when not in use should be secured out of their reach.
• Only VAX recommended solution should be used with this machine. Using
other solutions may invalidate the guarantee.
DONT'S
• Don’t leave the machine plugged in when unattended.
• Don’t use the machine if it has been dropped, damaged, immersed in water or
left outdoors.
• Don’t run over the cord or use the machine if the cord or plug is damaged.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• Don’t handle the plug or use the machine with wet hands.
• Don’t leave the machine in one spot for an extended period of time when it is
switched on. This machine is fitted with a rotating brushbar which, if left in
one place, may cause damage to the floor surface.
• Don’t use the machine to pick up any flammable or combustible materials
(lighter fluid, petrol, kerosene etc) or use the machine in an area with explosive
vapours or liquid.
• Don’t use the machine to pick up hot coals, cigarette butts, matches or smoking
hot burning items or use in an area that is wet or where there may be harmful
fluids (chlorine, bleach and ammonia drain cleaner).
• Don’t use the power cord as a handle, pull the power cord around corners or
sharp edges, or close a door over the power cord. Don’t unplug the machine
by pulling on the cord. Don’t pull or carry the machine by the power cord.
• Don’t carry the machine whilst it's switched on.
SAFETY GUIDE

3
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to your machine.
• Don’t use the machine with incorrect voltage as this may result in damage or
injury to the user. The correct voltage is listed on the ratings label.
• Don’t use on a surface that is damaged, uneven or incorrectly fitted.
DO'S
• Always vacuum your carpets thoroughly before using the machine.
• Check with the manufacturer of your flooring prior to using the machine. Test
all carpets and rugs for colourfastness and pile distortion before full usage.
Run the machine over a small hidden area. If no damage or pile distortion
occurs continue cleaning.
• Always turn off or unplug the machine from the mains before carrying out any
maintenance.
• Turn off all controls on the machine before disconnecting or connecting the
power cord. After use always wrap the power cord around the cord clips
provided.
• Always keep the power cord away from the brushes whilst using the machine.
• Always protect the power cable from heated surfaces and open flames.
• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can be
a trip hazard.
• Always use the machine with all water/solution tanks and filters in place.
• Keep all openings clear and free from debris as this may affect the airflow/
suction.
• Always use the machine in an upright position. To prevent motor damage from
dirty water, never hold the machine upside down or on its side.
• Store the machine in a cool, dry area. Before storing the machine ensure all
water/solutions tanks and filters are thoroughly clean and dry.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE AND USE ONLY
AS INSTRUCTED IN THIS GUIDE.

4
WARRANTY
If a VAX machine is used in the way it is intended and it breaks down within the
guarantee period, it’s our responsibility to repair or replace it.
Here’s what isn’t covered:
• Functional parts, tools and accessories after 12 months that may suffer
premature failure due to every day wear and tear.
• Consumables after 3 months such as belts, filters, brushbars, fuses etc.
• Accidental damage.
• Cosmetic damage that does not affect the functioning of the product.
• Damage as a result of use not in accordance with the user guide.
• Damage caused by not carrying out regular maintenance.
• Damage to the cable.
• Blockages; please refer to the user guide.
• Poor product performance caused by:
- Negligent use, misuse or careless operation of the machine.
- Failure to clean or maintain the product in accordance with the user guide.
- Use of the machine which is not in accordance with the user guide.
- Use of a VAX product for anything other than normal domestic household
purposes in the country in which it was purchased.
- Use of parts, accessories and consumables, which are not genuine VAX
components.
- Faulty installation or repairs - unless carried out by a qualified electrician or
engineer.
TECHNICAL
EU Statement of Compliance: Manufacturer/EU importer: VAX Limited, hereby
on our own responsibility, declare that the VAX Compact Power series is
manufactured in compliance with the following Directives:
Safety: 2014/35/EU Low Voltage Directive.
EMC: 2014/30/EU Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
VAX is a trade mark of Techtronic Cordless GP.
© 2018 - 2021 Techtronic Cordless GP. All rights reserved.
VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.
WARRANTY & TECHNICAL

5
VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.
CONTENTS
Safety guide
Warranty & technical
Getting in touch
Getting to know your machine
Getting started
Using your machine
Maintenance & cleaning
What to do if it goes wrong
Accessories
Included with your machine
2 - 3
4
6
7
8
9
10 - 11
12
13
250ml
Pre-treatment Solution
250ml
Post-treatment Solution
250ml
Platinum Solution
Included with Compact Power Plus CDCW-CPXP only.

6
Thank you for buying this Compact Power.
Taking care of your carpets
The Compact Power is designed to make washing carpets regularly, as effective and efficient
as possible and this user guide will help you get the most out of your machine.
Maintaining your carpets will ensure they keep their appearance for longer and smell fresh
and clean. You’ve chosen carpets for your home for a reason and VAX will help you take
good care of them.
Taking care of your Compact Power
Also inside this guide are instructions on maintaining your new machine, so that it’s always
ready when you are to tackle your carpets.
Receive your FREE 1 year guarantee†
Register your product online:
vax.co.uk/registration
We’re here if you need us
Visit our online support:
support.vax.co.uk
Still need to get in touch?
Our UK based Customer Care Team are here to support you.
For help with assembly, operational or performance problems, or buying and fitting new accessories,
you can find all our contact details at vax.co.uk/contact
This user guide can be found online at: support.vax.co.uk
† Registration required. Terms and conditions apply, see vax.co.uk for details.
GETTING IN TOUCH

7
Subject to technical change without notice. Images are illustrative only.
To purchase accessories and consumables visit: vax.co.uk
TECHNICAL SPECIFICATION
VAX Compact Power & Compact Power Plus
CWCPV011 & CDCW-CPXP
Voltage 220-240v~50/60Hz
Wattage 800w
Cord length 6.7m
Weight 5.47kg
7

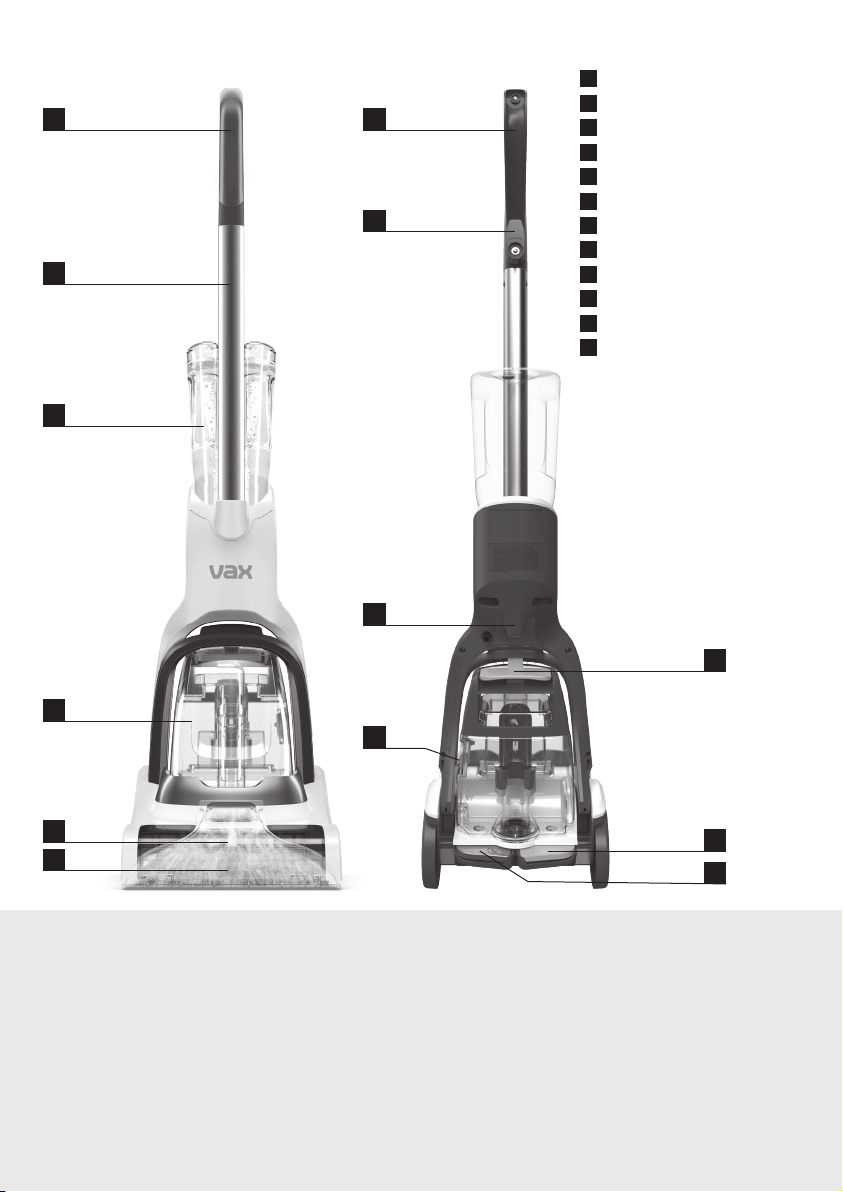

GETTING TO KNOW YOUR MACHINE
1Upper handle
2Lower handle
3Clean water/solution tank
4Dirty water tank
5Nozzle
6Brushbar
7Trigger
8Cord clips
9Dirty water tank release clip
10 Quick pour spout
11 Handle release pedal
12 On/Off pedal
1
3
8
8
4
5
6
10
7
9
11
12
2

8

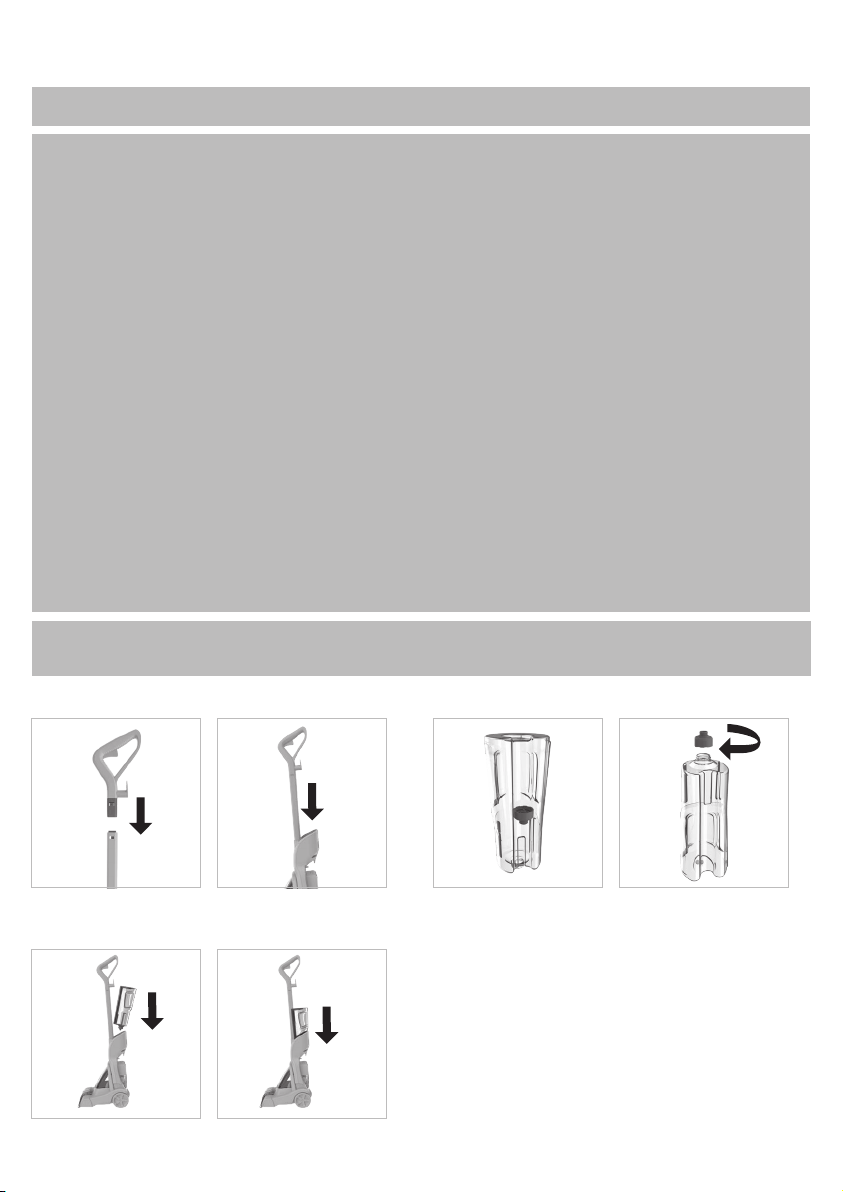

Assembly
Attach the upper handle to the lower handle.
Then push the handle into the top of the machine.
Place the tank onto the machine and push into place.
Remove the cap from the side of the clean water/solution
tank and screw onto the tank to attach.
GETTING STARTED
WARNING: The machine has a constantly rotating brushbar. Never leave the machine in one spot for an extended period of time
as this may damage the floor surface. To prevent any damage being sustained test on an inconspicuous area of the flooring.
IMPORTANT: Carpets should be dry vacuumed thoroughly before washing.
• Test for colourfastness - Wet a white absorbent cloth with the solution. In a small hidden area of your carpet/rugs/upholstery,
gently rub with the dampened cloth. Wait ten minutes and check for colour removal or bleed with a white paper towel or cloth.
Check all carpets/rugs/upholstery material before first use and if your carpet has more than one colour, check all colours.
• Test all flooring/carpets/rugs before first usage. Run the machine over a small hidden area. If no damage or pile distortion
occurs continue cleaning.
• When using the machine, basic safety precautions should always be observed. Do not over saturate your carpets and continue
using dry strokes until little water is visibly passing through the nozzle.
• When cleaning an entire room, move furniture out of the area to be cleaned. If the furniture cannot be moved, place aluminium
foil or wax paper under the legs. This will prevent wood finishes from staining your carpet. Pin up furniture skirts and curtains.
• Only use VAX carpet solution. Using other solutions may cause excess foaming and will invalidate the guarantee.
• For heavily soiled areas, it may be necessary to repeat the cleaning process. Make criss-crossing strokes across the original
pattern and overlap with each pass.
• The clean water tank should only be filled with warm water (max 40�C). Filling the clean water tank with hot/boiling water will
damage your machine and invalidate the guarantee.
• Empty and rinse out clean and dirty water tanks and leave to air dry before storage. Do not leave solution stored in the tanks
between uses.
• This is a powerful machine, before plugging in make sure all controls are turned off and hold the machine firmly when starting
and during use.
PLEASE READ THE SAFETY PRECAUTIONS ON PAGES 2 & 3 BEFORE USE.

9
USING YOUR MACHINE

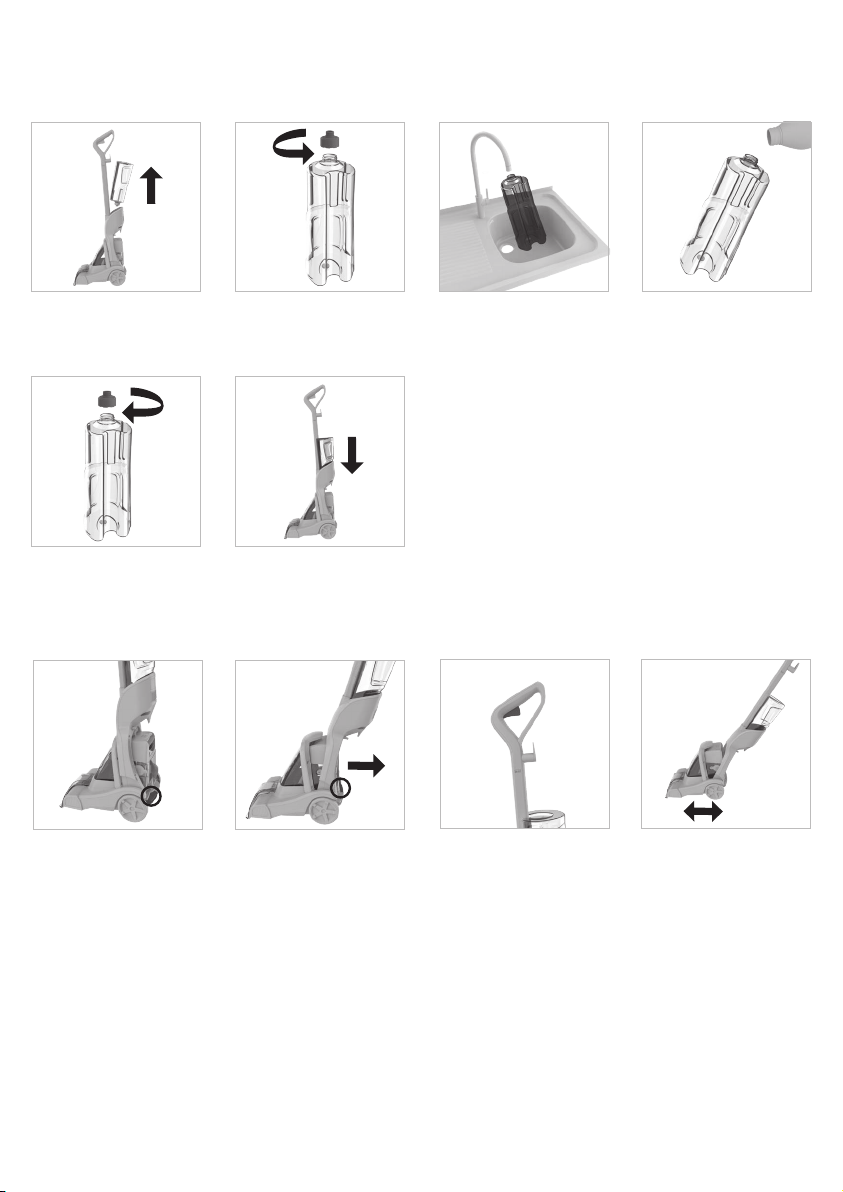

Filling the clean water/solution tank
Lift and pull to remove the
clean water/solution tank.
Fill the clean water/solution
tank with warm water (max
40°C) to the water fill line.
Twist the clean water/
solution tank cap
anti-clockwise to remove.
Replace the clean water/
solution tank cap and
twist clockwise to tighten.
Place the tank onto the
machine and push into place.
Pour the required amount
of solution to the solution
fill line.
Plug into the mains.
Press the On/Off pedal to
switch the machine on.
Press the handle release
pedal and pull the handle
backwards.
For best results apply
water/solution on the
forward stroke and
release the trigger on the
backward stroke to pick up
water/solution. Follow with
an additional dry stroke
with no trigger pressed.
Squeeze the trigger to
release the solution and
water mix.
Operation

10

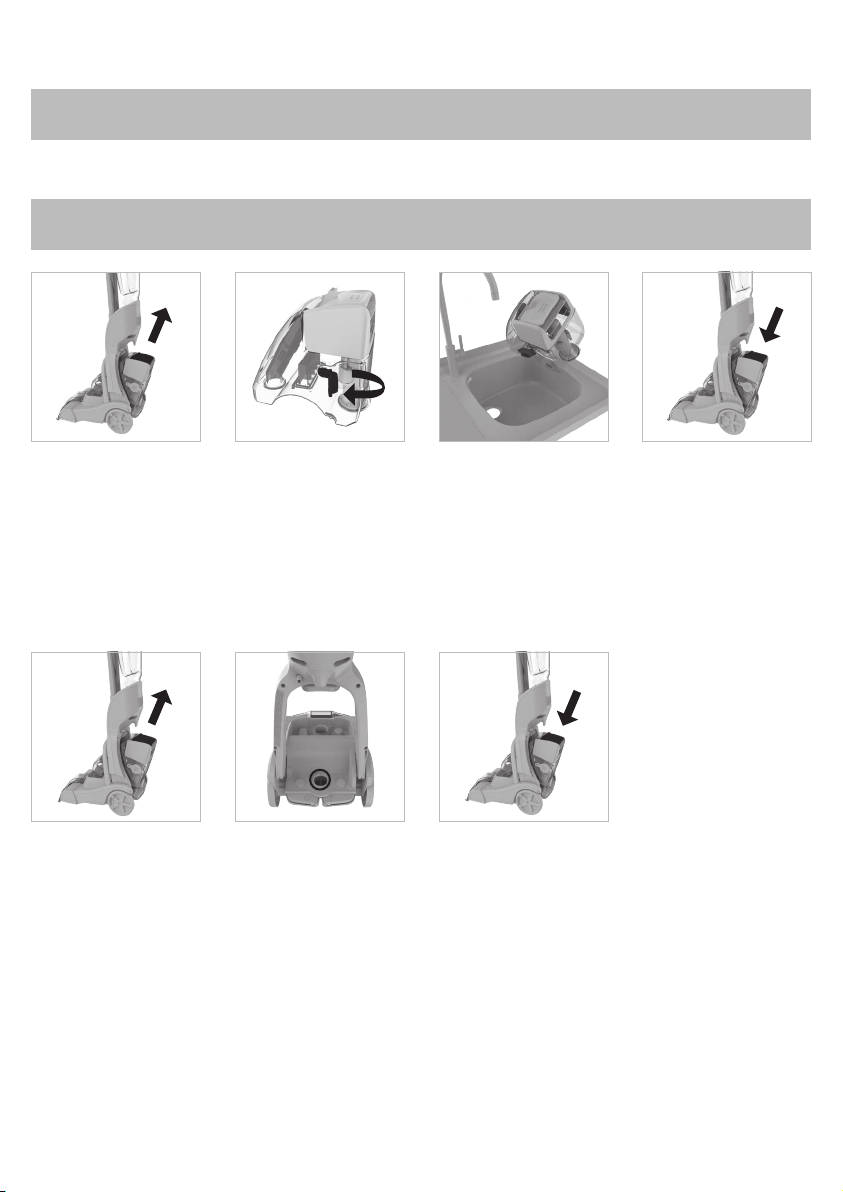

WARNING: Always switch off the machine and unplug from the mains before carrying out any maintenance or troubleshooting.
Depress the dirty water
tank release latch and lift
to remove the dirty water
tank from the machine.
Hold the dirty water tank
over a sink and pull to
open the quick pour spout.
To re-fit, tilt the dirty water
tank and line the back
of the tank up onto the
machine. Drop the front of
the tank forward until the
dirty water tank release
clip clicks into place.
Empty the dirty water over
the sink. Rinse the dirty
water tank under water
(max 40°C) to remove
dirt/debris.
IMPORTANT: Empty and rinse out clean and dirty water tanks and leave to air dry before replacing. Do not leave solution stored
in the tanks between uses.
Emptying and cleaning the dirty water tank
Cleaning the filter
Depress the dirty water
tank release latch and lift
to remove the dirty water
tank from the machine.
Wipe the filter located on
the machine underneath
the dirty water tank to
clear any dirt/debris.
To re-fit, tilt the dirty water
tank and line the back
of the tank up onto the
machine. Drop the front of
the tank forward until the
dirty water tank release
clip clicks into place.
MAINTENANCE AND CLEANING

11
Remove the tanks and lie
the machine on its back
exposing the brushbar.
Pull to remove the
brushbar end cover on
the left and the belt cover
on the right.
Removing and cleaning the brushbar
Removing and cleaning the nozzle
Remove both tanks and
tilt the machine back.
Lift the nozzle from the
top and pull forward
to remove.
Rinse the nozzle under
water to remove
dirt/debris.
To replace the nozzle, line up the tabs on the nozzle
with the tabs underneath the front of the machine.
Push the nozzle back and down until it clicks into place.
IMPORTANT: Carpets should be dry vacuumed thoroughly before washing. This will help prevent excessive build up of
dirt/debris in the nozzle.
If the nozzle is fitted incorrectly, this will cause poor dirty water pick up.
MAINTENANCE AND CLEANING
Lift the brushbar out from
the left hand side first
and unloop the brushbar
from the belt. Pull the
brushbar to remove from
the machine.
Using a pair of scissors,
remove any threads or
hair caught around the
brushes. Rinse under
warm water (max 40�C)
to remove dirt/debris.
Using a crosshead
screwdriver remove the
6 screws.
Using a crosshead
screwdriver remove the
screw at the bottom of the
rug guard and lift upwards.

12
• The plug may not be fully pushed into the electrical socket.
• The fuse in the plug may need replacing. Always replace with a British 13amp fuse.
WHAT TO DO IF IT GOES WRONG
WARNING: Always switch off and unplug the machine before performing any maintenance or troubleshooting checks.
• Check the brushbar is correctly fitted. See Removing and cleaning the brushbar page 11.
• Check the brushbar for blockages and clear. See Removing and cleaning the brushbar page 11.
• Check for damage to the brushbar.
Why won't the machine turn on?
• Check the contents on the box to make sure the part is definitely included with your machine.
There is an accessory missing
Why won't the machine pick up?
Why won't the brushes spin?
• The float in the dirty water tank may have been activated. Empty the dirty water tank and wait for the float to settle before
re-starting your machine. See Emptying and cleaning the dirty water tank page 10.
• Check the brushbar for blockages and clear. See Removing and cleaning the brushbar page 11.
• The dirty water tank may not be fitted correctly. See Emptying and cleaning the dirty water tank page 10.
• Check the nozzle for blockages and clear. See Removing and cleaning the nozzle page 11.
• Check the filter screen located underneath the dirty water tank. See Cleaning the filter page 10.
Why won't the solution/clean water dispense?
• Make sure the clean water/solution tank is fitted securely. See Filling the clean water/solution tank page 9.
• The clean water/solution tank valve may be stuck, hold the clean water/solution tank over the sink and press the valve
underneath to release.
• Squeeze the trigger on the handle to release solution and water mix.
• The water/solution tank is empty. Refill the tank. See Filling the clean water/solution tank page 9.

13
Don’t forget your solution!
Order at: www.vax.co.uk/spares-and-solutions
ACCESSORIES
Platinum Professional (1.5l)
1-9-139136
Platinum Professional (4l)
1-9-142060
Platinum Carpet Cleaning Solution deep
cleans carpets and removes stubborn stains.
Safe to use on wool carpets - Woolsafe approved.

14

15

GET IN TOUCH
[email protected] vax.co.uk
