VDO VIEWLINE PRESSURE GAUGES User manual

VDO – A trademark of the Continental Corporation
Product Information
www.vdo.com
Viewline Pressure gauges
Description
Gauge to indicate Engine oil-, Hydraulic oil-, Brake-, Air pressure.
Features

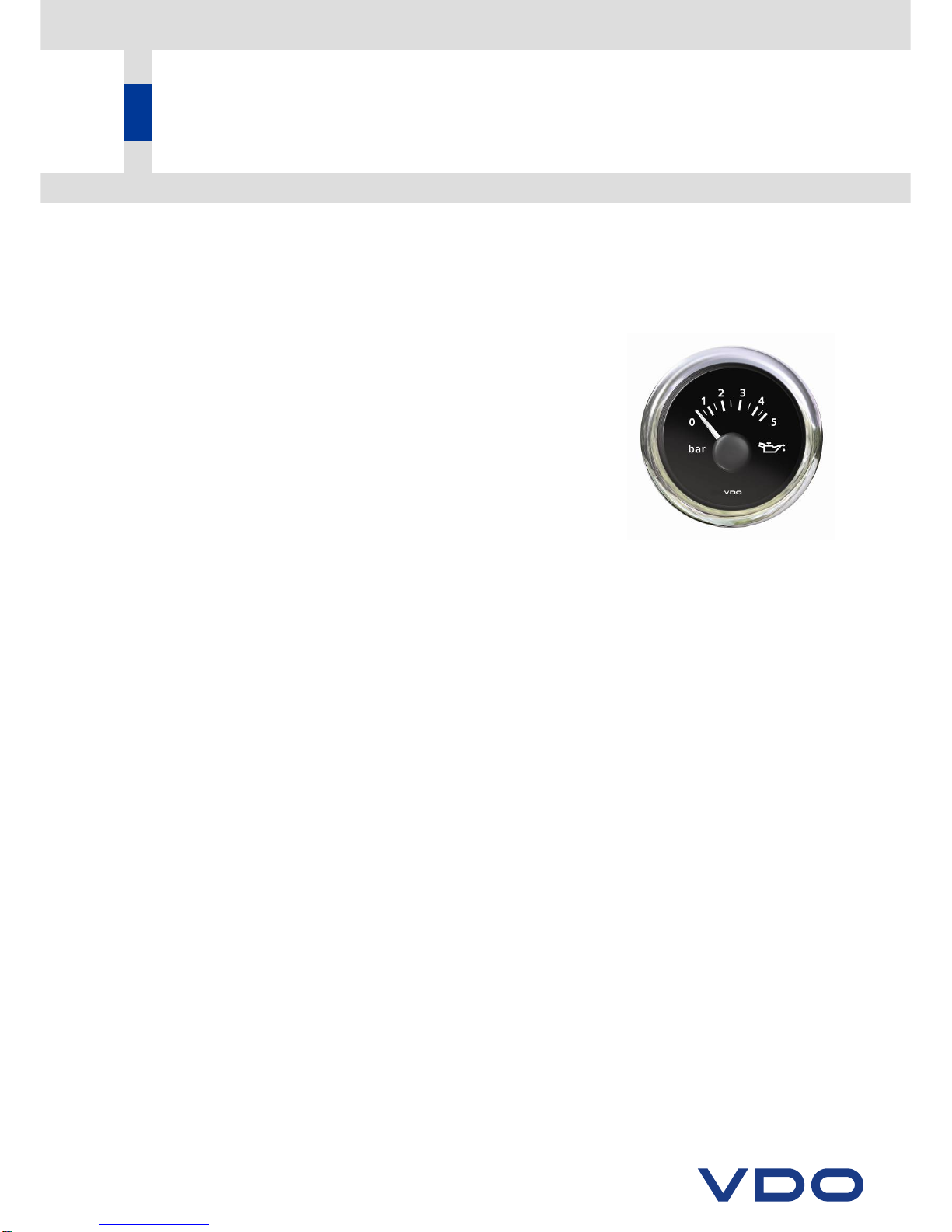

_ Integrated Warning LED. Picture: Engine oil pressure gauge
_ Changeable Frontbezels.
_ LED Illumination
_ Flush mount possibility
_ High reliability
Concept
Housing PC; flame retarding (UL94)
Bezel PC or ABS; several colors and shapes (see table)
Lens PMMA; double lens
Dial backlit; different colors (see table)
Pointer backlit, white on black dials; red on white dials
Illumination Dial: LED amber (605nm)
Pointer: LED red (632nm)
Warning LED red (632nm)
Mounting spinlock Nut; locking height 0,5mm – 20mm,
optional Studs and Bracket; locking height 2 – 15mm
Connection 8 pin MQS connector system

Viewline Pressure gauges
Technische Änderungen vorbehalten 12/09 Technical details subject to change 2 - 6
The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express
authorization is prohibited. Offenders will be held liable for the payment of damages. All right reserved in the event of the grant of a patent,
utility model or design.
Technical Data
Installation depth 50mm
Installation diameter 52mm
Deflection angle 90°
Operating Voltage 10 – 16 Volt
Accuracy < 3,6 angular degrees
Current consumption < 140 mA, including Warning LED
Operating temperature -30°C to +80°C; plated bezels (chrome) -30°C to +70°C
Storage temperature -40°C to +80°C for 48h; plated bezels (chrome) -40°C to +70°C
+90°C for 1h
Temperature shock Range -40°C to +85°C; plated bezels (chrome) -40°C to +70°C
Transformation time 10 seconds
Retention time 2h
Climatic test Range +25°C to +55°C
Rel. Humidity 95%
EMC in conformity with DIN_EN 61000-6-3
DIN_EN 61000-6-1
DIN_EN 61000-6-4
DIN_EN 61000-6-2
Standards EN 60945
GL, Category C, F (under preparation)
Vibration Sinus 2g; 10-500Hz; duration 16h
Noise 3g; 10-1000Hz, duration 8h
Mechanical shock continuous 25g; 6ms; 1Hz
Single shock 100g; 11ms
Free fall 1m; 3 times
Chemical resistance against- preservative agent
- preservative agent remover
- cold cleaner
- methylated spirit
- interior cleaner
- drinks containing caffeine and tannin
Nominal position NL 0 to NL 85 (DIN16257)
Protection class according to IEC 60529
Front: IP67 (in Nominal position)
Rear: IP52 (in Nominal position)
Reverse polarity protection yes, 5 minute
Over voltage protection yes, 24V for1 minute

Viewline Pressure gauges
available Gauges:
No. packed No. unpacked color Function Double
Scale Measurement range ISO Symbol Sensor type Voltage Double lens
A2C60100151 A2C53191377 black Turbo
Pressure no 2 bar EU 12V no
A2C60100152 A2C53191378 black Oil Pressure no 5 bar EU 12V no
A2C60100153 A2C53191379 black Oil Pressure no 10 bar EU 12V no
A2C60100154 A2C53191380 black Brake
Pressure no 10 bar EU 12V no
A2C60100155 A2C53191381 black Gear
Pressure no 25 bar EU 12V no
A2C60100156 A2C53191382 black Turbo
Pressure no 30 psi EU 12V no
A2C60100157 A2C53191383 black Oil Pressure no 80 psi EU 12V no
A2C60100158 A2C53191384 black Oil Pressure no 80 psi US 12V no
A2C60100159 A2C53191385 black Oil Pressure no 100 psi
Oil US 12V no
A2C60100160 A2C53191386 black Pressure no 100 psi EU 12V no
A2C60100161 A2C53191387 black Oil Pressure no 150 psi US 12V no
A2C60100162 A2C53191388 black Oil Pressure no 150 psi EU 12V no
A2C60100163 A2C53191389 black Pressure no 400 psi TRANS EU 12V no
A2C60100164 A2C53191390 black Gear
Pressure no 400 psi EU 12V no
A2C60100165 A2C53191391 black Oil Pressure no 5 kPa x100 EU 12V no
A2C60100166 A2C53191392 black Oil Pressure no 10 kPa x100 EU 12V no
A2C60100167 A2C53191393 black Gear
Pressure no 25 kPa x100 EU 12V no
A2C60100168 A2C53191394 black Turbo
Pressure yes 2 bar EU 12V no
A2C60100169 A2C53191395 black Oil Pressure yes 5 bar EU 12V no
A2C60100170 A2C53191397 black Oil Pressure yes 10 bar EU 12V no
A2C60100171 A2C53191400 black Gear
Pressure yes 25 bar EU 12V no
A2C60100172 A2C53191401 black Gear
Pressure yes 30 bar EU 12V no
A2C60100173 A2C53191402 black Oil Pressure yes 80 psi US 12V no
A2C60100174 A2C53191403 black Oil Pressure yes 80 psi EU 12V no
A2C60100175 A2C53191404 black Oil Pressure yes 100 psi US 12V no
A2C60100351 A2C53191406 black Oil Pressure yes 150 psi US 12V no
A2C60100352 A2C53191407 black Oil Pressure yes 150 psi EU 12V no
A2C60100353 A2C53191408 black Gear
Pressure yes 400 psi EU 12V no
Technische Änderungen vorbehalten 12/09 Technical details subject to change 3 - 6
The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express
authorization is prohibited. Offenders will be held liable for the payment of damages. All right reserved in the event of the grant of a patent,
utility model or design.

Viewline Pressure gauges
A2C60100354 A2C53191410 white Turbo
Pressure no 2 bar EU 12V no
A2C60100355 A2C53191411 white Oil Pressure no 5 bar EU 12V no
A2C60100356 A2C53191413 white Oil Pressure no 10 bar EU 12V no
A2C60100357 A2C53191415 white Brake
Pressure no 10 bar EU 12V no
A2C60100358 A2C53191416 white Gear
Pressure no 25 bar EU 12V no
A2C60100359 A2C53191417 white Oil Pressure no 30 psi OIL EU 12V no
A2C60100360 A2C53191418 white Turbo
Pressure no 80 psi EU 12V no
A2C60100361 A2C53191419 white Oil Pressure no 80 psi EU 12V no
A2C60100362 A2C53191420 white Oil Pressure no 100 psi OIL EU 12V no
A2C60100363 A2C53191422 white Pressure no 150 psi EU 12V no
A2C60100364 A2C53191423 white Gear
Pressure no 350 psi EU 12V no
A2C60100365 A2C53191425 white Turbo
Pressure yes 2 bar EU 12V no
A2C60100366 A2C53191426 white Oil Pressure yes 5 bar EU 12V no
A2C60100367 A2C53191427 white Oil Pressure yes 10 bar EU 12V no
A2C60100368 A2C53191428 white Oil Pressure yes 25 bar EU 12V no
A2C60100369 A2C53191430 white Oil Pressure yes 30 bar EU 12V no
A2C60100370 A2C53191431 white Oil Pressure yes 80 psi US 12V no
A2C60100371 A2C53191432 white Oil Pressure yes 80 psi EU 12V no
A2C60100372 A2C53191433 white Oil Pressure yes 100 psi US 12V no
A2C60100373 A2C53191434 white Oil Pressure yes 150 psi US 12V no
A2C60100374 A2C53191436 white Oil Pressure yes 150 psi EU 12V no
A2C60100375 A2C53191437 white Gear
Pressure yes 350 psi EU 12V no
A2C60100551 A2C53191438 white Gear
Pressure yes 400 psi EU 12V no
A2C60100552 A2C53191440 black Oil Pressure yes 150 psi Engine Oil EU 12V no
A2C60100553 A2C53191441 black Oil Pressure yes 80 psi Engine Oil EU 12V no
A2C60100554 A2C53191443 black Oil Pressure yes 80 psi Engine Oil US 12V no
A2C60100555 A2C53191444 black Oil Pressure yes 100 psi Engine Oil EU 12V no
A2C60100556 A2C53191445 black Air Pressure yes 150 psi Air EU 12V no
A2C60100557 A2C53191446 black Brake
Pressure yes 150 psi EU 12V no
Technische Änderungen vorbehalten 12/09 Technical details subject to change 4 - 6
The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express
authorization is prohibited. Offenders will be held liable for the payment of damages. All right reserved in the event of the grant of a patent,
utility model or design.

Viewline Pressure gauges
A2C60100558 A2C53191447 black Gear
Pressure yes 350 psi EU 12V no
A2C60100559 A2C53191728 black Turbo
Pressure yes 2 bar EU 12V yes
A2C60100560 A2C53191729 black Oil Pressure yes 5 bar EU 12V yes
A2C60100561 A2C53191730 black Oil Pressure yes 10 bar EU 12V yes
A2C60100562 A2C53191731 black Gear
Pressure yes 25 bar EU 12V yes
A2C60100562 A2C53191732 black Gear
Pressure yes 30 bar EU 12V yes
A2C60100564 A2C53191733 black Oil Pressure yes 80 psi EU 12V yes
A2C60100565 A2C53191734 black Oil Pressure yes 100 psi US 12V yes
A2C60100566 A2C53191735 black Oil Pressure yes 150 psi US 12V yes
A2C60100567 A2C53191736 black Pressure yes 150 psi EU 12V yes
A2C60100568 A2C53191737 black Gear
Pressure yes 400 psi EU 12V yes
A2C60100569 A2C53191738 white Turbo
Pressure no 2 bar EU 12V yes
A2C60100570 A2C53191739 white Turbo
Pressure yes 2 bar EU 12V yes
A2C60100571 A2C53191740 white Oil Pressure yes 5 bar EU 12V yes
A2C60100572 A2C53191741 white Oil Pressure yes 10 bar EU 12V yes
A2C60100573 A2C53191742 white Oil Pressure yes 25 bar EU 12V yes
A2C60100574 A2C53191743 white Oil Pressure yes 30 bar EU 12V yes
A2C60100575 A2C53191744 white Oil Pressure yes 80 psi US 12V yes
A2C60100751 A2C53191745 white Oil Pressure yes 80 psi EU 12V yes
A2C60100752 A2C53191746 white Oil Pressure yes 100 psi US 12V yes
A2C60100753 A2C53191747 white Oil Pressure yes 150 psi US 12V yes
A2C60100754 A2C53191748 white Oil Pressure yes 150 psi EU 12V yes
A2C60100755 A2C53191749 white Gear
Pressure yes 350 psi EU 12V yes
A2C60100756 A2C53191750 white Gear
Pressure yes 400 psi EU 12V yes
Technische Änderungen vorbehalten 12/09 Technical details subject to change 5 - 6
The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express
authorization is prohibited. Offenders will be held liable for the payment of damages. All right reserved in the event of the grant of a patent,
utility model or design.

Viewline Pressure gauges
Technische Änderungen vorbehalten 12/09 Technical details subject to change 6 - 6
The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express
authorization is prohibited. Offenders will be held liable for the payment of damages. All right reserved in the event of the grant of a patent,
utility model or design.
Accessories:
A2C59510221 VL Dropping resistor 24V without connector
A2C59510886 VL Make point switch 12V
A2C59510854 VL Mounting Kit (studs and brackets) 52, 85, 110mm
A2C59510864 VL Mounting bracket flush mount
A2C53215640 VL Sealing Ring 52mm flush mount
A2C59510847 Bush housing, 8-pin
A2C53324664 Protective connector cap, 8-pin
Tyco No. 539635-1 Hand pliers
Tyco No. 539682-2 Tool for hand pliers.
Tyco No. 1355718-1 Single contacts 0.14 – 0.22 mm² tin plated
Tyco No. 963729-1 Single contacts 0.5 – 0.75 mm² tin plated
Tyco No. 1355717-1 Strip 0.14 – 0.22 mm² tin plated
Tyco No. 928999-1 Strip 0.25 – 0.5 mm² tin plated
Tyco No. 963715-1 Strip 0.5 – 0.75 mm² tin plated
Bezels 52mm
black black nickel* brush aluminum* chrome gold* white
flat A2C53186040 A2C53293468 A2C53293480 A2C53186023 A2C53293482 A2C53186022
round A2C53186027 A2C53293494 A2C53293495 A2C53186029 A2C53293496 A2C53186028
triangle A2C53186024 A2C53293545 A2C53293546 A2C53186026 A2C53293548 A2C53186025
* Only on request, no part off standard portfolio
