Vega VEGAPULS 6X User manual

Quick setup guide
Radar sensor for continuous level
measurement of liquids and bulk solids
VEGAPULS 6X
Two-wire 4 … 20 mA/HART
plus PLICSMOBILE 81
Document ID: 66376

2
Contents
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
Contents
1 For your safety ......................................................................................................................... 3
1.1 Authorised personnel ....................................................................................................... 3
1.2 Appropriate use................................................................................................................ 3
1.3 Warning about incorrect use............................................................................................. 3
1.4 General safety instructions............................................................................................... 3
1.5 Modes for worldwide use.................................................................................................. 4
1.6 Installation and operation in the USA and Canada ........................................................... 4
2 Product description ................................................................................................................. 5
2.1 Conguration.................................................................................................................... 5
3 Mounting................................................................................................................................... 6
3.1 Mounting instructions ....................................................................................................... 6
4 Connecting to power supply................................................................................................... 8
4.1 Connection steps voltage supply...................................................................................... 8
4.2 Wiring plan double chamber housing with radio module PLICSMOBILE 81..................... 9
5 Set up with the display and adjustment module ................................................................ 10
5.1 Insert display and adjustment module............................................................................ 10
5.2 Parameterization ............................................................................................................ 10
6 Setup with smartphone/tablet (Bluetooth).......................................................................... 16
6.1 Preparations................................................................................................................... 16
6.2 Connecting..................................................................................................................... 16
6.3 Parameterization ............................................................................................................ 17
7 Menu overview ....................................................................................................................... 19
7.1 Display and adjustment module ..................................................................................... 19
8 Supplement ............................................................................................................................ 22
8.1 Technical data ................................................................................................................ 22
Information:
This quick setup guide enables quick setup and commissioning of
your instrument.
Youcanndsupplementaryinformationinthecorresponding,more
detailed Operating Instructions Manual as well as the Safety Manual
thatcomeswithinstrumentswithSILqualication.Thesemanualsare
available on our homepage.
Operating instructions VEGAPULS 6X - Two-wire 4 … 20 mA/
HARTplus PLICSMOBILE 81: Document-ID 66368
Editing status of the quick setup guide: 2022-01-11

3
1 For your safety
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
1 For your safety
1.1 Authorised personnel
All operations described in this documentation must be carried out
onlybytrained,qualiedpersonnelauthorisedbytheplantoperator.
Duringworkonandwiththedevice,therequiredpersonalprotective
equipment must always be worn.
1.2 Appropriate use
VEGAPULS 6X is a sensor for continuous level measurement.
Youcannddetailedinformationabouttheareaofapplicationin
chapter " Product description".
Operational reliability is ensured only if the instrument is properly
usedaccordingtothespecicationsintheoperatinginstructions
manual as well as possible supplementary instructions.
1.3 Warning about incorrect use
Inappropriate or incorrect use of this product can give rise to applica-
tion-specichazards,e.g.vesseloverllthroughincorrectmounting
or adjustment. Damage to property and persons or environmental
contaminationcanresult.Also,theprotectivecharacteristicsofthe
instrument can be impaired.
1.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and directives. The instrument must only be operated in a
technicallyawlessandreliablecondition.Theoperatorisresponsi-
ble for the trouble-free operation of the instrument. When measuring
aggressive or corrosive media that can cause a dangerous situation
iftheinstrumentmalfunctions,theoperatorhastoimplementsuitable
measures to make sure the instrument is functioning properly.
Thesafetyinstructionsinthisoperatinginstructionsmanual,thena-
tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
Forsafetyandwarrantyreasons,anyinvasiveworkonthedevice
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
traryconversionsormodicationsareexplicitlyforbidden.Forsafety
reasons,onlytheaccessoryspeciedbythemanufacturermustbe
used.
Toavoidanydanger,thesafetyapprovalmarkingsandsafetytipson
the device must also be observed.
The low transmitting power of the radar sensor is far below the inter-
nationallyapprovedlimits.Nohealthimpairmentsaretobeexpected
with intended use.The band range of the measuring frequency can
be found in chapter " Technical data".

4
1 For your safety
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
1.5 Modes for worldwide use
Countryspecicsettingsfortheradarsignalsaredeterminedviathe
mode.The operating mode must be set in the operating menu via the
respective operating tool at the beginning of the setup.
Caution:
Operating the device without selecting the appropriate country group
constitutes a violation of the regulations of the radio approvals of the
respective country.
1.6 Installation and operation in the USA and
Canada
This information is only valid for USA and Canada. Hence the follow-
ingtextisonlyavailableintheEnglishlanguage.
Installations in the US shall comply with the relevant requirements of
the National Electrical Code (ANSI/NFPA 70).
Installations in Canada shall comply with the relevant requirements of
the Canadian Electrical Code
A Class 2 power supply unit has to be used for the installation in the
USA and Canada.

5
2 Product description
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
2 Product description
2.1 Conguration
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument:
5
4
3
2
1
Fig. 1: Layout of the type label (example)
1 Device type, order number
2 Field for approvals, product code
3 Technical data
4 QR-code for VEGA Tools app
5 Reminder to observe the instrument documentation
The type label contains also the serial number of the instrument. With
ityoucanndthefollowinginstrumentdataonourhomepage:
• Product information
• Deviceconguration
• Related documentation
• Further documents
Move to " www.vega.com"andenterinthesearcheldtheserial
number of your instrument.
Alternatively,youcanaccessthedataviayoursmartphone:
• Download the VEGA Tools app from the " Apple App Store" or the
" Google Play Store"
• Scan the QR-code on the type label of the device or
• Enter the serial number manually in the app
Type label
Serial number - Instru-
ment search

6
3 Mounting
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
3 Mounting
3.1 Mounting instructions
Radar sensors for level measurement emit electromagnetic waves.
The polarization is the direction of the electrical component of these
waves.
Thepolarizationdirectionismarkedbyanoseonthehousing,see
following drawing:
1
Fig. 2: Position of the polarisation
1 Nose for marking the direction of polarisation
Turningthehousingchangesthepolarisationandthustheeectof
false echoes on the measured value.
Note:
Therefore,payattentiontothepositionofthepolarisationwhen
mountingorwhenmakingsubsequentchanges.Fixthehousingto
prevent a change in the metrological properties (see chapter " Hous-
ing features").
Whenmountingthedevice,keepadistanceofatleast200mm
(7.874 in) from the vessel wall. If the device is installed in the center
ofdishedorroundvesseltops,multipleechoescanarise.However,
these can be suppressed by an appropriate adjustment (see chapter
" Setup").
Note:
Ifyoucannotmaintainthisdistance,youshouldcarryoutafalse
signal suppression during setup. This applies especially if buildup on
thevesselwallistobeexpected.1)
> 200 mm
(7.87
")
Fig. 3: Mounting of the radar sensor on round vessel tops
Polarisation
Mounting position -
liquids
1) Inthiscase,itisrecommendedtorepeatthefalsesignalsuppressionata
latertimewithexistingbuildup.

7
3 Mounting
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
In vessels with conical bottom it can be advantageous to mount the
deviceinthecentreofthevessel,asmeasurementisthenpossible
down to the bottom.

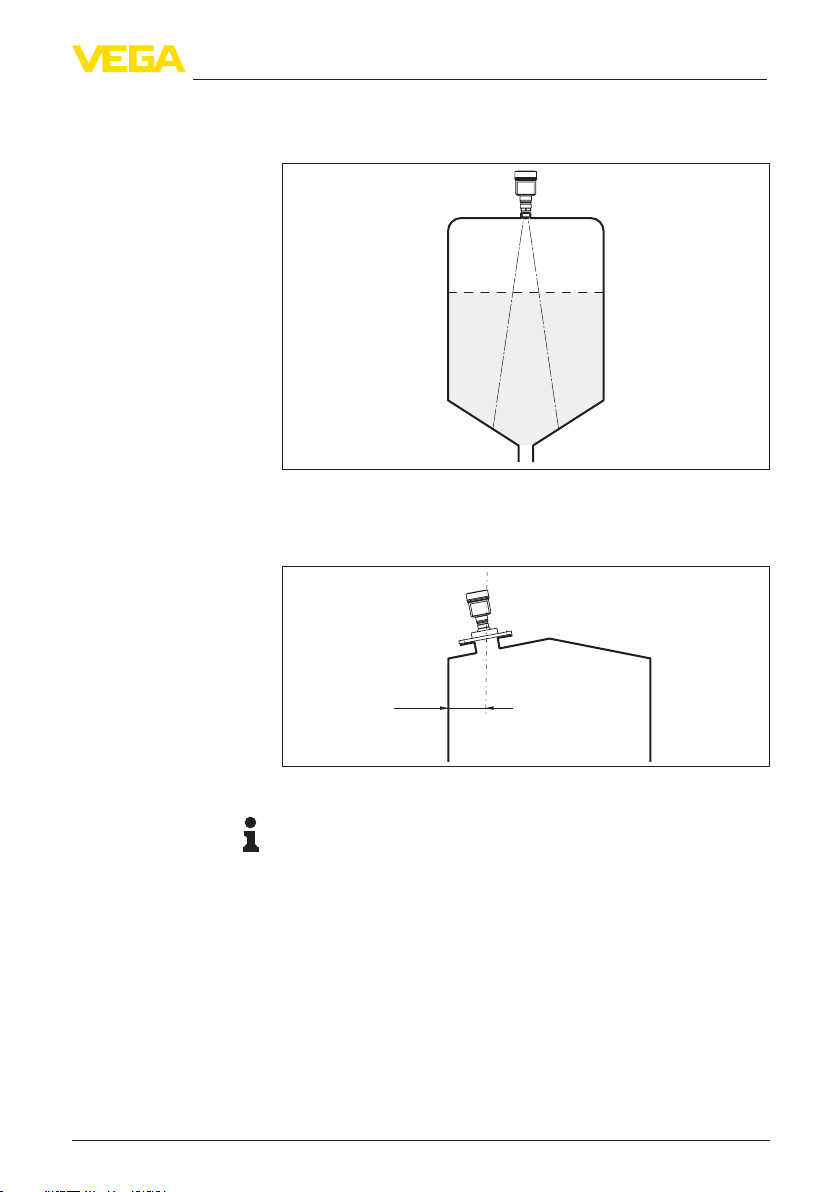

Fig. 4: Mounting of the radar sensor on vessels with conical bottom
Mount the instrument at least 200 mm (7.874 in) away from the vessel
wall.
200 mm
(7.87
")
Fig. 5: Mounting the radar sensor on the vessel top
Note:
Ifyoucannotmaintainthisdistance,youshouldcarryoutafalse
signal suppression during setup. This applies especially if buildup on
thevesselwallistobeexpected.2)
Mounting position - bulk
solids
2) Inthiscase,itisrecommendedtorepeatthefalsesignalsuppressionata
latertimewithexistingbuildup.

8
4 Connecting to power supply
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
4 Connecting to power supply
4.1 Connection steps voltage supply
The connection of the voltage supply is made via spring-loaded ter-
minals. A small screwdriver is required to open the terminals. Solid as
wellasexiblecoreswithoutcableendsleevescanbeused.
Proceed as follows:
1. Unscrew the housing lid
2. Loosen compression nut of the cable gland and remove blind
plug
3. Removeapprox.10cm(4in)ofthecablemantle,stripapprox.
1 cm (0.4 in) of insulation from the ends of the individual wires
4. Insert the cable into the cable gland through the cable entry

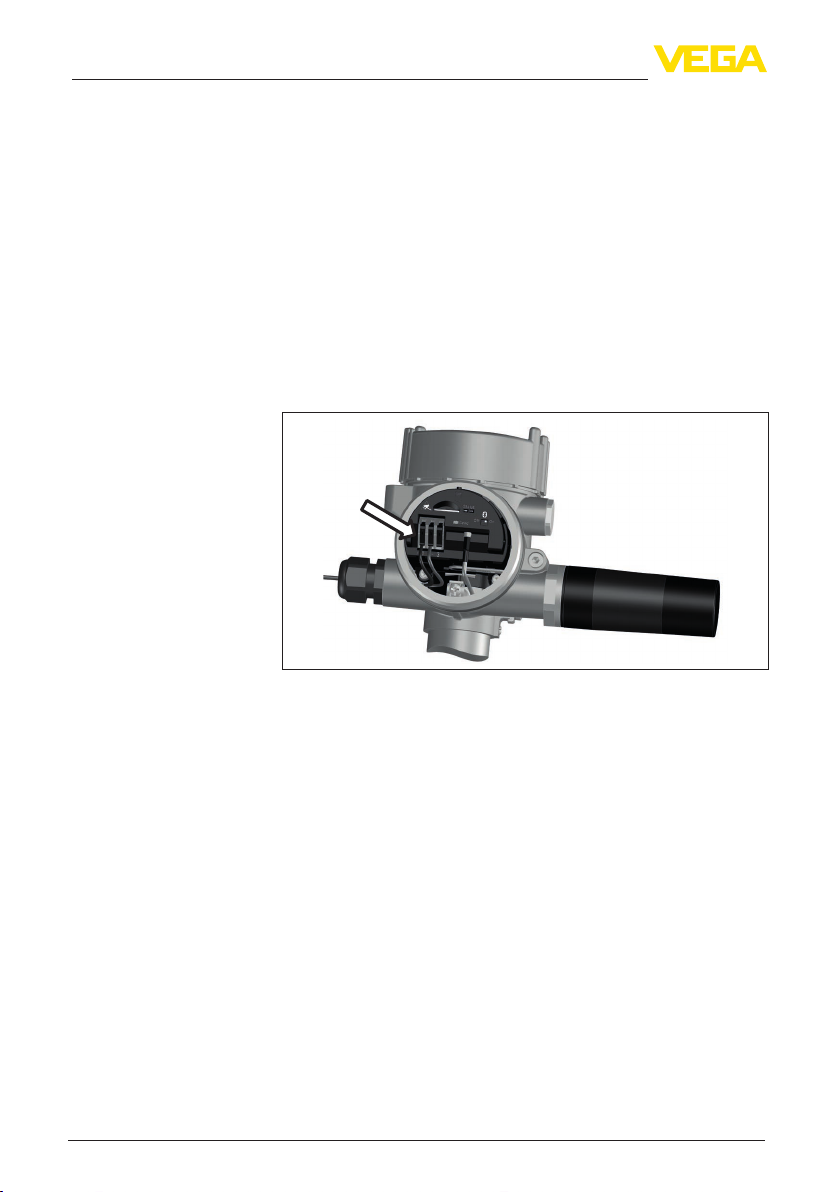

Fig. 6: Connection steps 4 and 5
5. Lift the opening levers of the terminals with a screwdriver
6. Insert the wire ends into the open terminals according to the wir-
ing plan
7. Pressdowntheopeningleversoftheterminals,youwillhearthe
terminal spring closing
8. Check the hold of the wires in the terminals by lightly pulling on
them
9. Connecttheshieldingtotheinternalgroundterminal,connectthe
externalgroundterminaltopotentialequalisation
10. Tighten the compression nut of the cable entry gland. The seal
ring must completely encircle the cable
11. Screw the housing lid back on
Theelectricalconnectionisnished.
Connection technology
Connection procedure

9
4 Connecting to power supply
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
4.2 Wiring plan double chamber housing with
radio module PLICSMOBILE 81
4...20mA Display
12
+ ( ) (-)
2
1

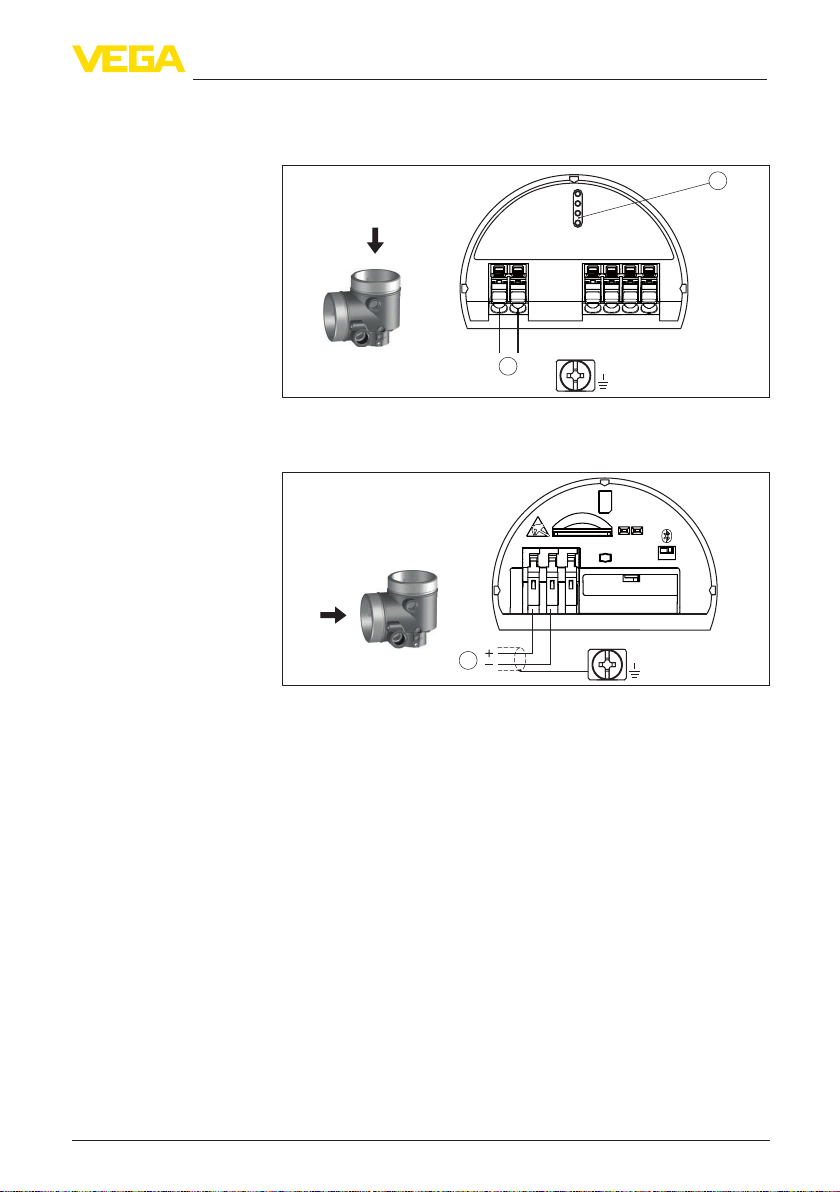

Fig. 7: Electronics compartment - double chamber housing
1 Internal connection to the connection compartment
1
SIM
Status
Send Off On
123
+
-
Fig. 8: Connection compartment - Radio module PLICSMOBILE 81
1 Voltage supply
Youcannddetailedinformationforconnectionintheoperating
instructions " PLICSMOBILE".
Electronics compartment
Connection compart-
ment - Radio module
PLICSMOBILE 81

10
5 Set up with the display and adjustment module
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
5 Set up with the display and adjustment
module
5.1 Insert display and adjustment module
The display and adjustment module can be inserted into the sensor
andremovedagainatanytime.Youcanchooseanyoneoffourdier-
ent positions - each displaced by 90°. It is not necessary to interrupt
the power supply.
Proceed as follows:
1. Unscrew the housing lid
2. Place the display and adjustment module on the electronics in the
desired position and turn it to the right until it snaps in.
3. Screw housing lid with inspection window tightly back on
Disassembly is carried out in reverse order.
Thedisplayandadjustmentmoduleispoweredbythesensor,anad-
ditional connection is not necessary.
Fig. 9: Installing the display and adjustment module in the double chamber
housing
Note:
Ifyouintendtoretrottheinstrumentwithadisplayandadjustment
moduleforcontinuousmeasuredvalueindication,ahigherlidwithan
inspection glass is required.
5.2 Parameterization
5.2.1 Lock/Unlock adjustment
In this menu item you safeguard the sensor parameters against unau-
thorizedorunintentionalmodications.
Whentheadjustmentisblocked,onlythefollowingadjustmentfunc-
tions are possible without entering the device code:
Lock/Unlock adjustment

11
5 Set up with the display and adjustment module
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
• Select menu items and show data
• Read data from the sensor into the display and adjustment module
Releasing the sensor adjustment is also possible in any menu item by
entering the PIN.
Caution:
Whentheadjustmentisblocked,theadjustmentviaPACTware/DTM
and other systems is also blocked.

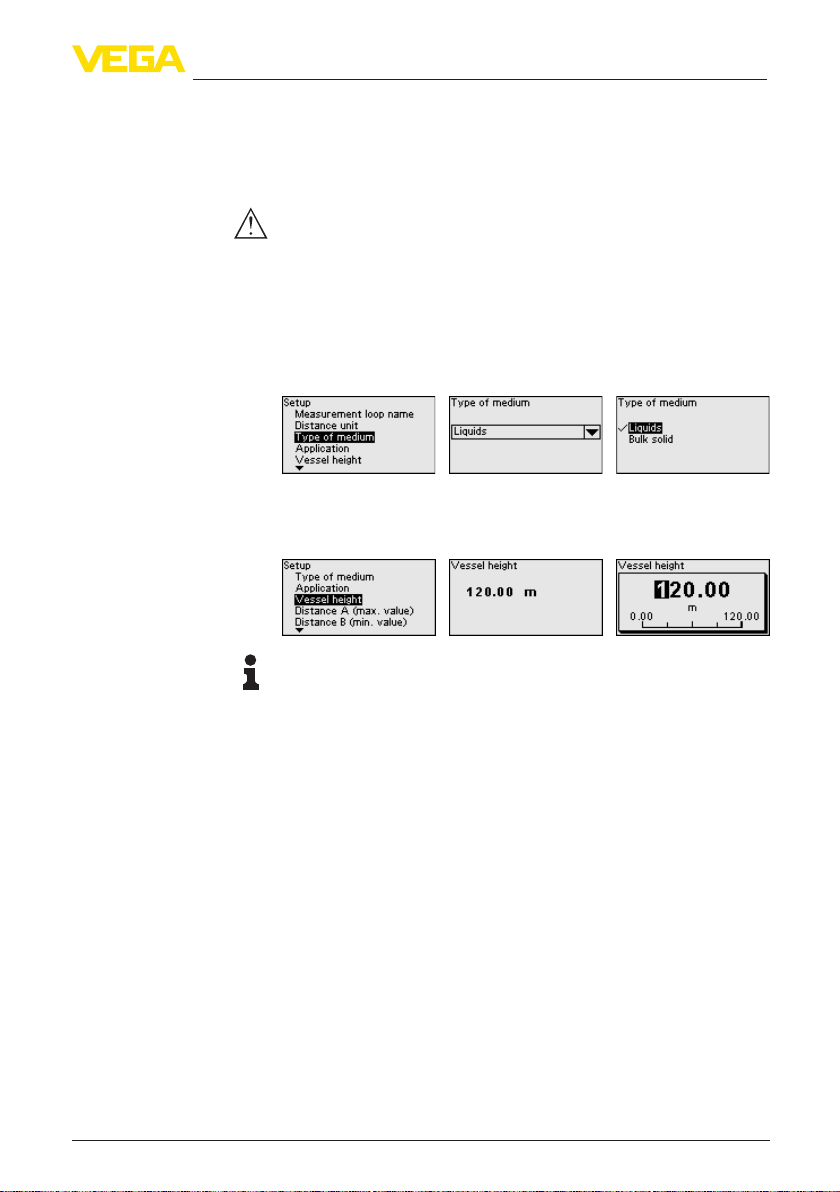

5.2.2 Setup
Thismenuitemallowsyoutoadaptthesensortothedierentmeas-
uring conditions of the media " Liquid" or " Bulk solid".
The corresponding application is selected in the following menu item
" Application".
Through this selection the operating range of the sensor is adapted
to the vessel height. Hence the measurement reliability is increased
considerablyunderdierentbasicconditions.
Note:
Regardlessofthis,themin.adjustmentmustalsobecarriedout(see
following section).
Sincetheradarsensorisadistancemeasuringinstrument,itisthe
distance from the sensor to the medium surface that is measured.To
indicatetheactuallevel,themeasureddistancemustbeassignedto
acertainheightpercentage(min./max.adjustment).
Duringadjustment,entertherespectivemeasuringdistancewhenthe
vesselisfullandempty(seethefollowingexamples):
Type of medium
Vessel height
Adjustment

12
5 Set up with the display and adjustment module
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
Liquids:
100%
0%
0,5 m
(19.68
")
5 m
(196.9
")
2
1
3

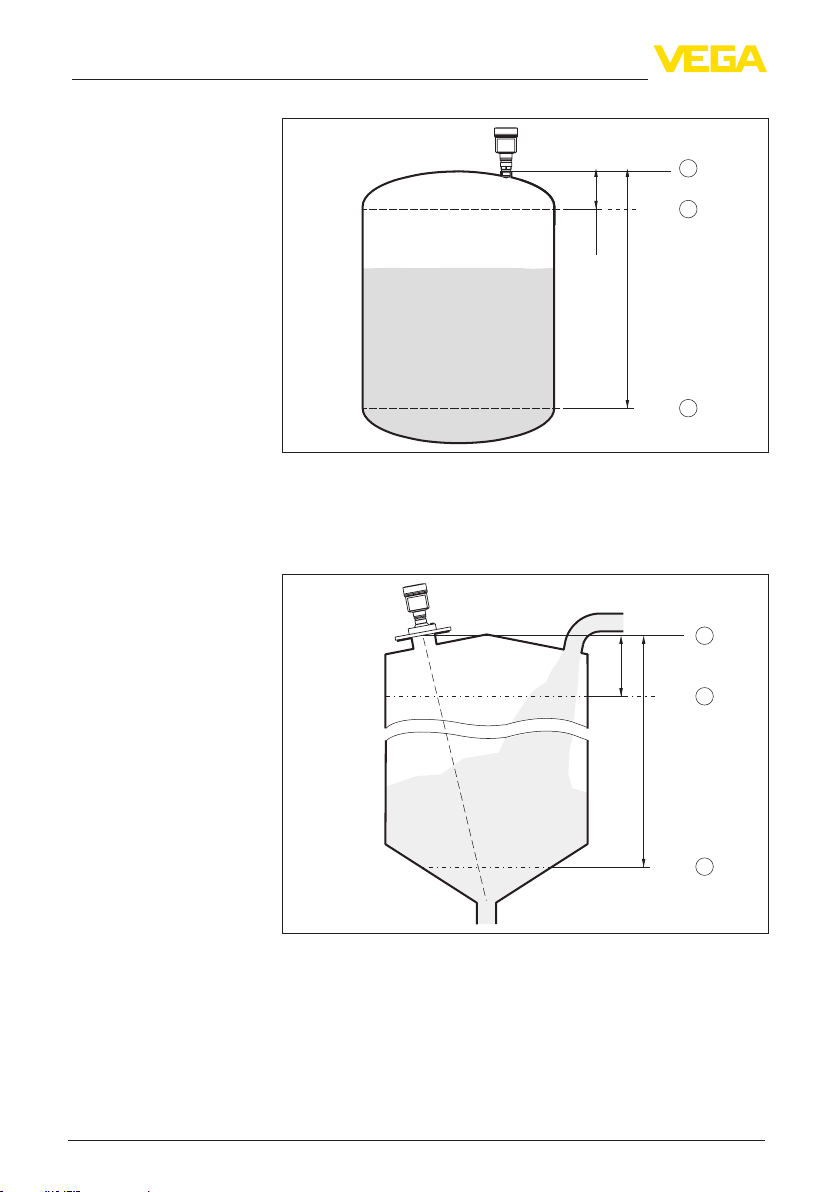

Fig. 10: Parameterisation example min./max. adjustment - liquids
1 Min. level = max. meas. distance (distance B)
2 Max. level = min. meas. distance (distance A)
3 Reference plane
Bulk solids:
2
1
3
100%
0%
1 m
(39.37
")
35 m
(1378
")
Fig. 11: Parameterisation example min./max. adjustment - bulk solids
1 Min. level = max. meas. distance (distance B)
2 Max. level = min. meas. distance (distance A)
3 Reference plane
Ifthesevaluesarenotknown,andadjustmentcanforexamplebe
carried out with the distances of 10 % and 90 %.
Thestartingpointforthesedistancespecicationsisalwaystherefer-
enceplane,i.e.thesealingsurfaceofthethreadorange.Information

13
5 Set up with the display and adjustment module
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
on the reference plane can be found in chapter " Technical data". The
actualllingheightisthencalculatedonthebasisoftheseentries.
Theactualproductlevelduringthisadjustmentisnotimportant,
becausethemin./max.adjustmentisalwayscarriedoutwithout
changing the product level.These settings can be made ahead of
time without the instrument having to be installed.

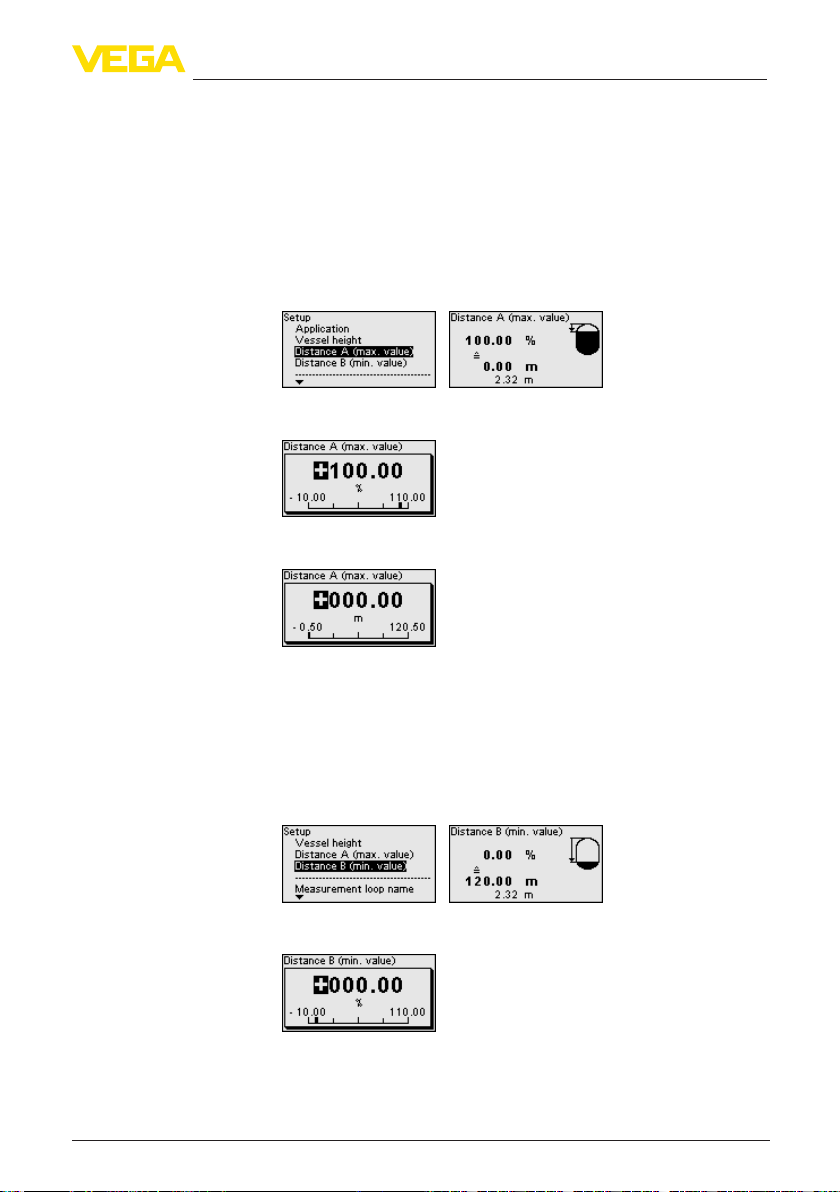

Proceed as follows:
1. Select with [->]themenuitemDistanceA(max.value)andcon-
rmwith[OK].
2. Edit the percentage value with [OK] and set the cursor to the
requested position with [->].
3. Set the requested percentage value with [+] and save with [OK].
The cursor jumps now to the distance value.
4. Enter the corresponding distance value in meters for the full ves-
sel.
5. Save settings with [OK] and move with [ESC] and [->] to Min.
adjustment.
Proceed as follows:
1. Select with [->] the menu item " Distance B (min. value)" and
conrmwith[OK].
2. Edit the percentage value with [OK] and set the cursor to the
requested position with [->].
3. Set the requested percentage value with [+] and save with [OK].
The cursor jumps now to the distance value.
Distance A (max. value)
Distance B (min. value)

14
5 Set up with the display and adjustment module
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
4. Enter the suitable distance value in m for empty vessel (e.g. dis-
tance from the sensor to the vessel bottom) corresponding to the
percentage value.
5.2.3 Extended settings
This menu item contains operational settings of the sensor.
Mode:
Countryspecicsettingsfortheradarsignalsaredeterminedviathe
operating mode.
• Mode1:EU,Albania,Andorra,Azerbaijan,Australia,Belarus,Bos-
niaandHerzegovina,Canada,Liechtenstein,Moldavia,Monaco,
Montenegro,NewZealand,NorthernMacedonia,Norway,San
Marino,SaudiArabia,Serbia,Switzerland,Turkey,Ukraine,United
Kingdom,USA
• Modeofoperation2:Brazil,Japan,SouthKorea,Taiwan,Thailand
• Modeofoperation3:India,Malaysia,SouthAfrica
• Modeofoperation4:Russia,Kazakhstan
Note:
Dependingontheoperatingmode,metrologicalpropertiesofthe
device can change (see chapter " Technical data, input variable").
Voltage supply:
The power supply determines whether the sensor is in operation
permanently or only in accordance with certain requirements.
5.2.4 Reset
Duringareset,parametersettingsmadebytheuserareresettothe
valuesofthefactorysettings.Youcannedthevaluesinchapter"
Menu overview".
Note:
ThelanguageandBluetoothaccesscodearenotreset,acurrently
running simulation however is aborted.
Mode
Reset

15
5 Set up with the display and adjustment module
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
The following reset functions are available:
Reset - Factory settings:
Restoresthefactoryparameterssettingsaswellastheorder-specic
settings at the time of delivery. A user-set measuring range is reset to
therecommendedmeasuringrange,seechapter"Technical data".
Acreatedfalsesignalsuppression,freelyprogrammedlineariza-
tion curve as well as measured value and echo curve memories are
cleared.The event and parameter changes memories are retained.
Reset - Restart:
Isusedtorestartthedevicewithoutswitchingothesupplyvoltage.
Note:
Forthedurationofthereset,thedevicechangesitsbehaviourfrom
thenormalmeasuringoperation.Therefore,observefordownstream
systems:
• The current output outputs the set false signal
• The Asset-Management function outputs the message " Mainte-
nance" aus

16
6 Setup with smartphone/tablet (Bluetooth)
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
6 Setup with smartphone/tablet (Bluetooth)
6.1 Preparations
Make sure that your smartphone/tablet meets the following system
requirements:
• Operating system: iOS 8 or newer
• Operating system: Android 5.1 or newer
• Bluetooth 4.0 LE or newer
Download the VEGA Tools app from the " Apple App Store","Goog-
le Play Store" or " Baidu Store" to your smartphone or tablet.
Make sure that the Bluetooth function of the display and adjustment
moduleisactivated.Forthis,theswitchonthebottomsidemustbe
set to " On".
Factory setting is " On".
1
On
O

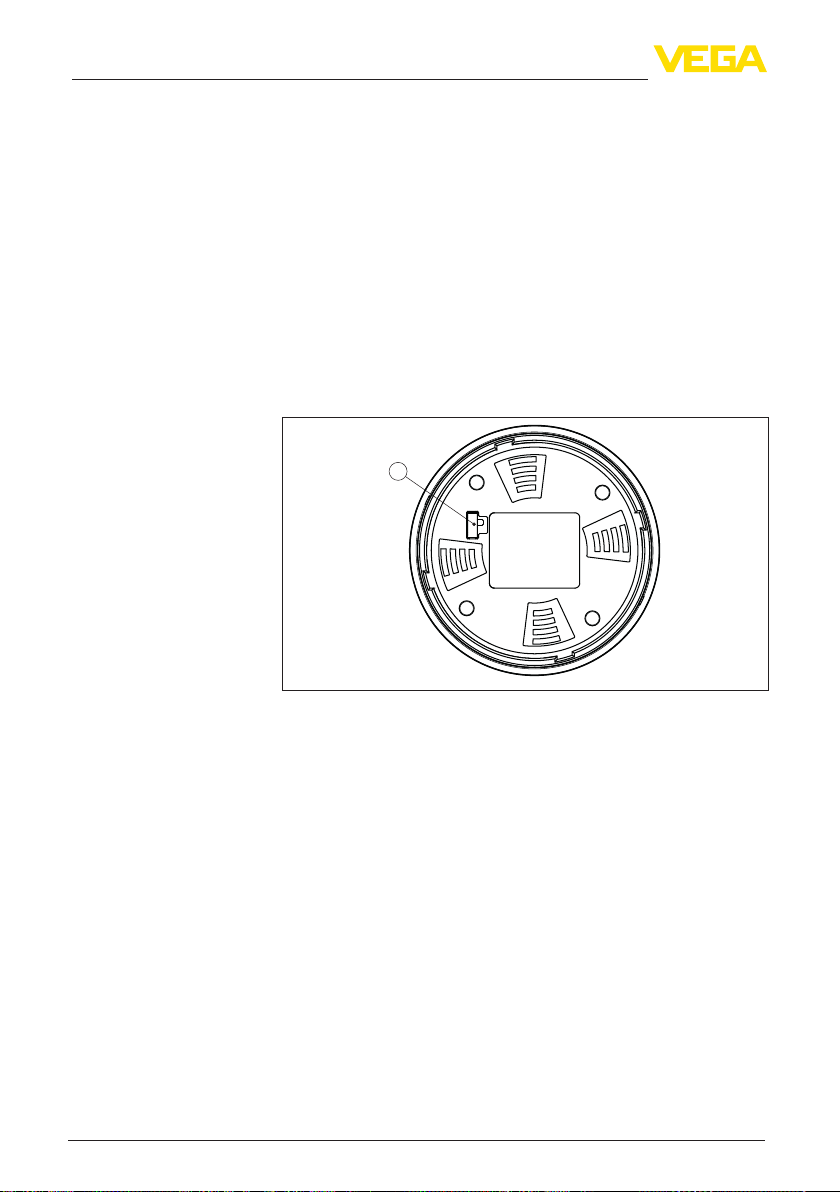

Fig. 12: Activate Bluetooth
1 Switch
On = Bluetooth active
O = Bluetooth not active
6.2 Connecting
Start the adjustment app and select the function " Setup". The smart-
phone/tablet searches automatically for Bluetooth-capable instru-
ments in the area.
The message " Connecting …" is displayed.
The devices found are listed and the search is automatically contin-
ued.
Select the requested instrument in the device list.
Whenestablishingtheconnectionforthersttime,theoperatingtool
andthesensormustauthenticateeachother.Aftertherstcorrect
authentication,eachsubsequentconnectionismadewithoutanew
authentication query.
System requirements
Connecting
Authenticate

17
6 Setup with smartphone/tablet (Bluetooth)
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
Forauthentication,enterthe6-digitBluetoothaccesscodeinthenext
menuwindow.Youcanndthecodeontheinformationsheet"Pins
and Codes" in the device packaging.

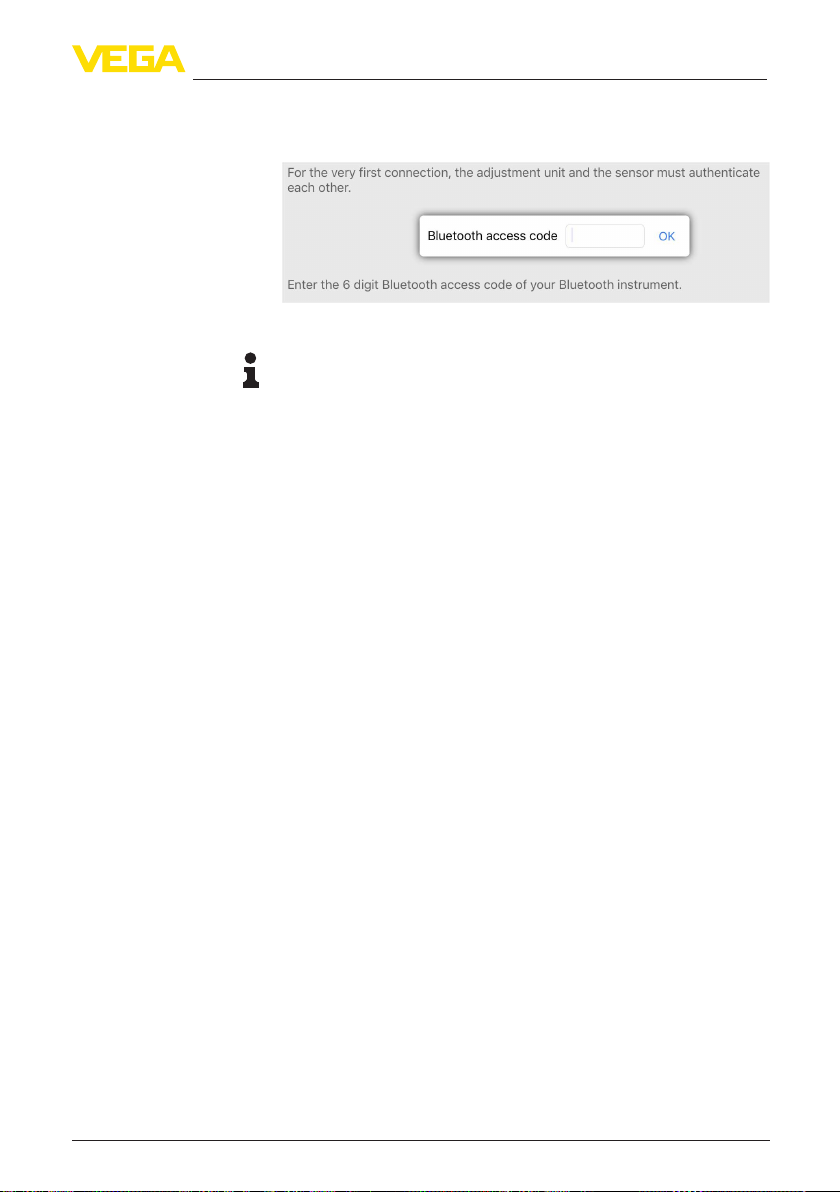

Fig. 13: Enter Bluetooth access code
Note:
Ifanincorrectcodeisentered,thecodecanonlybeenteredagain
after a delay time.This time gets longer after each incorrect entry.
The message " Waiting for authentication" is displayed on the smart-
phone/tablet.
Afterconnection,thesensoradjustmentmenuisdisplayedonthe
respective adjustment tool.
IftheBluetoothconnectionisinterrupted,e.g.duetoatoolarge
distancebetweenthetwodevices,thisisdisplayedontheadjustment
tool. The message disappears when the connection is restored.
Parameter adjustment of the device is only possible if the parameter
protectionisdeactivated.Whendelivered,parameterprotectionis
deactivated by default and can be activated at any time.
Itisrecommendedtoenterapersonal6-digitdevicecode.Todothis,
go to menu " Extended functions","Access protection",menuitem"
Protection of the parameter adjustment".
6.3 Parameterization
Thesensoradjustmentmenuisdividedintotwoareas,whichare
arrangednexttoeachotheroronebelowtheother,dependingonthe
adjustment tool.
• Navigation section
• Menu item display
The selected menu item can be recognized by the colour change.
Enter Bluetooth access
code
Connected
Change device code
Enter parameters

18
6 Setup with smartphone/tablet (Bluetooth)
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
Fig. 14: Example of an app view - Setup measured values
Entertherequestedparametersandconrmviathekeyboardorthe
editingeld.Thesettingsarethenactiveinthesensor.
Close the app to terminate connection.

19
7 Menu overview
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
7 Menu overview
7.1 Display and adjustment module
Setup
Menu item Parameter Selection Default setting
Measurement loop
name
Sensor
Distance unit Distance unit mm,m,in,ft m
Type of medium Type of medium Liquid Liquid 3)
Bulk solid Bulk solid 4)
Application Application - liquid Storagetank,agitatortank,dosingtank,
standpipe,tank/collectionbasin,plastic
tank(measurementthroughtanktop),mo-
bileplastictank(IBC),levelmeasurementin
waters,owmeasurementume/overow,
pumpstation/pumpshaft,combinedsewer
overow,demonstration
Storage tank 5)
Application - bulk
solid
Silo,bunker,crusher,heap,demonstration Silo 6)
Tube inner diameter Tube inner diameter -
Vessel height Recommended
meas.range,see
chapter " Technical
data"
DistanceA(max.
value)
Max.value Max.adjustment
100 % corresponds
to0,000m
Distance B (min.
value)
Min. value Min. adjustment
0 % corresponds to
120,000m
Extended settings
Menu item Parameter Selection Default setting
Temperature unit °C,°F,K °C
Damping Integration time 0 … 999 s 1 s
3) Plastichornantenna,threadwithintegratedantennasystem,angewith
plastic plating
4) Flange with lens antenna
5) Plastichornantenna,threadwithintegratedantennasystem,angewith
plastic plating
6) Flange with lens antenna

20
7 Menu overview
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66376-EN-220111
Menu item Parameter Selection Default setting
Current output Output value Percent,linearizedpercent,llingheight,
distance,scaled,measurementreliability,
electronicstemperature,meas.rate,sup-
ply voltage
Percent
Initial value charac-
teristics
Initial value - characteristics (4 mA) 4 mA correspond to
Final value charac-
teristics
End value - characteristics (20 mA) 20 mA correspond to
Output character-
istics
0 … 100 % correspond to 4 … 20 mA 0 … 100 % corre-
spond to 4 … 20 mA
0 … 100 % correspond to 20 … 4 mA
Current range 4 … 20 mA 4 … 20 mA
3.8 … 20.5 mA
Reaction when mal-
functions occur
≤3.6mA,≥21mA,lastvalidmeasured
value
≤3.6mA
Linearisation Linearization type -
liquid
Linear,cylindricaltank,sphericaltank,
Venturi,trapezoidalweir,rectangularweir,
Palmer-Bowlusume,V-Notch,triangu-
lar overfall
Linear
Linearization type -
bulk solids
Linear,conicalbottom,pyramidbottom,
sloping bottom
Linear
Intermediate height
"h"
Scaling Scaling size Scalingsize(dimensionless,mass,volume,
height,pressure,ow,others)
Dimensionless
Scaling unit (unit selection depending on
scalingsize,user-dened)
-
Scaling format #,#.#,#.##,#.###,#.#### #
Scaling Scaling 100 % correspond to
0 % correspond to
Indication Menu language German,English,French,Spanish,Portu-
guese,Italian,Dutch,Russian,Chinese,
Japanese,Turkish,Polish
Order-specic
Presentation Onemeasuredvalue,measuredvalueand
bargraph,twomeasuredvalues
One measured value
Displayedvalues1,2 Percent,linearizedpercent,llingheight,
distance,scaled,measurementreliability,
electronicstemperature,currentoutput,cur-
rent output 2
Percent
Backlight On,O On
False signal sup-
pression
False signal sup-
pression
Createnew,expand,deleteall -
Date/Time Date/Time Date Actual date
Format:24h,12h 24 h
Time Actual time
