Ventus W820 User manual

243
1
AT&T11:57 AM
TEMPERATURE
BACK
10 ˚C
1AM 2AM 3AM 4AM 5AM 6AM 7AM 8AM
8 ˚C
9 ˚C
25 ˚C
13 ˚C
10 ˚C 8 ˚C
12 ˚C
TEMPERATURE CHART FOR THE LAST 48 HOURS
CURRENT TEMPERATURE
MIN
˚C
20
˚C
7MAX ˚C
25 AVG ˚C
25 DEW
POINT
˚C

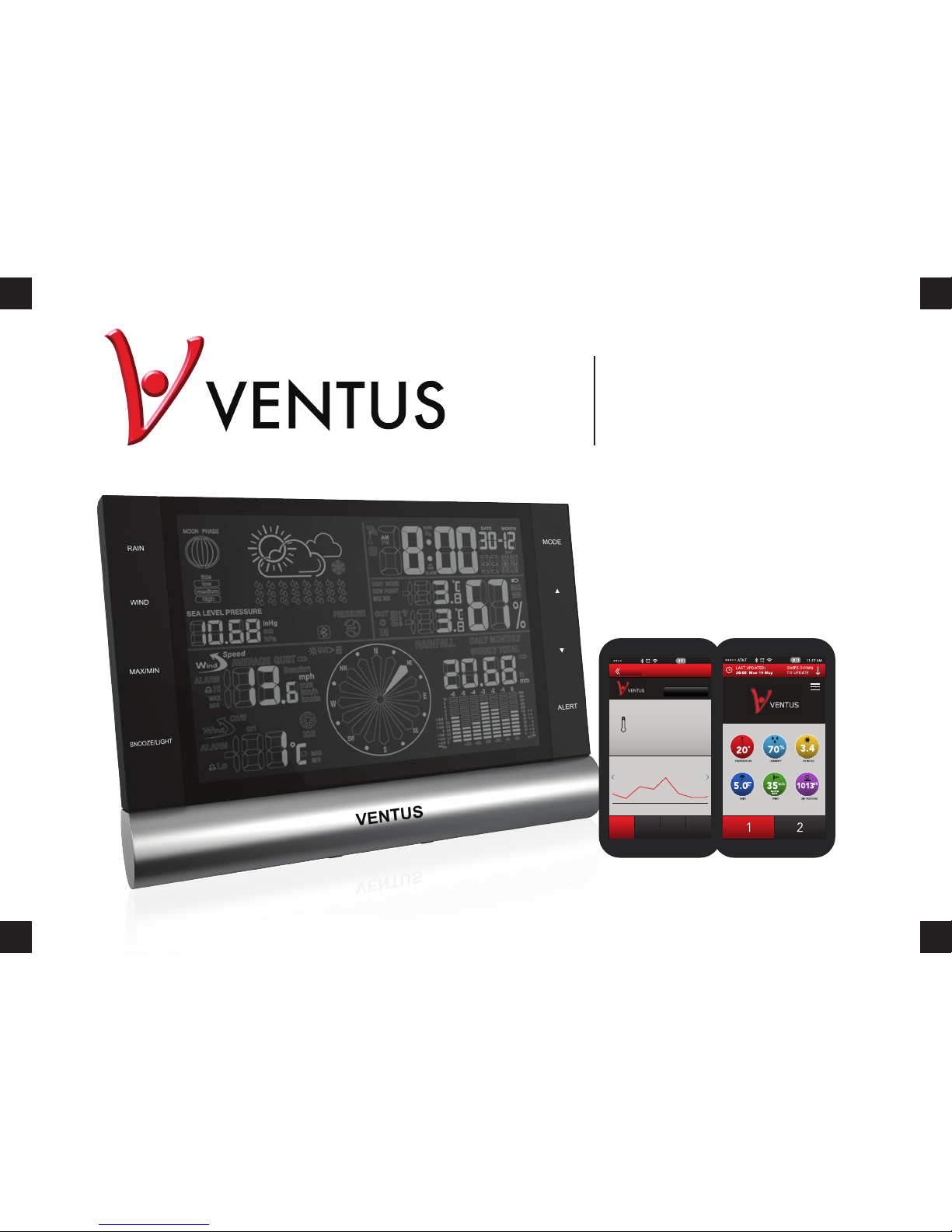

18
W820
Professional Bluetooth
Weather Station

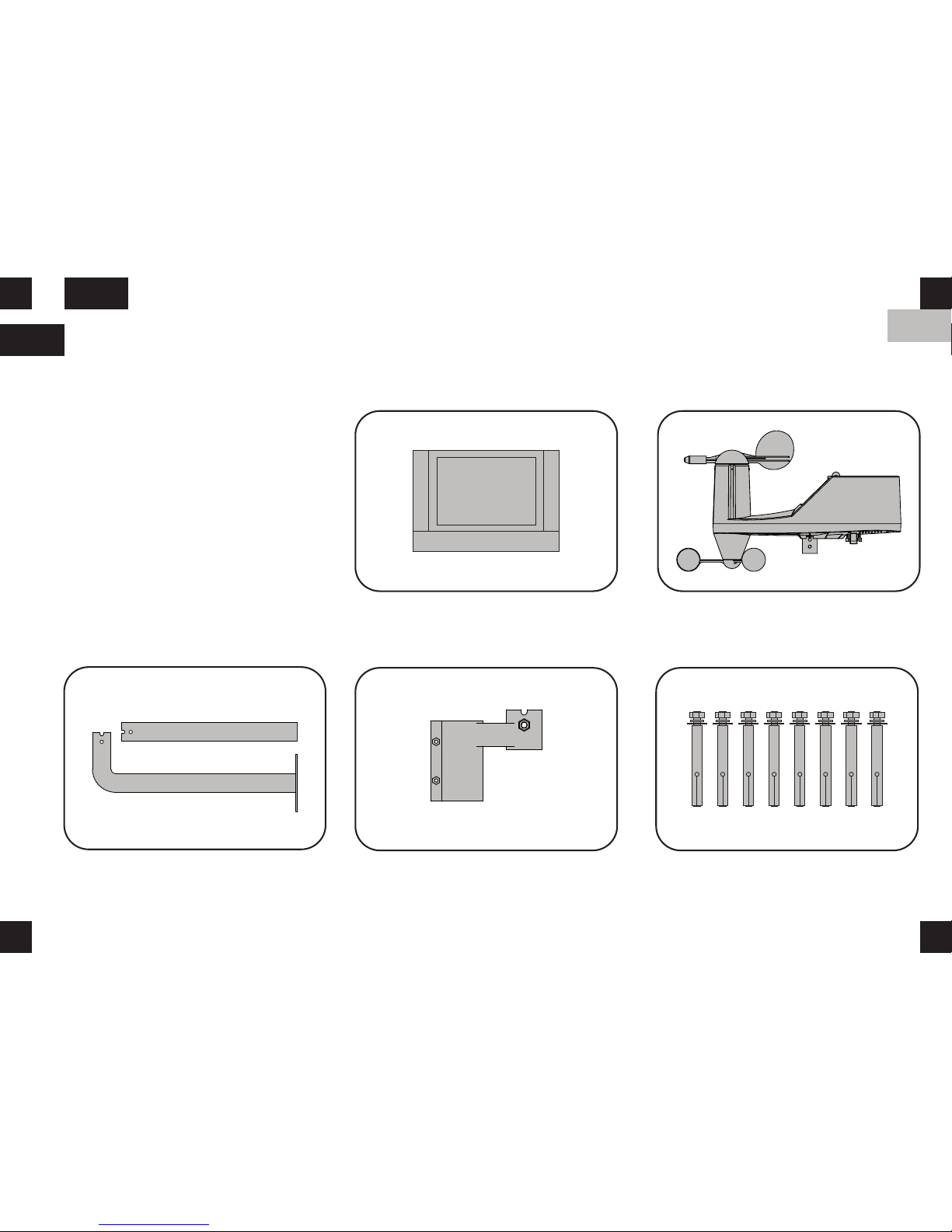

1. In the package:
- Indoor unit
- Outdoor all-in-one sensor
- Power adaptor
- Wall mount
- Extending rod
- Plastic connector
- Bag of screws for mounting.
- Mini screwdriver
EN

2. The outdoor sensor:
The outdoor sensor is an all-in-one sensor. It measures:
Rain fall
UV
Temperature
Humidity
Wind speed
Wind direction
When installing the outdoor sensor you have several options to mount the sensor.
1. Use the wall hanger directly with outdoor sensor.
EN

2. Use the wall hanger and the extension rod together with plastic connector.
Frequency: 433MHz
Transmission range: up to 100 meters in open area.
Obstacles, such as thick walls, radio frequency interference, power grids, magnets or other
electrical devices close to either sender or receiver, may compromise the actual distance.
Requires: 4 x AA Batteries, LR061.5V
EN

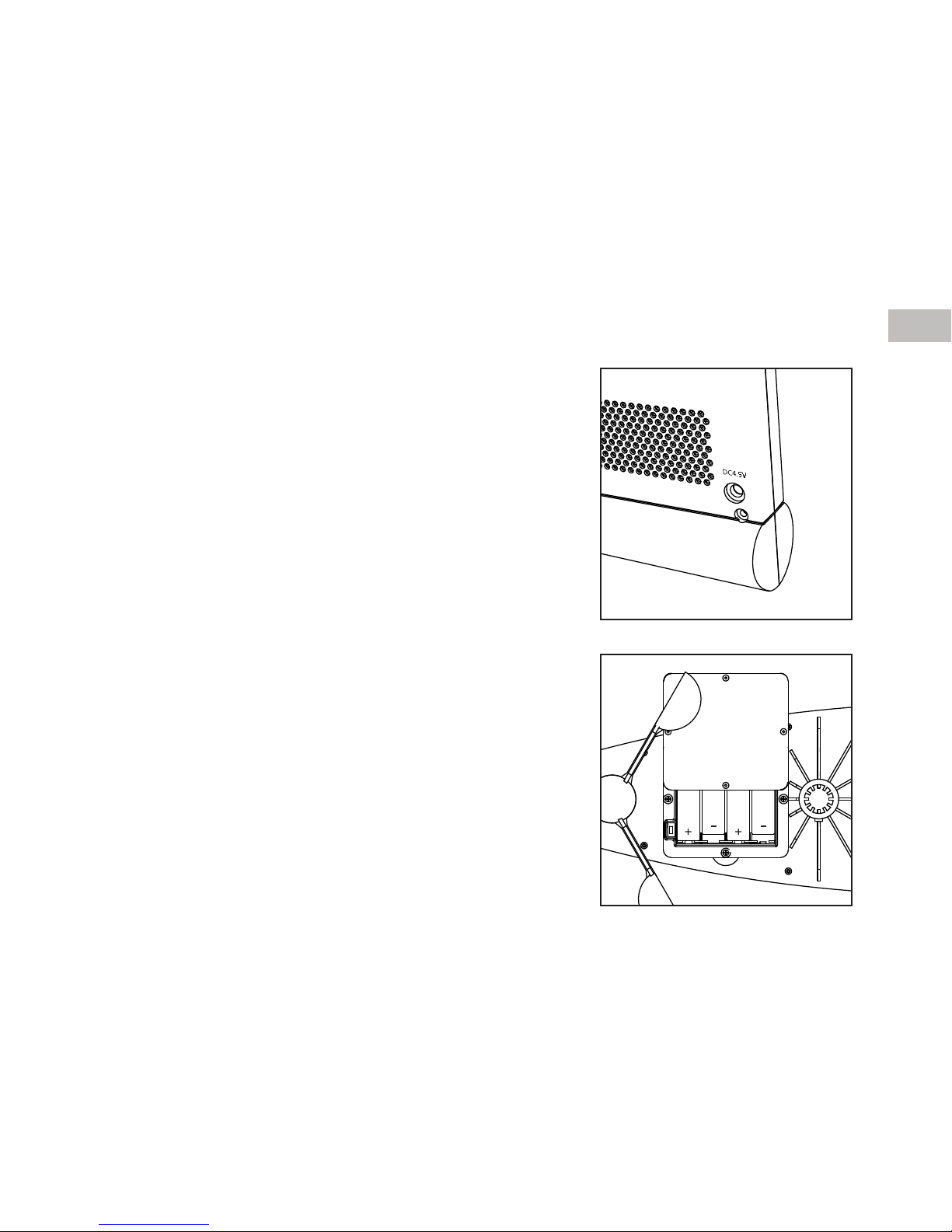

3. Setup your weather station:
- Connect the power adaptor and on the backside
of the main unit insert the power adaptor jack.
- Open the batteries cover on the outdoor sensor
with the provided mini screwdriver and insert the
batteries according to the polarities.
EN

- You are now able to choose the channel of the outdoor sensor. It is present to channel 1.
- Slide the on/off switch to on.
- Close the battery door again and fasten the screws. You now have 1 minute to connect
with the indoor unit.
4. Connect the outdoor sensor with the Indoor unit:
- Press and hold“ ”until you see the LCD flashing.
- Once connection has been established the LCD should stop flashing and the values of the
outdoor sensor will appear on the LCD. Device will automatically establish the “CH”
choice made on the outdoor sensor.
Troubleshoot:
• If no values appear after the LCD has stopped flashing the outdoor sensor is not found by
the main unit.
• Try to remove and insert the batteries again. Remember to slide the on/off switch to on.
5. Switching between indoor and outdoor values:
• Single touch on the“ ”will scroll between channels and the indoor values.
• Remember you can connect up to 3 outdoor sensors to one main unit.
• Set it to “ ”and the Main unit will scroll between each outdoor sensor connected from
channel 1 to channel 3 in loop.
EN

6. Setting the time and preferred units:
• There are 2 ways to set the time on the main unit.
• The easiest way is to connect the main unit with your mobile phone or tablet and sync the
time and date.
o Simply open the application, which is free for download on the Google Play Store or the
Apple Store.
o The main unit and the smart device will automatically connect through the built in
Bluetooth 4.0 BLE.
o In the application you will find in sync time in the settings.
o Simple choose sync and the time and date from your smartphone will be synced with the
main unit.
• Manually you can change the time by:
o Hold and press the “MODE” button until the LCD flashes 24Hr
o Now you can choose between 24/12Hr settings
Choose with“ ”and confirm with MODE.
o Year/Month/Day
Choose with“ ”and confirm with MODE
o Hour/Minute
Choose with“ ”and confirm with MODE
o Language for the Date display
Choose with“ ”and confirm with MODE
• Unit changes – continued from Language.
o C/F setting
Choose with“ ”and confirm with MODE
EN

o Air pressure hPA/mb
Choose with “ ”and confirm with MODE
o Rain fall mm/in
Choose with “ ”and confirm with MODE
• To change the Wind speed units– KM/H | MP/H | m/s | knots | beaufort
o Press and hold the “WIND” button for 3 seconds each time to change the wind units.
7. Setting the Alarm:
• Touch MODE once – Alarm time is displayed.
• Hold and press MODE until HR starts flashing
o Choose with ” ”and confirm with MODE
• To switch the alarm on/off.
• Touch MODE once – Alarm time is displayed.
o Press ” ”to arm/disarm the alarm.
EN

8. Rain:
• Touch Rain button to switch between the Daily, Weekly, Monthly or Total rain fallen.
• To clear current values,
o Choose which values you wish to clear. (DAILY, WEEKLY, MONTHLY or TOTAL)
o Then press and hold the RAIN button. This will delete the given values.
• Max of 999.99mm or 99.99in.
o The weather station has a max display of 999.99mm or 99.99in
If reached clear the data as described above to continue measurements.
If MAX is reached the rain values will not continue to be recorded.
9. Wind:
• Touch Wind button to switch between the Average wind speed recorded or current (GUST)
wind speed.
• See above how to change units – Point 5.
It can display 16 different wind directions (N means North, S means South, SW means
Southwest, etc.)
EN

Beaufort
1
2
3
4
5
6
7
8
9
10
11
12
knots km/h mph m/s Description
1 - 3kn 1.9 - 6.4 1.18 - 4
4.1 - 7.4
7.5 - 12
12.1 - 17.9
18 - 24.7
24.8 - 31.6
31.7 - 38.5
38.6 - 46.6
46.7 - 54.6
54.7 - 63.9
70 - 73.1
> 73.1
6.5 - 12.0
12.1 - 19.4
19.5 - 28.7
28.8 - 39.8
39.9 - 50.9
51.0 - 62.0
62.1 - 75.0
75.1 - 87.9
88.0 - 102.8
102.9 - 117.6
> 117.6
4 - 6kn
7 - 10kn
11 - 15kn
16 - 21kn
22 - 27kn
28 - 33kn
34 - 40kn
41 - 47kn
48 - 55kn
56 - 63kn
>63kn
0.5 - 1.8
1.9 - 3.3
3.4 - 5.4
5.5 - 7.9
8.0 - 11.0
11.1 - 14.1
14.2 - 17.2
17.3 - 20.8
20.9 - 24.4
24.5 - 28.5
28.6 - 32.6
>32.6
light air
light breeze
gentle breeze
breeze
fresh breeze
strong breeze
near gale
gale
strong gale
storm
violent storm
hurricane
EN

10. MAX/MIN:
• Touch MAX/MIN button to switch between the maximum, minimum or current values. This is
for all the values displayed on the main unit.
11. Alert:
• Touch Alert button to set an alert for the MAX currentwind speed “GUST” or min outdoor
temperature.
o Press Alert to choose either Wind or Temperaturex
o Once chosen – Press and Hold Alert until values are flashing.
Choose with ” ”and confirm with ALERT
12. Dew Point and Heat index:
Dew Point and Heat index can be switched between by pressing “ ” in normal
mode.
The dew point indicates the temperature at which air reaches saturation point and condenses.
What is the HEAT index?
“Heat index (HI) or humiture or humidex is an index that combines air temperature and
relative humidity in an attempt to determine the human-perceived equivalent temperature—
how hot it feels. The result is also known as the "felt air temperature" or "apparent
temperature". For example, when the temperature is 32 °C (90 °F) with very high humidity, the
EN

heat index can be about 41 °C (106 °F)
The human body normally cools itself by perspiration, or sweating. Heat is removed from the
body by evaporation of that sweat. However, relative humidity reduces the evaporation rate
because the higher vapor content of the surrounding air does not allow the maximum amount
of evaporation from the body to occur. This results in a lower rate of heat removal from the
body, hence the sensation of being overheated. This effect is subjective; its measurement has
been based on subjective descriptions of how hot subjects feel for a given temperature and
humidity. This results in a heat index that relates one combination of temperature and humidity
to another.”
Source: Wikipedia.com
13. UV:
The UV index is displayed on the LCD based on UV IDEX. Which goes from 0-11.
UV
0 - 2.9 Green
Yellow
Orange
Red
Violet
3 - 5.9
6 - 7.9
8 - 10.9
11+
Index Description
"Low" danger from the sun's
UV rays for the average person
"Moderate" risk of harm from
unprotected sun exposure
"High" risk of harm from
unprotected sun exposure
"Very high" risk of harm from
unprotected sun exposure
"Extreme" risk of harm from
unprotected sun exposure
Media graphic color
EN

14. Moon Phase:
The weather station uses preset data to show the moon phase
A
Sunny Slightly Sunny Cloudy Rainy Storm
B C D E F G H
A: New moon B: Increasing crescent C: First half
D: Increasing 3/4 E: Full moon F: decreasing 3/4
G: Last half H: decreasing crescent
15. Weather Forecast:
EN

Note: The Weather Station provides weather forecasts for the next 12 – 24 hours based on the
pressure changes in the atmosphere. The coverage RADIUS is between 30 and 50 miles.
The weather forecast is given on the basis of pressure changes in the atmosphere and is
70-75% correct. Since weather conditions can never be predicted with 100% certainty,
we cannot be held responsible for any loss as a result of an aberrant weather forecast.
Note: You can find information about your local air pressure at DMI's website.
16. ICE Warnings:
Frost indicated by the symbol“ ”will appear on the screen next to the WIND CHILL index,
when the temperature at the outdoor sensor drops below 4 c.
17. Sea Level Pressure:
Atmospheric pressure at sea level is the result of the force of gravity on the matter above sea
level (the atmospheric gases). The amount of matter is not constant due to the height and
density of the atmosphere (mostly due to temperature and water content/humidity).
In terms of an international (ISO) standard, it is defined to be 101325 Pa or 101.3 kPa
(kilo-Pascals) at a temperature of 15 °C. In meteorology outside of the United States, hPa
(hectoPascal) is most commonly used (=1013.25 hPa)
EN

How To Use Your free application:
The weather station is equipped with a smart Bluetooth 4.0 chip. This allows you to collect the
date from the weather station onto your smartphone.
Simple follow these steps:
1. On your smart device download either on Google′s® Play Store or Apple′s® App Store the
APP Ventus .
2. Open the application and make sure your Bluetooth is switched on and that the weather
station turned on by either batteries or power cord.
3. Select Blue-Weather Station on the app and wait for the app to connect with your weather
station.
Automatic time and date setting:
Once the application and the weather station has paired, the smart device will sync the time
directly with weather station, saving you the time to set up anything on the weather station
itself.
EN

Selection of units:
- Go to settings and select Units. - Here you are able to set any unit available
on the weather station.
EN

- Indoor/Outdoor temperature with 24 hour history
EN

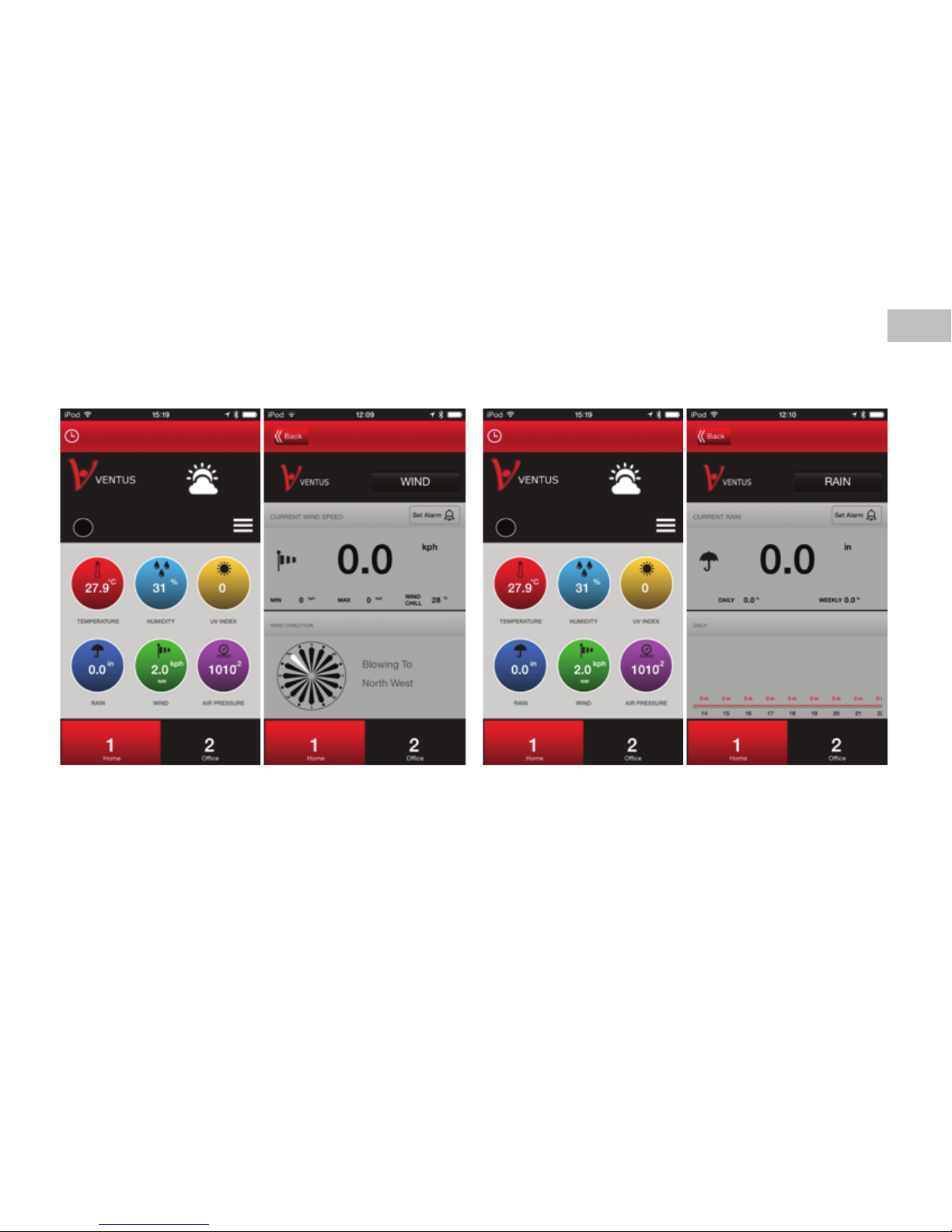

View of current and history data:
From the main screen after connection simply click on any of the “dials” on the screen.
You will here be able to enter the data collected by the outdoor sensor and the weather station.

- Indoor/Outdoor
EN

- Air Pressure - Moon/Tide
EN

- Wind speed and direction - Rain data
EN
