Verbatim Portable Hard Drive User manual



Rev. 134



Verbatim is a Mitsubishi Kagaku Media Company
Dear user!
Thank you for selecting the as your external data storage
device. For optimal use and performance we advise you to read this manual carefully
before using this product.
Please note: this manual is a general manual which is used for several Verbatim products.
Product pictures shown in this manual may differ from the device you bought.
Contents of the box
Please check the contents of the box. All articles included in this box are listed on the
back side of the packaging.
Need assistance? Have questions?
In case you have a question about the use of this product, need information about
other Verbatim products or need technical assistance, please contact the Verbatim
Service Center for your country. See  for
details.
Warning !
All rights reserved. The products named in this manual are only used for identification
purposes and may be trademarks or registered trademarks of the respective
companies. This device was designed for home or office use.
Warning! This device is equipment complying with EN55022 class A. This equipment
can cause radio disturbances in a residential area. If this is the case, the user has
to take appropriate measures and assume all responsibility and costs for. It may
not be used near or with any life-sustaining systems.
Verbatim cannot be made liable for any damages, loss of data or damage following
thereof -whatsoever (including, without limitation, damages for loss of business
profits, business interruption, loss of business information, or other pecuniary loss)
arising out of the use of or inability to use this Verbatim product, even if Verbatim
has been advised of the possibility of such damages.
We reserve the right to upgrade our products in keeping with technological advances.



Verbatim is a Mitsubishi Kagaku Media Company
Table of Contents
General Information .................................................................................page 4
Precautionary measures ...........................................................................page 5
Verbatim portable Hard Drive ...................................................................page 6
Chapter
Hardware Installation ...............................................................................page 7
Chapter
Driver Installation ...................................................................................page 7
Chapter
Installation of the application software .......................................................page 8
Chapter
Partitioning your Verbatim portable Hard Drive ............................................page 10
Chapter
Technical Support ...................................................................................page 20
Limited Warranty Terms ...........................................................................page 21
Rights ....................................................................................................page 21
FCC Compliance ......................................................................................page 22
WEEE Notice ...........................................................................................page 22
CE Declaration ........................................................................................page 23
RoHS Compliance ....................................................................................page 23
© 2011 Verbatim



Verbatim is a Mitsubishi Kagaku Media Company
General Information
The following hardware and software requirements must be fulfilled to ensure trouble-free
operation.
System requirements
In order to use the Verbatim portable Hard Drive, following components are needed:
PC:
• Intel Pentium III / AMD Duron 900 MHz or higher
• 512 MB RAM or higher
• Available USB 3.0/2.0 port*
• Internet connection for online warranty registration, software updates and downloads
• Operating system: Windows XP, Windows Vista, Windows 7
Mac:
• PowerPC G5 or Intel Mac
• 256 MB RAM or higher
• Available USB 2.0/3.0 port*
• Internet connection for online warranty registration, software updates and downloads
• Operating system: Mac OS X v10.4.6 or higher
* Please use the interface cables that come with your device (e.g. USB) for connecting the device to
your PC/Mac.



Verbatim is a Mitsubishi Kagaku Media Company
Precautionary measures
To ensure that your Verbatim portable Hard Drive functions properly, please take note
of the following precautions. If these are not followed, you may void your warranty and
damage the Verbatim portable Hard Drive.
• Safely remove the Verbatim portable Hard Drive via your operating system (the
"unplug or eject hardware" option in the Windows taskbar) before disconnecting the
USB cable. Failing to do so may result in data loss.
• Do not drop the Verbatim portable Hard Drive or expose it to other kinds of sudden
mechanical shocks as this may result in data loss and damage to the Verbatim portable
Hard Drive.
• Do not use the Verbatim portable Hard Drive when the ambient temperature is below
10°C or above 35°C.
• If the Verbatim portable Hard Drive is moved from a cool environment to a warmer
environment, please allow the drive to acclimatize to the ambient temperature before
operating the device. Failing to do so may lead to condensation within the drive
enclosure, which in turn may cause the drive to malfunction.
• Do not place liquids or drinks on the Verbatim portable Hard Drive. When liquids are
spilled and get in contact with the electronics within the drive enclosure, it will damage
the drive and will cause the drive to malfunction.
• Do not use the Verbatim portable Hard Drive in a dusty environment. Dust inside the
enclosure may damage the internal electronics and result in drive malfunction.
• Opening the Verbatim portable Hard Drive will void the warranty.
• Since USB 3.0 is backwards compatible with USB 2.0, the Verbatim portable Hard
Drive can be connected to all USB ports. When connected to a USB 2.0 port, however,
the performance (data transfer rate) of the Verbatim portable Hard Drive will be
much lower than when the drive is connected to a USB 3.0 port.
If at any point during installing and/or configuring your Verbatim portable Hard Drive
you need assistance or have questions, please contact the Verbatim Support Center
for your country. See  for details.



Verbatim is a Mitsubishi Kagaku Media Company
Verbatim portable Hard Drive
The hi-speed data transfer through the (e.g. USB) interface makes it ideally suitable for
data-storage, file sharing, backup, archiving, audio playback and all applications that
need fast file access.
For your convenience, the Verbatim portable Hard Drive has been partitioned (1 partition) and
pre-formatted (FAT32 file system). The FAT32 format ensures maximum interchangeability
of the Verbatim portable Hard Drive between different computers. Should you choose to
format the Verbatim portable Hard Drive in another file system (e.g. NTFS), please be
aware of possible problems when connecting the Verbatim portable Hard Drive to another
computer than the one you used for formatting.



Verbatim is a Mitsubishi Kagaku Media Company
Chapter: Hardware Installation
1. Connect the interface cable* to the Verbatim portable Hard Drive.
2. Connect the cable of the power supply to the Verbatim portable Hard Drive
and the power supply itself to the socket.
3. Connect the interface cable* to the interface port of your computer.
4.  if your device comes with a power switch, switch on the device before using
it.
* Please use the interface cables that come with your device (e.g. USB) for connecting the device to
your PC/Mac.
Chapter: Driver Installation
Under Windows XP/Windows Vista/Windows 7 and Mac OS X a separate Verbatim driver
is not required. The drivers will be installed automatically by the operating system after
plugging in the Verbatim portable Hard Drive into the interface port of the computer.
Since USB 3.0 is backwards compatible with USB 2.0, the Verbatim portable Hard
Drive can be connected to all USB ports. When connected to a USB 2.0 port, however,
the performance (data transfer rate) of the Verbatim portable Hard Drive will be
much lower than when the drive is connected to a USB 3.0 port.
For optimum performance the Verbatim portable Hard Drive should always be
connected to a USB 3.0 interface.
1. 2. 3.



Verbatim is a Mitsubishi Kagaku Media Company
Chapter: Installation of the application software

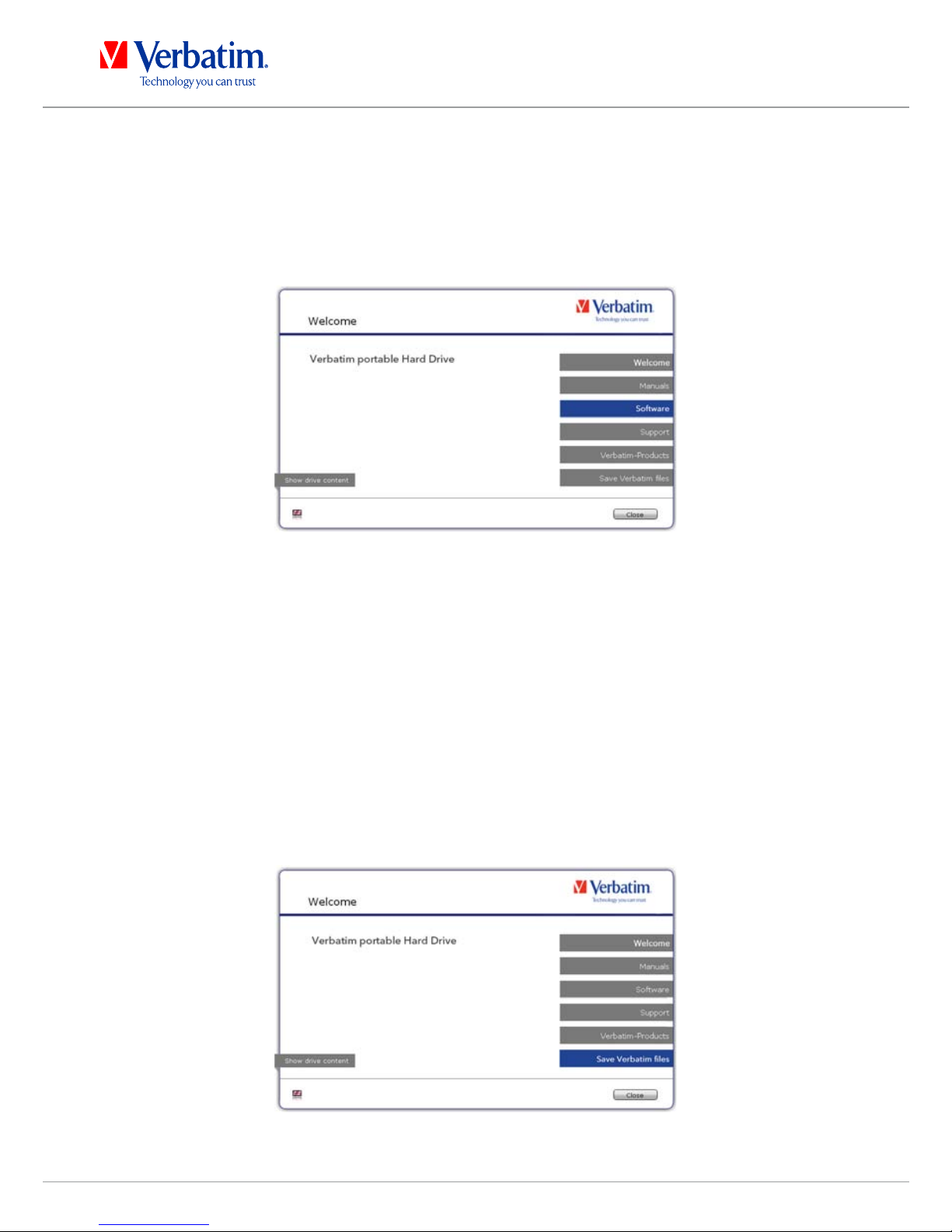

Software installation PC
1. Click on "Start PC.exe" in the main directory of the hard drive. The Verbatim start
menu opens.
2. Click on "Software". The installation starts now. Follow the instructions on the screen,
confirm with "Next" in order to continue with the installation.
Saving Verbatim data
The user manuals and complementary software (when applicable) are pre-loaded
onto the hard drive. We recommend that you save these files to your computer ("My
Documents"/"Verbatim"), to always have a backup of these files in case you (accidentally)
reformat the drive or delete these files from the drive.
Saving these files from the external hard drive to your computer is easy:
1. Click on the button "Save Verbatim files".
2. All provided data on the Verbatim hard drive will be saved to the folder "Verbatim" in
"My Documents".



Verbatim is a Mitsubishi Kagaku Media Company
Software installation Mac
1. Click on "Start MAC" in the main directory of the hard drive. The Verbatim start menu
opens.
2. Click on "Software". The installation starts now. Follow the instructions on the screen,
confirm with "Next" in order to continue with the installation.
Saving Verbatim data
The user manuals and complementary software (when applicable) are pre-loaded onto
the hard drive. We recommend that you save these files to your computer ("Documents"/
"Verbatim"), to always have a backup of these files in case you (accidentally) reformat
the drive or delete these files from the drive.
Saving these files from the external hard drive to your computer is easy:
1. Click on "Start MAC" in the main directory of the hard drive. The Verbatim start menu
opens.
2. Click on the button "Save Verbatim files".
3. All provided data on the Verbatim hard drive will be saved to the folder "Verbatim" in
"Documents".



Verbatim is a Mitsubishi Kagaku Media Company
Using Time Machine with your Verbatim portable Hard Drive
Time Machine allows you making automated backups of your complete system under Mac
OS X 10.5 and Mac OS 10.6 or higher.
1. Connect your Verbatim portable Hard Drive via the interface to your Mac. If you did
not specify a backup volume yet, Time Machine will ask you when connecting the
Verbatim portable Hard Drive for the first time if the device shall be used as backup
drive.
2. After your Verbatim portable Hard Drive appeared on the desktop, click on “Use as
Backup Disk” to confirm that you want to use your Verbatim portable Hard Drive
for Time Machine backups. In the Time Machine preferences you can configure your
backup settings further.
Time Machine now automatically creates backups of your Mac. Time Machine will keep
hourly backups for the last 24 hours, daily backups for the last month and weekly backups
until your Verbatim portable Hard Drive is full.
The first backup can take some time, so you should set up Time Machine, for example, in
the evening, so the first backup can be created overnight.
Remark: If your Verbatim portable Hard Drive is formatted in NTFS or FAT 32 format,
you need to format your hard dive in Mac OS Extended (Journaled) format. Doing
so will delete ALL your data!



Verbatim is a Mitsubishi Kagaku Media Company

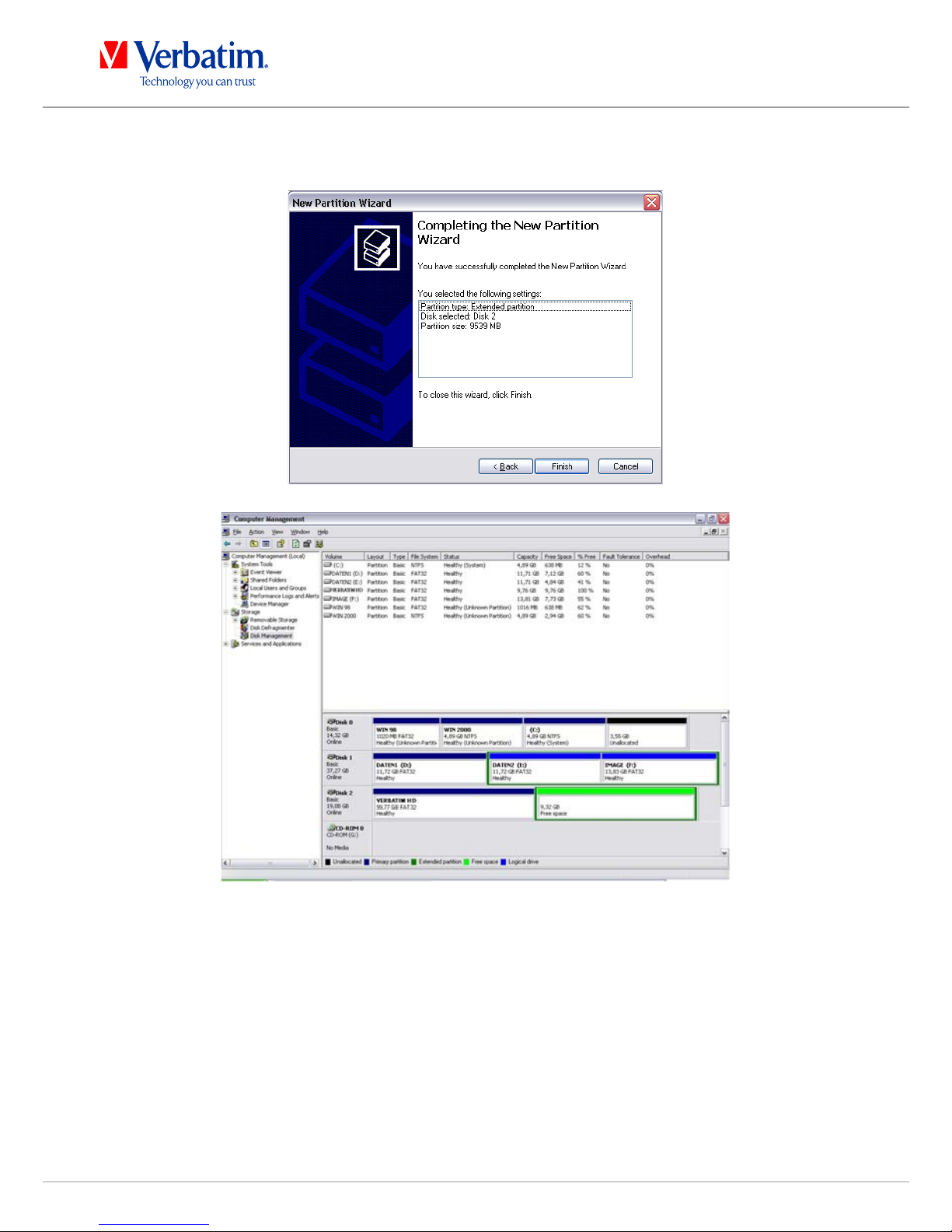

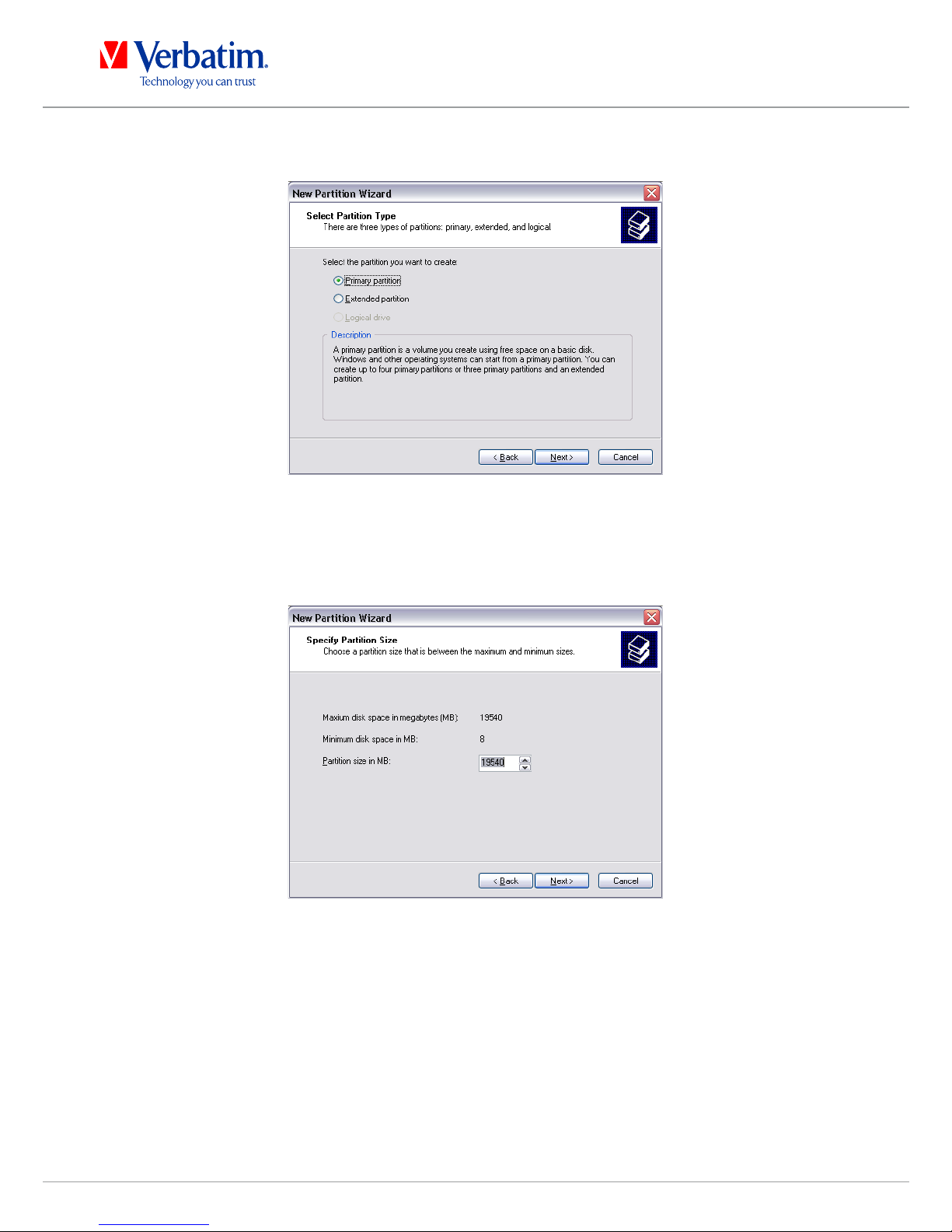

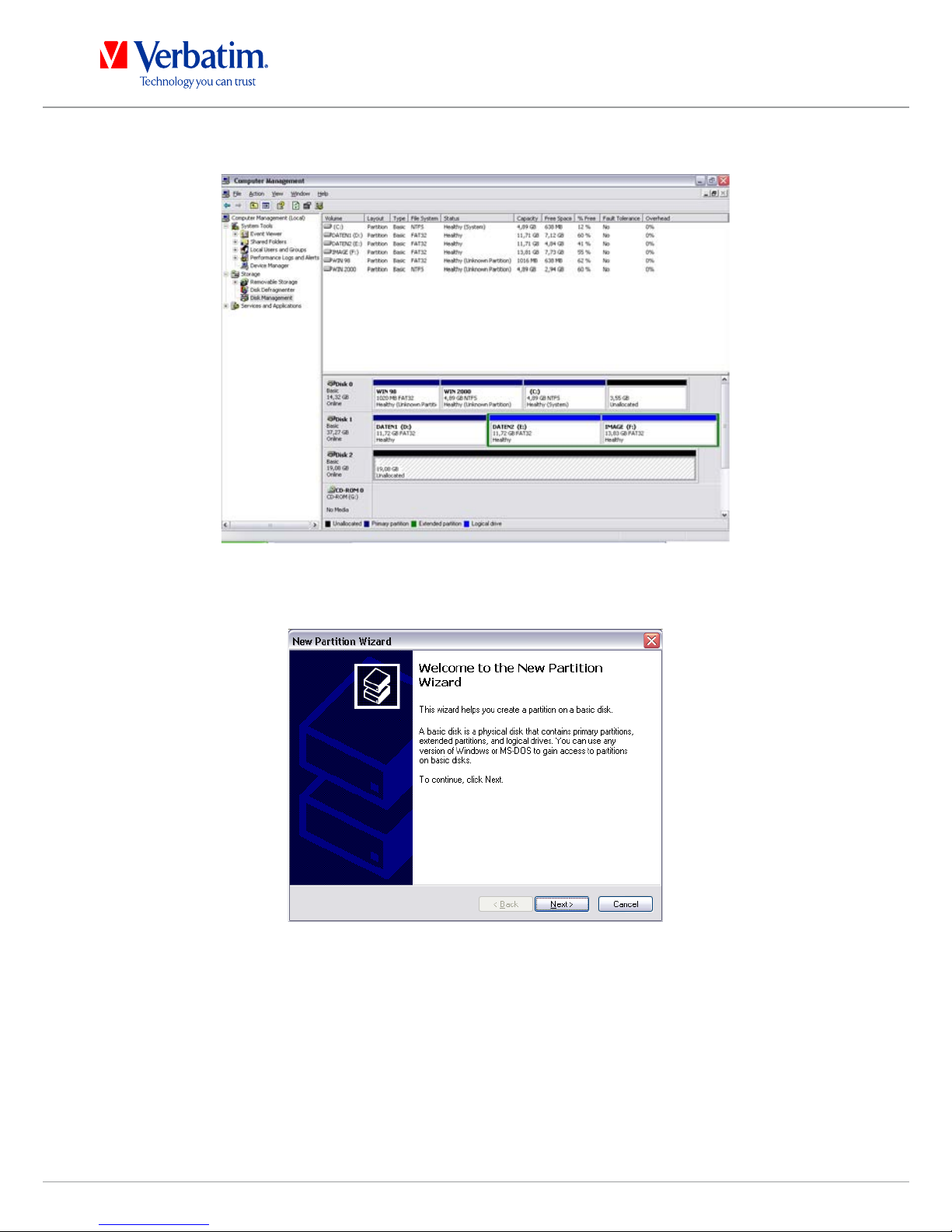

Chapter: Partitioning your Verbatim portable Hard Drive
General information
Your Verbatim portable Hard Drive was partitioned and formatted to provide you with the
maximum available capacity and compatibility. FAT32 was chosen as file system to assure
that you will be able to read your files on any PC. It is recommended not to change the
current configuration of your Verbatim portable Hard Drive.
For some users another file system might fit better for their needs. This manual describes
current limitations of most common file systems and Instructions to enable you to adapt
the Verbatim portable Hard Drive to your needs.
File System features
Please refer to the tables below for an overview:



   
 yes yes yes no
 yes yes yes
(only read)
yes



   
 4 GB* 32 GB 16 TB -
 - 128 GB - 2 TB
 - 128 GB - 8 TB
 - ( -> 128 GB) - 16 TB
 - ( -> 128 GB) - 16 TB
 - ( -> 128 GB) - 16 TB
 - ( -> 128 GB) - 16 TB



Verbatim is a Mitsubishi Kagaku Media Company
Example for different partitions with different file systems on one Verbatim
portable Hard Drive



 
250 GB 220 GB 30 GB
The example above is a good solution for Windows XP/Windows Vista/Windows 7 users
who sometimes exchange data with Macs.
For storing the data under Windows XP/Windows Vista/Windows 7 both partitions can be
used. As the NTFS file system can only be read by Mac data to be used on these operating
systems must be stored on the FAT32 partition.
Please follow the steps below to adapt the Verbatim portable Hard Drive for your needs.
Partitioning your Verbatim portable Hard Drive under Windows XP /
Windows Vista / Windows 7
Deleting a partition
1. Click with the right mouse button on the "My Computer" icon on your desktop.
2. Select the option "Manage".
3. Select the option "Storage" -> "Disk Management".
4. Choose your external Verbatim portable Hard Drive and right-click on the partition.
5. Select "Delete Partition" and confirm by clicking on "Yes". The partition will be deleted
now.
Creating a partition
The following steps will guide you through the process of creating partitions on your
Verbatim portable Hard Drive. After this procedure your Verbatim portable Hard Drive
will be ready for use and it will be allocated a drive letter.
1. Click with the right mouse button on the "My Computer" icon on your desktop.
2. Select the option "Manage".
3. Select the option "Storage" -> "Disk Management".
Note: On NTFS formatted hard drives can only be written under Windows XP /Windows
Vista / Windows 7. Under MacOSX data can only be read.



Verbatim is a Mitsubishi Kagaku Media Company
4. Choose the hard drive, which is "unallocated". Ensure that the entire drive is "unallocated".
5. Click with the right mouse button on the "unallocated" area and select the option
"New Partition". The "New Partition Wizard" opens. Click on "Next".



Verbatim is a Mitsubishi Kagaku Media Company
6. Select "Primary partition" and click on "Next".
7. Now you can adjust the size of your partition. Click on "Next" if only one partition is
to be created. See next chapter (Creating two or more partitions on the Verbatim
portable Hard Drive under Windows XP/Windows Vista/Windows 7) how to create
more than one partition.
8. Assign a drive letter to your hard drive. Normally you can use the default options.
Click on "Next".



Verbatim is a Mitsubishi Kagaku Media Company
9. Select the formatting option "Format this partition with the following settings". Choose
either "FAT32" or "NTFS", the "Allocation unit size" should remain on "Default". Finally
select "Perform a quick format" and click on "Next".
10. Click on "Finish" to complete the partitioning of your Verbatim portable Hard Drive. Your
Verbatim portable Hard Drive will be formatted now and is ready-to-use afterwards.



Verbatim is a Mitsubishi Kagaku Media Company
Creating two or more partitions on the Verbatim portable Hard Drive under
Windows XP / Windows Vista / Windows 7
1. Repeat the steps from the previous chapter (Creating a partition on the Verbatim
portable Hard Drive under Windows XP/Windows Vista/Windows 7) for creating the
first partition.
2. Click with the right mouse button on the "My Computer" icon on your desktop.
3. Select the option "Manage".
4. Select the option "Storage" -> "Disk Management".
5. Right-click on the unallocated space of your Verbatim portable Hard Drive and select
the option "New partition". The "New Partition Wizard" opens. Click on "Next".
6. Select "Extended partition" and click on "Next".
7. Now you can adjust the size of your partition. Enter the size and click on "Next".



Verbatim is a Mitsubishi Kagaku Media Company
8. Click on "Finish" to create the "Extended partition". The unallocated space now changed
to "Free space".



Verbatim is a Mitsubishi Kagaku Media Company
9. Right-click on "Free Space" and select "New Logical Drive". The "New Partition Wizard"
opens. Click on "Next".
10. "Logical drive" is already selected. Click on "Next".
11. Specify the partition size and click on "Next".
12. Assign a drive letter and click on "Next".
13. Select the formatting option "Format this partition with the following settings". Choose
either "FAT32" or "NTFS", the "Allocation unit size" should remain on "Default". Finally
select "Perform a quick format" and click on "Next".
14. Click on "Finish" to complete partitioning. Your partition will be formatted now and is
ready-to-use.
Note: If you select NTFS as file system, the data of your Verbatim portable Hard
Drive can be read only under Mac OS X. There is no possibility to write data.



Verbatim is a Mitsubishi Kagaku Media Company
Partitioning your Verbatim portable Hard Drive under Mac OS X
1. Open the "Disk Utility". This can be found in "Applications" —> "Utilities".
2. Click on the tab "Partition".
Here you can setup the partition settings and partition the drive according to your settings
(e.g. Mac OS Extended). Detailed information how to use the Disk Utility can be found in
the help:



Verbatim is a Mitsubishi Kagaku Media Company
Technical Support
If you are experiencing difficulty installing or using your Verbatim product, please visit the
main Verbatim Technical Support website at . From
this page you can access our library of user documentation, read answers to frequently
asked questions, and download available software updates. Although most of our customers
find this content sufficient to put them back on the right track, this page also lists ways
in which you can contact the Verbatim Technical Support Team directly.
Country Email Hotline Number
United Kingdom [e-mail] 00 800 3883 2222
France [e-mail] 00 800 3883 2222
Deutschland [e-mail] 00 800 3883 2222
Italia [e-mail] 00 800 3883 2222
España [e-mail] 00 800 3883 2222
Portugal [e-mail] 00 800 3883 2222
Polska [e-mail] 00 800 3883 2222
Россия [e-mail] [phone]
Česko [e-mail] [phone]
Magyarország [e-mail] 00 800 3883 2222
Eesti [e-mail] [phone]
Latvija [e-mail] [phone]
Lietuva [e-mail] [phone]
Slovensko [e-mail] [phone]
Slovenija [e-mail] [phone]
Türkiye [e-mail] [phone]
Nederland [e-mail] 00 800 3883 2222
Ελλάδα [e-mail] [phone]
România [e-mail] [phone]
България [e-mail] [phone]
Hrvatska [e-mail] [phone]
Srbija [e-mail] [phone]
Suomi [e-mail] 00 800 3883 2222
Sverige [e-mail] 00 800 3883 2222
Danmark [e-mail] 00 800 3883 2222
Norge [e-mail] 00 800 3883 2222
ةﺪﺤﺘﻤﻟا ﺔﻴﺑﺮﻌﻟا تارﺎﻣﻹا [e-mail] [phone]
Україна [e-mail] [phone]
