Vermeiren Eagle 620 User manual

User manual
M A N U E L D ' U T I L I S A T I O N
G E B R U I K S A A N W I J Z I N G
G E B R A U C H S A N W E I S U N G
M A N U A L E D I I S T R U Z I O N I
M A N U A L D E I N S T R U C C I O N E S
I N S T R U K C J A O B S Ł U G I
N Á V O D K O B S L U Z E
Eagle 620
Eagle 625

Instrukcje dla wyspecjalizowanego
All rights reserved, including translation.
Tous droits réservés, y compris la traduction.
Alle rechten, inclusief vertaling, voorbehouden.
Alle Rechte, auch an der Übersetzung, vorbehalten.
Tutti i diritti riservati (anche sulla traduzione).
Todos los derechos reservados, incluidos los de la
traducción.
Wszelkie prawa zastrzeżone, łącznie z tłumaczeniem.
Všechna práva vyhrazena, včetně překladu.
EN
Instructions for specialist dealer
This instruction manual is part and parcel of the
product and must accompany every product
sold.
Version: C, 2022-04
FR
Instructions pour les distributeurs
Ce manuel d'instructions fait partie du produit et
doit accompagner chaque produit vendu.
Version : C, 2022-04
NL
Instructies voor de vakhandelaar
Deze handleiding is deel van het product en
dient bij iedere product te worden geleverd.
Versie: C, 2022-04
DE
Hinweise für den Fachhändler
Diese Gebrauchsanweisung ist Bestand-teil des
Produkts und ist bei jeder Produkts
auszuhändigen.
Version: C, 2022-04
IT
Istruzioni per il rivenditore
Il presente Manuale di istruzioni è parte
integrante del prodotto e deve essere fornito
assieme alla prodotto.
Versione: C, 2022-04
ES
Instrucciones destinadas a los distribuidores
especializados
El presente manual de instrucciones es parte
integrante del producto yse debe adjuntar a
todas las producto que se vendan.
Versión: C, 2022-04
PL
sprzedawcy
Niniejsza instrukcja obsługi jest nieodłączną
częścią produktu i musi być dołączona do
każdego sprzedawanego produktu.
Wersja: C, 2022-04
CS
Pokyny pro specializovaného prodejce
Tento návod k obsluze je součástí dodávky a
musí být součástí každého prodaného
produktu.
Verze: A, 2022-04
Basic UDI: 5415174 123603Eagle 620 TN
5415174 123603Eagle 625 TY
Multi version: C, 2022-04

Language index
English
Français
Nederlands
Deutch
Italiano
Español
Polski
Czech
User manual
Manuel d'utilisation
Gebruiksaanwijzing
Bedienungshandbuch
Manuale di istruzioni
Manual de instrucciones
Instrukcja obsługi
Návod k obsluze

This page is intentionally left blank

Eagle 620, Eagle 625
2022-04
Contents
1
EN
NL
Contents
Contents .....................................................................................................................1
Preface........................................................................................................................2
1Your product..................................................................................................3
2Before use .....................................................................................................4
2.1 Intended Use.................................................................................................4
2.2 General safety instructions............................................................................4
3Using the patient hoist .................................................................................5
3.1 Operating the lift............................................................................................5
3.2 Slings ............................................................................................................7
3.3 Eagle 620: Battery and charging...................................................................9
3.4 Eagle 625: battery and charging ................................................................. 10
3.5 Emergency.................................................................................................. 11
4Installation and adjustment........................................................................13
4.1 Delivery .......................................................................................................13
4.2 Assembly or dismantling ............................................................................. 13
4.3 Swapping the battery .................................................................................. 16
5Maintenance ................................................................................................17
5.1 Time of maintenance................................................................................... 17
5.2 Shipping and storage ..................................................................................18
5.3 Cleaning......................................................................................................18
5.4 Disinfection ................................................................................................. 18
5.5 Inspection.................................................................................................... 19
5.6 Expected lifespan........................................................................................ 19
5.7 Reuse..........................................................................................................19
5.8 End of use...................................................................................................19
6Troubleshooting..........................................................................................20
7Technical specifications.............................................................................21

Eagle 620, Eagle 625
2022-04
Preface
2
EN
NL
Preface
Congratulations! You are now owner of a Vermeiren patient hoist!
This product is made by qualified and committed personnel. It is designed and produced
according to high quality standards, guarded by Vermeiren.
Thank you for your trust in the products of Vermeiren. To support you on the use of this patient
hoist and its operating options, this manual is offered. Please read it carefully; it will help you to
get familiar with the operation, capabilities and limitations of your product.
If you still have questions after reading this manual, do not hesitate to contact your specialist
dealer. He/she will be glad to help you.
Important note
To ensure your safety and to prolong the lifetime of your product, please take good care of it and
have it checked and serviced on a regular basis.
This manual reflects the latest product developments. Vermeiren has the right to implement
changes to this type of product without any obligation to adapt or replace similar products
previously delivered.
Pictures of the product are used to clarify the instructions in this manual. Details of the depicted
product may deviate from your product.
Information available
On our website http://www.vermeiren.com/ you will always find the most recent version of the
information in this manual. Please consult this website regularly for possible updates.
Visually impaired people can download the electronic version of this manual and have it read out
by means of a text-to-speech software application.
This user manual
For user and specialist dealer
Service manual
For specialist dealer
EC declaration of conformity

Eagle 620, Eagle 625
2022-04
Your product
3
EN
NL
1
2
3
5
6
7
8
9
10
11
12
13
14
15
Eagle 625

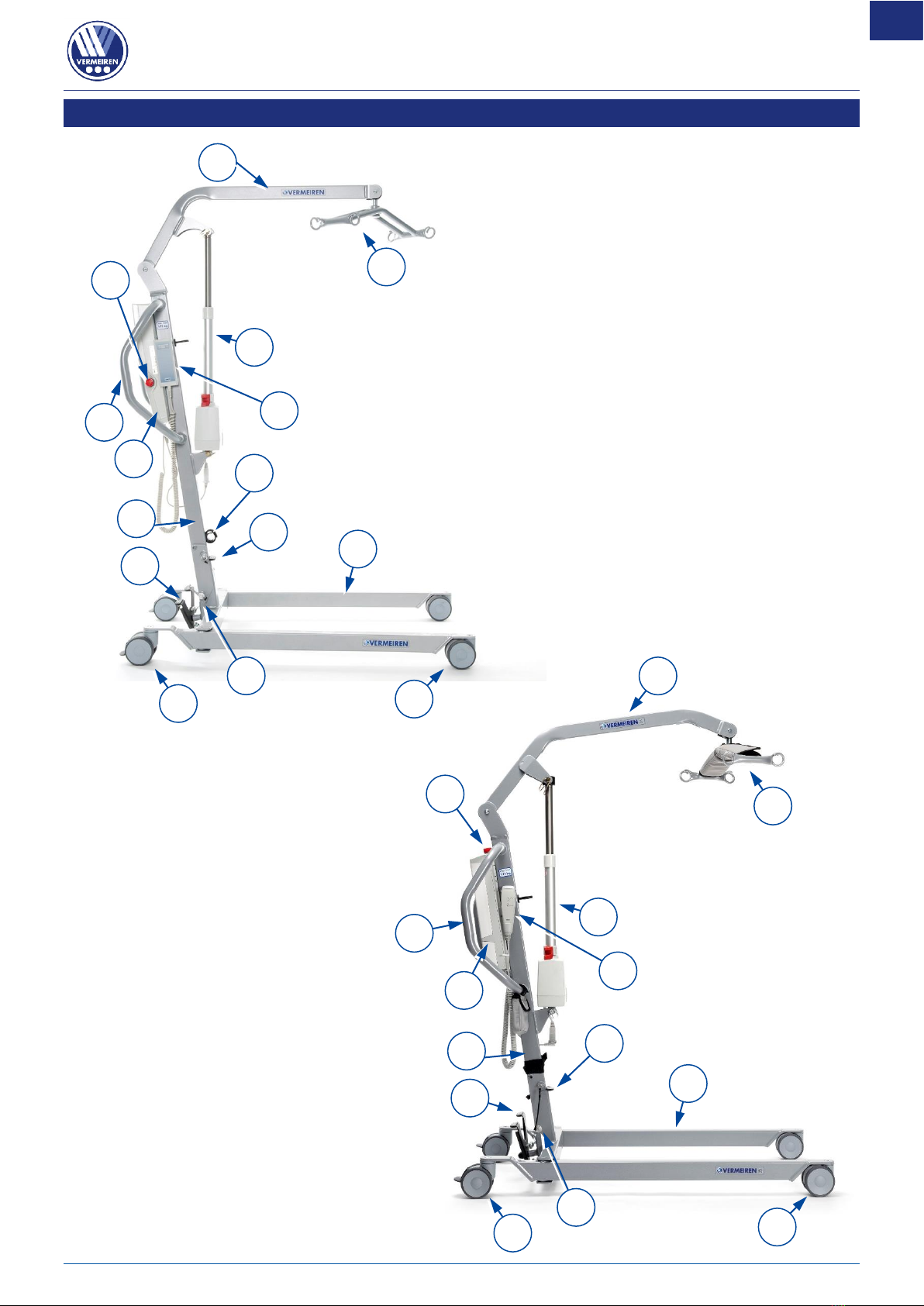

1 Your product
1. Cantilever arm
2. Spreader bar
3. Motor
4. Transport holder for
spreader bar (Eagle 620)
5. Foldaway lock
6. Chassis
7. Roller
8. Control box
9. Handle for pushing
10. Manual operation
11. Emergency stop
12. Pole
13. Safety spindle
14. Chassis expansion pedal
15. Caster with brake
1
2
9
10
8
7
13
15
Eagle 620
4
6
5
14
11
3
12

Eagle 620, Eagle 625
2022-04
Before use
4
EN
NL
2 Before use
2.1 Intended Use
In this paragraph a brief description of the intended use of your patient hoist is given. Additionally,
relevant warnings are added to the instructions in the other paragraphs. In this way we would like
to make you aware of the possible misuse that may appear.
•Indications and contraindications: This patient hoist is meant to be operated by an attendant to
transfer sitting patients between e.g. wheelchairs, nursing beds and bathrooms. The patient
hoist is designed and produced to be a transport/transfer aid for elderly persons or persons
who suffer from paralysis, limb loss or defects, stiff or damaged joints, cardiovascular problems,
cachexia, … .
•This patient hoist is suitable for indoor use.
•This patient hoist is designed and produced solely to transport/transfer one (1) person with a
maximum weight according to the specifications in §7. It is not designed for transportation of
goods or objects, nor for any use other than previously described.
•Only use accessories and spare parts approved by Vermeiren.
•Please read all technical details and limits of your patient hoist in chapter 7.
•The warranty on this product is based on normal use and maintenance as described in this
manual. Damage to your product caused by improper use or lack of maintenance will cause
the warranty to lapse.
2.2 General safety instructions
Risk of injuries and/or damage
Please read and follow the instructions in this manual. Otherwise you may get injured or your
patient hoist may get damaged.
Keep the following general warnings in mind during use:
•The patient hoist must only be operated by qualified staff who have been instructed or trained
in its specific application.
•Do not exceed the maximum load for the patient hoist. This will shut down the control box.
•In case of different user weights for patient hoist and slings, always observe the lowest user
weight.
•An attendant needs to be present during the lifting operation.
•Be aware that some parts of the patient hoist may get very hot or cold due to ambient
temperature, solar radiation or heating devices. Be careful when touching.
•The patient hoist has been tested for electromagnetic compatibility and complies with the
standard. Nevertheless, sources of electromagnetic fields may influence the performance of
the patient hoist, such as the fields of mobile phones, power generators or high-power energy
sources. On the other hand, the electronics of the patient hoist can affect other electronic
appliances too.
•Only use the patient hoist on flat surfaces where all castors touch the ground and where there
is sufficient contact to operate the patient hoist safely. Do not take obstacles with the patient
hoist while transferring a patient.
•Do not use the patient hoist in wet or humid environments.
•Alterations or substitutions should not be made to the patient hoist securement points or to
structural and frame parts or components without consulting the manufacturer.
•Make sure that your hands, clothes, belts, buckles or jewellery don’t get caught by wheels or
other moving parts during use.
•Be careful with sources of ignition such as lit cigarettes as they may set the sling alight.
In case a serious incident has occurred involving your product, notify Vermeiren or your specialist
dealer as well as the competent authority in your country.
CAUTION

Eagle 620, Eagle 625
2022-04
Using the patient hoist
5
EN
NL
3 Using the patient hoist
3.1 Operating the lift
Risk of injuries and/or damage
•When using the lift, make sure that there is sufficient room around and above it, as the
adjustment movements could otherwise lead to damage or injury.
•Always be aware of the lifting arm to avoid injury.
•Only slings that have been designed and approved for the patients must be used (see usage
instructions for the various slings). Use of any other slings is at your own risk.
•Only use the handles to push/pull the patient hoist, no other components.
Please observe the technical information according to which the patient hoists (620 or 625) may
be operated. The patient hoist must only be operated by authorised staff who have been trained
in its use and operation.
3.1.1 Altering the chassis width
To get the lift around a wheelchair or other seating
furniture, or to increase the stability of the lift in the
standing position, the separation of the chassis legs
can be increased.
Stand behind the assembled lift and take hold of the
handles for pushing the patient hoist (on the left and
right, next to the control box). Press the lever at the
bottom of the chassis (left or right) down with your foot,
and the separation of the legs of the chassis can be
increased or decreased.
3.1.2 Parking brakes
Secure the two casters at the back of the chassis by
pressing the caster brake plates down gently to their end
stops with the tip of your foot. To release the brake, push
the brake plate gently back up again with the front of
your foot until the casters are free.
3.1.3 Raising and lowering the cantilever arm
The manual control allows the cantilever arm to be adjusted
smoothly to any point.
= Raise the cantilever arm
= Lower the cantilever arm
When using the lift function until the end of the hoist motor, the limit
switch is activated by electronics (security function). Use the lifting
function only in the middle of the adjustment range.
CAUTION
1
2
2
1

Eagle 620, Eagle 625
2022-04
Using the patient hoist
6
EN
NL
3.1.4 Moving the patient hoist
Risk of injuries
•Be careful passing through restricted passages (e.g. doors).
1. Stand behind the patient hoist and grasp the
handles (left and right, next to the control box) with
both hands.
2. Make sure that both back caster brakes have been
released.
3. Push the patient hoist slowly into the desired
position.
When it is not loaded, we advise you to pull the patient
hoist backwards, which makes it easier to get round any
obstacles (door frames, corners of rooms or furniture).
3.1.5 Turn the patient hoist around his axle
Risk of injuries
•Be careful there are no people or objects in the swing range of the patient hoist.
•Turn the patient hoist carefully and slowly around his axle, so that the patient cannot swing out.
1. Open the legs of the patient hoist to give more
stability.
2. Activate the brakes.
3. Place the patient in the patient hoist with the
appropriate sling. (refer to sling manual for
instructions of placing the patient in the hoist).
4. Lift the patient from the ground, chair, bed, ... .
5. Loosen both brakes of the rear wheels.
6. Stand behind the patient hoist and grasp the
handgrips (left and right next to the control box) with
both hands.
7. Now turn the patient hoist carefully, slowly around
on the same place. Be careful you do not touch any
objects with the legs of the patient hoist.
8. When you are turned in the good position, you can
lift the patient down.
CAUTION
CAUTION

Eagle 620, Eagle 625
2022-04
Using the patient hoist
7
EN
NL
3.2 Slings
Risk of injuries
•Only use appropriate slings for the patients.
•Do not use damaged slings.
•Read the full slings manual first.
•Only use compatible slings approved by Vermeiren.
The Eagle patient hoist must only be used with slings designed for the Vermeiren Eagle patient
hoists (for 4-point speader bar).
The applicability and instructions for use for the specific slings should be followed, see the
separate manual.
3.2.1 Attaching to the spreader bar of the patient hoists
The slings shall be attached by the mounting straps. These mounting straps shall be suspended
on the spreader bar of the patient hoist.
The mounting straps of the slings have 4 loops in different colors.
Mounting strap sling
Spreader bar of the patient hoists "Eagle"
With these loops it is possible to lift the patient in different positions. These positions depends
on the length and weight of the person.
CAUTION
Hooks for
mounting strap
Black
Yellow
Red
Green

Eagle 620, Eagle 625
2022-04
Using the patient hoist
8
EN
NL

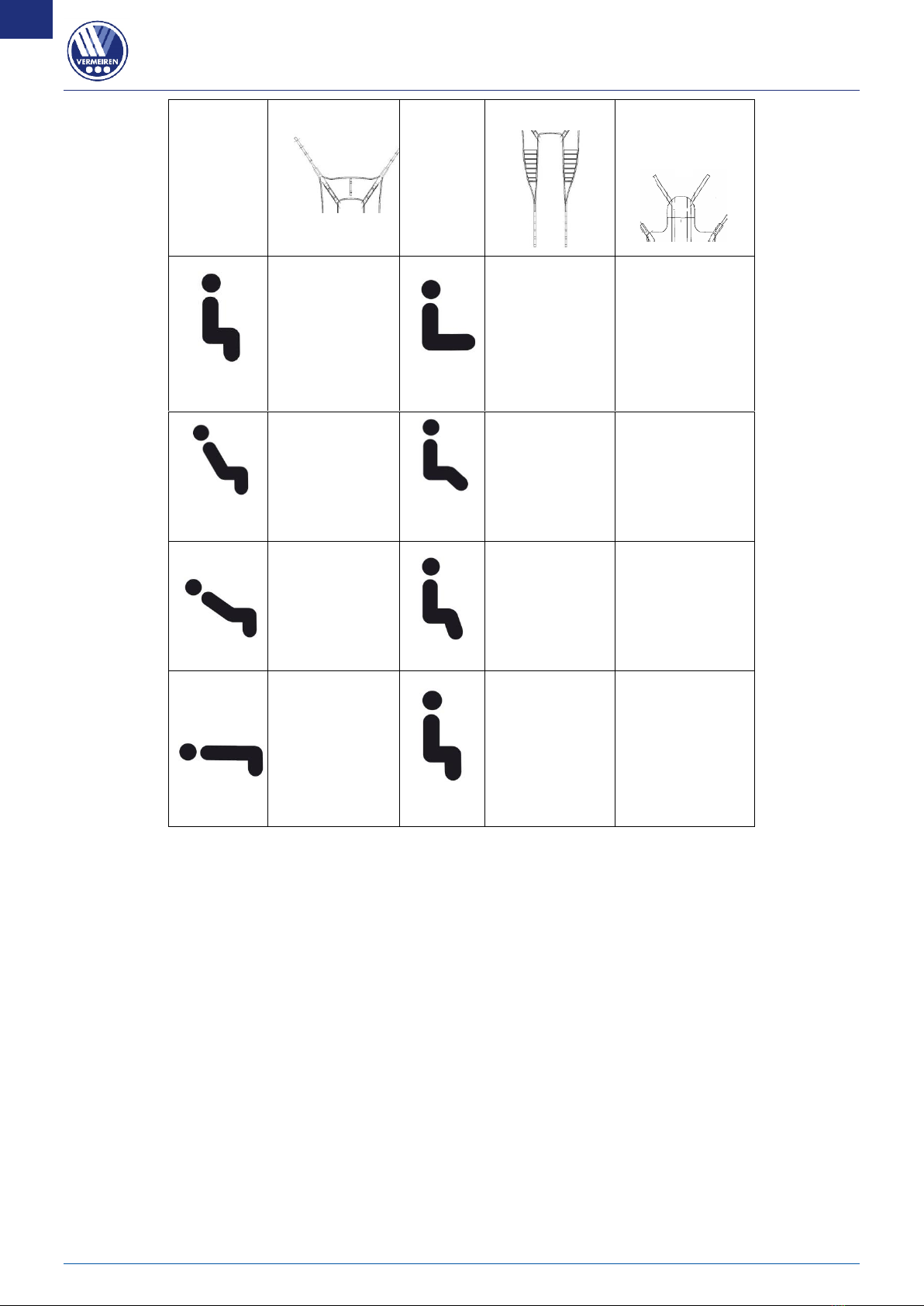

Shoulders
Legs
Head
(only by comfort
sling)
Green
Green
Green
Red
Red
Red
Yellow
Yellow
Yellow
Black
Black
Black
The legrests can be attached on the patient hoist according different methods.
•Crossed legrests
This is the most used method to attach the sling. The attachment of the sling with crossed
legrests shall be according to the instructions below:
1. Put the mounting strap of the legrest through the loop of the other legrest.
2. Attach the mounting straps of the legrests on the spreader bar of the patient hoist.
•Crossed under both thighs
L CAUTION: Risk of falling - By a patient with amputated legs increases the
risk of falling because the patient loose easy his balance.
This method can be used for lifting a patient with amputated legs. The attachment of the
sling crossed under both thighs shall be according to the instructions below:
1. Cross the mounting strap of the legrest under the thighs.
2. Attach the mounting straps of the legrests on the spreader bar of the patient hoist.

Eagle 620, Eagle 625
2022-04
Using the patient hoist
9
EN
NL
•Each legrest separately on the spreader bar
L CAUTION: Risk of falling- This method increases the chance of sliding out
the sling.
Attaching each legrest separately on the spreader bar can be used for patient with sensitive
genitals. The attachment of the sling with this method shall be according instructions below:
1. Put the legrest around each leg separately, but not crossed.
2. Attach the mounting straps of the legrests on the spreader bar of the patient hoist.
3.2.2 Position of spreader bar
The spreader bar must always be perpendicular to the body of the patient. The left figure is the
good method. The right figure is the wrong way.
3.3 Eagle 620: Battery and charging
3.3.1 Battery charger
Primary voltage
100 - 240VAC / 50/60 Hz
Secondary voltage (charging voltage)
27.6VDC (+/- 2%)
Secondary current (charging current)
max. 500 mA
Safeguards
Protected against reverse polarisation, electrical surges
and extreme temperature
Efficiency
min. 80% (when fully loaded)
Ambient temperature
0 to +40°C
Length of mains lead
2.0 m
Ambient storage temperature
-15° to +50°C
Relative storage humidity
max. 95% (non-condensing)
Conformity
tested in accordance with IEC 60601-1
3.3.2 Charging the batteries
Use only the battery charger supplied and no other charging equipment.
We recommend that you should regularly recharge the built-in control box batteries in order to
ensure that the hoist remains usable and to extend the lifespan of the batteries. The control box
will give the warning sound to tell you when the battery charge is too low.
Setting up the charger
When setting up the charger, ensure that it is well-ventilated on all sides. A minimum of 100 mm
space should be left free around the unit for this purpose. If the charger is insufficiently ventilated
so that the unit heats up, the charging rate will fall which will extend the charging time. If the
charger overheats (> +50°C), it will stop charging.
The charger should only be used from a wall socket with a voltage of 100 to 240V at 50/60Hz and
in well-ventilated, dry areas.

Eagle 620, Eagle 625
2022-04
Using the patient hoist
10
EN
NL
First use
First, insert the recharge cable into the appropriate connector on the control box. Then insert the
mains adapter into the socket. The loading time is about 4 hours. The charger will stop the
recharging process automatically when the device is fully loaded.
Recharging
LWARNING: Risk of injury – Do not use the lift when the charger is connected in the control
box.When the batteries are rechargingthere will burn a yellow light on the
upper LED.
After the recharging process is completed, you should always
remove the mains plug of the charger from the socket first and then
remove the charger from the control box.
Do not use the lift while it is being recharged!
If the batteries are not used for a significant period, they discharge
slowly by themselves
(deep discharge). It then becomes impossible to recharge them with
the battery charger supplied. You should therefore recharge the
batteries at least once a month even if they are not being used.

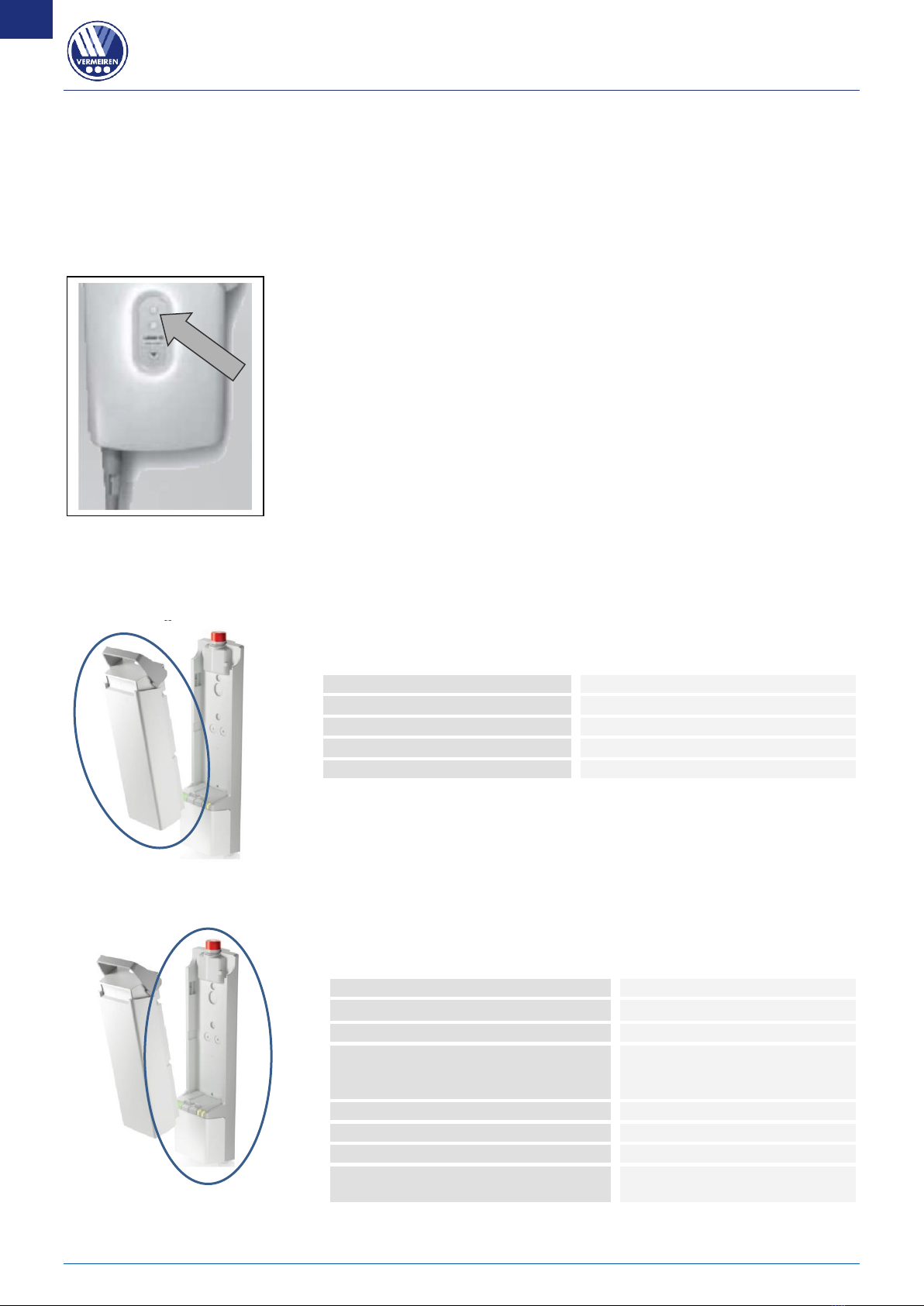

3.4 Eagle 625: battery and charging
3.4.1 Battery
The battery is above the control box and is replaceable with an
integrated clip system.
3.4.2 Control box + included battery charger
The control box is designed with a red emergency stop and an internal
battery charger.
We reserve the right to introduce technical changes.
Primary voltage
24 VDC
Ambient temperature
+5°C to +40°C
Ambient storage temperature
-10° to +50°C
Relative storage humidity
max. 80% (non-condensing)
Conformity
tested in accordance with IEC 60601-1
Primary voltage
100 - 240 VAC / 50/60 Hz
Secondary voltage (charging voltage)
24 VDC, max. 250 VA
Secondary current (charging current)
max. 10 A
Safeguards
Protected against reverse
polarisation, electrical surges
and extreme temperature
Ambient temperature
+5°C to +40°C
Ambient storage temperature
-10° to +50°C
Relative storage humidity
max. 80% (non-condensing)
Conformity
tested in accordance with
IEC 60601-1

Eagle 620, Eagle 625
2022-04
Using the patient hoist
11
EN
NL

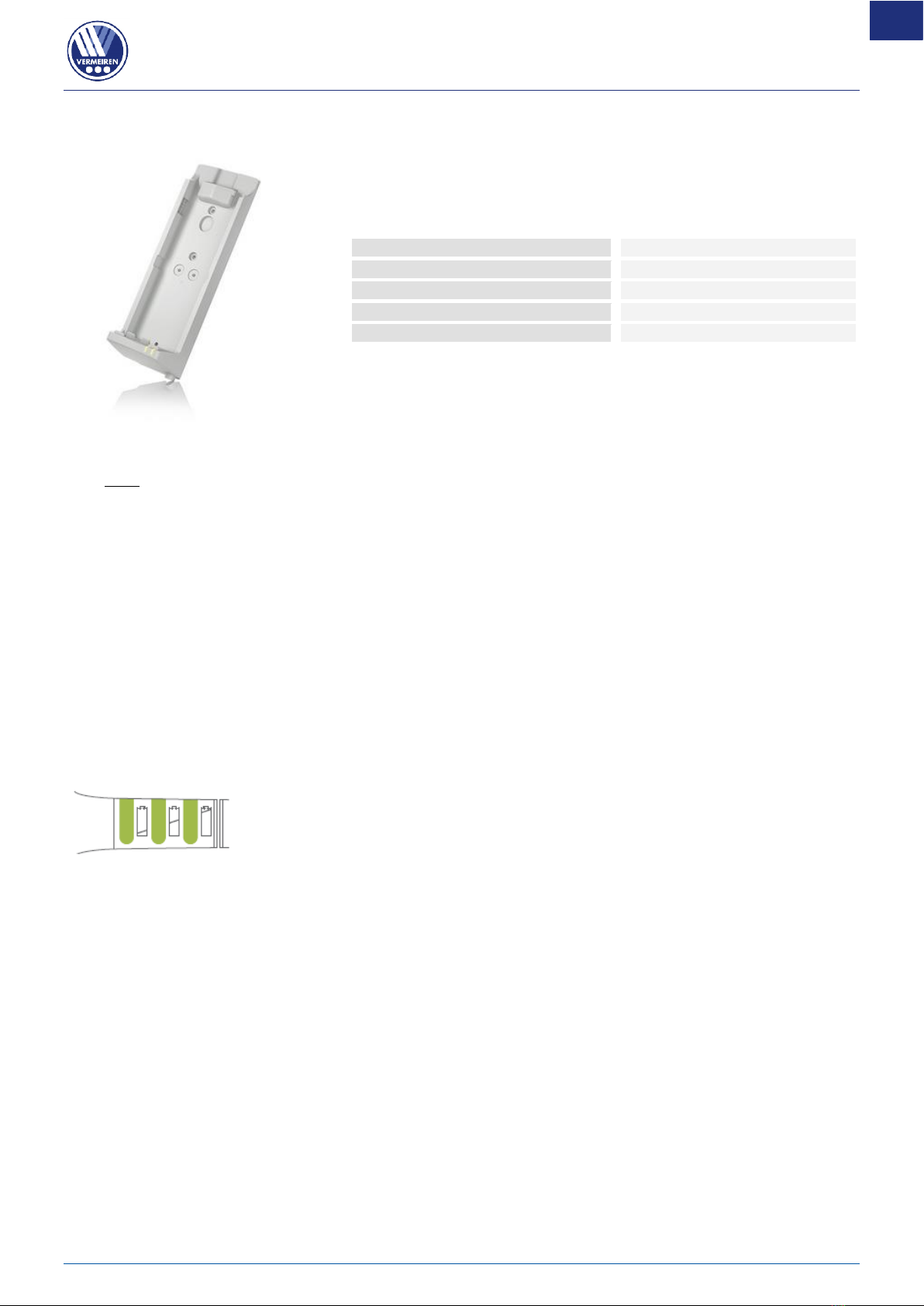

3.4.3 External charger (OPTIONAL)
The external charger shall be mounted on the wall. It is possible to
charge the spare battery (optional) with this external charger and you
have no waiting time to use the patient hoist when charging the
batteries.
3.4.4 Charging the batteries
Use only the control box with included battery charger on the Eagle 625 or the external charger
meant to be mounted on the wall.
We recommend that you should regularly recharge the batteries in order to ensure that the hoist
remains usable and to extend the lifespan of the batteries. The control box will give a warning
sound to tell you when the battery charge is low.
First use
First, insert the supply cable with the connector side into the appropriate connector on the control
box. The plug side of the supply cable must be insert in the socket outlet. The loading time is
about 24 hours.
Recharging
L WARNING: Risk of injury – Do not use the lift when the supply cable is connected in
the socket outlet.
When the batteries are recharging, the right LED will light green. The
battery is fully charged once all three LEDs are on.
After the recharging process is completed, you should always remove the mains plug from the
socket first and then remove the connector plug from the control box.
Do not use the lift while it is being recharged!
If the batteries are not used for a significant period, they discharge slowly by themselves
(deep discharge). It then becomes impossible to recharge them. You should therefore recharge
the batteries at least once a month even if they are not being used.
3.5 Emergency
In cases for emergency the emergency stop and the function for lowering in an emergency must
be used.
Primary voltage
100 - 240 VAC / 50/60 Hz
Charging current
max. 650 mA
Ambient temperature
+5°C to +40°C
Ambient storage temperature
-10° to +50°C
Relative storage humidity
max. 80% (non-condensing)

Eagle 620, Eagle 625
2022-04
Using the patient hoist
12
EN
NL

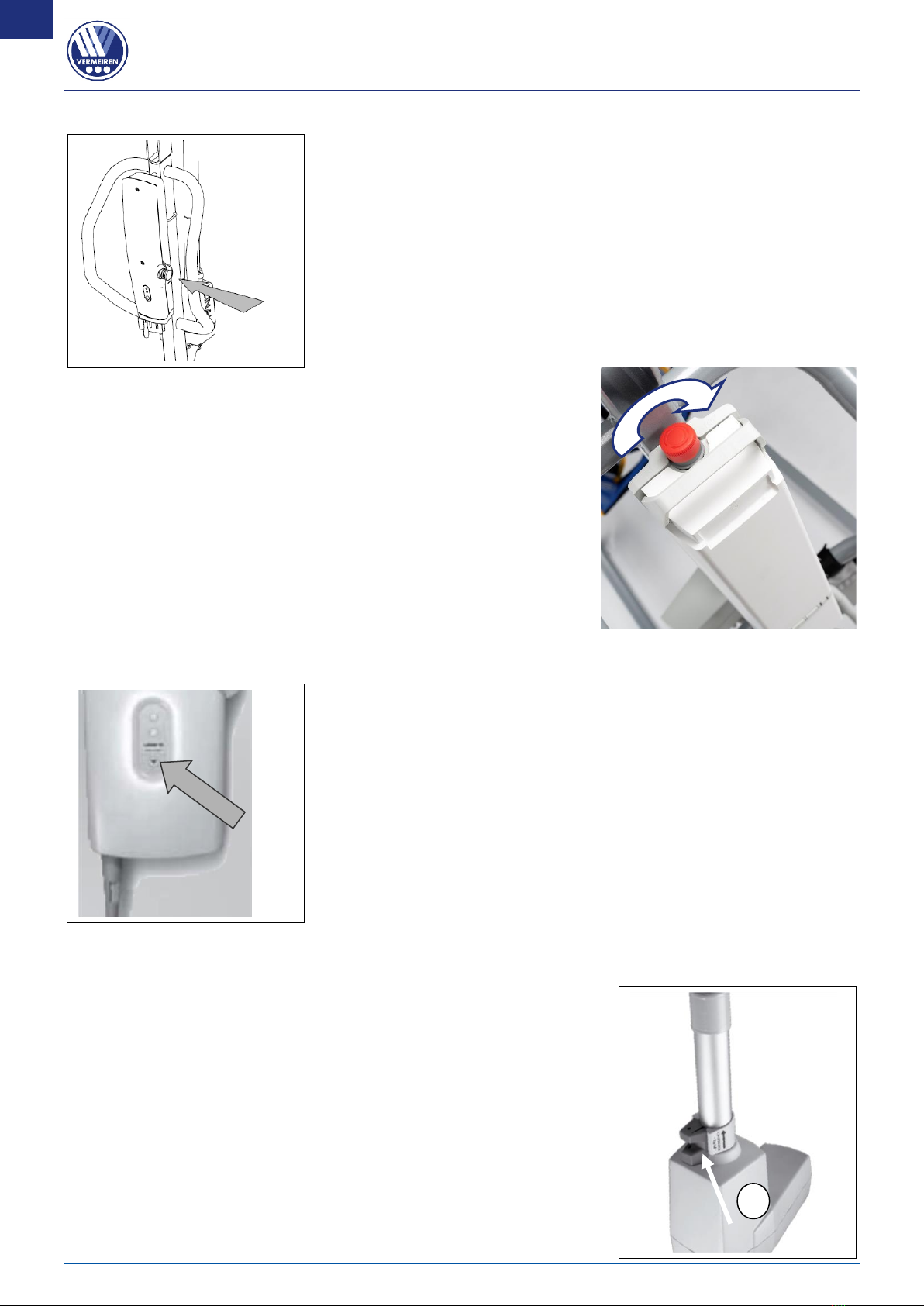

3.5.1 Emergency stop Eagle 620
In emergencies, and during assembly and disassembly, the
emergency stop is activated by pressing the red button on the
right of the control box.
Push on the button and turn in the direction of the arrows. If the
button is fully pressed to the back turn back in the opposite
direction of the arrows.
The emergency stop is deactivated by turning the red button in
the direction of the arrows.
3.5.2 Emergency stop Eagle 625
In emergencies, and during assembly and disassembly, the
emergency stop is activated by pressing the red button on the
control box.
Push on the button and turn in the direction of the arrows. If the
button is fully pressed to the back turn back in the opposite
direction of the arrows.
The emergency stop is deactivated by turning the red button in
the direction of the arrows.
3.5.3 Emergency lowering Eagle 620
If the manual operation mechanism should be damaged, it is
possible to lower the cantilever arm from the control box.
The arm moves down for as long as the bottom button on the
control box panel is pressed.
3.5.4 Emergency lowering Eagle 625
L WARNING: Risk of injury – Adjust the manual emergency
lowering for the weight of the patient.
Emergency lowering if the power fails or the batteries are empty
can be done using the red pull button  at the lower end of the
motor. This emergency lowering is factory-set for a patient weight
of 75 kg.
Standard calibration: 3000N, 16 mm/s to lower the patiënt.
Please note that the manual emergency lowering is only possible
when the patient is sitting in the patient hoist.
1

Eagle 620, Eagle 625
2022-04
Installation and adjustment
13
EN
NL
4 Installation and adjustment
The patient hoist is delivered fully assembled by your specialist dealer.
The instructions in this chapter are for the specialist dealer.
To find a service facility or specialist dealer near you, contact the nearest Vermeiren facility.
L WARNING: Risk of unsafe limitations - Use only the limitations described in this
manual.
4.1 Delivery
The Vermeiren Eagle 620 patient hoist shall be delivered with:
•chassis including 4 casters (2 with brakes)
•pole, including handles for pushing
•cantilever arm and spreader bar
•control box (incl. 2 accumulator batteries and manual operation)
•battery charger
•motor
•instruction manual
The Vermeiren Eagle 625 patient hoist shall be delivered with:
•chassis including 4 casters (2 with brakes)
•pole, including handles for pushing
•cantilever arm and spreader bar
•control box (+ included battery charger)
•battery
•manual control
•motor
•instruction manual
Before use check if everything is included and that no products are damaged (example by
transport, ...).
Please note that the basic configuration may vary from one European country to another. Please
contact the specialist dealer in your country for more information.
4.2 Assembly or dismantling
4.2.1 Unpacking
L WARNING: Risk of injury - After unpacking and before further assembly, always first
confirm that the emergency stop (the red pushbutton on the control box) is pressed in.
The patient hoist packaging has been selected to provide the best possible protection during
transport.

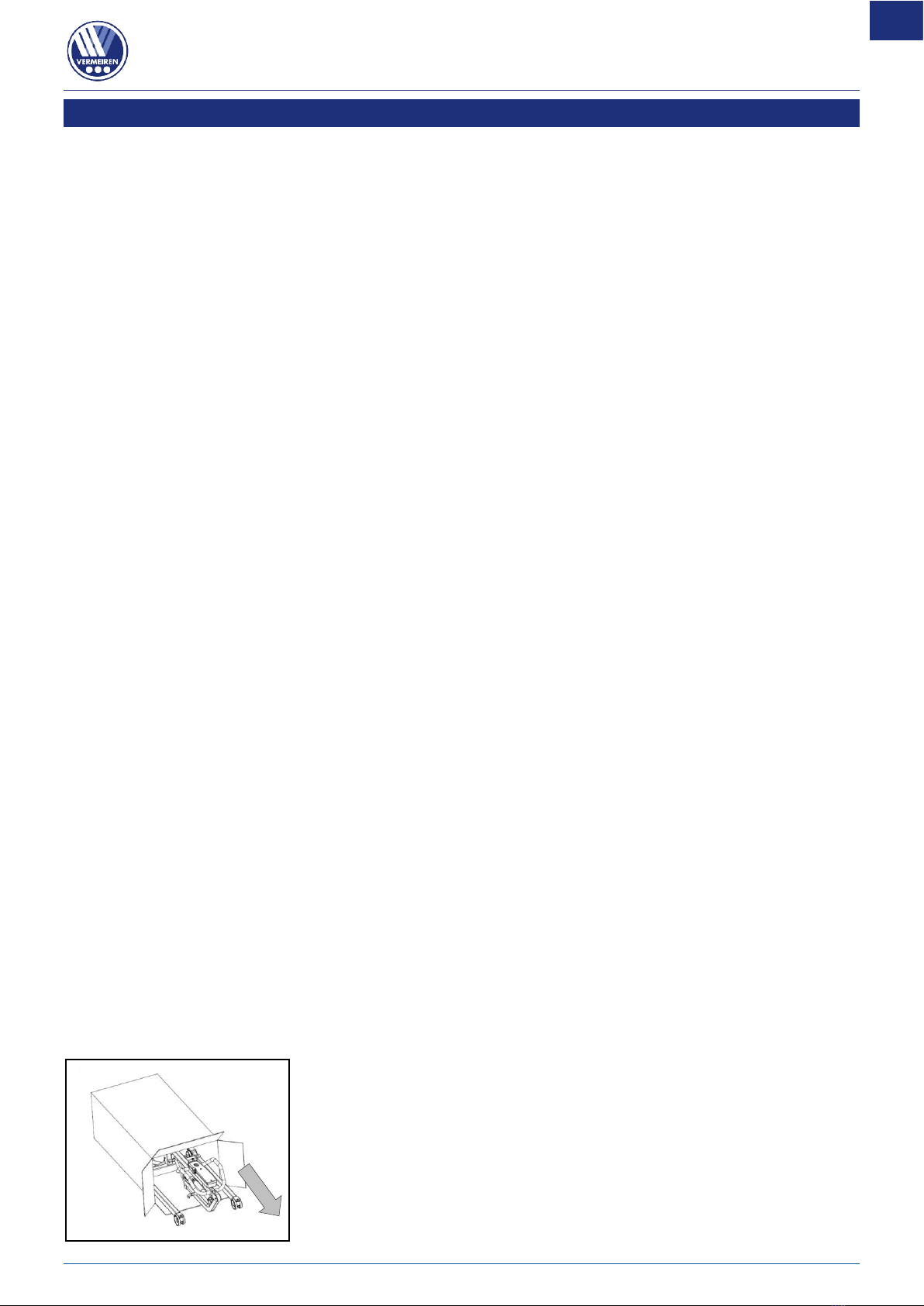

1. Take the patient hoist out of the box and check that all the
items have been delivered and that the individual parts do
not have any visible defects. If there is any damage, please
contact your sales office.

Eagle 620, Eagle 625
2022-04
Installation and adjustment
14
EN
NL

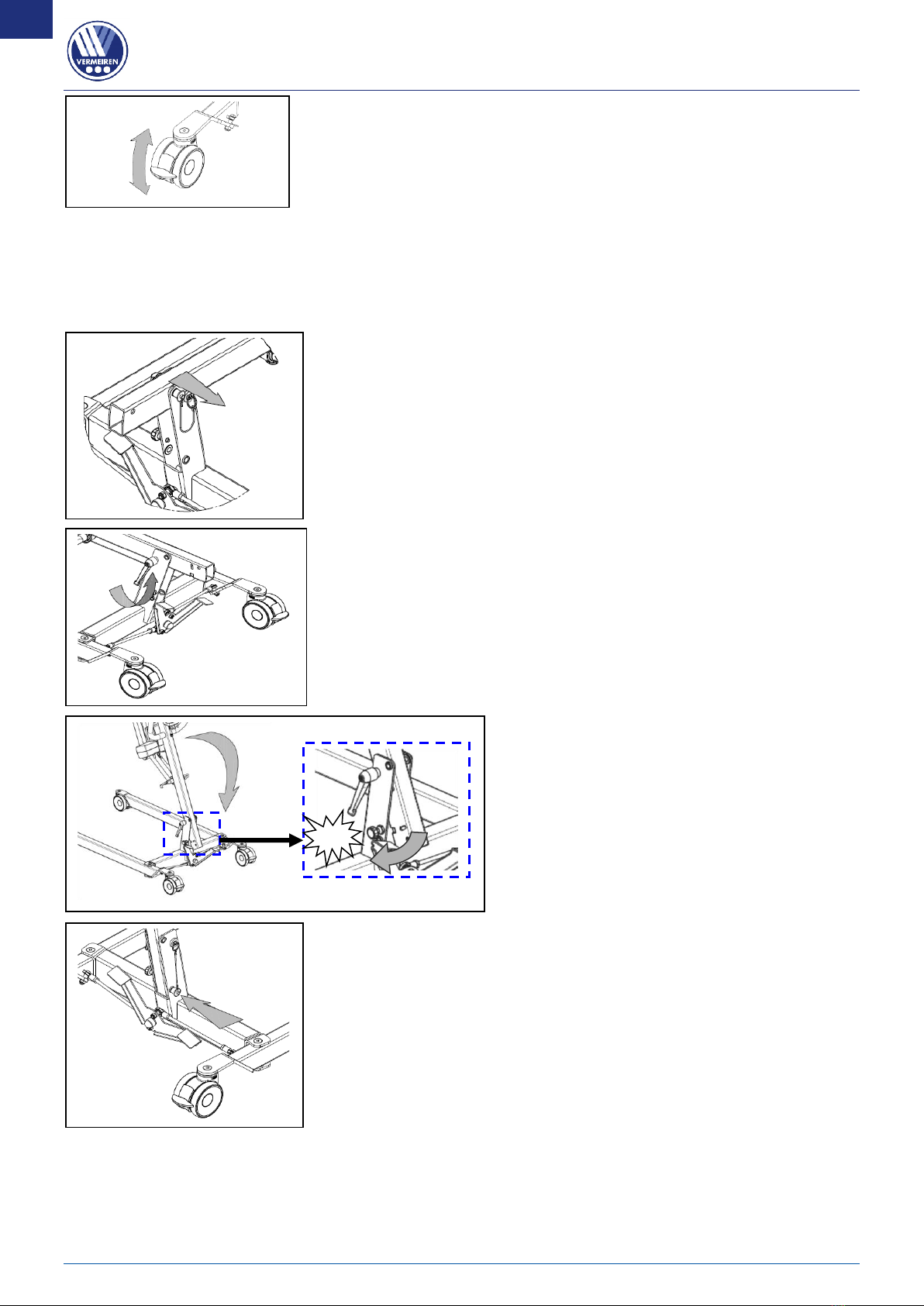

2. Before assembly, put on the caster brakes to make sure that
the lift cannot be moved unintentionally. Push the caster
brake plate down gently to its end stop with the front of your
foot. To release the brake, push the brake plate gently back
up again with the front of your foot until the caster is free.
4.2.2 Assembly
L WARNING: Risk of clamping - Take care that no body parts and wires get trapped,
crushed or cut during assembly.
1. Remove the safety spindle (locking pin) from the bottom end
of the pole by gently pressing the button at the head of the
spindle. The safety spindle can now be removed easily.
2. Undo the transport lock (wing screw) gently and the pole can
now be raised.
2.a The standing position safety
(traction screw) clicks audibly into
place once the pole is put in its final
position.
3. L WARNING: Risk of injury - Make sure that
the safety spindle is correctly inserted.
Fix the pole in place by pushing the safety spindle at the end
of the pole in with the pushbutton depressed until its other
end clearly protrudes. Release the pushbutton on the safety
spindle and check that it cannot be pulled out.
click

Eagle 620, Eagle 625
2022-04
Installation and adjustment
15
EN
NL

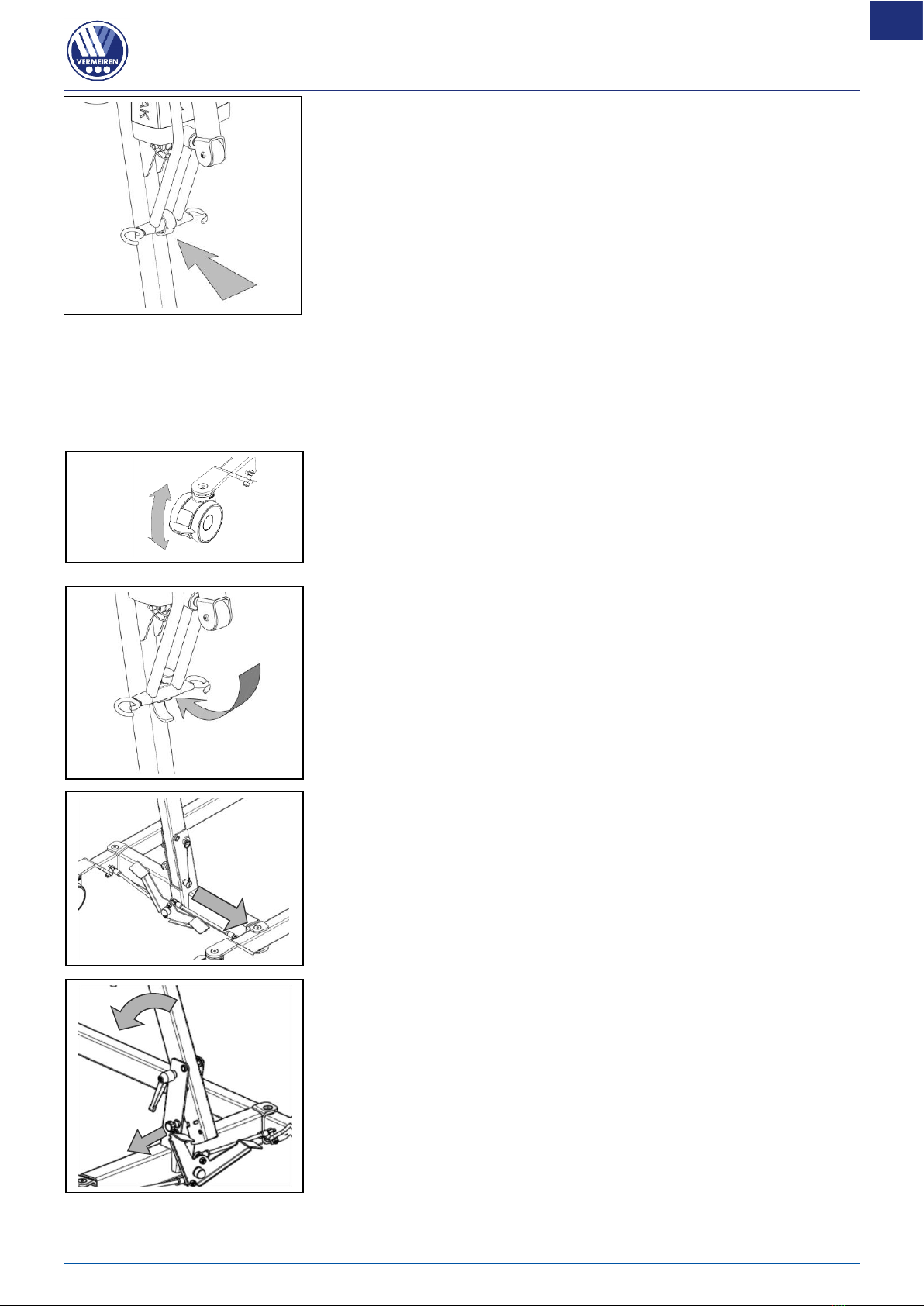

4. Undo the transport strap (Velcro) of the spreader bar. This
can now be moved freely to the end of the pole.
4.2.3 Dismantling
L WARNING: Risk of clamping - Take care that no body parts and wires get trapped,
crushed or cut during dismantling.
L WARNING: Risk of injury - Check the emergency stop (red pushbutton on the control
box) is activated, to avoid unintentional adjustment movements.
1. Secure the two casters at the back of the chassis by pressing
the caster brake plates down gently to their end stops with
the tip of your foot. To release the brake, push the brake plate
gently back up again with the front of your foot until the
casters are free.
2. Move the cantilever arm to the bottom position (end stop).
Place the spreader bar vertically and secure it with the
transport strap Velcro, as shown in the picture.
3. Remove the safety spindle (locking pin) from the bottom end
of the pole by gently pressing the button at the head of the
spindle. The safety spindle can now be removed easily.
4. L WARNING: Risk of injury - Once the pole is
unlocked, its own weight can cause considerable
downward forces to be exerted.
Pull out the standing position safety (traction screw) until the
pole is released and can be tilted. The pole can now be tilted
forwards.
Tip the pole as far as possible forward that its head end
comes to rest on the spreader bar.

Eagle 620, Eagle 625
2022-04
Installation and adjustment
16
EN
NL
5. L WARNING: Risk of injury - Make sure that the safety
spindle is correctly inserted.
Fix the pole in place by pushing the safety spindle at the end
of the pole in with the pushbutton depressed until its other
end clearly protrudes. Release the pushbutton on the safety
spindle and check that it cannot be pulled out again.
4.3 Swapping the battery
•We shall decline all liability for damage caused by the use of improper battery.
•Do not use the battery at temperatures below +5°C or above +50°C (the ideal is +20°C).
•If the battery is opened, all liability of the manufacturer shall be voided as well as any claim.
The battery of the patient hoist Eagle 625
can be swapped by an integrated clip
system.
To swap the battery pull on the integrated
clip system. The plate will be lifted and the
battery can be taken off the holder (control
box).
