VEVOR SD0601 User manual

Technical Support and E-Warranty Certificate www.vevor.com/support
TRANSMISSION JACK
USER'S MANUAL
MODEL:
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

TRANSMISSION JACK
SD0601
< Picture Only For Reference >
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Read the instructions carefully before using the device

1. Technical parameters
Brand
VEVOR
Model
Max Load(kg)
600
Product size mm
Product weight kg
42
2. Safety precautions
WARNING:
Read this manual before using this product. Failure to do so can result in
serious injury. SAVE THIS MANUAL
1) Position the Jack
Position the jack to only lift on the areas of the vehicle as specified by the
vehicle manufacturer.
2) Always Use Jack Stands
DO NOT USE woodblocks or any other non-approved lifting devices for a means
of lifting with the jack and or load being raised. Failure to head these warnings
may cause injury or death.
3) Do Not Overload Jack
Do not overload this jack beyond its rated capacity. Overloading this jack beyond
its rated capacity can cause damage to or failure of the jack.
4) Always Use on Hard Level Surfaces
5) Chock and Block (Stabilize)
- Apply parking brake in vehicle before operating jack.
- A chock is a wedge for steadying an object and holding it motionless, or for
preventing the movement of a wheel

- Chock the wheel opposite the end being lifted.
- When you block a load, you secure and support a load that is being lifted. The
block(s) or stabilizer(s) should have a weight capacity that is greater than the
weight of the load which is being lifted.
6) Center Load on Jack Saddle
Off-center loads and loads lifted when the jack is not level can cause loss of load
or damage to the jack.
7) Do not raise or lower the vehicle unless tools, materials and people are clear.
8) Always lower the jack slowly.
WARNING:
DO NOT USE THE JACK TO SUPPORT OR STABILIZE A LOAD.
Using the jack to support or stabilize a load may result in unexpected
movement and result in serious injury, being crushed and death. Always
securely chock and block (stabilize) the load to be lifted. Never place any
part of the body under a raised load without properly chocking and
supporting the load.
*Never use the jack on curved or tubular vehicle.
Bumpers, this will result in the vehicle slipping off the jack and falling,
causing serious injury or death. Use a bumper lift for vehicles with curved
bumpers or plastic bumpers.
*Do not move or dolly vehicle while jack is in use.

3. Product structure diagram

No.
Part name
Qty
No.
Part name
Qty
1
Cylinder
1
13
Screw M10*16
6
2
Foot Pump Pedal
1
14
Screw M8*40
3
3
Base
2
15
Release Handle
1
4
Handle
1
16
Oil Screw
1
5
Chain
2
17
Washer 12
4
6
Saddle
1
18
Spring Washer 12
4
7
Bent Bolt
2
19
Nut M12
4
8
Bolt Column
2
20
Caster Wheels
4
9
Nut M8
7
21
Spring Washer 16
4
10
Nut M10
8
22
Washer 16
4
11
Angle Iron
2
23
Screw M16*70
4
12
Screw M8*16
4
24
Screw M10*20
2
4. Instructions of use
Step 1: Install casters under the base (4 M12 nuts, 4 12 flat pads, 4 12
spring pads, a 19mm open wrench or 19mm socket wrench)

Step 2: Install the base on the side of the cylinder base (4 M16 * 70 bolts,
4 16 spring pads, 4 16 flat pads, using a 24mm open wrench or 24mm
socket wrench)

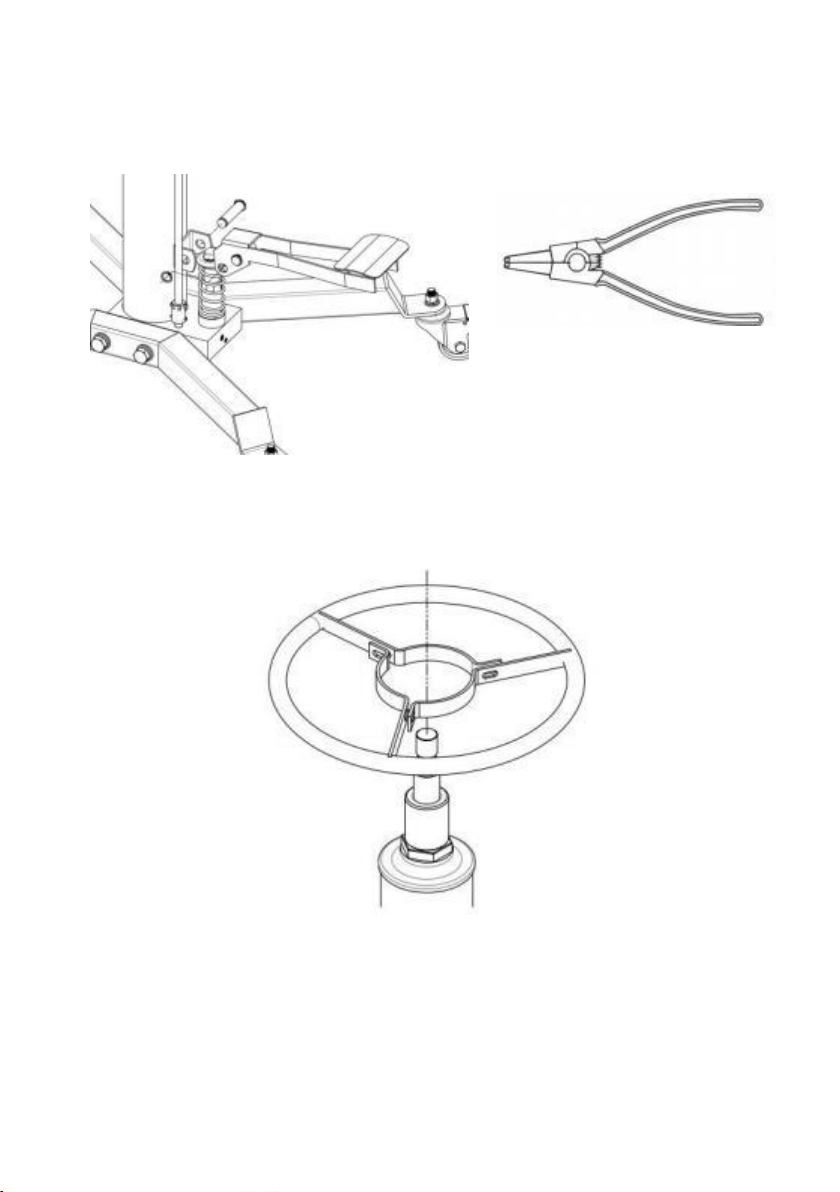

Step 3: Install the pedal above the pump body (using external pliers)
External Pliers
Step 4: Trap the handle over the cylinder

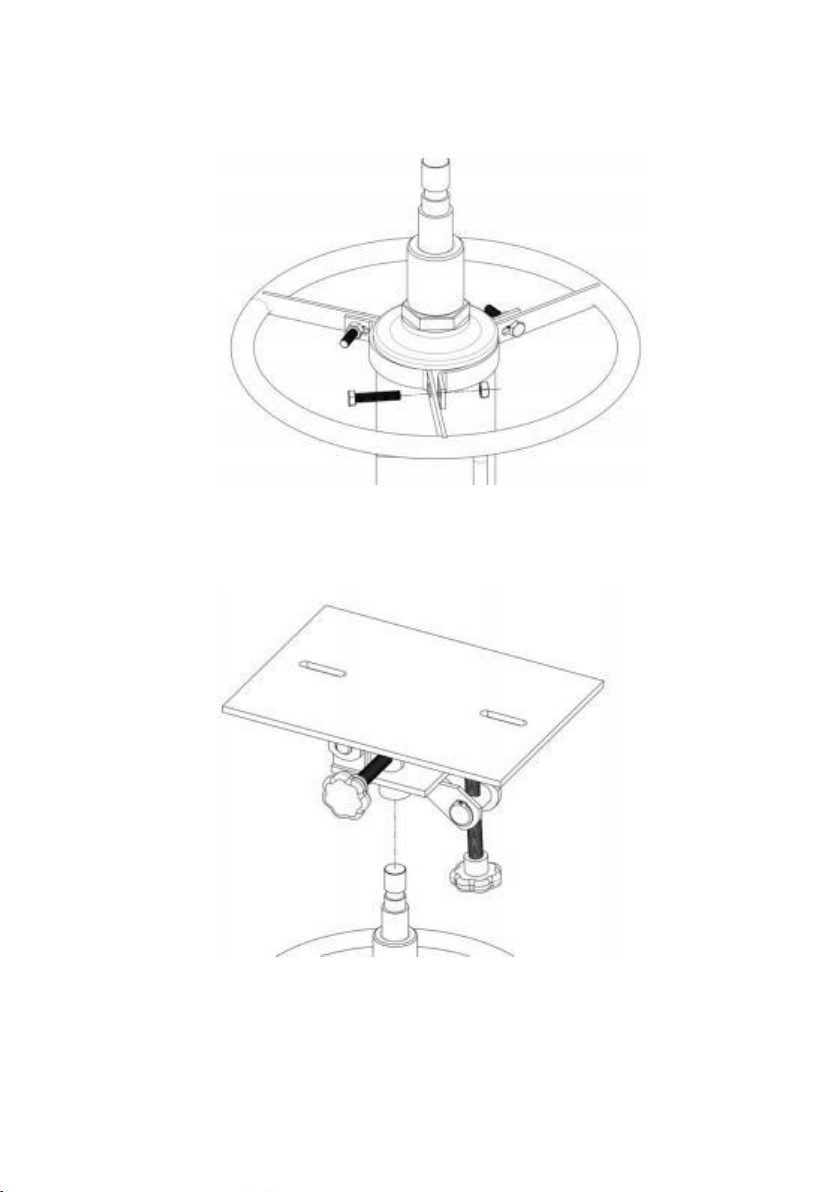

Step 5: Install handle ring screws (3 M8 * 40 bolts, 3 M8 nuts, need a
14mm open wrench or a 14mm socket wrench)
Step 6: Install the tray (saddle) on the oil cylinder
For more detailed installation steps, please refer to the video on the
website.

5. Instructions of use
1) RAISING THE JACK
1. Before use, ensure the transmission weight and size does not exceed
the capacity of the jack.
2. Ensure the vehicle from which the gearbox be removed is correctly
positioned.
3. Check handbrake is applied and raised to allow the transmission jack to
be positioned correctly.
4. Ensure there are no other persons around or under the vehicle.
5. Ensure saddle is in its lowest position and use handle to transport and
centrally position jack beneath vehicle transmission.
6. Assemble the handle, ensure it aligns with slots.
7. Close the release valve by turning it clockwise until it is firmly closed.
8. Pump handle to lift until saddle contacts load. Continue to pump the
jack handle to lift the vehicle to the desired height.
9. After lifting, support the load appropriately before removing
transmission.
2) LOWERING THE JACK
1. Support the load with appropriate means before removing transmission.
Check to make sure the transmission is stable on the jack saddle and the
load is fixed in place before attempting to lift,lower,or transport.
2. Grasp the handle firmly with both hands. Securely hold on to the jack
handle so your hands do not slip and ensure the release valve does not
rapidly lower.
3. Carefully open the Release Valve by slowly turning the handle
counterclockwise. (Do not allow bystanders around the jack or under the
load when lowering the jack.）
4. Lower saddle to the lowest height before attempting to transport load.
3) TRANSPORTING THE LOAD
1. Ensure the jack saddle is fully lowered and load is secure before

attempting to lift, lower, or transport transmission.
2. Transport the load over level and solid ground, preferably concrete, and
ensure the floor is swept clean before transporting load.
3. Be diligent in continually monitoring the load in transit.Keep all other
persons at a safe distance.
4. DO NOT use on asphalt, or any soft surface as jack may sink or tip,
causing damage to transmission or personal or injury/harm may result.
5. WARNING: If jack tips or leans STOP WHAT YOU ARE DOING. MOVE
QUICKLY TO A SAFE DISTANCE. DO NOT TRY TO HOLD OR STEADY
JACK to prevent personal injury and/or property damage.
4) RE-INSTALLING A GEARBOX
1. Ensure the jack saddle is fully lowered and load is secure before
attempting to lift or transport transmission.
2. Transport the load over level and solid ground, preferably concrete, and
ensure the floor is swept clean before transporting load.
3. Be diligent in continually monitoring the load in transit.Keep all other
persons at a safe distance.
4. DO NOT use on asphalt, or any soft surface as jack may sink or tip,
causing damage to transmission or personal injury/harm may result.
MAINTENANCE INSTRUCTIONS
1) Inspection
You should inspect the product for damage, wear, broken or missing parts
(e.g.:pins)and that all components function before each use.
2) Binding
If the product binds while under a load, use equipment with equal or a
larger load capacity to lower the load safely to the ground.
After un-binding; clean, lubricate and test that equipment is working
properly. Rusty components, dirt, or worn parts can be causes of binding
Clean and lubricate the equipment as indicated in the lubrication section.

Test the equipment by lifting without a load. If the binding continues
contact Customer Service.
3) Lubrication
This equipment will not operate safely without proper lubrication. Using
the equipment without proper lubrication will result in poor performance
and damage to the equipment. Some parts in this equipment are not
self-lubricating; inspect the equipment before use and lubricate when
necessary. After cleaning, lubricate the equipment using light penetrating
oil, or a lubricating spray.
- Use a good lubricant on all moving parts.
- For light duty use lubrication once a month.
- For heavy and constant use, lubrication is recommended every week.
-NEVER USE SANDPAPER OR ABRASIVE MATERIAL ON THESE
SURFACES!
4) Rust Prevention:
- Check ram's and pump plungers on the power unit assemblies daily for
any signs of rust or corrosion. Without a load lift the equipment as high
as it goes and look under and behind the lifting points. If signs of rust are
visible clean as needed.
5) Storing the Jack
1. Lower the Lifting Arm.
2. Place the handle in the upright position.
3. Store in a dry location, recommended indoors.
Note: If the jack is stored outdoors, be sure to lubricate all parts before
and after use to ensure the jack stays in good working condition.
6. Scope of application
Use for the transportation of all kinds of automobile gearbox, transmission
shaft, front and rear axles, etc

7. Common fault analysis
fault
phenomenon
failure cause
solution
The ladder
deformation
The actual load weight
exceeds the maximum
product load
In use, the actual load
weight does not exceed
the maximum product
load
