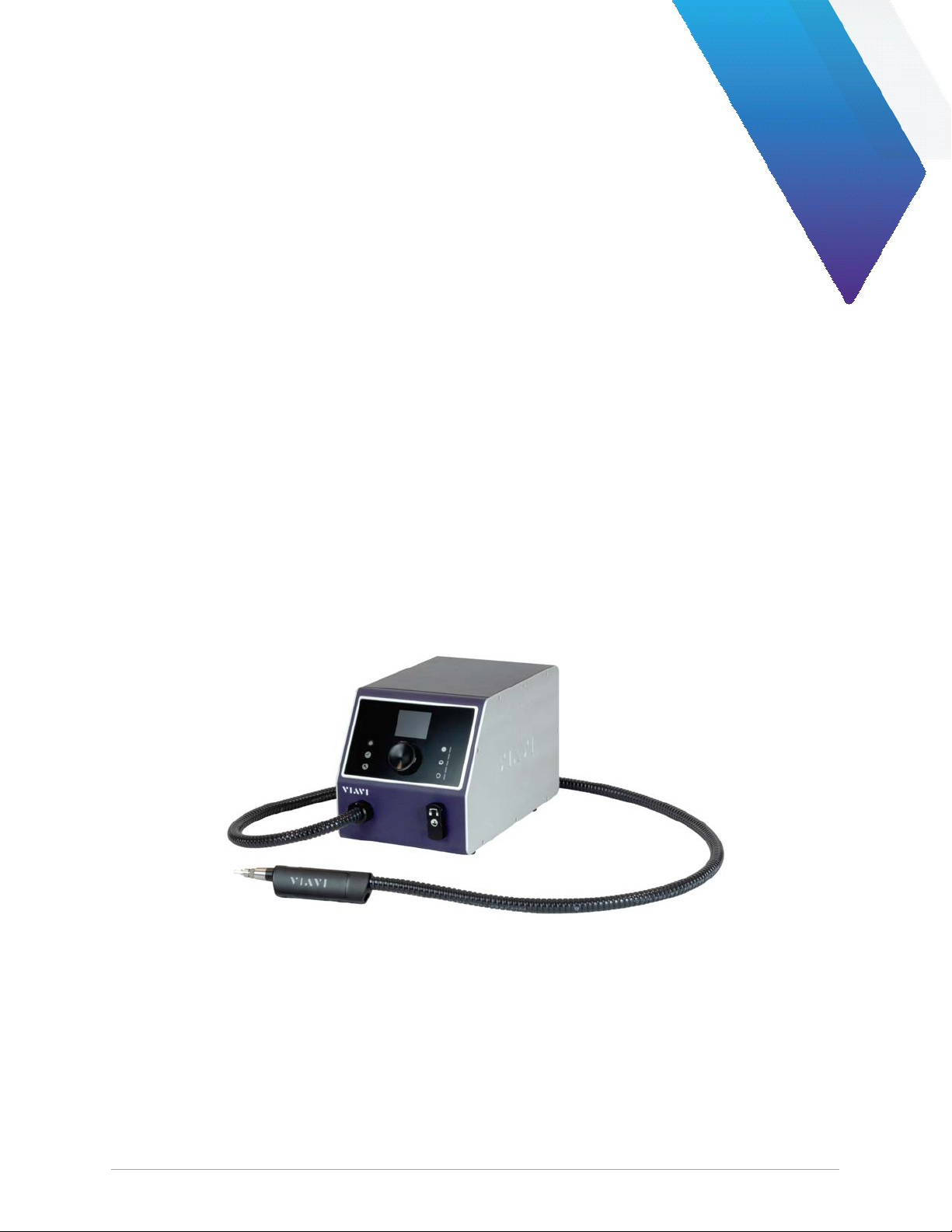

Viavi CleanBlastPRO User manual

CleanBlastPRO™
Benchtop Fiber End Face Cleaning System
User Guide
22147176 Rev. 105, Standard
November 2020


ii CleanBlastPRO™ User Guide, 22147176 Rev. 105
Copyright
Copyright © 2020 VIAVI Solutions Inc. All rights reserved. VIAVI and CleanBlastPRO™ are trademarks or
registered trademarks of VIAVI in the United States and/or other countries. All other trademarks and
registered trademarks are the property of their respective owners. No part of this guide may be
reproduced or transmitted, electronically or otherwise, without written permission of the publisher.
Every effort was made to ensure that the information in this manual was accurate at the time of printing.
However, information is subject to change without notice, and VIAVI reserves the right to provide an
addendum to this manual with information not available at the time that this manual was created.
Patents
Patented as described at www.viavisolutions.com/patents.
Terms and Conditions
Specifications, terms, and conditions are subject to change without notice. The provision of hardware,
services, and/or software are subject to VIAVI standard terms and conditions, available at
www.viavisolutions.com/terms.
Warranty
VIAVI warrants this equipment to be free of defects in material and workmanship for one (1) calendar
year from the date of purchase. Any mishandling or unauthorized repairs will void this warranty. For
additional warranty terms and conditions, see www.viavisolutions.com/terms.
Disclaimer
The foregoing warranties are in lieu of all other warranties and conditions, expressed or implied. VIAVI
specifically disclaims all other warranties, either expressed or implied, on any hardware, documentation
or services including but not limited to warranties relating to quality, performance, non-infringement,
merchantability or fitness for a purpose, as well as those arising from any course of dealing, usage or
trade practice. Under no circumstances will VIAVI be liable for any indirect or consequential damages
related to breach of this warranty.
California Proposition 65
California Proposition 65, officially known as the Safe Drinking Water and Toxic Enforcement Act of 1986,
was enacted in November 1986 with the aim of protecting individuals in the state of California and the
state's drinking water and environment from excessive exposure to chemicals known to the state to cause
cancer, birth defects or other reproductive harm. For the VIAVI position statement on the use of
Proposition 65 chemicals in VIAVI products, see the Hazardous Substance Control section of the VIAVI
Policies & Standards web page.
Federal Communications Commission (FCC) Notice
Electronic test equipment is exempt from Part 15 compliance (FCC) in the United States.
EU WEEE and Battery Directives
This product, and the batteries used to power the product, should not be disposed of as unsorted
municipal waste and should be collected separately and disposed of according to your national
regulations.
VIAVI has established a take-back processes in compliance with the EU Waste Electrical and Electronic
Equipment (WEEE) Directive, 2012/19/EU, and the EU Battery Directive, 2006/66/EC. Instructions for
returning waste equipment and batteries to VIAVI can be found in the WEEE section of the VIAVI Policies
& Standards web page.
If you have questions concerning disposal of your equipment or batteries, contact the VIAVI WEEE
Program Management team at [e-mail].

CleanBlastPRO™ User Guide, 22147176 Rev. 105 iii
EU REACH
Article 33 of EU REACH regulation (EC) No 1907/2006 requires article suppliers to provide information if a
listed Substances of Very High Concern (SVHC) is present in an article above a certain threshold. For
information on the presence of REACH SVHCs in VIAVI products, see the Hazardous Substance Control
section of the VIAVI Policies & Standards web page.
EU CE Marking Directives (LV, EMC, RoHS, RE)
This product conforms with all applicable CE marking directives. Please request the EU Declaration of
Conformity for details.
China RoHS materials declaration
6001 America Center Drive, 6th Floor
San Jose, CA 95002, USA
22149383, Rev 000
“ѝѝഭRoHS”
lj⭥ᆀؑ᚟ӗ૱⊑ḃ᧗ࡦ㇑⨶࣎⌅NJ˄ؑ᚟ӗъ䜘ˈㅜ 39 ˅
䱴ᖅ (Additional Information required for the Chinese Market only)
ᵜ䱴ᖅ᤹➗Āѝഭ RoHSāⲴ㾱≲䈤᰾Ҷᴹޣ⭥ᆀؑ᚟ӗ૱⧟؍֯⭘ᵏ䲀ⲴᛵߥˈᒦࡇࠪҶӗ૱ѝᴹ
Ⲵᴹ∂ǃᴹᇣ⢙䍘Ⲵ⿽㊫઼ᡰ൘䜘ԦDŽᵜ䱴ᖅ䘲⭘Ҿӗ૱ѫփ઼ᡰᴹ䝽ԦDŽ
ӗ૱㌫ࡇ:CleanBlast Pro
(Product Family)
⧟؍֯⭘ᵏ䲀˖
ᵜḷ䇶ḷ⌘Ҿӗ૱ѫփѻкˈ㺘᰾䈕ӗ૱ᡆަ䝽Ԧᴹᴹ∂ǃᴹᇣ⢙䍘˄䈖ᛵ㿱л
㺘˅DŽ
ަѝⲴᮠᆇԓ㺘൘↓ᑨ󰪞֌ᶑԦл㠣ቁ൘ӗ૱⭏ӗᰕᵏѻᮠᒤ޵䈕ӗ૱ᡆަ䝽Ԧ޵
ᴹⲴᴹ∂ǃᴹᇣ⢙䍘нՊᔲᡆ⋴┿DŽ䈕ᵏ䲀н䘲⭘Ҿ䈨ྲ⭥⊐ㅹ᱃㙇૱DŽ
ᴹޣ↓ᑨ󰪞֌ᶑԦˈ䈧৲㿱ӗ૱⭘ᡧ᡻޼DŽ
ӗ૱⭏ӗᰕᵏ䈧৲㿱ӗ૱Ⲵ৏࿻ṑ߶䇱ҖDŽ
ᴹ∂ǃᴹᇣ⢙䍘Ⲵ㊫ර઼ᡰ൘䜘Ԧ
ᴹ∂ǃᴹᇣ⢙䍘઼ݳ㍐
ݳಘԦ
(Component)
䫵(Pb) ⊎(Hg) 䭹(Cd) ޝԧ䬜
(CR
6+
)ཊⓤ㚄㤟 (PBB) ཊⓤҼ㤟䟊 (PBDE)
ӗ૱ѫփ
(
Main Product
)
ঠࡧ⭥䐟ᶯ㓴Ԧ
(
PCB Assemblies
)
XOX O O O
޵䜘䝽㓯
(
Internal wirin
g)
XOO O O O
ᱮ⽪ಘ
(Display) XOO O O O
䭞ⴈ
(Keyboard) OOO O O O
⭥⊐
(Batteries) OOO O O O
⭥Ⓚ
(Power Supply) XOO O O O
⭥ᐕ䴦Ԧ
(
Electro-mechanical parts
)
XOO O O O
⺜ⴈ
(
Hard Drive
)
OOO O O O
ݹ⁑ඇ
/
䖵ࣙ⁑ඇ
(
Optical modules
)
/
(
Auxiliar
y
modules
)
XOO O O O
䠁኎ཆ༣䴦Ԧ઼㍗ᢓԦ
(
Metal case parts and fixin
g
s
)
XOO O O O
ກᯉཆ༣䴦Ԧ
(Plastic case parts) OOO O O O
ḷㆮ઼㜦ᑖ
(Labels and tapes) OOO O O O
䝽Ԧ
(Accessories)
ཆ᧕⭥㔶઼䘲䝽ಘ
(External cables and adapters) XOO O O O
CD ROMS
᡻޼઼ަᆳঠࡧᶀᯉ
(Handbooks and other printed material) OOO O O O
㻵㇡઼㕊ᑖ
(Carrying case and strap) OOO O O O
ަᆳ䝽Ԧ
(Other accessories) OOO O O O
ᵜ㺘ᱟ᤹➗ S / T 11364Ⲵ㿴ᇊ㕆ࡦⲴ:
O˖㺘⽪䈕ᴹᇣ⢙䍘൘䈕䜘Ԧᡰᴹ൷䍘ᶀᯉѝⲴ䟿൷൘ GB/T 26572 㿴ᇊⲴ䲀䟿㾱≲ԕлDŽ
X˖㺘⽪䈕ᴹᇣ⢙䍘㠣ቁ൘䈕䜘ԦⲴḀа൷䍘ᶀᯉѝⲴ䟿䎵ࠪ GB/T 26572 㿴ᇊⲴ䲀䟿㾱≲DŽ

iv CleanBlastPRO™ User Guide, 22147176 Rev. 105
Contents
1 CleanBlastPRO™ Benchtop Fiber End Face Cleaning System.........................................................1-1
Key features........................................................................................................................................ 1-2
Ordering information.......................................................................................................................... 1-3
FCLT Series cleaning tips..................................................................................................................... 1-4
Safety .................................................................................................................................................. 1-4
Technical Assistance Center and Knowledge Base ............................................................................. 1-4
2 Getting started ............................................................................................................................2-1

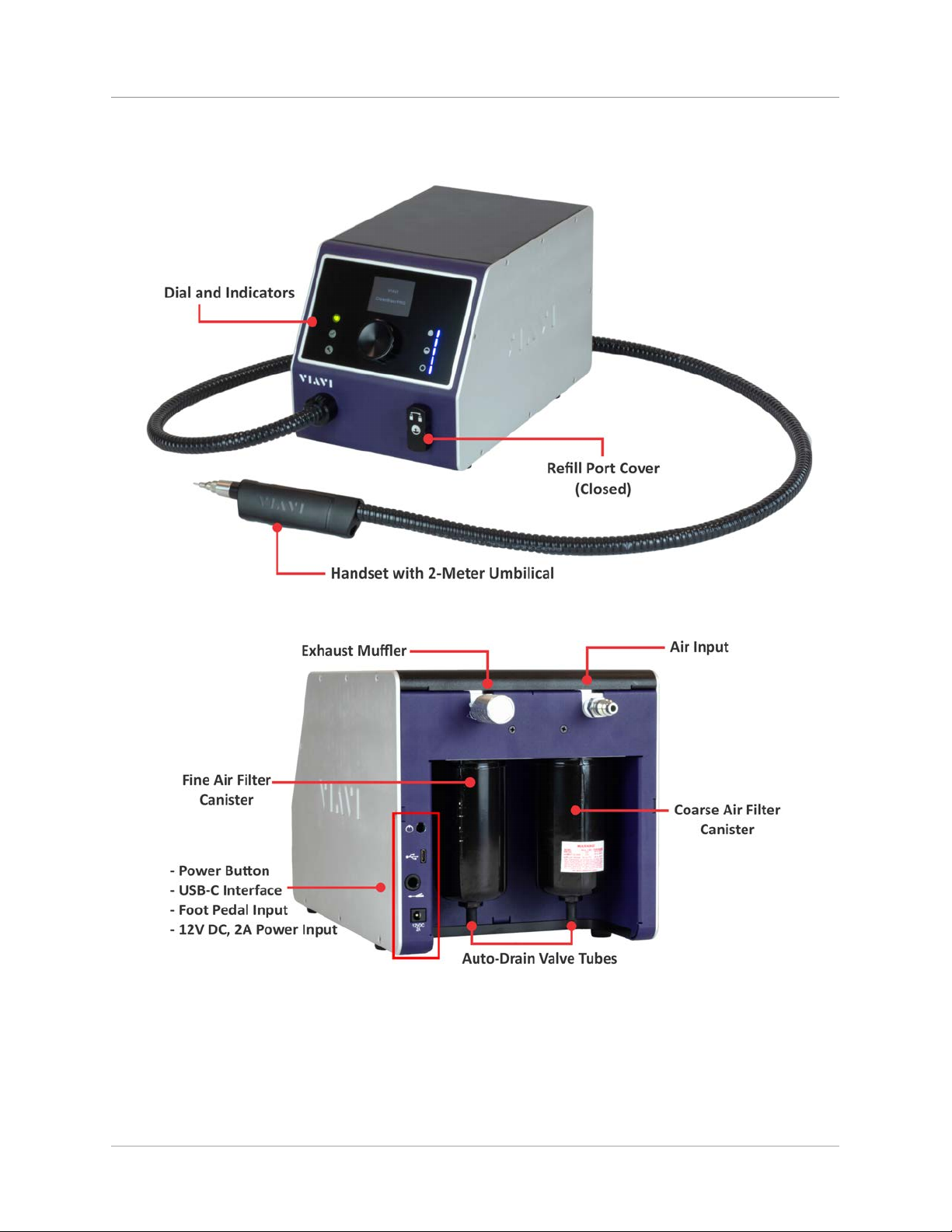

CleanBlastPRO features ...................................................................................................................... 2-2
Indicators and menu navigation................................................................................................... 2-4

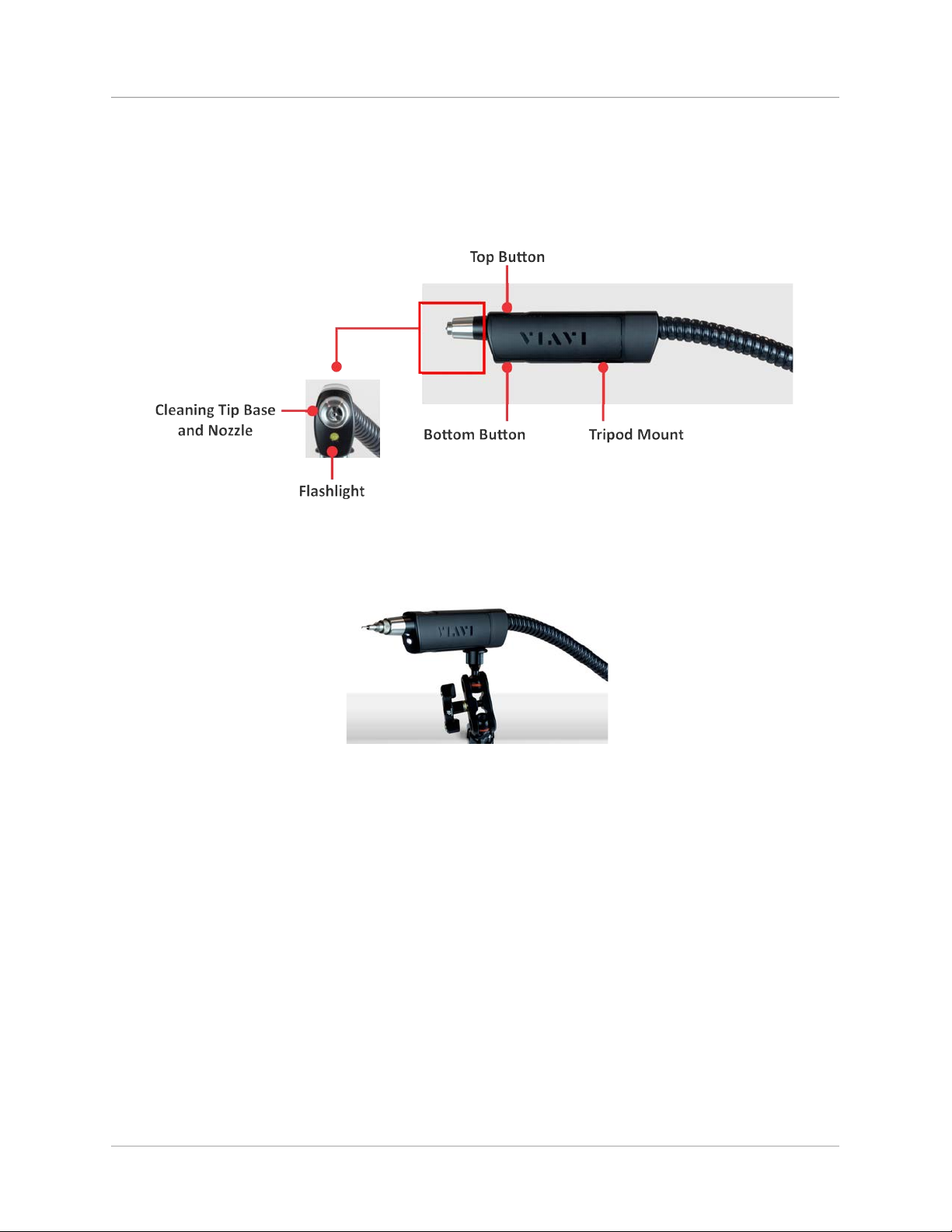

Handset features and mounting .................................................................................................. 2-5

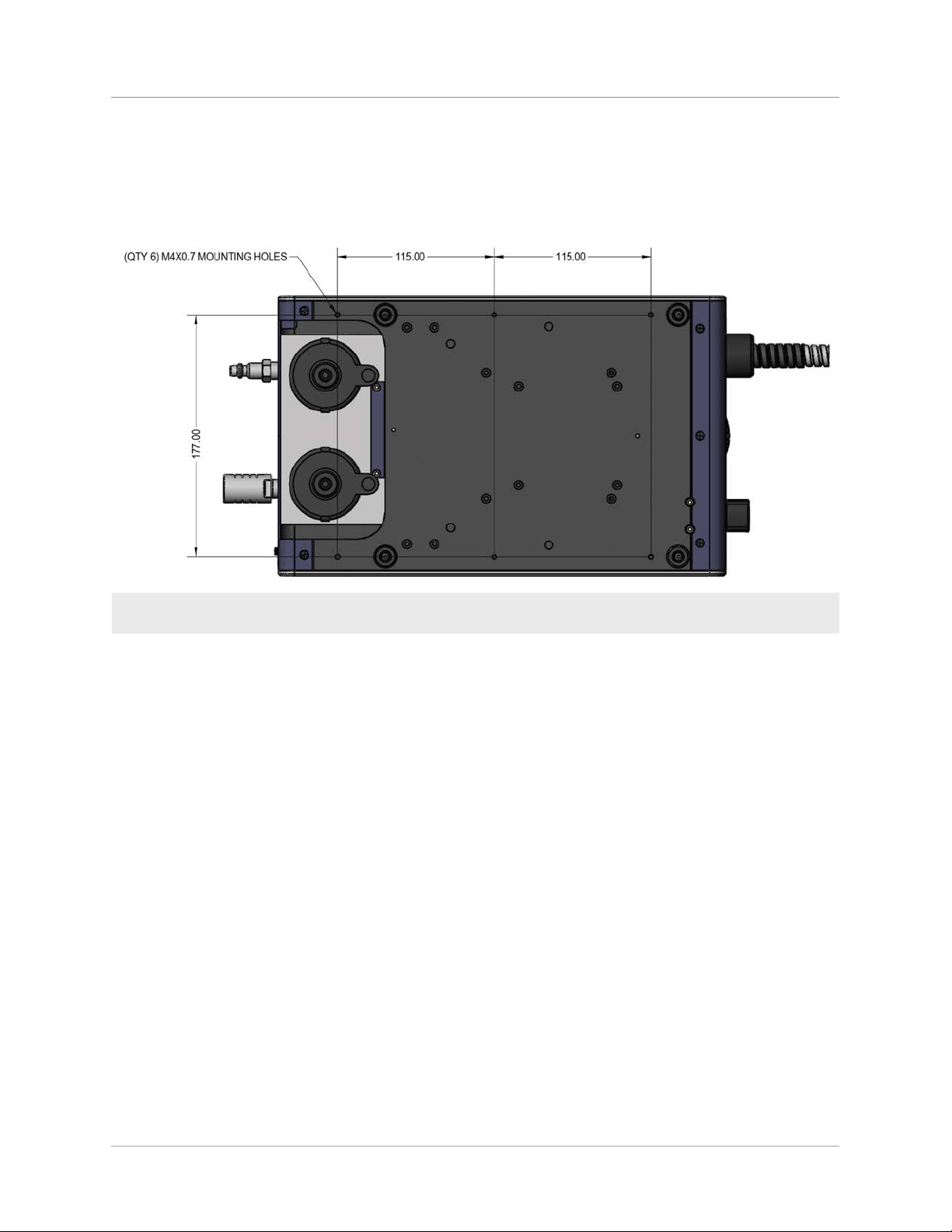

Mounting the CleanBlastPRO on a cart or dolly........................................................................... 2-6
Work station requirements ................................................................................................................ 2-6
Powering the CleanBlastPRO.............................................................................................................. 2-7
Powering on ................................................................................................................................. 2-7
Powering off................................................................................................................................. 2-7
Connecting or disconnecting an air source......................................................................................... 2-8
Connecting an air source.............................................................................................................. 2-8
Disconnecting the air source........................................................................................................ 2-8
Filling the solvent tank........................................................................................................................ 2-9
Performing a manual refill ........................................................................................................... 2-9
Performing an auto refill ............................................................................................................ 2-12
Configuring custom cleaning profiles ............................................................................................... 2-15
Handset operation............................................................................................................................ 2-17
Modifying handset settings........................................................................................................ 2-17
Foot pedal operation ........................................................................................................................ 2-18
Connecting an FCLT Series cleaning tip to the handset.................................................................... 2-18
3 Fiber cleaning ..............................................................................................................................3-1
Before you begin cleaning .................................................................................................................. 3-2
Priming the handset ........................................................................................................................... 3-2
Performing a cleaning cycle................................................................................................................ 3-3
Performing a regular cleaning cycle............................................................................................. 3-3
Performing an extended cleaning cycle ....................................................................................... 3-3
4 Maintenance ...............................................................................................................................4-1
Setting up the CleanBlastPRO with a check valve and pressure tank................................................. 4-2
Replacing air filters ............................................................................................................................. 4-3
Replacing the fine and coarse air filters....................................................................................... 4-3
Replacing the air filter on the CleanBlastPRO Auto Refill Kit ....................................................... 4-5
Auto-drain valves................................................................................................................................ 4-6

CleanBlastPRO™ User Guide, 22147176 Rev. 105 v
Draining the solvent ........................................................................................................................... 4-7
Preparing the CleanBlastPRO for transportation/shipping ................................................................ 4-9
Accessing system settings and information...................................................................................... 4-10
Updating the CleanBlastPRO firmware............................................................................................. 4-11
Generating the firmware file...................................................................................................... 4-11
Updating the firmware............................................................................................................... 4-12
Exporting the log file......................................................................................................................... 4-13
Appendix A CleanBlastPRO menu summary ...................................................................................... A-1
Menu icons ......................................................................................................................................... A-2
VIAVI Menu......................................................................................................................................... A-2
Main Menu ......................................................................................................................................... A-3
Select Profile and Edit:CUSTOM ......................................................................................................... A-3
Fluid/Tank Menu ................................................................................................................................ A-4
Current Warnings ............................................................................................................................... A-4
System Settings .................................................................................................................................. A-5
Appendix B Specifications ................................................................................................................. B-1
Appendix C Custom profile examples.................................................................................................C-1
Example 1 - Basic Clean ...................................................................................................................... C-2
Example 2: Basic Clean - Two Cycles................................................................................................... C-3
Example 3: Blow/Vac Then Clean ....................................................................................................... C-4

vi CleanBlastPRO™ User Guide, 22147176 Rev. 105

About this guide
This guide provides information about the CleanBlastPRO™ Benchtop Fiber End Face Cleaning System.
Revision history
To access the latest version of this user guide, go to:
http://cbpro.updatemyunit.net/archives/CBPRO/User_Guide_CleanBlastPRO.pdf
Revision Date Details
105 November 2020 • Updated front matter content:
• Added patent information
• Replaced China RoHS materials declaration
• Updated the following sections:
• “Ordering information”
• “Performing a manual refill”
• “Performing an auto refill”
• “Foot pedal operation”
• “Generating the firmware file”
• “Updating the firmware”
• “Exporting the log file”
104 October 2020 • Updated the following information:
• Admonitions regarding solvent use
• Specifications
• URLs to access this user guide and the CleanBlastPRO Firmware USB Flash
Drive Creator
• Added the section “Preparing the CleanBlastPRO for transportation/shipping”
103 August 2020 Assigned new document part number.
102 August 2020 Document formatting changes.
101 July 2020 Document formatting changes.
100 July 2020 This document is released.

CleanBlastPRO™ User Guide, 22147176 Rev. 105 1 - 1

1 CleanBlastPRO™ Benchtop Fiber End
Face Cleaning System
The CleanBlastPRO Benchtop Fiber End Face Cleaning System is an automated, easy-to-deploy fiber
connector cleaning system that features an internal solvent tank, air filtration system, cleaning handset
with 2-meter (6.5 foot) umbilical, and an LCD screen. The device provides users with an intuitive cleaning
system, offering cleaning profiles optimized for Simplex and MPO fiber connectors.
Also, the CleanBlastPRO supports a comprehensive selection of precision cleaning tips for most fiber
connector types, with both male (patch cord) and female (bulkhead) connectors, including SC, LC, FC, ST,
E2000, MPO, MPX, MT, and SMA. With backwards compatibility to the large selection of FCLT series tips,
users of CleanBlast™ cleaning systems can leverage their existing investment of cleaning tips.
Figure 1-1: CleanBlastPRO Benchtop Cleaning System with FCLT Series cleaning tip
This section covers the following information:
•“Key features” on page 1-2
•“Ordering information” on page 1-3
•“FCLT Series cleaning tips” on page 1-4
•“Safety” on page 1-4
•“Technical Assistance Center and Knowledge Base” on page 1-4

CleanBlastPRO™ Benchtop Fiber End Face Cleaning System
Key features
1 - 2 CleanBlastPRO™ User Guide, 22147176 Rev. 105
Key features
• Supports use of the following cleaning solutions:
▪ 3M™ Novec™ 72DA, a superior, nonflammable, highly cost effective cleaning solvent for fiber end
faces
▪ CleanBlast Solvent from MicroCare® Corporation, which is identical to the Novec 72DA solvent
• Provides factory-defined cleaning profiles optimized for Simplex and MPO connectors, and supports
up to five user-defined custom cleaning profiles for specific applications
• Onboard self-diagnostics ensure consistent operation in mission critical applications
• Active fluid vapor vacuum system with vacuum pull greater then fluid and air pressure keeps fumes
away from operator
• Sealed fluid reservoir and fill system ensure that contaminants are not deposited by the cleaning
system
• Automatic drain valves in air-filter canisters prevent water in the air/gas supply from contaminating
the system

CleanBlastPRO™ Benchtop Fiber End Face Cleaning System
Ordering information
CleanBlastPRO™ User Guide, 22147176 Rev. 105 1 - 3
Ordering information
Table 1-1: CleanBlastPRO Benchtop Fiber End Face Cleaning System part numbers
Component Part Number
CleanBlastPRO Benchtop Cleaning System Benchtop with Large Tank FCL-PRO-L
Accessories
CleanBlastPRO Manual Refill Kit for 225 ml Solvent Refill Bottle FCLP-RCA-2
CleanBlastPRO Auto Refill Kit for 3.75 L Solvent Refill Bottle FCLP-RCA-3
Replacement Air Filter for CleanBlastPRO Auto Refill Kit (FCLP-RCA-3),
1- Pack
FCLP-FA-F1
Solvent Refill (3M Novec 72DA1), 225 ml Bottle2
1. CleanBlastPRO is rated for use with 3M Novec 72DA Engineered Fluid. Use only Novec 72DA solvent from 3M or CleanBlast
solvent from MicroCare Corporation (identical formulation to Novec 72DA). Warranty will be void if a VIAVI repair center or
representative determines that any other solvent has been used and is the cause of operational problems.
2. For use with FCLP-RCA-2 only.
FCLP-SOL1
Solvent Refill (3M Novec 72DA) 6-pack, 225 ml Bottle2FCLP-SOL1-6
Solvent Refill (3M Novec 72DA), 3.75 L Bottle3
3. For use with FCLP-RCA-3 only.
FCLP-SOL1-XL
Exhaust Filter Kit for Bench-Top CleanBlast Systems FCLP-FE-01
Replacement Large Coarse Air Filter for CleanBlastPRO, 2-Pack FCLP-FA-F2
Replacement Large Fine Air Filter for CleanBlastPRO, 2-Pack FCLP-FA-F3
Cleaning Tips See “FCLT Series cleaning tips” on
page 1-4.
Adjustable Articulating Camera Clamp for use with CleanBlastPRO FCLP-CL-01
Foot Pedal SPDT-NO Black 3A 30VAC 8 Foot Cord for use with
CleanBlastPRO
FCLP-FP-01
Extension Cable ¼" Plug for use with FCLP-FE-01 and CleanBlastPRO FCLP-EC-01
CleanBlastPRO Accessory Kit (contains FCLP-CL-01, FCLP-FP-01, and
FCLP-EC-01)
FCLP-ACC-KIT1

CleanBlastPRO™ Benchtop Fiber End Face Cleaning System
FCLT Series cleaning tips
1 - 4 CleanBlastPRO™ User Guide, 22147176 Rev. 105
FCLT Series cleaning tips
The CleanBlastPRO supports a wide range of FCLT Series cleaning tips to suit any application. Table 1-2
lists the cleaning tips used for the most common applications. For a full listing of available cleaning tips,
see the Fiber Cleaning Tips and Adapters Selection Guide.
Safety
Technical Assistance Center and Knowledge Base
To find the Technical Assistance Center phone number and email in your region for the CleanBlastPRO
product or to search the VIAVI Solutions Knowledge Base, visit the VIAVI Solutions Technical & Product
Support site at support.viavisolutions.com.
Table 1-2: FCLT Series cleaning tips for common applications
Connector Type Cleaning Tip Part Number
FC Bulkhead FCLT-U25 or FCLT-FC-250
Patch Cord FCLT-U25 + FCLT-U25-MA
LC Bulkhead FCLT-U12 or FCLT-LC
Patch Cord FCLT-U12 + FCLT-U12-MA
SC Bulkhead FCLT-U25 or FCLT-SC-250
Patch Cord FCLT-U25 + FCLT-U25-MA
ST Bulkhead FCLT-U25
Patch Cord FCLT-U25 + FCLT-U25-MA
MPO Bulkhead FCLT-MTP
Patch Cord FCLT-MTP + FCLT-MTP-MA
CAUTION
Turn off the device and disconnect all cables connected to it before moving the device.
