1 INTRODUCTION
1INTRODUCTION
OLS-3xV2 Optical Light Sources
The Test Sets are specially designed for high performance testing
of all systems, i.e. broadband, PONs, and Gigabit Ethernet.
Battery operation from two AA batteries and the robust, shock-
proof design provide long operating time in the field even under
tough conditions. AC line operation via a separate AC adapter
and the USB interface ensure ease of use in the laboratory or
production environment.
Differences between the devices
The OLS-3xV2 family covers all the modes, wavelengths and
fiber types needed. The table below lists the differences
between the devices:
Test adapters
The OLS-3xV2 are delivered with SC adapters. Test adapters for
all common connector systems (e.g. FC, ST) can be ordered from
Viavi.
Operating manual update
If the operating instructions about features provided by your
device are missing, please visit the Viavi web site to check if
additional information is available.
To download the latest operating instructions:
1. Visit the Viavi web site at
www.viavisolutions.com .
2. Search for SmartPocket V2.
3. Open the download area and download the operating
instructions if available.
Model BN... Fiber type Wavelengths Mount type
OLS-34V2 2334/01 MM 9/125 850/1300 nm SC
OLS-35V2 2334/11 SM 9/125 1310/1550 nm SC
OLS-36V2 2334/21 MM 50/125
SM 9/125
850/1300 nm
1310/1550 nm
SC
OLS-38V2 2334/51 SM 9/125 1310/1550/1625 nm SC

6 OLS-34V2/-35V2/-36V2/-38V2
1 INTRODUCTION
SYMBOLS USED IN THIS OPERATING MANUAL
Symbols used in this operating manual
Various elements are used in this operating manual to draw
attention to special meanings or important points in the text.
Symbols and terms used in warnings
The following warnings, symbols and terms are used in this
document in compliance with the American National Standard
ANSI Z535.6-2011:
NOTICE
Follow the instructions carefully to avoid damage to or
destruction of the instrument.
CAUTION
Follow the instructions carefully to avoid a low or medium risk
of injury to persons.
WARNING
Follow the instructions carefully to avoid potential death or
severe injury to persons.
DANGER
Follow the instructions carefully to avoid death or severe
injury to persons.
High Voltage
Follow the instructions carefully to avoid damage to the
instrument or severe injury to persons.
This safety instruction is given if the danger is due to high
voltage.
Laser
Follow the instructions carefully to avoid damage to the
instrument or severe injury to persons.
This safety instruction is given if the danger is due to laser
radiation. Information specifying the laser class is also given.

OLS-34V2/-35V2/-36V2/-38V2 7
SYMBOLS USED IN THIS OPERATING MANUAL
1 INTRODUCTION
Warning format
All warnings have the following format:
The following character formats are used in this operating
manual:
WARNING
Type and source of danger
Consequences of ignoring the warning
JAction needed to avoid danger.
IRequirement
This requirement must be met first; e.g.
IThe system is switched on.
J
1.
2.
Instruction
Follow the instructions given (the numbers indicate the order
in which the instructions should be followed); e.g.
JSelect mode.
Italics
Result
Indicates the result of following an instruction; e.g.
The page opens.
Bold
type face
Pages, controls, and display elements
Screen pages, controls, and display elements are indicated in
bold type.
Text in
blue
Cross references
Cross references are indicated in blue type. When using the
PDF version, just click on the blue text to skip to the cross
reference.
[STORE] Device keys
Device keys are indicated within square brackets.

8 OLS-34V2/-35V2/-36V2/-38V2
2 SAFETY INFORMATION
WARNING SYMBOLS ON THE DEVICE
2SAFETY INFORMATION
Warning symbols on the device
Proper use
This instrument is intended for measurements on optical fiber
devices and systems.
JPlease make sure the device is not operated outside the
permitted conditions or for a purpose other than the one it
was developed for.
JAlways make sure that the device is in good condition before
switching it on.
Warning symbols indicating a potential hazard
JA warning symbol on the device indicates a potential hazard.
In all cases where the a warning symbol is shown on the
display or labeled on the device, the operating manual must
be consulted to learn more about the nature of the potential
hazard and any actions that have to be taken.

OLS-34V2/-35V2/-36V2/-38V2 9
LASER SAFETY
2 SAFETY INFORMATION
Laser safety
Battery operation
WARNING
Dangerous laser radiation
Laser radiation can cause irreparable damage to the eyes
and skin.
This device is a Class 1 laser product according to
DIN EN 60825-1:2014.
Observe the following instructions when working with this
device and laser systems in general:
JConnect all optical fibers before switching on the radiation
source.
JSwitch off the laser source before disconnecting the optical
fibers.
JNever look directly into the output of a laser source or into
an optical fiber connected to it.
JAlways cover unused ports.
JObserve the normal precautions for working with laser
radiation and follow any local regulations.
WARNING
Explosion danger
Short-circuiting the batteries can result in overheating,
explosion or ignition of the batteries and their surround-
ings.
JNever short-circuit the battery contacts by touching both
contacts simultaneously with an electrically conductive
object.
JOnly use AA size dry batteries or rechargeable batteries.
JTake care to insert the batteries correctly.
JNever use batteries based on lithium.

10 OLS-34V2/-35V2/-36V2/-38V2
2 SAFETY INFORMATION
VENTILATION
Ventilation
WARNING
Explosion danger
Dry batteries must not be recharged.
JThe OLS-34V2/-35V2/-36V2/-38V2 does not have a
recharge function for rechargeable batteries, so there is no
danger when using dry batteries.
JRead the manual of the external charging device.
NOTICE
Insufficient ventilation
Insufficient ventilation can damage the instrument or
adversely affect its function and safety.
JEnsure adequate ventilation when operating the instrument.

OLS-34V2/-35V2/-36V2/-38V2 11
UNPACKING THE DEVICE
3 GETTING STARTED
3GETTING STARTED
Unpacking the device
Packing material
We suggest that you keep the original packing material. It is
designed for reuse (unless it is damaged during shipping). Using
the original packing material ensures that the device is properly
protected during shipping.
Checking the package contents
Your device is shipped with the following accessories:
• 2 dry batteries AA
• Operating manual
• Belt bag
Checking for shipping damage
After you unpack the device, check to see if it has been damaged
during shipping. This is particularly likely if the packaging is
visibly damaged. If there is damage, do not attempt to operate
the device. Doing so can cause further damage. In case of
damage, please contact your local Viavi Sales Company.
Addresses can be found at www.viavisolutions.com.
Recovery following storage/shipping
Condensation can occur if a device that is stored or shipped at a
low temperature is brought into a warm room. To prevent
damage, wait until no more condensation is visible on the
surface of the device before powering it up. Do not operate the
device until it has reached its specified temperature range and
wait until it has cooled down if the device was stored at a high
temperature (see “Enviromental conditions” on page 26).

12 OLS-34V2/-35V2/-36V2/-38V2
3 GETTING STARTED
DEVICE OVERVIEW
Device overview

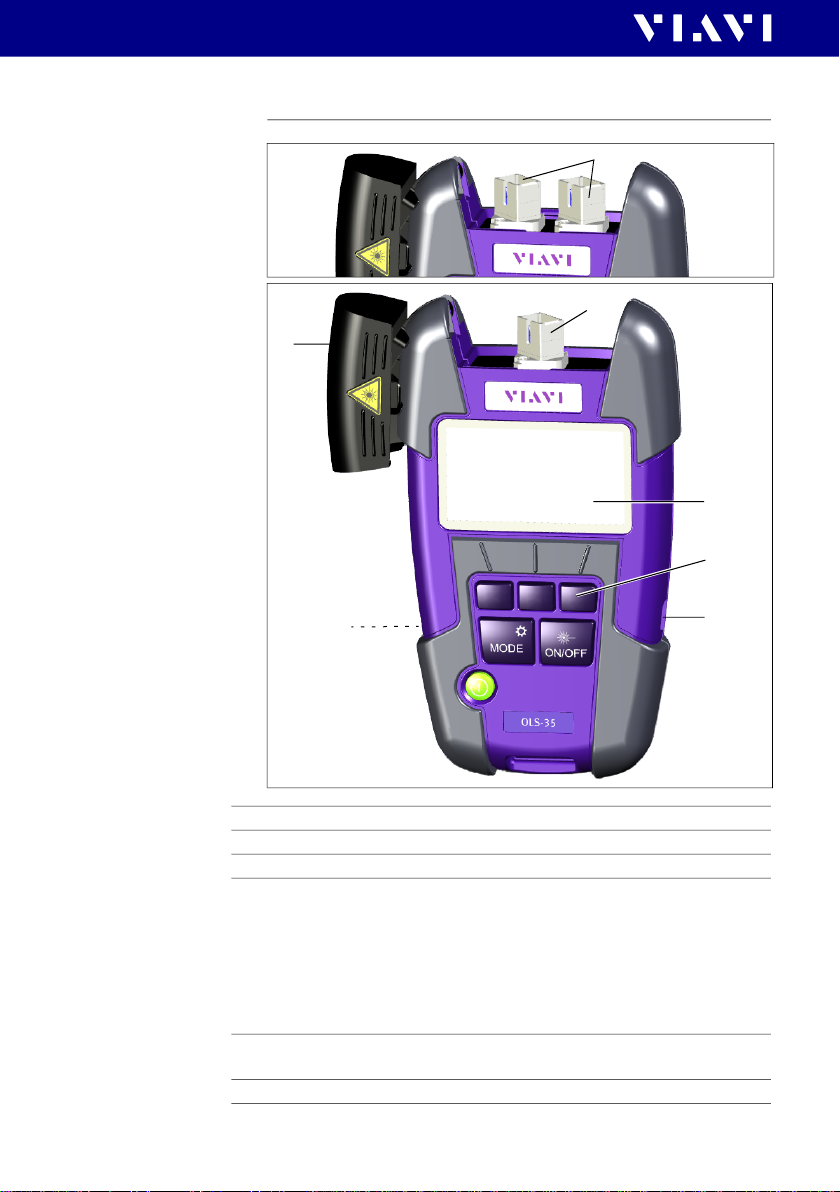

OLS-36
2
1
2
3
4
65
OLS-35
1 Test head cover
2 SC adapter. OLS-36: Port A (SM, left), Port B (MM, right)
3 Display
4 Key pad
Representation in the user manual:
[]Context sensitive keys (here left key is selected)
[MODE] Mode/Settings key
[ON/OFF] Laser on/off
[E]Power key
5 USB interface
For power supply and measurement data downloads and updates.
6 Battery compartment (on rear of the device)

OLS-34V2/-35V2/-36V2/-38V2 13
POWER SUPPLY
3 GETTING STARTED
Keys
The key pad contains two types of keys:
•Context sensitive keys: The functions of these keys depend
on the selected mode or menu and is shown in the display
above the key.
•Function keys: The functions of these keys are always the same
and shown on the key itself.
Power supply
NOTE: The devices are not designed for batteries based on lithium.
The following power sources can be used to operate the OLS-
3xV2:
• two 1.5 V dry batteries (Mignon AA size, alkaline type
recommended)
• two 1.2 V NiMH rechargeable batteries (Mignon AA size)
• via the AC adapter over USB interface
Press to switch the device on/off.
Context keys Left key: Select a wavelength
Center key: Select SM/MM (OLS-36V2 only)
Right key: Select modulation frequency
MODE key Short press: Select mode and return from
Settings menu.
Long press: Open Settings menu.
Laser ON/OFF key Switch laser on/off.

14 OLS-34V2/-35V2/-36V2/-38V2
3 GETTING STARTED
POWER SUPPLY
Battery operation
Replacing batteries
The battery compartment is on the back of the device.
1. Pull down the lid to open the battery compartment.
NOTICE: Take care to insert the batteries correctly. The correct
polarity is indicated by a diagram inside the battery
compartment.
2. Insert new batteries or replace dead ones.
3. Close the battery compartment.
4. Press [E] to switch on.
NOTE: The batteries cannot be recharged with the OLS-3xV2.
General tips on using batteries
• Never use batteries based on lithium.
• Always handle batteries with care.
• Do not drop or damage the batteries or expose them to
excessively high temperatures.
• Do not store rechargeable batteries for more than one or two
days at very high temperatures (e.g. in a vehicle), either
separately or fitted in the device.
• Do not leave discharged batteries in the instrument for a long
time if it is not being used.
• Do not store rechargeable batteries for more than 6 months
without recharging them at intervals.
• Avoid deep discharging of the batteries as this can cause the
cell polarity to reverse and make the battery useless.
WARNING
Dangers when handling batteries
Handling batteries may be dangerous. Please note the
following safety instructions.
JPlease note the battery operation safety information in the
section “Battery operation” on page 9.
Replacing the batteries
JDo not replace individual batteries. Always change both
batteries at the same time.
JAlways use batteries of the same type; i.e. do not mix
rechargeable and non-rechargeable batteries.

OLS-34V2/-35V2/-36V2/-38V2 15
POWER SUPPLY
3 GETTING STARTED
Protecting the environment
Please dispose of any unwanted dry batteries and rechargeable
batteries carefully. They should also be removed from the
instrument if it is to be scrapped. If facilities in your country exist
for collecting waste or for recycling, please make use of them
rather than throwing the batteries in the normal trash. You will
often be able to return used batteries to the store where you
purchase new ones. Any dry or rechargeable batteries that you
purchased from Viavi can be returned to one of our Service
Centers for disposal.
Operation from AC power
To fit one of the mains plug adapters:
JSee figure below and follow the instructions which are shown
on the packaging of the mains plug adapter.
Fig. 1 Fitting the mains plug adapter
To operate the OLS-3xV2 from AC power:
1. Connect the USB-C connector power cord to the OLS-3xV2.
2. Plug the mains plug adapter into the AC receptacle.
1 2
3 4

16 OLS-34V2/-35V2/-36V2/-38V2
4 OPERATION
SWITCHING THE DEVICE ON/OFF
4OPERATION
Switching the device on/off
The OLS-3xV2 has two battery power modes:
To switch the device on/off:
JPress [E] to switch the device on/off.
Selecting a power mode
To change the power mode:
IThe device is switched on.
1. Long press [MODE] to open the settings menu.
2. Use [] to select ECON.
3. Press [ ] to select power mode:
ON = ECON
OFF = PERM
4. Press [MODE] to close the menu.
Switching the laser on/off
JPress [ON/OFF] to switch the laser on/off.
Mode Icon Description
Permanent ON
(PERM)
The device is switched on
permanently.
Automatic OFF
(ECON)
The device switches off 20 minutes
after the last operation.
This function is only available when
the device is powered from
batteries.

OLS-34V2/-35V2/-36V2/-38V2 17
DISPLAY ELEMENTS
4 OPERATION
Display elements
The following elements can be found in the display.
1
2
3
Display of one power level in Single- mode. Display of two power levels in Multi- mode.
1 – Status bar
Auto-
Multi-
Single-
Selected/active mode
The mode can be changed via the [MODE] key.
7:15 Real Time Clock
Time can be changed via the settings menu.
Battery status in PERM power mode:
The device remains switched on.
Battery status in ECON power mode:
The device switches off 20 minutes after the last operation.
The device is powered via USB
2 – Center of display
... nm Display of selected wavelength
(displayed wavelength depends on settings and model).
... db/dBm Shows the power level in dBm.
270 Hz Shows selected modulation frequency or CW
Laser is switched on
3 – Context sensitive key functions
Press to select the wavelength.
Press to select the fiber mode: SM, MM.
Press to select the modulation frequency,

18 OLS-34V2/-35V2/-36V2/-38V2
4 OPERATION
THE SETTINGS MENU
The Settings menu
The following settings can be changed in the settings menu.
JTo open the settings menu long press [MENU].
Selecting Single-/Multimode (OLS-36 only)
JPress [] to toggle between SM and MM.
According to the selected mode port 1 or port 2 is active.
Selecting a wavelength
Selectable wavelengths:
• OLS-34: 850/1300 nm
• OLS-35: 1310/1550 nm
• OLS-36: 850/1310 nm (SM), 1310/1550 nm (MM)
• OLS-38: 1310/1550/1625 nm
To select a wavelength:
IOLS-36: SM or MM is selected
1. Press [MODE] to skip through the modes and select Single-.
2. Press [] to select a wavelength.
Item Settings Description
Hour 1...12 JPress [] to change
setting:
– Press once to change one
step at a time.
– Hold down the key to
increase the step change
rate.
Minute 1...59
Year 2020...2030
Month 01...12
Day 01...31
About Show device data
including last
calibration date
JPress [] to confirm setting.
JPress [ ] to return to the
settings menu.
Factory Reset Reset
ECON ON/OFF
ON = ECON
OFF = PERM
Press [ ] (right context
key to toggle ON/OFF

OLS-34V2/-35V2/-36V2/-38V2 19
ENABLING SIGNAL MODULATION
4 OPERATION
Enabling signal modulation
Modulation frequencies provided by the OLS-3xV2:
CW (continuous wave), 270 Hz, 330 Hz, 1 kHz, 2 kHz
NOTE: Signal modulation is available in Single- (all models) and
Singlemode (OLS-36) only.
To select a modulation frequency:
ISingle- is selected.
JPress [] to skip through the list: CW
 270 Hz 
330 Hz
 1000 Hz  2000 Hz  CW  ...
Selecting Auto-Lambda mode
Auto- is a special feature developed by Viavi that allows you to
identify wavelengths automatically. To do this, the signal is
modulated at a certain frequency, which can be detected by an
Auto- equipped power meter (such as the Viavi OLP-3x series).
To activate Auto-:
JPress [MODE] to skip through the modes and select Auto-.
The status bar shows Auto-.
NOTE: Signal modulation cannot be selected when Auto- is enabled.
Selecting Multi-Lambda mode
When Multi- mode is activated, the signal of the available
wavelengths are sent in parallel.
Fig. 2 Example of Multi- at OLS-36 with SM selected.
To activate Multi-:
JPress [MODE] to skip through the modes and select Multi-.
The display shows Multi- .
NOTE: Signal modulation cannot be selected when Multi- is enabled.

20 OLS-34V2/-35V2/-36V2/-38V2
5 DATA EXPORT AND FIRMWARE UPDATE
USB AND SMARTREPORTER
5DATA EXPORT AND FIRMWARE UPDATE
The USB interface or the Bluetooth® interface (OLP-3x only) can
be used for data export and firmware update.
USB and SmartReporter
When using the USB interface the SmartReporter allows you to
easily transfer stored measurement data to a PC and to update
the firmware.
The SmartReporter reporting tool is offered by Viavi for free and
can be download from:
https://updatemyunit.net/ > Application Software.
JFor more information about data export and firmware update
via USB and the SmartReporter please refer to the
SmartReporter user manual.
Bluetooth® and MobileTech app /
StrataSync cloud (OLP-3x only)
Using the OLP-3x you have also the choice to upload the saved
data and to update the firmware using Bluetooth® via Viavi's
MobileTech App into the StrataSync cloud.
JPlease contact your Viavi representive for more information.
