AVX-10K
Flight Line Test Set
Getting Started Guide

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 1of 14
General Information
Intended Audience
This guide provides customers the basics of how to setup and use the AVX-10K. Refer to the Operator
Manual for additional details.
Related Information
VIAVI maintains a webpage where additional product information is available to customers:
https://www.viavisolutions.com/avx-10k
Use this manual in conjunction with the following information:
•Operations Manual: provides guidance for approved operation procedures.
•Maintenance Manual: provides guidance for approved maintenance and troubleshooting
procedures.
•Product Brochure: provides ordering information for parts and accessories.
•Configuration Selection Guide: provides information on configuration details.
•Data Sheet: provides technical specifications.
•StrataSync™ User Guide: provides operational information on the StrataSync™ Application
Declaration Of Conformity
VIAVI recommends keeping a copy of the Declaration of Conformity that shipped with the unit with
the device at all times.
Warranty Information
Warranty information for this product is available on the VIAVI website at:
•https://www.viavisolutions.com/en-us/warranty-information

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 2of 14

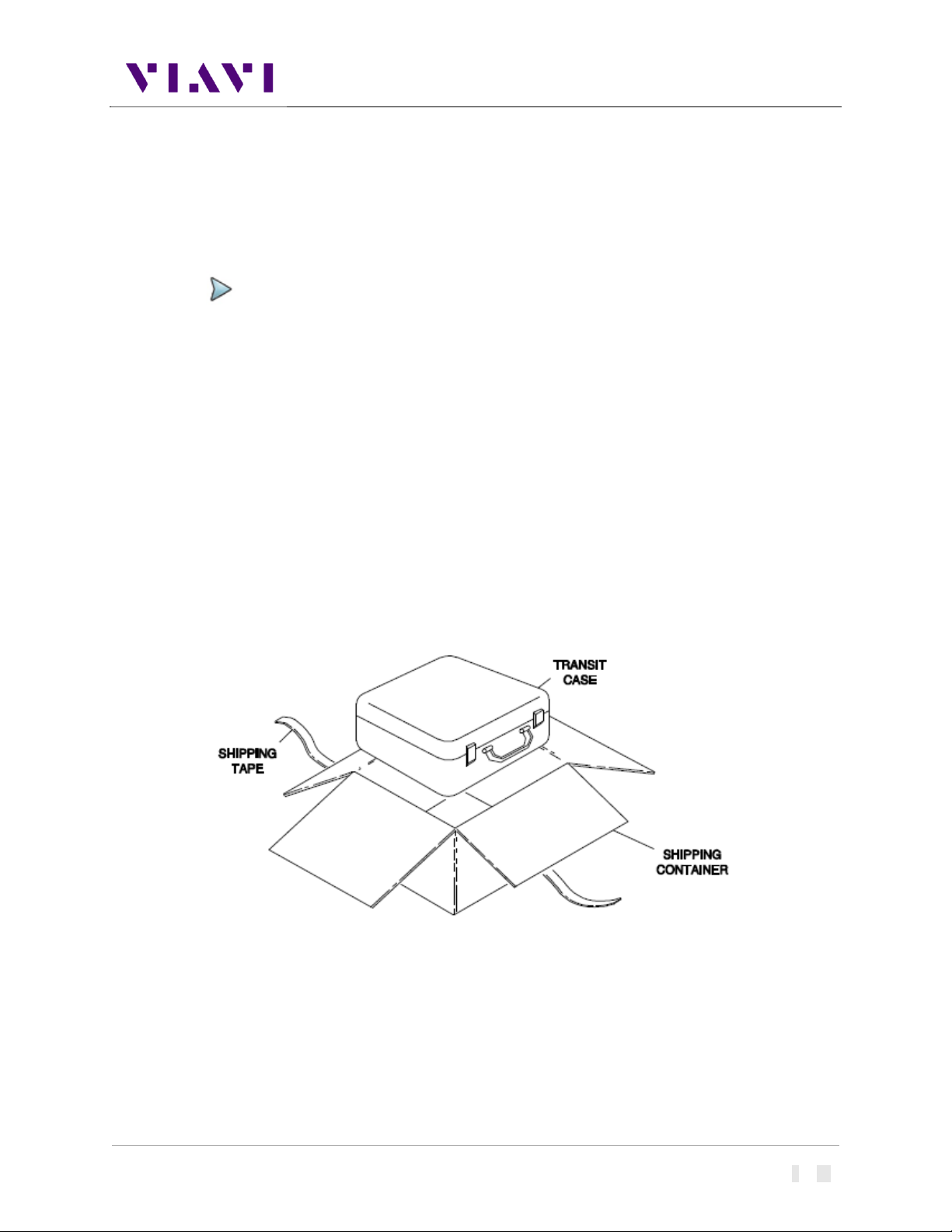

1. Upon Receipt
Perform the following when the device is received from the factory:
1. Unpack delivered equipment from shipping container.
•New units purchased with a transit case are shipped inside the transit case.
•Returned units returned to the customer from VIAVI will be shipped in
accordance with VIAVI shipping standards; and will be shipped inside the unit’s
transit case, as applicable.
•Store dunnage, packing material, and shipping container for possible future use.
2. Verify shipment is complete in accordance with packing list and/or from the
below applicable configuration ordered. Report any discrepancies to VIAVI.
3. Follow the ‘First Time Use’ procedure below.
4. Check all accessory equipment for damage incurred during shipment. If any
equipment has been damaged, report the damage to VIAVI.

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 3of 14

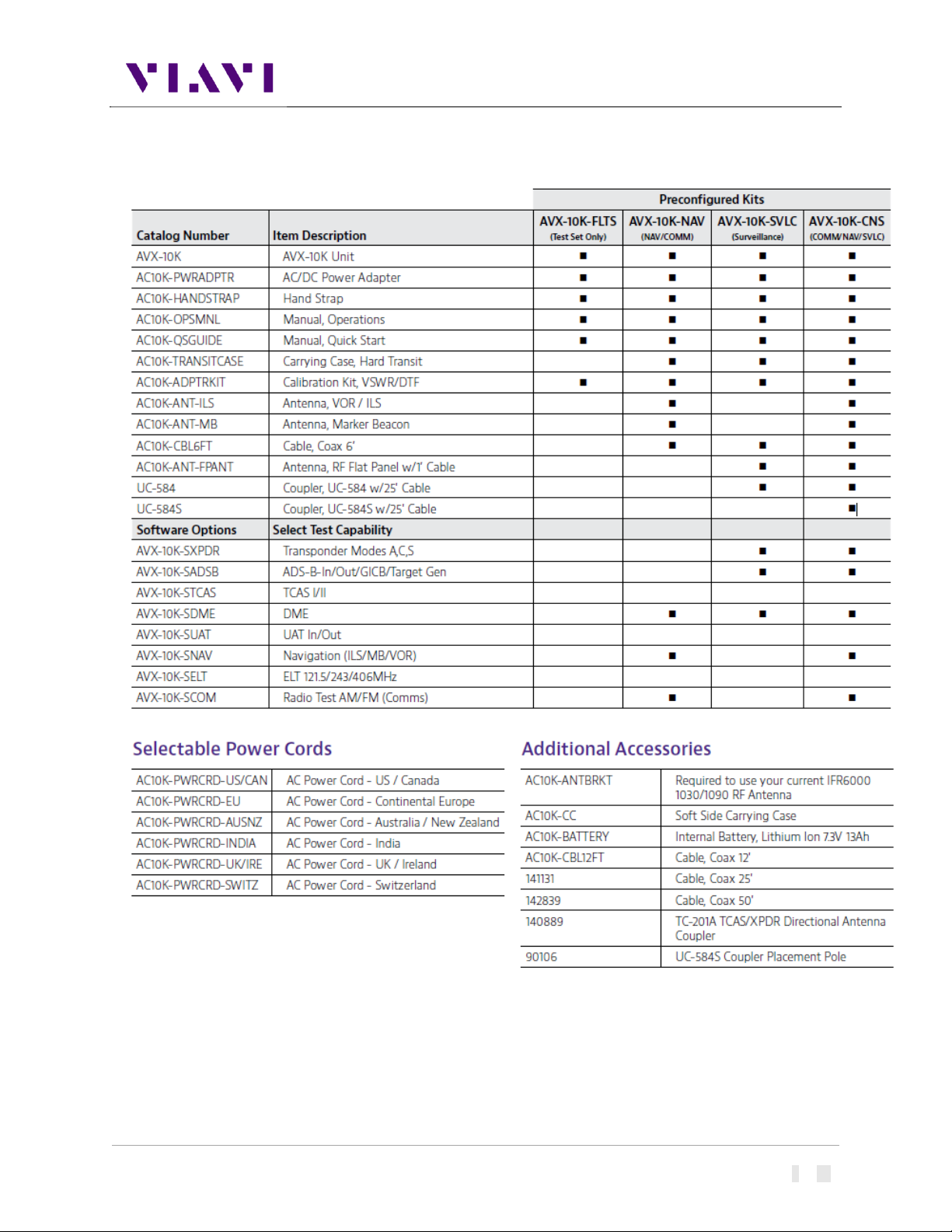

Configuration Details

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 4of 14

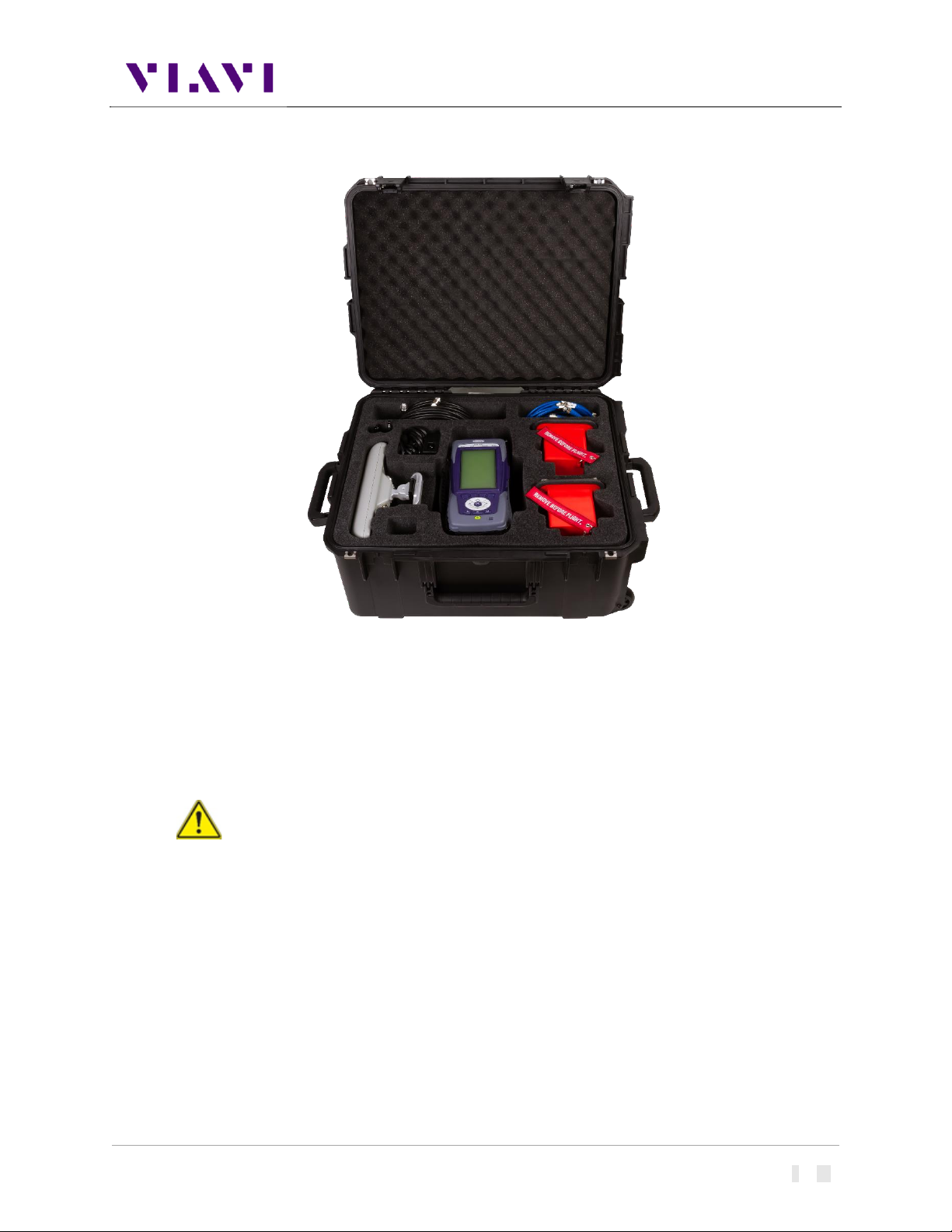

Figure 1. Representative photo of AVX-10K kit (does not apply to AVX-10K-FLTS)
Safety Information
Refer to the Operation’s Manual for complete safety information.
Caution:
•Only use the AC Adapter/Charger provided with the product to charge the
battery.
•Only connect the AC Adapter/Charger to the correct mains voltage indicated on
the ratings label.
•Do not use or store the battery in temperatures that exceed the manufacturer’s
specifications. Follow manufacturer’s instructions for battery storage and use.
•The battery included with the product is only to be used with the AVX-10K.
•Do not overload input connectors. Refer to product specification or product
labelling for maximum input ratings.

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 5of 14
Grounding Power Cord
WARNING: DO NOT USE A THREE-PRONG TO TWO-PRONG ADAPTER PLUG.
DOING SO CREATES A SHOCK HAZARD BETWEEN THE CHASSIS AND ELECTRICAL
GROUND.
For AC operation, the AC Line Cable, connected to the DC Power Supply, is equipped with standard
three-prong plug and must be connected to a properly grounded three-prong receptacle that is easily
accessible. It is the customer's responsibility to:
•Have a qualified electrician check receptacle(s) for proper grounding.
•Replace any standard two-prong receptacle(s) with properly grounded three-prong
receptacle(s).
Product Specifications
Refer to the Product Data Sheet for complete specifications.

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 6of 14

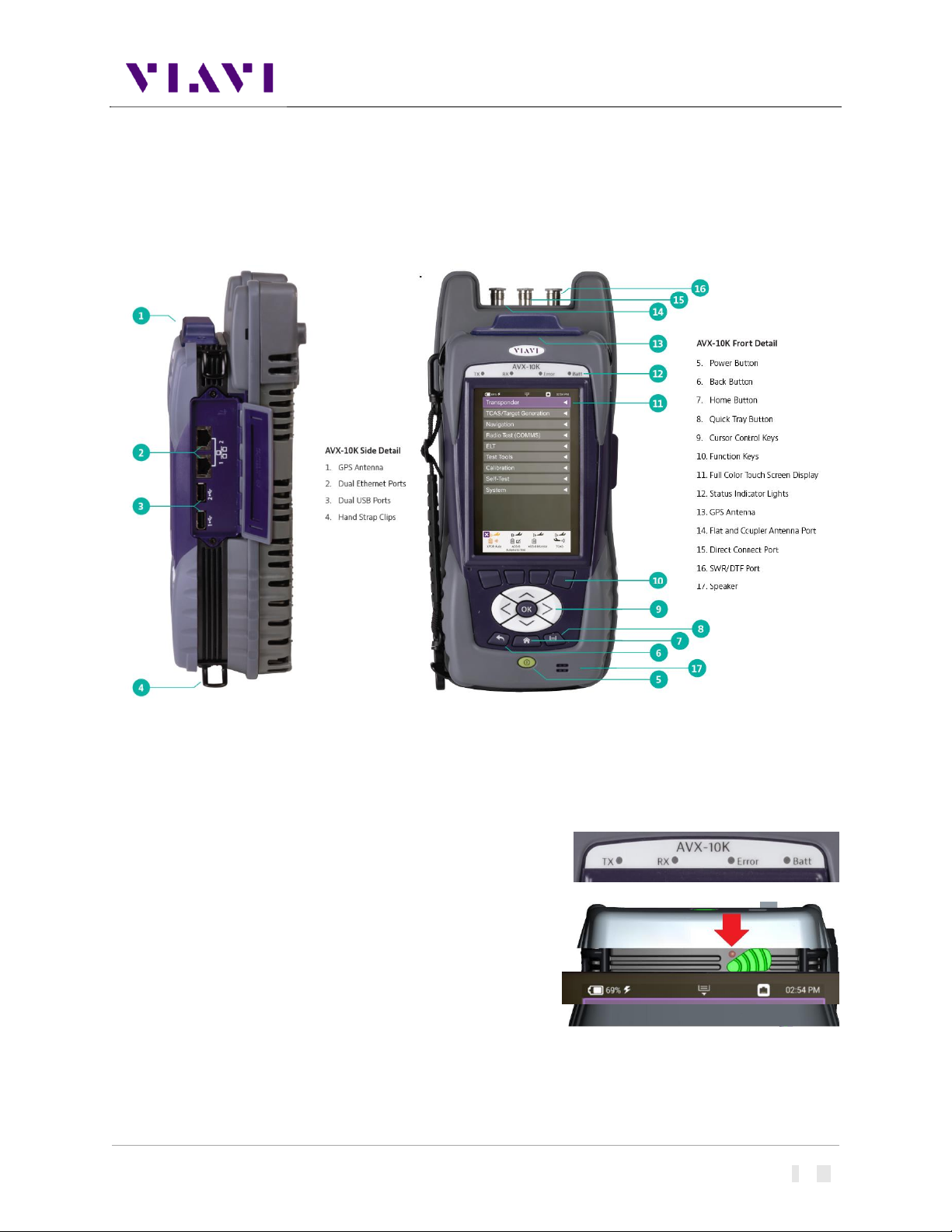

2. Product Familiarization
2.1. Controls, Connectors and Indicators
2.2. Indicators
Front Panel LEDs
Charge Status LED
UI Indicators are shown at
the top of the touchscreen.

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 7of 14
2.3. Interacting with the AVX-10K
The device has hard keys for control and navigation. The Liquid Crystal Display (LCD) is a capacitive
touch screen that supports gestures such as press to open/select/activate, press and hold, drag and
drop, swipe sideways and pinch to zoom where applicable.
The AVX-10K’s screen layout and screen content changes based on factors such as the selected
function, user settings and modes of operation. Most screens consist of a Header Bar, the Main
Display area, and a Footer area. The Main Display area has Ribbons that can be opened or closed and
when opened, the underlying applications are displayed.
Refer to the Operation Manual for more information.

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 8of 14
3. First Time Use
Caution: Please read this section in its entirety before powering on the device.
Turn the Test Set ON
1. Press and release the Power Button.
•An initializing indicator screen is displayed during the boot-up process. Wait while the
device completes the boot-up process.
•Battery LED indicator is illuminated, and the UI loads the Home screen in the display when
the device is ready for use.
•Chime may occur (optional setting).
Run Self-Test
1. Remove the protective film from the touchscreen display before use.
2. Ensure that the Test Set is ON.
3. Verify Test Set Operation
a.On the Home screen, open the Self-Test ribbon.
b.Select the Self-Test application.
c. Press the RUN soft key and follow the prompts as directed. A cable will be
needed for External Loopback test. This cable is supplied with each AVX-10K.
d.When Self-Test has completed running all tests, verify that all portions of the
test have passed. If any portion of Self-Test fails, please contact VIAVI Customer
Service.

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 9of 14
Turn the Test Set OFF
1. Press and hold the Power button ~3 seconds.
2. The device performs a series of power-down processes and shuts down.
•Chime (optional setting).
3. Release the Power Button when the Front Panel LEDs begin to flash.
Charging the Device
The AVX-10K is designed to be powered by an internal battery or AC power. It is recommended that
you fully charge the battery prior to first use.
1. To charge the battery, connect the device to an AC power source.
a. Connect the power cord to the AC Adapter/Charger.
b. Connect the DC connector to the device’s DC input connector.
c. Connect the power cord to properly grounded AC power.
2. Verify the device’s Battery LED turns Amber to indicate the battery is charging.
3. The Battery LED turns green when the battery is fully charged.

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 10 of 14

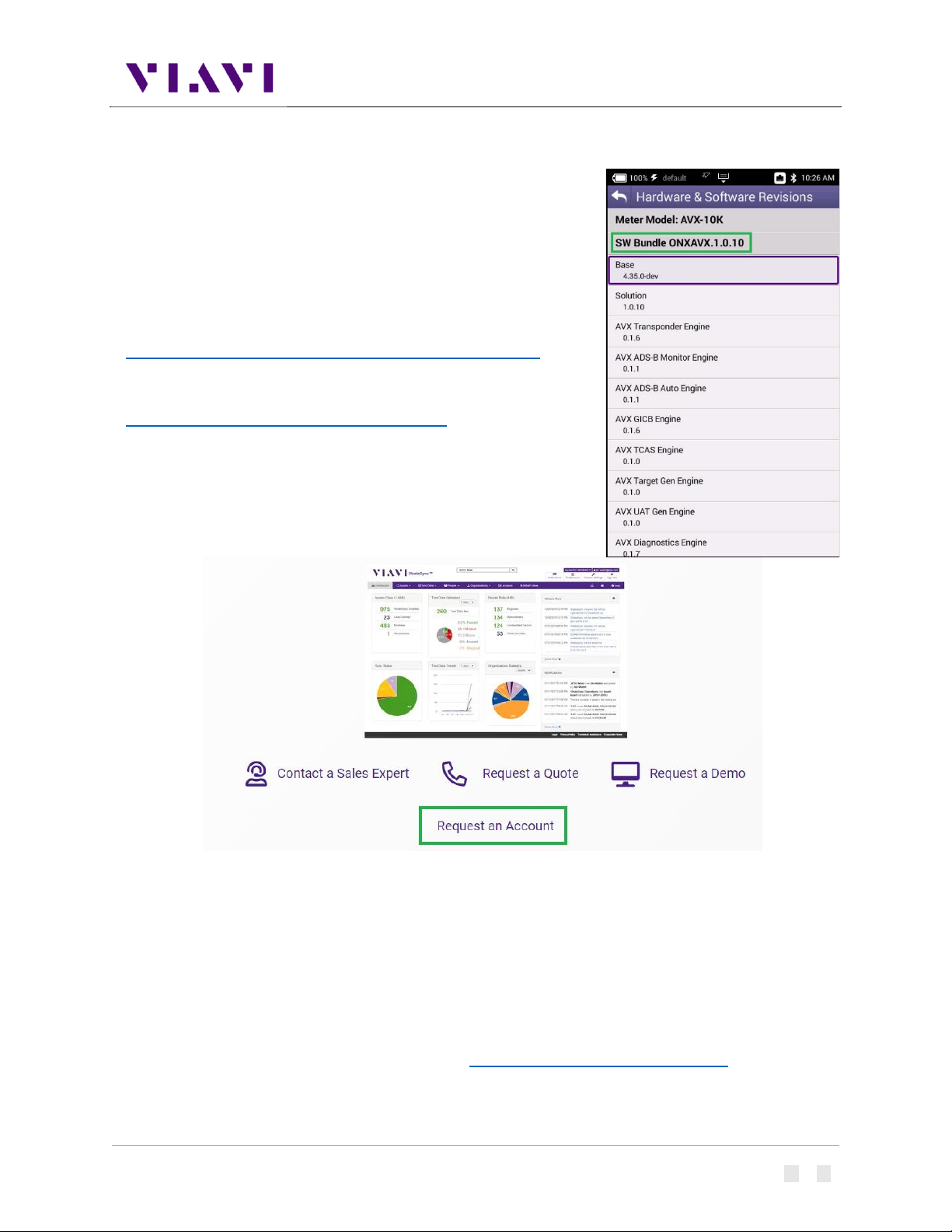

Software Download
Prior to use for testing, verify that the device is running the most
recent software version. The version on the AVX-10K can be found
by opening the System ribbon and launching the System Settings
application. Select Hardware & Software Revisions and note the
software version at the top of the screen.
To locate (and download) the most recent software version you
will need to obtain a StrataSync™ account. To do this, go to:
https://www.viavisolutions.com/en-us/products/stratasync and
click the REQUEST AN ACCOUNT link.
For European countries, please use the Server Address:
https://www.eu.stratasync.viavisolutions.com.
REQUEST AN ACCOUNT link.
If you have purchased your VIAVI products directly from VIAVI SOLUTIONS, to obtain a Customer
number, fill out the form and submit your StrataSync™ account request. Shortly after submittal, you
should receive an email with your StrataSync™ account ID number, username and temporary
password.
If you have purchased your VIAVI products from a VIAVI Channel Partner or authorized VIAVI re-
seller, have your Channel Partner or reseller make the request to establish the StrataSyncTM account
on your behalf. Please have the request sent to: [e-mail].

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 11 of 14
Once you are able to login to StrataSync™, open the StrataSync™application from the System ribbon
on the AVX-10K and enter the StrataSync™ account ID number that was provided and enter a Tech ID /
User ID for this device of your choosing. The Tech ID / User ID will be included on all test reports that
are run on this device.
Connect the AVX-10K to your network via WiFi or
Ethernet. Now you can press the START button and
synchronize this device. Once the synchronization
procedure completes, the device
will appear on the assets list on the StrataSync™
website. Verify that the serial number on the
side of the AVX-10K appears in the asset list.

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 12 of 14
Now you can check for the latest available software
version. From your StrataSync™ account, click on the
Assets menu and Update Firmware.
The latest software version will be available at the top
of the list. If you do not have the latest software
version, follow the instructions below to update
software.

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 13 of 14
StrataSync™Update Procedure
1. From the StrataSync™ account, select “Update Firmware” from the Assets Menu and click
the rocket ship icon next to the version of the software to install.
Figure 16: StrataSync™ Update
2. Locate the test set (or test sets) that you would like to update and click the box in the left-
most column and “YES” on the next screen to proceed.
3. Then from the AVX-10K test sets that have been targeted for update, select the START
button from the StrataSync™ page. Follow the prompts to finalize software update. The
unit will shutdown after the update is complete. Power the unit on to use.
•For reference, the full StrataSync™ User Guide is available from:
https://www.viavisolutions.com/avx-10k
Contact Information
Contact VIAVI Customer Service for technical support or with any questions regarding this or any other
VIAVI products.
•Phone: 844-GO-VIAVI
•email: [e-mail]
For the latest information, go to:
•https://www.viavisolutions.com/en-us/services-and-support/support/technical-assistance.

AVX-10K Getting Started
Rev. 001
2021-10-12
22135253
VIAVI CONFIDENTIAL
Page 14 of 14

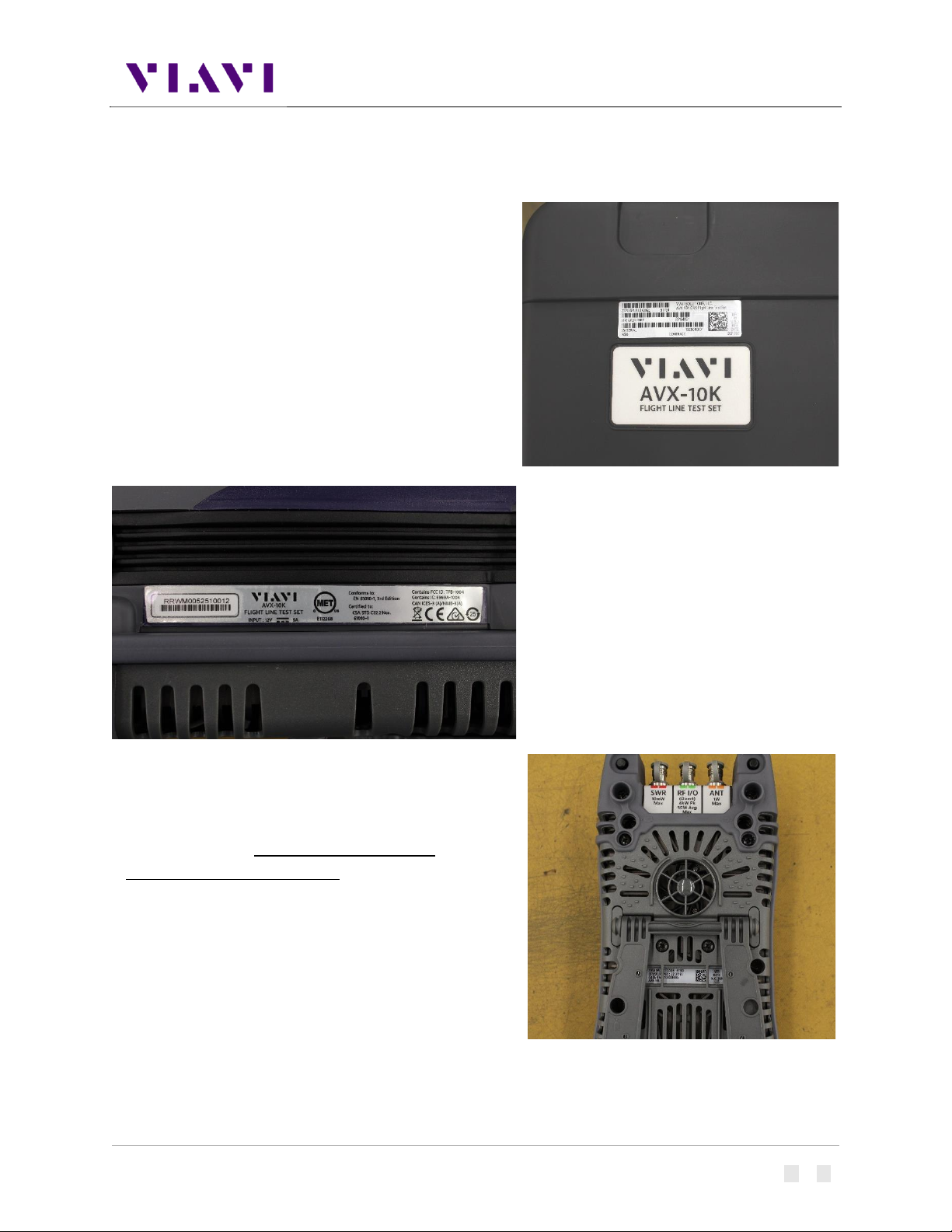

AVX-10K Serialization
The AVX-10K is supported with three serial tags, this information is to explain the use for each.
First, if you purchased one of the pre-configured kits,
AVX-10K-NAV, AVX-10K-SVLC or AVX-10K-CNS you will
notice a serial tag on the transit case. This serial tag is
the composite level serial tag for the entire kit
associated with the configuration purchased.
On the side of the AVX-10K unit, you will
notice a serial tag that supports the base top
half of the unit. This serial tag is the parent
serial number that StrataSync™ recognizes
when registering your unit. As a point of
reference, should the base unit (upper half)
need to be repaired and it is determined to
replace the entire base unit the s/n will
change, and show up as a new asset when
sync’d with StrataSync™.
Finally, on the back of the unit you will see a serial tag
and UID label which is the controlling serial number for
the handheld unit and should be used when
requesting an RMA for service.
VIAVI recommends tracking the kit serial number and
the controlling serial number on the back of the unit for
your reference.

VIAVI Solutions
North America: 1.844.GO VIAVI / 1.844.468.4284
Latin America [phone]
EMEA [phone]
APAC [phone]
All Other Regions: viavisolutions.com/contacts
Export Control Warning
"This document contains technology, the export of which is or may be restricted by the Export
Administration Act and the Export Administration Regulations (EAR), 15 C.F.R. parts 730-774.
Diversion contrary to U.S. law is prohibited."
22135253 / Rev. 001
October 2021
