Viavi SmartPocket OLP-39G User manual

OLP-39G/-39X
SmartPocket™ V2
TruePON Tester
User manual
BN 2336/98.11
2022.04
English

Please direct all inquiries to your local Viavi sales company.
The addresses can be found at:
www.viavisolutions.com/en-us/contact-sales-expert
The description of additional features of the device can be found at:
www.viavisolutions.com/en-us/products/network-test-and-certification
Copyrights
This product or parts of this product are based on recommendations
and/or standards from the standardization section of the International
Telecommunication Union – ITU-T and/or the European
Telecommunications Standards Institute – ETSI. These recommendations
and standards are subject to the proprietary rights of these
organizations. It is not permitted to copy ITU-T recommendations or
ETSI standards fully or in part and/or to pass them on to third parties
without prior written permission from ITU-T and/or ETSI.
Copyright
© Copyright 2022 Viavi Solutions Inc. All rights reserved.
Viavi and the Viavi logo are trademarks of Viavi Solutions Inc.
All other trademarks and registered trademarks are the property of their
respective owners.
Viavi Solutions Deutschland GmbH
Arbachtalstraße 5, 72800 Eningen u. A., Germany
Order number: BN 2336/98.11
Issue: 2022.04
Previous issue: --
Notes:
Changes may be made to specifications, designations and delivery
information.

OLP-39G/-39X TruePON Tester 3
CONTENTS
CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OLP-39G/-39X TruePON Tester . . . . . . . . . . . . . . . . . . . . . . . 5
User manual update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Symbols used in this user manual . . . . . . . . . . . . . . . . . . . . . 7
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Unpacking the device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Device overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching the device on/off . . . . . . . . . . . . . . . . . . . . . . . . . 15
Selecting a power mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Selecting a PON mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
DISPLAY OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Status bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
PON mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
TruePON mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
PON MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Selecting an operation mode . . . . . . . . . . . . . . . . . . . . . . . . 18
Selecting a display mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Absolute power level mode . . . . . . . . . . . . . . . . . . . . . . . . . 19
Loss mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pass/Fail mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
TRUEPON MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Selecting an operation mode . . . . . . . . . . . . . . . . . . . . . . . . 22
Selecting a Pass/Fail display mode . . . . . . . . . . . . . . . . . . . 23
Selecting a location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Setting the ODN class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Performing a TruePON measurement . . . . . . . . . . . . . . . . . 25
Recalling measurement results. . . . . . . . . . . . . . . . . . . . . . . 26
SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Instrument settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
PON settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
TruePON settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4 OLP-39G/-39X TruePON Tester
CONTENTS
MEMORY MANAGEMENT . . . . . . . . . . . . . . . . . . . . . . . . 31
General information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Storing measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Recalling measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Deleting measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
DATA EXPORT AND FIRMWARE UPDATE . . . . . . . . . . . . . . 33
USB and SmartReporter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Bluetooth® and MobileTech app /
StrataSync cloud (future application) . . . . . . . . . . . . . . . . . 33
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cleaning the test port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cleaning the instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
OLP-39G/-39X. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
General specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
ORDERING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . 38
OLP-39G, OLP-39X. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Calibration report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Smart Reporter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
PRODUCT REGULATORY COMPLIANCE . . . . . . . . . . . . . . . 39

OLP-39G/-39X TruePON Tester 5
OLP-39G/-39X TRUEPON TESTER
1 INTRODUCTION
1INTRODUCTION
OLP-39G/-39X TruePON Tester
The OLP-39G/-39X is a specialized TruePON Tester designed for
use cases such as system/network qualification, subscriber
activation, and troubleshooting of passive optical network (PON).
The instrument performs wavelength selective optical power
measurements suitable for testing G-PON networks, as defined
in ITU-T G.983/4 or IEEE 802.3ah (OLP-39G) and XGS-PON
networks, as defined in ITU-T G.9807.1 respectively (OLP-39X).
In TruePON mode the OLP-39G/-39X identifies the OLT-ID, ODN
class, and loss based on the TOL (Transmitted Optical Level from
OLT), while the ODN class can be recognized automatically or set
manually.
An integrated pass/fail analysis feature simplifies standard
conformity and optical budget/margin testing, and provides
unambiguous measurement result presentation.
With PC-based reporting, all test results can be summarized in a
professional, industry-proven report.
Main features
The OLP-39G/-39X offers many helpful features that are optimized
to workflows of typical telecom operators, and thus ensure that
test times are kept as short as possible.
• OLT-ID, ODN class and loss based on TOL for G-PON (OLP-39G)
and XGS-PON (OLP-39X)
• Display of G-PON and XGS-PON results separately or
simultaneously (OLP-39X)
• Accurate and repeatable wavelength selective power
measurements
• Unambiguous pass/fail result presentation and user definable
pass/fail thresholds
• Data storage for up to 1000 measurements
• USB-C interface for measurement data transfer to a laptop/PC
• Easy operation and instantly ready to operate
• Versatile power supply options using dry or rechargeable
batteries or via the USB-C interface
• Automatic power-off (can be disabled)
• Color-coded test head cover for easy distinction between APC
and PC connector types
• Smart-Reporter PC software for data management and report
generation

6 OLP-39G/-39X TruePON Tester
1 INTRODUCTION
USER MANUAL UPDATE
Description of OLP-39G and OLP-39X features in
this manual
In this user manual the OLP-39X with G-PON and XGS-PON is
described. Please note that for the OLP-39G only G-PON is
available.
User manual update
If the operating instructions about features provided by your
device are missing, please visit the Viavi web site to check if
additional information is available.
To download the latest operating instructions:
1. Visit the Viavi web site at www.viavisolutions.com.
2. Search for SmartPocket.
3. Open the download area and download the operating
instructions if available.

OLP-39G/-39X TruePON Tester 7
SYMBOLS USED IN THIS USER MANUAL
1 INTRODUCTION
Symbols used in this user manual
Various elements are used in this user manual to draw attention
to special meanings or important points in the text.
Symbols and terms used in warnings
The following warnings, symbols and terms are used in this
document in compliance with the American National Standard
ANSI Z535.6-2011:
NOTICE
Follow the instructions carefully to avoid damage to or
destruction of the instrument.
CAUTION
Follow the instructions carefully to avoid a low or medium risk
of injury to persons.
WARNING
Follow the instructions carefully to avoid potential death or
severe injury to persons.
DANGER
Follow the instructions carefully to avoid death or severe
injury to persons.
High Voltage
Follow the instructions carefully to avoid damage to the
instrument or severe injury to persons.
This safety instruction is given if the danger is due to high
voltage.
Laser
Follow the instructions carefully to avoid damage to the
instrument or severe injury to persons.
This safety instruction is given if the danger is due to laser
radiation. Information specifying the laser class is also given.

8 OLP-39G/-39X TruePON Tester
1 INTRODUCTION
SYMBOLS USED IN THIS USER MANUAL
Warning format
All warnings have the following format:
The following character formats are used in this user manual:
WARNING
Type and source of danger
Consequences of ignoring the warning
JAction needed to avoid danger.
IRequirement
This requirement must be met first; e.g.
IThe device is switched on.
J
1.
2.
Instruction
Follow the instructions given (the numbers indicate the order
in which the instructions should be followed); e.g.
JSelect mode.
Italics Result
Indicates the result of following an instruction; e.g.
The page opens.
Bold
type face
Pages, controls, and display elements
Screen pages, controls, and display elements are indicated in
bold type.
Text in
blue
Cross references
Cross references are indicated in blue type. When using the
PDF version, just click on the blue text to skip to the cross
reference.
[MODE] Device keys
Device keys are indicated within square brackets.
[]The three sensitive keys are indicated as squares, the active key
is highlighted.

OLP-39G/-39X TruePON Tester 9
SYMBOLS USED IN THIS USER MANUAL
2 SAFETY INFORMATION
2SAFETY INFORMATION
JAll safety information for your device can be found in the
printed booklet “Safety, Disposal and Environmental
Protection“ provided with your device.
JCarefully read and follow all instructions given there.
JThe booklet “Safety, Disposal and Environmental
Protection“ is attached to this PDF. You can open it from
the attachment window or by clicking the thumbnail on
the left.

10 OLP-39G/-39X TruePON Tester
3 GETTING STARTED
UNPACKING THE DEVICE
3GETTING STARTED
Unpacking the device
Packing material
We suggest that you keep the original packing material. It is
designed for reuse (unless it is damaged during shipping). Using
the original packing material ensures that the device is properly
protected during shipping.
Checking the package contents
Your device is shipped with the following accessories:
• 2.5 mm universal adapter
• 2 dry batteries AA
• User manual
• Belt bag
Checking for shipping damage
After you unpack the device, check to see if it has been damaged
during shipping. This is particularly likely if the packaging is
visibly damaged. If there is damage, do not attempt to operate
the device. Doing so can cause further damage. In case of
damage, please contact your local Viavi Sales Company.
Addresses can be found at www.viavisolutions.com.
Recovery following storage/shipping
Condensation can occur if a device that is stored or shipped at a
low temperature is brought into a warm environment. To prevent
damage, wait until no more condensation is visible on the
surface of the device before powering it up. Do not operate the
instrument until it has reached its specified temperature range
and wait until it has cooled down if the instrument was stored at
a high temperature (see “Environmental conditions” on
page 35).

OLP-39G/-39X TruePON Tester 11
DEVICE OVERVIEW
3 GETTING STARTED

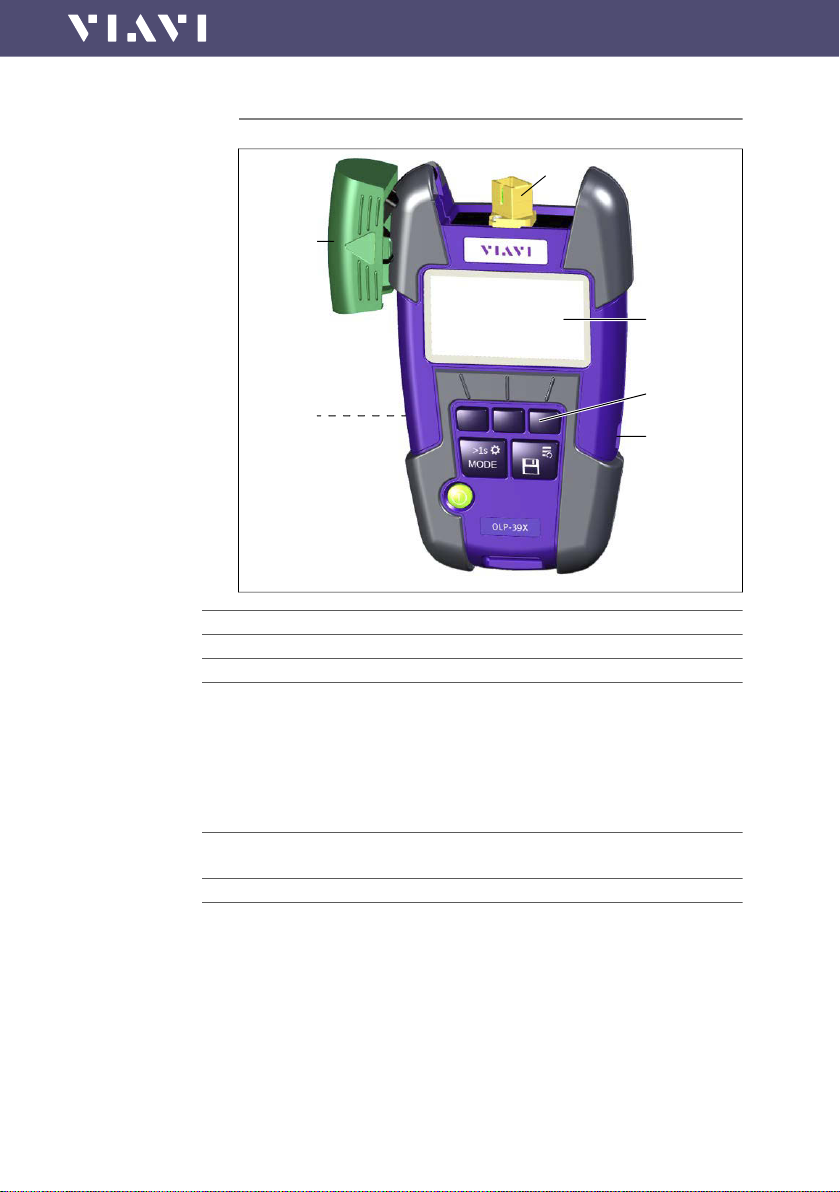

Device overview
1
6
5
4
3
2
1 Test head cover
2 Fixed SC adapter
3 Display
4 Key pad
Representation in the user manual:
[]Context sensitive keys (here left key is selected)
[MODE] Mode/Settings key
[G]Save/Results key
[E]Power key
5 USB interface
For power supply and measurement data downloads and updates.
6 Battery compartment (on rear of the device)

12 OLP-39G/-39X TruePON Tester
3 GETTING STARTED
POWER SUPPLY

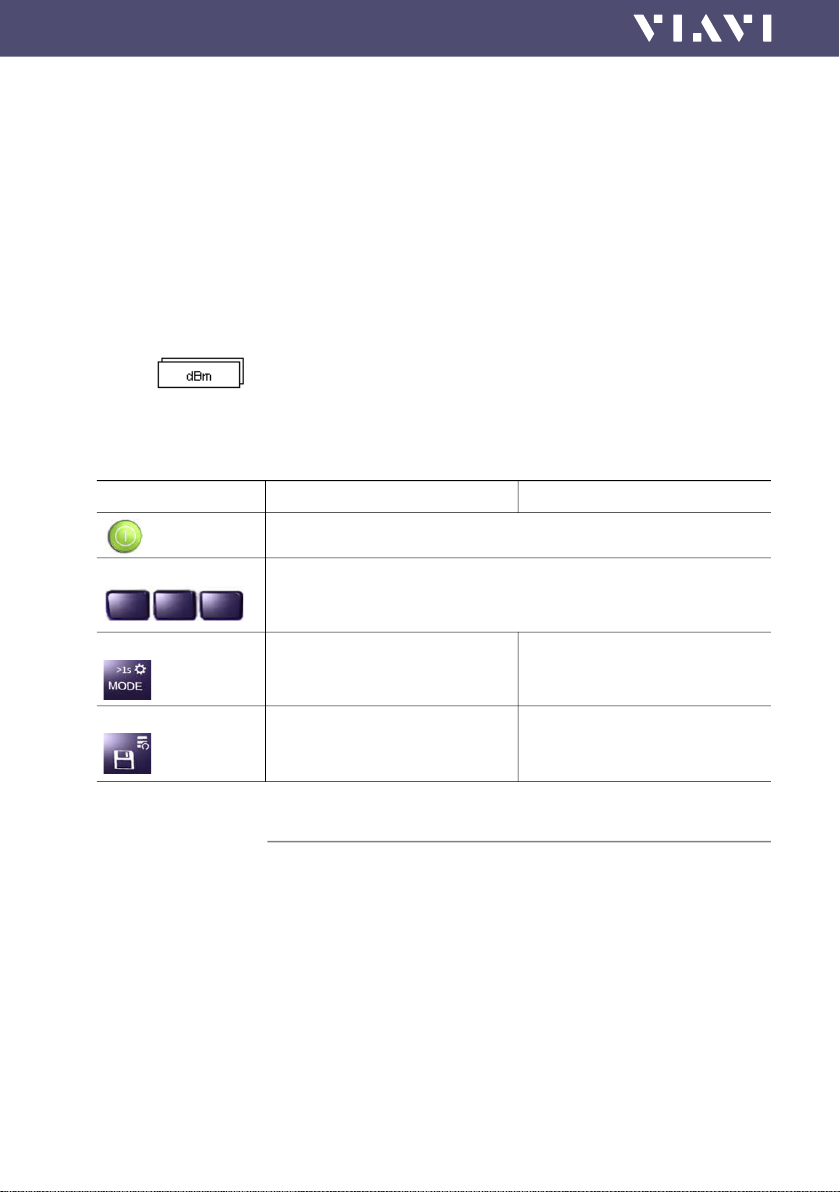

Keys
The key pad contains two types of keys:
•Context sensitive keys: The functions of these keys depend
on the selected mode or menu and is shown in the display
above the key.
•Function keys: The functions of these keys are always the same
and shown on the key itself.
Key usage (first and second function levels)
The function keys and the context sensitive keys in certain
modes have two function levels.
A second function level is indicated by two cascading frames.
•Short press: Select the first level function.
•Long press: Holding the key for at least 2 sec. opens the
second level. You then have access to additional functions or a
menu to change settings.
Power Supply
NOTE: The devices are not designed for batteries based on lithium.
The following power sources can be used to operate the OLP-
39G/-39X:
• Two 1.5 V dry batteries (Mignon AA size, alkaline type
recommended)
• Two 1.2 V NiMH rechargeable batteries (Mignon AA size)
• via AC adapter over USB interface
Short press Long press
Press to switch the device on/off.
Context keys Functions depend on selected mode and display.
See following chapters for more information.
MODE key Toggle between PON mode and
TruePON mode
Open the settings menu.
Save/Result key Store the current measurement. Open the list of saved
measurements.

OLP-39G/-39X TruePON Tester 13
POWER SUPPLY
3 GETTING STARTED
Battery operation
Replacing the batteries
The battery compartment is on the back of the device.
1. Pull down the lid to open the battery compartment.
NOTICE: Take care to insert the batteries correctly.
The correct polarity is indicated by a diagram inside the battery
compartment.
2. Insert new batteries or replace dead ones.
3. Close the battery compartment.
4. Press [E] to switch on.
NOTE: The batteries cannot be recharged with the OLP-39G/-39X.
General tips on using batteries
• Never use batteries based on lithium.
• Always handle batteries with care.
• Do not drop or damage the batteries or expose them to
excessively high temperatures.
• Do not store rechargeable batteries for more than one or two
days at very high temperatures (e.g. in a vehicle), either
separately or fitted in the device.
• Do not leave discharged batteries in the device for a long time
if it is not being used.
• Do not store rechargeable batteries for more than 6 months
without recharging them at intervals.
• Avoid deep discharging of the batteries as this can cause the
cell polarity to reverse and make the battery useless.
WARNING
Dangers in handling batteries
Handling batteries may be dangerous. Please note the
following safety instructions.
JPlease note the battery operation safety information in the
booklet “Safety, Disposal end Environmental Protection”
provided with your device.
Replacing the batteries
JDo not replace individual batteries. Always change both
batteries at the same time.
JAlways use batteries of the same type; i.e. do not mix
rechargeable and non-rechargeable batteries.

14 OLP-39G/-39X TruePON Tester
3 GETTING STARTED
POWER SUPPLY
Protecting the environment
Please dispose of any unwanted dry batteries and rechargeable
batteries carefully. They should also be removed from the
instrument if it is to be scrapped. If facilities in your country exist
for collecting waste or for recycling, please make use of them
rather than throwing the batteries in the normal trash. You will
often be able to return used batteries to the place where you
purchase new ones. Any dry or rechargeable batteries that you
purchased from Viavi can be returned to one of our Service
Centers for disposal.
Operation from AC power
To fit one of the mains plug adapters:
JSee Fig. 1 and follow the instructions which are shown on the
packaging of the mains plug adapter.
Fig. 1 Fitting the mains plug adapter
To operate the OLP-39G/-39X from AC power:
1. Connect the USB-C connector power cord to the OLP-39G/-
39X.
2. Plug the mains plug adapter into the AC receptacle.
1 2
3 4

OLP-39G/-39X TruePON Tester 15
SWITCHING THE DEVICE ON/OFF
3 GETTING STARTED
Switching the device on/off
The OLP-39G/-39X has two battery power modes:
To switch the device on/off:
JPress [E] to switch the device on/off.
Selecting a power mode
IThe device is switched on.
1. Long press [MODE] to open the settings menu.
2. Use [] to select ECON.
3. Press [ ] to select power mode:
ON = ECON
OFF = PERM
4. Press [MODE] to close the menu.
Selecting a PON mode
IThe device is switched on.
JShort press [MODE] to toggle between PON and TruePON
mode.
Mode Icon Description
Permanent ON
(PERM)
The device is switched on
permanently.
Automatic OFF
(ECON)
The device switches off 20 minutes
after the last operation.
This function is only available when
the device is powered from
batteries.

16 OLP-39G/-39X TruePON Tester
4 DISPLAY OVERVIEW
STATUS BAR
4DISPLAY OVERVIEW

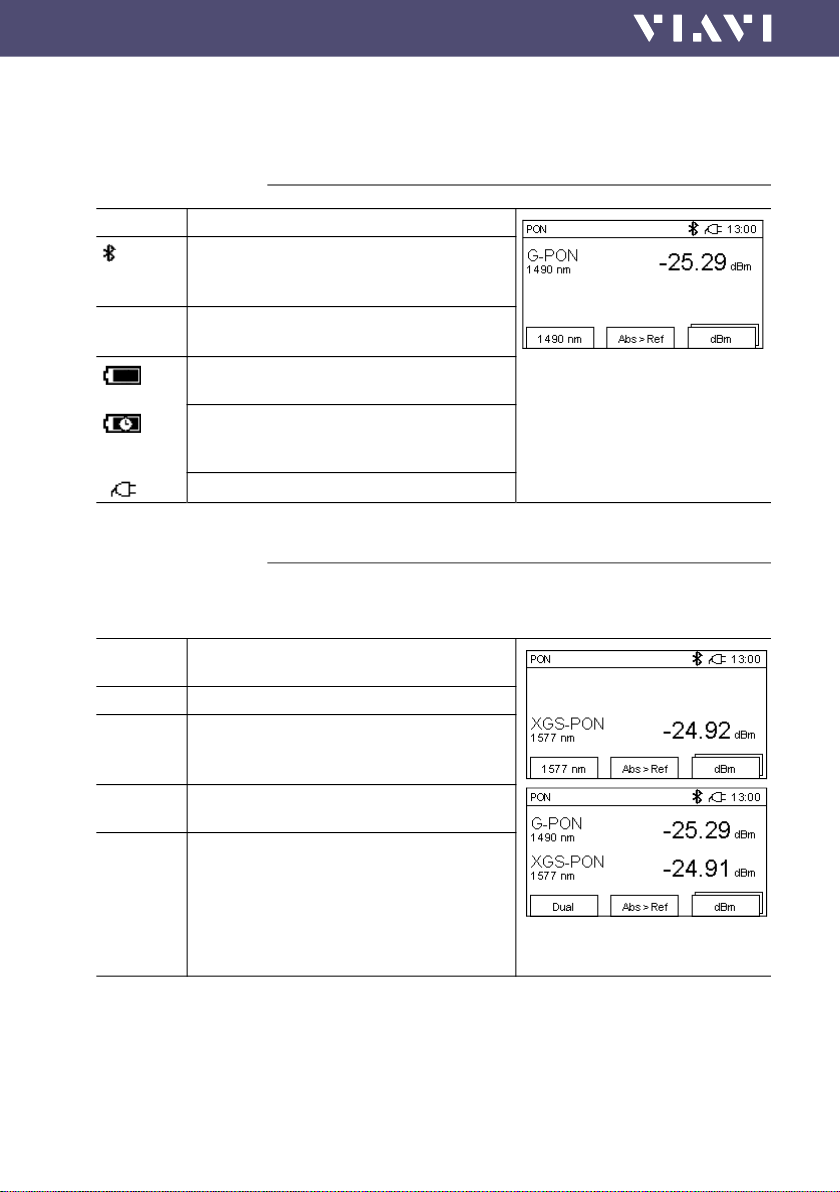

Status bar
PON mode
NOTE: XGS-PON and Dual mode are available in OLP-39X only.
PON Selected mode: PON, TruePON
Bluetooth® is active
Bluetooth connection allows for data transfer
via the MobileTech app (for future use).
7:15 Real Time Clock
Time can be changed via the settings menu.
Battery status in PERM power mode:
Device remains switched on.
Battery status in ECON power mode:
Device switches off 20 min. after last
operation.
The device is powered via USB
G-PON
XGS-PON
Display of selected mode and wavelength.
dBm Shows measurement results in dBm, dB or W.
Dual Shows selected mode
Press key to select mode:
1490 nm > 1577 nm > Dual >....
Abs>Ref Press key to set current measurement value as
new reference level.
dBm Short press key to select mode:
dBm/Watt > Loss > PF Abs > PF Loss >...
Long press key to toggle unit: dBm <> Watt
Fig. 2 XGS-PON (top),
Dual mode (bottom)

OLP-39G/-39X TruePON Tester 17
TRUEPON MODE
4 DISPLAY OVERVIEW
TruePON mode
NOTE: In this examples DUAL mode is selected.
XGS-PON and Dual mode are available in OLP-39X only.

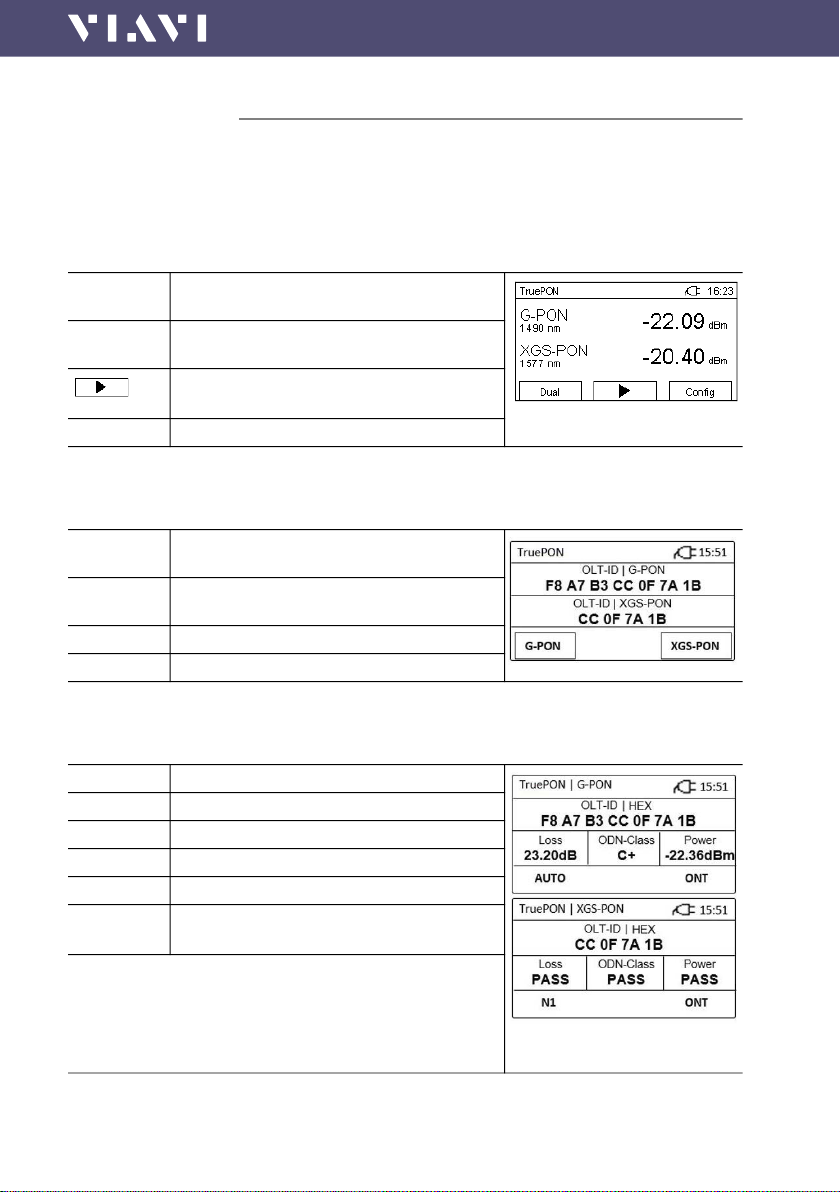

Home screen
Showing PON values before starting the OLT-ID detection
TruePON overview
Showing detected OLT-IDs after pressing the start button.
TruePON details
Showing details of detected OLT-IDs.
G-PON /
XGS-PON
Shows wavelength and power level of
G-PON and XGS-PON
Dual Press key to select operation mode:
Dual > G-PON > XGS-PON > Dual >...
Short press key to start measurement
Long press key to recall last results
Config Press key to change TruePON settings
OLT-ID |
G-PON
Shows OLT-ID of G-PON in ASCII code
OLT-ID |
XGS-PON
Shows OLT-ID of XGS-PON in HEX code
G-PON Press key to show G-PON details
XGS-PON Press key to show XGS-PON details
Header Selected PON type
OLT-ID OLT-ID in ASCII or HEX code
Loss Loss in dB or Pass/Fail
ODN-Class ODN class as detected or Pass/Fail
Power Power in dBm or Pass/Fail
Footer AUTO/N1: ODN-Class (Auto or as set)
ONT: Location as set
NOTE: In the Settings menu Pass/Fail can be individually
enabled or disabled for Loss, ODN-Class, and Power.
Fig. 3 P/F Off (top),
P/F ON (bottom)

18 OLP-39G/-39X TruePON Tester
5 PON MODE
SELECTING AN OPERATION MODE
5PON MODE
JShort press [MODE] to toggle between PON and TruePON
mode.
NOTE: XGS-PON and Dual mode are available in OLP-39X only.
Selecting an operation mode
The OLP-39G/-39X provides three operation modes with
following displays:
•G-PON: Gigabit Passive Optical Network measurement at
1490 nm
•XGS-PON: 10-Gigabit-Capable Symmetric Passive Optical
Network measurement at 1577 nm
•Dual: Display of G-PON and XGS-PON simultaneously
To select an operation mode:
JPress [] to select a mode.
Fig. 4 Operation modes

OLP-39G/-39X TruePON Tester 19
SELECTING A DISPLAY MODE
5 PON MODE
Selecting a display mode
The OLP-39G/-39X provides following display modes:
•dBm/Watt: Display of absolute power level
•Loss: Display of power level relative to a reference value
•PF Abs: Pass/Fail indication based on an absolute power
threshold
•PF Loss: Pass/Fail indication based on a relative power
threshold
To select a display mode:
JPress [] to toggle between the displays modes.
Absolute power level mode
The power level is displayed in dBm or Watts (nW, µW, mW).
JLong press [] to toggle dBm/Watts.
NOTE: The context sensitive field shows the selected unit.

20 OLP-39G/-39X TruePON Tester
5 PON MODE
LOSS MODE
Loss mode
In Loss mode the power level relative to a reference value is
displayed. The reference value can be set by defining the current
power level as the reference value [Abs>Ref].
JPress [] to display relative power level.
Setting the reference level
IAbsolute power level mode or Loss mode is selected.
JPress [Abs>Ref].
The current power level is set as the new reference level.
NOTE: The reference level can be stored for both wavelength
separately.
When Dual is selected, the power levels of both wavelengths are
set as reference level simultaneously.
